G0729 - 6" x 26" 1-1/2 HP Vertical Mill with Power Feed

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

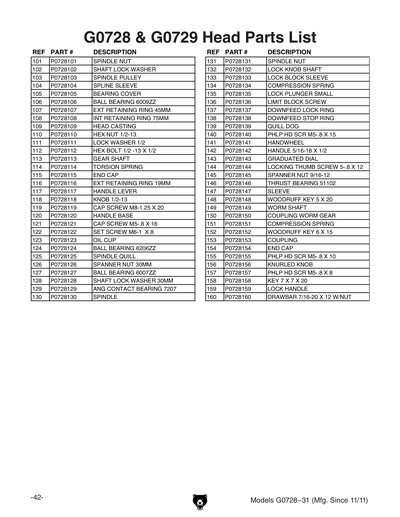

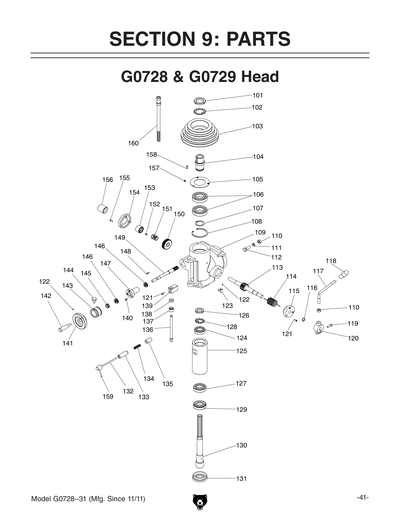

101 P0729101 SPINDLE NUT $15.00
View Item
102 P0729102 SHAFT LOCK WASHER $5.00
View Item
103 P0729103 SPINDLE PULLEY $121.25
View Item
104 P0729104 SPLINE SLEEVE $61.25
View Item
105 P0729105 BEARING COVER $5.00
View Item
106 P0729106 BALL BEARING 6009ZZ $15.00
View Item
107 P0729107 EXT RETAINING RING 45MM $1.00
View Item
108 P0729108 INT RETAINING RING 75MM $1.00
View Item
109 P0729109 HEAD CASTING $471.50
View Item
110 P0729110 HEX NUT 1/2-13 $1.00
View Item
111 P0729111 LOCK WASHER 1/2 $1.00
View Item
112 P0729112
HEX BOLT 1/2-13 X 1/2
Item is no longer available

P0729112 Replaced By PB49
N/A
View Item
113 P0729113
GEAR SHAFT
Item is no longer available

P0729113 Replaced By P0728113
N/A
View Item
114 P0729114 TORSION SPRING $4.25
View Item
115 P0729115 END CAP $33.75
View Item
116 P0729116 EXT RETAINING RING 19MM $1.00
View Item
117 P0729117 HANDLE LEVER $11.50
View Item
118 P0729118 KNOB 1/2-13 $2.75
View Item
119 P0729119 CAP SCREW M8-1.25 X 20 $1.25
View Item
120 P0729120 HANDLE BASE $34.50
View Item
121 P0729121 CAP SCREW M5-.8 X 16 $1.00
View Item
122 P0729122 SET SCREW M6-1 X 8 $1.00
View Item
123 P0729123 OIL CUP 1/8" NPT X 8MM X 24MM ELBOW $6.00
View Item
124 P0729124 BALL BEARING 6206ZZ $9.50
View Item
125 P0729125 SPINDLE QUILL $353.75
View Item
126 P0729126
SPANNER NUT 30MM
Item is no longer available

P0729126 Replaced By P0728126
N/A
View Item
127 P0729127 BALL BEARING 6007ZZ $5.25
View Item
128 P0729128
SHAFT LOCK WASHER 30MM
Item is no longer available

P0729128 Replaced By P0728128
N/A
View Item
129 P0729129 ANGULAR CONTACT BEARING 7207 $42.00
View Item
130 P0729130
SPINDLE
Item is no longer available

P0729130 Replaced By P0728130
N/A
View Item
131 P0729131 SPINDLE NUT $20.00
View Item
132 P0729132 LOCK KNOB SHAFT $17.50
View Item
133 P0729133 LOCK BLOCK SLEEVE $10.25
View Item
134 P0729134 COMPRESSION SPRING $1.00
View Item
135 P0729135
LOCK PLUNGER SMALL
Item is no longer available

P0729135 Replaced By P0728135
N/A
View Item
136 P0729136 LIMIT BLOCK SCREW $20.50
View Item
137 P0729137 DOWNFEED LOCK RING $6.50
View Item
138 P0729138 DOWNFEED STOP RING $6.50
View Item
139 P0729139 QUILL DOG $14.00
View Item
140 P0729140 PHLP HD SCR M5-.8 X 15 $1.00
View Item
141 P0729141 HANDWHEEL $43.50
View Item
142 P0729142 HANDLE 5/16-18 X 1/2 $3.00
View Item
143 P0729143 GRADUATED DIAL $28.00
View Item
144 P0729144 LOCKING THUMB SCREW 5-.8 X 12 $1.75
View Item
145 P0729145
SPANNER NUT 9/16-12
Item is no longer available

P0729145 Replaced By P0728145
N/A
View Item
146 P0729146 THRUST BEARING 51102 $6.50
View Item
147 P0729147 SLEEVE $37.50
View Item
148 P0729148 KEY 5 X 5 X 20 $2.50
View Item
149 P0729149 WORM SHAFT $42.00
View Item
150 P0729150 COUPLING WORM GEAR $50.25
View Item
151 P0729151 COMPRESSION SPRING $3.00
View Item
152 P0729152 KEY 6 X 6 X 15 $2.50
View Item
153 P0729153 COUPLING $27.00
View Item
154 P0729154
END CAP
Item is no longer available

P0729154 Replaced By P0728154
N/A
View Item
155 P0729155 PHLP HD SCR M5-.8 X 10 $1.00
View Item
156 P0729156 KNURLED KNOB $16.50
View Item
157 P0729157 PHLP HD SCR M5-.8 X 8 $1.00
View Item
158 P0729158 KEY 7 X 7 X 20 $3.50
View Item
159 P0729159 LOCK HANDLE $7.00
View Item
160 P0729160 DRAWBAR 7/16-20 X 12 W/NUT $13.25
View Item

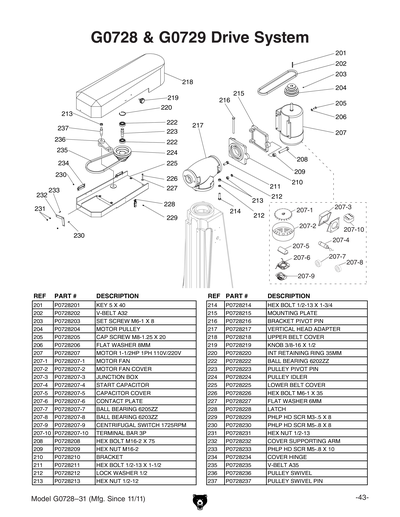

201 P0729201 KEY 5 X 5 X 40 $2.25
View Item
202 P0729202 V-BELT A32 $12.25
View Item
203 P0729203 SET SCREW M6-1 X 8 $1.00
View Item
204 P0729204 MOTOR PULLEY $55.25
View Item
205 P0729205 CAP SCREW M8-1.25 X 20 $1.25
View Item
206 P0729206 FLAT WASHER 8MM $1.00
View Item
207 P0729207 MOTOR 1.5HP 110V/220V 1-PH $289.00
View Item
207-1 P0729207-1
MOTOR FAN
Item is no longer available

P0729207-1 Replaced By P0728207-1
N/A
View Item
207-10 P0729207-10
TERMINAL BAR 3P
Item is no longer available

P0729207-10 Replaced By P0728207-10
N/A
View Item
207-2 P0729207-2
MOTOR FAN COVER
Item is no longer available

P0729207-2 Replaced By P0728207-2
N/A
View Item
207-3 P0729207-3 JUNCTION BOX $10.75
View Item
207-4 P0729207-4
S CAPACITOR 400M 125V 1-3/4 X 3-9/16
Item is no longer available

P0729207-4 Replaced By P0728207-4
N/A
View Item
207-5 P0729207-5
CAPACITOR COVER
Item is no longer available

P0729207-5 Replaced By P0728207-5
N/A
View Item
207-6 P0729207-6
CONTACT PLATE
Item is no longer available

P0729207-6 Replaced By P0728207-6
N/A
View Item
207-7 P0729207-7 BALL BEARING 6205ZZ $3.25
View Item
207-8 P0729207-8 BALL BEARING 6203ZZ $9.50
View Item
207-9 P0729207-9
CENTRIFUGAL SWITCH 1725RPM
Item is no longer available

P0729207-9 Replaced By P0728207-9
N/A
View Item
208 P0729208 HEX BOLT M16-2 X 75 $3.00
View Item
209 P0729209 HEX NUT M16-2 $1.00
View Item
210 P0729210 BRACKET $88.75
View Item

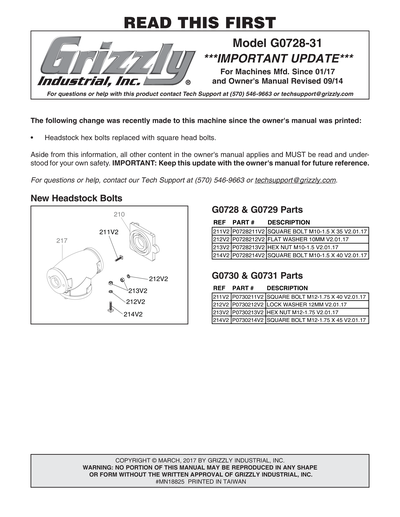

211 P0729211
*SEE EXTENDED DESCRIPTION
Item is no longer available
N/A
211V2 P0729211V2 SQUARE BOLT M10-1.5 X 35 V2.01.17 $5.25
View Item
212 P0729212
*SEE EXTENDED DESCRIPTION
Item is no longer available
N/A
212V2 P0729212V2 FLAT WASHER 10MM $1.00
View Item
213 P0729213
*SEE EXTENDED DESCRIPTION
Item is no longer available
N/A
213V2 P0729213V2 HEX NUT M10-1.5 $1.00
View Item
214 P0729214
*SEE EXTENDED DESCRIPTION
Item is no longer available
N/A
214V2 P0729214V2 SQUARE BOLT M10-1.5 X 40 V2.01.17 $5.25
View Item
215 P0729215 MOUNTING PLATE $56.00
View Item
216 P0729216
BRACKET PIVOT PIN
Item is no longer available

P0729216 Replaced By P0728216
N/A
View Item
217 P0729217
VERTICAL HEAD ADAPTER
Item is no longer available

P0729217 Replaced By P0728217
N/A
View Item
218 P0729218 UPPER BELT COVER $179.00
View Item
219 P0729219 KNOB 3/8-16 X 1/2 $1.50
View Item
220 P0729220 INT RETAINING RING 35MM $1.50
View Item
222 P0729222 BALL BEARING 6202ZZ $5.50
View Item
223 P0729223
PULLEY PIVOT PIN
Item is no longer available

P0729223 Replaced By P0728223
N/A
View Item
224 P0729224 PULLEY IDLER $54.25
View Item
225 P0729225 LOWER BELT COVER $143.75
View Item
226 P0729226 HEX BOLT M6-1 X 35 $1.00
View Item
227 P0729227 FLAT WASHER 6MM $1.00
View Item
228 P0729228 LATCH $2.75
View Item
229 P0729229 PHLP HD SCR M3-.5 X 8 $1.00
View Item
230 P0729230 PHLP HD SCR M5-.8 X 8 $1.00
View Item
232 P0729232 COVER SUPPORTING ARM $13.00
View Item
233 P0729233 PHLP HD SCR M5-.8 X 10 $1.00
View Item
234 P0729234 COVER HINGE $2.25
View Item
235 P0729235 V-BELT A35 $10.25
View Item
236 P0729236
PULLEY SWIVEL
Item is no longer available

P0729236 Replaced By P0728236
N/A
View Item
237 P0729237 PULLEY SWIVEL PIN $10.75
View Item

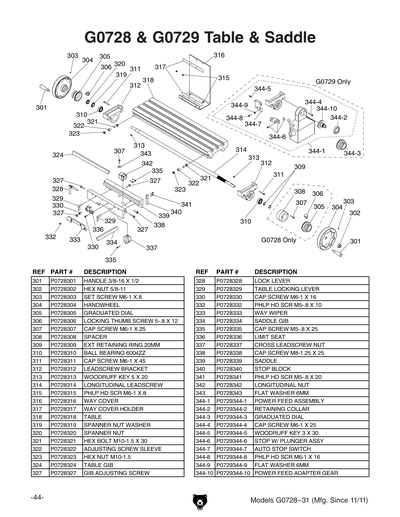

301 P0729301 HANDLE 3/8-16 X 1/2 $16.50
View Item
302 P0729302 HEX NUT 5/8-11 $1.00
View Item
303 P0729303 SET SCREW M6-1 X 8 $1.00
View Item
304 P0729304 HANDWHEEL $73.75
View Item
305 P0729305 GRADUATED DIAL $45.75
View Item
306 P0729306 LOCKING THUMB SCREW 5-.8 X 12 $2.00
View Item
307 P0729307 CAP SCREW M6-1 X 25 $1.00
View Item
308 P0729308
SPACER
Item is no longer available

P0729308 Replaced By P0728308
N/A
View Item
309 P0729309 EXT RETAINING RING 20MM $1.00
View Item
310 P0729310 BALL BEARING 6004ZZ $4.25
View Item
311 P0729311 CAP SCREW M6-1 X 45 $1.00
View Item
312 P0729312 LEADSCREW BRACKET $55.50
View Item
313 P0729313 KEY 5 X 5 X 20 $2.50
View Item
314 P0729314
LONGITUDINAL LEADSCREW
Item is no longer available

P0729314 Replaced By P0728314
N/A
View Item
315 P0729315 PHLP HD SCR M6-1 X 8 $1.25
View Item
316 P0729316 WAY COVER $24.75
View Item
317 P0729317 WAY COVER HOLDER $4.75
View Item
318 P0729318
TABLE
Item is no longer available

P0729318 Replaced By P0728318
N/A
View Item
319 P0729319
SPANNER NUT WASHER
Item is no longer available

P0729319 Replaced By P0728319
N/A
View Item
320 P0729320 SPANNER NUT $8.00
View Item
321 P0729321 HEX BOLT M10-1.5 X 30 $1.00
View Item
322 P0729322
ADJUSTING SCREW SLEEVE
Item is no longer available

P0729322 Replaced By P0728322
N/A
View Item
323 P0729323 HEX NUT M10-1.5 $1.00
View Item
324 P0729324 TABLE GIB $34.25
View Item
327 P0729327 GIB ADJUSTING SCREW $4.25
View Item
328 P0729328
LOCK LEVER
Item is no longer available

P0729328 Replaced By P0728328
N/A
View Item
329 P0729329 TABLE LOCKING LEVER $3.75
View Item
330 P0729330 CAP SCREW M6-1 X 16 $1.00
View Item
331 P0729331 HEX NUT M5-.8 $1.00
View Item
332 P0729332 PHLP HD SCR M5-.8 X 10 $1.00
View Item
333 P0729333 WAY WIPER $9.00
View Item
334 P0729334 SADDLE GIB $21.50
View Item
335 P0729335 CAP SCREW M5-.8 X 25 $1.00
View Item
336 P0729336
LIMIT SEAT
Item is no longer available

P0729336 Replaced By P0728336
N/A
View Item
337 P0729337 CROSS LEADSCREW NUT $60.00
View Item
338 P0729338 CAP SCREW M8-1.25 X 25 $1.00
View Item
339 P0729339
SADDLE
Item is no longer available

P0729339 Replaced By P0728339
N/A
View Item
340 P0729340
STOP BLOCK
Item is no longer available

P0729340 Replaced By P0728340
N/A
View Item
341 P0729341 PHLP HD SCR M5-.8 X 20 $1.00
View Item
342 P0729342 LONGITUDINAL NUT $61.75
View Item
343 P0729343 FLAT WASHER 6MM $1.00
View Item
344 P0729344 POWER FEED ASSY W/GRADUATED DIAL $539.50
Add to Cart
344-1 P0729344-1 POWER FEED ASSEMBLY $500.00
Add to Cart
344-10 P0729344-10
POWER FEED ADAPTER GEAR
N/A
344-2 P0729344-2 RETAINING COLLAR $58.50
Add to Cart
344-3 P0729344-3 GRADUATED DIAL $45.75
View Item
344-4 P0729344-4 CAP SCREW M6-1 X 25 $1.00
View Item
344-5 P0729344-5 KEY 3 X 3 X 30 $2.00
Add to Cart
344-6 P0729344-6
STOP W/ PLUNGER ASSY
N/A
344-7 P0729344-7
AUTO STOP SWITCH
N/A
344-8 P0729344-8 PHLP HD SCR M6-1 X 16 $1.00
View Item
344-9 P0729344-9 FLAT WASHER 6MM $1.00
View Item

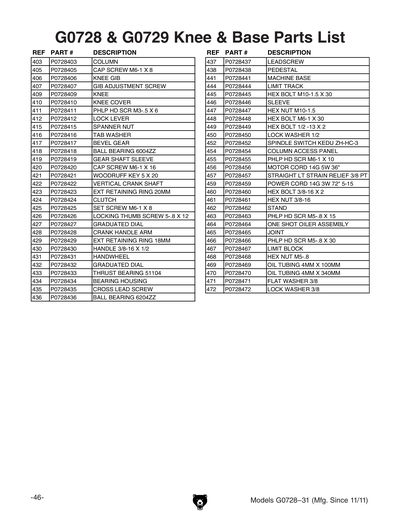

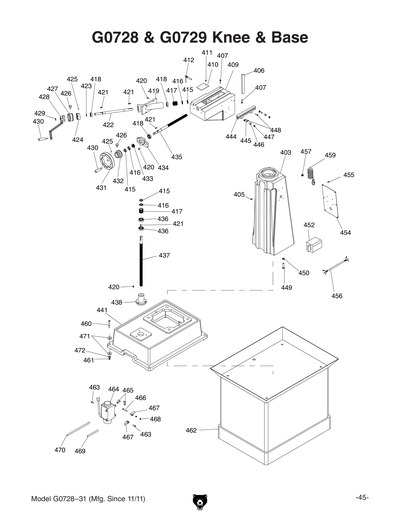

403 P0729403
COLUMN
Item is no longer available

P0729403 Replaced By P0728403
N/A
View Item
405 P0729405 CAP SCREW M6-1 X 8 $1.00
View Item
406 P0729406
KNEE GIB
Item is no longer available

P0729406 Replaced By P0728406
N/A
View Item
407 P0729407 GIB ADJUSTMENT SCREW $4.75
View Item
409 P0729409 KNEE $612.25
View Item
410 P0729410
KNEE COVER
Item is no longer available

P0729410 Replaced By P0728410
N/A
View Item
411 P0729411 PHLP HD SCR M3-.5 X 6 $1.00
View Item
412 P0729412
LOCK LEVER
Item is no longer available

P0729412 Replaced By P0728412
N/A
View Item
415 P0729415
SPANNER NUT
Item is no longer available

P0729415 Replaced By P0728415
N/A
View Item
416 P0729416
TAB WASHER
Item is no longer available

P0729416 Replaced By P0728416
N/A
View Item
417 P0729417
BEVEL GEAR
Item is no longer available

P0729417 Replaced By P0728417
N/A
View Item
418 P0729418 BALL BEARING 6004ZZ $4.25
View Item
419 P0729419
GEAR SHAFT SLEEVE
Item is no longer available

P0729419 Replaced By P0728419
N/A
View Item
420 P0729420 CAP SCREW M6-1 X 16 $1.00
View Item
421 P0729421 KEY 5 X 5 X 20 $2.50
View Item
422 P0729422
VERTICAL CRANK SHAFT
Item is no longer available

P0729422 Replaced By P0728422
N/A
View Item
423 P0729423 EXT RETAINING RING 20MM $1.00
View Item
424 P0729424
CLUTCH
Item is no longer available

P0729424 Replaced By P0728424
N/A
View Item
425 P0729425 SET SCREW M6-1 X 8 $1.00
View Item
426 P0729426 LOCKING THUMB SCREW 5-.8 X 12 $1.75
View Item
427 P0729427 GRADUATED DIAL $40.50
View Item
428 P0729428 CRANK HANDLE ARM $43.75
View Item
429 P0729429 EXT RETAINING RING 18MM $1.00
View Item
430 P0729430 HANDLE 3/8-16 X 1/2 $16.50
View Item
431 P0729431 HANDWHEEL $48.75
View Item
432 P0729432 GRADUATED DIAL $45.75
View Item
433 P0729433 THRUST BEARING 51104 $6.75
View Item
434 P0729434
BEARING HOUSING
Item is no longer available

P0729434 Replaced By P0728434
N/A
View Item
435 P0729435
CROSS LEAD SCREW
Item is no longer available

P0729435 Replaced By P0728435
N/A
View Item
436 P0729436 BALL BEARING 6204ZZ $9.50
View Item
437 P0729437
LEADSCREW
Item is no longer available

P0729437 Replaced By P0728437
N/A
View Item
438 P0729438
PEDESTAL
Item is no longer available

P0729438 Replaced By P0728438
N/A
View Item
441 P0729441
MACHINE BASE
Item is no longer available

P0729441 Replaced By P0728441
N/A
View Item
444 P0729444
LIMIT TRACK
Item is no longer available

P0729444 Replaced By P0728444
N/A
View Item
445 P0729445 HEX BOLT M10-1.5 X 30 $1.00
View Item
446 P0729446
SLEEVE
Item is no longer available

P0729446 Replaced By P0728446
N/A
View Item
447 P0729447 HEX NUT M10-1.5 $1.00
View Item
448 P0729448 HEX BOLT M6-1 X 30 $1.00
View Item
449 P0729449 HEX BOLT 1/2-13 X 2 $1.00
View Item
450 P0729450 LOCK WASHER 1/2 $1.00
View Item
451 P0729451
*DISCD*PIN 10 X 20
Item is no longer available

P0729451 Replaced By P0728451
N/A
View Item
452 P0729452 SPINDLE SWITCH KEDU ZH-HC-3 $61.50
View Item
454 P0729454
COLUMN ACCESS PANEL
Item is no longer available

P0729454 Replaced By P0728454
N/A
View Item
455 P0729455 PHLP HD SCR M6-1 X 10 $1.00
View Item
456 P0729456
MOTOR CORD 14G 5W 36"
Item is no longer available

P0729456 Replaced By P0728456
N/A
View Item
457 P0729457
STRAIN RELIEF TYPE-10 ST
Item is no longer available

P0729457 Replaced By P0728457
N/A
View Item
459 P0729459
POWER CORD 14G 3W 72" 5-15
Item is no longer available

P0729459 Replaced By P0728459
N/A
View Item
460 P0729460 HEX BOLT 3/8-16 X 2 $1.00
View Item
461 P0729461 HEX NUT 3/8-16 $1.25
View Item
462 P0729462
STAND
Item is no longer available

P0729462 Replaced By P0728462
N/A
View Item
463 P0729463 PHLP HD SCR M5-.8 X 15 $1.00
View Item
464 P0729464
ONE SHOT OILER ASSEMBLY
Item is no longer available

P0729464 Replaced By P0728464
N/A
View Item
465 P0729465 JOINT $5.25
View Item
466 P0729466 PHLP HD SCR M5-.8 X 30 $1.00
View Item
467 P0729467 LIMIT BLOCK $4.50
View Item
468 P0729468 HEX NUT M5-.8 $1.00
View Item
469 P0729469
OIL TUBING 4MM X 100MM
Item is no longer available

P0729469 Replaced By P0728469
N/A
View Item
470 P0729470 OIL TUBING 4MM X 340MM $5.00
View Item
471 P0729471 FLAT WASHER 3/8 $1.00
View Item
472 P0729472 LOCK WASHER 3/8 $1.00
View Item

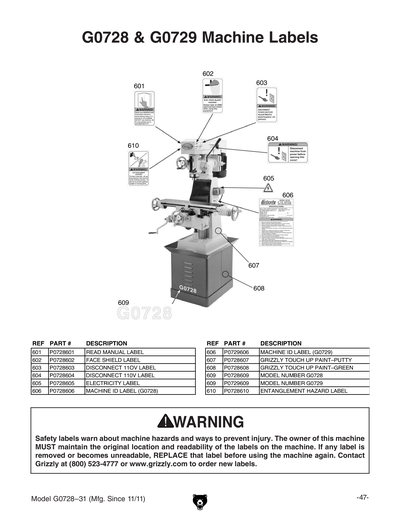

601 P0729601 READ MANUAL 1.5W X 2.5H $2.50
View Item
602 P0729602 FACE SHIELD 1.5W X 2.5H $2.50
View Item
603 P0729603 DISCONNECT 110V 1.5W X 2.5H $2.50
View Item
604 P0729604 DISCONNECT 110V 2.8W X 1.5H $2.50
View Item
605 P0729605 ELECTRICITY 0.7W X 0.6H $2.50
View Item
606 P0729606
MACHINE ID LABEL
N/A
607 P0729607 GREY PUTTY REF G0504 $5.75
View Item
608 P0729608 N/S GRIZZLY GREEN G1023S $6.50
View Item
609 P0729609
MODEL NUMBER LABEL
N/A
610 P0729610 ENTANGLEMENT HAZARD 1.5W X 2.5H $2.50
View Item
611 P0729611
MANUAL G0728 MFG-9.11 V1.12.11
Item is no longer available

P0729611 Replaced By P0728611
N/A
View Item
612 P0729612 SPINDLE RPM CHART LABEL $3.75
Add to Cart
MAN P0729MAN
MANUAL G0728-31 MFD-11/11+ V1.05.13
Item is no longer available

P0729MAN Replaced By P0728MAN
N/A
View Item
Ref # Part # Description Price Qty
