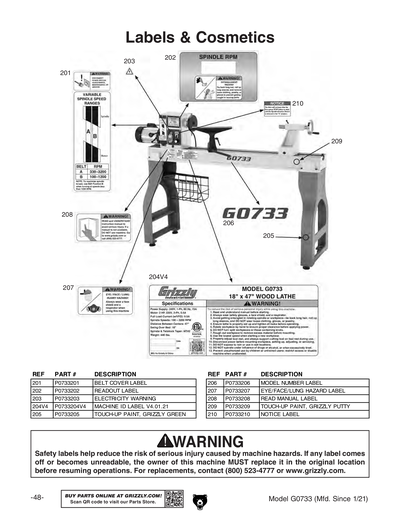

Parts for G0733 - 18" x 47" Heavy-Duty Wood Lathe

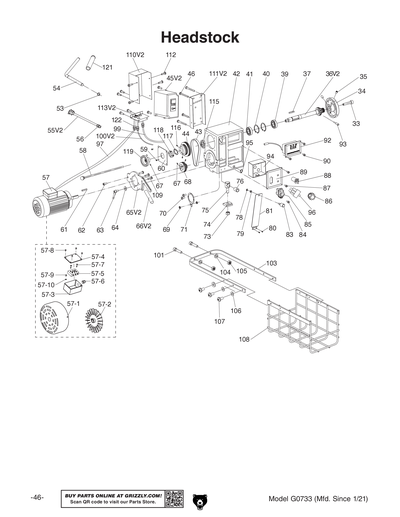

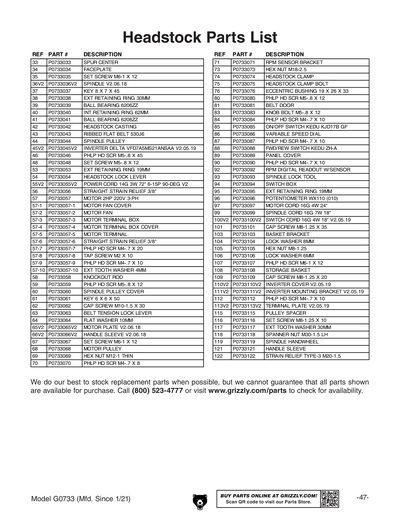

Part Diagram for G0733

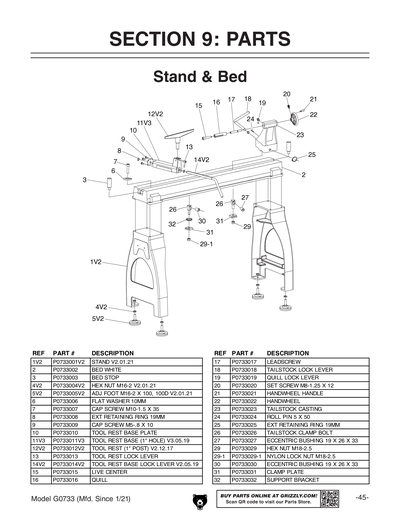

Part Diagram for G0733
Part Diagram for G0733
Part Diagram for G0733
Part Diagram for G0733
Part Diagram for G0733
Part Diagram for G0733
Part Diagram for G0733

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
STAND SET
Price
N/A
2
BED WHITE
Price
$786.70
3
BED STOP
Price
N/A
4
HEX NUT M10-1.25
Price
N/A
5
FOOT
Price
N/A
6
FLAT WASHER 10MM
Price
N/A
7
CAP SCREW M10-1.5 X 35
Price
N/A
8
EXT RETAINING RING 19MM
Price
N/A
9
CAP SCREW M5-.8 X 10
Price
N/A
10
TOOL REST BASE PLATE
Price
N/A
11
*DISCD*TOOL REST BASE
Price
N/A
11V2
TOOL REST BASE (1" HOLE) V2.12.17
Price
$90.95
11V3
TOOL REST BASE (1" HOLE) V3.05.19
Price
$108.60
12
TOOL REST
Price
N/A
12V2
TOOL REST (1" POST) V2.12.17
Price
$80.50
13
TOOL REST LOCK LEVER
Price
N/A
14
TOOL REST BASE LOCK LEVER V2.05.19
Price
N/A
14V2
TOOL REST BASE LOCK LEVER V2.05.19
Price
$32.80
15
LIVE CENTER
Price
$30.20
16
QUILL
Price
N/A
17
LEAD SCREW
Price
N/A
18
TAILSTOCK LOCK LEVER
Price
N/A
19
QUILL LOCK LEVER
Price
$6.10
20
SET SCREW M8-1.25 X 12
Price
N/A
21
HANDWHEEL HANDLE
Price
N/A
22
HANDWHEEL
Price
N/A
23
TAILSTOCK CASTING (WHITE)
Price
$261.20
24
ROLL PIN 5 X 50
Price
N/A
25
EXT RETAINING RING 19MM
Price
N/A
26
TOOL REST CLAMP BOLT M18-2.5 X 44
Price
N/A
27
ECCENTRIC BUSHING 19 X 26 X 33W
Price
N/A
29
HEX NUT M18-2.5
Price
N/A
29-1
NYLON LOCK NUT M18-2.5
Price
$1.90
30
ECCENTRIC BUSHING 19 X 26 X 33W
Price
N/A
31
CLAMP PLATE
Price
N/A
32
SLIDE BUSHING
Price
$5.10
33
SPUR CENTER
Price
N/A
34
FACEPLATE
Price
N/A
35
SET SCREW M6-1 X 12
Price
N/A
36
SPINDLE
Price
N/A
36V2
SPINDLE V2.06.18
Price
$146.65
37
KEY 8 X 7 X 45
Price
N/A
38
EXT RETAINING RING 30MM
Price
N/A
39
BALL BEARING 6206ZZ
Price
N/A
40
INT RETAINING RING 62MM
Price
N/A
41
BALL BEARING 6206ZZ
Price
N/A
42
HEADSTOCK CASTING (WHITE)
Price
$387.10
42A
COMPLETE HEADSTOCK ASSEMBLY
Price
$2,118.75
43
RIBBED FLAT BELT 530J6
Price
N/A
44
SPINDLE PULLEY
Price
N/A
44-1
SPINDLE PULLEY MAGNETS - SET OF 3
Price
N/A
45
INVERTER DELTA VFD015M21A
Price
$1,500.75
45V2
INVERTER DELTA VFD7A5MS21ANSAA V2.05.19
Price
$1,392.95
46
PHLP HD SCR M5-.8 X 45
Price
N/A
47
SPINDLE COVER
Price
N/A
48
SET SCREW M5-.8 X 12
Price
N/A
49
SPINDLE ACCESS COVER
Price
N/A
53
EXT RETAINING RING 19MM
Price
N/A
54
HEADSTOCK LOCK LEVER
Price
N/A
55
POWER CORD 14G 3W 72" 6-15P 90-DEG V2
Price
N/A
55V2
POWER CORD 14G 3W 72" 6-15P 90-DEG V2
Price
N/A
56
STRAIN RELIEF M20
Price
N/A
57
MOTOR 2HP 220V 3-PH
Price
$660.20
57-1
MOTOR FAN COVER
Price
$14.75
57-10
EXT TOOTH WASHER 4MM
Price
N/A
57-2
MOTOR FAN
Price
$7.60
57-3
MOTOR TERMINAL BOX
Price
$5.45
57-4
MOTOR TERMINAL BOX COVER
Price
$2.90
57-5
MOTOR TERMINAL
Price
$4.70
57-6
STRAIN RELIEF M20
Price
N/A
57-7
PHLP HD SCR M4-.7 X 20
Price
N/A
57-8
TAP SCREW M2.9 X 10
Price
N/A
57-9
PHLP HD SCR M4-.7 X 10
Price
N/A
57A
MOTOR 2HP 220V 3PH W/INVERTER
Price
$2,609.45
58
KNOCKOUT ROD
Price
N/A
59
PHLP HD SCR M5-.8 X 12
Price
N/A
60
SPINDLE PULLEY COVER
Price
N/A
61
KEY 6 X 6 X 50
Price
N/A
62
CAP SCREW M10-1.5 X 30
Price
N/A
63
BELT TENSION LOCK LEVER
Price
N/A
64
FLAT WASHER 10MM
Price
N/A
65
MOTOR PLATE
Price
N/A
65V2
MOTOR PLATE V2.06.18
Price
$20.15
66
KNOB M10-1.5
Price
N/A
66V2
HANDLE SLEEVE V2.06.18
Price
$2.90
67
SET SCREW M6-1 X 12
Price
N/A
68
MOTOR PULLEY
Price
N/A
69
THIN HEX NUT M12-1
Price
N/A
70
PHLP HD SCR M4-.7 X 8
Price
N/A
71
RPM SENSOR BRACKET
Price
N/A
73
HEX NUT M18-2.5
Price
N/A
74
HEADSTOCK CLAMP
Price
N/A
75
TOOL REST CLAMP BOLT M18-2.5 X 44
Price
N/A
76
ECCENTRIC BUSHING 19 X 26 X 33W
Price
N/A
80
PHLP HD SCR M5-.8 X 12
Price
N/A
81
BELT DOOR
Price
N/A
83
KNOB BOLT M5-.8 X 12
Price
$1.90
84
PHLP HD SCR M4-.7 X 10
Price
N/A
85
ON/OFF SWITCH
Price
N/A
86
VARIABLE SPEED DIAL
Price
N/A
87
PHLP HD SCR M4-.7 X 10
Price
N/A
88
FWD/REV SWITCH KEDU EN61058
Price
N/A
89
PANEL COVER
Price
N/A
90
PHLP HD SCR M4-.7 X 10
Price
N/A
92
RPM DIGITAL READOUT W/SENSOR
Price
$85.95
93
SPINDLE LOCK TOOL
Price
N/A
94
SWITCH BOX
Price
N/A
95
EXT RETAINING RING 19MM
Price
N/A
96
POTENTIOMETER WX1 10 010 10K
Price
$5.15
97
MOTOR CORD 10AWG X 4C X 24"L
Price
N/A
99
DISPLAY CORD 10AWG X 10 C 18"L
Price
N/A
100
SWITCH CORD 16G 4W 18" V2.05.19
Price
N/A
100V2
SWITCH CORD 16G 4W 18" V2.05.19
Price
$6.90
101
CAP SCREW M8-1.25 X 35
Price
N/A
103
BASKET BRACKET
Price
N/A
104
LOCK WASHER 8MM
Price
N/A
105
HEX NUT M8-1.25
Price
N/A
106
LOCK WASHER 6MM
Price
N/A
107
PHLP HD SCR M6-1 X 12
Price
N/A
108
STORAGE BASKET
Price
N/A
109
CAP SCREW M8-1.25 X 20
Price
N/A
110
INVERTER COVER V1
Price
$33.10
110V2
INVERTER COVER V2.05.19
Price
$33.10
111
INVERTER MOUNTING BRACKET V1
Price
$19.85
111V2
INVERTER MOUNTING BRACKET V2.05.19
Price
$19.85
112
PHLP HD SCR M4-.7 X 10
Price
N/A
113
TERMINAL PLATE V1
Price
$7.60
113V2
TERMINAL PLATE V2.05.19
Price
$7.60
115
PULLEY SPACER
Price
$10.95
116
SET SCREW M8-1.25 X 10
Price
N/A
117
EXT TOOTH WASHER 30MM
Price
N/A
118
SPANNER NUT M30-1.5 LH
Price
$2.05
119
SPINDLE HANDWHEEL
Price
$35.65
121
HANDLE SLEEVE V2.06.18
Price
N/A
122
STRAIN RELIEF TYPE-3 M20-1.5
Price
$1.90
201
BELT COVER LABEL
Price
N/A
202
READOUT LABEL
Price
N/A
203
ELECTRICITY 0.5W X 0.4H
Price
N/A
204
MACHINE ID LABEL
Price
$16.40
204V2
MACHINE ID LABEL V2.12.17
Price
$16.40
204V3
MACHINE ID LABEL V3.11.19
Price
$16.40
205
N/S GRIZZLY GREEN G1023S
Price
N/A
206
MODEL NUMBER LABEL
Price
$3.95
207
FACE SHIELD/RESPIRATOR 2.8W X 1.5H
Price
N/A
208
READ MANUAL 2.8W X 1.5H
Price
N/A
209
GREY PUTTY REF G0504
Price
N/A
210
NOTICE LABEL
Price
$2.50
MAN
MANUAL G0733 MFD-10.11-10.17 V1.10.11
Price
$21.95
MANV2
MANUAL G0733 MFD-11.17-05.18 V2.02.18
Price
$18.75
MANV3
MANUAL G0733 MFD-06.18-04.19 V3.08.18
Price
$18.75
MANV4
MANUAL G0733 MFD-05.19-10.19 V4.05.19
Price
$18.50
MANV5
MANUAL G0733 MFD-11.19-12.20 V5.11.19
Price
$18.50
