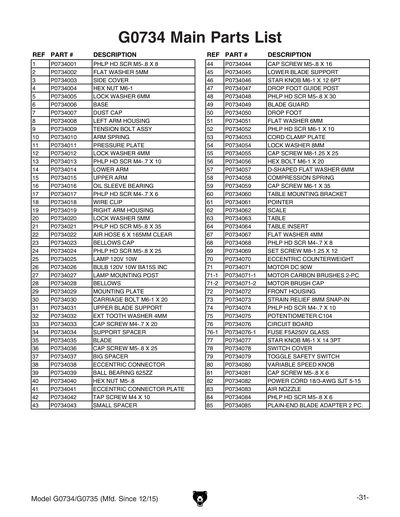

Parts for G0734 - 16" Scroll Saw

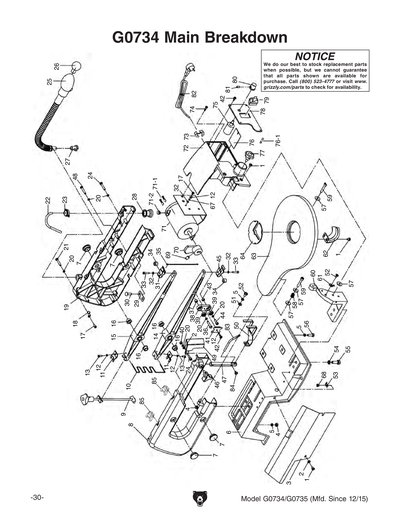

Part Diagram for G0734
Part Diagram for G0734
Part Diagram for G0734
Part Diagram for G0734
Part Diagram for G0734
Part Diagram for G0734

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
PHLP HD SCR M5-.8 X 8
Price
N/A
2
FLAT WASHER 5MM
Price
N/A
3
Price
$6.90
4
HEX NUT M6-1
Price
N/A
5
LOCK WASHER 6MM
Price
N/A
6
BASE
Item is no longer available
Price
N/A
7
Price
$1.90
8
LEFT ARM HOUSING
Item is no longer available
Price
N/A
9
Price
$10.10
9-1
BLADE TENSION BODY
Item is no longer available
Price
N/A
9-2
THREADED PLATE
Item is no longer available
Price
N/A
9-3
NON-THREADED PLATE
Item is no longer available
Price
N/A
10
Price
$1.90
11
Price
$1.49
12
LOCK WASHER 4MM
Price
N/A
13
PHLP HD SCR M4-.7 X 10
Price
N/A
14
LOWER ARM
Item is no longer available
Price
N/A
15
UPPER ARM
Item is no longer available
Price
N/A
16
Price
$1.90
17
PHLP HD SCR M4-.7 X 6
Price
N/A
18
WIRE CLIP
Item is no longer available
Price
N/A
19
RIGHT ARM HOUSING
Item is no longer available
Price
N/A
20
LOCK WASHER 5MM
Price
N/A
21
PHLP HD SCR M5-.8 X 35
Price
N/A
22
AIR HOSE 6 X 165MM CLEAR
Price
$1.90
23
Price
$1.90
24
PHLP HD SCR M5-.8 X 25
Price
N/A
25
Price
$9.00
26
BULB 120V 10W BA15S INC
Price
$2.60
27
Price
$2.20
28
Price
$1.90
29
MOUNTING PLATE
Item is no longer available
Price
N/A
30
CARRIAGE BOLT M6-1 X 20
Price
N/A
31
Price
$1.90
32
EXT TOOTH WASHER 4MM
Price
N/A
33
CAP SCREW M4-.7 X 20
Price
N/A
34
Price
$1.90
35
BLADE
Item is no longer available
Price
N/A
36
CAP SCREW M5-.8 X 25
Price
N/A
37
Price
$1.90
38
Price
$1.90
39
Bearing - 16mm x 5mm
Price
N/A
40
HEX NUT M5-.8
Price
N/A
41
ECCENTRIC CONNECTOR PLATE
Price
$1.90
42
TAP SCREW M4 X 10
Price
N/A
43
Price
$1.90
44
CAP SCREW M5-.8 X 16
Price
N/A
45
Price
$1.90
46
STAR KNOB M6-1 X 12 6PT
Item is no longer available
Price
N/A
47
DROP FOOT GUIDE POST
Item is no longer available
Price
N/A
48
PHLP HD SCR M5-.8 X 30
Price
N/A
49
Price
$5.75
50
Price
$2.20
51
FLAT WASHER 6MM
Price
N/A
52
PHLP HD SCR M6-1 X 10
Price
N/A
53
CORD CLAMP PLATE
Item is no longer available
Price
N/A
54
LOCK WASHER 8MM
Price
N/A
55
CAP SCREW M8-1.25 X 25
Price
N/A
56
HEX BOLT M6-1 X 20
Price
N/A
57
CLIPPED FLAT WASHER 6MM PLASTIC
Item is no longer available
Price
N/A
58
COMPRESSION SPRING
Item is no longer available
Price
N/A
59
CAP SCREW M6-1 X 35
Price
N/A
60
TABLE MOUNTING BRACKET
Item is no longer available
Price
N/A
61
POINTER
Item is no longer available
Price
N/A
62
SCALE
Item is no longer available
Price
N/A
63
Price
$28.10
64
Price
$6.90
67
FLAT WASHER 4MM
Price
N/A
68
PHLP HD SCR M4-.7 X 8
Price
N/A
69
SET SCREW M8-1.25 X 12
Price
N/A
70
ECCENTRIC COUNTERWEIGHT
Price
$3.25
71
Price
$60.40
71-1
CARBON BRUSH (SET OF 2)
Price
$4.95
71-2
MOTOR BRUSH CAP
Item is no longer available
Price
N/A
72
FRONT HOUSING
Item is no longer available
Price
N/A
73
STRAIN RELIEF 8MM SNAP-IN
Item is no longer available
Price
N/A
74
PHLP HD SCR M4-.7 X 10
Price
N/A
75
Price
$2.90
76
Price
$25.90
76-1
Price
$1.90
77
STAR KNOB M6-1 X 14 3PT
Item is no longer available
Price
N/A
78
SWITCH COVER
Item is no longer available
Price
N/A
79
Toggle Safety Switch
Price
N/A
80
Price
$1.49
81
CAP SCREW M5-.8 X 6
Price
N/A
82
POWER CORD 18/3-AWG SJT 5-15
Item is no longer available
Price
N/A
83
AIR NOZZLE
Item is no longer available
Price
N/A
84
PHLP HD SCR M5-.8 X 6
Price
N/A
85
PLAIN-END BLADE ADAPTER 2PC
Price
$4.50

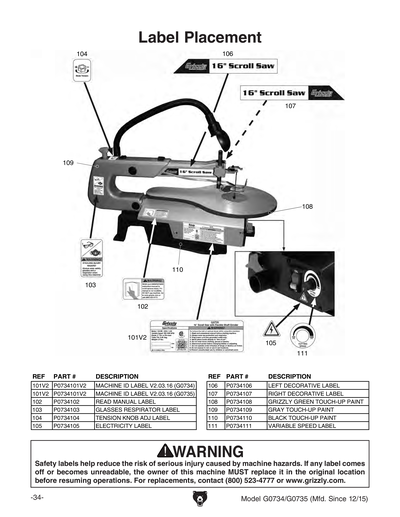

101
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
101V2
MACHINE ID LABEL V2.03.16
Item is no longer available
Price
N/A
102
READ MANUAL 2.8W X 1.5H
Price
N/A
103
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
104
TENSION KNOB ADJ LABEL
Item is no longer available
Price
N/A
105
ELECTRICITY 0.7W X 0.6H
Price
N/A
106
LEFT DECORATIVE LABEL
Item is no longer available
Price
N/A
107
RIGHT DECORATIVE LABEL
Item is no longer available
Price
N/A
108
N/S GRIZZLY GREEN G1023S
Price
N/A
110
GLOSSY BLACK
Price
N/A
111
VARIABLE SPEED LABEL
Item is no longer available
Price
N/A
MAN
MANUAL G0734/G0735 MFD-05/12 V1.05.12
Price
$12.00
P0733001V2
LEG V3.01.21
Price
N/A
