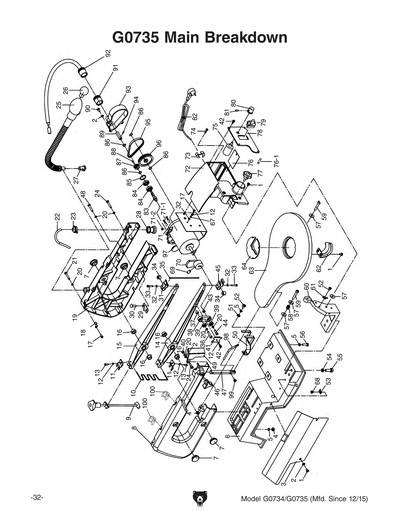

Parts for G0735 - 16" Scroll Saw with Flexible Shaft Grinder

1/3

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

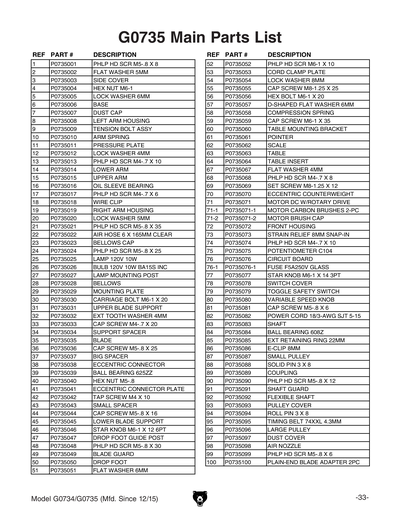

Ref #
Part #
Description
1
PHLP HD SCR M5-.8 X 8
Price
N/A
2
FLAT WASHER 5MM
Price
N/A
3
SIDE COVER
Price
N/A
4
HEX NUT M6-1
Price
N/A
5
LOCK WASHER 6MM
Price
N/A
6
BASE
Price
N/A
7
DUST CAP
Price
N/A
8
LEFT ARM HOUSING
Price
N/A
9
TENSION BOLT ASSY
Price
N/A
9-1
BLADE TENSION BODY
Price
N/A
9-2
THREADED PLATE
Price
N/A
9-3
NON-THREADED PLATE
Price
N/A
10
ARM SPRING
Price
N/A
11
PRESSURE PLATE
Price
N/A
12
LOCK WASHER 4MM
Price
N/A
13
PHLP HD SCR M4-.7 X 10
Price
N/A
14
LOWER ARM
Price
N/A
15
UPPER ARM
Price
N/A
16
OIL SLEEVE BEARING
Price
N/A
17
PHLP HD SCR M4-.7 X 6
Price
N/A
18
WIRE CLIP
Price
N/A
19
RIGHT ARM HOUSING
Price
N/A
20
LOCK WASHER 5MM
Price
N/A
21
PHLP HD SCR M5-.8 X 35
Price
N/A
22
AIR HOSE 6 X 165MM CLEAR
Price
N/A
23
BELLOWS CAP
Price
N/A
24
PHLP HD SCR M5-.8 X 25
Price
N/A
25
LAMP 120V 10W
Price
N/A
26
BULB 120V 10W BA15S INC
Price
N/A
27
LAMP MOUNTING POST
Price
N/A
28
BELLOWS
Price
N/A
29
MOUNTING PLATE
Price
N/A
30
CARRIAGE BOLT M6-1 X 20
Price
N/A
31
UPPER BLADE SUPPORT
Price
N/A
32
EXT TOOTH WASHER 4MM
Price
N/A
33
CAP SCREW M4-.7 X 20
Price
N/A
34
SUPPORT SPACER
Price
N/A
35
BLADE
Price
N/A
36
CAP SCREW M5-.8 X 25
Price
N/A
37
BIG SPACER
Price
N/A
38
ECCENTRIC CONNECTOR
Price
N/A
39
Bearing - 16mm x 5mm
Price
N/A
40
HEX NUT M5-.8
Price
N/A
41
ECCENTRIC CONNECTOR PLATE
Price
N/A
42
TAP SCREW M4 X 10
Price
N/A
43
SMALL SPACER
Price
N/A
44
CAP SCREW M5-.8 X 16
Price
N/A
45
LOWER BLADE SUPPORT
Price
N/A
46
STAR KNOB M6-1 X 12 6PT
Price
N/A
47
DROP FOOT GUIDE POST
Price
N/A
48
PHLP HD SCR M5-.8 X 30
Price
N/A
49
BLADE GUARD
Price
N/A
50
DROP FOOT
Price
N/A
51
FLAT WASHER 6MM
Price
N/A
52
PHLP HD SCR M6-1 X 10
Price
N/A
53
CORD CLAMP PLATE
Price
N/A
54
LOCK WASHER 8MM
Price
N/A
55
CAP SCREW M8-1.25 X 25
Price
N/A
56
HEX BOLT M6-1 X 20
Price
N/A
57
CLIPPED FLAT WASHER 6MM PLASTIC
Price
N/A
58
COMPRESSION SPRING
Price
N/A
59
CAP SCREW M6-1 X 35
Price
N/A
60
TABLE MOUNTING BRACKET
Price
N/A
61
POINTER
Price
N/A
62
SCALE
Price
N/A
63
TABLE
Price
N/A
67
FLAT WASHER 4MM
Price
N/A
68
PHLP HD SCR M4-.7 X 8
Price
N/A
69
SET SCREW M8-1.25 X 12
Price
N/A
70
ECCENTRIC COUNTERWEIGHT
Price
N/A
71
MOTOR DC W/ROTARY DRIVE
Price
$32.25
71-1
CARBON BRUSH (SET OF 2)
Price
N/A
71-2
MOTOR BRUSH CAP
Price
N/A
72
FRONT HOUSING
Price
N/A
73
STRAIN RELIEF 8MM SNAP-IN
Price
N/A
74
PHLP HD SCR M4-.7 X 10
Price
N/A
75
POTENTIOMETER C104
Price
N/A
76
CIRCUIT BOARD
Price
N/A
76-1
FUSE F5A250V GLASS
Price
N/A
77
STAR KNOB M6-1 X 14 3PT
Price
N/A
78
SWITCH COVER
Price
N/A
79
Toggle Safety Switch
Price
N/A
80
VARIABLE SPEED KNOB
Price
N/A
81
CAP SCREW M5-.8 X 6
Price
N/A
82
POWER CORD 18/3-AWG SJT 5-15
Price
N/A
83
Price
$2.00
84
BALL BEARING 608Z
Price
N/A
85
EXT RETAINING RING 22MM
Price
N/A
86
E-CLIP 8MM
Price
N/A
87
Price
$1.75
88
Price
$1.00
89
Price
$2.00
90
PHLP HD SCR M5-.8 X 12
Price
N/A
91
Price
$1.25
92
Price
$11.00
93
Price
$1.75
94
ROLL PIN 3 X 8
Price
N/A
95
TIMING BELT 74XXL 4.3MM
Price
$1.50
96
Price
$1.00
97
Price
$1.00
98
AIR NOZZLE
Price
N/A
99
PHLP HD SCR M5-.8 X 6
Price
N/A
100
PLAIN-END BLADE ADAPTER 2PC
Price
N/A
101
Price
$9.50

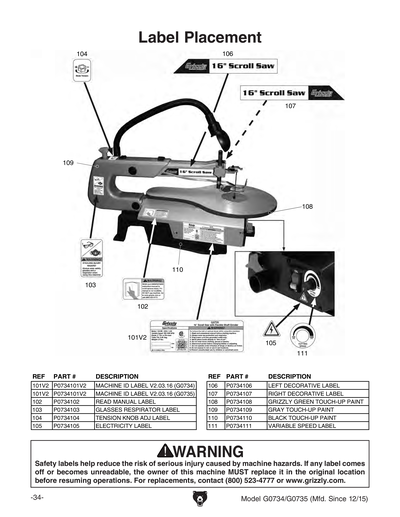

101V2
MACHINE ID LABEL V2.03.16
Price
$9.50
102
READ MANUAL 2.8W X 1.5H
Price
N/A
103
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
104
TENSION KNOB ADJ LABEL
Price
N/A
105
ELECTRICITY 0.7W X 0.6H
Price
N/A
106
LEFT DECORATIVE LABEL
Price
N/A
107
RIGHT DECORATIVE LABEL
Price
N/A
108
N/S GRIZZLY GREEN G1023S
Price
N/A
110
GLOSSY BLACK
Price
N/A
111
VARIABLE SPEED LABEL
Price
N/A
MAN
MANUAL G0734/G0735 MFD-05/12 V1.05.12
Price
N/A
