Parts for G0736 - 15" Variable-Speed Metal Cutting Bandsaw

Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736
Part Diagram for G0736

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

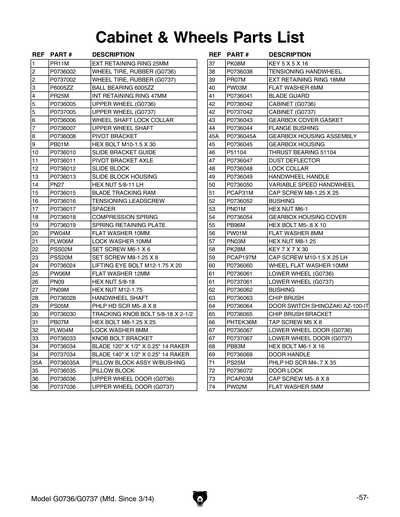

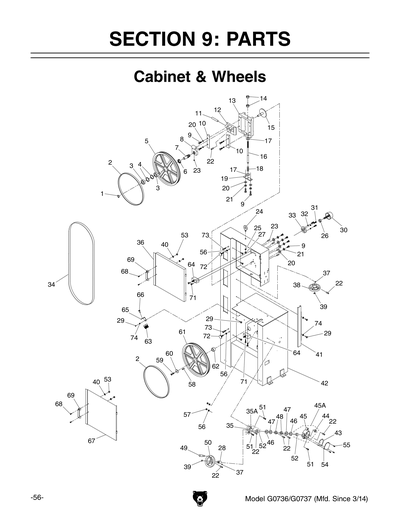

Ref #
Part #
Description
1
EXT RETAINING RING 25MM
Price
N/A
2
*DISCD*WHEEL TIRE RUBBER
Item is no longer available
Price
N/A
3
BALL BEARING 6005ZZ
Price
N/A
4
INT RETAINING RING 47MM
Price
N/A
5
*DISCD*UPPER WHEEL
Price
$103.50
6
*DISCD*WHEEL SHAFT LOCK COLLAR
Item is no longer available
Price
N/A
7
*DISCD*UPPER WHEEL SHAFT
Item is no longer available
Price
N/A
8
*DISCD*PIVOT BRACKET
Item is no longer available
Price
N/A
9
HEX BOLT M10-1.5 X 30
Price
N/A
10
*DISCD*SLIDE BRACKET GUIDE
Item is no longer available
Price
N/A
11
*DISCD*PIVOT BRACKET AXLE
Item is no longer available
Price
N/A
12
*DISCD*SLIDE BLOCK
Item is no longer available
Price
N/A
13
*DISCD*SLIDE BLOCK HOUSING
Item is no longer available
Price
N/A
14
P0736014
Now: PN27
HEX NUT 5/8-11 LH
Price
N/A
15
*DISCD*BLADE TRACKING RAM
Item is no longer available
Price
N/A
16
*DISCD*TENSIONING LEADSCREW
Item is no longer available
Price
N/A
17
*DISCD*SPACER
Item is no longer available
Price
N/A
18
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
19
*DISCD*SPRING RETAINING PLATE
Item is no longer available
Price
N/A
20
FLAT WASHER 10MM
Price
N/A
21
LOCK WASHER 10MM
Price
N/A
22
SET SCREW M6-1 X 6
Price
N/A
23
SET SCREW M8-1.25 X 8
Price
N/A
24
*DISCD*LIFTING EYE BOLT M12-1.75 X 20
Item is no longer available
Price
N/A
25
FLAT WASHER 12MM
Price
N/A
26
P0736026
Now: PN09
HEX NUT 5/8-18
Price
N/A
27
HEX NUT M12-1.75
Price
N/A
28
*DISCD*HANDWHEEL SHAFT
Item is no longer available
Price
N/A
29
PHLP HD SCR M5-.8 X 8
Price
N/A
30
*DISCD*TRACKING KNOB BOLT 5/8-18 X 2-1/2
Item is no longer available
Price
N/A
31
HEX BOLT M8-1.25 X 25
Price
N/A
32
LOCK WASHER 8MM
Price
N/A
33
*DISCD*KNOB BOLT BRACKET
Item is no longer available
Price
N/A
34
120" x 1/2" x .025" x 10-14 TPI VP Bi-Metal Bandsaw Blade
Price
N/A
35
*DISCD*PILLOW BLOCK
Item is no longer available
Price
N/A
35A
*DISCD*PILLOW BLOCK ASSY W/BUSHING
Item is no longer available
Price
N/A
36
*DISCD*UPPER WHEEL DOOR
Item is no longer available
Price
N/A
37
KEY 5 X 5 X 16
Price
N/A
38
*DISCD*TENSIONING HANDWHEEL
Item is no longer available
Price
N/A
39
EXT RETAINING RING 18MM
Price
N/A
40
FLAT WASHER 6MM
Price
N/A
41
*DISCD*BLADE GUARD
Item is no longer available
Price
N/A
42
*DISCD*CABINET
Item is no longer available
Price
N/A
43
*DISCD*GEARBOX COVER GASKET
Item is no longer available
Price
N/A
44
*DISCD*FLANGE BUSHING
Item is no longer available
Price
N/A
45
*DISCD*GEARBOX HOUSING
Item is no longer available
Price
N/A
45A
*DISCD*GEARBOX HOUSING ASSEMBLY
Item is no longer available
Price
N/A
46
THRUST BEARING 51104
Price
N/A
47
*DISCD*DUST DEFLECTOR
Item is no longer available
Price
N/A
48
*DISCD*LOCK COLLAR
Item is no longer available
Price
N/A
49
*DISCD*HANDWHEEL HANDLE 3/8-16 X 4
Price
$10.35
50
*DISCD*VARIABLE SPEED HANDWHEEL
Item is no longer available
Price
N/A
51
CAP SCREW M8-1.25 X 25
Price
N/A
52
*DISCD*BUSHING
Item is no longer available
Price
N/A
53
HEX NUT M6-1
Price
N/A
54
*DISCD*GEARBOX HOUSING COVER
Item is no longer available
Price
N/A
55
HEX BOLT M5-.8 X 10
Price
N/A
56
FLAT WASHER 8MM
Price
N/A
57
HEX NUT M8-1.25
Price
N/A
58
KEY 7 X 7 X 29
Price
N/A
59
CAP SCREW M10-1.5 X 25 LH
Price
N/A
60
*DISCD*MITER BAR WASHER
Price
N/A
61
*DISCD*LOWER WHEEL
Price
$110.40
62
*DISCD*BUSHING
Price
$2.90
63
*DISCD*CHIP BRUSH
Item is no longer available
Price
N/A
64
*DISCD*DOOR SWITCH SHINOZAKI AZ-100-IT
Item is no longer available
Price
N/A
65
*DISCD*CHIP BRUSH BRACKET
Item is no longer available
Price
N/A
66
TAP SCREW M5 X 8
Price
N/A
67
*DISCD*LOWER WHEEL DOOR
Item is no longer available
Price
N/A
68
HEX BOLT M6-1 X 16
Price
N/A
69
*DISCD*DOOR HANDLE
Price
$3.45
71
PHLP HD SCR M4-.7 X 35
Price
N/A
72
*DISCD*DOOR LOCK
Price
$1.75
73
CAP SCREW M5-.8 X 8
Price
N/A
74
FLAT WASHER 5MM
Price
N/A

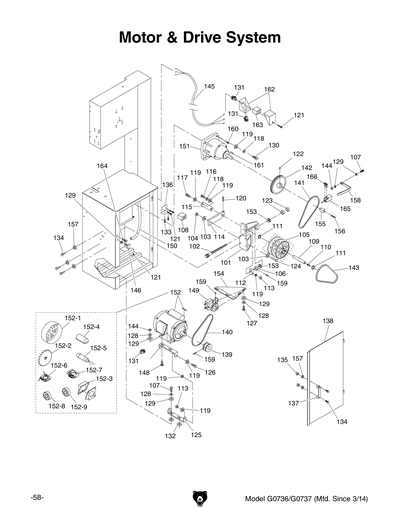

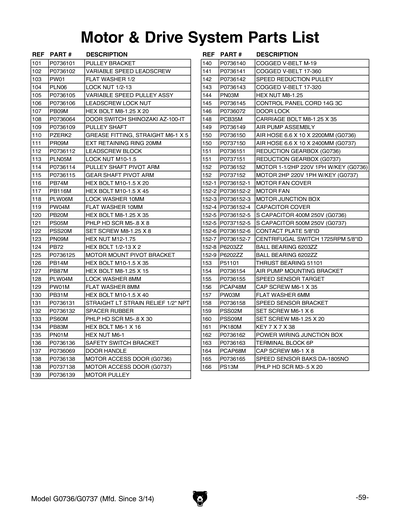

101
*DISCD*PULLEY BRACKET
Item is no longer available
Price
N/A
102
*DISCD*VARIABLE SPEED LEADSCREW
Item is no longer available
Price
N/A
103
P0736103
Now: PW01
FLAT WASHER 1/2
Price
N/A
104
LOCK NUT 1/2-13
Price
N/A
105
*DISCD*VARIABLE SPEED PULLEY ASSY
Item is no longer available
Price
N/A
106
*DISCD*LEADSCREW LOCK NUT
Item is no longer available
Price
N/A
107
HEX BOLT M8-1.25 X 20
Price
N/A
108
*DISCD*DOOR SWITCH SHINOZAKI AZ-100-IT
Price
N/A
109
*DISCD*PULLEY SHAFT
Item is no longer available
Price
N/A
110
GREASE FITTING M6-1 X 5
Price
N/A
111
EXT RETAINING RING 20MM
Price
N/A
112
*DISCD*LEADSCREW BLOCK
Item is no longer available
Price
N/A
113
LOCK NUT M10-1.5
Price
N/A
114
*DISCD*PULLEY SHAFT PIVOT ARM
Item is no longer available
Price
N/A
115
*DISCD*GEAR SHAFT PIVOT ARM
Item is no longer available
Price
N/A
116
HEX BOLT M10-1.5 X 20
Price
N/A
117
HEX BOLT M10-1.5 X 45
Price
N/A
118
LOCK WASHER 10MM
Price
N/A
119
FLAT WASHER 10MM
Price
N/A
120
HEX BOLT M8-1.25 X 35
Price
N/A
121
PHLP HD SCR M5-.8 X 8
Price
N/A
122
SET SCREW M8-1.25 X 8
Price
N/A
123
HEX NUT M12-1.75
Price
N/A
124
P0736124
Now: PB72
HEX BOLT 1/2-13 X 2
Price
N/A
125
*DISCD*MOTOR MOUNT PIVOT BRACKET
Item is no longer available
Price
N/A
126
HEX BOLT M10-1.5 X 35
Price
N/A
127
HEX BOLT M8-1.25 X 15
Price
N/A
128
LOCK WASHER 8MM
Price
N/A
129
FLAT WASHER 8MM
Price
N/A
130
HEX BOLT M10-1.5 X 40
Price
N/A
131
*DISCD*STRAIGHT LEFT STRAIN RELIEF 1/2"
Item is no longer available
Price
N/A
132
*DISCD*SPACER RUBBER
Item is no longer available
Price
N/A
133
PHLP HD SCR M5-.8 X 30
Price
N/A
134
HEX BOLT M6-1 X 16
Price
N/A
135
HEX NUT M6-1
Price
N/A
136
*DISCD*CABINET
Price
N/A
137
*DISCD*DOOR HANDLE
Price
N/A
138
*DISCD*MOTOR ACCESS DOOR
Price
$62.10
139
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
140
V-BELT M19 3L190
Price
N/A
141
*DISCD*COGGED V-BELT 17-360
Price
$13.25
142
*DISCD*SPEED REDUCTION PULLEY
Price
$24.15
143
*DISCD*COGGED V-BELT 17-320
Item is no longer available
Price
N/A
144
HEX NUT M8-1.25
Price
N/A
145
*DISCD*CONTROL PANEL CORD 14G 3C
Item is no longer available
Price
N/A
146
*DISCD*DOOR LOCK
Price
N/A
148
CARRIAGE BOLT M8-1.25 X 35
Price
N/A
149
*DISCD*AIR PUMP ASSEMBLY
Item is no longer available
Price
N/A
150
*DISCD*AIR HOSE 6.6 X 10 X 2200MM
Item is no longer available
Price
N/A
151
*DISCD*SPEED REDUCTION GEARBOX
Item is no longer available
Price
N/A
152
*DISCD*Motor 1.5hp 220v 1-ph W/key
Item is no longer available
Price
N/A
152-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
152-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
152-3
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
152-4
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
152-5
*DISCD*S CAPACITOR 400M 250V 1-3/4 X 4
Price
N/A
152-6
*DISCD*CONTACT PLATE 5/8"ID
Item is no longer available
Price
N/A
152-7
CAPACITOR CLIP 6-32 AWG
Price
N/A
152-8
BALL BEARING 6203ZZ
Price
N/A
152-9
BALL BEARING 6202ZZ
Price
N/A
153
THRUST BEARING 51101
Price
N/A
154
*DISCD*AIR PUMP MOUNTING BRACKET
Item is no longer available
Price
N/A
155
*DISCD*SPEED SENSOR TARGET
Item is no longer available
Price
N/A
156
CAP SCREW M6-1 X 35
Price
N/A
157
FLAT WASHER 6MM
Price
N/A
158
*DISCD*SPEED SENSOR BRACKET
Item is no longer available
Price
N/A
159
SET SCREW M6-1 X 6
Price
N/A
160
SET SCREW M8-1.25 X 20
Price
N/A
161
KEY 7 X 7 X 38
Price
N/A
162
*DISCD*POWER WIRING JUNCTION BOX
Item is no longer available
Price
N/A
163
*DISCD*TERMINAL BLOCK 6P
Item is no longer available
Price
N/A
164
CAP SCREW M6-1 X 8
Price
N/A
165
*DISCD*SPEED SENSOR W/ READOUT
Price
$106.95
166
PHLP HD SCR M3-.5 X 20
Price
N/A

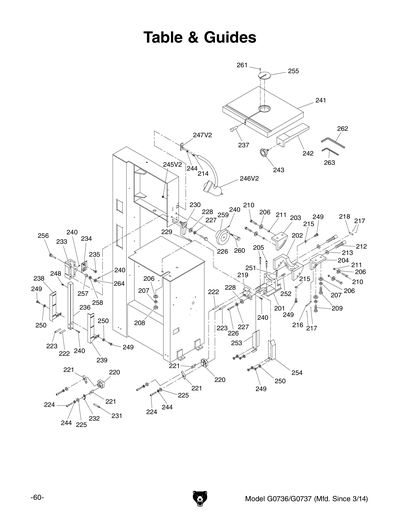

201

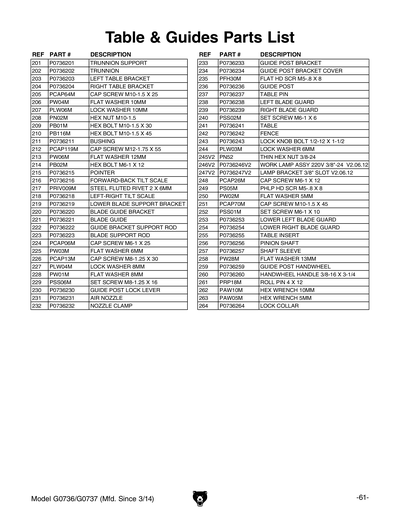

*DISCD*TRUNNION SUPPORT
Price
$72.45
202
*DISCD*TRUNNION
Price
$69.00
203
*DISCD*LEFT TABLE BRACKET
Item is no longer available
Price
N/A
204
*DISCD*RIGHT TABLE BRACKET
Item is no longer available
Price
N/A
205
CAP SCREW M10-1.5 X 25
Price
N/A
206
FLAT WASHER 10MM
Price
N/A
207
LOCK WASHER 10MM
Price
N/A
208
HEX NUT M10-1.5
Price
N/A
209
HEX BOLT M10-1.5 X 30
Price
N/A
210
HEX BOLT M10-1.5 X 45
Price
N/A
211
*DISCD*BUSHING
Item is no longer available
Price
N/A
212
CAP SCREW M12-1.75 X 55
Price
N/A
213
FLAT WASHER 12MM
Price
N/A
214
HEX BOLT M6-1 X 12
Price
N/A
215
*DISCD*POINTER
Item is no longer available
Price
N/A
216
*DISCD*FORWARD-BACK TILT SCALE
Item is no longer available
Price
N/A
217
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A
218
*DISCD*LEFT-RIGHT TILT SCALE
Item is no longer available
Price
N/A
219
*DISCD*LOWER BLADE SUPPORT BRACKET
Item is no longer available
Price
N/A
220
*DISCD*BLADE GUIDE BRACKET
Item is no longer available
Price
N/A
221
*DISCD*BLADE GUIDE
Price
$5.75
222
*DISCD*GUIDE BRACKET SUPPORT ROD
Item is no longer available
Price
N/A
223
*DISCD*BLADE SUPPORT ROD
Item is no longer available
Price
N/A
224
CAP SCREW M6-1 X 25
Price
N/A
225
FLAT WASHER 6MM
Price
N/A
226
CAP SCREW M8-1.25 X 30
Price
N/A
227
LOCK WASHER 8MM
Price
N/A
228
FLAT WASHER 8MM
Price
N/A
229
SET SCREW M8-1.25 X 16
Price
N/A
230
*DISCD*GUIDE POST LOCK LEVER
Item is no longer available
Price
N/A
231
*DISCD*AIR NOZZLE
Item is no longer available
Price
N/A
232
*DISCD*NOZZLE CLAMP
Item is no longer available
Price
N/A
233
*DISCD*GUIDE POST BRACKET
Item is no longer available
Price
N/A
234
*DISCD*GUIDE POST BRACKET COVER
Item is no longer available
Price
N/A
235
FLAT HD SCR M5-.8 X 8
Price
N/A
236
*DISCD*GUIDE POST
Price
$51.75
237
*DISCD*TABLE PIN
Price
$1.75
238
*DISCD*LEFT BLADE GUARD
Item is no longer available
Price
N/A
239
*DISCD*RIGHT BLADE GUARD
Price
$17.25
240
SET SCREW M6-1 X 6
Price
N/A
241
*DISCD*TABLE
Item is no longer available
Price
N/A
242
*DISCD*FENCE
Item is no longer available
Price
N/A
243
*DISCD*LOCK KNOB BOLT 1/2-12 X 1-1/2
Item is no longer available
Price
N/A
244
LOCK WASHER 6MM
Price
N/A
245
P0736245
Now: PN50
HEX NUT 1/2-20 THIN
Price
N/A
245V2
HEX NUT 3/8-24 THIN
Price
N/A
246
*DISCD*WORK LAMP ASSEMBLY 220V 1/4"-20 V
Item is no longer available
Price
N/A
246V2
*DISCD*WORK LAMP ASSEMBLY 220V 3/8"-24 V
Price
$65.55
247
*DISCD*LAMP BRACKET 1/4" SLOT V1
Item is no longer available
Price
N/A
247V2
*DISCD*LAMP BRACKET 3/8" V2.06.12
Item is no longer available
Price
N/A
248
CAP SCREW M6-1 X 12
Price
N/A
249
PHLP HD SCR M5-.8 X 8
Price
N/A
250
FLAT WASHER 5MM
Price
N/A
251
CAP SCREW M10-1.5 X 45
Price
N/A
252
SET SCREW M6-1 X 10
Price
N/A
253
*DISCD*LOWER LEFT BLADE GUARD
Item is no longer available
Price
N/A
254
*DISCD*LOWER RIGHT BLADE GUARD
Item is no longer available
Price
N/A
255
*DISCD*TABLE INSERT
Price
$1.75
256
*DISCD*PINION SHAFT
Item is no longer available
Price
N/A
257
*DISCD*SHAFT SLEEVE
Item is no longer available
Price
N/A
258
FLAT WASHER 13MM
Price
N/A
259
*DISCD*GUIDE POST HANDWHEEL
Item is no longer available
Price
N/A
260
*DISCD*HANDWHEEL HANDLE 3/8-16 X 3-1/4
Item is no longer available
Price
N/A
261
ROLL PIN 4 X 12
Price
N/A
262
HEX WRENCH 10MM
Price
N/A
263
HEX WRENCH 5MM
Price
N/A
264
*DISCD*LOCK COLLAR
Item is no longer available
Price
N/A

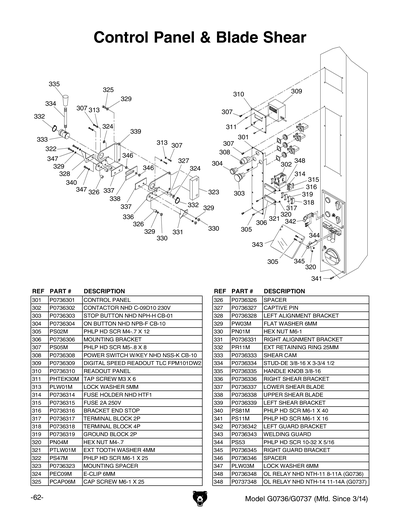

301
*DISCD*CONTROL PANEL
Item is no longer available
Price
N/A
303
*DISCD*STOP BUTTON NHD NPH-H CB-01
Item is no longer available
Price
N/A
304
*DISCD*ON BUTTON NHD NPB-F CB-10
Item is no longer available
Price
N/A
305
PHLP HD SCR M4-.7 X 12
Price
N/A
306
*DISCD*MOUNTING BRACKET
Item is no longer available
Price
N/A
307
PHLP HD SCR M5-.8 X 8
Price
N/A
308
*DISCD*POWER SWITCH W/KEY NHD NSS-K CB-1
Item is no longer available
Price
N/A
309
*DISCD*DIGITAL SPEED READOUT
Item is no longer available
Price
N/A
310
*DISCD*READOUT PANEL
Item is no longer available
Price
N/A
311
TAP SCREW M3 X 6
Price
N/A
313
LOCK WASHER 5MM
Price
N/A
314
*DISCD*FUSE HOLDER NHD HTF1
Price
$2.90
315
*DISCD*FUSE 2A 250V
Item is no longer available
Price
N/A
316
*DISCD*BRACKET END STOP
Item is no longer available
Price
N/A
317
*DISCD*TERMINAL BLOCK 2P
Item is no longer available
Price
N/A
317-1
*DISCD*JUMPER WIRE PAD
Price
$1.75
318
*DISCD*TERMINAL BLOCK 4P
Item is no longer available
Price
N/A
319
*DISCD*GROUND BLOCK 2P
Item is no longer available
Price
N/A
320
HEX NUT M4-.7
Price
N/A
321
EXT TOOTH WASHER 4MM
Price
N/A
322
PHLP HD SCR M6-1 X 25
Price
N/A
323
*DISCD*MOUNTING SPACER
Item is no longer available
Price
N/A
324
E-CLIP 6MM
Price
N/A
325
CAP SCREW M6-1 X 25
Price
N/A
326
*DISCD*SPACER
Item is no longer available
Price
N/A
327
*DISCD*CAPTIVE PIN
Item is no longer available
Price
N/A
328
*DISCD*LEFT ALIGNMENT BRACKET
Item is no longer available
Price
N/A
329
FLAT WASHER 6MM
Price
N/A
330
HEX NUT M6-1
Price
N/A
331
*DISCD*RIGHT ALIGNMENT BRACKET
Item is no longer available
Price
N/A
332
EXT RETAINING RING 25MM
Price
N/A
333
*DISCD*SHEAR CAM
Item is no longer available
Price
N/A
334
*DISCD*STUD-DE 3/8-16 X 3-3/4 1/2
Item is no longer available
Price
N/A
335
*DISCD*HANDLE KNOB 3/8-16
Price
$1.75
336
*DISCD*RIGHT SHEAR BRACKET
Item is no longer available
Price
N/A
337
*DISCD*LOWER SHEAR BLADE
Item is no longer available
Price
N/A
338
*DISCD*UPPER SHEAR BLADE
Item is no longer available
Price
N/A
339
*DISCD*LEFT SHEAR BRACKET
Price
$12.10
340
PHLP HD SCR M6-1 X 40
Price
N/A
341
PHLP HD SCR M6-1 X 16
Price
N/A
342
*DISCD*LEFT GUARD BRACKET
Price
$8.65
343
*DISCD*WELDING GUARD
Price
$13.80
344
P0736344
Now: PS53
PHLP HD SCR 10-32 X 5/16
Price
N/A
345
*DISCD*RIGHT GUARD BRACKET
Price
$5.20
346
*DISCD*SPACER
Item is no longer available
Price
N/A
347
LOCK WASHER 6MM
Price
N/A
348
*DISCD*OL RELAY NHD NTH-11 8-11A
Item is no longer available
Price
N/A

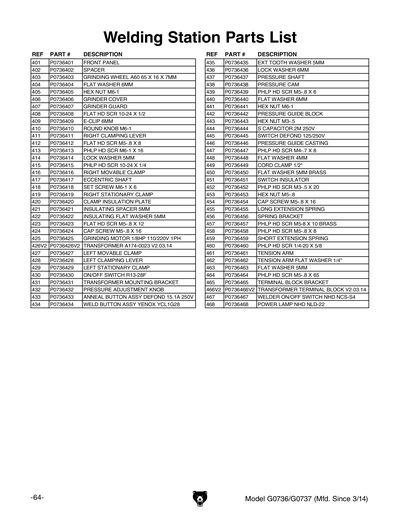

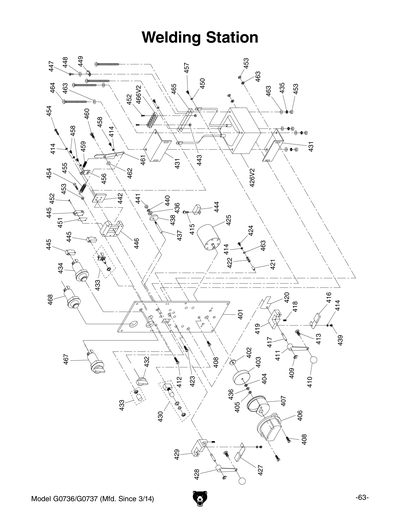

401
*DISCD*FRONT PANEL
Item is no longer available
Price
N/A
402
*DISCD*SPACER
Item is no longer available
Price
N/A
403
*DISCD*GRINDING WHEEL A60 65 X 16 X 7MM
Price
$13.80
404
FLAT WASHER 6MM
Price
N/A
405
HEX NUT M6-1
Price
N/A
406
*DISCD*GRINDER COVER
Item is no longer available
Price
N/A
407
*DISCD*GRINDER GUARD
Item is no longer available
Price
N/A
408
FLAT HD SCR 10-24 X 1/2
Price
N/A
409
E-CLIP 6MM
Price
N/A
410
*DISCD*ROUND KNOB M6-1
Item is no longer available
Price
N/A
411
*DISCD*RIGHT CLAMPING LEVER
Item is no longer available
Price
N/A
412
FLAT HD SCR M5-.8 X 8
Price
N/A
413
PHLP HD SCR M6-1 X 16
Price
N/A
414
LOCK WASHER 5MM
Price
N/A
415
P0736415
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
416
*DISCD*RIGHT MOVABLE CLAMP
Item is no longer available
Price
N/A
417
*DISCD*ECCENTRIC SHAFT
Item is no longer available
Price
N/A
418
SET SCREW M6-1 X 6
Price
N/A
419
*DISCD*RIGHT STATIONARY CLAMP
Item is no longer available
Price
N/A
420
*DISCD*CLAMP INSULATION PLATE
Item is no longer available
Price
N/A
421
*DISCD*INSULATING SPACER 5MM
Item is no longer available
Price
N/A
422
*DISCD*INSULATING FLAT WASHER 5MM
Item is no longer available
Price
N/A
423
FLAT HD SCR M5-.8 X 12
Price
N/A
424
CAP SCREW M5-.8 X 16
Price
N/A
425
*DISCD*Grinding Motor 1/8hp 110v/220v 1-
Item is no longer available
Price
N/A
426
*DISCD*TRANSFORMER A174-0023 2.4KVA 0/22
Item is no longer available
Price
N/A
426V2
*DISCD*TRANSFORMER A174-0023 V2.03.14
Item is no longer available
Price
N/A
427
*DISCD*LEFT MOVABLE CLAMP
Item is no longer available
Price
N/A
428
*DISCD*LEFT CLAMPING LEVER
Item is no longer available
Price
N/A
429
*DISCD*LEFT STATIONARY CLAMP
Item is no longer available
Price
N/A
430
*DISCD*ON/OFF SWITCH R13-28F
Item is no longer available
Price
N/A
431
*DISCD*TRANSFORMER MOUNTING BRACKET
Item is no longer available
Price
N/A
432
*DISCD*PRESSURE ADJUSTMENT KNOB
Item is no longer available
Price
N/A
433
*DISCD*ANNEAL BUTTON ASSY DEFOND 15.1A 2
Item is no longer available
Price
N/A
434
*DISCD*WELD BUTTON ASSY YENOX YCL1G28
Item is no longer available
Price
N/A
435
EXT TOOTH WASHER 5MM
Price
N/A
436
LOCK WASHER 6MM
Price
N/A
437
*DISCD*PRESSURE SHAFT
Item is no longer available
Price
N/A
438
*DISCD*PRESSURE CAM
Item is no longer available
Price
N/A
439
PHLP HD SCR M5-.8 X 6
Price
N/A
440
FLAT WASHER 6MM
Price
N/A
441
HEX NUT M6-1
Price
N/A
442
*DISCD*PRESSURE GUIDE BLOCK
Item is no longer available
Price
N/A
443
HEX NUT M3-.5
Price
N/A
444
*DISCD*S CAPACITOR 400M 250V 1-3/4 X 4
Item is no longer available
Price
N/A
445
*DISCD*SWITCH DEFOND 125/250V
Price
$2.90
446
*DISCD*PRESSURE GUIDE CASTING
Item is no longer available
Price
N/A
447
PHLP HD SCR M4-.7 X 8
Price
N/A
448
FLAT WASHER 4MM
Price
N/A
449
*DISCD*CORD CLAMP 1/2"
Item is no longer available
Price
N/A
450
*DISCD*FLAT WASHER 5MM BRASS
Item is no longer available
Price
N/A
451
*DISCD*SWITCH INSULATOR
Item is no longer available
Price
N/A
452
PHLP HD SCR M3-.5 X 20
Price
N/A
453
HEX NUT M5-.8
Price
N/A
454
CAP SCREW M5-.8 X 16
Price
N/A
455
*DISCD*LONG EXTENSION SPRING
Item is no longer available
Price
N/A
456
*DISCD*SPRING BRACKET
Item is no longer available
Price
N/A
457
PHLP HD SCR M5-.8 X 10
Price
N/A
458
PHLP HD SCR M5-.8 X 8
Price
N/A
459
*DISCD*SHORT EXTENSION SPRING
Item is no longer available
Price
N/A
460
P0736460
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
461
*DISCD*TENSION ARM
Item is no longer available
Price
N/A
462
FLAT WASHER 6MM
Price
N/A
463
FLAT WASHER 5MM
Price
N/A
464
*DISCD*PHLP HD SCR M5-.8 X 65
Item is no longer available
Price
N/A
465
*DISCD*TERMINAL BLOCK BRACKET
Item is no longer available
Price
N/A
466
*DISCD*TRANSFORMER TERMINAL BLOCK
Item is no longer available
Price
N/A
467
*DISCD*WELDER ON/OFF SWITCH NHD NCS-S4
Item is no longer available
Price
N/A
468
*DISCD*POWER INDICATOR LIGHT NHD NLD 22M
Item is no longer available
Price
N/A

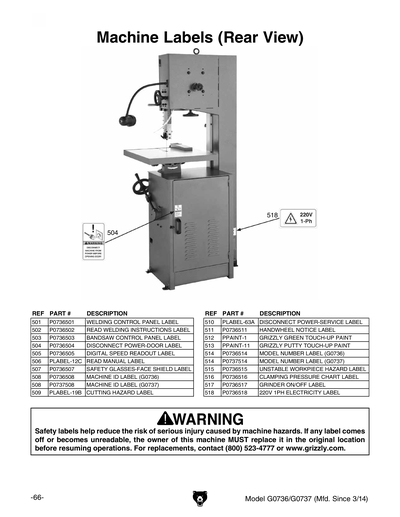

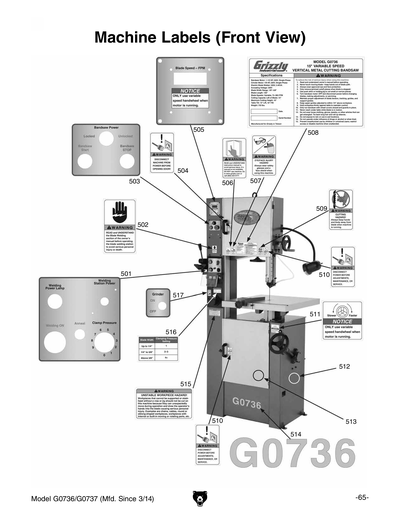

501
WELDING CONTROL PANEL LABEL
Item is no longer available
Price
N/A
502
READ WELDING INSTRUCTIONS LABEL
Item is no longer available
Price
N/A
503
BANDSAW CONTROL PANEL LABEL
Price
$4.25
504
DISCONNECT POWER-DOOR LABEL
Item is no longer available
Price
N/A
505
DIGITAL SPEED READOUT LABEL
Item is no longer available
Price
N/A
506
READ MANUAL 1.5W X 2.5H
Price
N/A
507
SAFETY GLASSES-FACE SHIELD LABEL
Price
$4.25
508
MACHINE ID LABEL
Item is no longer available
Price
N/A
509
BANDSAW BLADE 1.5W X 2H
Price
N/A
510
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
511
HANDWHEEL NOTICE LABEL
Item is no longer available
Price
N/A
512
N/S GRIZZLY GREEN G1023S
Price
N/A
513
GREY PUTTY REF G0504
Price
N/A
514
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
515
UNSTABLE WORKPIECE HAZARD LABEL
Item is no longer available
Price
N/A
516
CLAMPING PRESSURE CHART LABEL
Item is no longer available
Price
N/A
517
GRINDER ON/OFF LABEL
Price
$4.25
518
220V 1PH ELECTRICITY LABEL
Item is no longer available
Price
N/A
MAN
MANUAL G0736/G0737 MFG 11/11 02/12
Price
$23.50
P0733004V2
HEX NUT M16-2
Price
N/A
