Parts for G0745 - 4" x 6" Micro Metal Lathe

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P0745001
BED
N/A
2 P0745002 LEADSCREW SUPPORT (LH) $3.75
3 P0745003
CAP SCREW M6-1 X 14
Item is no longer available
P0745003 Replaced By PCAP27M
N/A View Replacement
4 P0745004
LEADSCREW COVER
N/A
5 P0745005
CAP SCREW M4-.7 X 6
Item is no longer available
P0745005 Replaced By PCAP110M
N/A View Replacement
6 P0745006
TAP SCREW M2.9 X 6.5
N/A
7 P0745007
TAP SCREW M3 X 8
Item is no longer available
P0745007 Replaced By PHTEK11M
N/A View Replacement
8 P0745008
CIRCUIT BOARD XMT1115
N/A
9 P0745009
CIRCUIT BOARD BACK PLATE
N/A
10 P0745010
CAP SCREW M6-1 X 12
Item is no longer available
P0745010 Replaced By PCAP26M
N/A View Replacement
11 P0745011
FOOT (RUBBER)
N/A
12 P0745012
HEX NUT M6-1
Item is no longer available
P0745012 Replaced By PN01M
N/A View Replacement
13 P0745013
FLAT WASHER 6MM
Item is no longer available
P0745013 Replaced By PW03M
N/A View Replacement
15 P0745015 STRAIN RELIEF M12 TYPE-6 ST $1.25
16 P0745016
POWER CORD 18G 3W 48" 5-15P
N/A
17 P0745017
BASE
N/A
18 P0745018
HEX NUT M4-.7
Item is no longer available
P0745018 Replaced By PN04M
N/A View Replacement
19 P0745019
LOCK WASHER 4MM
Item is no longer available
P0745019 Replaced By PLW02M
N/A View Replacement
20 P0745020
PHLP HD SCR M4-.7 X 10
Item is no longer available
P0745020 Replaced By PS38M
N/A View Replacement
21 P0745021 LONGITUDINAL LEADSCREW $10.94
21-1 P0745021-1 LONGITUDINAL LEADSCREW NUT $6.00
21-2 P0745021-2
LONGITUDINAL LEADSCREW NUT BRACKET
N/A
22 P0745022 LEADSCREW SUPPORT (RH) $3.25
23 P0745023
HANDWHEEL
N/A
24 P0745024
***USE PN54M***
Item is no longer available
P0745024 Replaced By PN54M
N/A View Replacement
25 P0745025 HANDWHEEL HANDLE $1.25
26 P0745026 HANDLE STEP SCREW M4-.7 X 8, 25L $1.25
27 P0745027
PHLP HD SCR M4-.7 X 6
Item is no longer available
P0745027 Replaced By PS17M
N/A View Replacement
28 P0745028
FLAT WASHER 4MM
Item is no longer available
P0745028 Replaced By PW05M
N/A View Replacement
29 P0745029
BACK SPLASH
N/A
30 P0745030 3-JAW CHUCK 2" $149.06
30-1 P0745030-1 REVERSIBLE CHUCK JAWS 3-PC SET $53.75
31 P0745031 SPINDLE $25.94
32 P0745032
Bearing - 35mm x 17mm
Item is no longer available
P0745032 Replaced By G3850
N/A View Replacement
33 P0745033
INT RETAINING RING 35MM
Item is no longer available
P0745033 Replaced By PR21M
N/A View Replacement
34 P0745034
CAP SCREW M6-1 X 40
Item is no longer available
P0745034 Replaced By PCAP29M
N/A View Replacement
35 P0745035 L-BRACKET $2.25
36 P0745036
CAP SCREW M4-.7 X 8
Item is no longer available
P0745036 Replaced By PCAP18M
N/A View Replacement
37 P0745037
EXT RETAINING RING 17MM
Item is no longer available
P0745037 Replaced By PR18M
N/A View Replacement
38 P0745038
SPINDLE PULLEY
N/A
39 P0745039
SPACER
N/A
40 P0745040
SPACER
N/A
41 P0745041
HEADSTOCK
N/A
42 P0745042
PULLEY COVER
N/A
43 P0745043
HEX NUT M4-.7
Item is no longer available
P0745043 Replaced By PN04M
N/A View Replacement
44 P0745044
FLAT WASHER 4MM
Item is no longer available
P0745044 Replaced By PW05M
N/A View Replacement
45 P0745045
PHLP HD SCR M4-.7 X 8
Item is no longer available
P0745045 Replaced By PS07M
N/A View Replacement
46 P0745046
HINGE 38 X 31MM
N/A
47 P0745047
EXT RETAINING RING 8MM
Item is no longer available
P0745047 Replaced By PR39M
N/A View Replacement
48 P0745048 V-BELT K-1 5/16" X 1/4" X 14-1/2" $3.50
49 P0745049
MOTOR PULLEY
N/A
50 P0745050
LOCK WASHER 6MM
Item is no longer available
P0745050 Replaced By PLW03M
N/A View Replacement
51 P0745051
CAP SCREW M5-.8 X 20
Item is no longer available
P0745051 Replaced By PCAP15M
N/A View Replacement
52 P0745052
FLAT WASHER 5MM
Item is no longer available
P0745052 Replaced By PW02M
N/A View Replacement
53 P0745053
HEX NUT M5-.8
Item is no longer available
P0745053 Replaced By PN06M
N/A View Replacement
54 P0745054
MOTOR MOUNT
N/A
55 P0745055
FLAT WASHER 5MM
Item is no longer available
P0745055 Replaced By PW02M
N/A View Replacement
56 P0745056
CAP SCREW M5-.8 X 14
Item is no longer available
P0745056 Replaced By PCAP20M
N/A View Replacement
57 P0745057
KEY 3 X 3 X 16
Item is no longer available
P0745057 Replaced By PK98M
N/A View Replacement
58 P0745058 MOTOR 150W 110VDC 60HZ 1.8A $196.00
59 P0745059
SPACER PLATE
N/A
60 P0745060
TAP SCREW M2.9 X 6.5
N/A
61 P0745061
CONTROL PANEL PLATE
N/A
62 P0745062 E-STOP BUTTON LAS-AY-22TS/P $19.25
63 P0745063
VARIABLE SPEED CONTROL KNOB
N/A
64 P0745064
LAMP HL2 (YELLOW)
N/A
65 P0745065
LAMP XD7-3 (GREEN)
N/A
66 P0745066 POTENTIOMETER WH24-2 $13.00
67 P0745067
FUSE HOLDER
N/A
68 P0745068
FLEXIBLE CORD ASS7 13 X 270MM
N/A
69 P0745069
FLAT HD SCR M4-.7 X 8
Item is no longer available
P0745069 Replaced By PFH31M
N/A View Replacement
70 P0745070
CHUCK GUARD
N/A
71 P0745071
CHUCK GUARD PIVOT SHAFT
N/A
72 P0745072
KEY 3 X 3 X 6
Item is no longer available
P0745072 Replaced By PK105M
N/A View Replacement
73 P0745073
SPACER
N/A
74 P0745074
COMPRESSION SPRING 16MM
N/A
75 P0745075
***USE PS119M***
Item is no longer available
P0745075 Replaced By PS119M
N/A View Replacement
76 P0745076
CHUCK GUARD LIMIT SWITCH SS5-GL
N/A
77 P0745077
***USE PN56M***
Item is no longer available
P0745077 Replaced By PN56M
N/A View Replacement
78 P0745078
CIRCUIT BOARD COVER
N/A
79 P0745079
TOOL HOLDER
N/A
80 P0745080
PHLP HD SCR M4-.7 X 6
Item is no longer available
P0745080 Replaced By PS17M
N/A View Replacement
81 P0745081
CAP SCREW M6-1 X 35
Item is no longer available
P0745081 Replaced By PCAP48M
N/A View Replacement
82 P0745082
QUILL
N/A
83 P0745083
CAP SCREW M6-1 X 16
Item is no longer available
P0745083 Replaced By PCAP01M
N/A View Replacement
84 P0745084
SET SCREW M6-1 X 8 DOG-PT
Item is no longer available
P0745084 Replaced By PSS144M
N/A View Replacement
85 P0745085
SET SCREW M6-1 X 8
Item is no longer available
P0745085 Replaced By PSS03M
N/A View Replacement
86 P0745086
TAILSTOCK LEADSCREW
N/A
88 P0745088
GRADUATED DIAL
N/A
89 P0745089
TAILSTOCK CLAMP PLATE
N/A
90 P0745090 TAILSTOCK CASTING $17.75
91 P0745091
SET SCREW M5-.8 X 8
Item is no longer available
P0745091 Replaced By PSS31M
N/A View Replacement
92 P0745092
SET SCREW M4-.7 X 16
Item is no longer available
P0745092 Replaced By PSS49M
N/A View Replacement
93 P0745093 CROSS LEADSCREW NUT $6.50
94 P0745094
CROSS LEADSCREW
N/A
95 P0745095
CARRIAGE CLAMP PLATE
N/A
97 P0745097
FLAT WASHER 4MM
Item is no longer available
P0745097 Replaced By PW05M
N/A View Replacement
98 P0745098
CAP SCREW M4-.7 X 10
Item is no longer available
P0745098 Replaced By PCAP17M
N/A View Replacement
103 P0745103
SADDLE
N/A
104 P0745104
CAP SCREW M6-1 X 20
Item is no longer available
P0745104 Replaced By PCAP02M
N/A View Replacement
105 P0745105 CROSS SLIDE GIB $1.10
106 P0745106 CROSS SLIDE $14.25
107 P0745107 TOOL HOLDER T-SLOT NUT $1.25
109 P0745109
FINGER-HOLE COVER
N/A
110 P0745110
CAP SCREW M5-.8 X 10
Item is no longer available
P0745110 Replaced By PCAP50M
N/A View Replacement
116 P0745116
BAFFLE
N/A
117 P0745117
TAP SCREW M2.9 X 6.5
N/A
120 P0745120
CAP SCREW M4-.7 X 14
Item is no longer available
P0745120 Replaced By PCAP41M
N/A View Replacement
121 P0745121
CROSS LEADSCREW BRACKET
N/A
122 P0745122
CARRIAGE GIB PLATE
N/A
123 P0745123
SET SCREW M4-.7 X 6
Item is no longer available
P0745123 Replaced By PSS79M
N/A View Replacement
124 P0745124
MOTOR BRUSH CAP
N/A
125 P0745125
FUSE 2A F2AL250V (GLASS)
N/A
126 P0745126 CHUCK KEY 5MM $4.75
127 P0745127 SPINDLE KEY 5MM $4.12
128 P0745128
PHILLIPS HEAD SCREWDRIVER #1
N/A
129 P0745129 WRENCH 5.5 X 7MM OPEN-ENDS $2.25
130 P0745130
HEX WRENCH 5MM
Item is no longer available
P0745130 Replaced By PAW05M
N/A View Replacement
131 P0745131
HEX WRENCH 4MM
Item is no longer available
P0745131 Replaced By PAW04M
N/A View Replacement
132 P0745132
HEX WRENCH 3MM
Item is no longer available
P0745132 Replaced By PAW03M
N/A View Replacement
133 P0745133 DEAD CENTER $4.00
134 P0745134
CARBON BRUSH (SET OF 2)
N/A

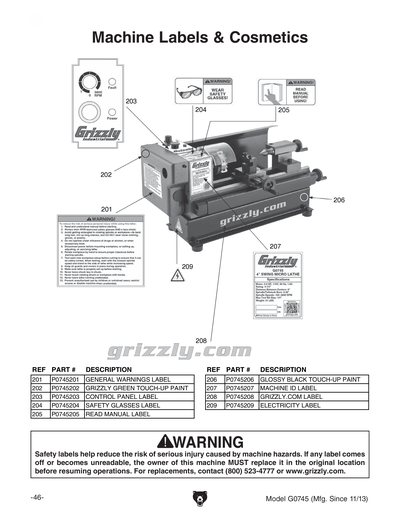

201 P0745201
GENERAL WARNINGS LABEL
N/A
202 P0745202
N/S GRIZZLY GREEN G1023S
Item is no longer available
P0745202 Replaced By PPAINT-1
N/A View Replacement
203 P0745203
CONTROL PANEL LABEL
N/A
204 P0745204
SAFETY GLASSES LABEL
N/A
205 P0745205
READ MANUAL LABEL
N/A
206 P0745206
GLOSSY BLACK
Item is no longer available
P0745206 Replaced By PPAINT-7
N/A View Replacement
207 P0745207
MACHINE ID LABEL
N/A
208 P0745208
GRIZZLY.COM LABEL
N/A
209MAN P0745209MAN
***USE P0745MAN***
Item is no longer available
N/A
MAN P0745MAN
MANCUAL G0745 MFD-11/13 V1.12.13
N/A
