Parts for G0752Z - 10" x 22" VS Benchtop Lathe with 2-Axis DRO

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

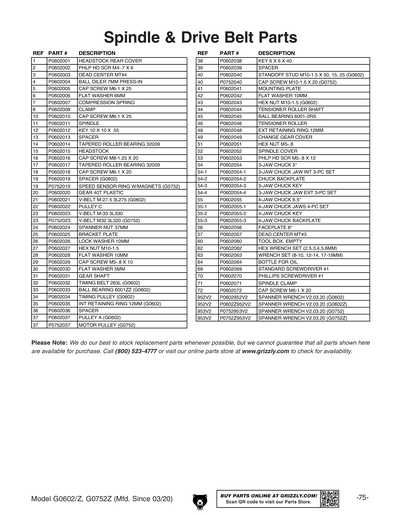

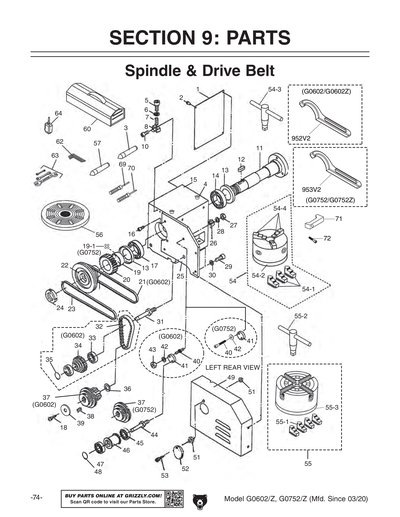

1
HEADSTOCK REAR COVER
Price
N/A
2
PHLP HD SCR M4-.7 X 6
Price
N/A
3
DEAD CENTER MT#4
Price
N/A
4
BALL OILER 7MM PRESS-IN
Price
N/A
5
CAP SCREW M6-1 X 25
Price
N/A
6
FLAT WASHER 6MM
Price
N/A
8
CLAMP
Price
N/A
10
CAP SCREW M6-1 X 25
Price
N/A
11
SPINDLE
Price
N/A
12
KEY 10 X 10 X 55
Price
N/A
13
SPACER
Price
N/A
14
TAPERED ROLLER BEARING 32009
Price
N/A
15
HEADSTOCK
Price
N/A
16
CAP SCREW M8-1.25 X 20
Price
N/A
17
TAPERED ROLLER BEARING 32009
Price
N/A
18
CAP SCREW M6-1 X 20
Price
N/A
19
SPEED SENSOR RING W/MAGNETS
Price
N/A
20
GEAR 40T PLASTIC
Price
N/A
22
PULLEY C
Price
N/A
23
V-BELT M32 3L320
Price
N/A
24
SPANNER NUT 37MM
Price
N/A
25
BRACKET PLATE
Price
N/A
26
LOCK WASHER 10MM
Price
N/A
27
HEX NUT M10-1.5
Price
N/A
28
FLAT WASHER 10MM
Price
N/A
29
CAP SCREW M5-.8 X 10
Price
N/A
30
FLAT WASHER 5MM
Price
N/A
31
GEAR SHAFT
Price
N/A
36
SPACER
Price
N/A
37
MOTOR PULLEY
Price
N/A
38
KEY 6 X 6 X 40
Price
N/A
39
SPACER
Price
N/A
40
CAP SCREW M10-1.5 X 20
Price
N/A
41
MOUNTING PLATE
Price
N/A
42
FLAT WASHER 10MM
Price
N/A
44
TENSIONER ROLLER SHAFT
Price
N/A
45
BALL BEARING 6001-2RS
Price
N/A
46
TENSIONER ROLLER
Price
N/A
48
EXT RETAINING RING 12MM
Price
N/A
49
CHANGE GEAR COVER
Price
N/A
51
HEX NUT M5-.8
Price
N/A
52
SPINDLE COVER
Price
N/A
53
PHLP HD SCR M5-.8 X 12
Price
N/A
54-1
3-JAW CHUCK JAW INT 3-PC SET
Price
N/A
54-2
CHUCK BACKPLATE
Price
N/A
54-3
LATHE CHUCK KEY 9.75MM STD
Price
N/A
54-4
3-JAW CHUCK JAW EXT 3-PC SET
Price
N/A
55
4-JAW CHUCK 6.5"
Price
N/A
55-1
4-JAW CHUCK JAWS 4-PC SET
Price
N/A
55-2
4-JAW CHUCK KEY
Price
N/A
55-3
4-JAW CHUCK BACKPLATE
Price
N/A
56
FACEPLATE 8"
Price
N/A
57
DEAD CENTER MT#3
Price
N/A
60
TOOL BOX, EMPTY
Price
N/A
62
HEX WRENCH SET (2.5,3,4,5,6MM)
Price
N/A
63
WRENCH SET (8-10, 12-14, 17-19MM)
Price
N/A
64
BOTTLE FOR OIL
Price
N/A
69
STANDARD SCREWDRIVER #1
Price
N/A
70
PHILLIPS SCREWDRIVER #1
Price
N/A
71
SPINDLE CLAMP
Price
N/A
72
CAP SCREW M6-1 X 20
Price
N/A
73
CAP SCREW M6-1 X 25
Price
N/A
74
FENDER WASHER 6MM
Price
N/A

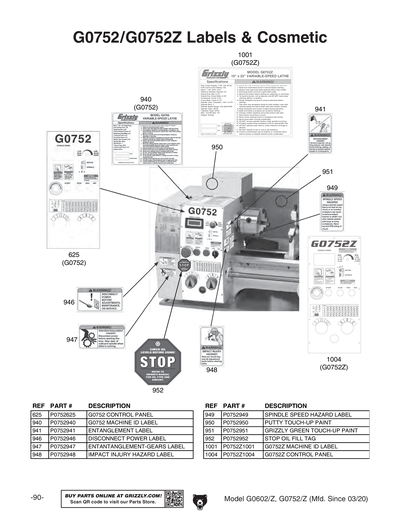

1001
MACHINE ID LABEL (G0752Z)
Price
$9.50
1004
Price
$26.50
1006
Price
$4.75
1007
PINCH/ENTANGLEMENT LABEL 2.8W X 1.5H
Price
N/A
1008
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
1009
DISCONNECT 110V 2.8W X 1.5H
Price
N/A

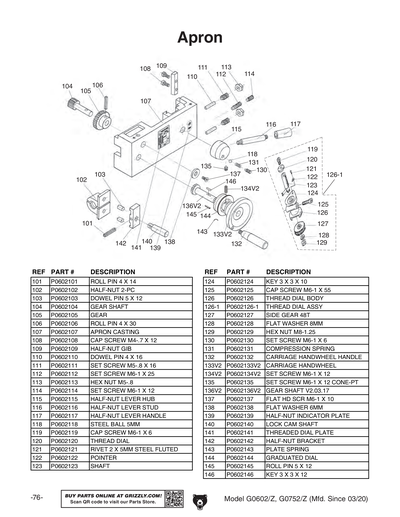

101
ROLL PIN 4 X 14
Price
N/A
1010
GREY PUTTY REF G0504
Price
N/A
1011
N/S GRIZZLY GREEN G1023S
Price
N/A
102
HALF-NUT 2-PC
Price
N/A
103
DOWEL PIN 5 X 12
Price
N/A
104
GEAR SHAFT
Price
N/A
105
GEAR
Price
N/A
106
ROLL PIN 4 X 30
Price
N/A
107
APRON CASTING
Price
N/A
108
CAP SCREW M4-.7 X 12
Price
N/A
109
HALF-NUT GIB
Price
N/A
110
DOWEL PIN 4 X 16
Price
N/A
111
SET SCREW M5-.8 X 16
Price
N/A
112
SET SCREW M6-1 X 25
Price
N/A
113
HEX NUT M5-.8
Price
N/A
114
SET SCREW M6-1 X 12
Price
N/A
115
HALF-NUT LEVER HUB
Price
N/A
116
HALF-NUT LEVER STUD
Price
N/A
117
HALF-NUT LEVER HANDLE
Price
N/A
118
STEEL BALL 5MM
Price
N/A
119
CAP SCREW M6-1 X 6
Price
N/A
120
THREAD DIAL
Price
N/A
121
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
122
POINTER
Price
N/A
123
SHAFT
Price
N/A
124
KEY 3 X 3 X 10
Price
N/A
125
CAP SCREW M6-1 X 55
Price
N/A
126
THREAD DIAL BODY
Price
N/A
126-1
THREAD DIAL ASSY
Price
N/A
127
SIDE GEAR 48T
Price
N/A
128
FLAT WASHER 8MM
Price
N/A
129
HEX NUT M8-1.25
Price
N/A
130
SET SCREW M6-1 X 6
Price
N/A
131
COMPRESSION SPRING
Price
N/A
132
HANDLE W/OUT SHAFT 10, 21 X 75
Price
N/A
132-1
SHOULDER SCR M8-1.25 X 12, 10 X 66
Price
N/A
133
CARRIAGE HANDWHEEL
Price
N/A
134
SET SCREW M6-1 X 12
Price
N/A
135
SET SCREW M6-1 X 12 CONE-PT
Price
N/A
136
GEAR SHAFT
Price
N/A
137
FLAT HD SCR M6-1 X 10
Price
N/A
138
FLAT WASHER 6MM
Price
N/A
139
HALF-NUT INDICATOR PLATE
Price
N/A
140
LOCK CAM SHAFT
Price
N/A
141
THREADED DIAL PLATE
Price
N/A
142
HALF-NUT BRACKET
Price
N/A
143
PLATE SPRING
Price
N/A
144
GRADUATED DIAL
Price
N/A
145
ROLL PIN 5 X 12
Price
N/A
146
KEY 3 X 3 X 12
Price
N/A

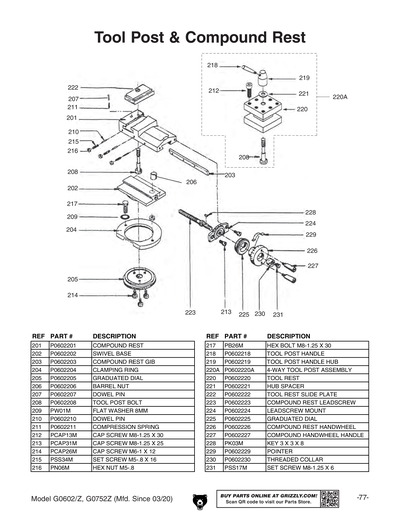

201
COMPOUND REST
Price
N/A
202
SWIVEL BASE
Price
N/A
203
COMPOUND REST GIB
Price
N/A
204
CLAMPING RING
Price
N/A
205
GRADUATED DIAL
Price
N/A
206
BARREL NUT
Price
N/A
207
DOWEL PIN
Price
N/A
208
TOOL POST BOLT
Price
N/A
209
FLAT WASHER 8MM
Price
N/A
210
DOWEL PIN
Price
N/A
211
COMPRESSION SPRING
Price
N/A
212
BULLNOSE CAP SCR M8-1.25 X 29
Price
N/A
213
CAP SCREW M6-1 X 25
Price
N/A
214
CAP SCREW M6-1 X 12
Price
N/A
215
SET SCREW M5-.8 X 16
Price
N/A
216
HEX NUT M5-.8
Price
N/A
217
HEX BOLT M8-1.25 X 30
Price
N/A
218
TOOL POST HANDLE
Price
N/A
219
TOOL POST HANDLE HUB
Price
N/A
220
TOOL REST
Price
N/A
220A
4-WAY TOOL POST ASSEMBLY
Price
N/A
221
HUB SPACER
Price
N/A
222
TOOL REST SLIDE PLATE
Price
N/A
223
COMPOUND REST LEADSCREW
Price
N/A
224
LEADSCREW MOUNT
Price
N/A
225
GRADUATED DIAL
Price
N/A
226
COMPOUND REST HANDWHEEL
Price
N/A
227
COMPOUND HANDWHEEL HANDLE
Price
N/A
228
KEY 3 X 3 X 8
Price
N/A
229
POINTER
Price
N/A
230
THREADED COLLAR
Price
N/A
231
SET SCREW M8-1.25 X 6
Price
N/A

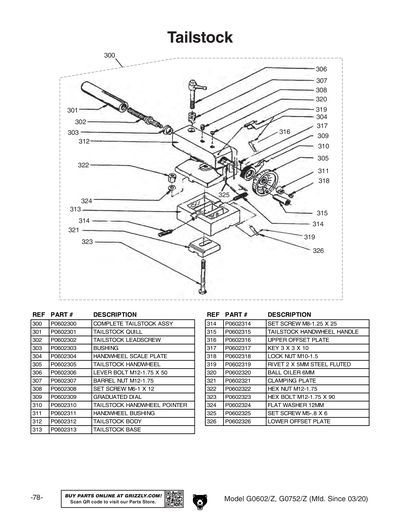

300
COMPLETE TAILSTOCK ASSY
Price
N/A
301
TAILSTOCK QUILL
Price
N/A
302
TAILSTOCK LEADSCREW
Price
N/A
303
BUSHING
Price
N/A
304
HANDWHEEL SCALE PLATE
Price
N/A
305
TAILSTOCK HANDWHEEL
Price
N/A
306
LEVER BOLT M12-1.75 X 50
Price
N/A
307
FLAT WASHER 12MM
Price
N/A
308
SET SCREW M6-1 X 12
Price
N/A
309
GRADUATED DIAL
Price
N/A
310
TAILSTOCK HANDWHEEL POINTER
Price
N/A
311
HANDWHEEL BUSHING
Price
N/A
312
TAILSTOCK BODY
Price
N/A
313
TAILSTOCK BASE
Price
N/A
314
SET SCREW M8-1.25 X 25
Price
N/A
315
HANDLE W/OUT SHAFT 10, 21 X 75
Price
N/A
316
UPPER OFFSET PLATE
Price
N/A
317
KEY 3 X 3 X 10
Price
N/A
318
LOCK NUT M10-1.5
Price
N/A
319
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
320
BALL OILER 10MM PRESS-IN
Price
N/A
321
CLAMPING PLATE
Price
N/A
322
HEX NUT M12-1.75
Price
N/A
323
HEX BOLT M12-1.75 X 90
Price
N/A
324
FLAT WASHER 12MM
Price
N/A
325
SET SCREW M5-.8 X 6
Price
N/A
326
LOWER OFFSET PLATE
Price
N/A
327
SHOULDER SCR M8-1.25 X 12, 10 X 66
Price
N/A

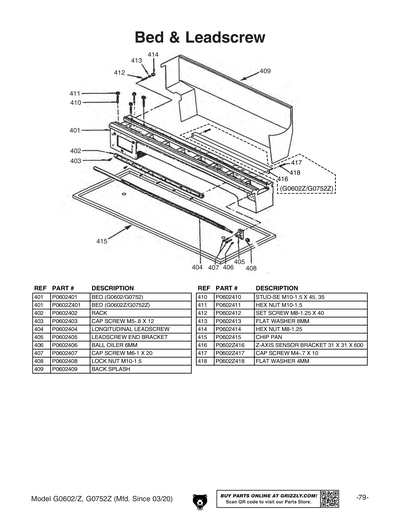

401
BED
Price
N/A
402
***USE P0602402V2***
Price
N/A
403
CAP SCREW M5-.8 X 12
Price
N/A
404
LONGITUDINAL LEADSCREW
Price
N/A
405
LEADSCREW END BRACKET
Price
N/A
406
BALL OILER 6MM PRESS-IN
Price
N/A
407
CAP SCREW M6-1 X 20
Price
N/A
408
LOCK NUT M10-1.5
Price
N/A
409
BACK SPLASH
Price
N/A
410
STUD-SE M10-1.5 X 45, 35
Price
N/A
411
HEX NUT M10-1.5
Price
N/A
412
SET SCREW M8-1.25 X 40
Price
N/A
413
FLAT WASHER 8MM
Price
N/A
414
HEX NUT M8-1.25
Price
N/A
415
CHIP PAN
Price
N/A
416
SENSOR BRACKET
Price
N/A
417
CAP SCREW M4-.7 X 10
Price
N/A
418
FLAT WASHER 4MM
Price
N/A

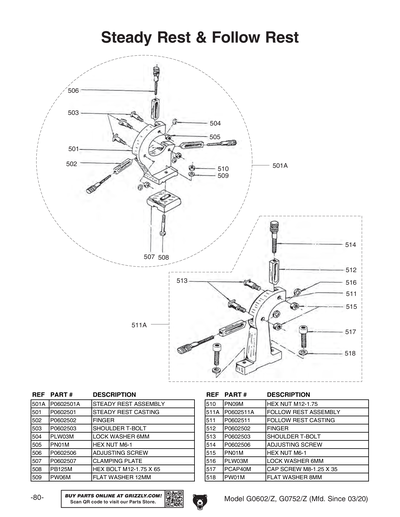

501
STEADY REST CASTING
Price
N/A
501A
STEADY REST ASSEMBLY
Price
N/A
502
FINGER
Price
N/A
503
SHOULDER T-BOLT
Price
N/A
504
LOCK WASHER 6MM
Price
N/A
505
HEX NUT M6-1
Price
N/A
506
ADJUSTING SCREW
Price
N/A
507
CLAMPING PLATE
Price
N/A
508
HEX BOLT M12-1.75 X 65
Price
N/A
509
FLAT WASHER 10MM
Price
N/A
510
HEX NUT M10-1.5
Price
N/A
511
FOLLOW REST CASTING
Price
N/A
511A
FOLLOW REST ASSEMBLY
Price
N/A
512
FINGER
Price
N/A
513
SHOULDER T-BOLT
Price
N/A
514
ADJUSTING SCREW
Price
N/A
515
HEX NUT M6-1
Price
N/A
516
LOCK WASHER 6MM
Price
N/A
517
CAP SCREW M8-1.25 X 35
Price
N/A
518
FLAT WASHER 8MM
Price
N/A

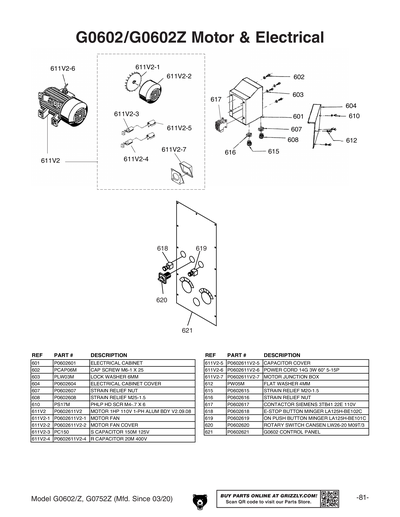

601
ELECTRICAL CABINET V1
Price
N/A
602
CAP SCREW M6-1 X 25
Price
N/A
603
LOCK WASHER 6MM
Price
N/A
604
ELECTRICAL CABINET COVER V1
Price
N/A
607
STRAIN RELIEF TYPE-3 M18-1.5 ST
Price
N/A
608
STRAIN RELIEF TYPE-3 M24 - 1.5 ST
Price
N/A
610
PHLP HD SCR M4-.7 X 6
Price
N/A
611
MOTOR 1HP 220V 3-PH
Price
N/A
611-2
MOTOR FAN COVER
Price
N/A
611-3
RIGHT MOTOR JUNCTION BOX COVER
Price
N/A
611-4
LEFT MOTOR JUNCTION BOX COVER
Price
N/A
611-5
POWER CORD 14G 3W 60" 5-15P
Price
N/A
612
FLAT WASHER 4MM
Price
N/A
617
CONTACTOR SIEMENS 3TB41 22E 24V
Price
N/A
618
TRANSFORMER JBK5 40VA 110/220V-24V
Price
N/A
619
TERMINAL POST
Price
N/A
620
INVERTER (VFD) DELTA VFD007E11A
Price
N/A
621
VFD-E USER MANUAL
Price
N/A
622
E-STOP BUTTON MINGER LA125H-BE102C
Price
N/A
623
ON PUSH BUTTON MINGER LA125H-BE102C
Price
N/A
624
SPINDLE DIRECTION SWITCH
Price
N/A
625
CONTROL PANEL PLATE
Price
N/A
626
STOP BUTTON
Price
N/A
627
RPM DISPLAY UNIT
Price
N/A
628
POTENTIOMETER 4K7 WX14-12 V1
Price
N/A
629
SPINDLE SPEED SENSOR
Price
N/A
630
RELAY OMRON MY2N-J 220V
Price
N/A
631
FUSE 2A 250V
Price
N/A
632
FUSE HOLDER
Price
N/A
633
TERMINAL POST MOUNTING BRACKET
Price
N/A
634
GROUNDING BAR
Price
N/A

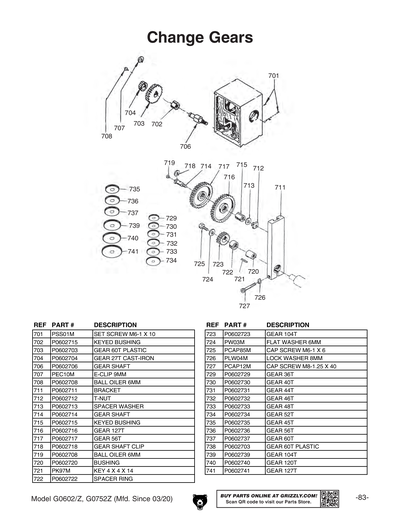

701
SET SCREW M6-1 X 10
Price
N/A
702
KEYED BUSHING
Price
N/A
703
GEAR 60T PLASTIC
Price
N/A
704
GEAR 27T CAST-IRON
Price
N/A
706
GEAR SHAFT
Price
N/A
707
E-CLIP 9MM
Price
N/A
708
BALL OILER 6MM PRESS-IN
Price
N/A
711
BRACKET
Price
N/A
712
T-NUT
Price
N/A
713
SPACER WASHER
Price
N/A
714
GEAR SHAFT
Price
N/A
715
KEYED BUSHING
Price
N/A
716
GEAR 127T
Price
N/A
717
GEAR 56T
Price
N/A
718
GEAR SHAFT CLIP
Price
N/A
719
BALL OILER 6MM PRESS-IN
Price
N/A
720
BUSHING
Price
N/A
721
KEY 4 X 4 X 14
Price
N/A
722
SPACER RING
Price
N/A
723
GEAR 104T
Price
N/A
724
FLAT WASHER 6MM
Price
N/A
725
CAP SCREW M6-1 X 6
Price
N/A
726
LOCK WASHER 8MM
Price
N/A
727
CAP SCREW M8-1.25 X 40
Price
N/A
728
GEAR 36T
Price
N/A
729
GEAR 36T
Price
N/A
730
GEAR 40T
Price
N/A
731
GEAR 44T
Price
N/A
732
GEAR 46T
Price
N/A
733
GEAR 48T
Price
N/A
734
GEAR 52T
Price
N/A
735
GEAR 45T
Price
N/A
736
GEAR 56T
Price
N/A
737
GEAR 60T
Price
N/A
738
GEAR 60T PLASTIC
Price
N/A
739
GEAR 104T
Price
N/A
740
GEAR 120T
Price
N/A
741
GEAR 127T
Price
N/A

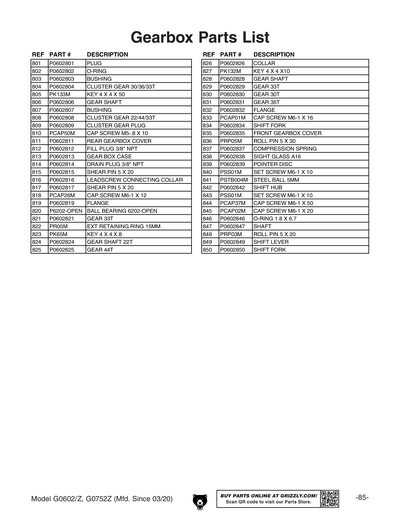

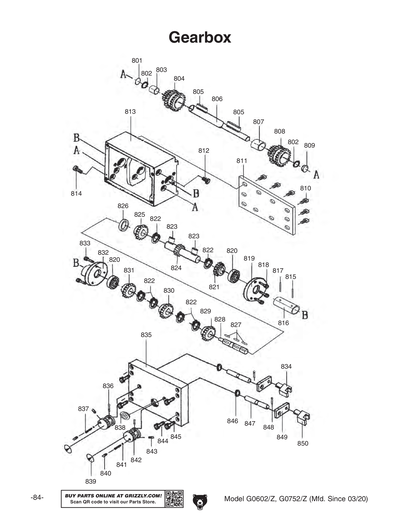

801
PLUG
Price
N/A
802
O-RING
Price
N/A
803
BUSHING
Price
N/A
804
CLUSTER GEAR 30/36/33T
Price
N/A
805
KEY 4 X 4 X 50
Price
N/A
806
GEAR SHAFT
Price
N/A
807
BUSHING
Price
N/A
808
CLUSTER GEAR 22/44/33T
Price
N/A
809
CLUSTER GEAR PLUG
Price
N/A
810
CAP SCREW M5-.8 X 10
Price
N/A
811
REAR GEARBOX COVER
Price
N/A
812
FILL PLUG 3/8" NPT
Price
N/A
813
GEAR BOX CASE
Price
N/A
814
DRAIN PLUG 3/8" NPT
Price
N/A
815
SHEAR PIN 5 X 20
Price
N/A
816
LEADSCREW CONNECTING COLLAR
Price
N/A
817
SHEAR PIN 5 X 20
Price
N/A
818
CAP SCREW M6-1 X 12
Price
N/A
819
FLANGE
Price
N/A
820
BALL BEARING 6202-OPEN
Price
N/A
821
GEAR 33T
Price
N/A
822
EXT RETAINING RING 15MM
Price
N/A
823
KEY 4 X 4 X 8
Price
N/A
824
GEAR SHAFT 22T
Price
N/A
825
GEAR 44T
Price
N/A
826
COLLAR
Price
N/A
827
KEY 8 X 7 X 40
Price
N/A
828
GEAR SHAFT
Price
N/A
829
GEAR 33T
Price
N/A
830
GEAR 30T
Price
N/A
831
GEAR 35T
Price
N/A
832
FLANGE
Price
N/A
833
CAP SCREW M6-1 X 16
Price
N/A
834
SHIFT FORK
Price
N/A
835
FRONT GEARBOX COVER
Price
N/A
836
ROLL PIN 5 X 30
Price
N/A
837
COMPRESSION SPRING
Price
N/A
838
SIGHT GLASS A16
Price
N/A
839
POINTER DISC
Price
N/A
840
SET SCREW M6-1 X 10
Price
N/A
841
STEEL BALL 5MM
Price
N/A
842
SHIFT HUB
Price
N/A
843
SET SCREW M6-1 X 10
Price
N/A
844
CAP SCREW M6-1 X 50
Price
N/A
845
CAP SCREW M6-1 X 20
Price
N/A
846
O-RING 1.8 X 6.7
Price
N/A
847
SHAFT
Price
N/A
848
ROLL PIN 5 X 20
Price
N/A
849
SHIFT LEVER
Price
N/A
850
SHIFT FORK
Price
N/A

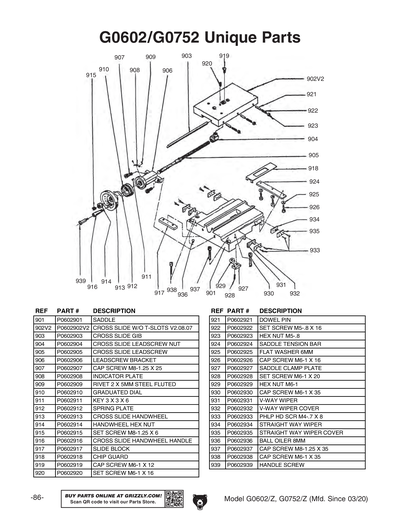

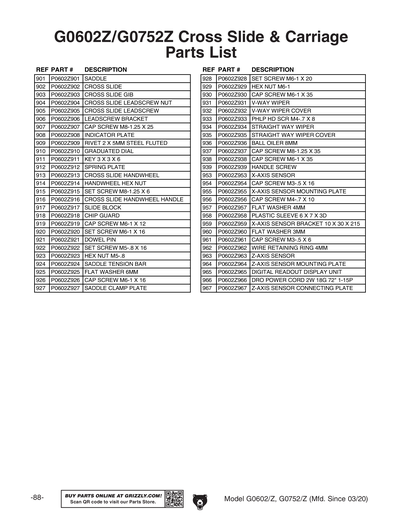

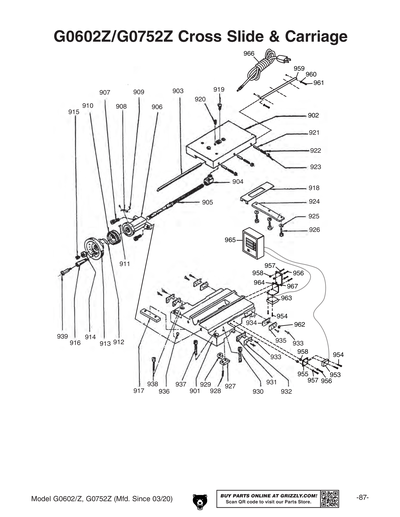

901
SADDLE
Price
N/A
902
CROSS SLIDE
Price
N/A
903
CROSS SLIDE GIB
Price
N/A
904
CROSS SLIDE LEADSCREW NUT
Price
N/A
905
CROSS SLIDE LEADSCREW
Price
N/A
906
LEADSCREW BRACKET
Price
N/A
907
CAP SCREW M8-1.25 X 25
Price
N/A
908
INDICATOR PLATE
Price
N/A
909
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
910
GRADUATED DIAL
Price
N/A
911
KEY 3 X 3 X 6
Price
N/A
912
SPRING PLATE
Price
N/A
913
CROSS SLIDE HANDWHEEL
Price
N/A
914
HANDWHEEL HEX NUT
Price
N/A
915
SET SCREW M8-1.25 X 6
Price
N/A
916
CROSS SLIDE HANDWHEEL HANDLE
Price
N/A
917
SLIDE BLOCK
Price
N/A
918
CHIP GUARD
Price
N/A
919
CAP SCREW M6-1 X 12
Price
N/A
920
SET SCREW M6-1 X 16
Price
N/A
921
DOWEL PIN
Price
N/A
922
SET SCREW M5-.8 X 16
Price
N/A
923
HEX NUT M5-.8
Price
N/A
924
SADDLE TENSION BAR
Price
N/A
925
FLAT WASHER 6MM
Price
N/A
926
CAP SCREW M6-1 X 16
Price
N/A
927
SADDLE CLAMP PLATE
Price
N/A
928
SET SCREW M6-1 X 20
Price
N/A
929
HEX NUT M6-1
Price
N/A
930
CAP SCREW M6-1 X 35
Price
N/A
931
V-WAY WIPER
Price
N/A
932
V-WAY WIPER COVER
Price
N/A
933
PHLP HD SCR M4-.7 X 8
Price
N/A
934
STRAIGHT WAY WIPER
Price
N/A
935
STRAIGHT WAY WIPER COVER
Price
N/A
936
BALL OILER 8MM PRESS-IN
Price
N/A
937
CAP SCREW M8-1.25 X 35
Price
N/A
938
CAP SCREW M6-1 X 35
Price
N/A
939
SHOULDER SCR M8-1.25 X 12, 10 X 66
Price
N/A
941
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
946
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
947
ENTANGLEMENT-GEARS LABEL
Price
N/A
948
IMPACT INJURY HAZARD LABEL
Price
N/A
949
SPINDLE SPEED HAZARD LABEL
Price
N/A
950
GREY PUTTY REF G0504
Price
N/A
951
N/S GRIZZLY GREEN G1023S
Price
N/A
954
CAP SCREW M3-.5 X 16
Price
N/A
955
X-AXIS SENSOR MOUNTING PLATE
Price
N/A
956
CAP SCREW M4-.7 X 10
Price
N/A
957
FLAT WASHER 4MM
Price
N/A
958
PLASTIC SLEEVE 6 X 7 X 3D
Price
N/A
959
X-AXIS SENSOR BRACKET 10 X 30 X 215
Price
N/A
960
FLAT WASHER 3MM
Price
N/A
961
CAP SCREW M3-.5 X 6
Price
N/A
962
WIRE RETAINING RING 4MM
Price
N/A
963
Z-AXIS SENSOR
Price
N/A
964
Z-AXIS SENSOR MOUNTING PLATE
Price
N/A
965
DIGITAL READOUT DISPLAY UNIT
Price
N/A
966
DRO POWER CORD 2W 18G 72" 115P
Price
N/A
967
Z-AXIS SENSOR CONNECTING PLATE
Price
N/A
MANUAL
MANUAL FOR G0602/G0752 MFD-05.17 V1
Price
N/A
MANV9
MANUAL G0602/Z, G0752/Z MFD-03.20+ V9.04
Price
N/A
