Parts for G0754 - 8" x 29" 2 HP HD Mill/Drill with Power Feed

Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754
Part Diagram for G0754

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

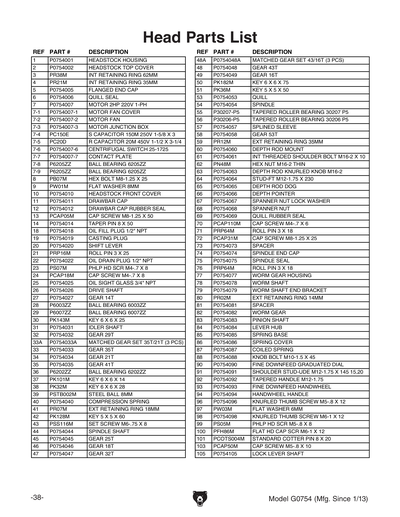

Ref #
Part #
Description

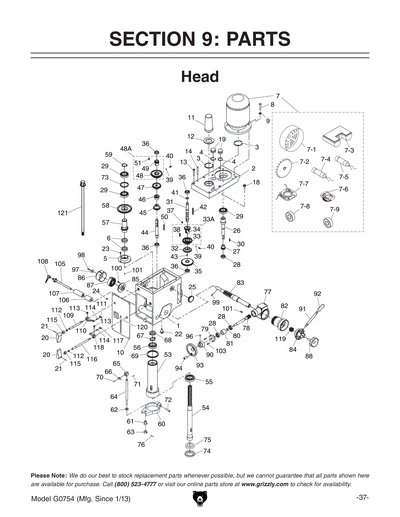

1
HEADSTOCK HOUSING
Price
$784.30
2
HEADSTOCK TOP COVER
Price
$231.85
3
INT RETAINING RING 62MM
Price
N/A
4
INT RETAINING RING 35MM
Price
N/A
5
FLANGED END CAP
Price
$23.75
6
QUILL SEAL
Price
$11.90
7
MOTOR 2HP 220V 1-PH
Price
$639.40
7-1
MOTOR FAN COVER
Price
$35.70
7-2
MOTOR FAN
Price
$33.45
7-3
MOTOR JUNCTION BOX
Price
$29.15
7-4
S CAPACITOR 150M 250V 1-1/2 X 2-3/8
Price
N/A
7-5
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
7-6
CENTRIFUGAL SWITCH 25-1725
Price
$11.65
7-7
CONTACT PLATE
Price
$49.10
7-8
BALL BEARING 6205ZZ
Price
N/A
7-9
BALL BEARING 6205ZZ
Price
N/A
8
HEX BOLT M8-1.25 X 25
Price
N/A
9
FLAT WASHER 8MM
Price
N/A
10
HEADSTOCK FRONT COVER
Price
$75.90
11
DRAWBAR CAP
Price
$13.70
12
DRAWBAR CAP RUBBER SEAL
Price
$18.00
13
CAP SCREW M8-1.25 X 50
Price
N/A
14
TAPER PIN 8 X 50
Price
$1.90
18
OIL FILL PLUG 1/2" NPT
Price
$2.60
19
CASTING PLUG
Price
$2.60
20
SHIFT LEVER
Price
$9.00
21
ROLL PIN 3 X 25
Price
N/A
22
OIL DRAIN PLUG 1/2" NPT
Price
$2.05
23
PHLP HD SCR M4-.7 X 8
Price
N/A
24
CAP SCREW M4-.7 X 8
Price
N/A
25
OIL SIGHT GLASS 3/4" NPT
Price
$4.70
26
DRIVE SHAFT
Price
$16.20
27
GEAR 14T
Price
$58.25
28
Bearing - 35mm x 17mm
Price
N/A
29
BALL BEARING 6007ZZ
Price
N/A
30
KEY 6 X 6 X 25
Price
N/A
31
IDLER SHAFT
Price
$22.35
32
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
33
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
33A
MATCHED GEAR SET 29/35/21T (4PCS)
Price
$203.45
34
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
35
GEAR 41T
Price
$78.00
36
BALL BEARING 6202ZZ
Price
N/A
37
KEY 6 X 6 X 14
Price
N/A
38
KEY 6 X 6 X 28
Price
N/A
39
STEEL BALL 8MM
Price
N/A
40
COMPRESSION SPRING
Price
$2.60
41
EXT RETAINING RING 18MM
Price
N/A
42
KEY 5 X 5 X 60
Price
N/A
43
SET SCREW M6-.75 X 8
Price
N/A
44
SPINDLE SHAFT
Price
$22.35
45
GEAR 25T
Price
$75.90
46
GEAR 18T
Price
$58.25
47
GEAR 32T
Price
$80.50
48
MATCHED GEAR SET 43/16T (3PCS)
Price
N/A
48A
MATCHED GEAR SET 43/16T (3PCS)
Price
$117.90
49
MATCHED GEAR SET 43/16T (3PCS)
Price
N/A
50
KEY 6 X 6 X 75
Price
N/A
51
KEY 5 X 5 X 50
Price
N/A
53
QUILL
Price
$187.25
54
SPINDLE
Price
$311.95
55
TAPERED ROLLER BEARING 30207 P5
Price
N/A
56
TAPERED ROLLER BEARING 30206 P5
Price
N/A
57
SPLINED SLEEVE
Price
$151.70
58
GEAR 53T
Price
$98.15
59
EXT RETAINING RING 35MM
Price
N/A
60
DEPTH ROD MOUNT
Price
$66.90
61
INT THREADED SHOULDER BOLT M16-2 X 10
Price
$2.60
62
HEX NUT M16-2 THIN
Price
N/A
63
DEPTH ROD KNURLED KNOB M16-2
Price
$8.95
64
STUD-FT M12-1.75 X 230
Price
$47.15
65
DEPTH ROD DOG
Price
$7.95
66
DEPTH POINTER
Price
$2.60
67
SPANNER NUT LOCK WASHER
Price
$2.60
68
SPANNER NUT
Price
$8.95
69
QUILL RUBBER SEAL
Price
$6.90
70
CAP SCREW M4-.7 X 6
Price
N/A
71
ROLL PIN 3 X 18
Price
N/A
72
CAP SCREW M8-1.25 X 25
Price
N/A
73
SPACER
Price
$6.15
74
SPINDLE END CAP
Price
$7.20
75
*DISCD*SPINDLE SEAL
Item is no longer available
Price
N/A
76
ROLL PIN 3 X 18
Price
N/A
77
WORM GEAR HOUSING
Price
$60.75
78
WORM SHAFT
Price
$44.60
79
WORM SHAFT END BRACKET
Price
$26.75
80
EXT RETAINING RING 14MM
Price
N/A
81
SPACER
Price
$6.15
82
WORM GEAR
Price
$66.90
83
PINION SHAFT
Price
$75.85
84
***USE P0779084***
Price
$37.10
85
SPRING BASE
Price
$26.75
86
***USE P0779086***
Price
$23.30
87
COILED SPRING
Price
$29.15
88
***USE P0779088***
Price
$14.40
90
FINE DOWNFEED GRADUATED DIAL
Price
$27.00
91
SHOULDER STUD-UDE M12-1.75 X 145 15,20
Price
$14.75
92
TAPERED HANDLE M12-1.75, 98L
Price
N/A
93
FINE DOWNFEED HANDWHEEL
Price
$31.35
94
HANDWHEEL HANDLE
Price
$11.20
96
KNURLED THUMB SCREW M5-.8 X 12
Price
$3.15
97
STEPPED WASHER 6MM
Item is no longer available
Price
N/A
98
KNURLED THUMB SCREW M6-1 X 12
Price
$3.25
99
PHLP HD SCR M5-.8 X 8
Price
N/A
100
FLAT HD CAP SCR M6-1 X 12
Price
N/A
101
ROLL PIN 3.38 X 10MM
Price
N/A
103
CAP SCREW M5-.8 X 10
Price
N/A
105
LOCK LEVER SHAFT
Price
$22.35
106
INSIDE LOCK PLUNGER
Item is no longer available
Price
N/A

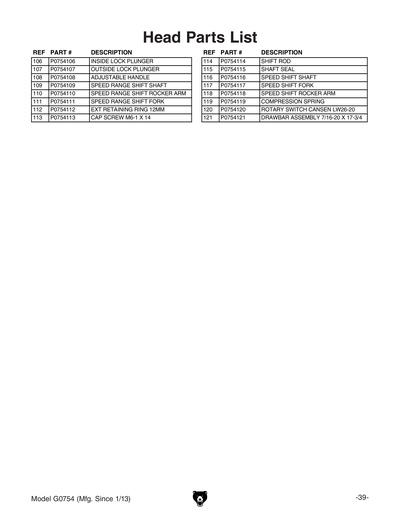

107
OUTSIDE LOCK PLUNGER
Price
$10.95
108
ADJUSTABLE HANDLE
Price
$22.35
109
SPEED RANGE SHIFT SHAFT
Price
$14.40
110
SPEED RANGE SHIFT ROCKER ARM
Price
$8.35
111
SPEED RANGE SHIFT FORK
Price
$10.10
112
EXT RETAINING RING 12MM
Price
N/A
113
CAP SCREW M6-1 X 14
Price
N/A
114
SHIFT ROD
Price
$21.25
115
SHAFT SEAL
Price
$10.10
116
SPEED SHIFT SHAFT
Item is no longer available
Price
N/A
117
SPEED SHIFT FORK
Price
$7.15
118
SPEED SHIFT ROCKER ARM
Price
$9.00
119
COMPRESSION SPRING
Price
$1.90
120
ROTARY SWITCH CANSEN LW26-20
Price
$87.00
120-1
FWD/REV SWITCH LABEL
Item is no longer available
Price
N/A
121
DRAWBAR 7/16-20 X 17-3/4
Price
N/A

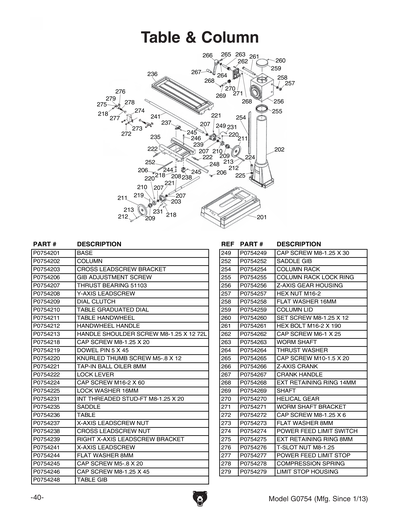

201
BASE
Item is no longer available
Price
N/A
202
COLUMN
Item is no longer available
Price
N/A
203
CROSS LEADSCREW BRACKET
Price
$27.00
204
WAY COVER
Price
$31.35
206
GIB ADJUSTMENT SCREW
Price
$4.70
207
THRUST BEARING 51103
Price
N/A
208
Y-AXIS LEADSCREW
Item is no longer available
Price
N/A
209
DIAL CLUTCH
Price
$24.60
210
TABLE GRADUATED DIAL
Price
$26.75
211
TABLE HANDWHEEL
Price
$53.50
212
HANDWHEEL HANDLE W/SCREW
Price
N/A
213
HANDLE SHOULDER SCREW M8-1.25 X 12 72L
Price
$18.00
218
CAP SCREW M8-1.25 X 20
Price
N/A
219
DOWEL PIN 5 X 45
Item is no longer available
Price
N/A
220
KNURLED THUMB SCREW M5-.8 X 12
Price
N/A
221
BALL OILER 8MM PRESS-IN
Price
N/A
222
LOCK LEVER
Price
$17.90
224
CAP SCREW M16-2 X 60
Price
N/A
225
LOCK WASHER 16MM
Price
N/A
231
INT THREADED STUD-FT M8-1.25 X 20
Price
$1.90
235
SADDLE
Item is no longer available
Price
N/A
236
TABLE
Item is no longer available
Price
N/A
237
X-AXIS LEADSCREW NUT
Price
$55.75
238
CROSS LEADSCREW NUT
Price
$55.75
239
RIGHT X-AXIS LEADSCREW BRACKET
Price
$26.75
241
X-AXIS LEADSCREW
Item is no longer available
Price
N/A
244
FLAT WASHER 8MM
Price
N/A
245
CAP SCREW M5-.8 X 20
Price
N/A
246
CAP SCREW M8-1.25 X 45
Price
N/A
248
TABLE GIB
Price
$49.10
249
CAP SCREW M8-1.25 X 30
Price
N/A
252
SADDLE GIB
Price
$49.10
254
COLUMN RACK
Price
$79.45
255
COLUMN RACK LOCK RING
Item is no longer available
Price
N/A
256
Z-AXIS GEAR HOUSING
Item is no longer available
Price
N/A
257
HEX NUT M16-2
Price
N/A
258
FLAT WASHER 16MM
Price
N/A
259
COLUMN LID
Item is no longer available
Price
N/A
260
SET SCREW M8-1.25 X 12
Price
N/A
261
HEX BOLT M16-2 X 190
Price
N/A
262
CAP SCREW M6-1 X 25
Price
N/A
263
WORM SHAFT
Price
$32.20
264
THRUST WASHER 16MM
Item is no longer available
Price
N/A
265
CAP SCREW M10-1.5 X 20
Price
N/A
266
Z-AXIS CRANK
Price
$46.60
267
CRANK HANDLE
Item is no longer available
Price
N/A
268
EXT RETAINING RING 14MM
Price
N/A
269
SHAFT
Price
$11.20
270
HELICAL GEAR
Price
$23.40
271
WORM SHAFT BRACKET
Item is no longer available
Price
N/A
272
CAP SCREW M8-1.25 X 6
Price
N/A
273
FLAT WASHER 8MM
Price
N/A
274
POWER FEED LIMIT SWITCH
Price
$44.60
275
EXT RETAINING RING 8MM
Price
N/A
276
T-SLOT NUT M8-1.25
Price
$1.90
277
POWER FEED LIMIT STOP
Price
$4.70
278
COMPRESSION SPRING
Price
$1.90
279
LIMIT STOP HOUSING
Price
$11.20
280
TABLE SCALE
Item is no longer available
Price
N/A

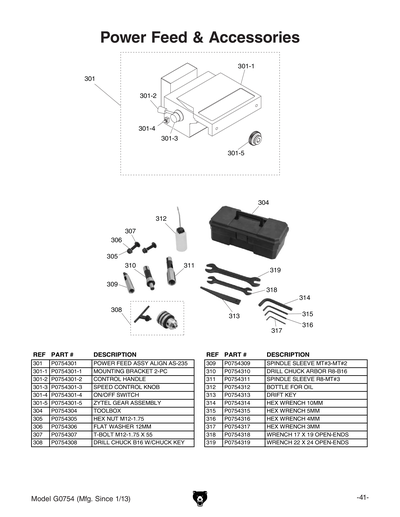

301
Power Feed for G0754
Price
N/A
301-1
MOUNTING BRACKET 2PC
Price
N/A
301-2
CONTROL HANDLE
Price
N/A
301-3
SPEED CONTROL KNOB
Price
N/A
301-4
ON/OFF SWITCH
Price
N/A
301-5
LEADSCREW DRIVE GEAR
Price
N/A
304
TOOLBOX
Price
$30.35
305
HEX NUT M12-1.75
Price
N/A
306
FLAT WASHER 12MM
Price
N/A
307
T-BOLT M12-1.75 X 55
Price
N/A
308
DRILL CHUCK B16 W/CHUCK KEY
Price
$47.15
309
SPINDLE SLEEVE MT#3-MT#2
Price
$44.60
310
ARBOR R8 X B16
Price
N/A
311
SPINDLE SLEEVE R8-MT#3
Price
N/A
312
BOTTLE FOR OIL
Price
N/A
313
DRIFT KEY
Price
N/A
314
HEX WRENCH 10MM
Price
N/A
315
HEX WRENCH 5MM
Price
N/A
316
HEX WRENCH 4MM
Price
N/A
317
HEX WRENCH 3MM
Price
N/A
318
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
319
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A

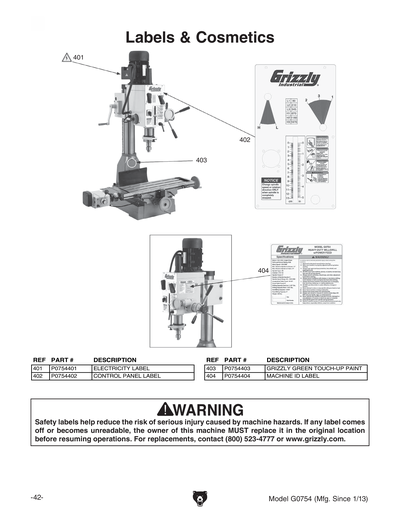

401
ELECTRICITY 0.7W X 0.6H
Price
N/A
402
CONTROL PANEL LABEL
Price
$46.60
403
N/S GRIZZLY GREEN G1023S
Price
N/A
404
MACHINE ID LABEL
Price
$16.40
MAN
MANUAL MFG 1/13 V1.04.13
Price
$18.00
