Parts for G0755 - 10" x 32" 2 HP HD Mill/Drill w/ Stand & Power Feed

Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755
Part Diagram for G0755

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

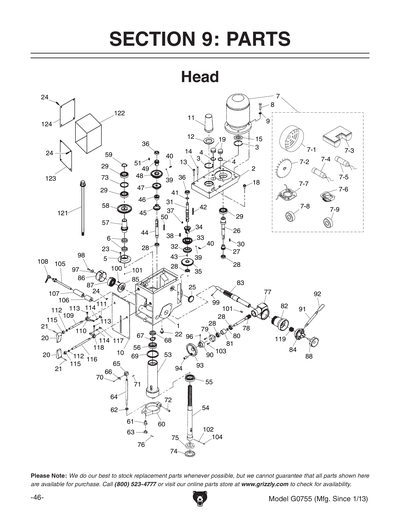

Ref #
Part #
Description

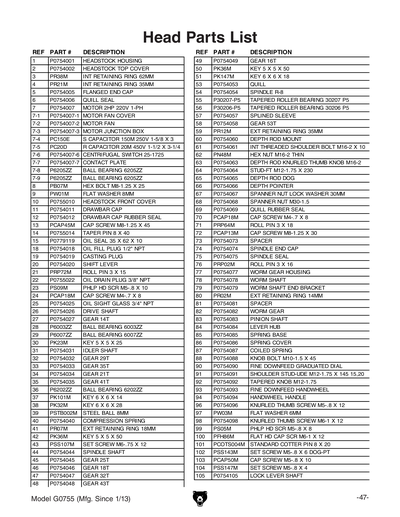

1
HEADSTOCK HOUSING
Price
N/A
2
HEADSTOCK TOP COVER
Price
N/A
3
INT RETAINING RING 62MM
Price
N/A
4
INT RETAINING RING 35MM
Price
N/A
5
FLANGED END CAP
Price
N/A
6
QUILL SEAL
Price
N/A
7
MOTOR 2HP 220V 1-PH
Price
N/A
7-1
MOTOR FAN COVER
Price
N/A
7-2
MOTOR FAN
Price
N/A
7-3
MOTOR JUNCTION BOX
Price
N/A
7-4
S CAPACITOR 150M 250V 1-1/2 X 2-3/8
Price
N/A
7-5
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
7-6
CENTRIFUGAL SWITCH 25-1725
Price
N/A
7-7
CONTACT PLATE
Price
N/A
7-8
Bearing - 16mm x 5mm
Price
N/A
7-9
Bearing - 16mm x 5mm
Price
N/A
8
HEX BOLT M8-1.25 X 25
Price
N/A
9
FLAT WASHER 8MM
Price
N/A
10
HEADSTOCK FRONT COVER
Price
$69.40
11
DRAWBAR CAP
Price
N/A
12
DRAWBAR CAP RUBBER SEAL
Price
N/A
13
CAP SCREW M8-1.25 X 45
Price
N/A
14
TAPER PIN 8 X 40
Price
N/A
15
OIL SEAL 35 X 62 X 10
Price
N/A
18
OIL FILL PLUG 1/2" NPT
Price
N/A
19
CASTING PLUG
Price
N/A
20
SHIFT LEVER
Price
N/A
21
ROLL PIN 3 X 15
Price
N/A
22
OIL DRAIN PLUG 3/8" NPT
Price
$2.60
23
PHLP HD SCR M5-.8 X 10
Price
N/A
24
CAP SCREW M4-.7 X 8
Price
N/A
25
OIL SIGHT GLASS 3/4" NPT
Price
N/A
26
DRIVE SHAFT
Price
N/A
27
GEAR 14T
Price
N/A
28
Bearing - 35mm x 17mm
Price
N/A
29
BALL BEARING 6007ZZ
Price
N/A
30
KEY 5 X 5 X 25
Price
N/A
31
IDLER SHAFT
Price
N/A
32
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
33
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
34
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
35
GEAR 41T
Price
N/A
36
BALL BEARING 6202ZZ
Price
N/A
37
KEY 6 X 6 X 40
Price
N/A
38
KEY 6 X 6 X 28
Price
N/A
39
STEEL BALL 8MM
Price
N/A
40
COMPRESSION SPRING
Price
N/A
41
EXT RETAINING RING 18MM
Price
N/A
42
KEY 5 X 5 X 50
Price
N/A
43
SET SCREW M8-1.25 X 6
Price
N/A
44
SPINDLE SHAFT
Price
N/A
45
GEAR 25T
Price
N/A
46
GEAR 18T
Price
N/A
47
GEAR 32T
Price
N/A
48
MATCHED GEAR SET 43/16T (3PCS)
Price
N/A
49
MATCHED GEAR SET 43/16T (3PCS)
Price
N/A
50
KEY 5 X 5 X 50
Price
N/A
51
KEY 6 X 6 X 18
Price
N/A
53
QUILL
Price
N/A
54
SPINDLE
Price
N/A
55
TAPERED ROLLER BEARING 30207 P5
Price
N/A
56
TAPERED ROLLER BEARING 30206 P5
Price
N/A
57
SPLINED SLEEVE
Price
N/A
58
GEAR 53T
Price
N/A
59
EXT RETAINING RING 35MM
Price
N/A
60
DEPTH ROD MOUNT
Price
N/A
61
INT THREADED SHOULDER BOLT M16-2 X 10
Price
N/A
62
HEX NUT M16-2 THIN
Price
N/A
63
DEPTH ROD KNURLED KNOB M16-2
Price
N/A
64
STUD-FT M12-1.75 X 230
Price
N/A
65
DEPTH ROD DOG
Price
N/A
66
DEPTH POINTER
Price
N/A
67
SPANNER NUT LOCK WASHER
Price
N/A
68
SPANNER NUT
Price
N/A
69
QUILL RUBBER SEAL
Price
N/A
70
CAP SCREW M4-.7 X 8
Price
N/A
71
ROLL PIN 3 X 18
Price
N/A
72
CAP SCREW M8-1.25 X 30
Price
N/A
73
SPACER
Price
N/A
74
SPINDLE END CAP
Price
N/A
75
*DISCD*SPINDLE SEAL
Price
N/A
76
ROLL PIN 3 X 16
Price
N/A
77
WORM GEAR HOUSING
Price
N/A
78
WORM SHAFT
Price
N/A
79
WORM SHAFT END BRACKET
Price
N/A
80
EXT RETAINING RING 14MM
Price
N/A
81
SPACER
Price
N/A
82
WORM GEAR
Price
N/A
83
PINION SHAFT
Price
N/A
84
LEVER HUB
Price
N/A
85
SPRING BASE
Price
N/A
86
SPRING COVER
Price
N/A
87
COILED SPRING
Price
N/A
88
KNOB BOLT M10-1.5 X 45
Price
N/A
90
FINE DOWNFEED GRADUATED DIAL
Price
N/A
91
SHOULDER STUD-UDE M12-1.75 X 145 15,20
Price
N/A
92
TAPERED HANDLE M12-1.75, 98L
Price
N/A
93
FINE DOWNFEED HANDWHEEL
Price
N/A
94
HANDWHEEL HANDLE
Price
N/A
96
KNURLED THUMB SCREW M5-.8 X 12
Price
N/A
97
FLAT WASHER 6MM
Price
N/A
98
KNURLED THUMB SCREW M6-1 X 12
Price
N/A
99
PHLP HD SCR M5-.8 X 8
Price
N/A
100
FLAT HD CAP SCR M6-1 X 12
Price
N/A
101
ROLL PIN 3.38 X 10MM
Price
N/A
102
SET SCREW M5-.8 X 6 DOG-PT
Price
N/A
103
CAP SCREW M5-.8 X 10
Price
N/A
104
SET SCREW M5-.8 X 4
Price
N/A
105
LOCK LEVER SHAFT
Price
N/A

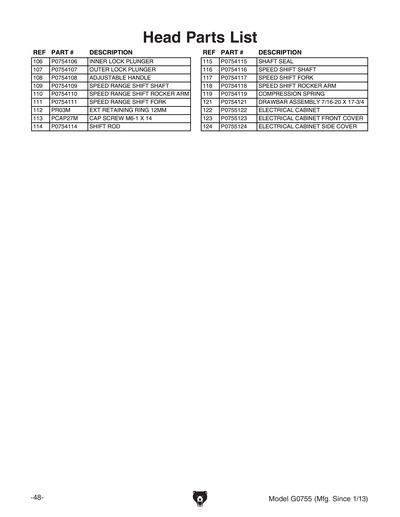

106
INSIDE LOCK PLUNGER
Price
N/A
107
OUTSIDE LOCK PLUNGER
Price
N/A
108
ADJUSTABLE HANDLE
Price
N/A
109
SPEED RANGE SHIFT SHAFT
Price
N/A
110
SPEED RANGE SHIFT ROCKER ARM
Price
N/A
111
SPEED RANGE SHIFT FORK
Price
N/A
112
EXT RETAINING RING 12MM
Price
N/A
113
CAP SCREW M6-1 X 14
Price
N/A
114
SHIFT ROD
Price
N/A
115
SHAFT SEAL
Price
N/A
116
SPEED SHIFT SHAFT
Price
N/A
117
SPEED SHIFT FORK
Price
N/A
118
SPEED SHIFT ROCKER ARM
Price
N/A
119
COMPRESSION SPRING
Price
N/A
121
DRAWBAR 7/16-20 X 17-3/4
Price
N/A
122
ELECTRICAL CABINET
Price
$111.45
123
ELECTRICAL CABINET FRONT COVER
Price
$29.15
124
ELECTRICAL CABINET SIDE COVER
Price
$17.90

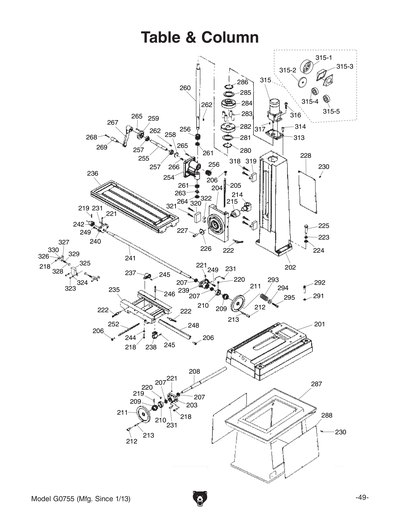

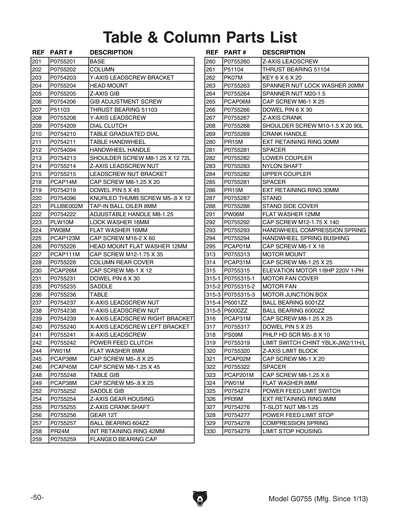

201
BASE
Price
$757.60
202
COLUMN
Price
$784.60
203
CROSS LEADSCREW BRACKET
Price
N/A
204
HEAD MOUNT
Price
$338.95
205
Z-AXIS GIB
Price
$41.75
206
GIB ADJUSTMENT SCREW
Price
N/A
207
THRUST BEARING 51103
Price
N/A
208
Y-AXIS LEADSCREW
Price
$133.70
209
DIAL CLUTCH
Price
N/A
210
TABLE GRADUATED DIAL
Price
N/A
211
TABLE HANDWHEEL
Price
N/A
212
HANDWHEEL HANDLE W/SCREW
Price
N/A
213
HANDWHEEL HANDLE W/SCREW
Price
N/A
214
Z-AXIS LEADSCREW NUT
Price
$66.15
215
LEADSCREW NUT BRACKET
Price
$49.25
218
CAP SCREW M8-1.25 X 20
Price
N/A
219
DOWEL PIN 5 X 45
Price
N/A
220
KNURLED THUMB SCREW M5-.8 X 12
Price
N/A
221
BALL OILER 8MM PRESS-IN
Price
N/A
222
LOCK LEVER
Price
N/A
223
LOCK WASHER 16MM
Price
N/A
224
FLAT WASHER 16MM
Price
N/A
225
CAP SCREW M16-2 X 60
Price
N/A
226
FENDER WASHER 14MM
Price
$1.90
227
CAP SCREW M12-1.75 X 35
Price
N/A
228
COLUMN REAR COVER
Price
$9.00
230
CAP SCREW M6-1 X 12
Price
N/A
231
DOWEL PIN 8 X 30
Price
$1.90
235
SADDLE
Price
$410.10
236
TABLE
Price
$1,203.20
237
X-AXIS LEADSCREW NUT
Price
N/A
238
CROSS LEADSCREW NUT
Price
N/A
239
RIGHT X-AXIS LEADSCREW BRACKET
Price
N/A
240
X-AXIS LEADSCREW LEFT BRACKET
Price
$27.00
241
X-AXIS LEADSCREW
Price
$220.70
242
POWER FEED CLUTCH
Price
$18.00
244
FLAT WASHER 8MM
Price
N/A
245
CAP SCREW M5-.8 X 25
Price
N/A
246
CAP SCREW M8-1.25 X 45
Price
N/A
248
TABLE GIB
Price
$44.60
249
CAP SCREW M5-.8 X 25
Price
N/A
252
SADDLE GIB
Price
$47.15
254
Z-AXIS GEAR HOUSING
Price
$80.50
255
Z-AXIS CRANK SHAFT
Price
N/A
256
GEAR 12T
Price
$44.60
257
BALL BEARING 604ZZ
Price
$3.95
258
INT RETAINING RING 42MM
Price
N/A
259
FLANGED BEARING CAP
Price
$16.20
260
Z-AXIS LEADSCREW
Price
$149.80
261
THRUST BEARING 51104
Price
N/A
262
KEY 6 X 6 X 20
Price
N/A
263
EXT TOOTH WASHER 20MM
Price
N/A
264
SPANNER NUT M20-1.5
Price
$7.20
265
CAP SCREW M6-1 X 25
Price
N/A
266
DOWEL PIN 6 X 30
Price
$1.90
267
Z-AXIS CRANK
Price
$58.25
268
SHOULDER SCREW M10-1.5 X 20 90L
Price
$7.20
269
CRANK HANDLE
Price
$9.00
280
EXT RETAINING RING 30MM
Price
N/A
281
SPACER
Price
$2.60
282
LOWER COUPLER
Price
$40.65
283
NYLON SHAFT
Price
$12.65
284
LOWER COUPLER
Price
N/A
285
SPACER
Price
N/A
286
EXT RETAINING RING 30MM
Price
N/A
287
STAND
Price
$1,448.35
288
STAND SIDE COVER
Price
$71.60
289
COLUMN WAY COVER
Price
$69.15
290
Y-AXIS WAY COVER
Price
$53.60
291
FLAT WASHER 12MM
Price
N/A
292
CAP SCREW M12-1.75 X 140
Price
$1.90
293
HANDWHEEL SPRING
Price
$2.60
294
HANDWHEEL SPRING BUSHING
Price
$2.60
295
CAP SCREW M6 X 16
Price
$1.90
296
Z-AXIS WAY COVER
Price
$66.90
313
MOTOR MOUNT
Price
$104.95
314
CAP SCREW M8-1.25 X 25
Price
N/A
315
ELEVATION MOTOR 1/8HP 220V 1-PH
Price
$419.00
315-1
MOTOR FAN COVER
Price
$27.00
315-2
MOTOR FAN
Price
$27.00
315-3
MOTOR JUNCTION BOX
Price
$22.35
315-4
BALL BEARING 6001ZZ
Price
N/A
315-5
BALL BEARING 6000ZZ
Price
N/A
316
CAP SCREW M8-1.25 X 25
Price
N/A
317
KEY 5 X 25
Price
$1.90
318
PHLP HD SCR M5-.8 X 10
Price
N/A
319
LIMIT SWITCH CHINT YBLX-JW2/11H/L
Price
$13.70
320
Z-AXIS LIMIT BLOCK
Price
$16.20
321
CAP SCREW M6-1 X 20
Price
N/A
322
SPACER
Price
$1.90
323
CAP SCREW M4-.7 X 30
Price
N/A
324
FLAT WASHER 8MM
Price
N/A
325
POWER FEED LIMIT SWITCH
Price
N/A
326
EXT RETAINING RING 8MM
Price
N/A
327
T-SLOT NUT M8-1.25
Price
N/A
328
POWER FEED LIMIT STOP
Price
N/A
329
COMPRESSION SPRING
Price
N/A
330
LIMIT STOP HOUSING
Price
N/A
331
TABLE SCALE
Price
$15.85

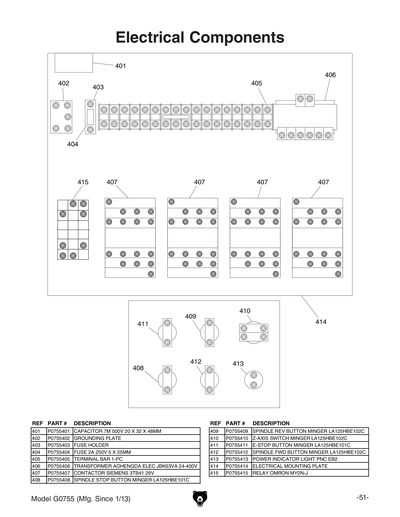

401
CAPACITOR 7M 500V 20 X 32 X 48MM
Price
$30.60
402
GROUNDING PLATE
Price
$22.35
403
FUSE HOLDER
Price
$25.20
404
FUSE 2A 250V 5 X 25MM
Price
$6.15
405
TERMINAL BAR 1P
Price
N/A
406
TRANSFORMER JBK5 63VA 220/400V-24V
Price
$151.60
407
***USE P0755407V2***
Price
$52.90
407V2
CONTACTOR SIEMENS 3TH82 24V
Price
$111.45
408
SPINDLE STOP BUTTON MINGER LA125HBE101C
Price
$40.60
409
SPINDLE DIRECTION SWITCH
Price
N/A
410
Z-AXIS SWITCH MINGER LA125HBE101C
Price
$40.60
411
E-STOP BUTTON MINGER LA125HBE101C
Price
$49.10
412
SPINDLE FWD BUTTON MINGER LA125HBE102C
Price
$40.60
413
POWER BUTTON MINGER LA125-HD 206A 22MM
Price
N/A
414
ELECTRICAL MOUNTING PLATE
Price
$27.00
415
RELAY OMRON MY2N-J
Price
$63.75

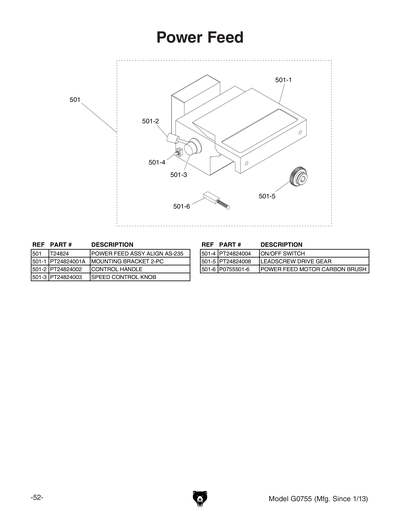

501
Power Feed AS-350
Price
N/A
501-1
MOUNTING BRACKET 2PC
Price
N/A
501-2
CONTROL HANDLE
Price
N/A
501-3
SPEED CONTROL KNOB
Price
N/A
501-4
ON/OFF SWITCH
Price
N/A
501-5
LEADSCREW DRIVE GEAR
Price
N/A
501-6
CARBON BRUSH (SINGLE)
Price
$6.90
501-7
CARBON BRUSH HOLDER
Price
$13.70
501-8
CARBON BRUSH CAP
Price
$6.70
503
*DISCD*FACE MILL ARBOR R8, 170MM L
Price
N/A

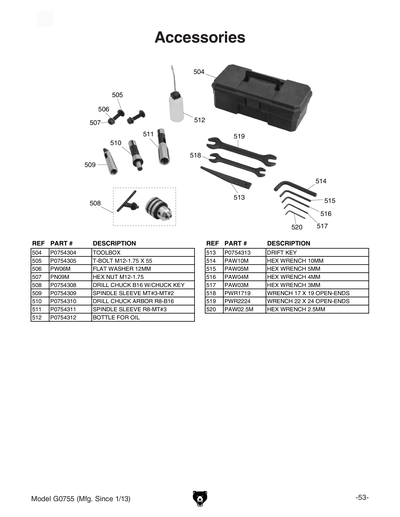

504
TOOLBOX
Price
N/A
505
HEX NUT M12-1.75
Price
N/A
506
FLAT WASHER 12MM
Price
N/A
507
HEX NUT M12-1.75
Price
N/A
508
DRILL CHUCK B16 W/CHUCK KEY
Price
N/A
509
SPINDLE SLEEVE MT#3-MT#2
Price
N/A
510
ARBOR R8 X B16
Price
N/A
511
SPINDLE SLEEVE R8-MT#3
Price
N/A
512
***USE P4003G0003***
Price
N/A
513
DRIFT KEY
Price
N/A
514
HEX WRENCH 10MM
Price
N/A
515
HEX WRENCH 5MM
Price
N/A
516
HEX WRENCH 4MM
Price
N/A
517
HEX WRENCH 3MM
Price
N/A
518
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
519
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
520
HEX WRENCH 2.5MM
Price
N/A
601

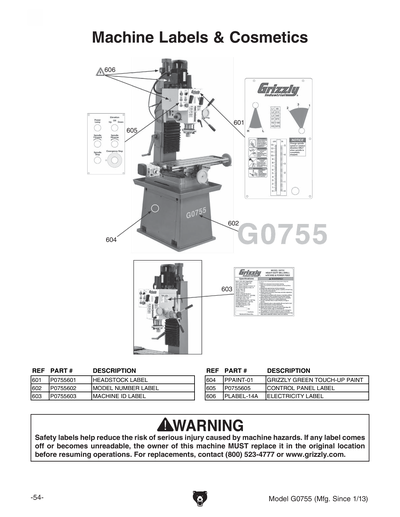

HEADSTOCK LABEL
Price
$46.60
602
MODEL NUMBER LABEL
Price
$7.85
603
MACHINE ID LABEL
Price
$16.40
603V2
MACHINE ID LABEL V2.10.16
Price
$10.95
604
N/S GRIZZLY GREEN G1023S
Price
N/A
605
CONTROL PANEL LABEL
Price
$19.40
606
ELECTRICITY 0.7W X 0.6H
Price
N/A
607
GRIZZLY.COM LABEL
Price
$10.95
MAN
MANUAL G0755 MFD-01.13+ V1.11.24
Price
$18.00
PC150E
PC150E
Now: PC150B
S CAPACITOR 150M 250V 1-1/2 X 2-3/8
Price
N/A
