Parts for G0758Z - 6" x 20" 3/4 HP Mill/Drill with DRO

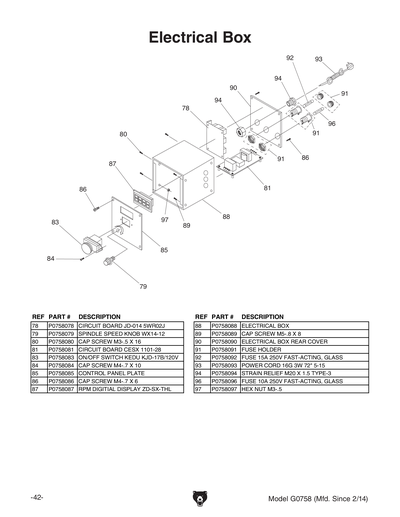

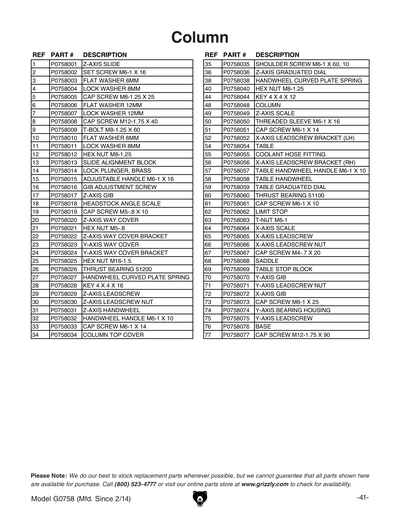

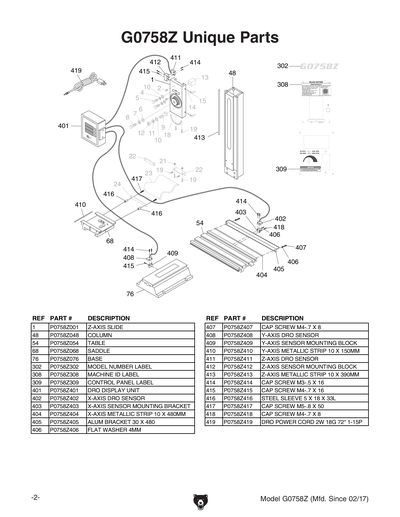

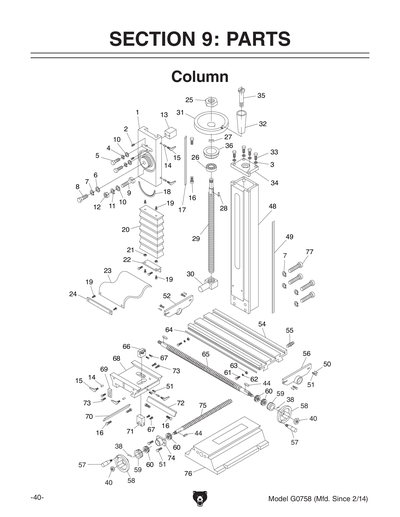

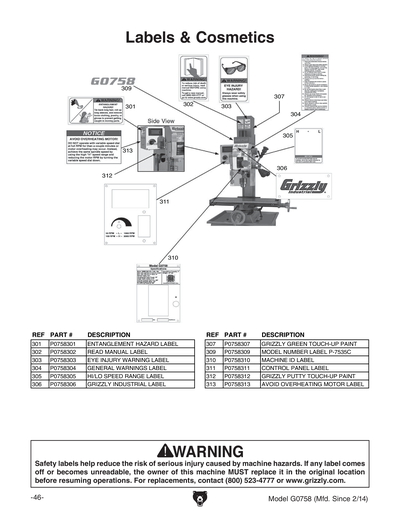

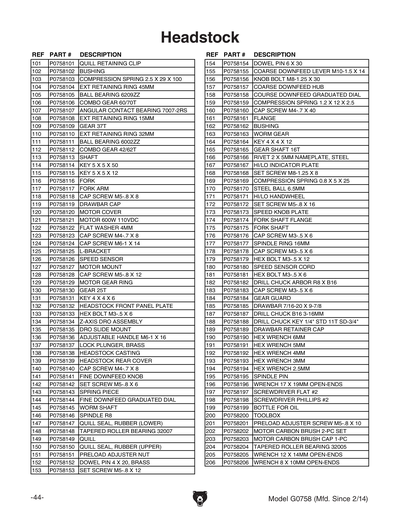

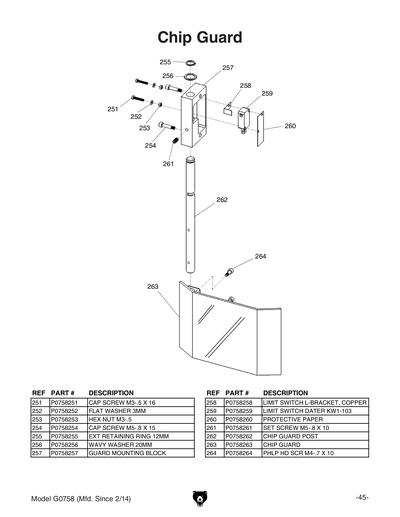

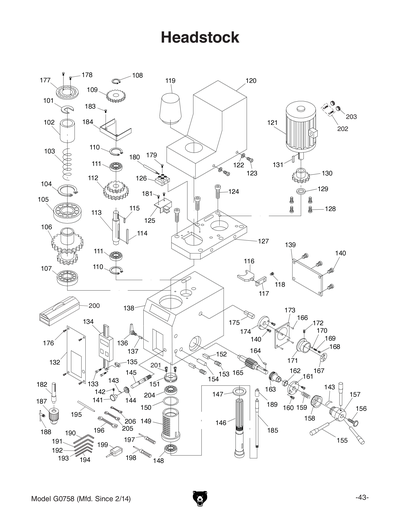

Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z
Part Diagram for G0758Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Z-AXIS SLIDE
Price
$86.25
2
SET SCREW M6-1 X 16
Price
N/A
3
FLAT WASHER 6MM
Price
N/A
4
LOCK WASHER 8MM
Price
N/A
5
CAP SCREW M8-1.25 X 25
Price
N/A
6
FLAT WASHER 12MM
Price
N/A
7
LOCK WASHER 12MM
Price
N/A
8
CAP SCREW M12-1.75 X 40
Price
N/A
9
T-BOLT M8-1.25 X 60 V1
Price
N/A
10
FLAT WASHER 8MM
Price
N/A
11
LOCK WASHER 8MM
Price
N/A
12
HEX NUT M8-1.25
Price
N/A
13
SLIDE ALIGNMENT BLOCK
Price
N/A
14
LOCK PLUNGER, BRASS
Price
N/A
15
ADJUSTABLE HANDLE M6-1 X 16
Price
N/A
16
GIB ADJUSTMENT SCREW M6-1 X 25
Price
N/A
17
Z-AXIS GIB
Price
N/A
18
HEADSTOCK ANGLE SCALE
Price
N/A
19
CAP SCREW M5-.8 X 10
Price
N/A
22
Z-AXIS WAY COVER BRACKET
Price
N/A
23
Y-AXIS WAY COVER
Price
N/A
24
Y-AXIS WAY COVER BRACKET
Price
N/A
25
*DISCD*HEX NUT M10-1.5 TALL
Price
N/A
26
THRUST BEARING 51200
Price
N/A
27
INDICATOR PLATE
Price
N/A
28
KEY 4 X 4 X 16
Price
N/A
29
Z-AXIS LEADSCREW
Price
N/A
30
Z-AXIS LEADSCREW NUT
Price
N/A
31
HANDWHEEL TYPE-4 100D X 10B-K X M6-1
Price
N/A
32
HANDLE W/OUT SHAFT 15 X 50, 8D
Price
N/A
33
CAP SCREW M6-1 X 14
Price
N/A
34
COLUMN TOP COVER
Price
N/A
35
SHOULDER SCREW M6-1 X 60, 8 X 45
Price
N/A
36
Z-AXIS GRADUATED DIAL
Price
N/A
38
HANDWHEEL CURVED PLATE SPRING
Price
N/A
40
HEX NUT M8-1.25
Price
N/A
44
KEY 4 X 4 X 12
Price
N/A
48
COLUMN
Item is no longer available
Price
N/A
49
Z-AXIS SCALE
Price
N/A
50
THREADED SLEEVE M6-1 X 16
Price
N/A
51
CAP SCREW M6-1 X 14
Price
N/A
52
X-AXIS LEADSCREW BRACKET (LH)
Price
N/A
54
TABLE
Item is no longer available
Price
N/A
55
COOLANT HOSE FITTING
Price
N/A
56
X-AXIS LEADSCREW BRACKET (RH)
Price
N/A
58
HANDWHEEL TYPE-4 100D X 10B-K X M6-1
Price
N/A
59
TABLE GRADUATED DIAL
Price
N/A
60
THRUST BEARING 51100
Price
N/A
61
CAP SCREW M6-1 X 10
Price
N/A
62
LIMIT STOP
Price
N/A
63
T-NUT M6-1
Price
N/A
64
X-AXIS SCALE
Price
N/A
65
X-AXIS LEADSCREW
Price
N/A
66
X-AXIS LEADSCREW NUT
Price
N/A
67
CAP SCREW M4-.7 X 20
Price
N/A
68
SADDLE
Item is no longer available
Price
N/A
69
TABLE STOP BLOCK
Price
N/A
70
Y-AXIS GIB
Price
N/A
71
Y-AXIS LEADSCREW NUT
Price
N/A
72
X-AXIS GIB
Price
N/A
73
CAP SCREW M6-1 X 25
Price
N/A
74
Y-AXIS BEARING HOUSING
Price
N/A
75
Y-AXIS LEADSCREW
Price
N/A
76
BASE
Item is no longer available
Price
N/A
77
CAP SCREW M12-1.75 X 90
Price
N/A
78
CIRCUIT BOARD JD-014 5WR02J
Price
N/A
79
SPINDLE SPEED POTENTIOMETER WX14-12
Price
N/A
80
CAP SCREW M3-.5 X 16
Price
N/A
81
CIRCUIT BOARD CESX 1101-28
Price
N/A
83
ON/OFF SWITCH KEDU KJD-17B/120V
Price
N/A
84
CAP SCREW M4-.7 X 10
Price
N/A
85
CONTROL PLANEL PLATE
Price
N/A
86
CAP SCREW M4-.7 X 6
Price
N/A
87
RPM DIGITAL DISPLAY ZD-SX-THL
Price
N/A
88
ELECTRICAL BOX
Price
N/A
89
CAP SCREW M5-.8 X 8
Price
N/A
90
ELECTRICAL BOX REAR COVER
Price
N/A
91
FUSE HOLDER
Price
N/A
92
FUSE 15A 250V FAST-ACTING, GLASS
Price
N/A
93
POWER CORD 16G 3W 72" 5-15P
Price
N/A
94
STRAIN RELIEF M20 X 1.5 TYPE-3
Price
N/A
96
FUSE 10A 250V FAST-ACTING GLASS
Price
N/A
97
HEX NUT M3-.5
Price
N/A
98
SET SCREW M10-1.5 X 8
Price
N/A
101
QUILL RETAINING CLIP
Price
N/A
102
BUSHING
Price
N/A
103
COMPRESSION SPRING 2.5 X 29 X 100
Price
N/A
104
EXT RETAINING RING 45MM
Price
N/A
105
BALL BEARING 6209ZZ
Price
N/A
106
COMBO GEAR 60/70T
Price
N/A
107
ANG CONTACT BEARING 7007-2RSD
Item is no longer available
Price
N/A
108
EXT RETAINING RING 15MM
Price
N/A
109
GEAR 37T 15MM ID BORE
Price
N/A
110
EXT RETAINING RING 32MM
Price
N/A
111
BALL BEARING 6002ZZ
Price
N/A
112
COMBO GEAR 42/62T
Price
N/A
113
SHAFT
Price
N/A
114
KEY 5 X 5 X 50
Price
N/A
115
KEY 5 X 5 X 12
Price
N/A
116
FORK
Price
N/A
117
FORK ARM
Price
N/A
118
CAP SCREW M5-.8 X 8
Price
N/A
119
DRAWBAR CAP
Price
N/A
120
MOTOR COVER
Price
N/A
121
MOTOR 600W 110VDC
Price
N/A
122
FLAT WASHER 4MM
Price
N/A
123
CAP SCREW M4-.7 X 8
Price
N/A
124
CAP SCREW M6-1 X 14
Price
N/A
125
L-BRACKET
Price
N/A
126
SPEED SENSOR
Price
N/A
127
MOTOR MOUNT
Price
N/A
128
CAP SCREW M5-.8 X 12
Price
N/A
129
MOTOR GEAR RING
Price
N/A
130
GEAR 25T
Price
N/A
131
KEY 4 X 4 X 6
Price
N/A
132
HEADSTOCK FRONT PANEL PLATE
Price
N/A
133
HEX BOLT M3-.5 X 6
Price
N/A
134
Z-AXIS DRO ASSEMBLY
Price
N/A
135
DRO SLIDE MOUNT
Price
N/A
136
ADJUSTABLE HANDLE M6-1 X 16
Price
N/A
137
LOCK PLUNGER, BRASS
Price
N/A
138
HEADSTOCK CASTING
Price
N/A
139
HEADSTOCK REAR COVER
Price
N/A
140
CAP SCREW M4-.7 X 8
Price
N/A
141
FINE DOWNFEED KNOB 12 X 26 X 45D
Price
N/A
142
SET SCREW M5-.8 X 6
Price
N/A
143
SPRING PIECE
Price
N/A
144
FINE DOWNFEED GRADUATED DIAL
Price
N/A
145
WORM SHAFT
Price
N/A
146
SPINDLE R8
Price
N/A
147
QUILL SEAL, RUBBER (LOWER)
Price
N/A
148
TAPERED ROLLER BEARING 32005
Price
N/A
149
QUILL
Price
N/A
150
QUILL SEAL, RUBBER (UPPER)
Price
N/A
151
PRELOAD ADJUSTER NUT
Price
N/A
152
DOWEL PIN 4 X 20
Price
N/A
153
SET SCREW M5-.8 X 12
Price
N/A
154
DOWEL PIN 6 X 30
Price
N/A
155
COARSE DOWNFEED LEVER M10-1.5 X 14
Price
N/A
156
KNOB BOLT M8-1.25 X 30
Price
N/A
157
COARSE DOWNFEED HUB
Price
N/A
158
COURSE DOWNFEED GRADUATED DIAL
Price
N/A
159
COMPRESSION SPRING 1.2 X 12 X 2.5
Price
N/A
160
CAP SCREW M4-.7 X 40
Price
N/A
161
FLANGE
Price
N/A
162
BUSHING
Price
N/A
163
WORM GEAR
Price
N/A
164
KEY 4 X 4 X 12
Price
N/A
165
GEAR SHAFT 16T
Price
N/A
166
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
167
HI/LO INDICATOR PLATE
Price
N/A
168
SET SCREW M8-1.25 X 8
Price
N/A
169
COMPRESSION SPRING 0.8 X 5 X 25
Price
N/A
170
STEEL BALL 6.5MM
Price
N/A
171
HI/LO HANDWHEEL
Price
N/A
172
SET SCREW M5-.8 X 16
Price
N/A
173
SPEED KNOB PLATE
Price
N/A
174
FORK SHAFT FLANGE
Price
N/A
175
FORK SHAFT
Price
N/A
176
CAP SCREW M3-.5 X 6
Price
N/A
177
SPINDLE RING 16MM
Price
N/A
178
CAP SCREW M3-.5 X 6
Price
N/A
179
HEX BOLT M3-.5 X 12
Price
N/A
180
SPEED SENSOR CORD
Price
N/A
181
HEX BOLT M3-.5 X 6
Price
N/A
182
DRILL CHUCK ARBOR R8 X B16
Price
N/A
183
CAP SCREW M3-.5 X 6
Price
N/A
184
GEAR GUARD
Price
N/A
185
DRAWBAR 7/16-20 X 9-7/8
Price
N/A
187
DRILL CHUCK B16 3-16MM
Price
N/A
188
DRILL CHUCK KEY 1/4" STD 11T SD-3/4"
Price
N/A
189
DRAWBAR RETAINER CAP
Price
N/A
190
HEX WRENCH 6MM
Price
N/A
191
HEX WRENCH 5MM
Price
N/A
192
HEX WRENCH 4MM
Price
N/A
193
HEX WRENCH 3MM
Price
N/A
194
HEX WRENCH 2.5MM
Price
N/A
195
SPINDLE PIN
Price
N/A
196
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
197
SCREWDRIVER FLAT #2
Price
N/A
198
SCREWDRIVER PHILLIPS #2
Price
N/A
199
BOTTLE FOR OIL
Price
N/A
200
TOOLBOX
Price
N/A
201
PRELOAD ADJUSTER SCREW M5-.8 X 10
Price
N/A
202
MOTOR CARBON BRUSH (SINGLE)
Price
N/A
203
MOTOR CARBON BRUSH CAP 1-PC
Price
N/A
204
TAPERED ROLLER BEARING 32005
Price
N/A
205
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
206
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
251
CAP SCREW M3-.5 X 16
Price
N/A
252
FLAT WASHER 3MM
Price
N/A
253
HEX NUT M3-.5
Price
N/A
254
CAP SCREW M5-.8 X 15
Price
N/A
255
EXT RETAINING RING 12MM
Price
N/A
256
WAVY WASHER 12MM
Price
N/A
257
GUARD MOUNTING BLOCK
Price
N/A
258
LIMIT SWITCH DATER KW1-103
Price
N/A
259
LIMIT SWITCH DATER KW1-103
Price
N/A
260
PROTECTIVE PAPER
Price
N/A
261
SET SCREW M5-.8 X 10
Price
N/A
262
CHIP GUARD POST
Price
N/A
263
CHIP GUARD
Price
N/A
264
PHLP HD SCR M4-.7 X 10
Price
N/A
301
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
302
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
303
READ MANUAL 1.5W X 2.5H
Price
N/A
304
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
305
GENERAL WARNINGS LABEL
Item is no longer available
Price
N/A
306
HI/LO SPEED RANGE LABEL
Item is no longer available
Price
N/A
307
GRIZZLY INDUSTRIAL LABEL
Item is no longer available
Price
N/A
308
MACHINE ID LABEL
Item is no longer available
Price
N/A
309
CONTROL PANEL LABEL
Item is no longer available
Price
N/A
310
AVOID OVERHEATING MOTOR LABEL
Item is no longer available
Price
N/A
311
N/S GRIZZLY GREEN G1023S
Price
N/A
312
GREY PUTTY REF G0504
Price
N/A
401
DRO DISPLAY UNIT
Price
$403.25
402
X-AXIS DRO SENSOR
Price
$84.15
403
X-AXIS SENSOR MOUNTING BRACKET
Price
$16.20
404
X-AXIS METALLIC STRIP 10 X 480MM
Price
$69.90
405
BRACKET 30 X 480 (ALUMINUM)
Price
$37.75
406
FLAT WASHER 4MM
Price
N/A
407
CAP SCREW M4-.7 X 8
Price
N/A
408
Y-AXIS DRO SENSOR
Price
$92.60
409
Y-AXIS SENSOR MOUNTING BLOCK
Price
$16.20
410
Y-AXIS METALLIC STRIP 10 X 150MM
Price
$25.90
411
Z-AXIS DRO SENSOR
Price
$84.15
412
Z-AXIS SENSOR MOUNTING BLOCK
Price
$16.20
413
Z-AXIS METALLIC STRIP 10 X 390MM
Price
$56.95
414
CAP SCREW M3-.5 X 16
Price
N/A
415
CAP SCREW M4-.7 X 16
Price
N/A
416
SLEEVE 5 X 18 X 33L (STEEL)
Item is no longer available
Price
N/A
417
CAP SCREW M5-.8 X 50
Price
N/A
418
CAP SCREW M4-.7 X 8
Price
N/A
419
DRO POWER CORD 2W 18G 72" 1-15P
Price
$47.45
MAN
MANUAL G0758Z MFD-02.17 V1.06.17
Item is no longer available
Price
N/A
