Parts for G0759 - 7" x 27" 1 HP Mill/Drill w/ Stand & DRO

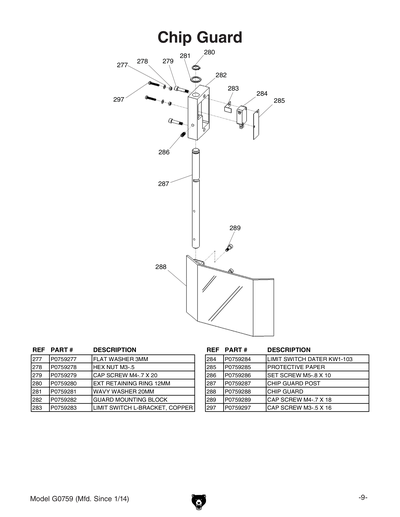

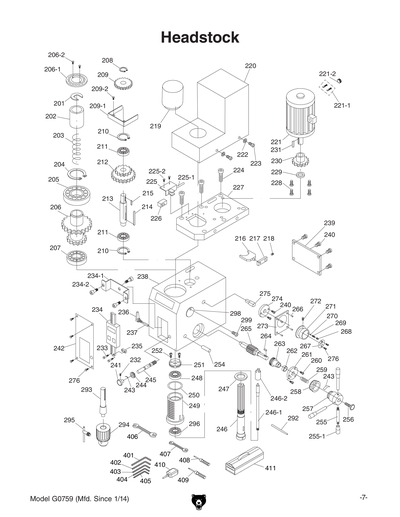

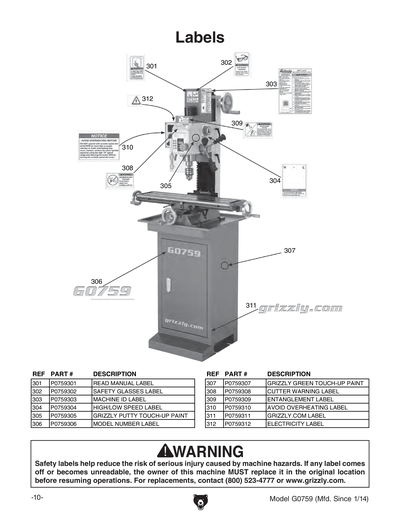

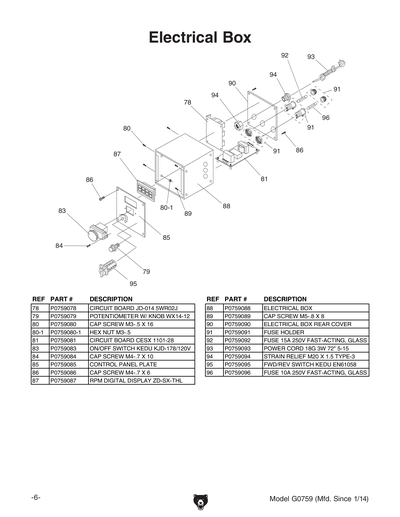

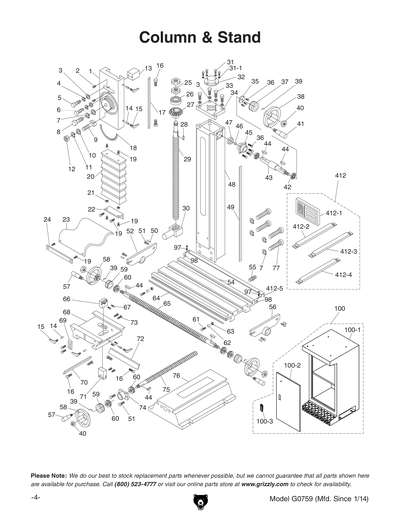

Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759
Part Diagram for G0759

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

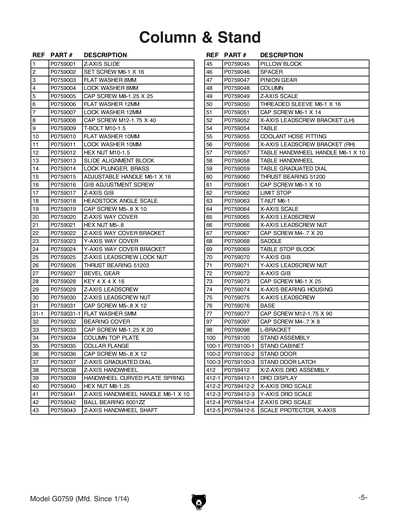

Ref #
Part #
Description
1
Z-AXIS SLIDE
Price
N/A
2
SET SCREW M6-1 X 16
Price
N/A
3
FLAT WASHER 8MM
Price
N/A
4
LOCK WASHER 8MM
Price
N/A
5
CAP SCREW M8-1.25 X 25
Price
N/A
6
FLAT WASHER 12MM
Price
N/A
7
LOCK WASHER 12MM
Price
N/A
8
CAP SCREW M12-1.75 X 40
Price
N/A
9
T-BOLT M10-1.5
Price
N/A
10
FLAT WASHER 10MM
Price
N/A
11
LOCK WASHER 10MM
Price
N/A
12
HEX NUT M10-1.5
Price
N/A
13
SLIDE ALIGNMENT BLOCK
Price
N/A
14
LOCK PLUNGER, BRASS
Price
N/A
15
ADJUSTABLE HANDLE M6-1 X 16
Price
N/A
16
GIB ADJUSTMENT SCREW
Price
N/A
17
Z-AXIS GIB
Price
N/A
18
HEADSTOCK ANGLE SCALE
Price
N/A
19
CAP SCREW M5-.8 X 10
Price
N/A
20
Z-AXIS WAY COVER
Price
N/A
21
HEX NUT M5-.8
Price
N/A
22
Z-AXIS WAY COVER BRACKET
Price
N/A
23
Y-AXIS WAY COVER
Price
N/A
24
Y-AXIS WAY COVER BRACKET
Price
N/A
25
Z-AXIS LEADSCREW LOCK NUT
Price
N/A
26
THRUST BEARING 51203
Price
N/A
27
BEVEL GEAR
Price
N/A
28
KEY 4 X 4 X 16
Price
N/A
29
Z-AXIS LEADSCREW
Price
N/A
30
Z-AXIS LEADSCREW NUT
Price
N/A
31
CAP SCREW M5-.8 X 12
Price
N/A
31-1
FLAT WASHER 5MM
Price
N/A
32
BEARING COVER
Price
N/A
33
CAP SCREW M8-1.25 X 20
Price
N/A
34
COLUMN TOP PLATE
Price
N/A
35
COLLAR FLANGE
Price
N/A
36
CAP SCREW M5-.8 X 12
Price
N/A
37
Z-AXIS GRADUATED DIAL
Price
N/A
38
Z-AXIS HANDWHEEL
Price
N/A
39
HANDWHEEL CURVED PLATE SPRING
Price
N/A
40
HEX NUT M8-1.25
Price
N/A
41
Z-AXIS HANDWHEEL HANDLE M6-1 X 10
Price
N/A
42
BALL BEARING 6001ZZ
Price
N/A
43
Z-AXIS HANDWHEEL SHAFT
Price
N/A
44
KEY 4 X 4 X 12
Price
N/A
45
PILLOW BLOCK
Price
N/A
46
SPACER
Price
N/A
47
PINION GEAR
Price
N/A
48
COLUMN
Price
N/A
49
Z-AXIS SCALE
Price
N/A
50
*DISCD*THREADED SLEEVE M6-1 X 16
Price
N/A
51
CAP SCREW M6-1 X 14
Price
N/A
52
X-AXIS LEADSCREW BRACKET (LH)
Price
N/A
54
TABLE
Price
N/A
55
COOLANT HOSE FITTING
Price
N/A
56
X-AXIS LEADSCREW BRACKET (RH)
Price
N/A
57
TABLE HANDWHEEL HANDLE M6-1 X 10
Price
N/A
58
TABLE HANDWHEEL
Price
N/A
59
TABLE GRADUATED DIAL
Price
N/A
60
THRUST BEARING 51200
Price
N/A
61
CAP SCREW M6-1 X 10
Price
N/A
62
LIMIT STOP
Price
N/A
63
T-NUT M6-1
Price
N/A
64
X-AXIS SCALE
Price
N/A
65
X-AXIS LEADSCREW
Price
N/A
66
X-AXIS LEADSCREW NUT
Price
N/A
67
CAP SCREW M4-.7 X 20
Price
N/A
68
SADDLE
Price
N/A
69
TABLE STOP BLOCK
Price
N/A
70
Y-AXIS GIB
Price
N/A
71
Y-AXIS LEADSCREW NUT
Price
N/A
72
X-AXIS GIB
Price
N/A
73
CAP SCREW M6-1 X 25
Price
N/A
74
X-AXIS BEARING HOUSING
Price
N/A
75
Y-AXIS LEADSCREW
Price
N/A
76
BASE
Price
N/A
77
CAP SCREW M12-1.75 X 90
Price
N/A
78
CIRCUIT BOARD
Price
N/A
79
POTENTIOMETER W/ KNOB WX14-12
Price
$9.00
80
CAP SCREW M3-.5 X 16
Price
N/A
80-1
HEX NUT M3-.5
Price
N/A
81
CIRCUIT BOARD YSDY-C 2020-06-02
Price
N/A
83
ON/OFF SWITCH KEDU KJD-178/120V
Price
N/A
84
CAP SCREW M4-.7 X 10
Price
N/A
85
CONTROL PANEL PLATE
Price
N/A
86
CAP SCREW M4-.7 X 6
Price
N/A
87
RPM DIGITIAL DISPLAY ZD-SX-THL
Price
N/A
88
ELECTRICAL BOX
Price
N/A
89
CAP SCREW M5-.8 X 8
Price
N/A
90
ELECTRICAL BOX REAR COVER
Price
N/A
91
FUSE HOLDER
Price
N/A
92
FUSE 15A 250V FAST-ACTING GLASS V2.01.11
Price
N/A
93
POWER CORD 16G 3W 72" 5-15
Price
N/A
94
STRAIN RELIEF M20 X 1.5 TYPE-3
Price
N/A
95
FWD/REV SWITCH KEDU EN61058
Price
N/A
96
FUSE 10A 250V FAST-ACTING GLASS
Price
N/A
97
CAP SCREW M4-.7 X 8
Price
N/A
98
L-BRACKET
Price
$6.90
100
STAND ASSY
Price
$533.70
100-1
STAND CABINET
Price
N/A
100-2
STAND DOOR
Price
$34.50
100-3
STAND DOOR LATCH
Price
N/A

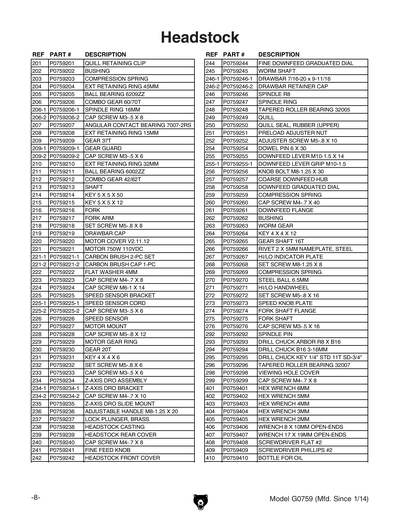

201
QUILL RETAINING CLIP
Price
N/A
202
BUSHING
Price
N/A
203
COMPRESSION SPRING
Price
N/A
204
EXT RETAINING RING 45MM
Price
N/A
205
BALL BEARING 6209ZZ
Price
N/A
206
COMBO GEAR 60/70T
Price
N/A
206-1
SPINDLE RING 16MM
Price
N/A
206-2
CAP SCREW M3-.5 X 8
Price
N/A
208
EXT RETAINING RING 15MM
Price
N/A
209
GEAR 37T 15MM ID BORE
Price
N/A
209-1
GEAR GUARD
Price
N/A
209-2
CAP SCREW M3-.5 X 6
Price
N/A
210
EXT RETAINING RING 32MM
Price
N/A
211
BALL BEARING 6002ZZ
Price
N/A
212
COMBO GEAR 42/62T
Price
N/A
213
SHAFT
Price
N/A
214
KEY 5 X 5 X 50
Price
N/A
215
KEY 5 X 5 X 12
Price
N/A
216
FORK
Price
N/A
217
FORK ARM
Price
N/A
218
SET SCREW M5-.8 X 8
Price
N/A
219
DRAWBAR CAP
Price
N/A
220
MOTOR COVER V2.11.12
Price
N/A
221
MOTOR 1HP 110V (14MM SHAFT) V3.04.13
Price
N/A
221-1
CARBON BRUSH (SINGLE)
Price
N/A
221-2
MOTOR CARBON BRUSH CAP 1-PC V1
Price
N/A
222
FLAT WASHER 4MM
Price
N/A
223
CAP SCREW M4-.7 X 8
Price
N/A
224
CAP SCREW M6-1 X 14
Price
N/A
225
SPEED SENSOR BRACKET
Price
N/A
225-1
SPEED SENSOR CORD
Price
N/A
225-2
CAP SCREW M3-.5 X 6
Price
N/A
226
SPEED SENSOR
Price
N/A
227
MOTOR MOUNT
Price
N/A
228
CAP SCREW M5-.8 X 12
Price
N/A
229
EXT RETAINING RING 10MM
Price
N/A
230
GEAR 20T (ID 10MM) V1
Price
N/A
231
KEY 4 X 4 X 6
Price
N/A
232
SET SCREW M5-.8 X 6
Price
N/A
233
CAP SCREW M3-.5 X 6
Price
N/A
234
Z-AXIS DRO ASSEMBLY
Price
N/A
234-1
Z-AXIS DRO BRACKET
Price
N/A
234-2
CAP SCREW M4-.7 X 10
Price
N/A
235
Z-AXIS DRO SLIDE MOUNT
Price
N/A
236
ADJUSTABLE HANDLE M6-1 X 16
Price
N/A
237
LOCK PLUNGER, BRASS
Price
N/A
238
HEADSTOCK CASTING
Price
N/A
239
HEADSTOCK REAR COVER
Price
N/A
240
CAP SCREW M4-.7 X 8
Price
N/A
241
FINE FEED KNOB
Price
N/A
242
HEADSTOCK FRONT COVER
Price
N/A
243
HANDWHEEL CURVED PLATE SPRING
Price
N/A
244
FINE DOWNFEED GRADUATED DIAL
Price
N/A
245
WORM SHAFT
Price
N/A
246
SPINDLE R8 V2.08.11
Price
N/A
246-1
DRAWBAR 7/16-20 X 9-11/16
Price
N/A
246-2
DRAWBAR RETAINER CAP
Price
N/A
247
SPINDLE RING 2MM
Price
N/A
248
TAPERED ROLLER BEARING 32005
Price
N/A
249
***SEE EXT. DESCRIPTION***
Price
N/A
250
QUILL SEAL, RUBBER (UPPER)
Price
N/A
251
PRELOAD ADJUSTER NUT
Price
N/A
252
ADJUSTER SCREW M5-.8 X 10
Price
N/A
254
DOWEL PIN 6 X 30
Price
N/A
255
DOWNFEED LEVER M10-1.5 X 14
Price
N/A
255-1
DOWNFEED LEVER GRIP M10-1.5
Price
N/A
256
KNOB BOLT M8-1.25 X 30
Price
N/A
257
COARSE DOWNFEED HUB
Price
N/A
258
DOWNFEED GRADUATED DIAL
Price
N/A
259
COMPRESSION SPRING
Price
N/A
260
CAP SCREW M4-.7 X 40
Price
N/A
261
DOWNFEED FLANGE
Price
N/A
262
BUSHING
Price
N/A
263
WORM GEAR
Price
N/A
264
KEY 4 X 4 X 12
Price
N/A
265
GEAR SHAFT 16T
Price
N/A
266
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
267
HI/LO INDICATOR PLATE
Price
N/A
268
SET SCREW M8-1.25 X 8
Price
N/A
269
COMPRESSION SPRING
Price
N/A
270
STEEL BALL 6.5MM
Price
N/A
271
HI/LO HANDWHEEL
Price
N/A
272
SET SCREW M5-.8 X 16
Price
N/A
273
SPEED KNOB PLATE
Price
N/A
274
FORK SHAFT FLANGE
Price
N/A
275
FORK SHAFT
Price
N/A
276
CAP SCREW M3-.5 X 16
Price
N/A
277
FLAT WASHER 3MM
Price
N/A
278
HEX NUT M3-.5
Price
N/A
279
CAP SCREW M4-.7 X 20
Price
N/A
280
EXT RETAINING RING 12MM
Price
N/A
281
WAVY WASHER 12MM
Price
N/A
282
GUARD MOUNTING BLOCK
Price
N/A
283
*DISCD*LIMIT SWITCH L-BRACKET, COPPER
Price
N/A
284
LIMIT SWITCH DATER KW1-103
Price
N/A
285
PROTECTIVE PAPER
Price
N/A
286
SET SCREW M5-.8 X 10
Price
N/A
287
CHIP GUARD POST
Price
N/A
288
CHIP GUARD
Price
N/A
289
CAP SCREW M4-.7 X 18
Price
N/A
290
CHIP PAN
Price
N/A
292
SPINDLE PIN
Price
N/A
293
DRILL CHUCK ARBOR R8 X B16
Price
N/A
294
DRILL CHUCK B16 3-16MM
Price
N/A
295
DRILL CHUCK KEY 1/4" STD 11T SD-3/4"
Price
N/A
296
TAPER ROLLER BEARING 32007
Price
N/A
297
CAP SCREW M3-.5 X 16
Price
N/A
298
ROUND INSPECTION COVER
Price
N/A
299
CAP SCREW M4-.7 X 8
Price
N/A
301
READ MANUAL 1.5W X 2.5H
Price
N/A
302
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
303
MACHINE ID LABEL
Price
$16.40
304
HIGH/LOW SPEED LABEL
Price
N/A
305
GREY PUTTY REF G0504
Price
N/A
306
MODEL NUMBER LABEL
Price
$7.25
307
N/S GRIZZLY GREEN G1023S
Price
N/A
308
CUTTER WARNING LABEL
Price
N/A
309
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
310
AVOID OVERHEATING LABEL
Price
N/A
311
***USE PGZCOM-34B***
Price
N/A
312
ELECTRICITY 0.7W X 0.6H
Price
N/A
401
HEX WRENCH 6MM
Price
N/A
402
HEX WRENCH 5MM
Price
N/A
403
HEX WRENCH 4MM
Price
N/A
404
HEX WRENCH 3MM
Price
N/A
405
HEX WRENCH 2MM
Price
N/A
406
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
407
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
408
SCREWDRIVER FLAT #2
Price
N/A
409
SCREWDRIVER PHILLIPS #2
Price
N/A
410
BOTTLE FOR OIL
Price
N/A
411
TOOLBOX
Price
N/A
412
X/Z-AXIS DRO ASSEMBLY
Price
$1,746.60
412-1
DRO DISPLAY
Price
$782.75
412-10
FUSE HOLDER
Price
$6.50
412-11
DRO DISPLAY COVER - PLASTIC
Price
$11.20
412-2
X-AXIS DRO SCALE
Price
$485.20
412-3
Y-AXIS DRO SCALE
Price
$361.00
412-4
Z-AXIS DRO SCALE
Price
$320.85
412-5
SCALE PROTECTOR, X-AXIS
Price
$40.15
412-6
SCALE PROTECTOR, Z-AXIS
Price
$40.15
412-7
SCALE PROTECTOR CAP - PLASTIC
Price
$4.35
412-7V2
SCALE PROTECTOR CAP - PLASTIC V2
Price
$4.35
412-8
DRO SCALE Z AXIS GUARD
Price
$38.85
412-9
FUSE 5 X 20MM 500MA 250V
Price
$2.90
BOX2
COMPLETE BOX 2 OF 2 FOR G0759
Price
$557.10
MAN
MANUAL INSERT G0759 MFD-1/14+ V1.02.14
Price
$14.65
