Parts for G0760 - 8" x 29" 2 HP Mill/Drill with Stand and Power Feed

Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760
Part Diagram for G0760

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

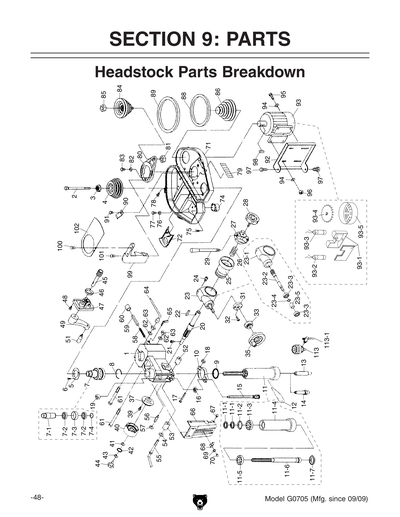

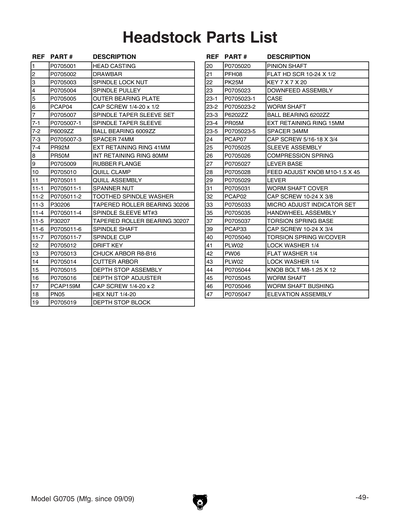

Ref #
Part #
Description
1
HEAD CASTING
Price
N/A
2
DRAWBAR 7/16-20 X 17-3/4
Price
N/A
3
SPINDLE LOCK NUT
Price
N/A
4
SPINDLE PULLEY
Price
N/A
5
OUTER BEARING PLATE
Price
N/A
6
CAP SCREW 1/4-20 X 1/2
Price
N/A
7
SPINDLE TAPER SLEEVE SET
Price
N/A
7-1
SPINDLE TAPER SLEEVE
Price
N/A
7-2
BALL BEARING 6009ZZ
Price
N/A
7-3
SPACER 74MM
Price
N/A
7-4
EXT RETAINING RING 41MM
Price
N/A
8
INT RETAINING RING 80MM
Price
N/A
9
RUBBER FLANGE
Price
N/A
10
QUILL CLAMP
Price
N/A
11
QUILL ASSEMBLY
Price
N/A
11-1
SPANNER NUT
Price
N/A
11-2
TOOTHED SPINDLE WASHER
Price
N/A
11-3
TAPERED ROLLER BEARING 30206
Price
N/A
11-4
SPINDLE SLEEVE MT#3
Price
N/A
11-5
TAPERED ROLLER BEARING 30207
Price
N/A
11-6
SPINDLE SHAFT
Price
N/A
11-7
SPINDLE CUP
Price
N/A
13
CHUCK ARBOR R8-B16
Price
N/A
14
DRILL CHUCK ARBOR R8 X MT3
Price
N/A
15
DEPTH STOP SCREW
Price
N/A
16
DEPTH STOP ADJUSTER
Price
N/A
17
CAP SCREW 1/4-20 X 2
Price
N/A
18
P0760018
Now: PN05
HEX NUT 1/4-20
Price
N/A
19
DEPTH STOP BLOCK
Price
N/A
20
PINION SHAFT
Price
N/A
22
KEY 7 X 7 X 20
Price
N/A
23
DOWNFEED ASSEMBLY
Price
N/A
23-1
CASE
Price
N/A
23-2
WORM SHAFT
Price
N/A
23-3
BALL BEARING 6202ZZ
Price
N/A
23-4
EXT RETAINING RING 15MM
Price
N/A
23-5
SPACER 34MM
Price
N/A
24
CAP SCREW 5/16-18 X 3/4
Price
N/A
25
SLEEVE ASSEMBLY
Price
N/A
26
COMPRESSION SPRING
Price
N/A
27
LEVER BASE
Price
N/A
28
FEED ADJUST KNOB M10-1.5 X 45
Price
N/A
31
WORM SHAFT COVER
Price
N/A
32
CAP SCREW 10-24 X 3/8
Price
N/A
33
MICRO ADJUST INDICATOR SET
Price
N/A
35
HANDWHEEL ASSEMBLY
Price
N/A
37
TORSION SPRING BASE
Price
N/A
40
TORSION SPRING W/COVER
Price
N/A
41
LOCK WASHER 1/4
Price
N/A
42
P0760042
Now: PW06
FLAT WASHER 1/4
Price
N/A
43
LOCK WASHER 1/4
Price
N/A
44
KNOB BOLT M8-1.25 X 12
Price
N/A

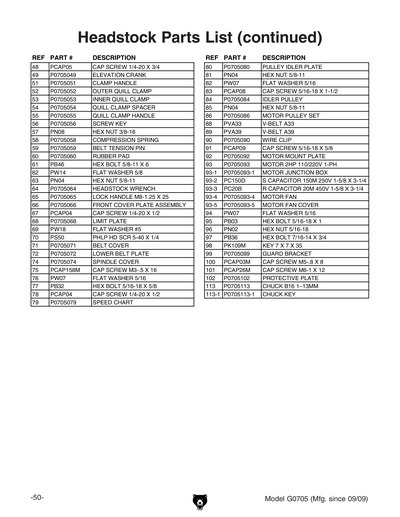

45
WORM SHAFT
Price
N/A
46
WORM SHAFT BUSHING
Price
N/A
47
ELEVATION CASTING
Price
N/A
48
CAP SCREW 1/4-20 X 3/4
Price
N/A
49
ELEVATION CRANK
Price
N/A
51
CLAMP HANDLE
Price
N/A
52
OUTER QUILL CLAMP
Price
N/A
53
INNER QUILL CLAMP
Price
N/A
54
*DISCD*QUILL CLAMP SPACER
Price
N/A
55
QUILL CLAMP HANDLE
Price
N/A
56
***USE PSS30M***
Price
N/A
57
P0760057
Now: PN08
HEX NUT 3/8-16
Price
N/A
58
COMPRESSION SPRING
Price
N/A
59
BELT TENSION PIN
Price
N/A
60
RUBBER PAD
Price
N/A
61
P0760061
Now: PB46
HEX BOLT 5/8-11 X 6
Price
N/A
62
P0760062
Now: PW14
FLAT WASHER 5/8
Price
N/A
63
P0760063
Now: PN04
HEX NUT 5/8-11
Price
N/A
64
HEADSTOCK WRENCH
Price
N/A
65
LOCK HANDLE M8-1.25 X 25
Price
N/A
66
FRONT COVER PLATE ASSEMBLY
Price
N/A
67
CAP SCREW 1/4-20 X 1/2
Price
N/A
68
LIMIT PLATE
Price
N/A
69
P0760069
Now: PW03
FLAT WASHER #10
Price
N/A
70
P0760070
Now: PS50
PHLP HD SCR 5-40 X 1/4
Price
N/A
71
BELT COVER
Price
N/A
72
LOWER BELT PLATE
Price
N/A
74
SPINDLE COVER
Price
N/A
75
CAP SCREW M3-.5 X 16
Price
N/A
76
P0760076
Now: PW07
FLAT WASHER 5/16
Price
N/A
77
P0760077
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
78
CAP SCREW 1/4-20 X 1/2
Price
N/A
79
SPEED CHART
Price
N/A
80
PULLEY IDLER PLATE
Price
N/A
81
P0760081
Now: PN04
HEX NUT 5/8-11
Price
N/A
82
P0760082
Now: PW07
FLAT WASHER 5/16
Price
N/A
83
CAP SCREW 5/16-18 X 1-1/2
Price
N/A
84
IDLER PULLEY
Price
N/A
85
P0760085
Now: PN04
HEX NUT 5/8-11
Price
N/A
86
MOTOR PULLEY SET
Price
N/A
88
V-BELT A33
Price
N/A
89
V-BELT A39
Price
N/A
90
WIRE CLIP
Price
N/A
91
CAP SCREW 5/16-18 X 5/8
Price
N/A
92
MOTOR MOUNT PLATE
Price
N/A
93
MOTOR 2HP 110/220V 1-PH
Price
N/A
93-1
MOTOR JUNCTION BOX
Price
N/A
93-2
S CAPACITOR 150M 250V 1-21/32 X 3-1/8
Price
N/A
93-3
R CAPACITOR 20M 450V 1-5/8 X 3-1/4
Price
N/A
93-4
MOTOR FAN
Price
N/A
93-5
MOTOR FAN COVER
Price
N/A
94
P0760094
Now: PW07
FLAT WASHER 5/16
Price
N/A
95
P0760095
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
96
P0760096
Now: PN02
HEX NUT 5/16-18
Price
N/A
97
P0760097
Now: PB36
HEX BOLT 7/16-14 X 3/4
Price
N/A
98
KEY 7 X 7 X 35
Price
N/A
99
*DISCD*GUARD BRACKET
Price
N/A
100
CAP SCREW M5-.8 X 8
Price
N/A
101
CAP SCREW M6-1 X 12
Price
N/A
102
*DISCD*PROTECTIVE PLATE
Price
N/A
113
CHUCK B16 1-13MM
Price
N/A
113-1
DRL CHK KEY 7.92MM STD 11T SD-15.93MM
Price
N/A

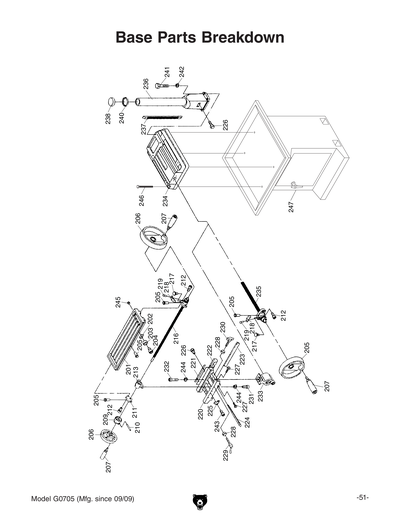

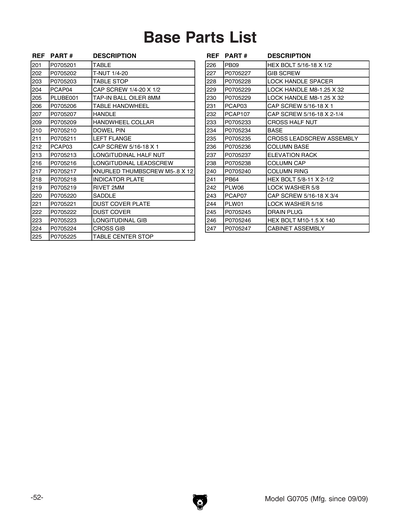

201
TABLE
Price
N/A
202
T-NUT 1/4-20
Price
N/A
203
TABLE STOP
Price
N/A
204
CAP SCREW 1/4-20 X 1/2
Price
N/A
205
BALL OILER 1/4 PRESS-IN
Price
N/A
206
TABLE HANDWHEEL
Price
N/A
207
HANDLE
Price
N/A
209
HANDWHEEL COLLAR
Price
N/A
210
ROLL PIN 5 X 35
Price
N/A
211
X & Y LEADSCREW FLANGE
Price
N/A
212
CAP SCREW 5/16-18 X 1
Price
N/A
213
LONGITUDINAL HALF NUT
Price
N/A
216
LONGITUDINAL LEADSCREW
Price
N/A
217
KNURLED THUMBSCREW M5-.8 X 12
Price
N/A
218
INDICATOR PLATE
Price
N/A
219
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Price
N/A
220
SADDLE
Price
N/A
221
DUST COVER PLATE
Price
N/A
222
DUST COVER
Price
N/A
223
LONGITUDINAL GIB
Price
N/A
224
CROSS GIB
Price
N/A
225
TABLE CENTER STOP
Price
N/A
226
P0760226
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
227
GIB SCREW
Price
N/A
228
STEEL BALL 6MM
Price
N/A
229
LOCK HANDLE M8-1.25 X 32
Price
N/A
230
LOCK HANDLE M8-1.25 X 32
Price
N/A
231
CAP SCREW 5/16-18 X 1
Price
N/A
232
CAP SCREW 5/16-18 X 2-1/4
Price
N/A
233
CROSS HALF NUT
Price
N/A
234
BASE
Price
N/A
235
CROSS LEADSCREW
Price
N/A
236
COLUMN BASE
Price
N/A
237
ELEVATION RACK
Price
N/A
238
COLUMN CAP
Price
N/A
240
COLUMN RING
Price
N/A
241
P0760241
Now: PB64
HEX BOLT 5/8-11 X 2-1/2
Price
N/A
242
LOCK WASHER 5/8
Price
N/A
243
CAP SCREW 5/16-18 X 3/4
Price
N/A
244
LOCK WASHER 5/16
Price
N/A
245
DRAIN PLUG
Price
N/A
246
HEX BOLT M10-1.5 X 140
Price
N/A
247
CABINET ASSEMBLY
Price
N/A

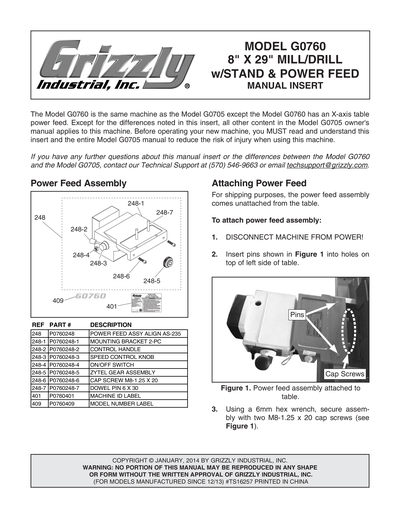

248
Power Feed for Mill / Drills ALSAS
Price
N/A
248-1
MOUNTING BRACKET 2PC
Price
N/A
248-2
CONTROL HANDLE
Price
N/A
248-3
SPEED CONTROL KNOB
Price
N/A
248-4
ON/OFF SWITCH
Price
N/A
248-5
LEADSCREW DRIVE GEAR
Price
N/A
248-6
CAP SCREW M8-1.25 X 20
Price
N/A

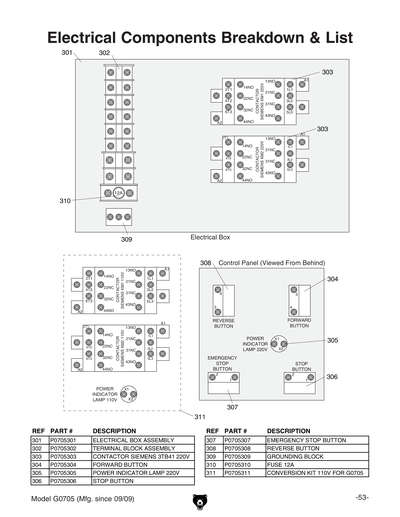

301
ELECTRICAL BOX ASSEMBLY
Price
N/A
302
TERMINAL BLOCK ASSEMBLY
Price
N/A
303
CONTACTOR SIEMENS 3TB41 220V
Price
N/A
304
FORWARD BUTTON
Price
N/A
305
POWER INDICATOR LIGHT HUI XD103 22MM GRN
Price
N/A
306
STOP BUTTON
Price
N/A
307
EMERGENCY STOP BUTTON
Price
N/A
308
REVERSE BUTTON
Price
N/A
309
GROUNDING BLOCK
Price
N/A
310
FUSE 2A 250V 5 X 25MM
Price
N/A
311
CONVERSION KIT 110V
Price
N/A

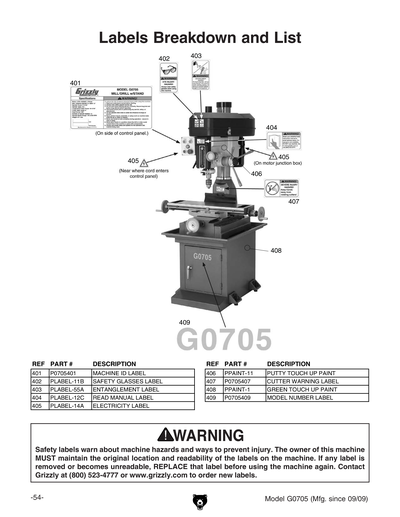

401
Price
$16.40
402
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
403
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
404
READ MANUAL 1.5W X 2.5H
Price
N/A
405
ELECTRICITY 0.7W X 0.6H
Price
N/A
406
GREY PUTTY REF G0504
Price
N/A
407
CUTTER WARNING LABEL
Price
N/A
408
N/S GRIZZLY GREEN G1023S
Price
N/A
409
Price
$10.25
BOX2
COMPLETE BOX 2 OF 2 FOR G0760
Price
$506.00
MAN
MANUAL INSERT G0760 MFD-12/13+ V1.01.14
Price
$14.65
