Parts for G0761 - 10" x 32" 2 HP HD Benchtop Mill/Drill w/ Power Feed & Tapping

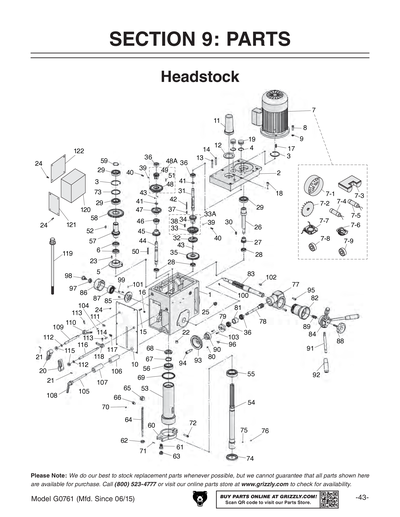

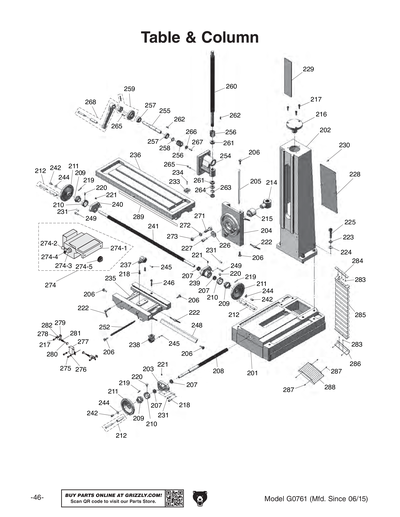

Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761
Part Diagram for G0761

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

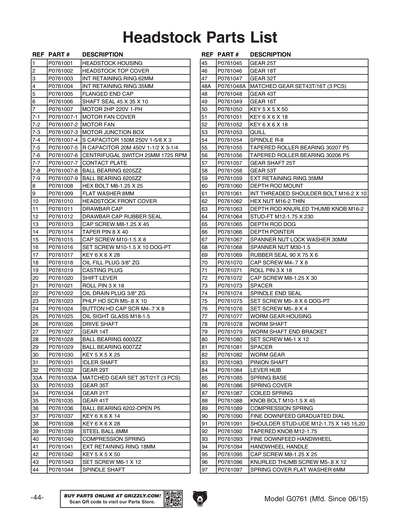

Ref #
Part #
Description
1
HEADSTOCK HOUSING
Price
N/A
1-1
HEAD ROTAION SCALE POINTER
Price
$2.60
1-2
NAME PLATE RIVET
Price
$1.90
2
HEADSTOCK TOP COVER
Price
N/A
3
INT RETAINING RING 62MM
Price
N/A
4
INT RETAINING RING 35MM
Price
N/A
5
FLANGED END CAP
Price
N/A
6
QUILL SEAL
Price
N/A
7
MOTOR 2HP 220V 1-PH
Price
N/A
7-1
MOTOR FAN COVER
Price
N/A
7-2
MOTOR FAN
Price
N/A
7-3
MOTOR JUNCTION BOX
Price
N/A
7-4
S CAPACITOR 150M 250V 1-1/2 X 2-3/8
Price
N/A
7-5
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
7-6
CENTRIFUGAL SWITCH 25-1725
Price
N/A
7-7
CONTACT PLATE
Price
N/A
7-8
BALL BEARING 6205ZZ
Price
N/A
7-9
BALL BEARING 6205ZZ
Price
N/A
8
HEX BOLT M8-1.25 X 25
Price
N/A
9
FLAT WASHER 8MM
Price
N/A
10
HEADSTOCK FRONT COVER
Price
N/A
11
DRAWBAR CAP
Price
N/A
12
DRAWBAR CAP RUBBER SEAL
Price
N/A
13
CAP SCREW M8-1.25 X 45
Price
N/A
14
TAPER PIN 8 X 40
Price
N/A
15
CAP SCREW M10-1.5 X 8
Price
N/A
16
SET SCREW M10-1.5 X 10 DOG-PT
Price
N/A
17
KEY 6 X 6 X 28
Price
N/A
18
OIL FILL PLUG 3/8" ZG
Price
$2.60
19
CASTING PLUG
Price
N/A
20
SHIFT LEVER
Price
N/A
21
ROLL PIN 3 X 18
Price
N/A
22
OIL FILL PLUG 3/8" ZG
Price
N/A
23
PHLP HD SCR M5-.8 X 10
Price
N/A
24
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
25
OIL SIGHT GLASS M18-1.5
Price
$6.50
26
DRIVE SHAFT
Price
N/A
27
GEAR 14T
Price
N/A
28
Bearing - 35mm x 17mm
Price
N/A
29
BALL BEARING 6007ZZ
Price
N/A
30
KEY 5 X 5 X 25
Price
N/A
31
IDLER SHAFT
Price
N/A
32
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
33
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
33A
MATCHED GEAR SET 35T/21T (3PCS)
Price
$133.70
34
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
35
GEAR 41T
Price
N/A
37
KEY 6 X 6 X 14
Price
N/A
38
KEY 6 X 6 X 28
Price
N/A
39
STEEL BALL 8MM
Price
N/A
40
COMPRESSION SPRING
Price
N/A
41
EXT RETAINING RING 18MM
Price
N/A
42
KEY 5 X 5 X 50
Price
N/A
43
SET SCREW M6-1 X 12
Price
N/A
44
SPINDLE SHAFT
Price
N/A
45
GEAR 25T
Price
N/A
46
GEAR 18T
Price
N/A
47
GEAR 32T
Price
N/A
48
MATCHED GEAR SET 43T/16T (3PCS)
Price
N/A
48A
MATCHED GEAR SET 43T/16T (3PCS)
Price
$87.00
49
MATCHED GEAR SET 43T/16T (3PCS)
Price
N/A
50
KEY 5 X 5 X 50
Price
N/A
51
KEY 6 X 6 X 18
Price
N/A
52
KEY 6 X 6 X 18
Price
N/A
53
QUILL
Price
N/A
54
SPINDLE
Price
N/A
55
TAPERED ROLLER BEARING 30207 P5
Price
N/A
56
TAPERED ROLLER BEARING 30206 P5
Price
N/A
57
SPLINED SLEEVE
Price
N/A
58
GEAR 53T
Price
N/A
59
EXT RETAINING RING 35MM
Price
N/A
60
DEPTH ROD MOUNT
Price
N/A
61
INT THREADED SHOULDER BOLT M16-2 X 10
Price
N/A
62
HEX NUT M16-2 THIN
Price
N/A
63
DEPTH ROD KNURLED KNOB M16-2
Price
N/A
64
STUD-FT M12-1.75 X 230
Price
N/A
65
DEPTH ROD DOG
Price
N/A
66
DEPTH POINTER
Price
N/A
67
SPANNER NUT LOCK WASHER
Price
N/A
68
SPANNER NUT
Price
N/A
69
QUILL RUBBER SEAL
Price
N/A
70
CAP SCREW M4-.7 X 8
Price
N/A
71
ROLL PIN 3 X 18
Price
N/A
72
CAP SCREW M8-1.25 X 30
Price
N/A
73
SPACER
Price
N/A
74
SPINDLE END CAP
Price
N/A
75
SET SCREW M5-.8 X 6 DOG-PT
Price
N/A
76
SET SCREW M5-.8 X 4
Price
N/A
77
WORM GEAR HOUSING
Price
N/A
78
WORM SHAFT
Price
N/A
79
WORM SHAFT END BRACKET
Price
N/A
80
SET SCREW M6-1 X 12
Price
N/A
81
SPACER
Price
N/A
82
WORM GEAR
Price
N/A
83
PINION SHAFT
Price
N/A
84
LEVER HUB
Price
N/A
85
SPRING BASE
Price
N/A
86
SPRING COVER
Price
N/A
87
COILED SPRING
Price
N/A
88
KNOB BOLT M10-1.5 X 45
Price
N/A
89
COMPRESSION SPRING
Price
$5.85
90
FINE DOWNFEED GRADUATED DIAL
Price
N/A
91
SHOULDER STUD-UDE M12-1.75 X 145 15,20
Price
N/A
92
TAPERED HANDLE M12-1.75, 98L
Price
N/A
93
FINE DOWNFEED HANDWHEEL
Price
N/A
94
HANDWHEEL HANDLE
Price
N/A
95
CAP SCREW M8-1.25 X 25
Price
N/A
96
KNURLED THUMB SCREW M5-.8 X 12
Price
N/A
97
DOCK WASHER 8MM
Price
N/A

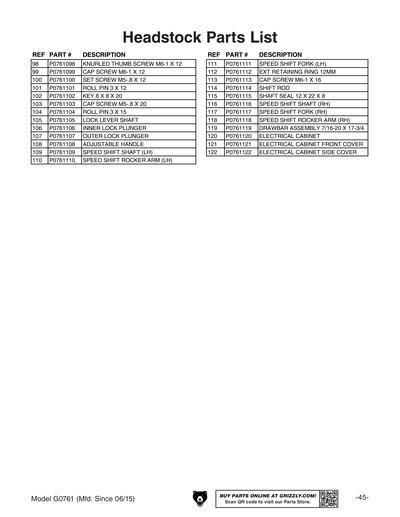

98
KNURLED THUMB SCREW M6-1 X 12
Price
N/A
99
CAP SCREW M6-1 X 12
Price
N/A
100
SET SCREW M5-.8 X 12
Price
N/A
101
ROLL PIN 3 X 12
Price
N/A
102
KEY 8 X 8 X 20
Price
N/A
103
CAP SCREW M5-.8 X 20
Price
N/A
104
ROLL PIN 3 X 15
Price
N/A
105
LOCK LEVER SHAFT
Price
N/A
106
INSIDE LOCK PLUNGER
Price
N/A
107
OUTSIDE LOCK PLUNGER
Price
N/A
108
ADJUSTABLE HANDLE
Price
N/A
109
SPEED RANGE SHIFT SHAFT
Price
N/A
110
SPEED RANGE SHIFT ROCKER ARM
Price
N/A
111
SPEED RANGE SHIFT FORK
Price
N/A
112
EXT RETAINING RING 12MM
Price
N/A
113
CAP SCREW M6-1 X 16
Price
N/A
114
SHIFT ROD
Price
N/A
115
SHAFT SEAL
Price
N/A
116
SPEED SHIFT SHAFT
Price
N/A
117
SPEED SHIFT FORK
Price
N/A
118
SPEED SHIFT ROCKER ARM
Price
N/A
119
DRAWBAR 7/16-20 X 17-3/4
Price
N/A
120
ELECTRICAL CABINET
Price
N/A
121
ELECTRICAL CABINET FRONT COVER
Price
N/A
122
ELECTRICAL CABINET SIDE COVER
Price
N/A

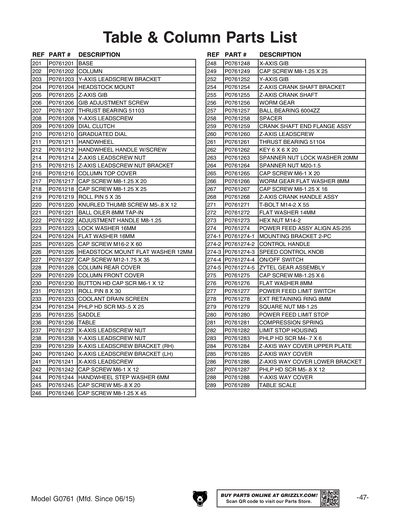

201
BASE
Price
$757.60
202
COLUMN
Price
$784.60
203
Y-AXIS LEADSCREW BRACKET
Price
$18.00
204
HEADSTOCK MOUNT
Price
$441.35
205
Z-AXIS GIB
Price
N/A
206
GIB ADJUSTMENT SCREW
Price
$4.65
207
THRUST BEARING 51103
Price
N/A
208
Y-AXIS LEADSCREW
Price
N/A
209
DIAL CLUTCH
Price
$13.70
210
GRADUATED DIAL
Price
$29.00
211
HANDWHEEL
Price
$78.00
212
HANDWHEEL HANDLE W/SCREW
Price
$15.85
214
Z-AXIS LEADSCREW NUT
Price
$80.50
215
Z-AXIS LEADSCREW NUT BRACKET
Price
$46.40
216
COLUMN TOP COVER
Price
$13.70
217
CAP SCREW M8-1.25 X 20
Price
N/A
218
CAP SCREW M8-1.25 X 25
Price
N/A
219
ROLL PIN 5 X 35
Price
N/A
220
KNURLED THUMB SCREW M5-.8 X 12
Price
N/A
221
BALL OILER 8MM PRESS-IN
Price
N/A
222
LOCK LEVER
Price
N/A
223
LOCK WASHER 16MM
Price
N/A
224
FLAT WASHER 16MM
Price
N/A
225
CAP SCREW M16-2 X 60
Price
N/A
226
FENDER WASHER 14MM
Price
N/A
227
CAP SCREW M12-1.75 X 35
Price
N/A
228
COLUMN REAR COVER
Price
N/A
229
COLUMN FRONT COVER
Price
$9.00
230
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
231
ROLL PIN 8 X 30
Price
N/A
233
COOLANT DRAIN SCREEN
Price
$6.90
234
P0761234
Now: PS34
PHLP HD SCR M3-.5 X 25
Price
N/A
235
SADDLE
Price
$410.10
236
TABLE
Price
$935.85
237
X-AXIS LEADSCREW NUT
Price
N/A
238
Y-AXIS LEADSCREW NUT
Price
$81.15
239
X-AXIS LEADSCREW BRACKET (RH)
Price
$18.00
240
X-AXIS LEADSCREW LEFT BRACKET
Price
N/A
241
X-AXIS LEADSCREW
Price
N/A
242
CAP SCREW M6-1 X 12
Price
N/A
244
HANDWHEEL SPRING BUSHING
Price
N/A
245
CAP SCREW M5-.8 X 20
Price
N/A
246
CAP SCREW M8-1.25 X 45
Price
N/A
248
X-AXIS GIB
Price
$47.15
249
CAP SCREW M8-1.25 X 25
Price
N/A
252
Y-AXIS GIB
Price
$47.15
254
Z-AXIS CRANK SHAFT BRACKET
Price
$80.50
255
Z-AXIS CRANK SHAFT
Price
$49.25
256
WORM GEAR
Price
$44.60
257
BALL BEARING 6004ZZ
Price
N/A
258
SPACER
Price
$1.90
259
CRANK SHAFT END FLANGE ASSY
Price
$22.35
260
Z-AXIS LEADSCREW
Price
$184.95
261
THRUST BEARING 51104
Price
N/A
262
KEY 6 X 6 X 20
Price
N/A
263
EXT TOOTH WASHER 20MM
Price
N/A
264
SPANNER NUT M20-1.5
Price
$8.95
265
CAP SCREW M6-1 X 20
Price
N/A
266
DOCK WASHER 8MM
Price
N/A
267
CAP SCREW M8-1.25 X 16
Price
N/A
268
Z-AXIS CRANK HANDLE ASSY
Price
$80.50
271
T-BOLT M14-2 X 55
Price
N/A
272
FLAT WASHER 14MM
Price
N/A
273
HEX NUT M14-2
Price
N/A
274
Power Feed AS-350
Price
N/A
274-1
MOUNTING BRACKET 2PC
Price
N/A
274-2
CONTROL HANDLE
Price
N/A
274-3
SPEED CONTROL KNOB
Price
N/A
274-4
ON/OFF SWITCH
Price
N/A
274-5
LEADSCREW DRIVE GEAR
Price
N/A
275
CAP SCREW M8-1.25 X 6
Price
N/A
276
FLAT WASHER 8MM
Price
N/A
277
POWER FEED LIMIT SWITCH
Price
N/A
278
EXT RETAINING RING 8MM
Price
N/A
279
SQUARE NUT M8-1.25
Price
N/A
280
POWER FEED LIMIT STOP
Price
N/A
281
COMPRESSION SPRING
Price
N/A
282
LIMIT STOP HOUSING
Price
N/A
283
PHLP HD SCR M4-.7 X 6
Price
N/A
284
Z-AXIS WAY COVER UPPER PLATE
Price
$9.00
285
Z-AXIS WAY COVER
Price
$58.25
286
Z-AXIS WAY COVER LOWER BRACKET
Price
$13.70
287
PHLP HD SCR M5-.8 X 12
Price
N/A
288
Y-AXIS WAY COVER
Price
$58.25
289
TABLE SCALE
Price
$15.85
289-1
TABLE SCALE POINTER
Price
$3.25
289-2
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
290
HANDWHEEL COMPRESSION SPRING
Price
N/A

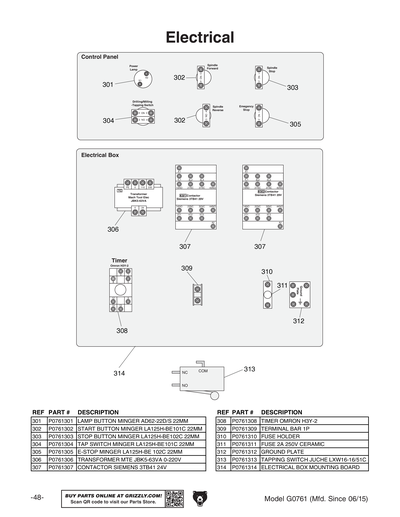

301
LAMP BUTTON MINGER AD62-22D/S 22MM
Price
$40.60
302
START BUTTON MNGR LA125H-BE101C 22MM GRN
Price
$31.35
303
STP BUTON MINGER LA125H-BE102C
Price
$40.25
304
TAP SWITCH MINGER LA125H-BE101C 22MM
Price
$40.25
305
E-STOP MINGER LA125H-BE 102C 22MM
Price
$49.25
306
TRANSFORMER JBK5 63VA 220/400V-24V
Price
N/A
307
CONTACTOR SIEMENS 3TB41 24V
Price
N/A
308
TIMER OMRON H3Y-2
Price
$29.15
309
TERMINAL BAR 1P
Price
N/A
310
FUSE HOLDER
Price
$32.75
311
FUSE 2A 250V CERAMIC
Price
$5.50
312
GROUND PLATE
Price
$22.35
313
TAPPING SWITCH JUCHE LXW16-16/51C
Price
$44.60
314
ELECTRICAL BOX MOUNTING BOARD
Price
$27.00

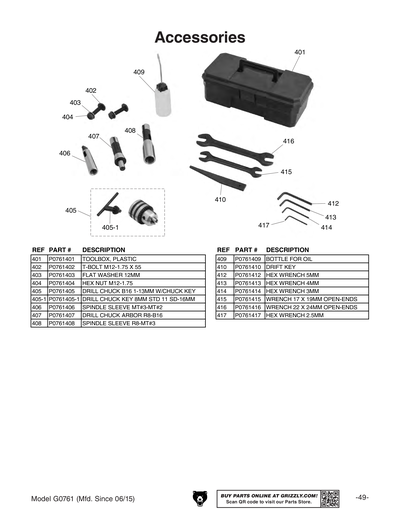

401
TOOLBOX
Price
N/A
402
T-BOLT M12-1.75 X 55
Price
N/A
403
FLAT WASHER 12MM
Price
N/A
404
HEX NUT M12-1.75
Price
N/A
405
DRILL CHUCK B16 W/CHUCK KEY
Price
N/A
405-1
***USE P0784316***
Price
$6.10
406
SPINDLE SLEEVE MT#3-MT#2
Price
N/A
407
ARBOR R8 X B16
Price
N/A
408
SPINDLE SLEEVE R8-MT#3
Price
N/A
409
***USE P4003G0003***
Price
N/A
410
DRIFT KEY
Price
N/A
411
HEX WRENCH 10MM
Price
N/A
412
HEX WRENCH 5MM
Price
N/A
413
HEX WRENCH 4MM
Price
N/A
414
HEX WRENCH 3MM
Price
N/A
415
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
416
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
417
HEX WRENCH 2.5MM
Price
N/A

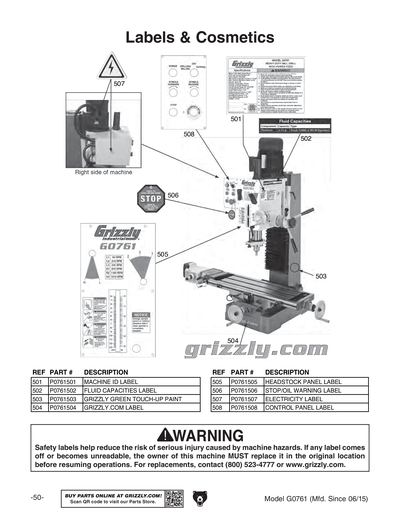

501
MACHINE ID LABEL
Price
$16.40
502
FLUID CAPACITIES LABEL
Price
$5.65
503
N/S GRIZZLY GREEN G1023S
Price
N/A
504
GRIZZLY.COM LABEL 9",BEIGE
Price
N/A
505
HEADSTOCK PANEL LABEL
Price
$46.60
506
STOP OIL FILL TAG 4W X 4H
Price
N/A
507
ELECTRICITY 1.4W X 1.2H
Price
N/A
508
CONTROL PANEL LABEL
Price
$19.40
MAN
MANUAL G0761 MFD-10.13-05.15 V1.05.14
Price
$18.00
MANV2
MANUAL G0761 MFD-06.15+ V2.04.18
Price
$14.65
P
CAP SCREW M10-1.5 X 8
Price
$1.90
P
SET SCREW M5-.8 X 4
Price
$1.90
