Parts for G0765 7" x 14" Variable-Speed Benchtop Metal Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1

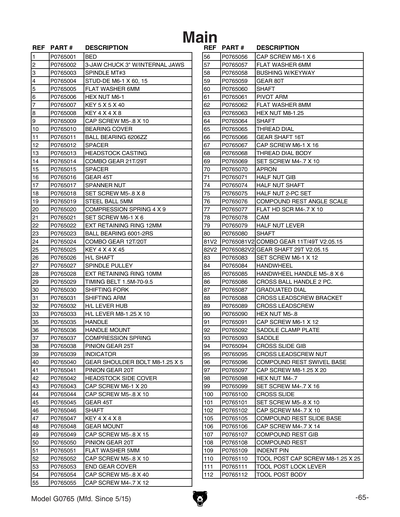

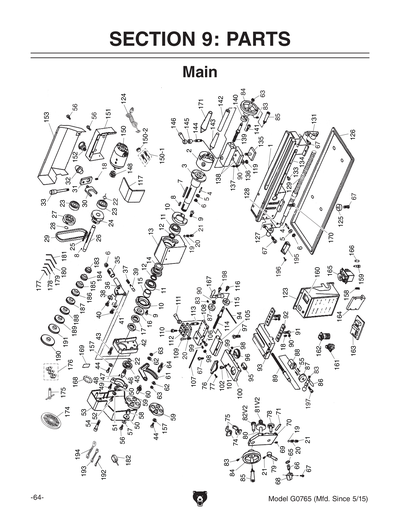

BED
2
3-JAW CHUCK 3" W/INTERNAL JAWS
2-1
INTERNAL JAWS FOR 3-JAW CHUCK 3PC
3
SPINDLE MT#3
4
STUD-DE M6-1 X 60, 15
5
Now: PW03M
FLAT WASHER 6MM
Price
N/A
6
Now: PN01M
HEX NUT M6-1
Price
N/A
7
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
8
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
9
CAP SCREW M5-.8 X 10
Price
N/A
10
BEARING COVER
11
BALL BEARING 6206ZZ
Price
N/A
12
SPACER
13
HEADSTOCK CASTING
14
COMBO GEAR 21T/29T
15
SPACER
16
GEAR 45T
17
SPANNER NUT
18
SET SCREW M5-.8 X 8
Price
N/A
19
STEEL BALL 5MM
Price
N/A
20
COMPRESSION SPRING 4 X 9
21
SET SCREW M6-1 X 6
Price
N/A
22
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
23
BALL BEARING 6001-2RS
Price
N/A
24
COMBO GEAR 12T/20T
25
Now: PK71M
KEY 4 X 4 X 45
Price
N/A
26
H/L SHAFT
27
SPINDLE PULLEY
28
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
29
TIMING BELT 1.5M-70-9.5
30
SHIFTING FORK
31
SHIFTING ARM
32
H/L LEVER HUB
33
H/L LEVER M8-1.25 X 10
35
HANDLE
36
HANDLE MOUNT
37
COMPRESSION SPRING
38
PINION GEAR 25T
39
INDICATOR
40
GEAR SHOULDER BOLT M8-1.25 X 5
41
PINION GEAR 20T W/O KEYWAY
42
HEADSTOCK SIDE COVER
43
CAP SCREW M6-1 X 20
Price
N/A
44
CAP SCREW M5-.8 X 10
Price
N/A
45
GEAR 45T
46
SHAFT
47
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
48
GEAR MOUNT
49
CAP SCREW M5-.8 X 15
Price
N/A
50
PINION GEAR 20T W/KEYWAY
51
Now: PW02M
FLAT WASHER 5MM
Price
N/A
52
CAP SCREW M5-.8 X 10
Price
N/A
53
END GEAR COVER W/ LABELS
54
CAP SCREW M5-.8 X 40
Price
N/A
55
CAP SCREW M4-.7 X 12
Price
N/A
56
CAP SCREW M6-1 X 6
Price
N/A
57
Now: PW03M
FLAT WASHER 6MM
Price
N/A
58
BUSHING W/KEYWAY
59
GEAR 80T
60
SHAFT
61
PIVOT ARM
62
Now: PW01M
FLAT WASHER 8MM
Price
N/A
63
Now: PN03M
HEX NUT M8-1.25
Price
N/A
64
SHAFT
65
THREAD DIAL
66
GEAR SHAFT 16T
67
CAP SCREW M6-1 X 16
Price
N/A
68
THREAD DIAL BODY
69
SET SCREW M4-.7 X 10
Price
N/A
70
APRON
71
HALF NUT GIB
74
HALF NUT SHAFT
75
HALF NUT 2-PC SET
76
COMPOUND REST ANGLE SCALE
77
FLAT HD SCR M4-.7 X 10
Price
N/A
78
CAM
79
HALF NUT LEVER
80
SHAFT
81
COMBO GEAR 11T/49T V2.05.15
Price
N/A
81V2
COMBO GEAR 11T/49T V2.05.15
82
GEAR SHAFT 29T V2.05.15
Price
N/A
82V2
GEAR SHAFT 29T V2.05.15
83
SET SCREW M6-1 X 12
Price
N/A
84
APRON HANDWHEEL
84-1
TAILSTOCK HANDWHEEL
84-2
TAILSTOCK GRADUATED DIAL
84-3
APRON GRADUATED DIAL
85
APRON HANDWHEEL HANDLE M5
85-1
TAILSTOCK HANDWHEEL HANDLE M4
86
CROSS BALL HANDLE 2 PC
87
GRADUATED DIAL
88
CROSS LEADSCREW BRACKET
89
CROSS LEADSCREW
90
Now: PN06M
HEX NUT M5-.8
Price
N/A
91
CAP SCREW M6-1 X 12
Price
N/A
92
SADDLE CLAMP PLATE
93
SADDLE

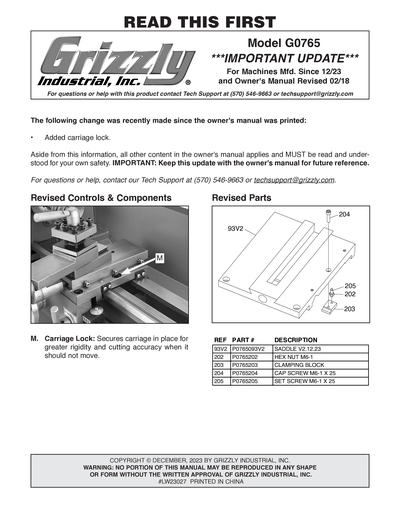

93V2
SADDLE V2.12.23
94
CROSS SLIDE GIB
95
CROSS LEADSCREW NUT
96
COMPOUND REST SWIVEL BASE
97
CAP SCREW M8-1.25 X 20
Price
N/A
98
Now: PN04M
HEX NUT M4-.7
Price
N/A
99
SET SCREW M4-.7 X 16
Price
N/A
100
CROSS SLIDE
101
SET SCREW M5-.8 X 10
Price
N/A
102
CAP SCREW M4-.7 X 10
Price
N/A
105
COMPOUND REST SLIDE BASE
106
CAP SCREW M4-.7 X 14
Price
N/A
107
COMPOUND REST GIB
108
COMPOUND REST
109
INDENT PIN
110
TOOL POST CAP SCREW M8-1.25 X 25
111
TOOL POST LOCK LEVER
112
TOOL POST BODY
113
STUD-DE M10-1.5 X 50, 15
114
COMPOUND LEADSCREW
115
COMPOUND LEADSCREW BRACKET
116
CAP SCREW M4-.7 X 14
Price
N/A
117
MOTOR COVER (FRONT)
119
Now: PN02M
HEX NUT M10-1.5
Price
N/A

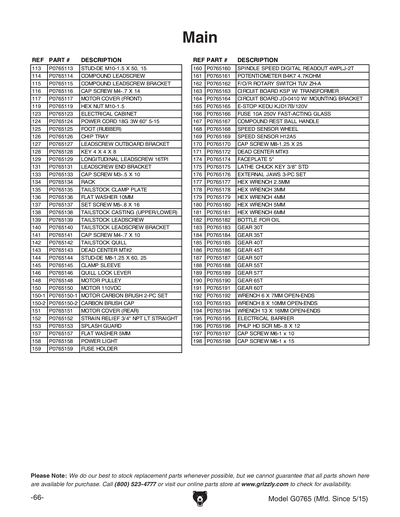

123
ELECTRICAL CABINET
124
POWER CORD 18G 3W 60" 5-15
125
FOOT (RUBBER)
126
CHIP TRAY
127
LEADSCREW OUTBOARD BRACKET
128
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
129
LONGITUDINAL LEADSCREW 16TPI
130
GEAR SPACER
131
LEADSCREW END BRACKET
133
CAP SCREW M3-.5 X 10
Price
N/A
134
RACK
135
TAILSTOCK CLAMP PLATE
136
Now: PW04M
FLAT WASHER 10MM
Price
N/A
137
SET SCREW M5-.8 X 16
Price
N/A
138
TAILSTOCK CASTING (UPPER/LOWER)
139
TAILSTOCK LEADSCREW
140
TAILSTOCK LEADSCREW BRACKET
141
CAP SCREW M4-.7 X 10
Price
N/A
142
TAILSTOCK QUILL
143
DEAD CENTER MT#2
144
STUD-DE M8-1.25 X 60, 25
145
CLAMP SLEEVE
146
QUILL LOCK LEVER
147
TAILSTOCK LOCKING LEVER
148
MOTOR PULLEY
150
MOTOR 110VDC
150-1
CARBON BRUSH (SINGLE)
150-2
CARBON BRUSH CAP
151
MOTOR COVER (REAR)
152
STRAIN RELIEF 3/4" TYPE-6 ST
153
SPLASH GUARD
157
Now: PW02M
FLAT WASHER 5MM
Price
N/A
158
POWER LIGHT
159
FUSE HOLDER
160
SPINDLE SPEED DIGITAL READOUT 4WPLJ-2T
161
POTENTIOMETER B4K7 4.7KOHM
161-2
SPEED KNOB
162
F/O/R ROTARY SWITCH TUV ZH-A
163
CIRCUIT BOARD KSP W/TRANSFORMER
164
CIRCUIT BOARD JD-0410 W/MOUNTING BRACKET
165
E-STOP KEDU KJD17B/120V
166
FUSE 10A 250V FAST-ACTING GLASS
167
COMPOUND REST BALL HANDLE
168
SPEED SENSOR WHEEL
169
SPEED SENSOR H12A5
170
CAP SCREW M8-1.25 X 25
Price
N/A
171
DEAD CENTER MT#3
173

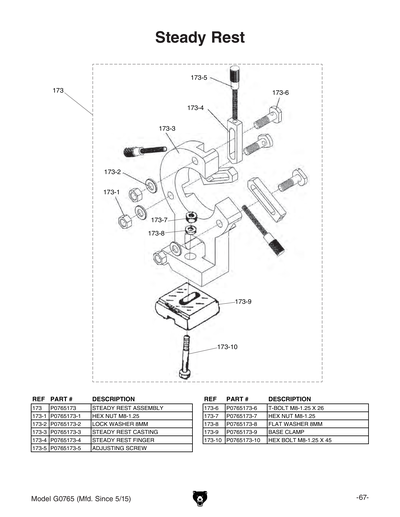

STEADY REST ASSEMBLY
173-1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
173-10
HEX BOLT M8-1.25 X 45
Price
N/A
173-2
LOCK WASHER 8MM
Price
N/A
173-3
STEADY REST CASTING
173-4
STEADY REST FINGER
173-5
ADJUSTING SCREW
173-6
T-BOLT M8-1.25 X 26
173-7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
173-8
Now: PW01M
FLAT WASHER 8MM
Price
N/A
173-9
BASE CLAMP
174
FACEPLATE 5"
175
LATHE CHUCK KEY 3/8" STD
176
EXTERNAL JAWS 3-PC SET
177
HEX WRENCH 2.5MM
Price
N/A
178
HEX WRENCH 3MM
Price
N/A
179
HEX WRENCH 4MM
Price
N/A
180
HEX WRENCH 5MM
Price
N/A
181
HEX WRENCH 6MM
Price
N/A
182
BOTTLE FOR OIL
183
GEAR 30T
184
GEAR 35T
185
GEAR 40T
186
GEAR 45T
187
GEAR 50T
188
GEAR 55T
189
GEAR 57T
190
GEAR 65T
191
GEAR 60T
192
Now: PWR67
WRENCH 6 X 7MM OPEN-ENDS
Price
N/A
193
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
194
WRENCH 13 X 16MM OPEN-ENDS
Price
N/A
195
ELECTRICAL BARRIER
196
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
197
CAP SCREW M6-1 X 10
Price
N/A
198
CAP SCREW M6-1 X 15
Price
N/A
199
LOCK BLOCK
200
TAILSTOCK LOCKING HANDLE
201
TAILSTOCK LOCKING CAM
203
CLAMPING BLOCK

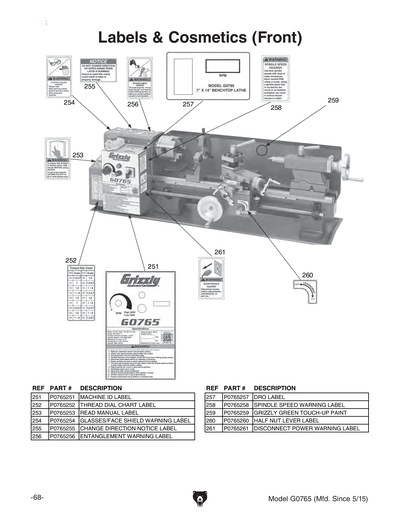

251
MACHINE ID LABEL
252
THREAD DIAL CHART LABEL
253
READ MANUAL 1.5W X 2.5H
Price
N/A
254
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
255
CHANGE DIRECTION NOTICE LABEL
256
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
257
DRO LABEL
258
SPINDLE SPEED WARNING LABEL
259
N/S GRIZZLY GREEN G1023S
Price
N/A
260
HALF NUT LEVER LABEL
261
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
262
SPEED RANGE LABEL
263
OUTBOARD ENTANGLE WARNING LABEL
264
FEED RATE GEAR CHART
265
ELECTRICITY 1.4W X 1.2H
Price
N/A
MAN
MANUAL G0765 MFD-12/13+ V1.03.14
