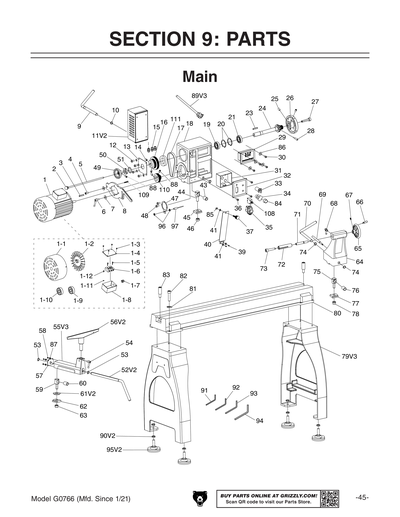

Parts for G0766 - 22" x 42" Variable-Speed Wood Lathe
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

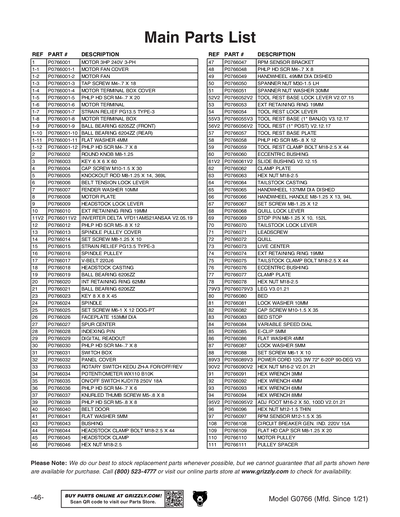

| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 | P0766001 | MOTOR 3HP 240V 3-PH | $405.50 | ||
| 1-1 | P0766001-1 | MOTOR FAN COVER | $4.75 | ||
| 1-10 |
P0766001-10
Replaced By P6204ZZ
|
BALL BEARING 6204ZZ
|
N/A | View Replacement | |
| 1-11 |
P0766001-11
Replaced By PW05M
|
FLAT WASHER 4MM
|
N/A | View Replacement | |
| 1-12 |
P0766001-12
Replaced By PS07M
|
PHLP HD SCR M4-.7 X 8
|
N/A | View Replacement | |
| 1-2 | P0766001-2 | MOTOR FAN | $2.25 | ||
| 1-3 | P0766001-3 | TAP SCREW M4-.7 X 18 | $1.00 | ||
| 1-4 | P0766001-4 | MOTOR TERMINAL BOX COVER | $8.75 | ||
| 1-5 |
P0766001-5
Replaced By PS52M
|
PHLP HD SCR M4-.7 X 20
|
N/A | View Replacement | |
| 1-6 | P0766001-6 | MOTOR TERMINAL | $4.50 | ||
| 1-7 | P0766001-7 | STRAIN RELIEF PG13.5 TYPE-3 | $1.75 | ||
| 1-8 | P0766001-8 | MOTOR TERMINAL BOX | $1.00 | ||
| 1-9 |
P0766001-9
Replaced By P6205ZZ
|
BALL BEARING 6205ZZ
|
N/A | View Replacement | |
| 2 | P0766002 | ROUND KNOB M8-1.25 | $1.00 | ||
| 3 |
P0766003
Replaced By PK76M
|
KEY 6 X 6 X 60
|
N/A | View Replacement | |
| 4 |
P0766004
Replaced By PCAP72M
|
CAP SCREW M10-1.5 X 30
|
N/A | View Replacement | |
| 5 | P0766005 | KNOCKOUT ROD M8-1.25 X 14, 369L | $3.75 | ||
| 6 | P0766006 | BELT TENSION LOCK LEVER | $2.75 | ||
| 7 |
P0766007
Replaced By PWF10M
|
FENDER WASHER 10MM
|
N/A | View Replacement | |
| 8 | P0766008 | MOTOR PLATE | $52.25 | ||
| 8-1 | P0766008-1 | MOTOR PLATE GRIP | $2.00 | ||
| 9 | P0766009 | HEADSTOCK LOCK LEVER | $16.50 | ||
| 10 |
P0766010
Replaced By PR08M
|
EXT RETAINING RING 19MM
|
N/A | View Replacement | |
| 11 | P0766011 |
***SEE EXTENDED DESCRIPTION***
Item is no longer available
|
N/A | ||
| 11-1 |
P0766011-1
Replaced By P0766011V2-1
|
INVERTER COVER
|
N/A | View Replacement | |
| 11V2 | P0766011V2 | INVERTER DELTA VFD11AMS21ANSAA V2.05.19 | $1,594.75 | ||
| 11V2-1 | P0766011V2-1 | INVERTER COVER | $15.50 | ||
| 12 |
P0766012
Replaced By PS08M
|
PHLP HD SCR M5-.8 X 12
|
N/A | View Replacement | |
| 13 | P0766013 | SPINDLE PULLEY COVER | $3.50 | ||
| 14 |
P0766014
Replaced By PSS16M
|
SET SCREW M8-1.25 X 10
|
N/A | View Replacement | |
| 15 | P0766015 | STRAIN RELIEF PG13.5 TYPE-3 | $1.00 | ||
| 16 | P0766016 | SPINDLE PULLEY W/MAGNETS | $49.00 | ||
| 16-1 | P0766016-1 | SPINDLE PULLEY MAGNETS - SET OF 3 | $2.00 | ||
| 17 | P0766017 | V-BELT 220J6 | $31.00 | ||
| 18 | P0766018 | HEADSTOCK CASTING | $333.75 | ||
| 18A | P0766018A | COMPLETE HEADSTOCK ASSY | $2,867.50 | ||
| 19 |
P0766019
Replaced By P6206ZZ
|
BALL BEARING 6206ZZ
|
N/A | View Replacement | |
| 20 |
P0766020
Replaced By PR38M
|
INT RETAINING RING 62MM
|
N/A | View Replacement | |
| 21 |
P0766021
Replaced By P6206ZZ
|
BALL BEARING 6206ZZ
|
N/A | View Replacement | |
| 23 |
P0766023
Replaced By PK43M
|
KEY 8 X 8 X 45
|
N/A | View Replacement | |
| 24 | P0766024 | SPINDLE | $98.00 | ||
| 25 |
P0766025
Replaced By PSS140M
|
SET SCREW M6-1 X 12 DOG-PT
|
N/A | View Replacement | |
| 26 | P0766026 | FACEPLATE 153MM DIA | $35.75 | ||
| 27 | P0766027 | SPUR CENTER | $16.50 | ||
| 28 |
P0766028
Replaced By P0698093
|
SPINDLE LOCK TOOL
|
N/A | View Replacement | |
| 29 | P0766029 | DIGITAL READOUT | $59.50 | ||
| 30 |
P0766030
Replaced By PS07M
|
PHLP HD SCR M4-.7 X 8
|
N/A | View Replacement | |
| 31 | P0766031 | SWITCH BOX | $3.75 | ||
| 32 | P0766032 | PANEL COVER | $1.00 | ||
| 33 | P0766033 | ROTARY SWITCH KEDU ZH-A FOR/OFF/REV | $1.00 | ||
| 34 |
P0766034
Replaced By P0733096
|
POTENTIOMETER WX1 10 010 10K
|
N/A | View Replacement | |
| 35 | P0766035 | ON/OFF SWITCH KJD178 250V 18A | $19.75 | ||
| 36 |
P0766036
Replaced By PS17M
|
PHLP HD SCR M4-.7 X 6
|
N/A | View Replacement | |
| 37 | P0766037 | KNURLED THUMB SCREW M5-.8 X 8 | $1.00 | ||
| 39 |
P0766039
Replaced By PS05M
|
PHLP HD SCR M5-.8 X 8
|
N/A | View Replacement | |
| 40 | P0766040 | BELT DOOR | $2.00 | ||
| 41 |
P0766041
Replaced By PW02M
|
FLAT WASHER 5MM
|
N/A | View Replacement | |
| 43 | P0766043 | BUSHING | $4.25 | ||
| 44 | P0766044 | HEADSTOCK CLAMP BOLT M18-2.5 X 44 | $7.00 | ||
| 45 | P0766045 | HEADSTOCK CLAMP | $3.75 | ||
| 46 |
P0766046
Replaced By PN29M
|
HEX NUT M18-2.5
|
N/A | View Replacement | |
| 47 | P0766047 | RPM SENSOR BRACKET | $5.25 | ||
| 48 |
P0766048
Replaced By PS07M
|
PHLP HD SCR M4-.7 X 8
|
N/A | View Replacement | |
| 49 | P0766049 | HANDWHEEL 49MM DIA DISHED | $14.50 | ||
| 50 | P0766050 |
*DISCD*SPANNER NUT M30-1.5
Item is no longer available
|
N/A | ||
| 51 | P0766051 | EXT TOOTH WASHER 30MM BLACK | $1.00 | ||
| 52 | P0766052 | TOOL REST BASE LOCK LEVER V1 | $13.25 | ||
| 52V2 | P0766052V2 | TOOL REST BASE LOCK LEVER V2.07.15 | $21.75 | ||
| 53 |
P0766053
Replaced By PR08M
|
EXT RETAINING RING 19MM
|
N/A | View Replacement | |
| 54 |
P0766054
Replaced By P0698013
|
TOOL REST LOCK LEVER
|
N/A | View Replacement | |
| 55 |
P0766055
Replaced By P0766055V2
|
TOOL REST BASE (25MM HOLE) V2.07.15
|
N/A | View Replacement | |
| 55V2 | P0766055V2 | TOOL REST BASE (25MM HOLE) V2.07.15 | $57.50 | ||
| 55V2A | P0766055V2A | EXTENDED TOOL REST BASE KIT | $79.00 | ||
| 55V3 | P0766055V3 | TOOL REST BASE (1" HOLE) V3.12.17 | $69.25 | ||
| 56 | P0766056 | TOOL REST (25MM POST) V1 | $29.50 | ||
| 56V2 | P0766056V2 | TOOL REST (1" POST) V2.12.17 | $62.75 | ||
| 57 | P0766057 | TOOL REST BASE PLATE | $2.25 | ||
| 58 |
P0766058
Replaced By PS08M
|
PHLP HD SCR M5-.8 X 12
|
N/A | View Replacement | |
| 59 | P0766059 | TOOL REST CLAMP BOLT M18-2.5 X 44 | $7.25 | ||
| 60 | P0766060 | ECCENTRIC BUSHING | $3.00 | ||
| 61 | P0766061 |
*DISCD*SLIDE BUSHING V1
Item is no longer available
|
N/A | ||
| 61V2 |
P0766061V2
Replaced By P0733032
|
SLIDE BUSHING
|
N/A | View Replacement | |
| 62 | P0766062 | CLAMP PLATE | $4.00 | ||
| 63 |
P0766063
Replaced By PN29M
|
HEX NUT M18-2.5
|
N/A | View Replacement | |
| 64 | P0766064 | TAILSTOCK CASTING | $156.75 | ||
| 64A | P0766064A | COMPLETE TAILSTOCK ASSEMBLY | $250.00 | ||
| 65 | P0766065 | HANDWHEEL 137MM DIA DISHED | $31.50 | ||
| 66 | P0766066 | HANDWHEEL HANDLE M8-1.25 X 13, 94L | $1.50 | ||
| 67 |
P0766067
Replaced By PSS14M
|
SET SCREW M8-1.25 X 12
|
N/A | View Replacement | |
| 68 | P0766068 | QUILL LOCK LEVER | $3.00 | ||
| 69 | P0766069 | STOP PIN M8-1.25 X 10, 152L | $2.25 | ||
| 70 | P0766070 | TAILSTOCK LOCK LEVER | $13.25 | ||
| 71 | P0766071 | LEADSCREW | $10.75 | ||
| 72 | P0766072 | QUILL | $54.00 | ||
| 73 | P0766073 | LIVE CENTER | $16.50 | ||
| 74 |
P0766074
Replaced By PR08M
|
EXT RETAINING RING 19MM
|
N/A | View Replacement | |
| 75 | P0766075 | TAILSTOCK CLAMP BOLT M18-2.5 X 44 | $7.00 | ||
| 76 | P0766076 | ECCENTRIC BUSHING | $4.00 | ||
| 77 | P0766077 | CLAMP PLATE | $3.75 | ||
| 78 |
P0766078
Replaced By PN29M
|
HEX NUT M18-2.5
|
N/A | View Replacement | |
| 79 | P0766079 | STAND V1 | $313.50 | ||
| 79V2 | P0766079V2 | LEG V2.07.15 | $280.75 | ||
| 79V3 | P0766079V3 | LEG V3.01.21 | $411.50 | ||
| 80 | P0766080 | BED | $976.75 | ||
| 81 |
P0766081
Replaced By PLW06M
|
LOCK WASHER 10MM
|
N/A | View Replacement | |
| 82 |
P0766082
Replaced By PCAP84M
|
CAP SCREW M10-1.5 X 35
|
N/A | View Replacement | |
| 83 | P0766083 | BED STOP | $2.00 | ||
| 84 | P0766084 | VARIABLE SPEED DIAL | $1.50 | ||
| 85 |
P0766085
Replaced By PEC13M
|
E-CLIP 5MM
|
N/A | View Replacement | |
| 86 |
P0766086
Replaced By PW05M
|
FLAT WASHER 4MM
|
N/A | View Replacement | |
| 87 |
P0766087
Replaced By PLW01M
|
LOCK WASHER 5MM
|
N/A | View Replacement | |
| 88 |
P0766088
Replaced By PSS01M
|
SET SCREW M6-1 X 10
|
N/A | View Replacement | |
| 89 | P0766089 | POWER CORD 14G 3W 72" 6-15P | $23.75 | ||
| 89V2 | P0766089V2 | POWER CORD 12G 3W 72" 6-20P V2.12.17 | $49.00 | ||
| 90 |
P0766090
Replaced By PN02M
|
HEX NUT M10-1.5
|
N/A | View Replacement | |
| 90V2 |
P0766090V2
Replaced By PN13M
|
HEX NUT M16-2
|
N/A | View Replacement | |
| 91 |
P0766091
Replaced By PAW03M
|
HEX WRENCH 3MM
|
N/A | View Replacement | |
| 92 |
P0766092
Replaced By PAW04M
|
HEX WRENCH 4MM
|
N/A | View Replacement | |
| 93 |
P0766093
Replaced By PAW06M
|
HEX WRENCH 6MM
|
N/A | View Replacement | |
| 94 |
P0766094
Replaced By PAW08M
|
HEX WRENCH 8MM
|
N/A | View Replacement | |
| 95 | P0766095 | FOOT M10-1.5 X 18 | $4.00 | ||
| 95V2 | P0766095V2 | ADJ FOOT M16-2 X 50, 100D V2.01.21 | $4.75 | ||
| 96 |
P0766096
Replaced By PN60M
|
HEX NUT M12-1.5 THIN
|
N/A | View Replacement | |
| 97 | P0766097 | RPM SENSOR M12-1.5 X 35 | $1.50 | ||

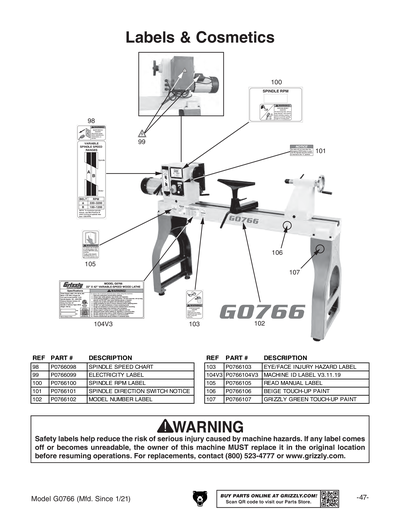

| 98 | P0766098 | SPINDLE SPEED CHART | $2.00 | ||
| 99 |
P0766099
Replaced By PLABEL-14A
|
ELECTRICITY 0.7W X 0.6H
|
N/A | View Replacement | |
| 100 | P0766100 | SPINDLE RPM LABEL | $1.50 | ||
| 101 | P0766101 | SPINDLE DIRECTION SWITCH NOTICE | $1.00 | ||
| 102 | P0766102 | MODEL NUMBER LABEL | $1.00 | ||
| 103 | P0766103 | EYE/FACE INJURY HAZARD LABEL | $1.00 | ||
| 104 |
P0766104
Replaced By P0766104V2
|
MACHINE ID LABEL V2.12.17
|
N/A | View Replacement | |
| 104V2 | P0766104V2 | MACHINE ID LABEL V2.12.17 | $9.50 | ||
| 104V3 | P0766104V3 | MACHINE ID LABEL V3.11.19 | $9.50 | ||
| 105 |
P0766105
Replaced By PLABEL-12C
|
READ MANUAL 1.5W X 2.5H
|
N/A | View Replacement | |
| 106 |
P0766106
Replaced By PPAINT-14
|
BEIGE REF G0555
|
N/A | View Replacement | |
| 107 |
P0766107
Replaced By PPAINT-1
|
N/S GRIZZLY GREEN G1023S
|
N/A | View Replacement | |
| 108 | P0766108 | CIRCUIT BREAKER GEN. IND. 220V 15A | $3.00 | ||
| 109 |
P0766109
Replaced By PFH68M
|
FLAT HD CAP SCR M8-1.25 X 20
|
N/A | View Replacement | |
| 110 | P0766110 | MOTOR PULLEY | $14.50 | ||
| 111 | P0766111 | PULLEY SPACER | $8.75 | ||
| MAN | P0766MAN | MANUAL G0766 MFD-01.15-06.15 V1.03.15 | $4.25 | ||
| MANV2 | P0766MANV2 | MANUAL G0766 MFD-07.15-10.17 V2.10.15 | $18.75 | ||
| MANV3 | P0766MANV3 | MANUAL G0766 MFD-11.17-04.19 V3.12.17 | $18.50 | ||
| MANV4 | P0766MANV4 | MANUAL G0766 MFD-05.19-10.19 V4.05.19 | $18.50 | ||
| MANV5 | P0766MANV5 | MANUAL G0766 MFD-11.19+ V5.11.19 | $18.50 |
