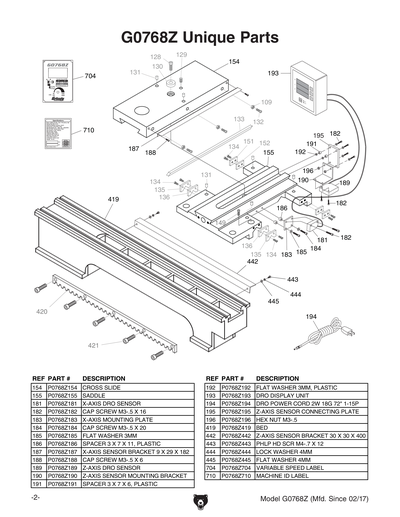

Parts for G0768Z - 8" x 16" Variable-Speed Lathe with X/Z-Axis DRO

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
51 P0768Z051
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
52 P0768Z052
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
53 P0768Z053
Replaced By PSS74M
SET SCREW M8-1.25 X 35
N/A View Replacement
154 P0768Z154 CROSS SLIDE $33.00
155 P0768Z155 SADDLE $60.00
181 P0768Z181 X-AXIS DRO SENSOR $58.50
182 P0768Z182
Replaced By PCAP158M
CAP SCREW M3-.5 X 16
N/A View Replacement
183 P0768Z183 X-AXIS MOUNTING PLATE $9.00
184 P0768Z184
Replaced By PCAP222M
CAP SCREW M3-.5 X 20
N/A View Replacement
185 P0768Z185
Replaced By PW07M
FLAT WASHER 3MM
N/A View Replacement
186 P0768Z186 SPACER 3 X 7 X 11, PLASTIC $1.25
187 P0768Z187 X-AXIS SENSOR BRACKET 9 X 29 X 182 $24.00
188 P0768Z188
Replaced By PCAP57M
CAP SCREW M3-.5 X 6
N/A View Replacement
189 P0768Z189 Z-AXIS DRO SENSOR $58.50
190 P0768Z190 Z-AXIS SENSOR MOUNTING BRACKET $9.00
191 P0768Z191 SPACER 3 X 7 X 6, PLASTIC $1.25
192 P0768Z192 FLAT WASHER 3MM, PLASTIC $1.25
194 P0768Z194 DRO POWER CORD 2W 18G 72" 1-15P $37.25
195 P0768Z195 Z-AXIS SENSOR CONNECTING PLATE $9.50
196 P0768Z196
Replaced By PN07M
HEX NUT M3-.5
N/A View Replacement
419 P0768Z419 BED $255.00
442 P0768Z442 Z-AXIS SENSOR BRACKET 30 X 30 X 400 $45.00
443 P0768Z443
Replaced By PS02M
PHLP HD SCR M4-.7 X 12
N/A View Replacement
444 P0768Z444
Replaced By PLW02M
LOCK WASHER 4MM
N/A View Replacement
445 P0768Z445
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
704 P0768Z704 VARIABLE SPEED LABEL $6.00
710 P0768Z710 MACHINE ID LABEL $9.50
PCAP222M PCAP222M CAP SCREW M3-.5 X 20 $1.75
