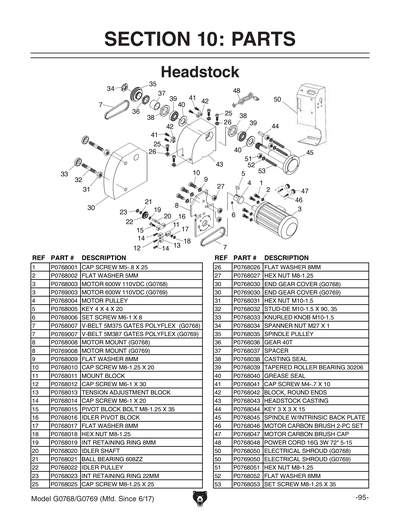

Parts for G0769 - 8" x 16" Variable-Speed Lathe with Milling Head

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P0769001
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
2 P0769002
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
3 P0769003 MOTOR 600W 110VDC $116.00
4 P0769004
Replaced By P0768004
MOTOR PULLEY
N/A View Replacement
5 P0769005
Replaced By PK48M
KEY 4 X 4 X 20
N/A View Replacement
6 P0769006
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
7 P0769007 V-BELT GATES POLYFLEX 5M387 $14.75
8 P0769008
MOTOR MOUNT
N/A
9 P0769009
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
10 P0769010
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
11 P0769011
Replaced By P0768011
MOUNT BLOCK
N/A View Replacement
12 P0769012
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
13 P0769013
Replaced By P0768013
*DISCD*TENSION ADJUSTMENT BLOCK
N/A View Replacement
14 P0769014
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
15 P0769015
Replaced By P0768015
PIVOT BLOCK BOLT M8-1.25 X 35
N/A View Replacement
16 P0769016
Replaced By P0768016
IDLER PIVOT BLOCK
N/A View Replacement
17 P0769017
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
18 P0769018
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
19 P0769019
Replaced By PR88M
INT RETAINING RING 8MM
N/A View Replacement
20 P0769020
Replaced By P0768020
IDLER SHAFT
N/A View Replacement
21 P0769021
Replaced By P608ZZ
***USE G3845***
N/A View Replacement
22 P0769022
Replaced By P0768022
IDLER PULLEY
N/A View Replacement
23 P0769023
Replaced By PR57M
INT RETAINING RING 22MM
N/A View Replacement
24 P0769024

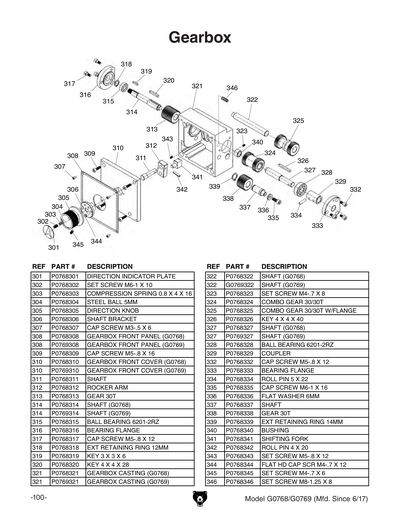

GEARBOX COVER, INBOARD
N/A
25 P0769025
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
26 P0769026
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
27 P0769027
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
28 P0769028
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
29 P0769029
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
30 P0769030
END GEAR COVER
N/A
31 P0769031
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
32 P0769032
Replaced By P0768032
STUD-DE M10-1.5 X 90, 35
N/A View Replacement
33 P0769033
Replaced By P0768033
KNURLED KNOB M10-1.5
N/A View Replacement
34 P0769034
Replaced By P0768034
SPANNER NUT M27 X 1
N/A View Replacement
35 P0769035
Replaced By P0768035
SPINDLE PULLEY
N/A View Replacement
36 P0769036
Replaced By P0768036
GEAR 40T
N/A View Replacement
37 P0769037
Replaced By P0768037
SPACER
N/A View Replacement
38 P0769038
Replaced By P0768038
CASTING SEAL
N/A View Replacement
39 P0769039
Replaced By P30206
TAPERED ROLLER BEARING 30206
N/A View Replacement
40 P0769040
Replaced By P0768040
GREASE SEAL
N/A View Replacement
41 P0769041
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
N/A View Replacement
42 P0769042
Replaced By P0768042
BLOCK, ROUND ENDS
N/A View Replacement
43 P0769043
Replaced By P0768043
HEADSTOCK CASTING
N/A View Replacement
44 P0769044
Replaced By PK52M
KEY 3 X 3 X 15
N/A View Replacement
45 P0769045
Replaced By P0768045
SPINDLE W/INTRINSIC BACK PLATE
N/A View Replacement
46 P0769046
CARBON BRUSH (SINGLE)
N/A
47 P0769047
Replaced By P0768047
MOTOR CARBON BRUSH CAP
N/A View Replacement
48 P0769048
Replaced By P0768048
*DISCD*POWER CORD 16G 3W 72" 5-15
N/A View Replacement
49 P0769049
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
50 P0769050

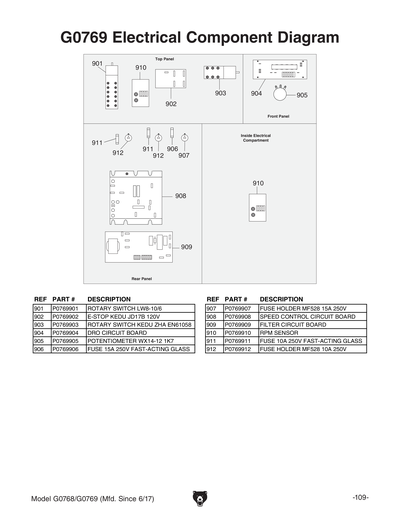

ELECTRICAL SHROUD
N/A
50-1 P0769050-1
Replaced By P0768050-1
ELECTRICAL PANEL-REAR
N/A View Replacement
50-2 P0769050-2
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
N/A View Replacement
51 P0769051
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
52 P0769052
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
53 P0769053
Replaced By PSS74M
SET SCREW M8-1.25 X 35
N/A View Replacement

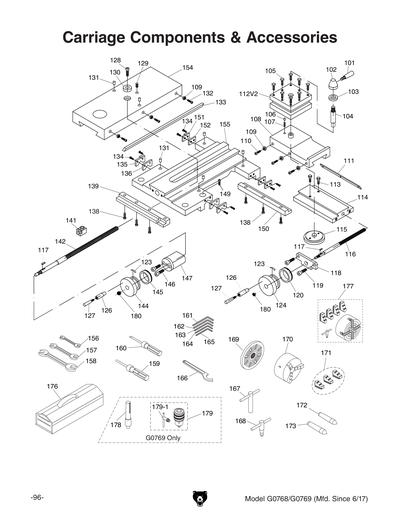

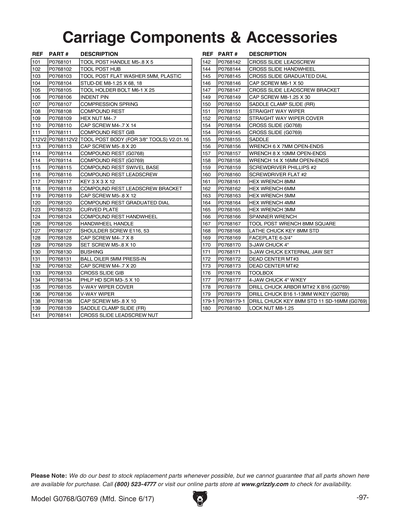

101 P0769101
Replaced By P0768101
TOOL POST HANDLE M5-.8 X 5
N/A View Replacement
102 P0769102
Replaced By P0768102
TOOL POST HUB
N/A View Replacement
103 P0769103
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
104 P0769104
Replaced By P0768104
STUD-DE M8-1.25 X 68, 18
N/A View Replacement
105 P0769105
Replaced By P0768105
TOOL HOLDER BOLT M6-1 X 25
N/A View Replacement
106 P0769106
Replaced By P0768106
INDENT PIN
N/A View Replacement
107 P0769107
Replaced By P0768107
COMPRESSION SPRING
N/A View Replacement
108 P0769108
Replaced By P0768108
COMPOUND REST
N/A View Replacement
109 P0769109
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
110 P0769110
Replaced By PCAP41M
CAP SCREW M4-.7 X 14
N/A View Replacement
111 P0769111
Replaced By P0768111
COMPOUND REST GIB
N/A View Replacement
112 P0769112
Replaced By P0768112
TOOL POST BODY (FOR 12MM TOOLS) V1
N/A View Replacement
112V2 P0769112V2
Replaced By P0768112V2
TOOL POST BODY (FOR 3/8" TOOLS) V2.01.16
N/A View Replacement
113 P0769113
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
N/A View Replacement
114 P0769114 COMPOUND REST SLIDE $39.38
115 P0769115
Replaced By P0768115
COMPOUND REST SWIVEL BASE
N/A View Replacement
116 P0769116
Replaced By P0768116
COMPOUND REST LEADSCREW
N/A View Replacement
117 P0769117
Replaced By PK103M
KEY 3 X 3 X 12
N/A View Replacement
118 P0769118
Replaced By P0768118
COMPOUND REST LEADSCREW BRACKET
N/A View Replacement
119 P0769119
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
120 P0769120
Replaced By P0768120
COMPOUND REST GRADUATED DIAL
N/A View Replacement
123 P0769123
Replaced By P0768123
CURVED PLATE
N/A View Replacement
124 P0769124
Replaced By P0768124
COMPOUND REST HANDWHEEL
N/A View Replacement
126 P0769126
Replaced By P0768126
HANDWHEEL HANDLE
N/A View Replacement
127 P0769127
Replaced By P0768127
SHOULDER SCREW E116, 53
N/A View Replacement
128 P0769128
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
N/A View Replacement
129 P0769129
Replaced By PSS05M
SET SCREW M5-.8 X 10
N/A View Replacement
130 P0769130
Replaced By P0768130
BUSHING
N/A View Replacement
131 P0769131
Replaced By PLUBE005M
*DISCD*BALL OILER 5MM PRESS-IN
N/A View Replacement
132 P0769132
Replaced By PCAP39M
CAP SCREW M4-.7 X 20
N/A View Replacement
133 P0769133
Replaced By P0768133
CROSS SLIDE GIB
N/A View Replacement
134 P0769134
Replaced By PS55M
PHLP HD SCR M3-.5 X 10
N/A View Replacement
135 P0769135
Replaced By P0768135
V-WAY WIPER COVER
N/A View Replacement
136 P0769136
Replaced By P0768136
V-WAY WIPER
N/A View Replacement
137 P0769137
Replaced By P0768137
*DISCD*SADDLE GIB (FR)
N/A View Replacement
138 P0769138
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
139 P0769139
Replaced By P0768139
SADDLE CLAMP SLIDE (FR)
N/A View Replacement
140 P0769140
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
N/A View Replacement
141 P0769141
Replaced By P0768141
CROSS SLIDE LEADSCREW NUT
N/A View Replacement
142 P0769142
Replaced By P0768142
CROSS SLIDE LEADSCREW
N/A View Replacement
144 P0769144
Replaced By P0768144
CROSS SLIDE HANDWHEEL
N/A View Replacement
145 P0769145
Replaced By P0768145
CROSS SLIDE GRADUATED DIAL
N/A View Replacement
146 P0769146
Replaced By PCAP37M
CAP SCREW M6-1 X 50
N/A View Replacement
147 P0769147
Replaced By P0768147
CROSS SLIDE LEADSCREW BRACKET
N/A View Replacement
148 P0769148
Replaced By P0768148
CLAMP BLOCK
N/A View Replacement
149 P0769149
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
150 P0769150
Replaced By P0768150
SADDLE CLAMP SLIDE (RR)
N/A View Replacement
151 P0769151
Replaced By P0768151
STRAIGHT WAY WIPER
N/A View Replacement
152 P0769152
Replaced By P0768152
STRAIGHT WAY WIPER COVER
N/A View Replacement
153 P0769153
Replaced By P0768153
*DISCD*SADDLE GIB (RR)
N/A View Replacement
154 P0769154 CROSS SLIDE $60.00
155 P0769155
Replaced By P0768155
SADDLE
N/A View Replacement
156 P0769156
Replaced By PWR67
WRENCH 6 X 7MM OPEN-ENDS
N/A View Replacement
157 P0769157
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement
158 P0769158
Replaced By PWR1416
WRENCH 14 X 16MM OPEN-ENDS
N/A View Replacement
159 P0769159
Replaced By PSDP2
SCREWDRIVER PHILLIPS #2
N/A View Replacement
160 P0769160
Replaced By PSDF2
SCREWDRIVER FLAT #2
N/A View Replacement
161 P0769161
Replaced By PAW08M
HEX WRENCH 8MM
N/A View Replacement
162 P0769162
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
163 P0769163
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
164 P0769164
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
165 P0769165
Replaced By PAW03M
HEX WRENCH 3MM
N/A View Replacement
166 P0769166
Replaced By P0768166
SPANNER WRENCH
N/A View Replacement
167 P0769167
Replaced By P0768167
TOOL POST WRENCH 8MM SQUARE
N/A View Replacement
168 P0769168
Replaced By P0768168
LATHE CHUCK KEY 8MM STD
N/A View Replacement
169 P0769169
Replaced By P0768169
FACEPLATE 6-3/4"
N/A View Replacement
170 P0769170
Replaced By P0768170
3-JAW CHUCK 4"
N/A View Replacement
171 P0769171
Replaced By P0768171
3-JAW CHUCK EXTERNAL JAW SET
N/A View Replacement
172 P0769172
Replaced By P0768172
DEAD CENTER MT#3
N/A View Replacement
173 P0769173
Replaced By P0768173
DEAD CENTER MT#2
N/A View Replacement
174 P0769174
Replaced By P0768174

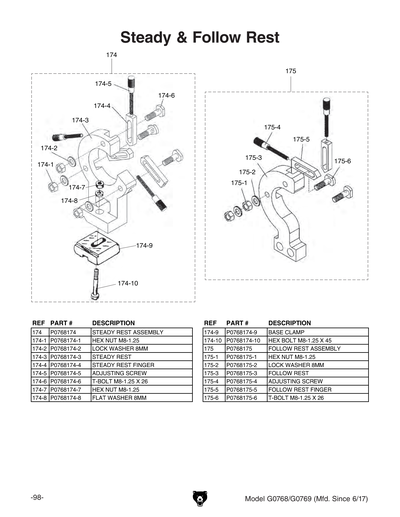

STEADY REST ASSEMBLY
N/A View Replacement
174-1 P0769174-1
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
174-10 P0769174-10
Replaced By PB118M
HEX BOLT M8-1.25 X 45
N/A View Replacement
174-2 P0769174-2
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
174-3 P0769174-3
Replaced By P0768174-3
STEADY REST
N/A View Replacement
174-4 P0769174-4
Replaced By P0768174-4
STEADY REST FINGER
N/A View Replacement
174-5 P0769174-5
Replaced By P0768174-5
ADJUSTING SCREW
N/A View Replacement
174-6 P0769174-6
Replaced By P0768174-6
T-BOLT M8-1.25 X 26
N/A View Replacement
174-7 P0769174-7
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
174-8 P0769174-8
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
174-9 P0769174-9
Replaced By P768174-9
N/A View Replacement
175 P0769175
Replaced By P0768175
FOLLOW REST ASSEMBLY
N/A View Replacement
175-1 P0769175-1
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
175-2 P0769175-2
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
175-3 P0769175-3
Replaced By P0768175-3
FOLLOW REST
N/A View Replacement
175-4 P0769175-4
Replaced By P0768175-4
ADJUSTING SCREW
N/A View Replacement
175-5 P0769175-5
Replaced By P0768175-4
ADJUSTING SCREW
N/A View Replacement
175-6 P0769175-6
Replaced By P0768174-6
T-BOLT M8-1.25 X 26
N/A View Replacement
176 P0769176
Replaced By P0768176
TOOLBOX
N/A View Replacement
177 P0769177
Replaced By P0768177
4-JAW CHUCK 4" W/KEY
N/A View Replacement
178 P0769178 DRILL CHUCK ARBOR MT#2 X B16 $30.00
178-1 P0769178-1
Replaced By P0769179-1
DRILL CHUCK KEY 8MM STD 11 SD-16MM
N/A View Replacement
179 P0769179
DRILL CHUCK B16 1-13MM W/CHUCK KEY
N/A
179-1 P0769179-1
DRILL CHUCK KEY 8MM STD 11 SD-16MM
N/A
180 P0769180
Replaced By PLN04M
LOCK NUT M8-1.25
N/A View Replacement
201 P0769201
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
202 P0769202
Replaced By PLN04M
LOCK NUT M8-1.25
N/A View Replacement
203 P0769203

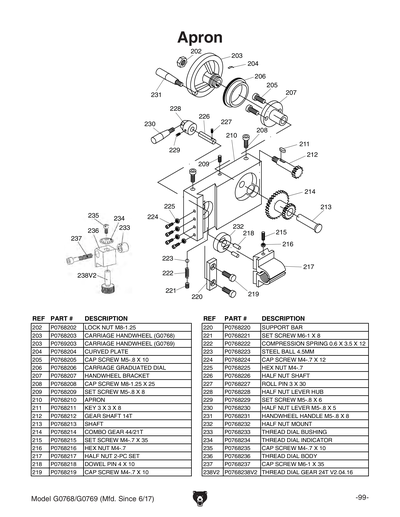

CARRIAGE HANDWHEEL
N/A
204 P0769204
Replaced By P0768204
CURVED PLATE
N/A View Replacement
205 P0769205
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
206 P0769206
Replaced By P0768206
CARRIAGE GRADUATED DIAL
N/A View Replacement
207 P0769207
Replaced By P0768207
HANDWHEEL BRACKET
N/A View Replacement
208 P0769208
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
209 P0769209
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
210 P0769210
Replaced By P0768210
APRON
N/A View Replacement
211 P0769211
Replaced By PK03M
KEY 3 X 3 X 8
N/A View Replacement
212 P0769212
Replaced By P0768212
GEAR SHAFT 14T
N/A View Replacement
213 P0769213
Replaced By P0768213
SHAFT
N/A View Replacement
214 P0769214
Replaced By P0768214
COMBO GEAR 44/21T
N/A View Replacement
215 P0769215
Replaced By P0768215
SET SCREW M4-.7 X 35
N/A View Replacement
216 P0769216
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
217 P0769217
Replaced By P0768217
HALF NUT 2-PC SET
N/A View Replacement
218 P0769218
Replaced By P0768218
DOWEL PIN 4 X 10
N/A View Replacement
219 P0769219
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
N/A View Replacement
220 P0769220
Replaced By P0768220
SUPPORT BAR
N/A View Replacement
221 P0769221
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
222 P0769222
Replaced By P0768222
COMPRESSION SPRING 0.6 X 3.5 X 12
N/A View Replacement
223 P0769223
Replaced By PSTB017M
STEEL BALL 4.5MM
N/A View Replacement
224 P0769224
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
225 P0769225
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
226 P0769226
Replaced By P0768226
HALF NUT SHAFT
N/A View Replacement
227 P0769227
Replaced By PRP97M
ROLL PIN 3 X 30
N/A View Replacement
228 P0769228
Replaced By P0768228
HALF NUT LEVER HUB
N/A View Replacement
229 P0769229
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
230 P0769230
Replaced By P0768230
HALF NUT LEVER M5-.8 X 5
N/A View Replacement
231 P0769231
Replaced By P0768231
HANDWHEEL HANDLE M5-.8 X 8
N/A View Replacement
232 P0769232
Replaced By P0768232
HALF NUT MOUNT
N/A View Replacement
233 P0769233
Replaced By P0768233
THREAD DIAL BUSHING
N/A View Replacement
234 P0769234
Replaced By P0768234
THREAD DIAL INDICATOR
N/A View Replacement
235 P0769235
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
N/A View Replacement
236 P0769236
Replaced By P0768236
THREAD DIAL BODY
N/A View Replacement
237 P0769237
Replaced By PCAP48M
CAP SCREW M6-1 X 35
N/A View Replacement
238 P0769238
Replaced By P0768238
COMBO GEAR 32T
N/A View Replacement
238V2 P0769238V2
Replaced By P0768238V2
THREAD DIAL GEAR 24T V2.04.16
N/A View Replacement
301 P0769301
Replaced By P0768301
DIRECTION INDICATOR PLATE
N/A View Replacement
302 P0769302
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
303 P0769303
Replaced By P0768303
COMPRESSION SPRING 0.8 X 4 X 16
N/A View Replacement
304 P0769304
Replaced By PSTB004M
STEEL BALL 5MM
N/A View Replacement
305 P0769305
Replaced By P0768305
DIRECTION KNOB
N/A View Replacement
306 P0769306
Replaced By P0768306
SHAFT BRACKET
N/A View Replacement
307 P0769307
Replaced By PCAP57M
CAP SCREW M3-.5 X 6
N/A View Replacement
308 P0769308
GEARBOX FRONT PANEL
N/A
309 P0769309
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
310 P0769310
GEARBOX FRONT COVER
N/A
311 P0769311
Replaced By P0768311
SHAFT
N/A View Replacement
312 P0769312
Replaced By P0768312
ROCKER ARM
N/A View Replacement
313 P0769313
Replaced By P0768313
GEAR 30T
N/A View Replacement
314 P0769314
SHAFT
N/A
315 P0769315
Replaced By P0768315
BALL BEARING 6201-2RZ
N/A View Replacement
316 P0769316
Replaced By P0768316
BEARING FLANGE
N/A View Replacement
317 P0769317
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
318 P0769318
Replaced By PR03M
EXT RETAINING RING 12MM
N/A View Replacement
319 P0769319
Replaced By PK105M
KEY 3 X 3 X 6
N/A View Replacement
320 P0769320
Replaced By PK125M
KEY 4 X 4 X 28
N/A View Replacement
321 P0769321
GEARBOX CASTING
N/A
322 P0769322
SHAFT
N/A
323 P0769323
Replaced By PSS51M
SET SCREW M4-.7 X 8
N/A View Replacement
324 P0769324
Replaced By P0768324
COMBO GEAR 30/30T W/SHAFT
N/A View Replacement
325 P0769325
Replaced By P0768325
COMBO GEAR 30/30T W/FLANGE
N/A View Replacement
326 P0769326
Replaced By PK68M
KEY 4 X 4 X 40
N/A View Replacement
327 P0769327
SHAFT
N/A
328 P0769328
Replaced By P0768328
BALL BEARING 6201-2RZ
N/A View Replacement
329 P0769329
Replaced By P0768329
COUPLER
N/A View Replacement
330 P0769330
END BRACKET
N/A
331 P0769331
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
N/A View Replacement
332 P0769332
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
333 P0769333
Replaced By P0768333
BEARING FLANGE
N/A View Replacement
334 P0769334
Replaced By PRP88M
ROLL PIN 5 X 22
N/A View Replacement
335 P0769335
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
336 P0769336
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
337 P0769337
Replaced By P0768337
SHAFT
N/A View Replacement
338 P0769338
Replaced By P0768338
GEAR 30T
N/A View Replacement
339 P0769339
Replaced By PR02M
EXT RETAINING RING 14MM
N/A View Replacement
340 P0769340
Replaced By P0768340
BUSHING
N/A View Replacement
341 P0769341
Replaced By P0768341
SHIFTING FORK
N/A View Replacement
342 P0769342
Replaced By PRP39M
ROLL PIN 4 X 20
N/A View Replacement
343 P0769343
Replaced By PSS53M
SET SCREW M5-.8 X 12
N/A View Replacement
344 P0769344
Replaced By PFH92M
FLAT HD CAP SCR M4-.7 X 12
N/A View Replacement
345 P0769345
Replaced By PSS79M
SET SCREW M4-.7 X 6
N/A View Replacement
346 P0769346
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
401 P0769401
Replaced By PR39M

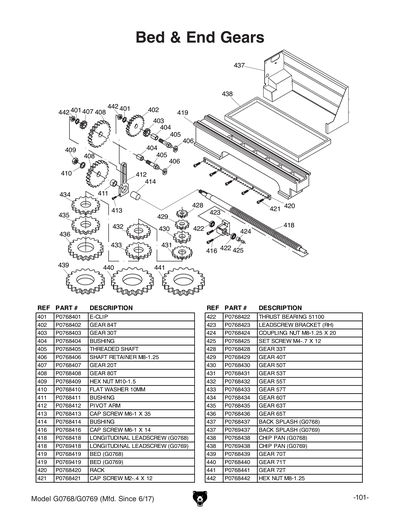

EXT RETAINING RING 8MM
N/A View Replacement
402 P0769402
Replaced By P0768402
GEAR 84T
N/A View Replacement
403 P0769403
Replaced By P0768403
GEAR 30T
N/A View Replacement
404 P0769404
Replaced By P0768404
BUSHING
N/A View Replacement
405 P0769405
Replaced By P0768405
THREADED SHAFT
N/A View Replacement
406 P0769406
Replaced By P0768406
SHAFT RETAINER M8-1.25
N/A View Replacement
407 P0769407
Replaced By P0768407
GEAR 20T
N/A View Replacement
408 P0769408
Replaced By P0768408
GEAR 80T
N/A View Replacement
409 P0769409
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
410 P0769410
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
411 P0769411
Replaced By P0768411
BUSHING
N/A View Replacement
412 P0769412
Replaced By P0768412
PIVOT ARM
N/A View Replacement
413 P0769413
Replaced By PCAP48M
CAP SCREW M6-1 X 35
N/A View Replacement
414 P0769414
Replaced By P0768414
BUSHING
N/A View Replacement
415 P0769415
LEADSCREW BRACKET (LH)
N/A
416 P0769416
Replaced By PCAP27M
CAP SCREW M6-1 X 14
N/A View Replacement
417 P0769417
Replaced By PK98M
KEY 3 X 3 X 16
N/A View Replacement
418 P0769418
LONGITUDINAL LEADSCREW
N/A
419 P0769419
BED
N/A
420 P0769420
Replaced By P0768420
RACK
N/A View Replacement
421 P0769421
Replaced By PCAP213M
*DISCD*CAP SCREW M2-.4 X 12
N/A View Replacement
422 P0769422
Replaced By P51100
THRUST BEARING 51100
N/A View Replacement
423 P0769423
Replaced By P0768423
LEADSCREW BRACKET (RH)
N/A View Replacement
424 P0769424
Replaced By P0768424
COUPLING NUT M8-1.25 X 20
N/A View Replacement
425 P0769425
Replaced By PSS22M
SET SCREW M4-.7 X 12
N/A View Replacement
426 P0769426
Replaced By P0768426
*DISCD*END FLANGE
N/A View Replacement
427 P0769427
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
428 P0769428
Replaced By P0768428
GEAR 33T
N/A View Replacement
429 P0769429
Replaced By P0768429
GEAR 40T
N/A View Replacement
430 P0769430
Replaced By P0768430
GEAR 50T
N/A View Replacement
431 P0769431
Replaced By P0768431
GEAR 53T
N/A View Replacement
432 P0769432
Replaced By P0768432
GEAR 55T
N/A View Replacement
433 P0769433
Replaced By P0768433
GEAR 57T
N/A View Replacement
434 P0769434
Replaced By P0768434
GEAR 60T
N/A View Replacement
435 P0769435
Replaced By P0768435
GEAR 63T
N/A View Replacement
436 P0769436
Replaced By P0768436
GEAR 65T
N/A View Replacement
437 P0769437
BACK SPLASH
N/A
438 P0769438
CHIP PAN
N/A
439 P0769439
Replaced By P0768439
GEAR 70T
N/A View Replacement
440 P0769440
Replaced By P0768440
GEAR 71T
N/A View Replacement
441 P0769441
Replaced By P0768441
GEAR 72T
N/A View Replacement
501 P0769501
Replaced By P0768501

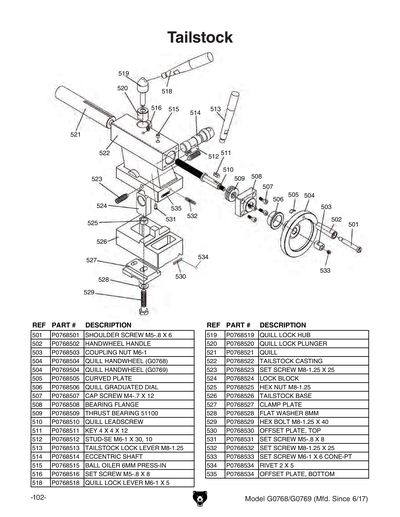

SHOULDER SCREW M5-.8 X 6
N/A View Replacement
502 P0769502
Replaced By P0768502
HANDWHEEL HANDLE
N/A View Replacement
503 P0769503
Replaced By P0768503
COUPLING NUT M6-1
N/A View Replacement
504 P0769504 QUILL HANDWHEEL $18.00
505 P0769505
Replaced By P0768505
CURVED PLATE
N/A View Replacement
506 P0769506
Replaced By P0768506
QUILL GRADUATED DIAL
N/A View Replacement
507 P0769507
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
508 P0769508
Replaced By P0768508
BEARING FLANGE
N/A View Replacement
509 P0769509
Replaced By P51100
THRUST BEARING 51100
N/A View Replacement
510 P0769510
Replaced By P0768510
QUILL LEADSCREW
N/A View Replacement
511 P0769511
Replaced By PK69M
KEY 4 X 4 X 12
N/A View Replacement
512 P0769512
Replaced By P0768512
STUD-SE M6-1 X 30, 10
N/A View Replacement
513 P0769513
Replaced By P0768513
TAILSTOCK LOCK LEVER M8-1.25
N/A View Replacement
514 P0769514
Replaced By P0768514
ECCENTRIC SHAFT
N/A View Replacement
515 P0769515
Replaced By P0768515
BALL OILER 6MM PRESS-IN
N/A View Replacement
516 P0769516
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
517 P0769517
SHOULDER SCREW M4-.7 X 4
N/A
518 P0769518
Replaced By P0768518
QUILL LOCK LEVER M6-1 X 5
N/A View Replacement
519 P0769519
Replaced By P0768519
QUILL LOCK HUB
N/A View Replacement
520 P0769520
Replaced By P0768520
QUILL LOCK PLUNGER
N/A View Replacement
521 P0769521
Replaced By P0768521
QUILL
N/A View Replacement
522 P0769522
Replaced By P0768522
TAILSTOCK CASTING
N/A View Replacement
523 P0769523
Replaced By PSS21M
SET SCREW M8-1.25 X 25
N/A View Replacement
524 P0769524
Replaced By P0768524
LOCK BLOCK
N/A View Replacement
525 P0769525
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
526 P0769526
Replaced By P0768526
TAILSTOCK BASE
N/A View Replacement
527 P0769527
Replaced By P0768527
CLAMP PLATE
N/A View Replacement
528 P0769528
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
529 P0769529
Replaced By PB15M
HEX BOLT M8-1.25 X 40
N/A View Replacement
530 P0769530
Replaced By P0768530
OFFSET PLATE, TOP
N/A View Replacement
531 P0769531
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
532 P0769532
Replaced By PSS21M
SET SCREW M8-1.25 X 25
N/A View Replacement
533 P0769533
Replaced By P0768533
SET SCREW M6-1 X 6 CONE-PT
N/A View Replacement
534 P0769534
Replaced By P0768534
RIVET 2 X 5
N/A View Replacement
535 P0769535
Replaced By P0768534
RIVET 2 X 5
N/A View Replacement

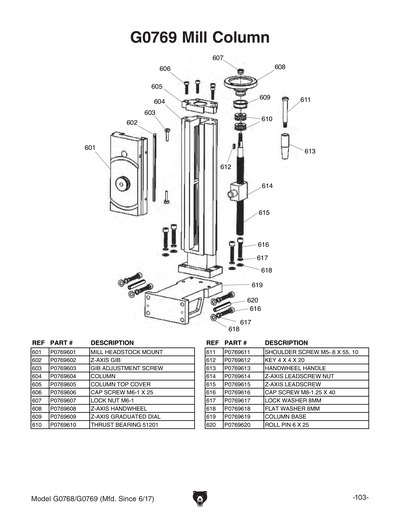

601 P0769601
MILL HEADSTOCK MOUNT
N/A
602 P0769602
Z-AXIS GIB
N/A
603 P0769603
GIB ADJUSTMENT SCREW
N/A
604 P0769604
COLUMN
N/A
605 P0769605
COLUMN TOP COVER
N/A
606 P0769606
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
607 P0769607
Replaced By PLN03M
LOCK NUT M6-1
N/A View Replacement
608 P0769608 Z-AXIS HANDWHEEL $20.00
609 P0769609
Z-AXIS GRADUATED DIAL
N/A
610 P0769610
Replaced By P51201
THRUST BEARING 51201
N/A View Replacement
611 P0769611
Replaced By P0768127
SHOULDER SCREW E116, 53
N/A View Replacement
612 P0769612
Replaced By PK48M
KEY 4 X 4 X 20
N/A View Replacement
613 P0769613
HANDWHEEL HANDLE
N/A
614 P0769614
Z-AXIS LEADSCREW NUT
N/A
615 P0769615
Z-AXIS LEADSCREW
N/A
616 P0769616
Replaced By PCAP12M
CAP SCREW M8-1.25 X 40
N/A View Replacement
617 P0769617
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
618 P0769618
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
619 P0769619 COLUMN BASE $39.00
620 P0769620
Replaced By PRP93M
ROLL PIN 6 X 25
N/A View Replacement

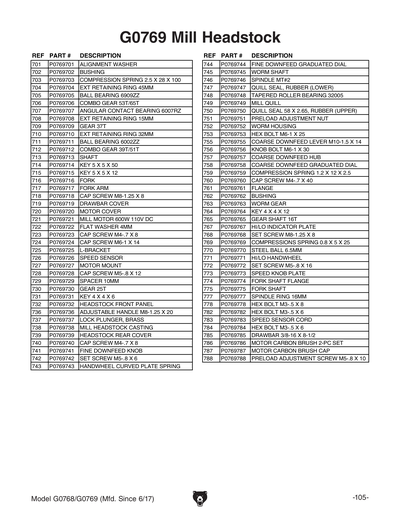

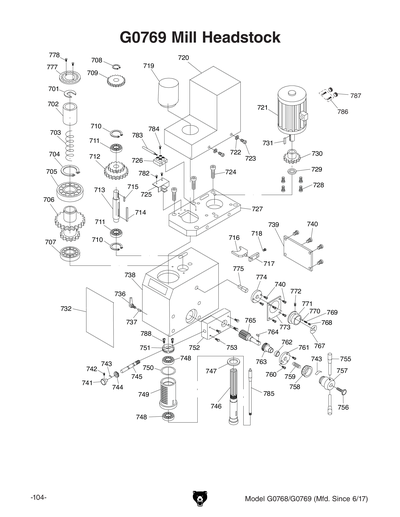

701 P0769701
CLIPPED WASHER 14MM
N/A
702 P0769702
BUSHING
N/A
703 P0769703
COMPRESSION SPRING 2.5 X 28 X 100
N/A
704 P0769704
Replaced By PR56M
EXT RETAINING RING 45MM
N/A View Replacement
705 P0769705
BALL BEARING 6909ZZ
N/A
706 P0769706
COMBO GEAR 53T/65T
N/A
707 P0769707
ANGULAR CONTACT BEARING 6007RZ
N/A
708 P0769708
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
709 P0769709 GEAR 37T $12.00
710 P0769710
Replaced By PR37M
EXT RETAINING RING 32MM
N/A View Replacement
711 P0769711
Replaced By P6002ZZ
BALL BEARING 6002ZZ
N/A View Replacement
712 P0769712 COMBO GEAR 39T/51T $23.25
713 P0769713
SHAFT
N/A
714 P0769714
Replaced By PK36M
KEY 5 X 5 X 50
N/A View Replacement
715 P0769715
Replaced By PK10M
KEY 5 X 5 X 12
N/A View Replacement
716 P0769716
FORK
N/A
717 P0769717
FORK ARM
N/A
718 P0769718
Replaced By PCAP199M
CAP SCREW M8-1.25 X 8
N/A View Replacement
719 P0769719
DRAWBAR COVER
N/A
720 P0769720 MOTOR COVER $21.00
721 P0769721
MILL MOTOR 600W 110V DC
N/A
722 P0769722
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
723 P0769723
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
N/A View Replacement
724 P0769724
Replaced By PCAP27M
CAP SCREW M6-1 X 14
N/A View Replacement
725 P0769725
L-BRACKET
N/A
726 P0769726
SPEED SENSOR
N/A
727 P0769727
MOTOR MOUNT
N/A
728 P0769728
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
729 P0769729
SPACER 10MM
N/A
730 P0769730
GEAR 25T
N/A
731 P0769731
Replaced By PK72M
KEY 4 X 4 X 6
N/A View Replacement
732 P0769732
HEADSTOCK FRONT PANEL
N/A
736 P0769736
ADJUSTABLE HANDLE M8-1.25 X 20
N/A
737 P0769737
LOCK PLUNGER, BRASS
N/A
738 P0769738
MILL HEADSTOCK CASTING
N/A
739 P0769739
HEADSTOCK REAR COVER
N/A
740 P0769740
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
N/A View Replacement
741 P0769741
FINE DOWNFEED KNOB
N/A
742 P0769742
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
743 P0769743
HANDWHEEL CURVED PLATE SPRING
N/A
744 P0769744
FINE DOWNFEED GRADUATED DIAL
N/A
745 P0769745
WORM SHAFT
N/A
746 P0769746
SPINDLE MT#2
N/A
747 P0769747
QUILL SEAL, RUBBER (LOWER)
N/A
748 P0769748
Replaced By P32005
TAPERED ROLLER BEARING 32005
N/A View Replacement
749 P0769749
MILL QUILL
N/A
750 P0769750
QUILL SEAL 58 X 2.65, RUBBER (UPPER)
N/A
751 P0769751
PRELOAD ADJUSTMENT NUT
N/A
752 P0769752
WORM HOUSING
N/A
753 P0769753
Replaced By PB10M
HEX BOLT M6-1 X 25
N/A View Replacement
755 P0769755 COARSE DOWNFEED LEVER M10-1.5 X 14 $4.50
756 P0769756
KNOB BOLT M6-1 X 30
N/A
757 P0769757
COARSE DOWNFEED HUB
N/A
758 P0769758
COARSE DOWNFEED GRADUATED DIAL
N/A
759 P0769759
COMPRESSION SPRING 1.2 X 12 X 2.5
N/A
760 P0769760
Replaced By PCAP46M
CAP SCREW M4-.7 X 40
N/A View Replacement
761 P0769761
FLANGE
N/A
762 P0769762
BUSHING
N/A
763 P0769763
WORM GEAR
N/A
764 P0769764
Replaced By PK69M
KEY 4 X 4 X 12
N/A View Replacement
765 P0769765
GEAR SHAFT 16T
N/A
767 P0769767
HI/LO INDICATOR PLATE
N/A
768 P0769768
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
769 P0769769
COMPRESSIONS SPRING 0.8 X 5 X 25
N/A
770 P0769770
Replaced By PSTB012M
STEEL BALL 6.5MM
N/A View Replacement
771 P0769771
HI/LO HANDWHEEL
N/A
772 P0769772
Replaced By PSS34M
SET SCREW M5-.8 X 16
N/A View Replacement
773 P0769773
SPEED KNOB PLATE
N/A
774 P0769774
FORK SHAFT FLANGE
N/A
775 P0769775
FORK SHAFT
N/A
776 P0769776
Replaced By PCAP158M
CAP SCREW M3-.5 X 16
N/A View Replacement
777 P0769777
SPINDLE RING 16MM
N/A
778 P0769778
Replaced By PB201M
HEX BOLT M3-.5 X 8
N/A View Replacement
779 P0769779
GEAR GUARD
N/A
780 P0769780
Replaced By PB150M
HEX BOLT M3-.5 X 6
N/A View Replacement
782 P0769782
Replaced By PB150M
HEX BOLT M3-.5 X 6
N/A View Replacement
783 P0769783
SPEED SENSOR CORD
N/A
784 P0769784
Replaced By PB150M
HEX BOLT M3-.5 X 6
N/A View Replacement
785 P0769785 DRAWBAR 3/8-16 X 8-1/2 $10.00
786 P0769786
CARBON BRUSH (SINGLE)
N/A
787 P0769787
MOTOR CARBON BRUSH CAP
N/A
788 P0769788
PRELOAD ADJUSTMENT SCREW M5-.8 X 10
N/A

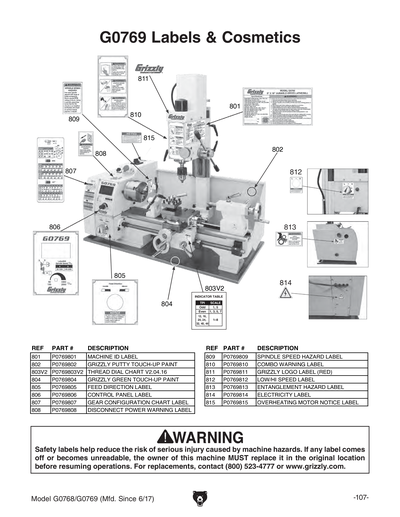

801 P0769801
MACHINE ID LABEL
N/A
802 P0769802
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
803 P0769803
Replaced By P0769803V2
THREAD DIAL CHART V2.04.16
N/A View Replacement
803V2 P0769803V2
THREAD DIAL CHART V2.04.16
N/A
804 P0769804
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
805 P0769805
FEED DIRECTION LABEL
N/A
806 P0769806
CONTROL PANEL LABEL
N/A
807 P0769807
GEAR CONFIGURATION CHART LABEL
N/A
808 P0769808
Replaced By PLABEL-62A
DISCONNECT 110V 1.5W X 2.5H
N/A View Replacement
809 P0769809
SPINDLE SPEED HAZARD LABEL
N/A
810 P0769810
COMBO WARNING LABEL
N/A
811 P0769811
GRIZZLY LOGO LABEL (RED)
N/A
812 P0769812
LOW/HI SPEED LABEL
N/A
813 P0769813
ENTANGLEMENT HAZARD LABEL
N/A
814 P0769814
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
815 P0769815
Replaced By P0768713
OVERHEATING MOTOR NOTICE LABEL
N/A View Replacement
901 P0769901 ROTARY SWITCH LW8-10/6 $45.00
902 P0769902
E-STOP KEDU JD17B 120V
N/A
903 P0769903
ROTARY SWITCH KEDU ZHA EN61058
N/A
904 P0769904
DRO CIRCUIT BOARD
N/A
905 P0769905
POTENTIOMETER WX14-12 1K7
N/A
906 P0769906 FUSE 15A 250V FAST-ACTING GLASS $1.25
907 P0769907
FUSE HOLDER MF528 15A 250V
N/A
908 P0769908 SPEED CONTROL CIRCUIT BOARD $102.50
909 P0769909
FILTER CIRCUIT BOARD
N/A
910 P0769910 RPM SENSOR $9.00
911 P0769911 FUSE 10A 250V FAST-ACTING GLASS $1.25
912 P0769912
FUSE HOLDER MF528 10A 250V
N/A
MAN P0769MAN
Replaced By P0768MAN
MANUAL G0768-69 MFD-06.14 V1.08.14
N/A View Replacement
MANV2 P0769MANV2
Replaced By P0768MANV2
MANUAL G0768-69 MFD-08.15 V2.06.17
N/A View Replacement
MANV3 P0769MANV3
Replaced By P0768MANV3
MANUAL G0768-69 MFD-06.17 V3.06.18
N/A View Replacement
