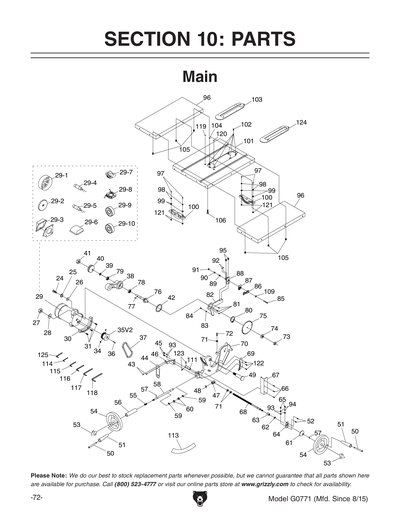

Parts for G0771 10" Hybrid Table Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

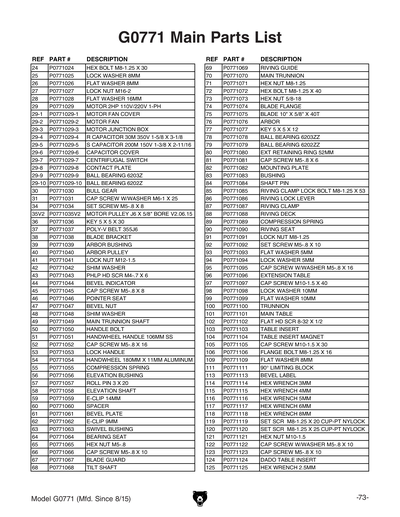

24
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
25
LOCK WASHER 8MM
Price
N/A
26
Now: PW01M
FLAT WASHER 8MM
Price
N/A
27
LOCK NUT M16-2
Price
N/A
28
Now: PW08M
FLAT WASHER 16MM
Price
N/A
29
MOTOR 2HP 110V/220V 1-PH
29-1
MOTOR FAN COVER
29-10
BALL BEARING 6202Z
Price
N/A
29-11
FRONT END BELL
29-2
MOTOR FAN
29-3
MOTOR JUNCTION BOX
29-4
R CAPACITOR 30M 350V 1-5/8 X 3-1/8
29-5
*DISCD*S CAP 200M 150V 1-3/8 X 2-11/16
Item is no longer available
Price
N/A
29-6
CAPACITOR COVER
29-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
29-8
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29-9
BALL BEARING 6203Z
Price
N/A
30
BULL GEAR
31
CAP SCREW W/WASHER M6-1 X 25
34
SET SCREW M5-.8 X 8
Price
N/A
35
MOTOR PULLEY J6 X 5/8" BORE V2.06.15
Price
N/A
35V2
MOTOR PULLEY J6 X 5/8" BORE V2.06.15
36
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
37
POLY-V BELT 355J6
38
BLADE BRACKET
39
ARBOR BUSHING
40
ARBOR PULLEY
41
LOCK NUT M12-1.5
Price
N/A
42
THRUST WASHER 52MM BLACK
43
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
44
BEVEL INDICATOR
45
CAP SCREW M5-.8 X 8
Price
N/A
46
POINTER SEAT
47
BEVEL NUT
48
SHIM WASHER
49
MAIN TRUNNION SHAFT
50
HANDLE BOLT
51
HANDWHEEL HANDLE 106MM SS
52
CAP SCREW M5-.8 X 16
Price
N/A
53
LOCK HANDLE
54
HANDWHEEL TYPE 1 180D X 11B-K X M8-1.25
55
COMPRESSION SPRING
56
ELEVATION BUSHING
57
ROLL PIN 3 X 20
Price
N/A
58
ELEVATION SHAFT
59
E-CLIP 14MM
Price
N/A
60
SPACER
61
BEVEL PLATE
62
E-CLIP 9MM
Price
N/A
63
SWIVEL BEARING
64
BEARING SEAT
65
Now: PN06M
HEX NUT M5-.8
Price
N/A
66
CAP SCREW M5-.8 X 10
Price
N/A
67
BLADE GUARD
68
TILT SHAFT
69
RIVING GUIDE
70
MAIN TRUNNION
71
Now: PN03M
HEX NUT M8-1.25
Price
N/A
72
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
73
Now: PN09
HEX NUT 5/8-18
Price
N/A
74
BLADE FLANGE
75
BLADE 10" X 5/8" X 40T
76
ARBOR
77
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
78
BALL BEARING 6203ZZ
Price
N/A
79
BALL BEARING 6202ZZ
Price
N/A
80
Now: PR76M
EXT RETAINING RING 52MM
Price
N/A
81
CAP SCREW M5-.8 X 6
Price
N/A
82
MOUNTING PLATE
83
BUSHING
84
SHAFT PIN
85
RIVING CLAMP LOCK BOLT M8-1.25 X 53
86
RIVING LOCK LEVER
87
RIVING CLAMP
88
RIVING DECK
89
COMPRESSION SPRING
90
RIVING SEAT
91
LOCK NUT M8-1.25
Price
N/A
92
SET SCREW M5-.8 X 10
Price
N/A
93
Now: PW02M
FLAT WASHER 5MM
Price
N/A
94
LOCK WASHER 5MM
Price
N/A
95
CAP SCREW W/WASHER M5-.8 X 16
96
EXTENSION TABLE
97
CAP SCREW M10-1.5 X 40
Price
N/A
98
LOCK WASHER 10MM
Price
N/A
99
Now: PW04M
FLAT WASHER 10MM
Price
N/A
100
TRUNNION
101
MAIN TABLE
102
FLAT HD SCR 8-32 X 1/2
103
TABLE INSERT
104
TABLE INSERT MAGNET
105
CAP SCREW M10-1.5 X 30
Price
N/A
106
FLANGE BOLT M8-1.25 X 16
Price
N/A
109
Now: PW01M
FLAT WASHER 8MM
Price
N/A
111
90 DEG LIMITING BLOCK
113
BEVEL LABEL
114
HEX WRENCH 3MM
Price
N/A
115
HEX WRENCH 4MM
Price
N/A
116
HEX WRENCH 5MM
Price
N/A
117
HEX WRENCH 6MM
Price
N/A
118
HEX WRENCH 8MM
Price
N/A
119
SET SCR M8-1.25 X 20 CUP-PT NYLOCK
120
SET SCR M8-1.25 X 25 CUP-PT NYLOCK
121
Now: PN02M
HEX NUT M10-1.5
Price
N/A
122
CAP SCREW W/WASHER M5-.8 X 10
123
CAP SCREW M5-.8 X 10
Price
N/A
124
DADO TABLE INSERT
125
HEX WRENCH 2.5MM
Price
N/A

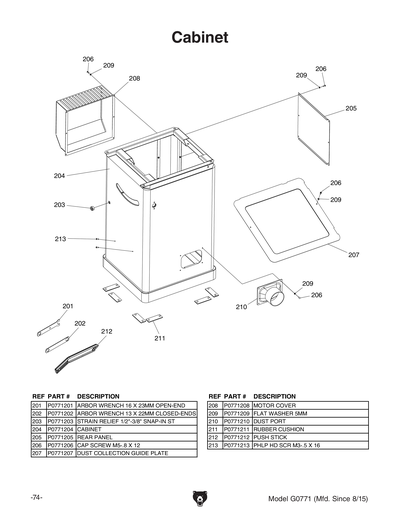

201
ARBOR WRENCH 16 X 23MM OPEN-END
202
ARBOR WRENCH 13 X 22MM CLOSED-ENDS
203
STRAIN RELIEF 1/2"-3/8" SNAP-IN ST
204
CABINET
205
REAR PANEL
206
CAP SCREW M5-.8 X 12
Price
N/A
207
DUST COLLECTION GUIDE PLATE
208
MOTOR COVER
209
Now: PW02M
FLAT WASHER 5MM
Price
N/A
210
DUST PORT
211
*DISCD*RUBBER CUSHION
212
PUSH STICK
213
Now: PS98M
PHLP HD SCR M3-.5 X 16
Price
N/A

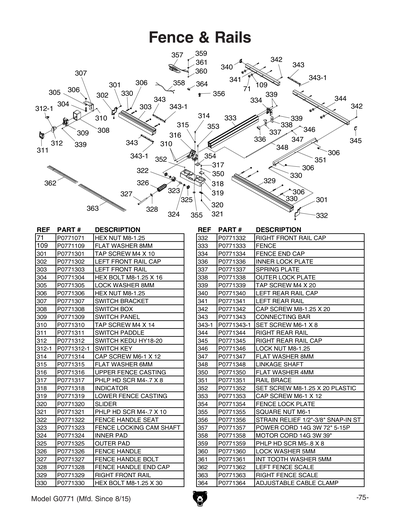

301
TAP SCREW M4 X 10
Price
N/A
302
LEFT FRONT RAIL CAP
303
*DISCD*LEFT FRONT RAIL
Item is no longer available
Price
N/A
304
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
305
LOCK WASHER 8MM
Price
N/A
306
Now: PN03M
HEX NUT M8-1.25
Price
N/A
307
SWITCH BRACKET
308
SWITCH BOX
309
SWITCH PANEL
310
TAP SCREW M4 X 14
Price
N/A
311
SWITCH PADDLE
312
SWITCH KEDU HY18-20
312-1
SWITCH KEDU HY18-20
Price
N/A
314
CAP SCREW M6-1 X 12
Price
N/A
315
Now: PW03M
FLAT WASHER 6MM
Price
N/A
316
*DISCD*UPPER FENCE CASTING
Item is no longer available
Price
N/A
317
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
318
*DISCD*INDICATOR
Item is no longer available
Price
N/A
319
LOWER FENCE CASTING
320
SLIDER
321
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
322
FENCE HANDLE SEAT
323
FENCE LOCKING CAM SHAFT
324
INNER PAD
325
OUTER PAD
326
FENCE HANDLE
327
*DISCD*FENCE HANDLE BOLT
Item is no longer available
Price
N/A
328
FENCE HANDLE END CAP
329
RIGHT FRONT RAIL
330
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
332
RIGHT FRONT RAIL CAP
333
FENCE
333A
*DISCD*FENCE ASSEMBLY
Item is no longer available
Price
N/A
334
FENCE END CAP
336
*DISCD*INNER LOCK PLATE
337
SPRING PLATE
338
OUTER LOCK PLATE
339
TAP SCREW M4 X 20
Price
N/A
340
LEFT REAR RAIL CAP
341
*DISCD*LEFT REAR RAIL
Item is no longer available
Price
N/A
342
CAP SCREW M8-1.25 X 20
Price
N/A
343
CONNECTING BAR
343-1
SET SCREW M6-1 X 8
Price
N/A
344
RIGHT REAR RAIL
345
RIGHT REAR RAIL CAP
346
LOCK NUT M8-1.25
Price
N/A
347
Now: PW01M
FLAT WASHER 8MM
Price
N/A
348
LINKAGE SHAFT
350
Now: PW05M
FLAT WASHER 4MM
Price
N/A
351
RAIL BRACE
352
SET SCREW M8-1.25 X 20 PLASTIC
353
CAP SCREW M6-1 X 12
Price
N/A
354
FENCE LOCK PLATE
355
SQUARE NUT M6-1
Price
N/A
356
STRAIN RELIEF 1/2"-3/8" SNAP-IN ST
Price
N/A
357
POWER CORD 14G 3W 72" 5-15P
358
MOTOR CORD 14G 3W 39"
359
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
360
LOCK WASHER 5MM
Price
N/A
361
INT TOOTH WASHER 5MM
Price
N/A
362
LEFT FENCE SCALE
363
RIGHT FENCE SCALE
364
ADJUSTABLE CABLE CLAMP

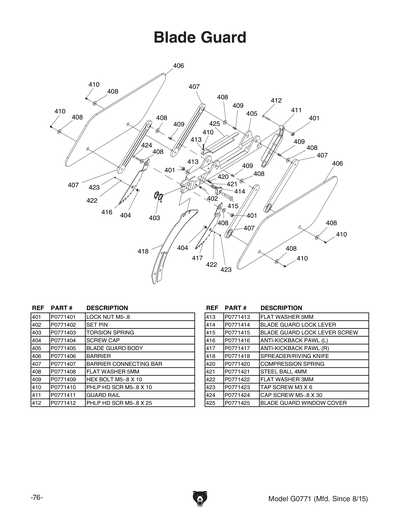

400
BLADE GUARD ASSY
Price
N/A
401
LOCK NUT M5-.8
Price
N/A
402
SET PIN
403
TORSION SPRING
404
SCREW CAP
405
BLADE GUARD BODY
406
BARRIER
407
BARRIER CONNECTING BAR
408
Now: PW02M
FLAT WASHER 5MM
Price
N/A
409
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
410
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
411
GUARD RAIL
412
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
413
Now: PW02M
FLAT WASHER 5MM
Price
N/A
414
BLADE GUARD LOCK LEVER
415
BLADE GUARD LOCK LEVER SCREW
416
ANTI-KICKBACK PAWL (L)
417
ANTI-KICKBACK PAWL (R)
418
SPREADER/RIVING KNIFE
420
COMPRESSION SPRING
421
STEEL BALL 4MM
Price
N/A
422
Now: PW07M
FLAT WASHER 3MM
Price
N/A
423
TAP SCREW M3 X 6
Price
N/A
424
CAP SCREW M5-.8 X 30
Price
N/A
425
BLADE GUARD WINDOW COVER

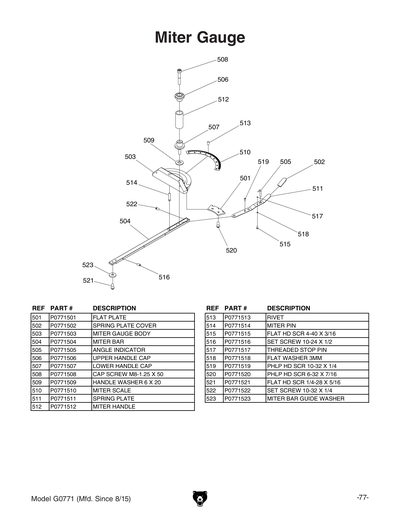

501
FLAT PLATE
502
SPRING PLATE COVER
503
MITER GAUGE BODY
504
MITER BAR
505
ANGLE INDICATOR
506
UPPER HANDLE CAP
507
LOWER HANDLE CAP
508
CAP SCREW M8-1.25 X 50
Price
N/A
509
FENDER WASHER 6MM
Price
N/A
510
MITER SCALE
511
SPRING PLATE
512
MITER HANDLE
513
RIVET
514
MITER PIN
515
FLAT HD SCR 4-40 X 3/16
Price
N/A
516
Now: PSS34
SET SCREW 10-24 X 1/2
Price
N/A
517
THREADED STOP PIN
518
Now: PW07M
FLAT WASHER 3MM
Price
N/A
519
Now: PS80
PHLP HD SCR 10-32 X 1/4
Price
N/A
520
Now: PS121
PHLP HD SCR 6-32 X 7/16
Price
N/A
521
FLAT HD SCR 1/4-28 X 5/16
Price
N/A
522
SET SCREW 10-32 X 1/4
Price
N/A
523
FENDER WASHER 6MM

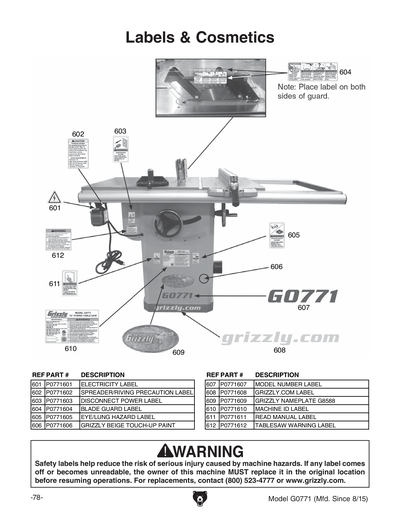

601
ELECTRICITY 1.4W X 1.2H
Price
N/A
602
SPREADER/RIVING PRECAUTION LABEL
603
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
604
TABLE SAW BLADE GUARD 4.7W X 1.8H
Price
N/A
605
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
606
BEIGE REF G0555
Price
N/A
607
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
608
GRIZZLY.COM LABEL
609
Now: G8588
Nameplate - Small
Price
N/A
610
MACHINE ID LABEL
Item is no longer available
Price
N/A
611
READ MANUAL 1.5W X 2.5H
Price
N/A
612
TABLESAW WARNING LABEL
700
COMPLETE FENCE ASSY BOX 2
KIT
REPLACEMENT PULLEY KIT
MAN
G0771 MANUAL MFD-6.14 V1.10.14
Z029-11
FRONT END BELL
Price
N/A
