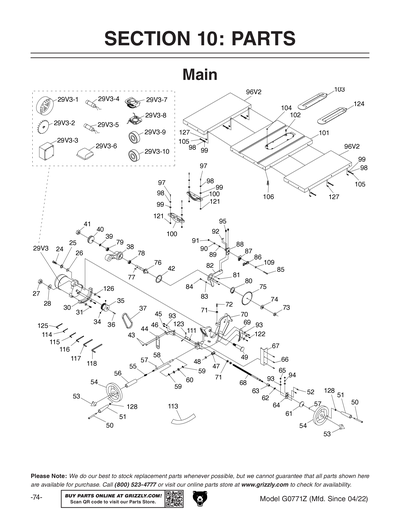

Parts for G0771Z - 10" 2 HP 120V Hybrid Table Saw w/ T-Shaped Fence

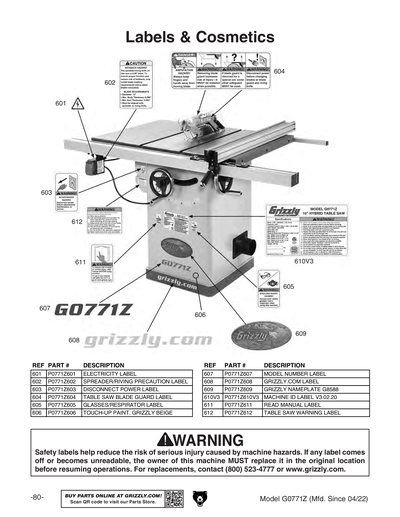

Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z
Part Diagram for G0771Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

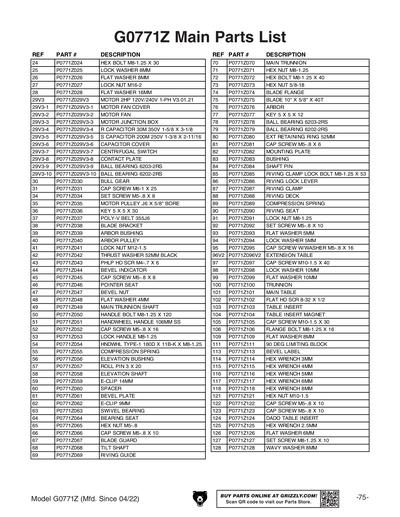

Ref #
Part #
Description
24
HEX BOLT M8-1.25 X 30
Price
N/A
25
LOCK WASHER 8MM
Price
N/A
26
FLAT WASHER 8MM
Price
N/A
27
LOCK NUT M16-2
Price
N/A
28
FLAT WASHER 16MM
Price
N/A
29
MOTOR 2HP 110V/220V 1-PH
Price
N/A
29-1
MOTOR FAN COVER
Price
N/A
29-10
BALL BEARING 6203-2RS
Price
N/A
29-1V2
MOTOR FAN COVER
Price
N/A
29-2
MOTOR FAN
Price
N/A
29-3
MOTOR JUNCTION BOX
Price
N/A
29-4
R CAPACITOR 30M 350V 1-5/8 X 3-1/8
Price
N/A
29-5
S CAPACITOR 200M 250V 1-3/8 X 2-11/16
Price
$20.55
29-6
CAPACITOR COVER
Price
N/A
29-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29-8
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29-9
BALL BEARING 6203-2RS
Price
N/A
29V2
MOTOR 2HP 120/240V 1-PH V2.07.18
Price
$285.95
29V2-1
MOTOR FAN COVER
Price
$14.50
29V3
MOTOR 2HP 120V/240V 1-PH V3.01.21
Price
$229.25
29V3-1
MOTOR FAN COVER
Price
N/A
29V3-10
BALL BEARING 6202-2RS
Price
N/A
29V3-2
MOTOR FAN
Price
N/A
29V3-3
MOTOR JUNCTION BOX
Price
N/A
29V3-4
R CAPACITOR 30M 350V 1-5/8 X 3-1/8
Price
N/A
29V3-5
S CAPACITOR 200M 250V 1-3/8 X 2-11/16
Price
N/A
29V3-6
CAPACITOR COVER
Price
N/A
29V3-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29V3-8
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29V3-9
BALL BEARING 6203-2RS
Price
N/A

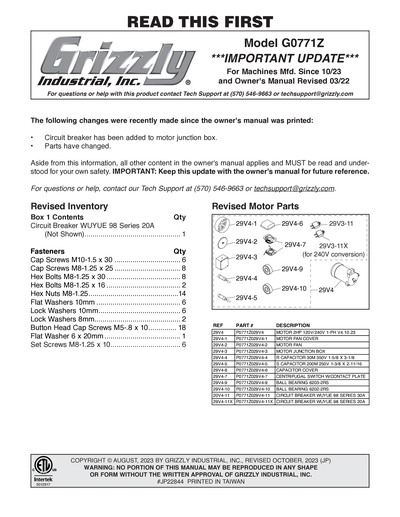

29V4
MOTOR 2HP 120V/240V 1-PH V4.10.23
Price
$221.85
29V4-1
MOTOR FAN COVER
Price
N/A
29V4-10
BALL BEARING 6202-2RS
Price
N/A
29V4-11
CIRCUIT BREAKER WUYUE 98 SERIES 30A
Price
$8.35
29V4-11X
CIRCUIT BREAKER WUYUE 98 SERIES 20A
Price
$8.00
29V4-2
MOTOR FAN
Price
N/A
29V4-3
MOTOR JUNCTION BOX
Price
$1.60
29V4-4
R CAPACITOR 30M 350V 1-5/8 X 3-1/8
Price
N/A
29V4-5
S CAPACITOR 200M 250V 1-3/8 X 2-11/16
Price
N/A
29V4-6
CAPACITOR COVER
Price
N/A
29V4-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
29V4-9
BALL BEARING 6203-2RS
Price
N/A
30
BULL GEAR
Price
N/A
31
CAP SCREW M6-1 X 25
Price
N/A
34
SET SCREW M5-.8 X 8
Price
N/A
35
MOTOR PULLEY J6 X 5/8" BORE V2.06.15
Price
N/A
36
KEY 5 X 5 X 30
Price
N/A
37
POLY-V BELT 355J6
Price
N/A
38
BLADE BRACKET
Price
N/A
39
ARBOR BUSHING
Price
N/A
40
ARBOR PULLEY
Price
N/A
41
LOCK NUT M12-1.5
Price
N/A
42
THRUST WASHER 52MM BLACK
Price
N/A
43
PHLP HD SCR M4-.7 X 6
Price
N/A
44
BEVEL INDICATOR
Price
N/A
45
CAP SCREW M5-.8 X 8
Price
N/A
46
POINTER SEAT
Price
N/A
47
BEVEL NUT
Price
N/A
48
SHIM WASHER
Price
N/A
49
MAIN TRUNNION SHAFT
Price
N/A
50
HANDLE BOLT
Price
N/A
51
HANDWHEEL HANDLE 106MM SS
Price
N/A
52
CAP SCREW M5-.8 X 16
Price
N/A
53
LOCK HANDLE
Price
N/A
54
HANDWHEEL TYPE 1 180D X 11B-K X M8-1.25
Price
N/A
55
COMPRESSION SPRING
Price
N/A
56
ELEVATION BUSHING
Price
N/A
57
ROLL PIN 3 X 20
Price
N/A
58
ELEVATION SHAFT
Price
$24.30
59
E-CLIP 14MM
Price
N/A
60
SPACER
Price
N/A
61
BEVEL PLATE
Price
N/A
62
E-CLIP 9MM
Price
N/A
63
SWIVEL BEARING
Price
N/A
64
BEARING SEAT
Price
N/A
65
HEX NUT M5-.8
Price
N/A
66
CAP SCREW M5-.8 X 10
Price
N/A
67
BLADE GUARD
Price
N/A
68
TILT SHAFT
Price
N/A
69
RIVING GUIDE
Price
N/A
70
MAIN TRUNNION
Price
N/A
71
HEX NUT M8-1.25
Price
N/A
72
HEX BOLT M8-1.25 X 40
Price
N/A
73
HEX NUT 5/8-18
Price
N/A
74
BLADE FLANGE
Price
N/A
75
BLADE 10" X 5/8" X 40T
Price
N/A
76
ARBOR
Price
N/A
77
KEY 5 X 5 X 12
Price
N/A
78
BALL BEARING 6203-2RS
Price
N/A
79
BALL BEARING 6202-2RS
Price
N/A
80
EXT RETAINING RING 52MM
Price
N/A
81
SET SCREW M5-.8 X 6
Price
N/A
82
MOUNTING PLATE
Price
N/A
83
BUSHING
Price
N/A
84
SHAFT PIN
Price
N/A
85
RIVING CLAMP LOCK BOLT M8-1.25 X 53
Price
N/A
86
RIVING LOCK LEVER
Price
N/A
86V2
***USE P0771086***
Item is no longer available
Price
N/A
87
RIVING CLAMP
Price
N/A
88
RIVING DECK
Price
N/A
89
COMPRESSION SPRING
Price
N/A
90
RIVING SEAT
Price
N/A
91
LOCK NUT M8-1.25
Price
N/A
92
SET SCREW M5-.8 X 10
Price
N/A
93
FLAT WASHER 5MM
Price
N/A
94
LOCK WASHER 5MM
Price
N/A
95
CAP SCREW W/WASHER M5-.8 X 16
Price
N/A
96
EXTENSION TABLE V2.07.20
Price
N/A
96V2
EXTENSION TABLE V2.07.20
Price
$296.70
97
CAP SCREW M10-1.5 X 40
Price
N/A
98
LOCK WASHER 10MM
Price
N/A
99
FLAT WASHER 10MM
Price
N/A
100
TRUNNION
Price
N/A
101
MAIN TABLE
Price
N/A
102
FLAT HD SCR 8-32 X 1/2
Price
N/A
103
TABLE INSERT
Price
N/A
104
TABLE INSERT MAGNET
Price
N/A
105
CAP SCREW M10-1.5 X 30
Price
N/A
106
FLANGE BOLT M8-1.25 X 16
Price
N/A
109
FLAT WASHER 8MM
Price
N/A
111
90 DEG LIMITING BLOCK
Price
N/A
113
BEVEL LABEL
Price
N/A
114
HEX WRENCH 3MM
Price
N/A
115
HEX WRENCH 4MM
Price
N/A
116
HEX WRENCH 5MM
Price
N/A
117
HEX WRENCH 6MM
Price
N/A
118
HEX WRENCH 8MM
Price
N/A
119
SET SCR M8-1.25 X 20 CUP-PT NYLOCK
Price
N/A
120
SET SCR M8-1.25 X 25 CUP-PT NYLOCK
Price
N/A
121
HEX NUT M10-1.5
Price
N/A
122
CAP SCREW M5-.8 X 10
Price
N/A
123
CAP SCREW M5-.8 X 10
Price
N/A
124
DADO TABLE INSERT
Price
N/A
125
HEX WRENCH 2.5MM
Price
N/A
126
FLAT WASHER 6MM
Price
N/A
127
SET SCREW M8-1.25 X 10
Price
N/A
128
WAVY WASHER 8MM
Price
$1.60

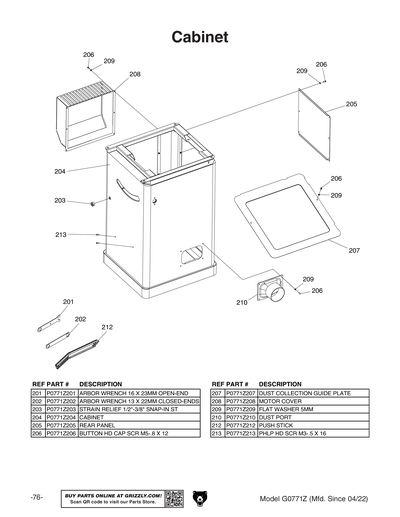

201
ARBOR WRENCH 16 X 23MM OPEN-END
Price
N/A
202
ARBOR WRENCH 13 X 22MM CLOSED-ENDS
Price
N/A
203
STRAIN RELIEF 1/2"-3/8" SNAP-IN ST
Price
N/A

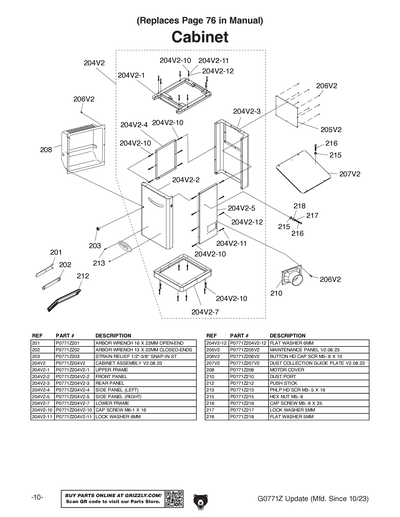

204
CABINET
Price
N/A
204V2
CABINET ASSEMBLY V2.08.23
Price
$647.70
204V2-1
UPPER FRAME
Price
$133.60
204V2-10
CAP SCREW M6-1 X 16
Price
N/A
204V2-11
LOCK WASHER 6MM
Price
N/A
204V2-12
FLAT WASHER 6MM
Price
N/A
204V2-2
FRONT PANEL
Price
$141.00
204V2-3
REAR PANEL
Price
$163.25
204V2-4
SIDE PANEL (LEFT)
Price
$55.25
204V2-5
SIDE PANEL (RIGHT)
Price
$83.75
204V2-7
LOWER FRAME
Price
$74.25
204V3
CABINET ASSEMBLY V3.03.24
Price
$399.00
204V3-1
CABINET
Price
$345.00
205
REAR PANEL
Price
N/A
205V2
MAINTENANCE PANEL V2.08.23
Price
$31.10
206
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
206V2
CAP SCREW M5-.8 X 10
Price
N/A
207
DUST COLLECTION GUIDE PLATE
Price
N/A
207V2
DUST COLLECTION GUIDE PLATE V2.08.23
Price
$65.60
207V3
DUST COLLECTION GUIDE PLATE V3.03.24
Price
$38.80
208
MOTOR COVER
Price
N/A
209
FLAT WASHER 5MM
Price
N/A
210
DUST PORT
Price
N/A
212
PUSH STICK
Price
N/A
213
PHLP HD SCR M3-.5 X 16
Price
N/A
215
HEX NUT M5-.8
Price
N/A
216
CAP SCREW M5-.8 X 25
Price
N/A
217
LOCK WASHER 5MM
Price
N/A
218
FLAT WASHER 5MM
Price
N/A

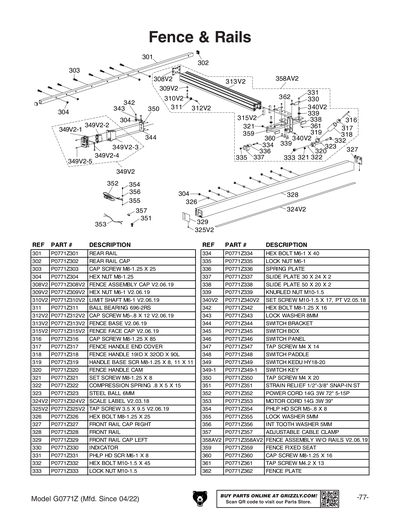

300A
COMPLETE FENCE AND RAIL ASSEMBLY V1
Price
$374.35
300AV2
COMPLETE FENCE AND RAIL ASSY V2.06.19
Price
$450.25
301
REAR RAIL
Price
$48.65
302
REAR RAIL CAP
Price
$1.60
303
CAP SCREW M8-1.25 X 25
Price
N/A
304
HEX NUT M8-1.25
Price
N/A
305
HEX BOLT M6-1 X 20
Price
N/A
306
FLAT WASHER 6MM
Price
N/A
307
HEX NUT M6-1
Price
N/A
308
FENCE ASSEMBLY CAP V1
Price
$1.60
308V2
FENCE ASSEMBLY CAP V2.06.19
Price
$1.60
309
HEX NUT M12-1.75 THIN
Price
N/A
309V2
HEX NUT M6-1
Price
N/A
310
LIMIT SHAFT M12-1.75 X 25, 40L V1
Price
$1.85
310V2
LIMIT SHAFT M6-1 V2.06.19
Price
$2.40
311
BALL BEARING 696-2RS
Price
N/A
312
CAP SCREW M6-1 X 12
Price
N/A
312V2
CAP SCREW M5-.8 X 12
Price
N/A
313
FENCE BASE V1
Price
$110.85
313V2
FENCE BASE V2.06.19
Price
$93.30
314
FENCE FACE
Price
$39.30
315
FENCE FACE CAP V1
Price
$1.60
315V2
FENCE FACE CAP V2.06.19
Price
$1.60
316
CAP SCREW M8-1.25 X 85
Price
N/A
317
FENCE HANDLE END COVER
Price
$7.15
318
FENCE HANDLE 19ID X 32OD X 90L
Price
$3.45
319
HANDLE BASE SCR M8-1.25 X 8, 11 X 11
Price
$7.25
320
FENCE HANDLE CAM
Price
$7.05
321
SET SCREW M8-1.25 X 8
Price
N/A
322
COMPRESSION SPRING .8 X 5 X 15
Price
$1.60
323
STEEL BALL 6MM
Price
N/A
324
SCALE LABEL V2.03.18
Price
N/A
324V2
SCALE LABEL V2.03.18
Price
$18.15
325
TAP SCREW M3.5 X 8
Price
N/A
325V2
TAP SCREW 3.5 X 9.5 V2.06.19
Price
$1.60
326
HEX BOLT M8-1.25 X 25
Price
N/A
327
FRONT RAIL CAP RIGHT
Price
$1.60
328
FRONT RAIL
Price
$235.50
329
FRONT RAIL CAP LEFT
Price
$1.60
330
INDICATOR
Price
$1.60
331
PHLP HD SCR M6-1 X 8
Price
N/A
332
HEX BOLT M10-1.5 X 45
Price
N/A
333
LOCK NUT M10-1.5
Price
N/A
334
HEX BOLT M6-1 X 40
Price
N/A
335
LOCK NUT M6-1
Price
N/A
336
SPRING PLATE
Price
$1.60
337
SLIDE PLATE 30 X 24 X 2
Price
$1.60
338
SLIDE PLATE 50 X 20 X 2
Price
$1.49
339
KNURLED NUT M10-1.5
Price
$3.40
340
SET SCREW M10-1.5 X 15, PLASTIC TIP
Price
N/A
340V2
SET SCREW M10-1.5 X 15, PLASTIC TIP
Price
$4.60
341
SCALE LABEL V2.03.18
Price
N/A
342
HEX BOLT M8-1.25 X 16
Price
N/A
343
LOCK WASHER 8MM
Price
N/A
344
SWITCH BRACKET
Price
N/A
345
SWITCH BOX
Price
N/A
346
SWITCH PANEL
Price
N/A
347
TAP SCREW M4 X 14
Price
N/A
348
SWITCH PADDLE
Price
N/A
349
SWITCH KEDU HY18-20
Price
N/A
349-1
***USE P0771312***
Price
N/A
349V2
SWITCH BOX ASSEMBLY V2.07.24
Price
$88.80
350
TAP SCREW M4 X 20
Price
N/A
351
STRAIN RELIEF 1/2"-3/8" SNAP-IN ST
Price
N/A
352
POWER CORD 14G 3W 72" 5-15P
Price
N/A
353
MOTOR CORD 14G 3W 39"
Price
N/A
354
PHLP HD SCR M5-.8 X 8
Price
N/A
355
LOCK WASHER 5MM
Price
N/A
356
INT TOOTH WASHER 5MM
Price
N/A
357
ADJUSTABLE CABLE CLAMP
Price
N/A
358A
COMPLETE FENCE ASSEMBLY W/O RAILS V1
Price
$149.75
358AV2
FENCE ASSEMBLY W/O RAILS V2.06.19
Price
$187.45
359
FENCE FIXED SEAT
Price
$61.05
360
CAP SCREW M8-1.25 X 16
Price
N/A
361
TAP SCREW M4.2 X 13
Price
$1.60
362
FENCE PLATE
Price
$8.20

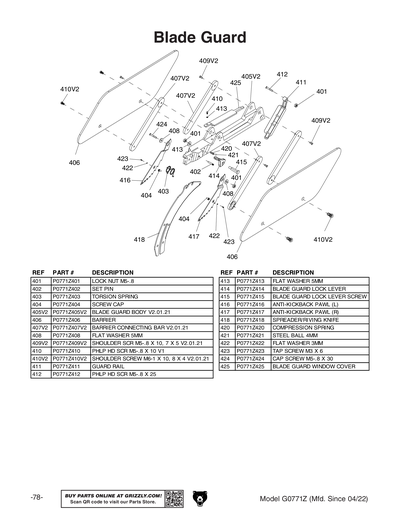

400
BLADE GUARD ASSY
Price
$94.95
401
LOCK NUT M5-.8
Price
N/A
402
SET PIN
Price
N/A
403
TORSION SPRING
Price
N/A
404
SCREW CAP
Price
N/A
405
BLADE GUARD BODY
Price
N/A
405V2
BLADE GUARD BODY V2.01.21
Price
$25.40
406
BARRIER
Price
N/A
407
BARRIER CONNECTING BAR
Price
N/A
407V2
BARRIER CONNECTING BAR V2.01.21
Price
$7.15
408
FLAT WASHER 5MM
Price
N/A
409
HEX BOLT M5-.8 X 10
Price
N/A
409V2
SHOULDER SCR M5-.8 X 10, 7 X 5 V2.01.21
Price
$1.49
410
PHLP HD SCR M5-.8 X 10
Price
N/A
410V2
SHOULDER SCREW M6-1 X 10, 8 X 4 V2.01.21
Price
$1.60
411
GUARD RAIL
Price
N/A
412
PHLP HD SCR M5-.8 X 25
Price
N/A
413
FLAT WASHER 5MM
Price
N/A
414
BLADE GUARD LOCK LEVER
Price
N/A
415
BLADE GUARD LOCK LEVER SCREW
Price
N/A
416
ANTI-KICKBACK PAWL (L)
Price
N/A
417
ANTI-KICKBACK PAWL (R)
Price
N/A
418
SPREADER/RIVING KNIFE
Price
N/A
420
COMPRESSION SPRING
Price
N/A
421
STEEL BALL 4MM
Price
N/A
422
FLAT WASHER 3MM
Price
N/A
423
TAP SCREW M3 X 6
Price
N/A
424
CAP SCREW M5-.8 X 30
Price
N/A
425
BLADE GUARD WINDOW COVER
Price
N/A
501
FLAT PLATE
Price
N/A
502
SPRING PLATE COVER
Price
N/A

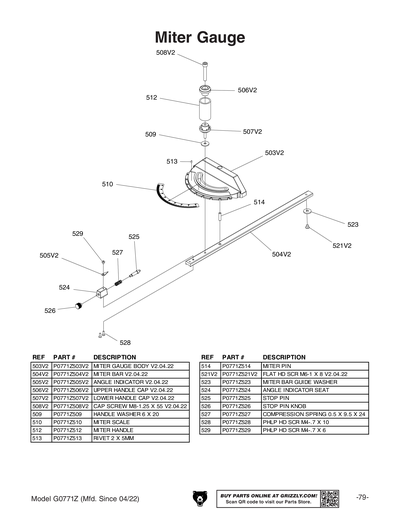

503
MITER GAUGE BODY
Price
N/A
503V2
MITER GAUGE BODY V2.04.22
Price
$29.00
504
MITER BAR
Price
N/A
504V2
MITER BAR V2.04.22
Price
$20.55
505
ANGLE INDICATOR
Price
N/A
505V2
ANGLE INDICATOR V2.04.22
Price
$1.60
506
UPPER HANDLE CAP
Price
N/A
506V2
UPPER HANDLE CAP V2.04.22
Price
$1.60
507
LOWER HANDLE CAP
Price
N/A
507V2
LOWER HANDLE CAP V2.04.22
Price
$4.30
508
CAP SCREW M8-1.25 X 50
Price
N/A
508V2
CAP SCREW M8-1.25 X 55
Price
N/A
509
FENDER WASHER 6MM
Price
N/A
510
MITER SCALE
Price
N/A
511
SPRING PLATE
Price
N/A
512
MITER HANDLE
Price
N/A
513
RIVET
Price
N/A
514
MITER PIN
Price
N/A
515
FLAT HD SCR 4-40 X 3/16
Price
N/A
516
SET SCREW 10-24 X 1/2
Price
N/A
517
THREADED STOP PIN
Price
N/A
518
FLAT WASHER 3MM
Price
N/A
519
PHLP HD SCR 10-32 X 1/4
Price
N/A
520
PHLP HD SCR 6-32 X 7/16
Price
N/A
521
FLAT HD SCR 1/4-28 X 5/16
Price
N/A
521V2
FLAT HD SCR M6-1 X 8
Price
N/A
522
SET SCREW 10-32 X 1/4
Price
N/A
523
FENDER WASHER 6MM
Price
N/A
524
ANGLE INDICATOR SEAT
Price
$2.85
525
STOP PIN
Price
$2.75
526
STOP PIN KNOB
Price
$2.75
527
COMPRESSION SPRING 0.5 X 9.5 X 24
Price
$1.60
528
PHLP HD SCR M4-.7 X 10
Price
N/A
528V2
FLAT HD SCR M4-.7 X 10
Price
N/A
529
PHLP HD SCR M4-.7 X 6
Price
N/A
601
ELECTRICITY 1.4W X 1.2H
Price
N/A
602
SPREADER/RIVING PRECAUTION LABEL
Price
N/A
603
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
604
TABLE SAW BLADE GUARD 4.7W X 1.8H
Price
N/A
605
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
606
BEIGE REF G0555
Price
N/A
607
MODEL NUMBER LABEL
Price
$1.85
608
GRIZZLY.COM LABEL
Price
N/A
609
Nameplate - Small
Price
N/A
610
MACHINE ID LABEL
Price
$16.40
610V2
MACHINE ID LABEL V2.12.16
Price
$16.40
610V3
MACHINE ID LABEL V3.02.20
Price
$16.40
611
READ MANUAL 1.5W X 2.5H
Price
N/A
612
TABLESAW WARNING LABEL
Price
N/A
613
GRIZZLY GREEN TAPE
Price
$5.60
BOX2
COMPLETE BOX 2 OF 2 FOR G0771Z
Price
$370.15
MAN
G0771Z MANUAL MFD-09.16-07.17 V1.10.16
Price
$22.65
MANV2
G0771Z MANUAL MFD-08.17-05.19 V2.05.18
Price
$21.00
MANV3
G0771Z MANUAL MFD-06.19-01.20 V3.08.19
Price
$21.00
MANV4
MANUAL G0771Z MFD-02.20-12.20 V4.02.20
Price
$18.00
MANV5
MANUAL G0771Z MFD-01.21-03.22 V5.05.21
Price
$13.75
MANV6
G0771Z MANUAL MFD-04.22-06.24 V6.03.22
Price
$13.75
MANV7
G0771Z MANUAL MFD-07.24+ V7.07.24
Price
$22.80
P
BALL BEARING 696-2RS
Price
$4.15
Z031
CAP SCREW W/WASHER M6-1 X 25
Price
N/A
