Parts for G0775 - 20" Heavy-Duty Disc Sander

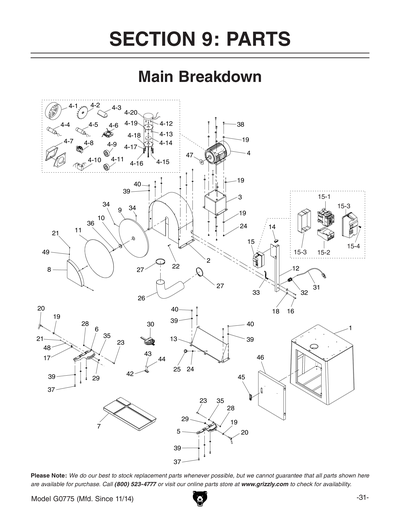

Part Diagram for G0775
Part Diagram for G0775
Part Diagram for G0775
Part Diagram for G0775
Part Diagram for G0775
Part Diagram for G0775

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

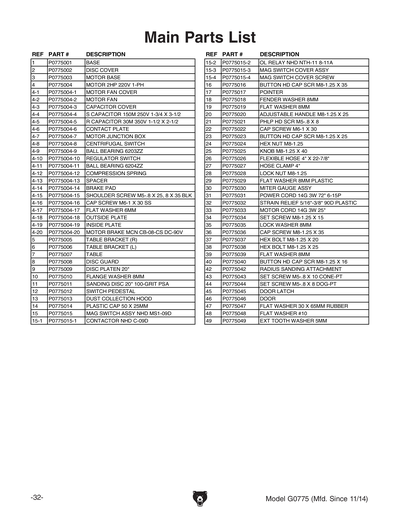

Ref #
Part #
Description
1
BASE
Price
$917.70
2
DISC COVER
Price
$386.15
3
MOTOR BASE
Price
$97.25
4
MOTOR 2HP 220V 1-PH
Price
$846.20
4-1
MOTOR FAN COVER
Price
$45.90
4-10
REGULATOR SWITCH
Price
$26.90
4-11
BALL BEARING 6204ZZ
Price
N/A
4-12
COMPRESSION SPRING
Price
$2.75
4-13
SPACER
Price
$1.60
4-14
BRAKE PAD
Price
$91.80
4-15
SHOULDER SCREW M5-.8 X 25, 8 X 35 BLK
Price
$1.60
4-16
CAP SCREW M6-1 X 30 (SS)
Price
$2.75
4-17
FLAT WASHER 6MM
Price
N/A
4-18
OUTSIDE PLATE
Price
$11.85
4-19
INSIDE PLATE
Price
$8.50
4-2
MOTOR FAN
Price
$10.30
4-20
MOTOR BRAKE MCN CB-08-CS DC-90V
Price
$388.85
4-3
CAPACITOR COVER
Price
$15.15
4-4
S CAPACITOR 150M 250V 1-3/4 X 3-1/2
Price
$26.65
4-5
R CAPACITOR 30M 350V 1-1/2 X 2-1/2
Price
$20.30
4-6
CONTACT PLATE
Price
$13.90
4-7
MOTOR WIRING JUNCTION BOX
Price
N/A
4-8
CENTRIFUGAL SWITCH
Price
$19.65
4-9
BALL BEARING 6203ZZ
Price
N/A
5
TABLE BRACKET (R)
Price
$60.40
6
TABLE BRACKET (L)
Price
$55.90
7
TABLE
Price
$386.15
8
DISC GUARD
Price
$32.05
9
DISC PLATEN 20"
Price
$603.85
10
FLANGE WASHER 8MM
Price
$2.75
11
SANDING DISC 20" 100 GRIT PSA
Price
$10.15
12
SWITCH PEDESTAL
Price
$90.90
13
DUST COLLECTION HOOD
Price
$45.30
14
PLASTIC CAP 50 X 25MM
Price
$2.20
15
MAG SWITCH ASSY NHD MS1-09D
Price
$127.75
15-1
CONTACTOR NHD C-09D
Price
$83.35
15-2
OL RELAY NHD NTH-11 8-11A
Price
$45.65
15-3
MAG SWITCH COVER ASSY
Price
$17.55
15-4
MAG SWITCH COVER SCREW
Price
$1.85
16
BUTTON HD CAP SCR M8-1.25 X 35
Price
N/A
17
POINTER
Price
$4.60
18
FENDER WASHER 8MM
Price
N/A
19
FLAT WASHER 8MM
Price
N/A
20
ADJUSTABLE HANDLE M8-1.25 X 25
Price
$15.70
21
PHLP HD SCR M5-.8 X 8
Price
$1.60
22
CAP SCREW M6-1 X 30
Price
N/A
23
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
24
HEX NUT M8-1.25
Price
N/A
25
KNOB M8-1.25 X 40
Price
$13.60
26
FLEXIBLE HOSE 4" X 22-7/8"
Price
$8.50
27
HOSE CLAMP 4"
Price
$1.85
28
LOCK NUT M8-1.25
Price
N/A
29
FLAT WASHER 8MM PLASTIC
Price
$1.85
30
MITER GAUGE ASSY
Price
$36.90
30-1
MITER GAUGE ASSY KNOB M6-1.0 X 30
Price
$4.60
31
POWER CORD 14G 3W 72" 6-15P
Price
$23.30
32
STRAIN RELIEF 5/16"-3/8" 90D PLASTIC
Price
$5.50
33
MOTOR CORD 14G 3W 25"
Price
$16.05
34
SET SCREW M8-1.25 X 15
Price
N/A
35
LOCK WASHER 8MM
Price
N/A
36
CAP SCREW M8-1.25 X 35
Price
N/A
37
HEX BOLT M8-1.25 X 20
Price
N/A
38
HEX BOLT M8-1.25 X 25
Price
N/A
39
FLAT WASHER 8MM
Price
N/A
40
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
42
RADIUS SANDING ATTACHMENT
Price
$29.95
43
SET SCREW M5-.8 X 10 CONE-PT
Price
N/A
44
SET SCREW M5-.8 X 8 DOG-PT
Price
N/A
45
DOOR LATCH
Price
$16.65
46
DOOR
Price
$50.50
47
FLAT WASHER 30 X 65MM RUBBER
Price
$2.45
48
P0775048
Now: PW03
FLAT WASHER #10
Price
N/A
49
EXT TOOTH WASHER 5MM
Price
N/A

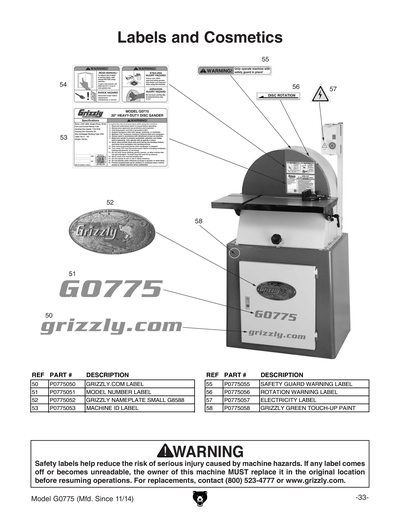

50
GRIZZLY.COM LABEL 11.25",GREEN
Price
N/A
51
MODEL NUMBER LABEL
Price
$7.35
52
Nameplate - Small
Price
N/A
53
MACHINE ID LABEL
Price
$16.40
54
COMBO WARNING LABEL
Price
$1.60
55
SAFETY GUARD WARNING LABEL
Price
$1.25
56
ROTATION WARNING LABEL
Price
$1.00
57
ELECTRICITY 1.4W X 1.2H
Price
N/A
58
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
G0775 MANUAL MFD-11.14V1.01.15
Price
$14.65
P
SET SCREW M5-.8 X 10 CONE-PT
Price
$1.49
