Parts for G0776 13" x 40" Gunsmithing Metal Lathe w/ DRO

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

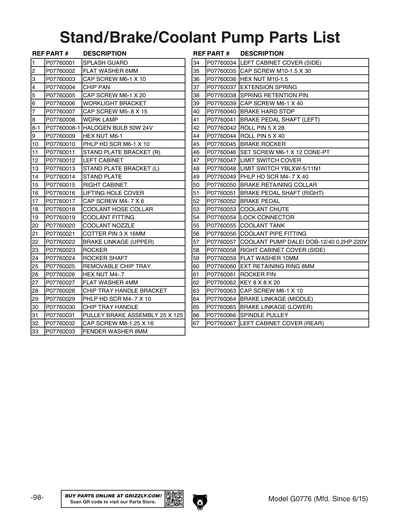

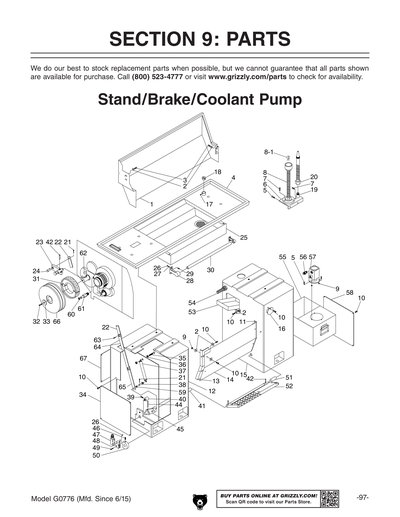

1
SPLASH GUARD
2
Now: PW03M
FLAT WASHER 6MM
Price
N/A
3
CAP SCREW M6-1 X 10
Price
N/A
4
CHIP PAN
5
CAP SCREW M6-1 X 20
Price
N/A
6
WORKLIGHT BRACKET
7
CAP SCREW M5-.8 X 15
Price
N/A
8
WORK LAMP
8-1
HALOGEN BULB 50W 24V
9
Now: PN01M
HEX NUT M6-1
Price
N/A
10
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
11
STAND PLATE BRACKET (R)
12
LEFT CABINET
12-1
DOOR LATCH ASSY
13
STAND PLATE BRACKET (L)
14
STAND PLATE
15
RIGHT CABINET
16
LIFTING HOLE COVER
17
CAP SCREW M4-.7 X 6
Price
N/A
18
COOLANT HOSE COLLAR
19
COOLANT FITTING
20
COOLANT NOZZLE
21
COTTER PIN 3 X 16MM
22
BRAKE LINKAGE (UPPER)
23
ROCKER
24
ROCKER SHAFT
25
REMOVABLE CHIP TRAY
26
Now: PN04M
HEX NUT M4-.7
Price
N/A
27
Now: PW05M
FLAT WASHER 4MM
Price
N/A
28
CHIP TRAY HANDLE BRACKET
29
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
30
CHIP TRAY HANDLE
31
PULLEY BRAKE ASSEMBLY 25 X 125
32
CAP SCREW M8-1.25 X 16
Price
N/A
33
FENDER WASHER 8MM
Price
N/A
34
LEFT CABINET COVER (SIDE)
35
CAP SCREW M10-1.5 X 30
Price
N/A
36
Now: PN02M
HEX NUT M10-1.5
Price
N/A
37
EXTENSION SPRING
38
SPRING RETENTION PIN
39
CAP SCREW M6-1 X 40
Price
N/A
40
BRAKE HARD STOP
41
BRAKE PEDAL SHAFT (LEFT)
42
ROLL PIN 5 X 28
Price
N/A
44
ROLL PIN 5 X 40
Price
N/A
45
BRAKE ROCKER
46
SET SCREW M6-1 X 12 CONE-PT
Price
N/A
47
LIMIT SWITCH COVER
48
LIMIT SWITCH YBLXW-5/11N1
49
Now: PS65M
PHLP HD SCR M4-.7 X 40
Price
N/A
50
BRAKE RETAINING COLLAR
51
BRAKE PEDAL SHAFT (RIGHT)
52
BRAKE PEDAL
53
COOLANT CHUTE
54
LOCK CONNECTOR
55
COOLANT TANK
56
COOLANT PIPE FITTING
57
COOLANT PUMP DALEI DOB-12/40 0.2HP 220V
57-1
COOLANT HOSE
58
RIGHT CABINET COVER (SIDE)
59
Now: PW04M
FLAT WASHER 10MM
Price
N/A
60
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
61
ROCKER PIN
62
KEY 8 X 8 X 20
Price
N/A
63
CAP SCREW M6-1 X 10
Price
N/A
64
BRAKE LINKAGE (MIDDLE)
65
BRAKE LINKAGE (LOWER)
66
SPINDLE PULLEY
67
LEFT CABINET COVER (REAR)

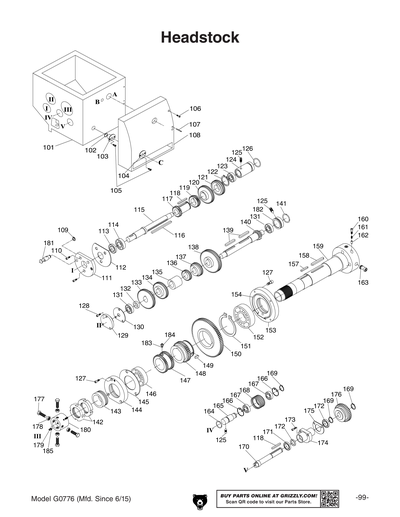

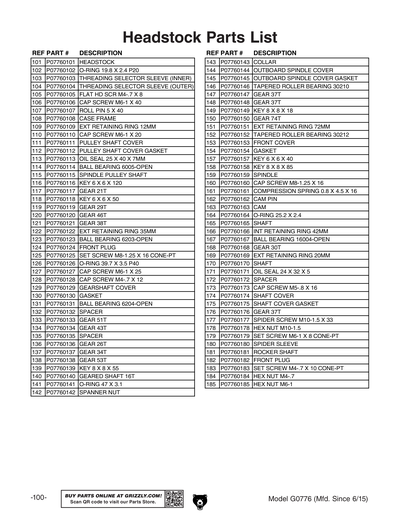

101
HEADSTOCK
102
O-RING 19.8 X 2.4 P20
Price
N/A
103
THREADING SELECTOR SLEEVE (INNER)
104
THREADING SELECTOR SLEEVE (OUTER)
105
FLAT HD SCR M4-.7 X 8
Price
N/A
106
CAP SCREW M6-1 X 40
Price
N/A
107
ROLL PIN 5 X 40
Price
N/A
108
CASE FRAME
109
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
110
CAP SCREW M6-1 X 20
Price
N/A
111
PULLEY SHAFT COVER
112
PULLEY SHAFT COVER GASKET
113
OIL SEAL 25 X 40 X 7MM
114
BALL BEARING 6005-OPEN
Price
N/A
115
SPINDLE PULLEY SHAFT
116
Now: PK50M
KEY 6 X 6 X 120
Price
N/A
117
GEAR 21T
118
Now: PK44M
KEY 6 X 6 X 50
Price
N/A
119
GEAR 29T
120
GEAR 46T
121
GEAR 38T
122
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
123
BALL BEARING 6203-OPEN
Price
N/A
124
FRONT PLUG
125
SET SCREW M8-1.25 X 16 CONE-PT
Price
N/A
126
O-RING 39.7 X 3.5 P40
Price
N/A
127
CAP SCREW M6-1 X 25
Price
N/A
128
CAP SCREW M4-.7 X 12
Price
N/A
129
GEARSHAFT COVER
130
GASKET
131
BALL BEARING 6204-OPEN
Price
N/A
132
SPACER
133
GEAR 51T
134
GEAR 43T
135
SPACER
136
GEAR 26T
137
GEAR 34T
138
GEAR 53T
139
KEY 8 X 8 X 55
Price
N/A
140
GEARED SHAFT 16T
141
O-RING 47 X 3.1
142
SPANNER NUT
143
COLLAR
144
OUTBOARD SPINDLE COVER
145
OUTBOARD SPINDLE COVER GASKET
146
TAPERED ROLLER BEARING 30210
Price
N/A
147
GEAR 37T
148
GEAR 37T
149
Now: PK51M
KEY 8 X 8 X 18
Price
N/A
150
GEAR 74T
151
Now: PR44M
EXT RETAINING RING 72MM
Price
N/A
152
TAPERED ROLLER BEARING 30212
Price
N/A
153
FRONT COVER
154
GASKET
157
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
158
KEY 8 X 8 X 85
Price
N/A
159
SPINDLE
160
CAP SCREW M8-1.25 X 16
Price
N/A
161
COMPRESSION SPRING 0.8 X 4.5 X 16
162
CAM PIN
163
CAM
164
O-RING 25.2 X 2.4
165
SHAFT
166
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
167
BALL BEARING 16004-OPEN
Price
N/A
168
GEAR 30T
169
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
170
SHAFT
171
OIL SEAL 24 X 32 X 5
172
SPACER
173
CAP SCREW M5-.8 X 16
Price
N/A
174
SHAFT COVER
175
SHAFT COVER GASKET
176
GEAR 37T
177
SPIDER SCREW M10-1.5 X 33
178
Now: PN02M
HEX NUT M10-1.5
Price
N/A
179
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
180
SPIDER SLEEVE
181
ROCKER SHAFT
182
FRONT PLUG
183
SET SCREW M4-.7 X 10 CONE-PT
Price
N/A
184
Now: PN04M
HEX NUT M4-.7
Price
N/A
185
Now: PN01M
HEX NUT M6-1
Price
N/A

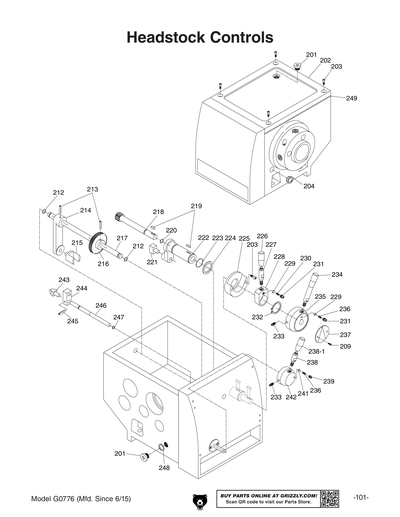

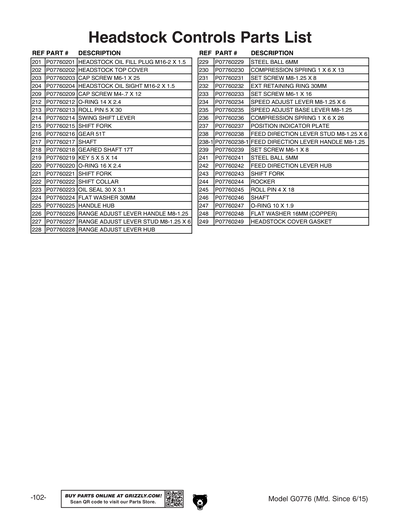

201
HEADSTOCK OIL FILL PLUG M16-2 X 1.5
202
HEADSTOCK TOP COVER
203
CAP SCREW M6-1 X 25
Price
N/A
204
HEADSTOCK OIL SIGHT M16-2 X 1.5
209
CAP SCREW M4-.7 X 12
Price
N/A
212
O-RING 14 X 2.4
213
ROLL PIN 5 X 30
Price
N/A
214
SWING SHIFT LEVER
215
SHIFT FORK
216
GEAR 51T
217
SHAFT
218
GEARED SHAFT 17T
219
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
220
O-RING 16 X 2.4
221
SHIFT FORK
222
SHIFT COLLAR
223
OIL SEAL 30 X 3.1
224
Now: PW23M
FLAT WASHER 30MM
Price
N/A
225
HANDLE HUB
226
RANGE ADJUST LEVER HANDLE M8-1.25
227
RANGE ADJUST LEVER STUD M8-1.25 X 6
228
RANGE ADJUST LEVER HUB
229
STEEL BALL 6MM
Price
N/A
230
COMPRESSION SPRING 1 X 6 X 13
231
SET SCREW M8-1.25 X 8
Price
N/A
232
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
233
SET SCREW M6-1 X 16
Price
N/A
234
SPEED ADJUST LEVER M8-1.25 X 6
235
SPEED ADJUST BASE LEVER M8-1.25
236
COMPRESSION SPRING 1 X 6 X 26
237
POSITION INDICATOR PLATE
238
FEED DIRECTION LEVER STUD M8-1.25 X 6
238-1
FEED DIRECTION LEVER HANDLE M8-1.25
239
SET SCREW M6-1 X 8
Price
N/A
241
STEEL BALL 5MM
Price
N/A
242
FEED DIRECTION LEVER HUB
243
SHIFT FORK
244
ROCKER
245
ROLL PIN 4 X 18
Price
N/A
246
SHAFT
247
O-RING 10 X 1.9
248
THRUST WASHER 16MM COPPER
249
HEADSTOCK COVER GASKET

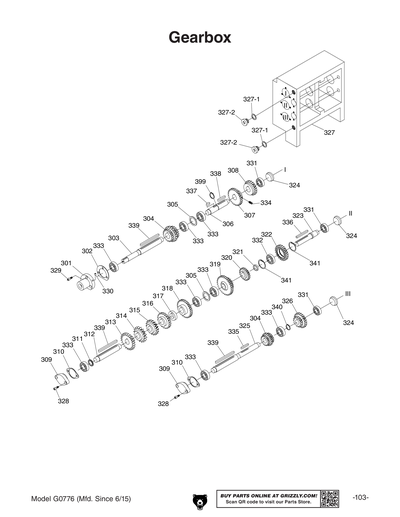

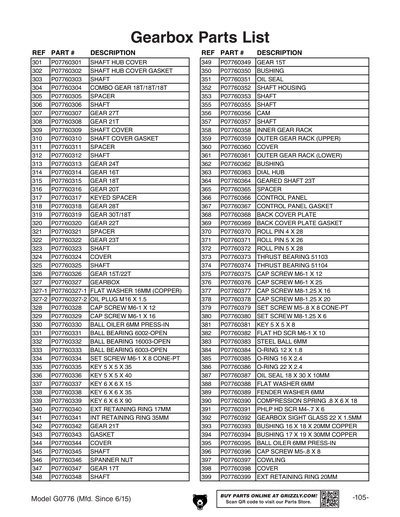

301
SHAFT HUB COVER
302
SHAFT HUB COVER GASKET
303
SHAFT
304
COMBO GEAR 18T/18T/18T
305
SPACER
306
SHAFT
307
GEAR 27T
308
GEAR 21T
309
SHAFT COVER
310
SHAFT COVER GASKET
311
SPACER
312
SHAFT
313
GEAR 24T
314
GEAR 16T
315
GEAR 18T
316
GEAR 20T
317
KEYED SPACER
318
GEAR 28T
319
GEAR 30T/18T
320
GEAR 22T
321
SPACER
322
GEAR 23T
323
SHAFT
324
COVER
325
SHAFT
326
GEAR 15T/22T
327
GEARBOX
327-1
THRUST WASHER 16MM COPPER
Price
N/A
327-2
OIL PLUG M16 X 1.5
328
CAP SCREW M6-1 X 12
Price
N/A
329
CAP SCREW M6-1 X 16
Price
N/A
330
BALL OILER 6MM PRESS-IN
Price
N/A
331
BALL BEARING 6002-OPEN
Price
N/A
332
BALL BEARING 16003-OPEN
Price
N/A
333
BALL BEARING 6003-OPEN
Price
N/A
334
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
335
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
336
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
337
Now: PK99M
KEY 6 X 6 X 15
Price
N/A
338
Now: PK74M
KEY 6 X 6 X 35
Price
N/A
339
KEY 6 X 6 X 90
Price
N/A
340
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
341
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
342
GEAR 21T
343
GASKET
344
COVER
345
SHAFT
346
SPANNER NUT
347
GEAR 17T
348
SHAFT
349
GEAR 15T
350
BUSHING
351
OIL SEAL
352
SHAFT HOUSING
353
SHAFT
355
SHAFT
356
CAM
357
SHAFT
358
INNER GEAR RACK
359
OUTER GEAR RACK (UPPER)
360
COVER
361
OUTER GEAR RACK (LOWER)
362
BUSHING
363
DIAL HUB
364
GEARED SHAFT 23T
365
SPACER
366

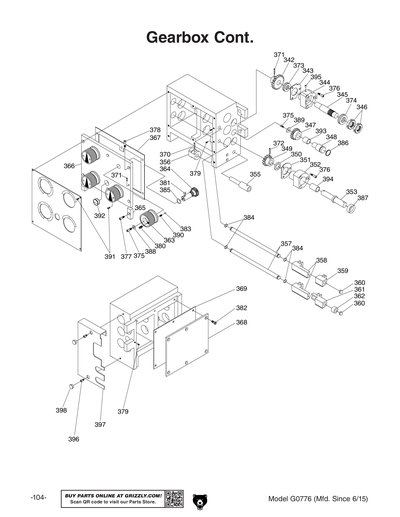

CONTROL PANEL
366-1
CONTROL PANEL FACEPLATE
367
CONTROL PANEL GASKET
368
BACK COVER PLATE
369
BACK COVER PLATE GASKET
370
ROLL PIN 4 X 28
Price
N/A
371
ROLL PIN 5 X 26
Price
N/A
372
ROLL PIN 5 X 28
Price
N/A
373
THRUST BEARING 51103
Price
N/A
374
THRUST BEARING 51104
Price
N/A
375
CAP SCREW M6-1 X 12
Price
N/A
376
CAP SCREW M6-1 X 25
Price
N/A
377
CAP SCREW M8-1.25 X 16
Price
N/A
378
CAP SCREW M8-1.25 X 20
Price
N/A
379
SET SCREW M5-.8 X 8 CONE-PT
Price
N/A
380
SET SCREW M8-1.25 X 6
Price
N/A
381
Now: PK94M
KEY 5 X 5 X 8
Price
N/A
382
FLAT HD SCR M6-1 X 10
Price
N/A
383
STEEL BALL 6MM
Price
N/A
384
O-RING 12 X 1.8
385
O-RING 16 X 2.4
386
O-RING 22 X 2.4
387
OIL SEAL 18 X 30 X 10MM
388
Now: PW03M
FLAT WASHER 6MM
Price
N/A
389
FENDER WASHER 6MM
Price
N/A
390
COMPRESSION SPRING .8 X 6 X 18
391
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
392
GEARBOX SIGHT GLASS 22 X 1.5MM
393
BUSHING 16 X 18 X 20MM COPPER
394
BUSHING 17 X 19 X 30MM COPPER
395
BALL OILER 6MM PRESS-IN
Price
N/A
396
CAP SCREW M5-.8 X 8
Price
N/A
397
COWLING
398
COVER
399
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
401
CAP SCREW M6-1 X 12
Price
N/A
402
FENDER WASHER 6MM
Price
N/A
403
GEAR 24T
404
Now: PK94M
KEY 5 X 5 X 8
Price
N/A
405
Now: PN02M
HEX NUT M10-1.5
Price
N/A
406
Now: PW04M
FLAT WASHER 10MM
Price
N/A

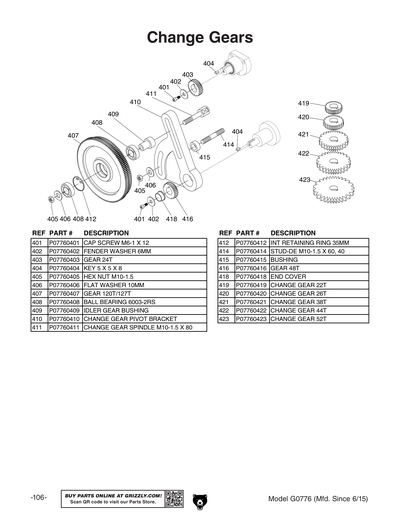

407
GEAR 120T/127T
408
BALL BEARING 6003-2RS
Price
N/A
409
IDLER GEAR BUSHING
410
CHANGE GEAR PIVOT BRACKET
411
CHANGE GEAR SPINDLE M10-1.5 X 80
412
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
414
STUD-DE M10-1.5 X 60, 40
415
BUSHING
416
GEAR 48T
418
END COVER
419
CHANGE GEAR 22T
420
CHANGE GEAR 26T
421
CHANGE GEAR 38T
422
CHANGE GEAR 44T
423
CHANGE GEAR 52T

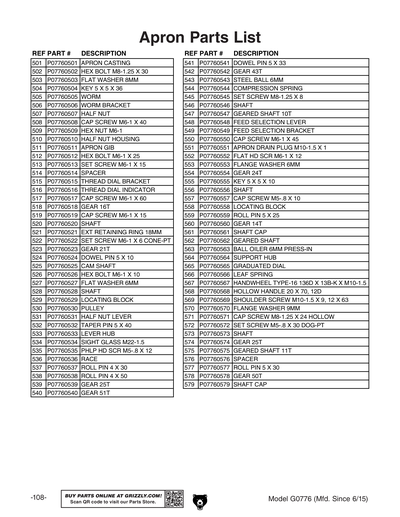

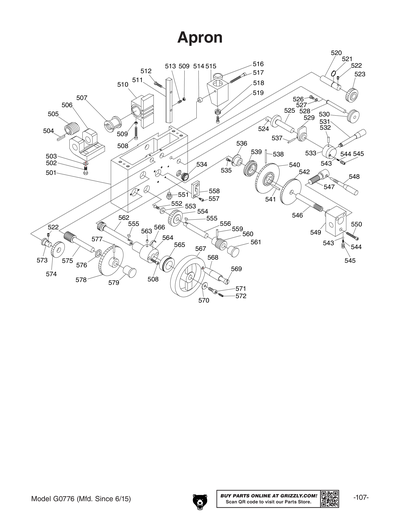

501
APRON CASTING
502
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
503
Now: PW01M
FLAT WASHER 8MM
Price
N/A
504
KEY 5 X 5 X 36
Price
N/A
505
WORM
506
WORM BRACKET
507
HALF NUT
508
CAP SCREW M6-1 X 40
Price
N/A
509
Now: PN01M
HEX NUT M6-1
Price
N/A
510
HALF NUT HOUSING
511
APRON GIB
512
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
513
SET SCREW M6-1 X 15
Price
N/A
514
SPACER
515
THREAD DIAL BRACKET
516
THREAD DIAL INDICATOR
517
CAP SCREW M6-1 X 60
Price
N/A
518
GEAR 16T
519
CAP SCREW M6-1 X 15
Price
N/A
520
SHAFT
521
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
522
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
523
GEAR 21T
524
DOWEL PIN 5 X 10MM
525
CAM SHAFT
526
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
527
Now: PW03M
FLAT WASHER 6MM
Price
N/A
528
SHAFT
529
LOCATING BLOCK
530
PULLEY
531
HALF NUT LEVER
532
TAPER PIN 5 X 40
533
LEVER HUB
534
SIGHT GLASS M22-1.5
535
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
536
RACE
537
ROLL PIN 4 X 30
Price
N/A
538
ROLL PIN 4 X 50
539
GEAR 25T
540
GEAR 51T
541
DOWEL PIN 5 X 33
542
GEAR 43T
543
STEEL BALL 6MM
Price
N/A
544
COMPRESSION SPRING
545
SET SCREW M8-1.25 X 8
Price
N/A
546
SHAFT
547
GEARED SHAFT 10T
548
FEED SELECTION LEVER
549
FEED SELECTION BRACKET
550
CAP SCREW M6-1 X 45
Price
N/A
551
APRON DRAIN PLUG M10-1.5 X 1
552
FLAT HD SCR M6-1 X 12
Price
N/A
553
FENDER WASHER 6MM
Price
N/A
554
GEAR 24T
555
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
556
SHAFT
557
CAP SCREW M5-.8 X 10
Price
N/A
558
LOCATING BLOCK
559
ROLL PIN 5 X 25
Price
N/A
560
GEAR 14T
561
SHAFT CAP
562
GEARED SHAFT
563
BALL OILER 6MM PRESS-IN
Price
N/A
564
SUPPORT HUB
565
GRADUATED DIAL
566
LEAF SPRING
567
HANDWHEEL TYPE-16 136D X 13B-K X M10-1.5
568
HOLLOW HANDLE 20 X 70, 12D
569
SHOULDER SCREW M10-1.5 X 9, 12 X 63
570
FENDER WASHER 8MM
Price
N/A
571
CAP SCREW M8-1.25 X 24 HOLLOW
572
SET SCREW M5-.8 X 30 DOG-PT
Price
N/A
573
SHAFT
574
GEAR 25T
575
GEARED SHAFT 11T
576
SPACER
577
ROLL PIN 5 X 30
Price
N/A
578
GEAR 50T
579
SHAFT CAP

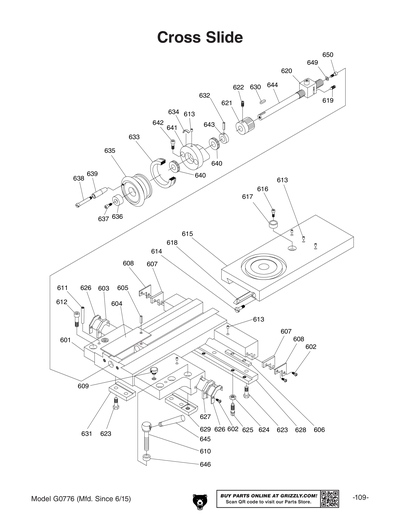

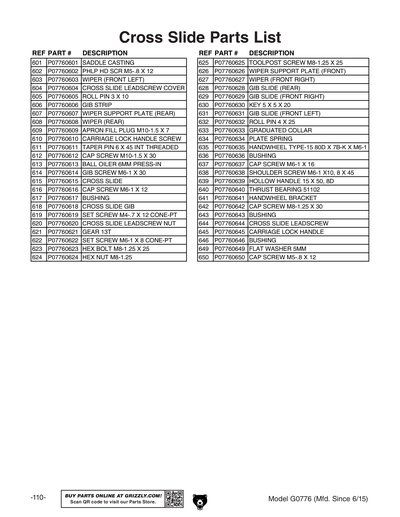

601
SADDLE CASTING
602
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
603
WIPER (FRONT LEFT)
604
CROSS SLIDE LEADSCREW COVER
605
ROLL PIN 3 X 10
Price
N/A
606
GIB STRIP
607
WIPER SUPPOT PLATE (REAR)
608
WIPER (REAR)
609
APRON FILL PLUG M10-1.5 X 7
610
CARRIAGE LOCK HANDLE SCREW
611
TAPER PIN 6 X 45 INT THREADED
612
CAP SCREW M10-1.5 X 30
Price
N/A
613
BALL OILER 6MM PRESS-IN
Price
N/A
614
GIB SCREW M6-1 X 30
615
CROSS SLIDE
616
CAP SCREW M6-1 X 12
Price
N/A
617
BUSHING
618
CROSS SLIDE GIB
619
SET SCREW M4-.7 X 12 CONE-PT
620
CROSS SLIDE LEADSCREW W/ NUT
Price
N/A
621
GEAR 13T
622
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
623
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
624
Now: PN03M
HEX NUT M8-1.25
Price
N/A
625
TOOLPOST SCREW M8-1.25 X 25
626
WIPER SUPPORT PLATE (FRONT)
627
WIPER (FRONT RIGHT)
628
GIB SLIDE (REAR)
629
GIB SLIDE (FRONT RIGHT)
630
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
631
GIB SLIDE (FRONT LEFT)
632
ROLL PIN 4 X 25
Price
N/A
633
GRADUATED COLLAR
634
PLATE SPRING
635
HANDWHEEL TYPE-15 80D X 7B-K X M6-1
636
BUSHING
637
CAP SCREW M6-1 X 16
Price
N/A
638
SHOULDER SCREW M6-1 X10, 8 X 45
639
HOLLOW HANDLE 15 X 50, 8D
640
THRUST BEARING 51102
Price
N/A
641
HANDWHEEL BRACKET
642
CAP SCREW M8-1.25 X 30
Price
N/A
643
BUSHING
644
CROSS SLIDE LEADSCREW W/ NUT
645
CARRIAGE LOCK HANDLE
646
BUSHING
649
Now: PW02M
FLAT WASHER 5MM
Price
N/A
650
CAP SCREW M5-.8 X 12
Price
N/A

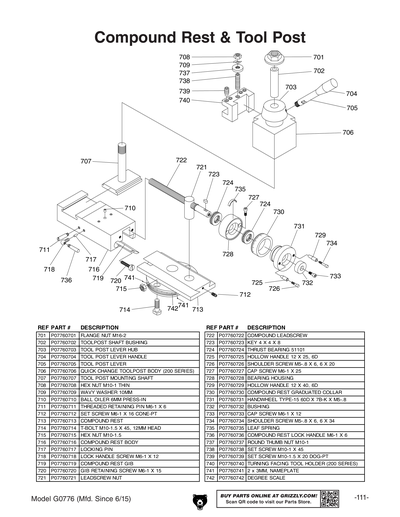

701
FLANGE NUT M16-2
702
TOOLPOST SHAFT BUSHING
703
TOOL POST LEVER HUB
704
TOOL POST LEVER HANDLE
705
TOOL POST LEVER
706
QUICK CHANGE TOOLPOST BODY (200 SERIES)
707
TOOL POST MOUNTING SHAFT
708
HEX NUT M10-1 THIN
709
WAVY WASHER 10MM
710
BALL OILER 6MM PRESS-IN
Price
N/A
711
THREADED RETAINING PIN M6-1 X 6
712
SET SCREW M6-1 X 16 CONE-PT
Price
N/A
713
COMPOUND REST
714
T-BOLT M10-1.5 X 45, 12MM HEAD
715
Now: PN02M
HEX NUT M10-1.5
Price
N/A
716
COMPOUND REST BODY
717
LOCKING PIN
718
LOCK HANDLE SCREW M6-1 X 12
719
COMPOUND REST GIB
720
GIB RETAINING SCREW M6-1 X 15
721
LEADSCREW NUT
722
COMPOUND LEADSCREW
723
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
724
THRUST BEARING 51101
Price
N/A
725
HOLLOW HANDLE 12 X 25, 6D
726
SHOULDER SCREW M5-.8 X 6, 6 X 20
727
CAP SCREW M6-1 X 25
Price
N/A
728
BEARING HOUSING
729
HOLLOW HANDLE 12 X 40, 6D
730
COMPOUND REST GRADUATED COLLAR
731
HANDWHEEL TYPE-15 60D X 7B-K X M5-.8
732
BUSHING
733
CAP SCREW M6-1 X 12
Price
N/A
734
SHOULDER SCREW M5-.8 X 6, 6 X 34
735
LEAF SPRING
736
COMPOUND REST LOCK HANDLE M6-1 X 6
737
ROUND THUMB NUT M10-1
738
SET SCREW M10-1 X 45
Price
N/A
739
SET SCREW M10-1.5 X 20 DOG-PT
Price
N/A
740
TURNING FACING TOOL HOLDER (200 SERIES)
741
RIVET 2 X 3MM NAMEPLATE, ALUMINUM
Price
N/A
742
DEGREE SCALE

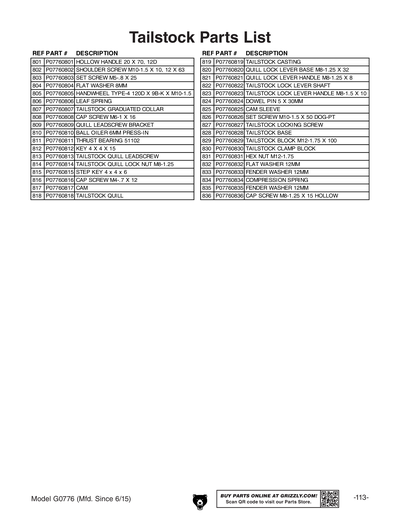

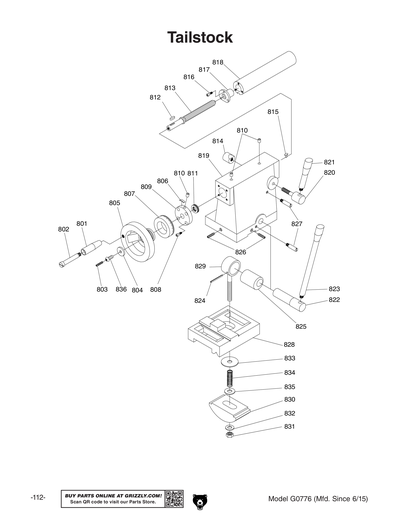

801
HOLLOW HANDLE 20 X 70, 12D
Price
N/A
802
SHOULDER SCREW M10-1.5 X 9, 12 X 63
Price
N/A
803
SET SCREW M5-.8 X 25
Price
N/A
804
Now: PW01M
FLAT WASHER 8MM
Price
N/A
805
HANDWHEEL TYPE-4 120D X 9B-K X M10-1.5
806
LEAF SPRING
807
TAILSTOCK GRADUATED COLLAR
808
CAP SCREW M6-1 X 16
Price
N/A
809
QUILL LEADSCREW BRACKET
810
BALL OILER 6MM PRESS-IN
Price
N/A
811
THRUST BEARING 51102
Price
N/A
812
Now: PK47M
KEY 4 X 4 X 15
Price
N/A
813
TAILSTOCK QUILL LEADSCREW
814
TAILSTOCK QUILL LOCK NUT M8-1.25
815
STEP KEY 4 X 4 X 6
816
CAP SCREW M4-.7 X 12
Price
N/A
817
CAM
818
TAILSTOCK QUILL
819
TAILSTOC CASTING
820
QUILL LOCK LEVER BASE M8-1.25 X 32
821
QUILL LOCK LEVER HANDLE M8-1.25 X 8
822
TAILSTOCK LOCK LEVER SHAFT
823
TAILSTOCK LOCK LEVER HANDLE M10-1.5 X 10
824
DOWEL PIN 5 X 30MM
825
CAM SLEEVE
826
SET SCREW M10-1.5 X 50 DOG-PT
Price
N/A
827
TAILSTOCK LOCKING SCREW
828
TAILSTOCK BASE
829
TAILSTOCK BLOCK M12-1.75 X 100
830
TAILSTOCK CLAMP BLOCK
831
Now: PN09M
HEX NUT M12-1.75
Price
N/A
832
Now: PW06M
FLAT WASHER 12MM
Price
N/A
833
FENDER WASHER 12MM
Price
N/A
834
COMPRESSION SPRING
835
FENDER WASHER 12MM
Price
N/A
836
CAP SCREW M8-1.25 X 15 HOLLOW

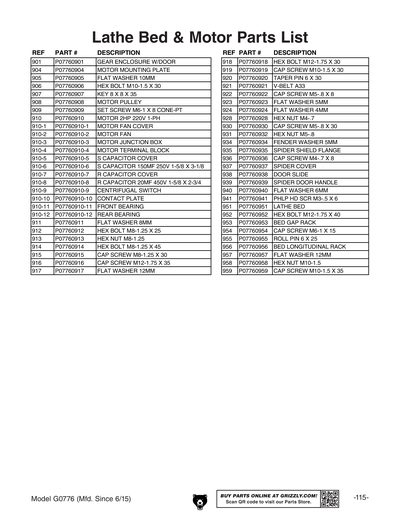

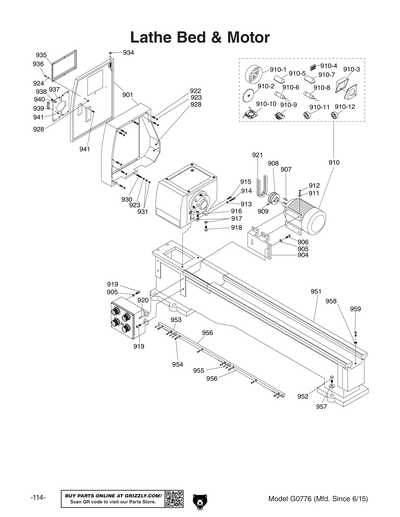

901
GEAR ENCLOSURE W/DOOR
902
*DISCD*GEAR ENCLOSURE DOOR
904
MOTOR MOUNTING PLATE
905
Now: PW04M
FLAT WASHER 10MM
Price
N/A
906
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
907
Now: PK09M
KEY 8 X 8 X 35
Price
N/A
908
MOTOR PULLEY
909
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
910
MOTOR 2HP 220V 1-PH
910-1
MOTOR FAN COVER
910-10
CONTACT PLATE
910-11
FRONT BEARING
910-12
REAR BEARING
910-2
MOTOR FAN
910-3
MOTOR JUNCTION BOX
910-4
MOTOR TERMINAL BLOCK
910-5
S CAPACITOR COVER
910-6
S CAPACITOR 150M 250V 1-5/8 X 3-1/8
910-7
R CAPACITOR COVER
910-8
R CAPACITOR 20M 450V 1-5/8 X 2-3/4
Price
N/A
910-9
CENTRIFUGAL SWITCH
911
Now: PW01M
FLAT WASHER 8MM
Price
N/A
912
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
913
Now: PN03M
HEX NUT M8-1.25
Price
N/A
914
HEX BOLT M8-1.25 X 45
Price
N/A
915
CAP SCREW M8-1.25 X 30
Price
N/A
916
CAP SCREW M12-1.75 X 35
Price
N/A
917
Now: PW06M
FLAT WASHER 12MM
Price
N/A
918
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
919
CAP SCREW M10-1.5 X 30
Price
N/A
920
TAPER PIN 6 X 30
921
Now: PVA33
V-BELT A33
Price
N/A
922
CAP SCREW M5-.8 X 8
Price
N/A
923
Now: PW02M
FLAT WASHER 5MM
Price
N/A
924
Now: PW05M
FLAT WASHER 4MM
Price
N/A
928
Now: PN04M
HEX NUT M4-.7
Price
N/A
930
CAP SCREW M5-.8 X 30
Price
N/A
932
Now: PN06M
HEX NUT M5-.8
Price
N/A
934
FENDER WASHER 5MM
Price
N/A
935
SPIDER SHIELD FLANGE
936
CAP SCREW M4-.7 X 8
Price
N/A
937
SPIDER COVER
938
DOOR SLIDE
939
SPIDER DOOR HANDLE
940
Now: PW03M
FLAT WASHER 6MM
Price
N/A
941
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
951
LATHE BED
952
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
953
BED GAP RACK
954
CAP SCREW M6-1 X 15
Price
N/A
955
ROLL PIN 6 X 25
Price
N/A
956
BED LONGITUDINAL RACK
957
Now: PW06M
FLAT WASHER 12MM
Price
N/A
958
Now: PN02M
HEX NUT M10-1.5
Price
N/A
959
CAP SCREW M10-1.5 X 35
Price
N/A

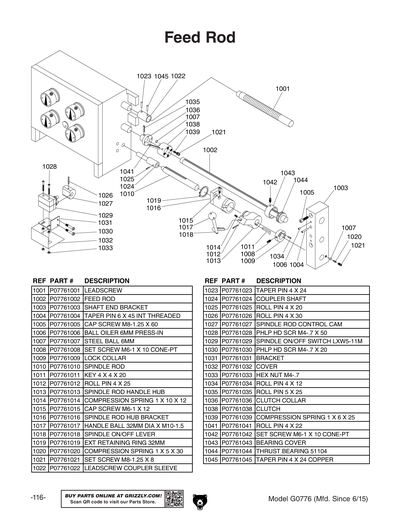

1001
LEADSCREW
1002
FEED ROD
1003
SHAFT END BRACKET
1004
TAPER PIN 6 X 45 INT THREADED
1005
CAP SCREW M8-1.25 X 60
Price
N/A
1006
BALL OILER 6MM PRESS-IN
Price
N/A
1007
STEEL BALL 6MM
Price
N/A
1008
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
1009
LOCK COLLAR
1010
SPINDLE ROD
1011
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
1012
ROLL PIN 4 X 25
Price
N/A
1013
SPINDLE ROD HANDLE HUB
1014
COMPRESSION SPRING 1 X 10 X 12
1015
CAP SCREW M6-1 X 12
Price
N/A
1016
SPINDLE ROD HUB BRACKET
1017
HANDLE BALL 32MM DIA X M10-1.5
1018
SPINDLE ON/OFF LEVER
1019
Now: PR37M
EXT RETAINING RING 32MM
Price
N/A
1020
COMPRESSION SPRING 1 X 5 X 30
1021
SET SCREW M8-1.25 X 8
Price
N/A
1022
LEADSCREW COUPLER SLEEVE
1023
TAPER PIN 4 X 24
1024
COUPLER SHAFT
1025
ROLL PIN 4 X 20
Price
N/A
1026
ROLL PIN 4 X 30
Price
N/A
1027
SPINDLE ROD CONTROL CAM
1028
Now: PS48M
PHLP HD SCR M4-.7 X 50
Price
N/A
1029
SPINDLE ON/OFF SWITCH LXW5-11M
1030
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
1031
BRACKET
1032
COVER
1033
Now: PN04M
HEX NUT M4-.7
Price
N/A
1034
ROLL PIN 4 X 12
Price
N/A
1035
ROLL PIN 5 X 25
Price
N/A
1036
CLUTCH COLLAR
1038
CLUTCH
1039
COMPRESSION SPRING 1 X 6 X 25
1041
ROLL PIN 4 X 22
Price
N/A
1042
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
1043
BEARING COVER
1044
THRUST BEARING 51104
Price
N/A
1045
TAPER PIN 4 X 24 COPPER

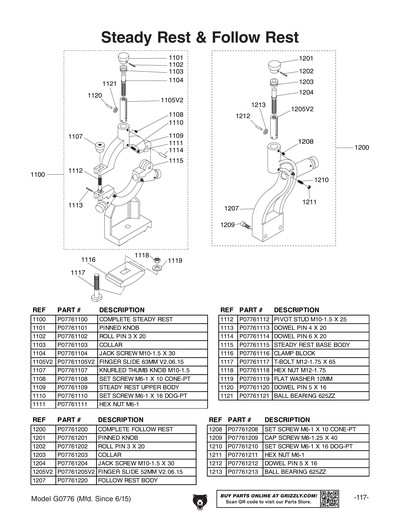

1100
COMPLETE STEADY REST
1101
PINNED KNOB
1102
ROLL PIN 3 X 20
Price
N/A
1103
COLLAR
1104
JACK SCREW M10-1.5 X 30
1105
FINGER SLIDE 3PC SET V1
1105V2
FINGER SLIDE 63MM V2.06.15
1106
BRASS FINGER 3PC SET
1107
KNURLED THUMB KNOB M10-1.5
1108
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
1109
STEADY REST UPPER BODY & BASE BODY
Price
N/A
1110
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1111
Now: PN01M
HEX NUT M6-1
Price
N/A
1112
PIVOT STUD M10-1.5 X 25
1113
DOWEL PIN 4 X 20
1114
DOWEL PIN 6 X 20
1115
STEADY REST UPPER BODY & BASE BODY
1116
CLAMP BLOCK
1117
T-BOLT M12-1.75 X 65
1118
Now: PN09M
HEX NUT M12-1.75
Price
N/A
1119
Now: PW06M
FLAT WASHER 12MM
Price
N/A
1120
DOWEL PIN 5 X 16
1121
Now: G3848
Bearing - 16mm x 5mm
Price
N/A
1200
COMPLETE FOLLOW REST
1201
PINNED KNOB
Price
N/A
1202
ROLL PIN 3 X 20
Price
N/A
1203
COLLAR
Price
N/A
1204
JACK SCREW M10-1.5 X 30
1205
FINGER SLIDE 2PC SET V1
1205V2
FINGER SLIDE 52MM V2.06.15
1206
BRASS FINGER 2PC SET
1208
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
1209
CAP SCREW M8-1.25 X 40
Price
N/A
1210
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1211
Now: PN01M
HEX NUT M6-1
Price
N/A
1212
DOWEL PIN 5 X 16
Price
N/A
1213
Now: G3848
Bearing - 16mm x 5mm
Price
N/A
1220
FOLLOW REST BODY

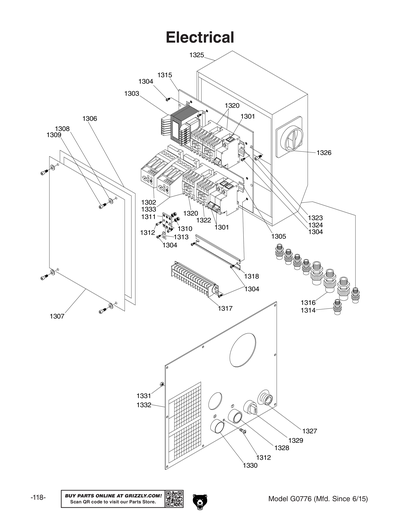

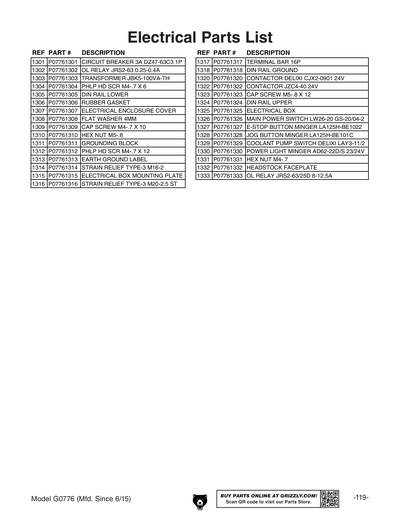

1301
CIRCUIT BREAKER 3A DZ47-63C3 1P
1302
OL RELAY JRS2-63 0.25-0.4A
1303
TRANSFORMER JBK5 100VA 111/415V-24/220V
1304
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
1305
DIN RAIL LOWER
1306
RUBBER GASKET
1307
ELECTRICAL ENCLOSURE COVER
1308
Now: PW05M
FLAT WASHER 4MM
Price
N/A
1309
CAP SCREW M4-.7 X 10
Price
N/A
1310
Now: PN06M
HEX NUT M5-.8
Price
N/A
1311
GROUNDING BLOCK
1312
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
1313
EARTH GROUND LABEL
1314
STRAIN RELIEF TYPE-3 M16-2
1315
ELECTRICAL BOX MOUNTING PLATE
1316
STRAIN RELIEF TYPE-3 M20-2.5 ST
1317
TERMINAL BAR 16P
1318
DIN RAIL GROUND
1320
CONTACTOR DELIXI CJX2-0901 24V
1322
CONTACTOR JZC4-40 24V
1323
CAP SCREW M5-.8 X 12
Price
N/A
1324
DIN RAIL UPPER
1325
ELECTRICAL BOX
1326
MAIN POWER SWITCH LW26-20 GS-20/04-2
1327
E-STOP BUTTON MINGER LA125H-BE1022
1328
JOG BUTTON MINGER LA125H-BE101C
1329
COOLANT PUMP SWITCH DELIXI LAY3-11/2
1330
POWER LIGHT MINGER AD62-22D/S 23/24V
1331
Now: PN04M
HEX NUT M4-.7
Price
N/A
1332
HEADSTOCK FACEPLATE
1333
OL RELAY JRS2-63/25D 8-12.5A

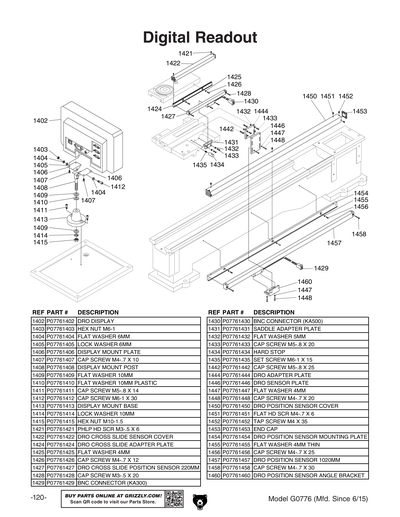

1402
DRO DISPLAY
1403
Now: PN01M
HEX NUT M6-1
Price
N/A
1404
Now: PW03M
FLAT WASHER 6MM
Price
N/A
1405
LOCK WASHER 6MM
Price
N/A
1406
DISPLAY MOUNT PLATE
1407
CAP SCREW M4-.7 X 10
Price
N/A
1408
DISPLAY MOUNT POST
1409
Now: PW04M
FLAT WASHER 10MM
Price
N/A
1410
Now: PW04M
FLAT WASHER 10MM
Price
N/A
1411
CAP SCREW M5-.8 X 14
Price
N/A
1412
CAP SCREW M6-1 X 30
Price
N/A
1413
DISPLAY MOUNT BASE
1414
LOCK WASHER 10MM
Price
N/A
1415
Now: PN02M
HEX NUT M10-1.5
Price
N/A
1421
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
1422
DRO CROSS SLIDE SENSOR COVER
1424
DRO CROSS SLIDE ADAPTER PLATE
1425
Now: PW05M
FLAT WASHER 4MM
Price
N/A
1426
CAP SCREW M4-.7 X 12
Price
N/A
1427
DRO CROSS SLIDE POSITION SENSOR 220MM
1427A
X-AXIS SCALE ASSEMBLY
1428
CAP SCREW M3-.5 X 20
1429
BNC CONNECTOR (KA300)
1430
BNC CONNECTOR (KA500)
1431
SADDLE ADAPTER PLATE
1432
Now: PW02M
FLAT WASHER 5MM
Price
N/A
1433
CAP SCREW M5-.8 X 20
Price
N/A
1434
HARD STOP
1435
SET SCREW M6-1 X 15
Price
N/A
1436
SET SCREW M6-1 X 15
1442
CAP SCREW M5-.8 X 25
Price
N/A
1444
DRO ADAPTER PLATE
1446
DRO SENSOR PLATE
1447
Now: PW05M
FLAT WASHER 4MM
Price
N/A
1448
CAP SCREW M4-.7 X 20
Price
N/A
1450
DRO POSITION SENSOR COVER
1451
FLAT HD SCR M4-.7 X 6
Price
N/A
1452
TAP SCREW M4 X 35
Price
N/A
1453
END CAP
1454
DRO POSITION SENSOR MOUNTING PLATE
1455
Now: PW05M
FLAT WASHER 4MM
Price
N/A
1456
CAP SCREW M4-.7 X 25
Price
N/A
1457
DRO POSITION SENSOR 1020MM
1457A
Z-AXIS SCALE ASSEMBLY
1458
CAP SCREW M4-.7 X 30
Price
N/A
1460
DRO POSITION SENSOR ANGLE BRACKET

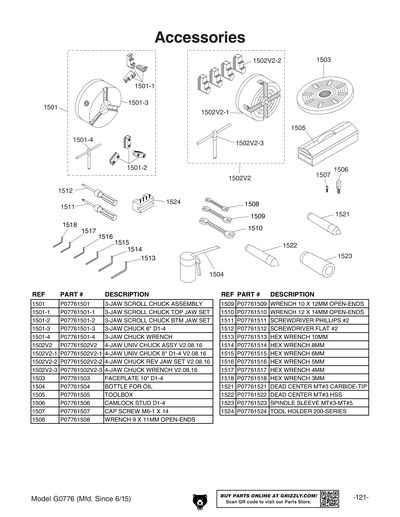

1501
3-JAW SCROLL CHUCK ASSEMBLY
1501-1
3-JAW SCROLL CHUCK TOP JAW SET
1501-2
3-JAW SCROLL CHUCK BOTTOM JAW SET
1501-3
3-JAW CHUCK 6" D1-4
1501-4
3-JAW CHUCK WRENCH
1502
4-JAW UNIVERSAL CHUCK ASSY V2.08.16
Price
N/A
1502-1
4-JAW UNIV CHUCK 8" D1-4 V1
1502-2
4-JAW CHUCK REV JAW SET V1
1502-3
4-JAW UNIVERSAL CHUCK ASSY V2.08.16
Price
N/A
1502V2
4-JAW UNIVERSAL CHUCK ASSY V2.08.16
1502V2-1
4-JAW UNIV CHUCK 8" D1-4 V2.08.16
1502V2-2
4-JAW CHUCK REVERSIBLE JAW SET V2.08.16
1502V2-3
4-JAW CHUCK WRENCH V2.08.16
1503
FACEPLATE 10" D1-4
1504
BOTTLE FOR OIL
1505
TOOLBOX
1506
CAMLOCK STUD D1-4
1507
CAP SCREW M6-1 X 14
Price
N/A
1508
WRENCH 9 X 11MM OPEN-ENDS
Price
N/A
1509
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
1510
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
1511
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
1512
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
1513
HEX WRENCH 10MM
Price
N/A
1514
HEX WRENCH 8MM
Price
N/A
1515
HEX WRENCH 6MM
Price
N/A
1516
HEX WRENCH 5MM
Price
N/A
1517
HEX WRENCH 4MM
Price
N/A
1518
HEX WRENCH 3MM
Price
N/A
1521
DEAD CENTER MT#3 CARBIDE-TIP
1522
DEAD CENTER MT#3 HSS
1523
SPINDLE SLEEVE MT#3-MT#5
1524
TOOL HOLDER 200-SERIES

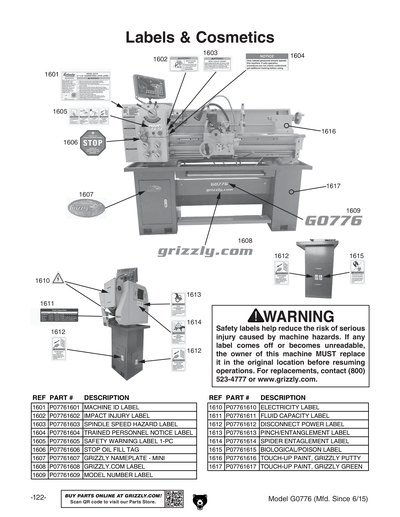

1601
MACHINE ID LABEL
1602
IMPACT INJURY 1.5W X 2.5H
Price
N/A
1603
SPINDLE SPEED HAZARD 2.8W X 1.5H
Price
N/A
1604
TRAINED PERSONNEL NOTICE 3W X 2H
Price
N/A
1605
SAFETY WARNING LABEL 1-PC
1606
STOP OIL FILL TAG 4W X 4H
Price
N/A
1607
Now: G9987
Nameplate - Mini
Price
N/A
1608
GRIZZLY.COM LABEL
1609
MODEL NUMBER LABEL
1610
ELECTRICITY 0.5W X 0.4H
Price
N/A
1611
FLUID CAPACITY LABEL
1612
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
1613
PINCH/ENTANGLEMENT 1.5W X 2.5H
Price
N/A
1614
SPIDER ENTAGLEMENT LABEL
1615
BIOLOGICAL/POISON HAZARD 1.5W X 2.5H
Price
N/A
1616
GREY PUTTY REF G0504
Price
N/A
1617
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0776 MFD-07.14-05.15 V1.02.15
MANV2
MANUAL G0776 MFD-06.15+ V2.08.18
