Parts for G0777 - 1-1/2 HP Ultra-Quiet Cyclone Dust Collector

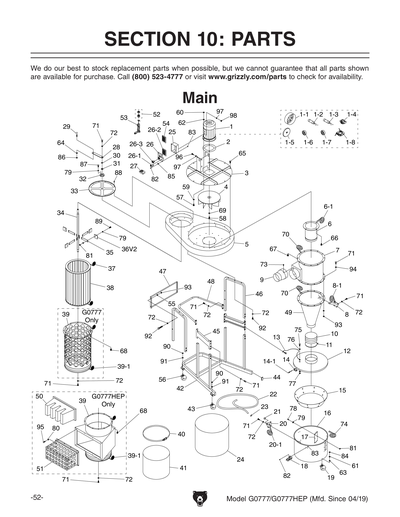

Part Diagram for G0777
Part Diagram for G0777
Part Diagram for G0777
Part Diagram for G0777
Part Diagram for G0777
Part Diagram for G0777

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

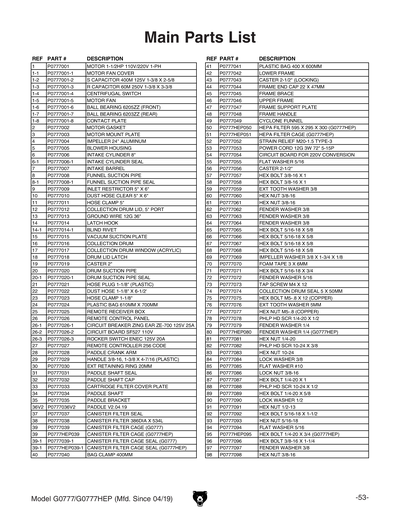

Ref #
Part #
Description
1
MOTOR 1-1/2HP 110V/220V 1-PH
Price
$495.10
1-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
1-2
S CAPACITOR 400M 125V 1-3/8 X 2-5/8
Price
N/A
1-3
R CAPACITOR 60M 250V 1-3/8 X 3-3/8
Price
$32.65
1-4
CENTRIFUGAL SWITCH
Price
$15.45
1-5
MOTOR FAN
Item is no longer available
Price
N/A
1-6
BALL BEARING 6205ZZ
Price
N/A
1-7
BALL BEARING 6203ZZ
Price
N/A
1-8
CONTACT PLATE
Price
$9.10
2
MOTOR GASKET
Item is no longer available
Price
N/A
3
MOTOR MOUNT PLATE
Price
$241.50
3V2
MOTOR MOUNT PLATE V2.08.20
Item is no longer available
Price
N/A
4
IMPELLER 24" ALUMINUM
Price
$348.45
5
BLOWER HOUSING
Price
$472.65
5V2
BLOWER HOUSING V2.08.20
Price
$724.50
6
INTAKE CYLINDER 8"
Price
$42.55
6-1
INTAKE CYLINDER SEAL
Item is no longer available
Price
N/A
7
INTAKE BARREL
Price
$272.55
7V2
INTAKE BARREL V2.08.20
Item is no longer available
Price
N/A
8
FUNNEL SUCTION PIPE
Price
$34.50
8-1
FUNNEL SUCTION PIPE SEAL
Item is no longer available
Price
N/A
9
INLET RESTRICTOR 5" X 6"
Price
N/A
10
DUST HOSE CLEAR 5" X 10"
Price
$19.95
11
HOSE CLAMP 5"
Price
$3.65
12
COLLECTION DRUM LID, 5" PORT V1
Price
$108.70
12V2
COLLECTION DRUM LID, 5" PORT V2.08.20
Price
$152.15
13
GROUND WIRE 12G 36"
Price
$8.20
14
LATCH HOOK
Item is no longer available
Price
N/A
14-1
BLIND RIVET
Price
$1.49
15
VACUUM SUCTION PLATE
Price
$79.70
16
COLLECTION DRUM V1
Price
$170.30
16V2
COLLECTION DRUM V2.08.20
Item is no longer available
Price
N/A
17
COLLECTION DRUM WINDOW (ACRYLIC) V1
Item is no longer available
Price
N/A
17V2
COLLECTION DRUM WINDOW V2.08.20
Item is no longer available
Price
N/A
18
DRUM LID LATCH
Price
$23.95
19
CASTER 2"
Price
$6.05
20
DRUM SUCTION PIPE
Price
$17.25
20-1
DRUM SUCTION PIPE SEAL
Item is no longer available
Price
N/A
21
HOSE PLUG 1-1/8" (PLASTIC)
Item is no longer available
Price
N/A
22
DUST HOSE 1-1/4" X 78"
Price
$65.25
23
HOSE CLAMP 1-1/8"
Item is no longer available
Price
N/A
24
PLASTIC BAG 640MM X 700MM
Price
$32.65
25
REMOTE RECEIVER BOX
Price
N/A
26
REMOTE CONTROL PANEL
Price
N/A
26-1
CIRCUIT BREAKER ZING EAR ZE-700 125V 25A
Price
$27.20
26-2
CIRCUIT BOARD SF527 110V
Price
$148.55
26-3
ROCKER SWITCH ENEC 125V 20A
Price
$11.85
27
REMOTE CONTROLLER 256 CODE
Price
N/A
28
PADDLE CRANK
Price
N/A
29
ROTATION HANDLE
Price
N/A
30
EXT RETAINING RING 20MM
Price
N/A
31
SEAL
Price
N/A
32
PADDLE SHAFT CAP
Price
N/A
33
CARTRIDGE FILTER COVER PLATE
Item is no longer available
Price
N/A
34
PADDLE SHAFT
Price
N/A
35
PADDLE BRACKET
Price
$10.90
36
PADDLE V2.04.19
Price
N/A
36V2
PADDLE V2.04.19
Price
$5.50
37
CANISTER FILTER SEAL
Price
$18.15
38
CANISTER FILTER 386 X 534MM V2.03.11
Price
N/A
39
GREEN CANISTER CAGE ASSY V1
Price
N/A
39-1
CANISTER FILTER CAGE SEAL
Price
N/A
40
BAG CLAMP 400MM V1.06.05
Price
N/A
41
PLASTIC BAG 400 X 600MM
Price
N/A
42
LOWER FRAME
Price
$217.35
43
CASTER 2-1/2" (LOCKING)
Price
$21.75
44
FRAME END CAP 22 X 47MM
Item is no longer available
Price
N/A
45
FRAME BRACE
Price
$54.35
46
UPPER FRAME
Price
$34.50
47
FRAME SUPPORT PLATE
Price
$61.60
48
FRAME HANDLE
Price
$36.25
49
CYCLONE FUNNEL V1
Price
$207.00
49V2
*DISCD*CYCLONE FUNNEL V2.08.20
Price
$210.45
52
STRAIN RELIEF M20-1.5 TYPE-3
Item is no longer available
Price
N/A
53
POWER CORD 12G 3W 72" 5-15P
Item is no longer available
Price
N/A
54
CIRCUIT BOARD 220V 256 CODE
Price
N/A
55
P0777055
Now: PW07
FLAT WASHER 5/16
Price
N/A
56
CASTER 2-1/2"
Price
$20.55
57
P0777057
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
58
P0777058
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
59
EXT TOOTH WASHER 3/8
Price
N/A
60
P0777060
Now: PN08
HEX NUT 3/8-16
Price
N/A
61
P0777061
Now: PN08
HEX NUT 3/8-16
Price
N/A
62
FENDER WASHER 3/8
Price
N/A
63
FENDER WASHER 3/8
Price
N/A
64
FENDER WASHER 3/8
Price
N/A
65
P0777065
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
66
P0777066
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
67
P0777067
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
68
P0777068
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
69
IMPELLER WASHER 3/8 X 1-3/4 X 1/8
Item is no longer available
Price
N/A
70
FOAM TAPE 3 X 6MM
Item is no longer available
Price
N/A
71
P0777071
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
72
FENDER WASHER 5/16
Price
N/A
73
TAP SCREW M4 X 12
Price
N/A
74
COLLECTION DRUM SEAL 10 X 50 X 2000MM
Price
$18.15
75
HEX BOLT M5-.8 X 12 (COPPER)
Price
$1.60
76
EXT TOOTH WASHER 5MM
Price
N/A
77
HEX NUT M5-.8 (COPPER)
Price
$1.60
78
P0777078
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
79
FENDER WASHER 1/4
Price
N/A
81
P0777081
Now: PN05
HEX NUT 1/4-20
Price
N/A
82
P0777082
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
83
P0777083
Now: PN07
HEX NUT 10-24
Price
N/A
84
LOCK WASHER 3/8
Price
N/A
85
P0777085
Now: PW03
FLAT WASHER #10
Price
N/A
86
LOCK NUT 3/8-16
Price
N/A
87
P0777087
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
88
P0777088
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
89
P0777089
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
90
LOCK WASHER 1/2
Price
N/A
91
P0777091
Now: PN13
HEX NUT 1/2-13
Price
N/A
92
P0777092
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
93
P0777093
Now: PN02
HEX NUT 5/16-18
Price
N/A
94
P0777094
Now: PW07
FLAT WASHER 5/16
Price
N/A
96
P0777096
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
97
FENDER WASHER 3/8
Price
N/A
98
P0777098
Now: PN08
HEX NUT 3/8-16
Price
N/A
101

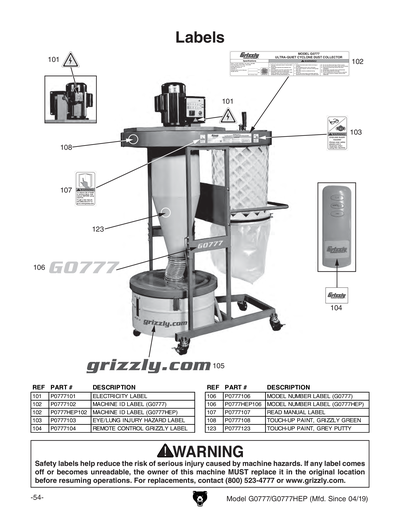

ELECTRICITY 0.7W X 0.6H
Price
N/A
102
MACHINE ID LABEL
Price
$16.40
103
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
104
REMOTE CONTROL GRIZZLY LABEL
Item is no longer available
Price
N/A
105
GRIZZLY.COM LABEL
Price
$2.90
106
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
107
READ MANUAL 1.5W X 2.5H
Price
N/A
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
STRAIN RELIEF PLUG
Item is no longer available
Price
N/A
110
RIVET
Item is no longer available
Price
N/A
111
COLLECTION DRUM HANDLE PLASTIC
Price
$5.50
112
P0777112
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
113
P0777113
Now: PN40
ACORN NUT 5/16-18
Price
N/A
114
CYCLONE FUNNEL ADAPTER
Price
$90.60
115
P0777115
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
116
FLAT WASHER 5/16 THIN
Item is no longer available
Price
N/A
117
LOCK NUT 5/16-18
Price
N/A
118
COLLECTION LID HANDLE
Price
$65.25
119
P0777119
Now: PW02
FLAT WASHER 3/8
Price
N/A
120
DRUM LID CONNECTING PLATE
Price
$7.25
121
HEX BOLT 3/8-16 X 11
Price
N/A
122
DRUM LID SPRING
Price
$6.70
123
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0777/G0777HEP MFD-01.16 V1.04.16
Item is no longer available
Price
N/A
