Parts for G0777HEP - 1-1/2 HP Ultra-Quiet Dual-Filtration HEPA Cyclone Dust Collector

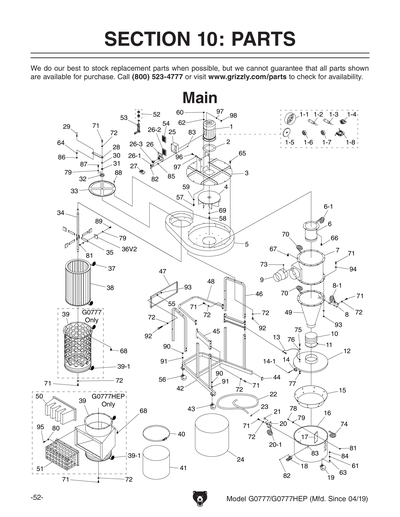

Part Diagram for G0777HEP
Part Diagram for G0777HEP
Part Diagram for G0777HEP
Part Diagram for G0777HEP
Part Diagram for G0777HEP
Part Diagram for G0777HEP

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

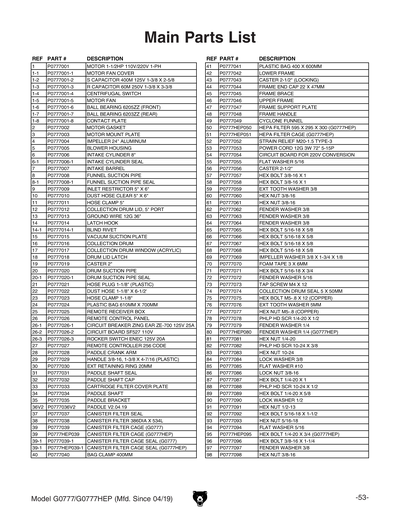

Ref #
Part #
Description
1
MOTOR 1-1/2HP 110V/220V 1-PH
Price
N/A
1-1
MOTOR FAN COVER
Price
N/A
1-2
S CAPACITOR 400M 125V 1-3/8 X 2-5/8
Price
N/A
1-3
R CAPACITOR 60M 250V 1-3/8 X 3-3/8
Price
N/A
1-4
CENTRIFUGAL SWITCH
Price
N/A
1-5
MOTOR FAN
Price
N/A
1-6
BALL BEARING 6205ZZ
Price
N/A
1-7
BALL BEARING 6203ZZ
Price
N/A
1-8
CONTACT PLATE
Price
N/A
2
MOTOR GASKET
Price
N/A
3
MOTOR MOUNT PLATE
Price
N/A
3V2
MOTOR MOUNT PLATE V2.08.20
Price
N/A
4
IMPELLER 24" ALUMINUM
Price
N/A
5
BLOWER HOUSING
Price
N/A
5V2
BLOWER HOUSING V2.08.20
Price
N/A
6
INTAKE CYLINDER 8"
Price
N/A
6-1
INTAKE CYLINDER SEAL
Price
N/A
7
INTAKE BARREL
Price
N/A
7V2
INTAKE BARREL V2.08.20
Price
N/A
8
FUNNEL SUCTION PIPE
Price
N/A
8-1
FUNNEL SUCTION PIPE SEAL
Price
N/A
9
INLET RESTRICTOR 5" X 6"
Price
N/A
10
DUST HOSE CLEAR 5" X 10"
Price
N/A
11
HOSE CLAMP 5"
Price
N/A
12
COLLECTION DRUM LID, 5" PORT V1
Price
N/A
12V2
COLLECTION DRUM LID, 5" PORT V2.08.20
Price
N/A
13
GROUND WIRE 12G 36"
Price
N/A
14
LATCH HOOK
Price
N/A
14-1
BLIND RIVET
Price
N/A
15
VACUUM SUCTION PLATE
Price
N/A
16
COLLECTION DRUM V1
Price
N/A
16V2
COLLECTION DRUM V2.08.20
Price
N/A
17
COLLECTION DRUM WINDOW (ACRYLIC) V1
Price
N/A
17V2
COLLECTION DRUM WINDOW V2.08.20
Price
N/A
18
DRUM LID LATCH
Price
N/A
19
CASTER 2"
Price
N/A
20
DRUM SUCTION PIPE
Price
N/A
20-1
DRUM SUCTION PIPE SEAL
Price
N/A
21
HOSE PLUG 1-1/8" (PLASTIC)
Price
N/A
22
DUST HOSE 1-1/4" X 78"
Price
N/A
23
HOSE CLAMP 1-1/8"
Price
N/A
24
PLASTIC BAG 640MM X 700MM
Price
N/A
25
REMOTE RECEIVER BOX
Price
N/A
26
REMOTE CONTROL PANEL
Price
N/A
26-1
CIRCUIT BREAKER ZING EAR ZE-700 125V 25A
Price
N/A
26-2
CIRCUIT BOARD SF527 110V
Price
N/A
26-3
ROCKER SWITCH ENEC 125V 20A
Price
N/A
27
REMOTE CONTROLLER 256 CODE
Price
N/A
28
PADDLE CRANK
Price
N/A
29
ROTATION HANDLE
Price
N/A
30
EXT RETAINING RING 20MM
Price
N/A
31
SEAL
Price
N/A
32
PADDLE SHAFT CAP
Price
N/A
33
CARTRIDGE FILTER COVER PLATE
Price
N/A
34
PADDLE SHAFT
Price
N/A
35
PADDLE BRACKET
Price
N/A
36
PADDLE V2.04.19
Price
N/A
36V2
PADDLE V2.04.19
Price
N/A
37
CANISTER FILTER SEAL
Price
N/A
38
CANISTER FILTER 386 X 534MM V2.03.11
Price
N/A
39
CANISTER FILTER CAGE
Item is no longer available
Price
N/A
39-1
CANISTER FILTER CAGE SEAL
Item is no longer available
Price
N/A
40
BAG CLAMP 400MM V1.06.05
Price
N/A
41
PLASTIC BAG 400 X 600MM
Price
N/A
42
LOWER FRAME
Price
N/A
43
CASTER 2-1/2" (LOCKING)
Price
N/A
44
FRAME END CAP 22 X 47MM
Price
N/A
45
FRAME BRACE
Price
N/A
46
UPPER FRAME
Price
N/A
47
FRAME SUPPORT PLATE
Price
N/A
48
FRAME HANDLE
Price
N/A
49
CYCLONE FUNNEL V1
Price
N/A
49V2
*DISCD*CYCLONE FUNNEL V2.08.20
Price
N/A
50
HEPA Filter for G0703/P, G0443, G0440
Price
N/A
51
HEPA FILTER CAGE 289 X 595, GREEN
Price
N/A
52
STRAIN RELIEF M20-1.5 TYPE-3
Price
N/A
53
POWER CORD 12G 3W 72" 5-15P
Price
N/A
54
CIRCUIT BOARD 220V 256 CODE
Price
N/A
55
FLAT WASHER 5/16
Price
N/A
56
CASTER 2-1/2"
Price
N/A
57
HEX BOLT 3/8-16 X 1
Price
N/A
58
HEX BOLT 3/8-16 X 1
Price
N/A
59
EXT TOOTH WASHER 3/8
Price
N/A
60
HEX NUT 3/8-16
Price
N/A
61
HEX NUT 3/8-16
Price
N/A
62
FENDER WASHER 3/8
Price
N/A
63
FENDER WASHER 3/8
Price
N/A
64
FENDER WASHER 3/8
Price
N/A
65
HEX BOLT 5/16-18 X 5/8
Price
N/A
66
HEX BOLT 5/16-18 X 5/8
Price
N/A
67
HEX BOLT 5/16-18 X 5/8
Price
N/A
68
HEX BOLT 5/16-18 X 5/8
Price
N/A
69
IMPELLER WASHER 3/8 X 1-3/4 X 1/8
Price
N/A
70
FOAM TAPE 3 X 6MM
Price
N/A
71
HEX BOLT 5/16-18 X 3/4
Price
N/A
72
FENDER WASHER 5/16
Price
N/A
73
TAP SCREW M4 X 12
Price
N/A
74
COLLECTION DRUM SEAL 10 X 50 X 2000MM
Price
N/A
75
HEX BOLT M5-.8 X 12 (COPPER)
Price
N/A
76
EXT TOOTH WASHER 5MM
Price
N/A
77
HEX NUT M5-.8 (COPPER)
Price
N/A
78
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
79
FENDER WASHER 1/4
Price
N/A
80
FENDER WASHER 1/4
Price
N/A
81
HEX NUT 1/4-20
Price
N/A
82
PHLP HD SCR 10-24 X 3/8
Price
N/A
83
HEX NUT 10-24
Price
N/A
84
LOCK WASHER 3/8
Price
N/A
85
FLAT WASHER #10
Price
N/A
86
LOCK NUT 3/8-16
Price
N/A
87
HEX BOLT 1/4-20 X 1
Price
N/A
88
PHLP HD SCR 10-24 X 1/2
Price
N/A
89
HEX BOLT 1/4-20 X 5/8
Price
N/A
90
LOCK WASHER 1/2
Price
N/A
91
HEX NUT 1/2-13
Price
N/A
92
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
93
HEX NUT 5/16-18
Price
N/A
94
FLAT WASHER 5/16
Price
N/A
95
HEX BOLT 1/4-20 X 3/4
Price
N/A
96
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
97
FENDER WASHER 3/8
Price
N/A
98
HEX NUT 3/8-16
Price
N/A
101

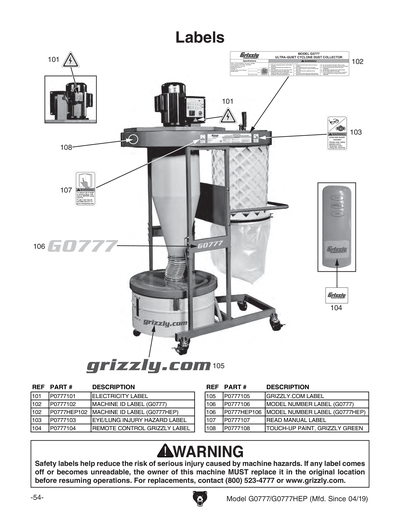

ELECTRICITY 0.7W X 0.6H
Price
N/A
102
MACHINE ID LABEL
Item is no longer available
Price
N/A
103
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
104
REMOTE CONTROL GRIZZLY LABEL
Price
N/A
105
GRIZZLY.COM LABEL
Price
N/A
106
MODEL NUMBER LABEL
Price
$2.65
107
READ MANUAL 1.5W X 2.5H
Price
N/A
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
STRAIN RELIEF TYPE-3 M16-2
Price
$4.30
110
RIVET
Price
N/A
111
COLLECTION DRUM HANDLE PLASTIC
Price
N/A
112
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
113
ACORN NUT 5/16-18
Price
N/A
114
CYCLONE FUNNEL ADAPTER
Price
N/A
115
HEX BOLT 5/16-18 X 1
Price
N/A
116
FLAT WASHER 5/16 THIN
Price
N/A
117
LOCK NUT 5/16-18
Price
N/A
118
COLLECTION LID HANDLE
Price
N/A
119
FLAT WASHER 3/8
Price
N/A
120
DRUM LID CONNECTING PLATE
Price
N/A
121
HEX BOLT 3/8-16 X 11
Price
N/A
122
DRUM LID SPRING
Price
N/A
123
PRESSURE GAUGE
Price
$115.95
124
AIR HOSE 4ID X 6OD
Price
$6.40
MAN
MANUAL G0777/G0777HEP MFD-01.16 V1.04.16
Price
N/A
