Parts for G0784 15" Heavy-Duty Floor Drill Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

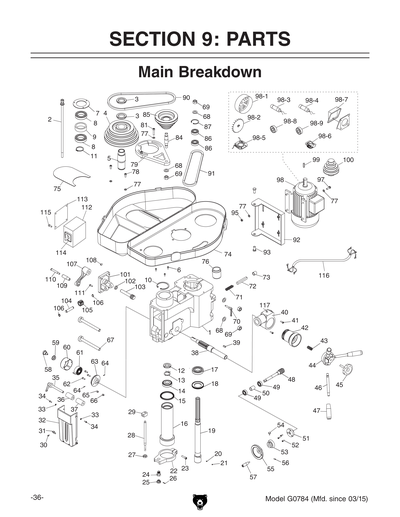

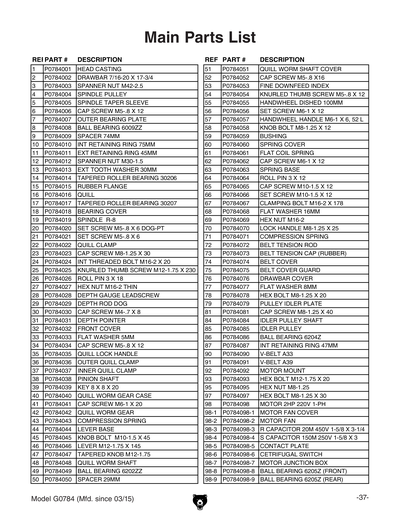

1
HEAD CASTING
2
DRAWBAR 7/16-20 X 17-3/4
3
SPANNER NUT M42-1.5
4
SPINDLE PULLEY
5
SPINDLE TAPER SLEEVE
6
CAP SCREW M5-.8 X 12
Price
N/A
7
OUTER BEARING PLATE
8
BALL BEARING 6009ZZ
Price
N/A
9
SPACER 74MM
10
Now: PR67M
INT RETAINING RING 75MM
Price
N/A
11
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
12
SPANNER NUT M30-1.5
13
EXT TOOTH WASHER 30MM
Price
N/A
14
TAPERED ROLLER BEARING 30206
Price
N/A
15
RUBBER FLANGE
16
QUILL
17
TAPERED ROLLER BEARING 30207
Price
N/A
18
BEARING COVER
19
SPINDLE R-8
20
SET SCREW M5-.8 X 6 DOG-PT
Price
N/A
21
SET SCREW M5-.8 X 6
Price
N/A
22
QUILL CLAMP
23
CAP SCREW M8-1.25 X 30
Price
N/A
24
INT THREADED BOLT M16-2 X 20
25
KNURLED KNOB M12-1.75
26
ROLL PIN 3 X 18
Price
N/A
27
Now: PN48M
HEX NUT M16-2 THIN
Price
N/A
28
DEPTH STOP STUD M12-1.75 X 230
29
DEPTH ROD DOG
30
CAP SCREW M4-.7 X 8
Price
N/A
31
DEPTH POINTER
32
FRONT COVER
33
Now: PW02M
FLAT WASHER 5MM
Price
N/A
34
CAP SCREW M5-.8 X 12
Price
N/A
35
ADJUSTABLE HANDLE 116L M10-1.5 X 60
36
OUTER QUILL CLAMP
37
INNER QUILL CLAMP
38
PINION SHAFT
39
KEY 8 X 8 X 20
Price
N/A
40
QUILL WORM GEAR CASE
41
CAP SCREW M6-1 X 20
Price
N/A
42
QUILL WORM GEAR
43
COMPRESSION SPRING
44
LEVER BASE
45
KNOB BOLT M10-1.5 X 45
46
LEVER M12-1.75 X 145
47
TAPERED KNOB M12-1.75
48
QUILL WORM SHAFT
49
BALL BEARING 6202ZZ
Price
N/A
50
SPACER 29MM
51
QUILL WORM SHAFT COVER
52
CAP SCREW M5-.8 X 16
Price
N/A
53
FINE DOWNFEED INDEX
54
KNURLED THUMB SCREW M5-.8 X 12
55
HANDWHEEL DISHED 100MM
56
SET SCREW M6-1 X 12
Price
N/A
57
HANDWHEEL HANDLE M6-1 X 6, 52 L
58
KNOB BOLT M8-1.25 X 12
59
BUSHING
60
SPRING COVER
61
FLAT COIL SPRING
62
CAP SCREW M6-1 X 12
Price
N/A
63
SPRING BASE
64
ROLL PIN 3 X 12
Price
N/A
65
CAP SCREW M10-1.5 X 12
Price
N/A
66
SET SCREW M10-1.5 X 12
Price
N/A
67
CLAMPING BOLT M16-2 X 178
68
Now: PW08M
FLAT WASHER 16MM
Price
N/A
69
Now: PN13M
HEX NUT M16-2
Price
N/A
70
LOCK HANDLE M8-1.25 X 25
71
COMPRESSION SPRING
72
BELT TENSION ROD
73
BELT TENSION CAP (RUBBER)
74
BELT COVER
75
BELT COVER GUARD
76
DRAWBAR COVER
77
Now: PW01M
FLAT WASHER 8MM
Price
N/A
78
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
79
PULLEY IDLER PLATE
81
CAP SCREW M8-1.25 X 40
Price
N/A
84
IDLER PULLEY SHAFT
85
IDLER PULLEY
86
BALL BEARING 6204Z
Price
N/A
87
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
90
Now: PVA33
V-BELT A33
Price
N/A
91
Now: PVA39
V-BELT A39
Price
N/A
92
MOTOR MOUNT
93
Now: PB49M
HEX BOLT M12-1.75 X 20
Price
N/A
95
Now: PN03M
HEX NUT M8-1.25
Price
N/A
97
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
98
MOTOR 2HP 220V 1-PH
98-1
MOTOR FAN COVER
98-2
MOTOR FAN
98-3
Now: PC20B
R CAPACITOR 20M 450V 1-5/8 X 3-1/4
Price
N/A
98-4
S CAPACITOR 150M 250V 1-1/2 X 2-3/8
Price
N/A
98-5
CONTACT PLATE
98-6
CETRIFUGAL SWITCH
98-7
MOTOR JUNCTION BOX
98-8
BALL BEARING 6205Z
Price
N/A
98-9
BALL BEARING 6205Z
Price
N/A

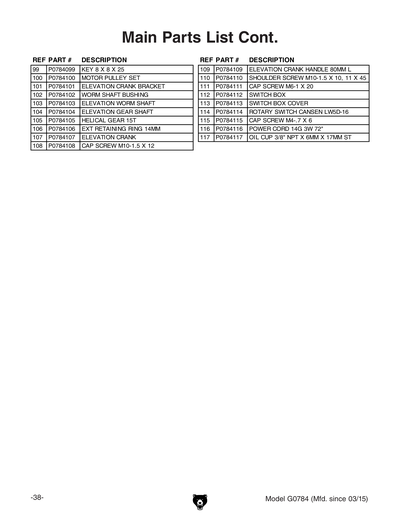

99
KEY 8 X 8 X 25
Price
N/A
100
MOTOR PULLEY SET
101
ELEVATION CRANK BRACKET
102
WORM SHAFT BUSHING
103
ELEVATION WORM SHAFT
104
ELEVATION GEAR SHAFT
105
HELICAL GEAR 15T
106
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
107
ELEVATION CRANK
108
CAP SCREW M10-1.5 X 12
Price
N/A
109
ELEVATION CRANK HANDLE 80MM L
110
SHOULDER SCREW M10-1.5 X 10, 11 X 45
111
CAP SCREW M6-1 X 20
Price
N/A
112
SWITCH BOX
Price
N/A
113
SWITCH BOX COVER
Price
N/A
114
ROTARY SWITCH CANSEN LW5D-16
115
CAP SCREW M4-.7 X 6
Price
N/A
116
POWER CORD 14G 3W 72"
117
OIL CUP 3/8" NPT X 6MM X 17MM ST
Price
N/A
201

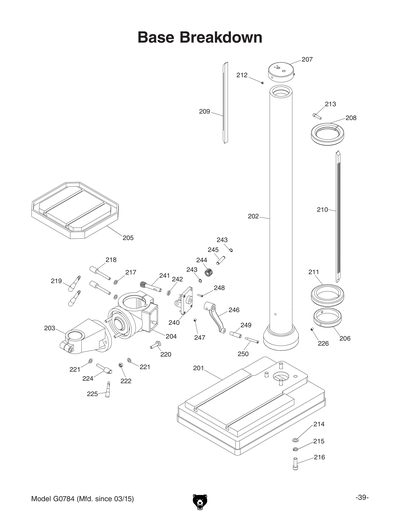

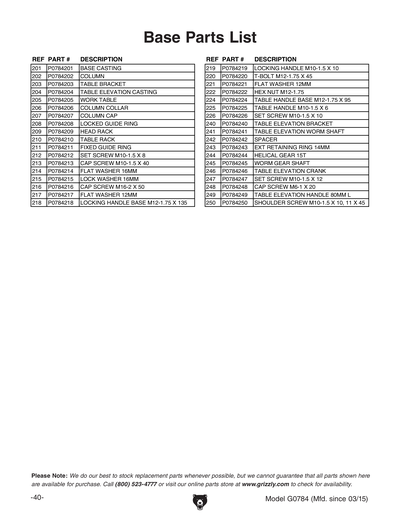

BASE CASTING
202
COLUMN
203
TABLE BRACKET
204
TABLE ELEVATION CASTING
205
WORK TABLE
206
COLUMN STOP COLLAR
207
COLUMN CAP
208
UPPER LOCKED GUIDE RING
209
HEADSTOCK RACK
210
TABLE RACK
211
FIXED GUIDE RING
212
SET SCREW M10-1.5 X 8
Price
N/A
213
CAP SCREW M10-1.5 X 40
Price
N/A
214
Now: PW08M
FLAT WASHER 16MM
Price
N/A
215
LOCK WASHER 16MM
Price
N/A
216
CAP SCREW M16-2 X 50
Price
N/A
217
Now: PW06M
FLAT WASHER 12MM
Price
N/A
218
LOCK HANDLE BASE M12-1.75 X 135
219
HANDLE 130L M10-1.5 X 10
220
T-BOLT M12-1.75 X 45
Price
N/A
221
Now: PW06M
FLAT WASHER 12MM
Price
N/A
222
Now: PN09M
HEX NUT M12-1.75
Price
N/A
224
HANDLE BASE M12-1.75 X 95
225
HANDLE 70L M10-1.5 X 6
226
SET SCREW M10-1.5 X 10
Price
N/A
240
TABLE ELEVATION BRACKET
241
TABLE ELEVATION WORM SHAFT
242
SPACER
243
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
244
HELICAL GEAR 15T
245
WORM GEAR SHAFT
246
TABLE ELEVATION CRANK
247
SET SCREW M10-1.5 X 12
Price
N/A
248
CAP SCREW M6-1 X 20
Price
N/A
249
REVOLVING HANDLE 75L, 12 X 22
250
SHOULDER SCR M10-1.5 X 12, 12 X 68

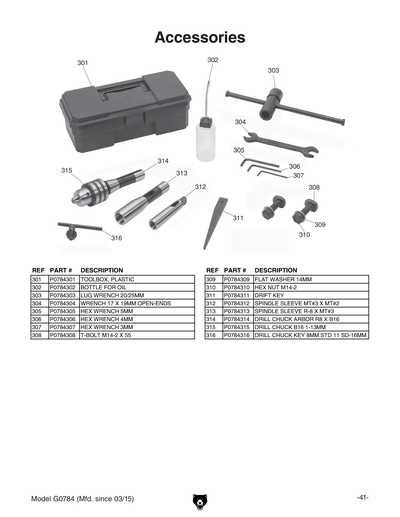

301
TOOLBOX, PLASTIC
302
BOTTLE FOR OIL
Price
N/A
303
LUG WRENCH 20/25MM
304
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
305
HEX WRENCH 5MM
Price
N/A
306
HEX WRENCH 4MM
Price
N/A
307
HEX WRENCH 3MM
Price
N/A
308
T-BOLT M14-2 X 55
Price
N/A
309
Now: PW10M
FLAT WASHER 14MM
Price
N/A
310
Now: PN32M
HEX NUT M14-2
Price
N/A
311
DRIFT KEY
312
SPINDLE SLEEVE MT#3-MT#2
Price
N/A
313
SPINDLE SLEEVE R8-MT#3
Price
N/A
314
DRILL CHUCK ARBOR R8-B16
Price
N/A
315
DRILL CHUCK B16 1-13MM
316
DRILL CHUCK KEY 8MM STD 11 SD-16MM
401

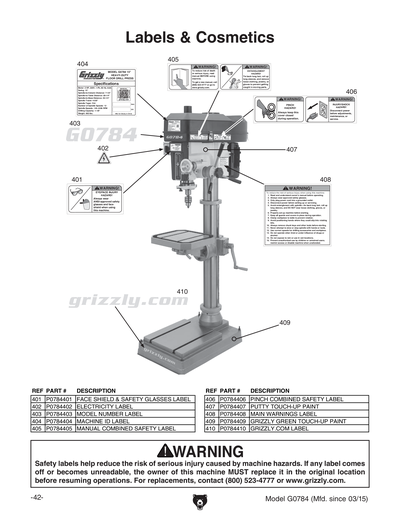

FACE SHIELD & SAFETY GLASSES 2.8W X 1.5H
Price
N/A
402
ELECTRICITY 0.7W X 0.6H
Price
N/A
403
MODEL NUMBER LABEL
404
MACHINE ID LABEL
405
MANUAL COMBINED SAFETY LABEL
406
PINCH COMBINED SAFETY LABEL
407
GREY PUTTY REF G0504
Price
N/A
408
MAIN WARNINGS LABEL
409
N/S GRIZZLY GREEN G1023S
Price
N/A
410
GRIZZLY.COM LABEL 12",BEIGE
Price
N/A
MAN
MANUAL G0784 MFD-09.14 V1.04.15
