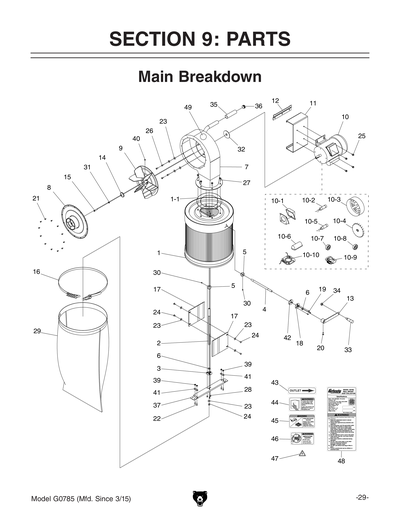

Parts for G0785 - 1 HP Wall-Mount Dust Collector with Canister Filter

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

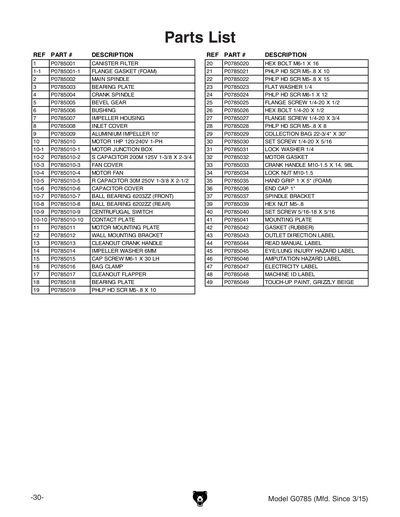

Ref # Part # Description Price Qty
1 P0785001 CANISTER FILTER $262.00
1-1 P0785001-1
Replaced By PT10877034
FLANGE GASKET (FOAM)
N/A View Replacement
2 P0785002 MAIN SPINDLE $17.25
3 P0785003 BEARING PLATE $1.25
4 P0785004 CRANK SPINDLE $13.00
5 P0785005 BEVEL GEAR $6.50
6 P0785006 BUSHING $2.25
7 P0785007 IMPELLER HOUSING $98.00
8 P0785008 INLET COVER $17.25
9 P0785009 ALUMINIUM IMPELLER 10" $75.75
10 P0785010 MOTOR 1HP 120/240V 1-PH $127.75
10-1 P0785010-1 MOTOR JUNCTION BOX $8.75
10-10 P0785010-10 CONTACT PLATE $9.75
10-2 P0785010-2
Replaced By PC200F
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
N/A View Replacement
10-3 P0785010-3 FAN COVER $22.25
10-4 P0785010-4 MOTOR FAN $5.75
10-5 P0785010-5
Replaced By PC30
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
N/A View Replacement
10-6 P0785010-6 CAPACITOR COVER $4.25
10-7 P0785010-7
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
10-8 P0785010-8
Replaced By P6202ZZ
BALL BEARING 6202ZZ
N/A View Replacement
10-9 P0785010-9 CENTRUFUGAL SWITCH $11.00
11 P0785011 MOTOR MOUNTING PLATE $49.25
12 P0785012
Replaced By P0710P001
WALL MOUNTING BRACKET
N/A View Replacement
13 P0785013 CLEANOUT CRANK HANDLE $5.75
14 P0785014 IMPELLER WASHER 6MM $1.25
15 P0785015 CAP SCREW M6-1 X 30 LH $1.50
16 P0785016 BAG CLAMP $14.75
17 P0785017 CLEANOUT FLAPPER $5.50
18 P0785018
Replaced By P0785003
BEARING PLATE
N/A View Replacement
19 P0785019
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
20 P0785020
Replaced By PB83M
HEX BOLT M6-1 X 16
N/A View Replacement
21 P0785021
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
22 P0785022
Replaced By PS20M
PHLP HD SCR M5-.8 X 15
N/A View Replacement
23 P0785023
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
24 P0785024
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
25 P0785025
Replaced By PFS21
FLANGE SCREW 1/4-20 X 1/2
N/A View Replacement
26 P0785026
Replaced By PB19
HEX BOLT 1/4-20 X 1/2
N/A View Replacement
27 P0785027 FLANGE SCREW 1/4-20 X 3/4 $1.00
28 P0785028
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
29 P0785029
Replaced By T24268
Dust Collection Bag for G0583Z, G0785 and G0944 Series
N/A View Replacement
30 P0785030
Replaced By PSS04
SET SCREW 1/4-20 X 5/16
N/A View Replacement
31 P0785031
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
32 P0785032 MOTOR GASKET $3.75
33 P0785033 CRANK HANDLE M10-1.5 X 14, 98L $13.25
34 P0785034
Replaced By PLN05M
LOCK NUT M10-1.5
N/A View Replacement
35 P0785035 HAND GRIP 1 X 5" (FOAM) $1.25
36 P0785036 END CAP 1" $1.00
37 P0785037 SPINDLE BRACKET $20.25
39 P0785039
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
40 P0785040
Replaced By PSS17
SET SCREW 5/16-18 X 5/16
N/A View Replacement
41 P0785041 MOUNTING PLATE $1.00
42 P0785042 GASKET (RUBBER) $1.75
43 P0785043 OUTLET DIRECTION LABEL $1.00
44 P0785044
Replaced By PLABEL-12D
READ MANUAL 2.8W X 1.5H
N/A View Replacement
45 P0785045
Replaced By PLABEL-57C
GLASSES/RESPIRATOR 2.8W X 1.5H
N/A View Replacement
46 P0785046
Replaced By PLABEL-59C
HANDS/DUST COLLECTOR OUTLET 2.8W X 1.5H
N/A View Replacement
47 P0785047
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
48 P0785048 MACHINE ID LABEL $9.50
49 P0785049
Replaced By PPAINT-14
BEIGE REF G0555
N/A View Replacement
MAN P0785MAN MANUAL G0785 MFD-01.15 V1.03.15 $13.00
