Parts for G0787 - 4" x 36" Horizontal/Vertical Belt Sander with 6" Disc

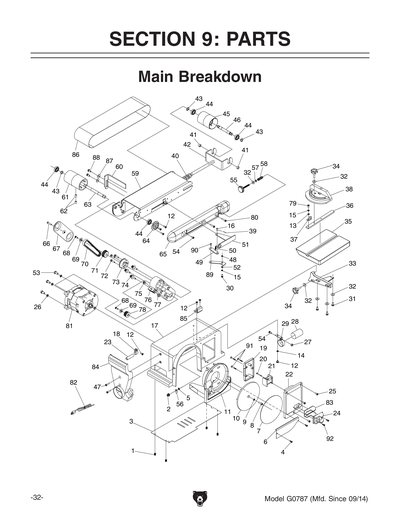

Part Diagram for G0787
Part Diagram for G0787
Part Diagram for G0787
Part Diagram for G0787
Part Diagram for G0787
Part Diagram for G0787

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

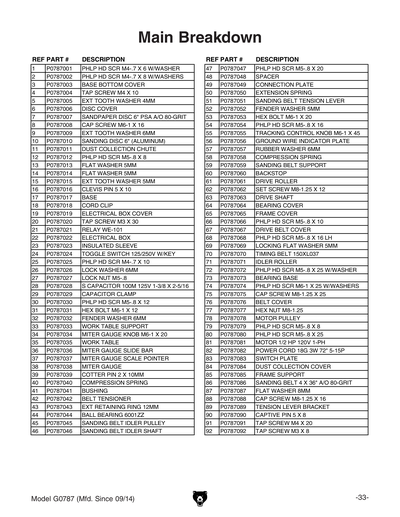

Ref #
Part #
Description
1
PHLP HD SCR M4-.7 X 6 W/WASHER
Price
$1.49
2
PHLP HD SCR M4-.7 X 8 W/WASHERS
Price
$1.49
3
Price
$2.15
4
TAP SCREW M4 X 10
Price
N/A
5
EXT TOOTH WASHER 4MM
Price
N/A
6
Price
$1.49
7
SANDPAPER DISC 6" PSA A/O 80-GRIT
Price
$1.49
8
CAP SCREW M6-1 X 16
Price
N/A
9
EXT TOOTH WASHER 6MM
Price
N/A
10
SANDING DISC 6" (ALUMINUM)
Price
$10.80
11
Price
$4.85
12
PHLP HD SCR M5-.8 X 8
Price
N/A
13
FLAT WASHER 5MM
Price
N/A
14
FLAT WASHER 5MM
Price
N/A
15
EXT TOOTH WASHER 5MM
Price
N/A
16
Price
$1.49
17
Price
$49.65
18
Price
$1.49
19
Price
$1.49
20
Price
$1.49
21
Price
$7.70
22
Price
$4.55
23
Price
$1.49
24
Toggle Safety Switch
Price
N/A
25
PHLP HD SCR M4-.7 X 10
Price
N/A
26
LOCK WASHER 6MM
Price
N/A
27
LOCK NUT M5-.8
Price
N/A
28
S CAPACITOR 100M 125V 1-3/8 X 2-5/16
Price
N/A
29
Price
$1.49
30
PHLP HD SCR M5-.8 X 12
Price
N/A
31
HEX BOLT M6-1 X 12
Price
N/A
32
FENDER WASHER 6MM
Price
N/A
33
Price
$6.35
34
MITER GAUGE KNOB M6-1 X 20
Price
$1.49
35
Price
$18.40
36
Price
$2.15
37
MITER GAUGE SCALE POINTER
Price
$1.49
38
Price
$2.05
39
Price
$1.49
40
Price
$1.49
41
Price
$1.49
42
Price
$6.35
43
EXT RETAINING RING 12MM
Price
N/A
44
BALL BEARING 6001ZZ
Price
N/A
45
SANDING BELT IDLER PULLEY
Price
$10.35
46
SANDING BELT IDLER SHAFT
Price
$3.75
47
PHLP HD SCR M5-.8 X 20
Price
N/A
48
Price
$1.49
49
Price
$1.49
50
Price
$1.49
51
SANDING BELT TENSION LEVER
Price
$2.35
52
FENDER WASHER 5MM
Price
N/A
53
HEX BOLT M6-1 X 20
Price
N/A
54
PHLP HD SCR M5-.8 X 16
Price
N/A
55
TRACKING CONTROL KNOB M6-1 X 45
Price
$1.49
56
GROUND WIRE INDICATOR PLATE
Price
$1.49
57
Price
$1.49
58
Price
$1.49
59
Price
$24.75
60
Price
$5.55
61
Price
$15.50
62
SET SCREW M8-1.25 X 12
Price
N/A
63
Price
$13.85
64
Price
$1.49
65
Price
$4.00
66
PHLP HD SCR M5-.8 X 10
Price
N/A
67
Price
$15.50
68
PHLP HD SCR M5-.8 X 16 LH
Price
$1.49
69
LOCKING FLAT WASHER 5MM
Price
$1.49
70
Price
$2.85
71
Price
$2.40
72
PHLP HD SCR M5-.8 X 25 W/WASHER
Price
$1.49
73
Price
$2.90
74
PHLP HD SCR M6-1 X 25 W/WASHER
Price
$1.49
75
CAP SCREW M8-1.25 X 25
Price
N/A
76
Price
$13.15
77
HEX NUT M8-1.25
Price
N/A
78
Price
$2.05
79
PHLP HD SCR M5-.8 X 8
Price
N/A
80
PHLP HD SCR M5-.8 X 25
Price
N/A
81
Price
$66.05
82
POWER CORD 18G 3W 72" 5-15P
Price
$11.95
83
Price
$1.49
84
Price
$3.15
85
Price
$1.49
86
SANDING BELT 4 X 36" A/O 80-GRIT
Price
$5.20
87
FLAT WASHER 8MM
Price
N/A
88
CAP SCREW M8-1.25 X 16
Price
N/A
89
Price
$1.49
90
Price
$1.49
91
TAP SCREW M4 X 20
Price
N/A
92
TAP SCREW M3 X 8
Price
N/A
93

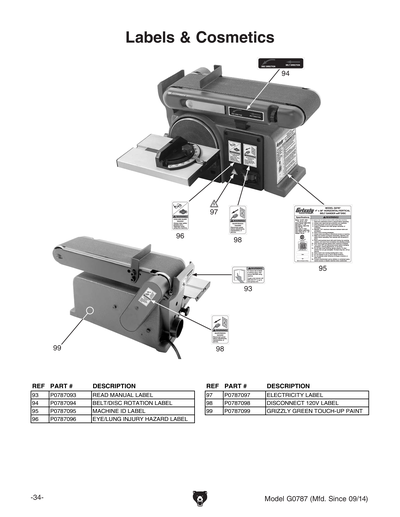

READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
94
BELT/DISC ROTATION LABEL
Price
$18.05
95
Price
$16.40
96
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
97
ELECTRICITY 0.7W X 0.6H
Price
N/A
98
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
99
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0787 MFD-09.14+08.25 V1.02.15
Price
$17.75
