Parts for G0791 - 12" x 36" Combination Gunsmithing Lathe/Mill

Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791
Part Diagram for G0791

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

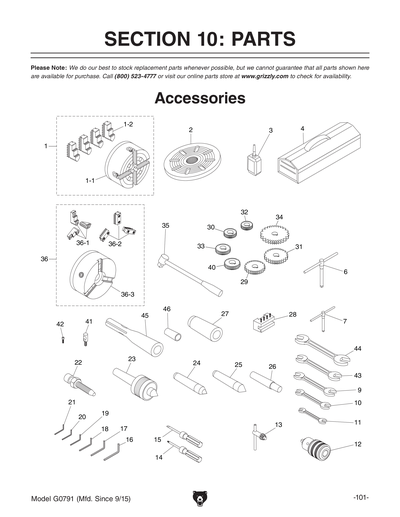

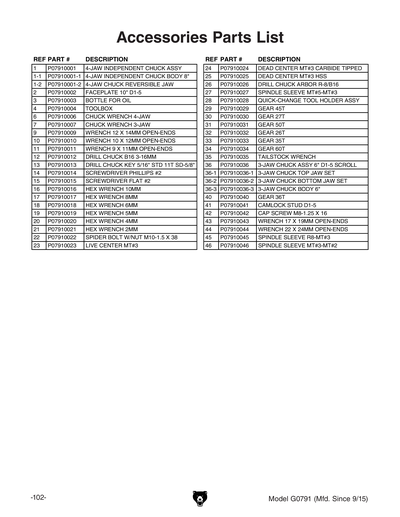

Ref #
Part #
Description
1
4-JAW INDEPENDENT CHUCK ASSEMBLY
Price
N/A
1-1
4-JAW INDEPENDENT CHUCK BODY 8"
Price
N/A
1-2
4-JAW CHUCK REVERSIBLE JAW 4-PC SET
Price
N/A
2
FACEPLATE 10" D1-5
Price
N/A
3
BOTTLE FOR OIL
Price
N/A
4
TOOLBOX
Price
N/A
5
TOOL POST WRENCH 11MM
Price
N/A
6
CHUCK WRENCH 4-JAW
Price
N/A
7
CHUCK WRENCH 3-JAW
Price
N/A
9
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
10
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
11
WRENCH 9 X 11MM OPEN-ENDS
Price
N/A
12
DRILL CHUCK B16 3-16MM
Price
$44.60
13
DRILL CHUCK KEY 5/16" STD 11T SD-5/8"
Price
$6.70
14
SCREWDRIVER PHILLIPS #2
Price
N/A
15
SCREWDRIVER FLAT #2
Price
N/A
16
HEX WRENCH 10MM
Price
N/A
17
HEX WRENCH 8MM
Price
N/A
18
HEX WRENCH 6MM
Price
N/A
19
HEX WRENCH 5MM
Price
N/A
20
HEX WRENCH 4MM
Price
N/A
21
HEX WRENCH 2MM
Price
N/A
22
SPIDER BOLT W/NUT M10-1.5 X 38
Price
$5.45
23
LIVE CENTER MT#3
Price
N/A
24
DEAD CENTER MT#3 CARBIDE TIPPED
Price
N/A
25
DEAD CENTER MT#3 HSS
Price
N/A
26
DRILL CHUCK ARBOR R-8/B16
Price
$40.25
27
SPINDLE SLEEVE MT#5-MT#3
Price
N/A
28
QUICK-CHANGE TOOL HOLDER ASSY
Price
N/A
29
GEAR 45T
Price
N/A
30
GEAR 27T
Price
N/A
31
GEAR 50T
Price
N/A
32
GEAR 26T
Price
N/A
33
GEAR 35T
Price
N/A
34
GEAR 60T
Price
N/A
35
TAILSTOCK WRENCH
Price
N/A
36
CHUCK 3-JAW 6" D1-5 ASSEMBLY
Price
N/A
36-1
3-JAW CHUCK TOP JAW SET
Price
N/A
36-2
3-JAW CHUCK BOTTOM JAW SET
Price
N/A
36-3
3-JAW CHUCK BODY 6"
Price
N/A
4
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
40
GEAR 36T
Price
$31.25
41
SPINDLE CAMLOCK
Price
N/A
42
CAP SCREW M8-1.25 X 16
Price
N/A
43
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
45
SPINDLE SLEEVE R8-MT#3
Price
$32.40
46
SPINDLE SLEEVE MT#3-MT#2
Price
$37.95

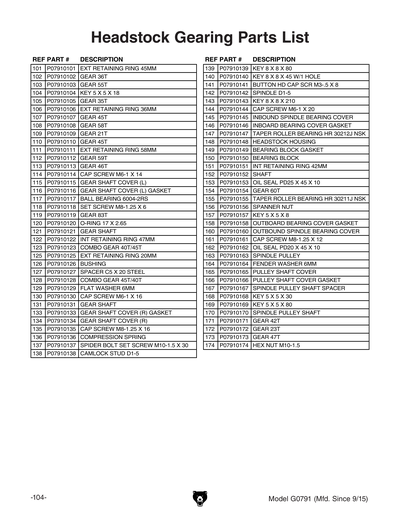

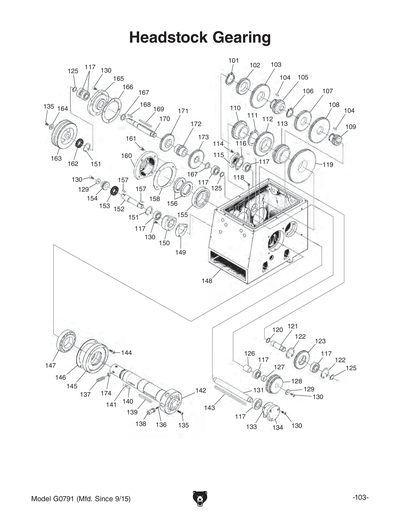

101
EXT RETAINING RING 45MM
Price
N/A
102
GEAR 36T
Price
N/A
103
GEAR 55T
Price
N/A
104
KEY 5 X 5 X 18
Price
N/A
105
GEAR 35T
Price
N/A
106
EXT RETAINING RING 36MM
Price
N/A
107
GEAR 45T
Price
N/A
108
GEAR 58T
Price
N/A
109
GEAR 21T
Price
N/A
110
GEAR 45T
Price
N/A
111
EXT RETAINING RING 58MM
Price
N/A
112
GEAR 59T
Price
N/A
113
GEAR 46T
Price
N/A
114
CAP SCREW M6-1 X 14
Price
N/A
115
GEAR SHAFT COVER (L)
Price
N/A
116
GEAR SHAFT COVER (L) GASKET
Price
N/A
117
BALL BEARING 6004-2RS
Price
N/A
118
SET SCREW M8-1.25 X 6
Price
N/A
119
GEAR 83T
Price
N/A
120
*DISCD* O-RING 17 X 2.65
Price
N/A
121
GEAR SHAFT
Price
N/A
122
INT RETAINING RING 47MM
Price
N/A
123
COMBO GEAR 40/45T
Price
N/A
125
EXT RETAINING RING 20MM
Price
N/A
126
BUSHING
Price
N/A
127
SPACER C5 X 20 STEEL
Price
N/A
128
COMBO GEAR 45/40T
Price
N/A
129
FLAT WASHER 6MM
Price
N/A
130
CAP SCREW M6-1 X 16
Price
N/A
131
GEAR SHAFT
Price
N/A
133
GEAR SHAFT COVER (R) GASKET
Price
N/A
134
GEAR SHAFT COVER (R)
Price
N/A
135
CAP SCREW M8-1.25 X 16
Price
N/A
136
COMPRESSION SPRING
Price
N/A
137
SPIDER BOLT SET SCREW M10-1.5 X 30
Price
N/A
138
SPINDLE CAMLOCK
Price
N/A
139
KEY 8 X 8 X 80
Price
N/A
140
KEY 8 X 8 X 45 W/1 HOLE
Price
$1.90
141
BUTTON HD CAP SCR M3-.5 X 8
Price
N/A
142
SPINDLE D1-5
Price
N/A
143
KEY 8 X 8 X 210
Price
N/A
144
CAP SCREW M6-1 X 20
Price
N/A
145
INBOUND SPINDLE BEARING COVER
Price
N/A
146
INBOARD BEARING COVER GASKET
Price
N/A
147
TAPER ROLLER BEARING HR 30212J NSK
Price
N/A
148
HEADSTOCK HOUSING
Price
N/A
149
BEARING BLOCK GASKET
Price
N/A
150
BEARING BLOCK
Price
N/A
151
INT RETAINING RING 42MM
Price
N/A
152
SHAFT
Price
N/A
153
OIL SEAL PD25 X 45 X 10
Price
N/A
154
GEAR 40T
Price
N/A
155
TAPER ROLLER BEARING HR 30211J NSK
Price
N/A
156
SPANNER NUT
Price
N/A
157
KEY 5 X 5 X 8
Price
N/A
158
OUTBOARD BEARING COVER GASKET
Price
N/A
160
OUTBOUND SPINDLE BEARING COVER
Price
N/A
161
CAP SCREW M8-1.25 X 12
Price
N/A
162
OIL SEAL PD20 X 45 X 10
Price
N/A
163
SPINDLE PULLEY
Price
N/A
164
FENDER WASHER 6MM
Price
N/A
165
PULLEY SHAFT COVER
Price
N/A
166
PULLEY SHAFT COVER GASKET
Price
N/A
167
SPINDLE PULLEY SHAFT SPACER
Price
N/A
168
KEY 5 X 5 X 30
Price
N/A
169
KEY 5 X 5 X 80
Price
N/A
170
SPINDLE PULLEY SHAFT
Price
N/A
171
GEAR 42T
Price
N/A
172
GEAR 23T
Price
N/A
173
GEAR 47T
Price
N/A
174
HEX NUT M10-1.5
Price
N/A
175
OIL FILL PLUG 3/4" NPT PLASTIC
Price
N/A
176
HEADSTOCK TOP COVER
Price
N/A
177
CAP SCREW M6-1 X 25
Price
N/A
178
HEADSTOCK TOP COVER GASKET
Price
N/A
179
ROLL PIN 5 X 30
Price
N/A
180
EXT RETAINING RING 12MM
Price
N/A

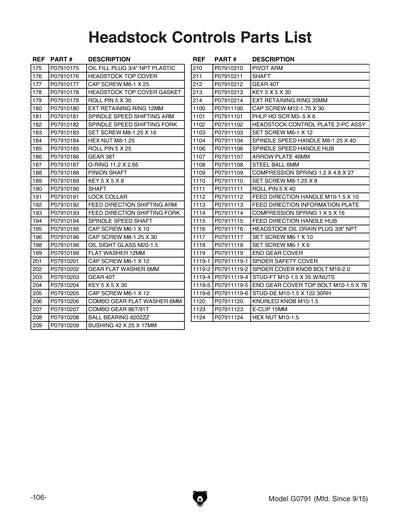

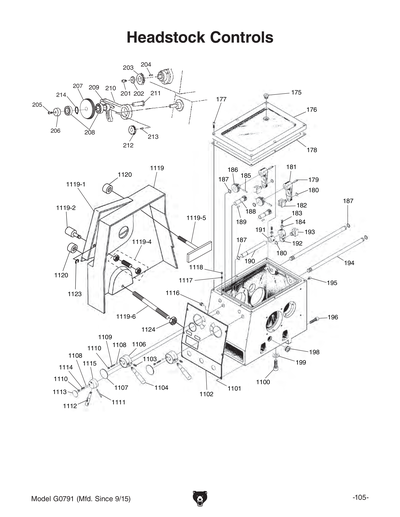

181
SPINDLE SPEED SHIFTING ARM
Price
N/A
182
SPINDLE SPEED SHIFTING FORK
Price
N/A
183
SET SCREW M8-1.25 X 16
Price
N/A
184
HEX NUT M8-1.25
Price
N/A
185
ROLL PIN 5 X 25
Price
N/A
186
GEAR 38T
Price
N/A
187
O-RING 11.2 X 2.65
Price
N/A
188
PINION SHAFT
Price
N/A
189
KEY 5 X 5 X 8
Price
N/A
190
SHAFT
Price
N/A
191
LOCK COLLAR
Price
N/A
192
FEED DIRECTION SHIFTING ARM
Price
N/A
193
FEED DIRECTION SHIFTING FORK
Price
N/A
194
SPINDLE SPEED SHAFT
Price
N/A
195
CAP SCREW M6-1 X 10
Price
N/A
196
CAP SCREW M8-1.25 X 30
Price
N/A
198
OIL SIGHT GLASS M20-1.5 V2.04.13
Price
N/A
199
FLAT WASHER 12MM
Price
N/A
201
CAP SCREW M6-1 X 12
Price
N/A
202
FLAT WASHER 6MM
Price
N/A
203
GEAR 40T
Price
N/A
204
KEY 5 X 5 X 30
Price
N/A
205
CAP SCREW M6-1 X 12
Price
N/A
206
COMBO GEAR FLAT WASHER 6MM
Price
N/A
207
COMBO GEAR 86T/91T
Price
N/A
208
BALL BEARING 6202ZZ
Price
N/A
209
BUSHING 42 X 25 X 17MM
Price
N/A
210
PIVOT ARM
Price
N/A
211
SHAFT
Price
N/A
212
GEAR 40T
Price
N/A
213
KEY 5 X 5 X 30
Price
N/A
214
EXT RETAINING RING 35MM
Price
N/A

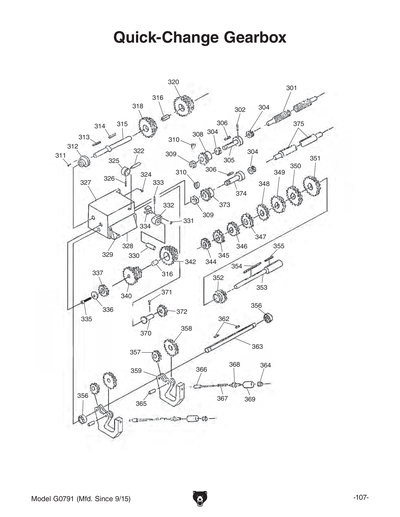

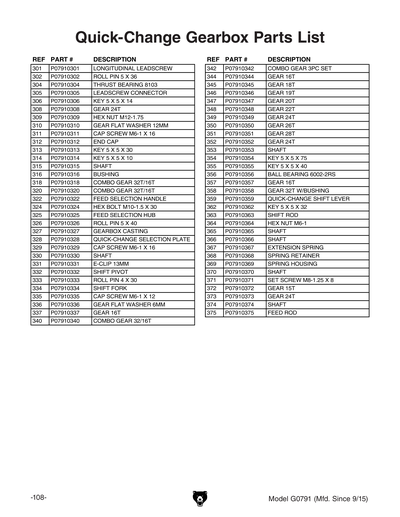

301
LONGITUDINAL LEADSCREW
Price
N/A
302
ROLL PIN 5 X 36
Price
N/A
304
THRUST BEARING 8103
Price
N/A
305
LEADSCREW CONNECTOR
Price
N/A
306
KEY 5 X 5 X 14
Price
N/A
308
GEAR 24T
Price
N/A
309
HEX NUT M12-1.75
Price
N/A
310
GEAR FLAT WASHER 12MM
Price
N/A
311
CAP SCREW M6-1 X 16
Price
N/A
312
END CAP
Price
N/A
313
KEY 5 X 5 X 30
Price
N/A
314
KEY 5 X 5 X 10
Price
N/A
315
SHAFT
Price
N/A
316
BUSHING
Price
N/A
318
COMBO GEAR 32/16T W/KEYWAY
Price
N/A
320
COMBO GEAR 32/16T
Price
N/A
322
FEED SELECTION HANDLE
Price
N/A
324
HEX BOLT M10-1.5 X 30
Price
N/A
325
FEED SELECTION HUB
Price
N/A
326
ROLL PIN 5 X 40
Price
N/A
327
GEARBOX CASTING
Price
N/A
328
QUICK-CHANGE SELECTION PLATE
Price
N/A
329
CAP SCREW M6-1 X 16
Price
N/A
330
SHAFT
Price
N/A
331
E-CLIP 13MM
Price
N/A
332
SHIFT PIVOT
Price
N/A
333
ROLL PIN 4 X 30
Price
N/A
334
SHIFT FORK
Price
N/A
335
CAP SCREW M6-1 X 12
Price
N/A
336
FENDER WASHER 6MM
Price
N/A
337
GEAR 16T
Price
N/A
340
COMBO GEAR 32/16T
Price
N/A
342
DUPLEX GEAR 32T/16T
Price
N/A
344
GEAR 16T
Price
N/A
345
GEAR 18T
Price
N/A
346
GEAR 19T
Price
N/A
347
GEAR 20T
Price
N/A
348
GEAR 22T
Price
N/A
349
GEAR 24T
Price
N/A
350
GEAR 26T
Price
N/A
351
GEAR 28T
Price
N/A
352
GEAR 24T
Price
N/A
353
SHAFT
Price
N/A
354
KEY 5 X 5 X 75
Price
N/A
355
KEY 5 X 5 X 40
Price
N/A
356
BALL BEARING 6002-2RS
Price
N/A
357
GEAR 16T
Price
N/A
358
GEAR 32T W/BUSHING
Price
N/A
359
QUICK-CHANGE SHIFT LEVER
Price
N/A
362
KEY 5 X 5 X 32
Price
N/A
363
SHIFT ROD
Price
N/A
364
HEX NUT M6-1
Price
N/A
365
SHAFT
Price
N/A
366
SHAFT
Price
N/A
367
EXTENSION SPRING
Price
N/A
368
SPRING RETAINER
Price
N/A
369
SPRING HOUSING
Price
N/A
370
SHAFT
Price
N/A
371
SET SCREW M8-1.25 X 8
Price
N/A
372
GEAR 15T
Price
N/A
373
GEAR 24T
Price
N/A
374
SHAFT
Price
N/A
375
***USE P4003323***
Price
N/A

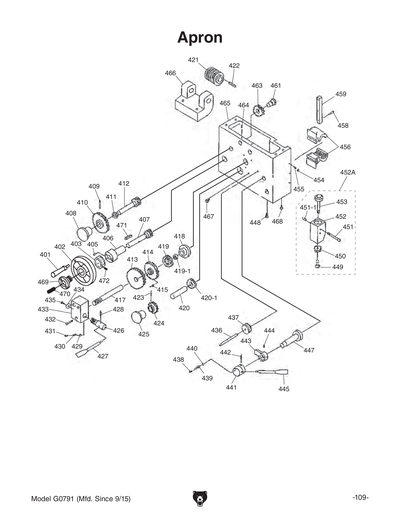

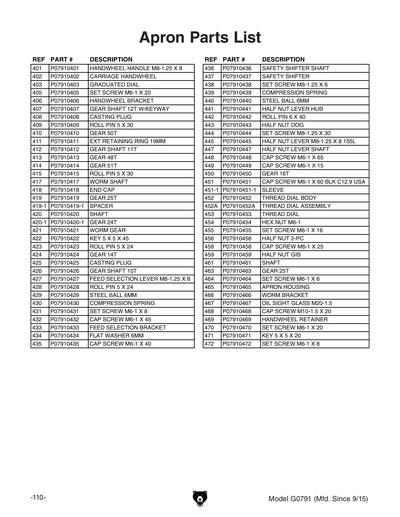

401
HANDWHEEL HANDLE M8-1.25 X 8 V2.04.12
Price
N/A
402
CARRIAGE HANDWHEEL V2.04.12
Price
N/A
403
GRADUATED DIAL V2.04.12
Price
N/A
405
SET SCREW M6-1 X 20
Price
N/A
406
HANDWHEEL BRACKET
Price
N/A
407
GEAR SHAFT 12T W/KEYWAY V2.04.12
Price
N/A
408
CASTING PLUG
Price
N/A
409
ROLL PIN 5 X 30
Price
N/A
410
GEAR 50T
Price
N/A
411
EXT RETAINING RING 19MM
Price
N/A
412
GEAR SHAFT 11T
Price
N/A
413
GEAR 48T
Price
N/A
414
GEAR 51T
Price
N/A
415
ROLL PIN 5 X 30
Price
N/A
417
WORM SHAFT
Price
N/A
418
END CAP
Price
N/A
419
GEAR 25T
Price
N/A
419-1
SPACER
Price
N/A
420
SHAFT
Price
N/A
420-1
GEAR 24T
Price
N/A
421
WORM GEAR
Price
N/A
422
KEY 5 X 5 X 45
Price
N/A
423
ROLL PIN 5 X 24
Price
N/A
424
GEAR 14T
Price
N/A
425
CASTING PLUG
Price
N/A
426
GEAR SHAFT 10T
Price
N/A
427
FEED SELECTION LEVER M8-1.25 X 8
Price
N/A
428
ROLL PIN 5 X 24
Price
N/A
429
STEEL BALL 6MM
Price
N/A
430
COMPRESSION SPRING
Price
N/A
431
SET SCREW M6-1 X 8
Price
N/A
432
CAP SCREW M6-1 X 45
Price
N/A
433
FEED SELECTION BRACKET
Price
N/A
434
FLAT WASHER 6MM
Price
N/A
435
CAP SCREW M6-1 X 40
Price
N/A
436
SHAFT
Price
N/A
437
***USE P4002437***
Price
N/A
438
SET SCREW M8-1.25 X 6
Price
N/A
439
COMPRESSION SPRING
Price
N/A
440
STEEL BALL 6MM
Price
N/A
441
HALF NUT LEVER HUB
Price
N/A
442
ROLL PIN 6 X 40
Price
N/A
443
HALF NUT DOG
Price
N/A
444
SET SCREW M8-1.25 X 30
Price
N/A
445
HALF NUT LEVER M8-1.25 X 8 155L
Price
N/A
447
SHAFT
Price
N/A
448
CAP SCREW M6-1 X 65
Price
N/A
449
CAP SCREW M6-1 X 15
Price
N/A
450
GEAR 16T
Price
N/A
451
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
451-1
SLEEVE
Price
N/A
452
THREAD DIAL BODY
Price
N/A
452A
THREADED DIAL ASSEMBLY
Price
N/A
453
THREAD DIAL
Price
N/A
454
HEX NUT M6-1
Price
N/A
455
SET SCREW M6-1 X 16
Price
N/A
456
HALF NUT 2-PC
Price
N/A
458
CAP SCREW M6-1 X 25
Price
N/A
459
HALF NUT GIB
Price
N/A
461
SHAFT
Price
N/A
463
GEAR 25T
Price
N/A
464
SET SCREW M6-1 X 6
Price
N/A
465
APRON HOUSING
Price
N/A
466
WORM BRACKET
Price
N/A
467
OIL SIGHT GLASS M20-1.5 V2.04.13
Price
N/A
468
CAP SCREW M10-1.5 X 20
Price
N/A
469
HANDWHEEL RETAINER
Price
N/A
470
SET SCREW M6-1 X 20
Price
N/A
471
KEY 5 X 5 X 20
Price
N/A
472
SET SCREW M6-1 X 8
Price
N/A

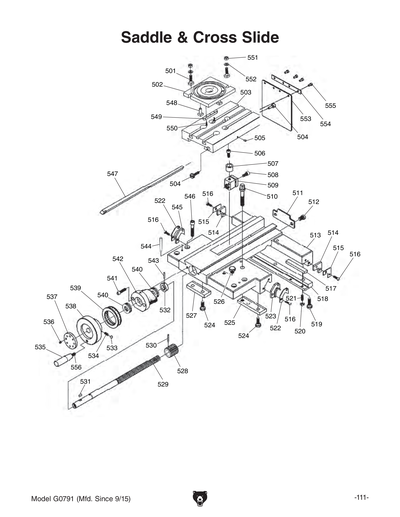

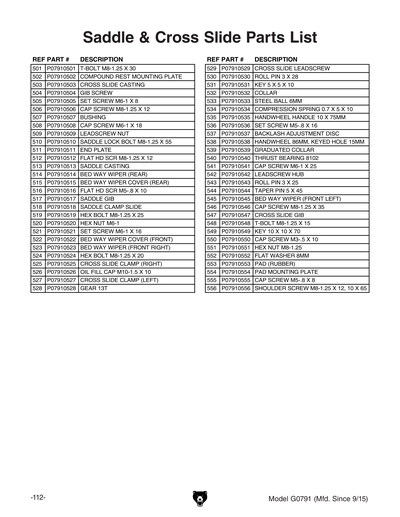

501
T-BOLT M8-1.25 X 30
Price
$5.85
502
COMPOUND REST MOUNTING PLATE
Price
$122.60
503
CROSS SLIDE CASTING
Price
$227.50
504
GIB SCREW
Price
$6.70
505
SET SCREW M6-1 X 8
Price
N/A
506
CAP SCREW M8-1.25 X 12
Price
N/A
507
BUSHING
Price
$6.90
508
CAP SCREW M6-1 X 18
Price
N/A
509
LEADSCREW NUT
Price
$53.60
510
SADDLE LOCK BOLT M8-1.25 X 55
Price
$5.10
511
END PLATE
Price
$9.00
512
FLAT HD SCR M8-1.25 X 12
Price
N/A
513
SADDLE CASTING
Price
$463.65
514
BED WAY WIPER (REAR)
Price
$6.15
515
BED WAY WIPER COVER (REAR)
Price
$6.15
516
FLAT HD SCR M5-.8 X 10
Price
N/A
517
SADDLE GIB
Price
$57.95
518
SADDLE CLAMP SLIDE
Price
$32.40
519
HEX BOLT M8-1.25 X 25
Price
N/A
520
HEX NUT M6-1
Price
N/A
521
SET SCREW M6-1 X 16
Price
N/A
522
BED WAY WIPER COVER (FRONT)
Price
$6.15
523
BED WAY WIPER (FRONT RIGHT)
Price
$6.15
524
HEX BOLT M8-1.25 X 20
Price
N/A
525
CROSS SLIDE CLAMP (RIGHT)
Price
$14.30
526
OIL FILL CAP M10-1.5 X 10
Price
$1.90
527
CROSS SLIDE CLAMP (LEFT)
Price
$13.70
528
GEAR 13T
Price
$17.65
529
CROSS SLIDE LEADSCREW
Price
N/A
530
ROLL PIN 3 X 28
Price
N/A
531
KEY 5 X 5 X 10
Price
N/A
532
COLLAR
Price
$9.00
533
STEEL BALL 6MM
Price
N/A
534
COMPRESSION SPRING 0.7 X 5 X 10
Price
N/A
535
HANDWHEEL HANDLE 10 X 75MM
Price
$6.45
536
SET SCREW M5-.8 X 16
Price
N/A
537
BACKLASH ADJUSTMENT NUT
Price
N/A
538
HANDWHEEL 86MM, KEYED HOLE 15MM
Price
$29.15
539
GRADUATED COLLAR
Price
$34.90
540
THRUST BEARING 8102
Price
N/A
541
CAP SCREW M6-1 X 25
Price
N/A
542
LEADSCREW HUB
Price
$29.15
543
ROLL PIN 3 X 25
Price
N/A
544
TAPER PIN 5 X 45
Price
$1.90
545
BED WAY WIPER (FRONT LEFT)
Price
$6.15
546
CAP SCREW M8-1.25 X 35
Price
N/A
547
CROSS SLIDE GIB
Price
$58.25
548
T-BOLT M8-1.25 X 15
Price
$6.15
549
KEY 10 X 10 X 70
Price
$2.60
550
CAP SCREW M3-.5 X 10
Price
N/A
551
HEX NUT M8-1.25
Price
N/A
552
FLAT WASHER 8MM
Price
N/A
553
PAD (RUBBER)
Price
$22.35
554
PAD MOUNTING PLATE
Price
$13.70
555
CAP SCREW M5-.8 X 8
Price
N/A
556
SHOULDER SCREW M8-1.25 X 12, 10 X 65
Price
N/A

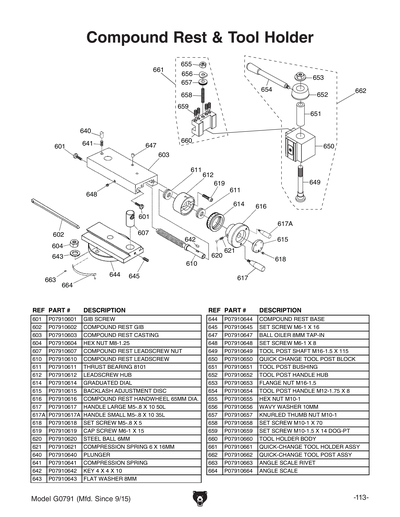

601
GIB SCREW
Price
N/A
602
COMPOUND REST GIB
Price
$39.40
603
COMPOUND REST CASTING
Price
$150.95
604
HEX NUT M8-1.25
Price
N/A
607
COMPOUND REST LEADSCREW NUT
Price
N/A
610
COMPOUND REST LEADSCREW
Price
N/A
611
THRUST BEARING 8101
Price
N/A
612
LEADSCREW HUB
Price
$21.25
614
GRADUATED DIAL
Price
N/A
615
BACKLASH ADJUSTMENT NUT
Price
N/A
616
COMPOUND REST HANDWHEEL
Price
N/A
617
HANDLE LARGE M5-.8 X 10 50L
Price
N/A
617A
HANDLE SMALL M5-.8 X 10 35L
Price
N/A
618
SET SCREW M5-.8 X 5
Price
N/A
619
CAP SCREW M6-1 X 15
Price
N/A
620
STEEL BALL 6MM
Price
N/A
621
COMPRESSION SPRING 6 X 16MM
Price
N/A
640
PLUNGER
Price
N/A
641
COMPRESSION SPRING
Price
N/A
642
KEY 4 X 4 X 10
Price
N/A
643
FLAT WASHER 8MM
Price
N/A
644
COMPOUND REST BASE
Price
$144.90
645
SET SCREW M6-1 X 16
Price
N/A
646
HEX NUT M6-1
Price
N/A
647
BALL OILER 8MM PRESS-IN
Price
N/A
648
SET SCREW M6-1 X 8
Price
N/A
649
TOOL POST SHAFT M16-1.5 X 115
Price
$22.35
650
QUICK CHANGE TOOL POST BLOCK
Price
N/A
651
TOOL POST BUSHING
Price
N/A
652
TOOL POST HANDLE HUB
Price
N/A
653
FLANGE NUT M16-1.5
Price
N/A
654
TOOL POST HANDLE M12-1.75 X 8
Price
N/A
655
HEX NUT M10-1
Price
N/A
656
WAVY WASHER 10MM
Price
N/A
657
KNURLED THUMB NUT M10-1
Price
N/A
658
SET SCREW M10-1 X 70
Price
$6.90
659
SET SCREW M10-1.5 X 14 DOG-PT
Price
N/A
660
TOOL HOLDER BODY
Price
N/A
661
QUICK-CHANGE TOOL HOLDER ASSY
Price
N/A
662
QUICK-CHANGE TOOL POST ASSY
Price
N/A
663
ANGLE SCALE RIVET
Price
$1.90
664
ANGLE SCALE
Price
$4.50

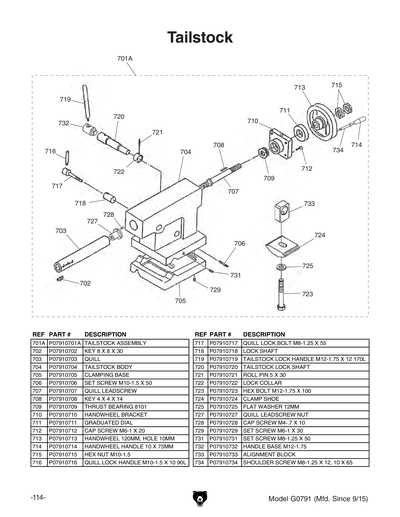

701A
TAILSTOCK ASSEMBLY
Price
N/A
702
KEY 8 X 8 X 30
Price
N/A
703
QUILL 40MM
Price
N/A
704
TAILSTOCK BODY
Price
N/A
705
CLAMPING BASE
Price
N/A
706
SET SCREW M10-1.5 X 50
Price
N/A
707
QUILL LEADSCREW
Price
N/A
708
KEY 4 X 4 X 14
Price
N/A
709
THRUST BEARING 8101
Price
N/A
710
HANDWHEEL BRACKET
Price
N/A
711
GRADUATED DIAL
Price
N/A
712
CAP SCREW M6-1 X 20
Price
N/A
713
HANDWHEEL 120MM, HOLE 10MM
Price
$46.85
714
HANDWHEEL HANDLE 10 X 75MM
Price
N/A
715
HEX NUT M10-1.5
Price
N/A
716
QUILL LOCK HANDLE M10-1.5 X 10 90L
Price
$6.50
717
QUILL LOCK BOLT
Price
N/A
718
LOCK SHAFT
Price
N/A
719
TAILSTOCK LOCK HANDLE M12-1.75 X 12 170L
Price
$9.00
720
TAILSTOCK LOCK SHAFT
Price
N/A
721
ROLL PIN 5 X 30
Price
N/A
722
LOCK COLLAR
Price
N/A
723
HEX BOLT M12-1.75 X 100
Price
N/A
724
CLAMP SHOE
Price
N/A
725
FLAT WASHER 12MM
Price
N/A
727
QUILL LEADSCREW NUT
Price
N/A
728
CAP SCREW M4-.7 X 10
Price
N/A
729
SET SCREW M6-1 X 30
Price
N/A
731
SET SCREW M8-1.25 X 50
Price
N/A
732
HANDLE BASE
Price
N/A
733
ALIGNMENT BLOCK
Price
N/A
734
SHOULDER SCREW M8-1.25 X 12, 10 X 65
Price
N/A

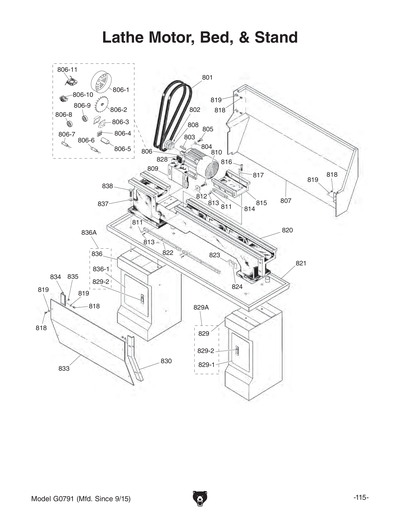

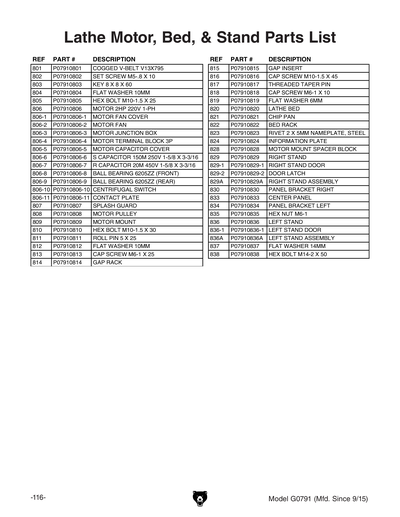

801
COGGED V-BELT V13X795 185 P10 3606
Price
N/A
802
SET SCREW M5-.8 X 10
Price
N/A
803
KEY 8 X 8 X 60
Price
N/A
804
FLAT WASHER 10MM
Price
N/A
805
HEX BOLT M10-1.5 X 25
Price
N/A
806
MOTOR 2HP 220V 1-PH
Price
N/A
806-1
MOTOR FAN COVER
Price
N/A
806-10
CENT SWITCH
Price
N/A
806-11
CONTACT PLATE
Price
N/A
806-2
MOTOR FAN
Price
N/A
806-3
MOTOR JUNCTION BOX
Price
N/A
806-4
MOTOR TERMINAL BLOCK
Price
N/A
806-5
MOTOR CAPACITOR COVER
Price
N/A
806-6
S CAPACITOR 150M 250V 1-5/8 X 3-3/16
Price
N/A
806-7
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
806-8
BALL BEARING 6205ZZ
Price
N/A
806-9
BALL BEARING 6205ZZ
Price
N/A
807
SPLASH GUARD
Price
$343.20
808
MOTOR PULLEY
Price
$66.50
809
MOTOR MOUNT
Price
N/A
810
HEX BOLT M10-1.5 X 30
Price
N/A
811
ROLL PIN 5 X 25
Price
N/A
812
FLAT WASHER 10MM
Price
N/A
813
CAP SCREW M6-1 X 25
Price
N/A
814
GAP RACK
Price
N/A
815
GAP INSERT
Price
N/A
816
CAP SCREW M10-1.5 X 45
Price
N/A
817
THREADED TAPER PIN
Price
N/A
818
CAP SCREW M6-1 X 10
Price
N/A
819
FLAT WASHER 6MM
Price
N/A
820
LATHE BED V2.04.20
Price
N/A
820V2
LATHE BED V2.04.20
Price
N/A
821
CHIP PAN
Price
N/A
822
RACK 16-1/2" LONG 1PC
Price
N/A
823
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
824
INFORMATION PLATE
Price
$6.50
828
*DISCD*MOTOR MOUNT SPACER BLOCK
Price
N/A
829
RIGHT STAND
Price
N/A
829-1
RIGHT STAND DOOR
Price
N/A
829-2
DOOR LATCH
Price
N/A
829A
COMPLETE RIGHT STAND ASSY BOX 2
Price
N/A
830
PANEL BRACKET RIGHT
Price
$66.90
833
CENTER PANEL
Price
N/A
834
PANEL BRACKET LEFT
Price
$66.90
835
HEX NUT M6-1
Price
N/A
836
LEFT STAND
Price
N/A
836-1
LEFT STAND DOOR
Price
N/A
836A
COMPLETE LEFT STAND ASSY BOX 3
Price
N/A
837
FLAT WASHER 14MM
Price
N/A
838
HEX BOLT M14-2 X 50
Price
N/A

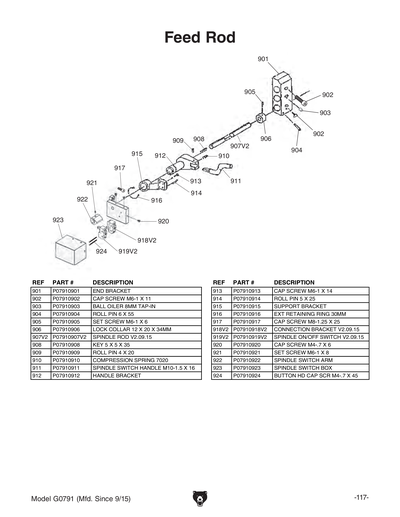

901
END BRACKET
Price
N/A
902
CAP SCREW M6-1 X 11
Price
N/A
903
BALL OILER 8MM PRESS-IN
Price
N/A
904
ROLL PIN 6 X 55
Price
N/A
905
SET SCREW M6-1 X 6
Price
N/A
906
LOCK COLLAR 12 X 20 X 34MM
Price
N/A
907
SPINDLE ROD V1
Price
N/A
907V2
SPINDLE ROD V2.09.15
Price
$90.60
908
KEY 5 X 5 X 35
Price
N/A
909
ROLL PIN 4 X 20
Price
N/A
910
COMPRESSION SPRING 7020
Price
N/A
911
SPINDLE SWITCH HANDLE M10-1.5 X 16
Price
N/A
912
HANDLE BRACKET
Price
N/A
913
CAP SCREW M6-1 X 14
Price
N/A
914
ROLL PIN 5 X 25
Price
N/A
915
SUPPORT BRACKET
Price
N/A
916
EXT RETAINING RING 30MM
Price
N/A
917
CAP SCREW M8-1.25 X 25
Price
N/A
918
*DISCD*CONNECTION BRACKET V1
Price
N/A
918V2
CONNECTION BRACKET V2.12.14
Price
N/A
919
SPINDLE ROTARY SWITCH 10A V1
Price
N/A
919V2
SPINDLE ON/OFF SWITCH
Price
N/A
920
CAP SCREW M4-.7 X 6
Price
N/A
921
SET SCREW M6-1 X 8
Price
N/A
922
SPINDLE SWITCH ARM
Price
N/A
923
SPINDLE SWITCH BOX
Price
$14.40
924
BUTTON HD CAP SCR M4-.7 X 45
Price
N/A

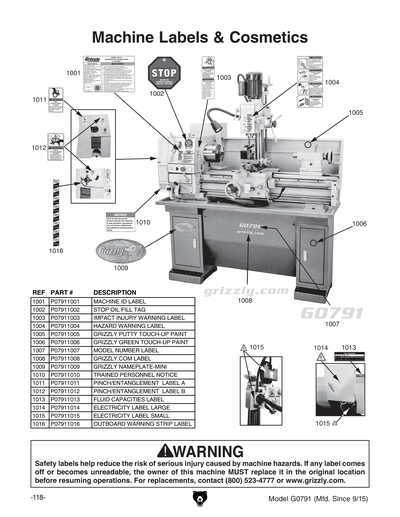

1001
MACHINE ID LABEL
Price
$16.40
1002
STOP OIL FILL TAG 4W X 4H
Price
N/A
1003
IMPACT INJURY WARNING LABEL
Price
$5.65
1004
HAZARD WARNING LABEL
Price
$5.65
1005
GREY PUTTY REF G0504
Price
N/A
1006
N/S GRIZZLY GREEN G1023S
Price
N/A
1007
MODEL NUMBER LABEL
Price
$7.85
1008
GRIZZLY.COM LABEL 11",BEIGE
Price
N/A
1009
Nameplate - Small
Price
N/A
1010
TRAINED PERSONNEL NOTICE
Price
$8.35
1011
PINCH/ENTANGLEMENT LABEL A
Price
$5.65
1012
PINCH/ENTANGLEMENT LABEL B
Price
$5.65
1013
FLUID CAPACITIES LABEL
Price
$5.65
1014
ELECTRICITY 1.4W X 1.2H
Price
N/A
1015
ELECTRICITY 0.7W X 0.6H
Price
N/A
1016
OUTBOARD WARNING STRIP LABEL
Price
$11.90
1100
CAP SCREW M12-1.75 X 30
Price
N/A
1101
PHLP HD SCR M3-.5 X 6
Price
N/A
1102
HEADSTOCK CONTROL PLATE 2-PC ASSY
Price
N/A
1103
SET SCREW M6-1 X 12
Price
N/A
1104
SPINDLE SPEED HANDLE M8-1.25 X 40
Price
N/A
1106
SPINDLE SPEED HANDLE HUB
Price
N/A
1107
ARROW PLATE 46MM
Price
N/A
1108
STEEL BALL 6MM
Price
N/A
1109
COMPRESSION SPRING 1.2 X 4.8 X 27
Price
N/A
1110
SET SCREW M8-1.25 X 8
Price
N/A
1111
ROLL PIN 5 X 40
Price
N/A
1112
FEED DIRECTION HANDLE M10-1.5 X 10
Price
N/A
1113
ARROW PLATE 46MM
Price
N/A
1114
COMPRESSION SPRING 1 X 5 X 16
Price
N/A
1115
FEED DIRECTION HANDLE HUB
Price
N/A
1116
HEADSTOCK OIL DRAIN PLUG 3/8" NPT
Price
N/A
1117
SET SCREW M6-1 X 10
Price
N/A
1118
SET SCREW M6-1 X 6
Price
N/A
1119
END GEAR COVER
Price
N/A
1119-1
SPIDER SAFETY COVER
Price
N/A
1119-2
SPIDER COVER KNOB BOLT M16-2.0
Price
N/A
1119-4
STUD-FT M10-1.5 X 35 W/NUTS
Price
N/A
1119-5
END GEAR COVER TOP BOLT M10-1.5 X 78
Price
N/A
1119-6
STUD-DE M10-1.5 X 122 30RH
Price
N/A
1120
KNURLED KNOB M10-1.5
Price
N/A
1123
E-CLIP 15MM
Price
N/A
1124
HEX NUT M10-1.5
Price
N/A

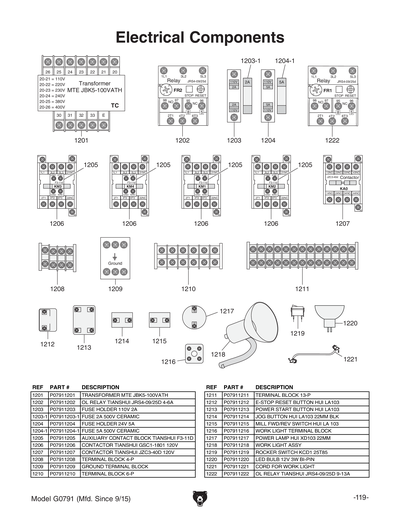

1200
ELECTRICAL CONTROL BOX
Price
$120.45
1201
TRANSFORMER JBK5 100VA 110/400V-24/110V
Price
N/A
1202
OL RELAY TIANSHUI JRS4-09/25D 4-6A
Price
$106.95
1203
FUSE HOLDER 2A
Price
N/A
1203-1
FUSE 2A 500V CERAMIC
Price
$1.90
1204
FUSE HOLDER 24V 5A
Price
$27.35
1204-1
FUSE 5A 500V CERAMIC
Price
$4.65
1205
AUXILIARY CONTACT BLOCK TIANSHUI F3-11D
Price
$71.60
1206
CONTACTOR TIANSHUI GSC1-1801 120V
Price
$102.85
1207
CONTACTOR TIANSHUI JZC3-40D 120V
Price
$58.25
1208
TERMINAL BLOCK 4-P
Price
$22.35
1209
GROUND TERMINAL BLOCK
Price
$12.25
1210
TERMINAL BLOCK 6-P
Price
$22.35
1211
TERMINAL BLOCK 13-P
Price
$40.25
1212
E-STOP RESET BUTTON HUI LA103
Price
$42.45
1213
POWER START BUTTON SS LA103
Price
N/A
1214
JOG BUTTON HUI LA103 22MM BLK
Price
N/A
1215
MILL FWD/REV SWITCH HUI LA 103
Price
$40.25
1216
*DISCD*WORK LIGHT TERMINAL BLOCK
Item is no longer available
Price
N/A
1217
POWER INDICATOR LIGHT HUI XD103 22MM GRN
Price
N/A
1218
WORK LIGHT ASSY
Price
$102.50
1219
ROCKER SWITCH KCD1 25T85
Price
$13.70
1220
LED BULB 12V 3W BI-PIN
Price
$13.70
1221
CORD FOR WORK LIGHT
Price
$12.25
1222
OL RELAY TIANSHUI JRS4-09 25D 9-13A
Price
N/A
1301

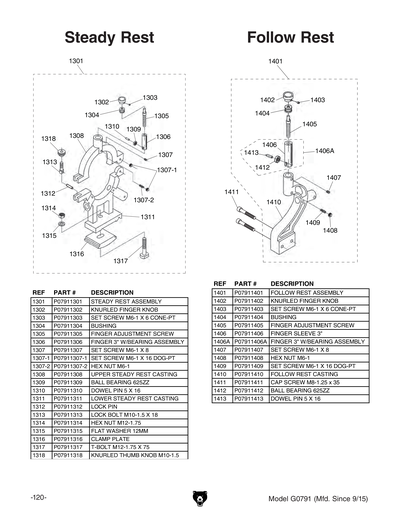

STEADY REST ASSEMBLY
Price
N/A
1302
KNURLED FINGER KNOB
Price
N/A
1303
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
1304
BUSHING
Price
N/A
1305
FINGER ADJUSTMENT SCREW
Price
N/A
1306
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1307
SET SCREW M6-1 X 8
Price
N/A
1307-1
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1307-2
HEX NUT M6-1
Price
N/A
1308
UPPER STEADY REST CASTING
Price
N/A
1309
Bearing - 16mm x 5mm
Price
N/A
1310
DOWEL PIN 5 X 16
Price
N/A
1311
LOWER STEADY REST CASTING
Price
N/A
1312
LOCK PIN
Price
N/A
1313
LOCK BOLT M10-1.5 X 18
Price
N/A
1314
HEX NUT M12-1.75
Price
N/A
1315
FLAT WASHER 12MM
Price
N/A
1316
CLAMP PLATE
Price
N/A
1317
T-BOLT M12-1.75 X 75
Price
$4.70
1318
KNURLED THUMB KNOB M10-1.5
Price
N/A
1401
FOLLOW REST ASSEMBLY
Price
N/A
1402
KNURLED FINGER KNOB
Price
N/A
1403
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
1404
BUSHING
Price
N/A
1405
FINGER ADJUSTMENT SCREW
Price
N/A
1406
FINGER SLEEVE 3"
Price
$18.40
1406A
FINGER 3" W/BEARING ASSEMBLY
Price
$21.60
1407
SET SCREW M6-1 X 8
Price
N/A
1408
HEX NUT M6-1
Price
N/A
1409
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1410
FOLLOW REST CASTING
Price
N/A
1411
CAP SCREW M8-1.25 X 35
Price
N/A
1412
Bearing - 16mm x 5mm
Price
N/A
1413
DOWEL PIN 5 X 16
Price
N/A

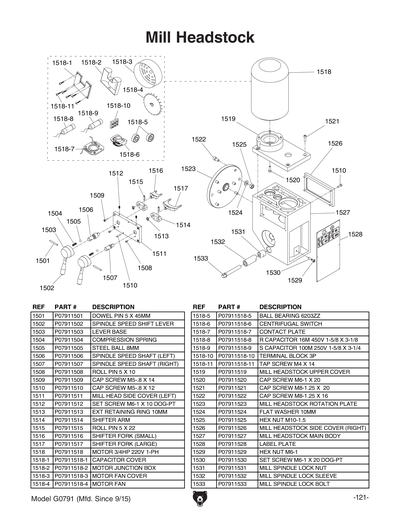

1501
DOWEL PIN 5 X 45MM
Price
$1.90
1502
SPINDLE SPEED SHIFT LEVER
Price
$18.00
1503
LEVER BASE
Price
$27.00
1504
COMPRESSION SPRING
Price
$1.90
1505
STEEL BALL 8MM
Price
N/A
1506
SPINDLE SPEED SHAFT (LEFT)
Price
$13.70
1507
SPINDLE SPEED SHAFT (RIGHT)
Price
$13.70
1508
ROLL PIN 5 X 10
Price
N/A
1509
CAP SCREW M5-.8 X 14
Price
N/A
1510
CAP SCREW M5-.8 X 12
Price
N/A
1511
MILL HEAD SIDE COVER (LEFT)
Price
$31.35
1512
SET SCREW M6-1 X 10 DOG-PT
Price
N/A
1513
EXT RETAINING RING 10MM
Price
N/A
1514
SHIFTER ARM
Price
$13.70
1515
ROLL PIN 5 X 22
Price
N/A
1516
SHIFTER FORK (SMALL)
Price
$9.00
1517
SHIFTER FORK (LARGE)
Price
$11.20
1518
MOTOR 3/4HP 220V 1-PH
Price
$579.35
1518-1
CAPACITOR COVER
Price
$9.00
1518-10
TERMINAL BLOCK 3P
Price
$22.35
1518-11
TAP SCREW M4 X 14
Price
N/A
1518-2
MOTOR JUNCTION BOX
Price
$22.35
1518-3
MOTOR FAN COVER
Price
$27.00
1518-4
MOTOR FAN
Price
$27.00
1518-5
BALL BEARING 6203ZZ
Price
N/A
1518-6
CENTRIFUGAL SWITCH
Price
$9.00
1518-7
CONTACT PLATE
Price
$40.25
1518-8
R CAPACITOR 16M 450V 1-5/8 X 3-1/8
Price
$30.60
1518-9
S CAPACITOR 100M 250V 1-5/8 X 3-1/4
Price
$30.60
1519
MILL HEADSTOCK UPPER COVER
Price
$66.90
1520
CAP SCREW M6-1 X 20
Price
N/A
1521
CAP SCREW M8-1.25 X 20
Price
N/A
1522
CAP SCREW M8-1.25 X 16
Price
N/A
1523
MILL HEADSTOCK ROTATION PLATE
Price
$75.90
1524
FLAT WASHER 10MM
Price
N/A
1525
HEX NUT M10-1.5
Price
N/A
1526
MILL HEADSTOCK SIDE COVER (RIGHT)
Price
$22.35
1527
MILL HEADSTOCK MAIN BODY
Price
$401.10
1528
LABEL PLATE
Price
$27.20
1529
HEX NUT M6-1
Price
N/A
1530
SET SCREW M6-1 X 20 DOG-PT
Price
N/A
1531
MILL SPINDLE LOCK NUT
Price
$4.70
1532
MILL SPINDLE LOCK SLEEVE
Price
$6.90
1533
MILL SPINDLE LOCK BOLT
Price
$6.90
1534
SNAP RING 40MM
Price
$2.25
1535
BALL BEARING 6203-OPEN
Price
N/A
1536
INT RETAINING RING 40MM
Price
N/A
1537
KEY 5 X 5 X 14
Price
N/A
1538
DRIVE SHAFT
Price
$60.40
1539
KEY 5 X 5 X 50
Price
N/A
1540
BALL BEARING 6201-OPEN
Price
N/A
1541
EXT RETAINING RING 17MM
Price
N/A
1542
COMBO GEAR 23T/47T
Price
$53.60

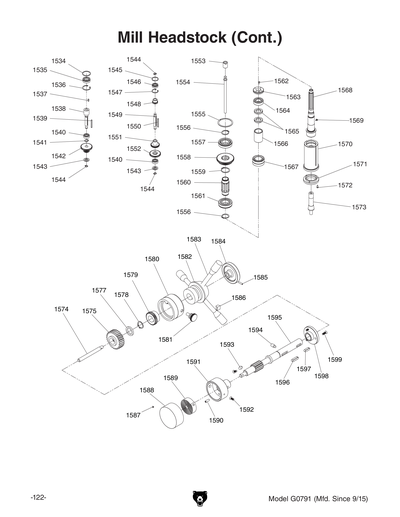

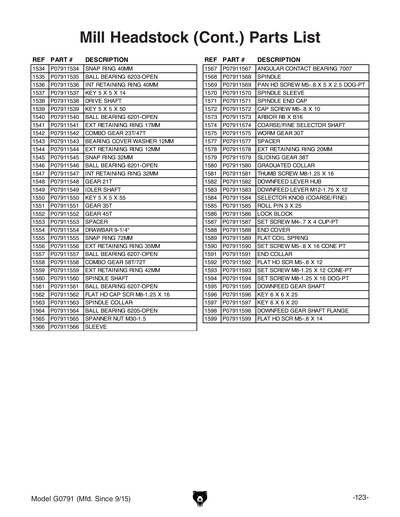

1543
FLAT WASHER 12MM
Price
N/A
1544
EXT RETAINING RING 12MM
Price
N/A
1545
SNAP RING 32MM
Price
$1.90
1546
BALL BEARING 6201-OPEN
Price
N/A
1547
INT RETAINING RING 32MM
Price
N/A
1548
GEAR 21T
Price
$27.00
1549
IDLER SHAFT
Price
$27.00
1550
KEY 5 X 5 X 55
Price
$1.90
1551
GEAR 35T
Price
$31.35
1552
GEAR 45T
Price
$33.45
1553
SPACER
Price
$6.90
1554
DRAWBAR 9-1/4"
Price
$22.35
1555
SNAP RING 72MM
Price
$1.90
1556
EXT RETAINING RING 35MM
Price
N/A
1557
BALL BEARING 6207-OPEN
Price
N/A
1558
COMBO GEAR 58T/72T
Price
$84.85
1559
EXT RETAINING RING 42MM
Price
N/A
1560
SPINDLE SHAFT
Price
$66.90
1561
BALL BEARING 6207-OPEN
Price
N/A
1562
FLAT HD CAP SCR M8-1.25 X 16
Price
N/A
1563
SPINDLE COLLAR
Price
$15.85
1564
BALL BEARING 6205-OPEN
Price
N/A
1565
SPANNER NUT M30-1.5
Price
$4.70
1566
SLEEVE
Price
$9.00
1567
ANGULAR CONTACT BEARING 7007
Price
$34.50
1568
SPINDLE
Price
$267.40
1569
PAN HD SCREW M5-.8 X 5 X 2.5 DOG-PT
Price
$1.90
1570
SPINDLE SLEEVE
Price
$173.95
1571
SPINDLE END CAP
Price
$13.70
1572
CAP SCREW M5-.8 X 10
Price
N/A
1573
ARBOR R8 X B16
Price
$52.50
1574
COARSE/FINE SELECTOR SHAFT
Price
$6.90
1575
WORM GEAR 30T
Price
$58.25
1577
SPACER
Price
$3.65
1578
EXT RETAINING RING 20MM
Price
N/A
1579
SLIDING GEAR 38T
Price
$27.00
1580
GRADUATED COLLAR
Price
$22.35
1580-1
GRADUATED COLLAR SCALE
Price
$2.90
1581
THUMB SCREW M8-1.25 X 16
Price
$3.65
1582
DOWNFEED LEVER HUB
Price
$35.95
1583
DOWNFEED LEVER M12-1.75 X 12
Price
$14.30
1584
SELECTOR KNOB (COARSE/FINE)
Price
$22.35
1585
ROLL PIN 3 X 25
Price
N/A
1586
LOCK BLOCK
Price
$4.70
1587
SET SCREW M4-.7 X 4 CUP-PT
Price
N/A
1588
END COVER
Price
$18.00
1589
FLAT COIL SPRING W/END COLLAR
Price
N/A
1589A
FLAT COIL SPRING W/END COLLAR
Price
$31.35
1590
SET SCREW M5-.8 X 16 CONE-PT
Price
N/A
1591
FLAT COIL SPRING W/END COLLAR
Price
N/A
1592
FLAT HD SCR M5-.8 X 12
Price
N/A
1593
SET SCREW M8-1.25 X 12 CONE-PT
Price
N/A
1594
SET SCREW M8-1.25 X 16 DOG-PT
Price
N/A
1595
DOWNFEED GEAR SHAFT
Price
$31.35
1596
KEY 6 X 6 X 25
Price
N/A
1597
KEY 6 X 6 X 20
Price
N/A
1598
DOWNFEED GEAR SHAFT FLANGE
Price
$22.35
1599
FLAT HD SCR M5-.8 X 14
Price
N/A

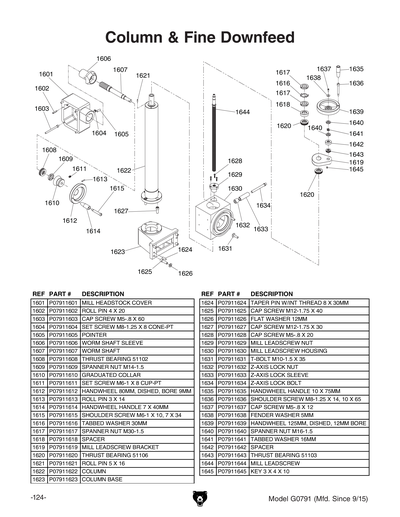

1601
MILL HEADSTOCK COVER
Price
$66.90
1602
ROLL PIN 4 X 20
Price
N/A
1603
CAP SCREW M5-.8 X 60
Price
$1.90
1604
SET SCREW M8-1.25 X 8 CONE-PT
Price
N/A
1605
POINTER
Price
$1.90
1606
WORM SHAFT SLEEVE
Price
$13.70
1607
WORM SHAFT
Price
$27.00
1608
THRUST BEARING 51102
Price
N/A
1609
SPANNER NUT M14-1.5
Price
$4.70
1610
GRADUATED COLLAR
Price
$18.00
1611
SET SCREW M6-1 X 8 CUP-PT
Price
$1.90
1612
HANDWHEEL 80MM, DISHED, BORE 9MM
Price
$18.00
1613
ROLL PIN 3 X 14
Price
N/A
1614
HANDWHEEL HANDLE 7 X 40MM
Price
$8.95
1615
SHOULDER SCREW M6-1 X 10, 7 X 34
Price
$8.95
1616
EXT TOOTH WASHER 30MM
Price
$1.90
1617
SPANNER NUT M30-1.5
Price
$4.70
1618
SPACER
Price
$5.45
1619
MILL LEADSCREW BRACKET
Price
$22.35
1620
THRUST BEARING 51106
Price
N/A
1621
ROLL PIN 5 X 16
Price
N/A
1622
COLUMN
Price
$432.40
1623
COLUMN BASE
Price
$200.60
1624
TAPER PIN W/INT THREAD 8 X 30MM
Price
$1.90
1625
CAP SCREW M12-1.75 X 40
Price
N/A
1626
FLAT WASHER 12MM
Price
N/A
1627
CAP SCREW M12-1.75 X 30
Price
N/A
1628
CAP SCREW M5-.8 X 20
Price
N/A
1629
MILL LEADSCREW NUT
Price
$38.15
1630
MILL LEADSCREW HOUSING
Price
$334.25
1631
T-BOLT M10-1.5 X 35
Price
$4.70
1632
Z-AXIS LOCK NUT
Price
$6.15
1633
Z-AXIS LOCK SLEEVE
Price
$11.20
1634
Z-AXIS LOCK BOLT
Price
$14.40
1635
HANDWHEEL HANDLE 10 X 75MM
Price
N/A
1636
SHOULDER SCREW M8-1.25 X 14, 10 X 65
Price
$6.90
1637
CAP SCREW M5-.8 X 12
Price
N/A
1638
FENDER WASHER 5MM
Price
N/A
1639
HANDWHEEL 125MM, DISHED, 12MM BORE
Price
$29.15
1640
SPANNER NUT M16-1.5
Price
$1.90
1641
EXT TOOTH WASHER 24MM
Price
$1.90
1642
SPACER
Price
$5.45
1643
THRUST BEARING 51103
Price
N/A
1644
MILL LEADSCREW
Price
$71.35
1645
KEY 4 X 4 X 10
Price
N/A
MAN
MANUAL G0791 MFD-01.15 V1.08.15
Price
$18.00
MANV2
MANUAL G0791 MFD-09.15 V2.05.17
Price
$18.00
P
BUTTON HD CAP SCR M4-.7 X 45
Price
$2.25
