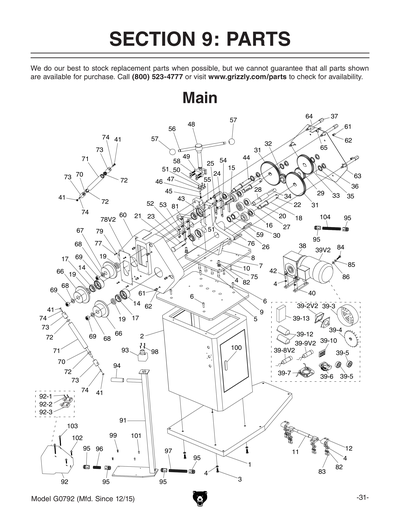

Parts for G0792 Heavy-Duty Ring Roll Pipe Bender

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE PLATE
2
STAND W/DOOR
3
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
4
Now: PW04M
FLAT WASHER 10MM
Price
N/A
5
MAIN PLATE
6
CAP SCREW M10-1.5 X 30
Price
N/A
7
PIVOT PLATE
8
GEARING PLATE
9
CAP SCREW M12-1.75 X 35
Price
N/A
10
CAP SCREW M10-1.5 X 35
Price
N/A
11
PIVOT SHAFT
12
HINGE
14
OUTER BEARING SLEEVE
15
INNER BEARING SLEEVE (LEFT)
16
INNER BEARING SLEEVE (RIGHT)
17
TAPERED ROLLER BEARING 30206
Price
N/A
18
GEAR SHAFT
19
SPACER
20
Now: PK43M
KEY 8 X 8 X 45
Price
N/A
21
SHAFT
22
Now: PK51M
KEY 8 X 8 X 18
Price
N/A
23
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
24
VERTICAL SLIDE BLOCK, LONG (REAR)
25
FLAT HD CAP SCR M6-1 X 12
Price
N/A
26
BALL BEARING 6205-2RS
Price
N/A
27
GEAR SHAFT
28
KEY 10 X 10 X 19
29
GEAR 33T
30
BUSHING
31
GEAR 68T
32
GEAR 24T
33
GEAR 55T
34
KEY 8 X 8 X 56
35
EXT TOOTH LOCK WASHER 30MM
36
SPANNER NUT M30-1.5
37
ROLLER GUIDE ADJUSTMENT SHAFT
38
GEARBOX
39
MOTOR 1.5HP 220V 1-PH V1
39-1
MOTOR JUNCTION BOX COVER
39-10
TERMINAL BLOCK 3P
39-11
TAP SCREW M3 X 12
39-12
CAPACITOR COVER
39-13
ELECTRONIC START SWITCH ESS1-40
39-2
MOTOR JUNCTION BOX V1
39-2V2
MOTOR JUNCTION BOX V2.12.15
39-3
MOTOR FAN COVER
39-4
MOTOR FAN
39-5
BALL BEARING 6205-2RS
Price
N/A
39-6
CENTRIFUGAL SWITCH
39-7
CONTACT PLATE
39-8
S CAPACITOR 150M 250V 1-5/8 X 3-1/4
Price
N/A
39-8V2
S CAPACITOR 400M 275V 2 X 4 V2.12.15
39-9
Now: PC20B
R CAPACITOR 20M 450V 1-5/8 X 3-1/4
Price
N/A
39-9V2
R CAPACITOR 40M 450V 2 X 3-3/4 V2.12.15
39V2
MOTOR 2HP 220V 1-PH V2.12.15
39V3
MOTOR 2HP 220V 1-PH V3.04.18
39V3-8V2
S CAPACITOR 100M 275V 1-5/8 X 3-3/8 V3.04.22
40
MOTOR MOUNT BLOCK
41
Now: PN03M
HEX NUT M8-1.25
Price
N/A
42
CAP SCREW M10-1.5 X 25
Price
N/A
43
ELEVATION SLIDE BLOCK
44
GEAR SHAFT
45
COMPRESSION SPRING 10.5 X 15
46
SPRING SHAFT
47
ELEVATION SPACER BLOCK (LARGE)
48
ELEVATION LEVER SHAFT
49
ELEVATION SUPPORT BLOCK
50
ELEVATION SPACER BLOCK (SMALL)
51
CAP SCREW M5-.8 X 12
Price
N/A
52
VERTICAL SLIDE BLOCK, SHORT (FRONT)
53
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
54
VERTICAL SLIDE BLOCK, SHORT (REAR)
55
SET SCREW M8-1.25 X 25 DOG-PT
Price
N/A
56
HANDLE SHAFT M16-2 X 16, 395L
57
ROUND KNOB M16-2 SS
58
Now: PB34M
HEX BOLT M10-1.5 X 60
Price
N/A
59
STAND-OFF HEX MF M8-1.25 X 14, M8-1.25
60
FRONT COVER
61
CAP SCREW M8-1.25 X 16
Price
N/A
62
Now: PW01M
FLAT WASHER 8MM
Price
N/A
63
BACK COVER
64
ANGLE BRACKET
65
CAP SCREW M6-1 X 10
Price
N/A
66
ROLLER FLAT 3-13/16" (LOWER)
67
ROLLER FLAT 3-13/16" (UPPER)
68
Now: PW13M
FLAT WASHER 20MM
Price
N/A
69
Now: PN17M
HEX NUT M20-1.5
Price
N/A
70
GUIDE ROLLER SHAFT
71
GUIDE ROLLER SLEEVE
72
BALL BEARING 6001-2RS
Price
N/A
73
GUIDE ROLLER BRACKET
74
SET SCREW M8-1.25 X 20 DOG-PT
Price
N/A
75
CAP SCREW M8-1.25 X 30
Price
N/A
76
DRIVESHAFT COVER
77
CAP SCREW M5-.8 X 10
Price
N/A
78
UPPER ROLLER PLATE V1
78V2
UPPER ROLLER PLATE W/SCALE V2.12.15
79
Now: PW02M
FLAT WASHER 5MM
Price
N/A
81
VERTICAL SLIDE BLOCK, LONG (FRONT)
82
LOCK WASHER 10MM
Price
N/A
83
CAP SCREW M10-1.5 X 30
Price
N/A
84
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
85
WAVY WASHER 4MM
86
Now: PW05M
FLAT WASHER 4MM
Price
N/A
91
PEDAL SWITCH STAND
92
PEDAL SWITCH ASSEMBLY
92-1
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
92-2
Now: PW07M
FLAT WASHER 3MM
Price
N/A
92-3
FOOT PEDAL SWITCH
93
E-STOP BUTTON ZB2-BE102
94
HANDLE GRIP 25 X 128MM
95
STRAIN RELIEF M20-1.5 TYPE-5
96
FLEXIBLE CONDUIT 7/8" X 3-1/2" (PLASTIC)
97
FLEXIBLE CONDUIT 7/8" X 63" (PLASTIC)
98
PHLP HD SCR M4-.7 X 28
99
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
100
DOOR LATCH W/KEY
101
CAP SCREW M6-1 X 16
Price
N/A
102
Now: PS61M
PHLP HD SCR M5-.8 X 26
Price
N/A
103
PHLP HD SCR M5-.8 X 95
104
FLEXIBLE CONDUIT 7/8" X 24" (PLASTIC)

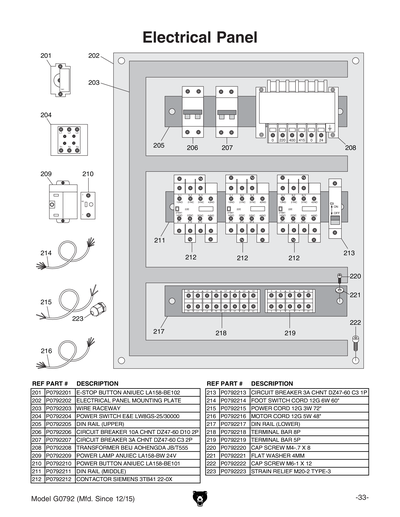

201
E-STOP BUTTON ANIUEC LA158-BE102
202
ELECTRICAL PANEL MOUNTING PLATE
203
WIRE RACEWAY
204
POWER SWITCH E&E LW8GS-25/30000
205
DIN RAIL (UPPER)
206
CIRCUIT BREAKER 10A CHNT DZ47-60 D10 2P
207
CIRCUIT BREAKER 3A CHNT DZ47-60 C3 2P
208
TRANSFORMER JBK5 63VA 220/380/415V-24V
209
POWER LAMP ANUIEC LA158-BW 24V
210
POWER BUTTON ANIUEC LA158-BE101
211
DIN RAIL (MIDDLE)
212
CONTACTOR SIEMENS 3TB41 22-0X
213
CIRCUIT BREAKER 3A CHNT DZ47-60 C3 1P
214
FOOT SWITCH CORD 12G 6W 60"
215
POWER CORD 12G 3W 72"
216
MOTOR CORD 12G 5W 48"
217
DIN RAIL (LOWER)
218
TERMINAL BAR 8P
219
TERMINAL BAR 5P
220
CAP SCREW M4-.7 X 8
Price
N/A
221
Now: PW05M
FLAT WASHER 4MM
Price
N/A
222
CAP SCREW M6-1 X 12
Price
N/A
223
STRAIN RELIEF M20-2 TYPE-3

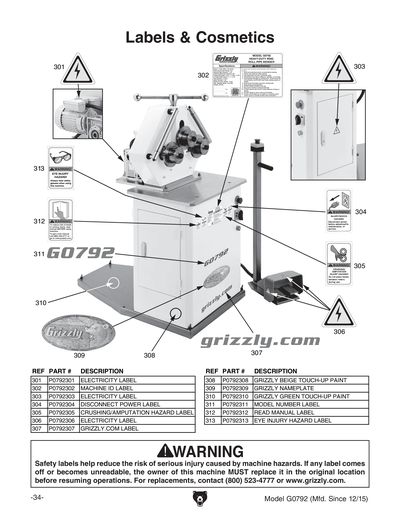

301
ELECTRICITY 1.4W X 1.2H
Price
N/A
302
MACHINE ID LABEL
303
ELECTRICITY 1.4W X 1.2H
Price
N/A
304
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
305
CRUSHING/AMPUTATION HAZARD LABEL
306
ELECTRICITY 1.4W X 1.2H
Price
N/A
307
GRIZZLY.COM LABEL 11.5",GREEN
Price
N/A
308
BEIGE REF G0555
Price
N/A
309
Now: G8589
Nameplate - Large
Price
N/A
310
N/S GRIZZLY GREEN G1023S
Price
N/A
311
MODEL NUMBER LABEL
312
READ MANUAL 1.5W X 2.5H
Price
N/A
313
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
MAN
MANUAL G0792 MFD-03.15 V1.11.15
MANV2
MANUAL G0792 MFD-12.15 V2.12.15
