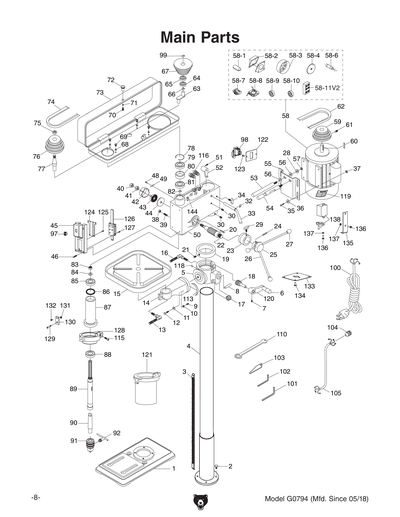

Parts for G0794 14" Floor Drill Press with Laser and DRO

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

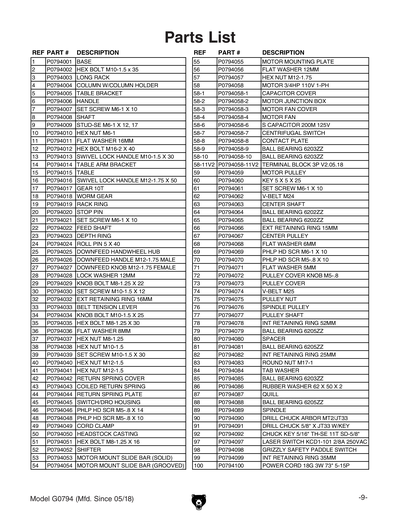

1
BASE V2.07.01
Price
N/A
2
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
3
RACK
Price
N/A
4
COLUMN W/COL SHOULDER
Price
N/A
5
TABLE BRACKET
Price
N/A
6
HANDLE
Price
N/A
7
SET SCREW M6-1 X 10
Price
N/A
8
SHAFT
Price
N/A
9
TABLE PIN
Price
N/A
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
Now: PW08M
FLAT WASHER 16MM
Price
N/A
12
HEX BOLT M16-2 X 40
Price
N/A
13
TABLE BOLT M10 X 30
Price
N/A
14
TABLE ARM BRACKET
Price
N/A
15
TABLE
Price
N/A
16
CLAMP BOLT M12
Price
N/A
17
GEAR
Price
N/A
18
WORM GEAR
Price
N/A
19
RACK RING
Price
N/A
20
PIN STOP
Price
N/A
21
SET SCREW M6-1 X 10
Price
N/A
22
FEED SHAFT
Price
N/A
23
DOWNFEED LOCK RING
Price
N/A
24
ROLL PIN 5 X 40
Price
N/A
25
HANDLE BODY
Price
N/A
26
HANDLE
Price
N/A
27
KNOB
Price
N/A
28
LOCK WASHER 12MM
Price
N/A
29
SLIDE BAR BOLT M8-1.25 X 22
Price
N/A
30
SET SCREW M10-1.5 X 12
Price
N/A
32
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
33
SHIFTER BAR
Price
N/A
34
SLIDE BAR BOLT M10-1.5 X 25
Price
N/A
35
Now: PB19M
HEX BOLT M8-1.25 X 24
Price
N/A
36
Now: PW01M
FLAT WASHER 8MM
Price
N/A
37
Now: PN03M
HEX NUT M8-1.25
Price
N/A
38
Now: PN02M
HEX NUT M10-1.5
Price
N/A
39
SET SCREW M10-1.5 X 30
Price
N/A
40
Now: PN31M
HEX NUT M12-1.5
Price
N/A
41
Now: PN31M
HEX NUT M12-1.5
Price
N/A
42
SPRING CAP
Price
N/A
43
SPRING-TORSION
Price
N/A
44
SPRING COVER
Price
N/A
45
SWITCH/DRO HOUSING
46
Now: PS57M
PHLP HD SCR M5-.8 X 14
Price
N/A
48
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
49
CORD CLAMP
Price
N/A
50
HEAD CASTING
Price
N/A
51
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
52
SHIFTER
Price
N/A
53
SLIDE BAR
Price
N/A
54
SLIDE BAR
Price
N/A
55
MOTOR BASE
Price
N/A
56
Now: PW06M
FLAT WASHER 12MM
Price
N/A
57
Now: PN09M
HEX NUT M12-1.75
Price
N/A
58
MOTOR 3/4HP 110V 1-PH
Price
N/A
58-1
CAPACITOR COVER
Price
N/A
58-10
BALL BEARING 6203ZZ
Price
N/A
58-11
*DISCD*TERMINAL BLOCK 4P
Price
N/A
58-11V2
TERMINAL BLOCK 3P V2.05.18
Price
N/A
58-2
CONNECTION BOX
Price
N/A
58-3
MOTOR COVER
Price
N/A
58-4
MOTOR FAN
Price
N/A
58-6
S CAPACITOR 200M 125V
58-7
CENTRIFUGAL SWITCH
58-8
CONTACT PLATE
58-9
BALL BEARING 6203ZZ
Price
N/A
59
MOTOR PULLEY V2.02.99
Price
N/A
60
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
61
SET SCREW M6-1 X 10
Price
N/A
62
Now: PVM24
V-BELT M24 3L240
Price
N/A
63
CENTER SHAFT
Price
N/A
64
BALL BEARING 6202ZZ
Price
N/A
65
BALL BEARING 6202ZZ
Price
N/A
66
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
67
CENTER PULLEY V2.02.99
Price
N/A
68
Now: PW03M
FLAT WASHER 6MM
Price
N/A
69
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
70
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
71
Now: PW02M
FLAT WASHER 5MM
Price
N/A
72
KNOB
Price
N/A
73
PULLEY COVER
Price
N/A
74
Now: PVM25
V-BELT M25 3L250
Price
N/A
75
PULLEY NUT
Price
N/A
76
SPINDLE PULLEY V2.02.99
Price
N/A
77
INSERT PULLEY V2.02.99
Price
N/A
78
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
79
BALL BEARING 6205ZZ
Price
N/A
80
SPACER
Price
N/A
81
BALL BEARING 6205ZZ
Price
N/A
82
Now: PR66M
INT RETAINING RING 25MM
Price
N/A
83
ROUND NUT M17 X 1
Price
N/A
84
EXT TOOTH WASHER 16MM
Price
N/A
85
BALL BEARING 6203ZZ
Price
N/A
86
THRUST WASHER 50MM RUBBER
Price
N/A
87
SPINDLE SLEEVE
Price
N/A
88
BALL BEARING 6205ZZ
Price
N/A
89
SPINDLE
Price
N/A
90
DRILL CHUCK ARBOR MT2 X JT33, 110MM L
Price
N/A
91
CHUCK W/KEY
Price
N/A
92
DRL CHK KEY 8.12MM TH-SE 11T SD-15.95MM
Price
N/A
97
LASER SWITCH KCD1-101 2/8A 250VAC
98
Now: G8988
Safety Paddle Switch
Price
N/A
99
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
100
POWER CORD 18G 3W 5-15P
Price
N/A
101

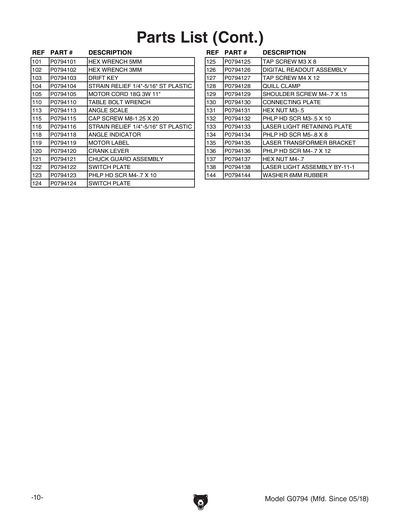

HEX WRENCH 5MM
Price
N/A
102
HEX WRENCH 3MM
Price
N/A
103
WEDGE SHIFTER
Price
N/A
104
WIRE GASKET
Price
N/A
105
MOTOR CORD 18G 3W 11"
110
TABLE BOLT WRENCH
Price
N/A
113
ANGLE SCALE
Price
N/A
115
CAP SCREW M8-1.25 X 20
Price
N/A
116
STRAIN RELIEF 1/4"-5/16" ST PLASTIC
118
INDICATOR
Price
N/A
119
MOTOR LABEL
Price
N/A
120
CRANK LEVER
Price
N/A
121
CHUCK GUARD ASSEMBLY
Price
N/A
122
SWITCH PLATE
123
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
124
SWITCH PLATE
125
TAP SCREW M3 X 8
Price
N/A
126
DIGITAL READOUT ASSEMBLY
127
TAP SCREW M4 X 12
Price
N/A
128
QUILL CLAMP
129
SHOULDER SCREW M4-.7 X 15
130
CONNECTING PLATE
131
Now: PN07M
HEX NUT M3-.5
Price
N/A
132
Now: PS55M
PHLP HD SCR M3-.5 X 10
Price
N/A
133
LASER LIGHT RETAINING PLATE
134
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
135
LASER TRANSFORMER BRACKET
136
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
137
Now: PN04M
HEX NUT M4-.7
Price
N/A
138
LASER LIGHT ASSEMBLY BY-11-1
139

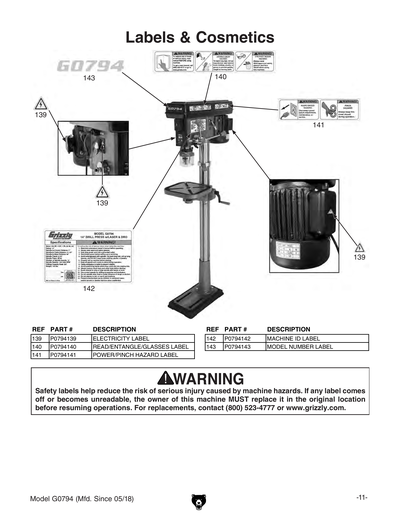

ELECTRICITY 0.5W X 0.4H
Price
N/A
140
READ/ENTANGLE/GLASSES LABEL
141
POWER/PINCH HAZARD LABEL
142
MACHINE ID LABEL
143
MODEL NUMBER LABEL
144
WASHER 6MM RUBBER
