Parts for G0797 - 10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO

Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797
Part Diagram for G0797

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

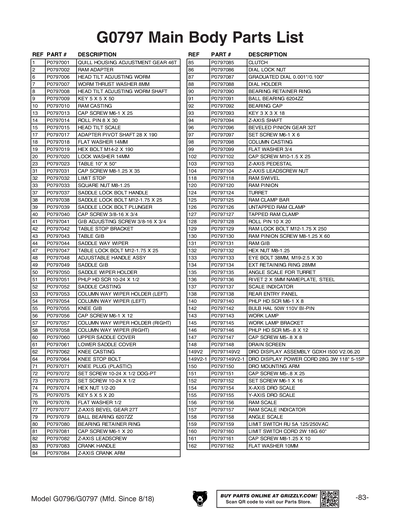

Ref #
Part #
Description
1
QUILL HOUSING ADJUSTMENT GEAR 46T
Price
$41.70
2
RAM ADAPTER
Price
$172.20
6
HEAD TILT ADJUSTING WORM
Price
$22.35
7
DOCK WASHER 18MM
Price
N/A
8
HEAD TILT ADJUSTING WORM SHAFT
Price
$28.75
9
KEY 5 X 5 X 50
Price
N/A
10
RAM CASTING
Price
$477.65
13
CAP SCREW M6-1 X 25
Price
N/A
14
ROLL PIN 8 X 30
Price
N/A
15
HEAD TILT SCALE
Price
$16.20
17
ADAPTER PIVOT SHAFT 28 X 190
Price
$24.45
18
FLAT WASHER 14MM
Price
N/A
19
HEX BOLT M14-2 X 190
Price
$15.50
20
LOCK WASHER 14MM
Price
N/A
23
TABLE 10" X 50"
Price
$2,313.70
31
CAP SCREW M8-1.25 X 35
Price
N/A
32
LIMIT STOP
Price
$9.75
33
SQUARE NUT M8-1.25
Price
N/A
37
ADJUSTABLE HANDLE ASSY
Price
N/A
38
ADJUSTABLE HANDLE ASSY
Price
N/A
39
SADDLE LOCK BOLT PLUNGER
Price
$9.75
40
CAP SCREW 3/8-16 X 3/4
Price
N/A
41
GIB ADJUSTING SCREW 3/8-16 X 3/4
Price
$3.25
42
TABLE STOP BRACKET
Price
$12.95
43
TABLE GIB
Price
$28.75
44
SADDLE WAY WIPER
Price
$16.20
47
ADJUSTABLE HANDLE ASSY
Price
N/A
48
ADJUSTABLE HANDLE ASSY
Price
$22.35
49
SADDLE GIB
Price
$23.75
50
SADDLE WIPER HOLDER
Price
$12.95
51
P0797051
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
52
SADDLE CASTING
Price
$267.40
53
COLUMN WAY WIPER HOLDER (LEFT)
Price
$9.75
54
COLUMN WAY WIPER (LEFT)
Price
$9.75
55
KNEE GIB
Price
$30.20
56
CAP SCREW M6-1 X 12
Price
N/A
57
COLUMN WAY WIPER HOLDER (RIGHT)
Price
$9.75
58
COLUMN WAY WIPER (RIGHT)
Price
$9.75
60
UPPER SADDLE COVER
Price
$19.45
61
LOWER SADDLE COVER
Price
$24.45
62
KNEE CASTING
Price
$859.65
64
KNEE STOP BOLT
Price
$7.95
71
KNEE PLUG (PLASTIC)
Price
$9.75
72
SET SCREW 10-24 X 1/2 DOG-PT
Price
$5.45
73
SET SCREW 10-24 X 1/2
Price
N/A
74
P0797074
Now: PN01
HEX NUT 1/2-20
Price
N/A
75
KEY 5 X 5 X 20
Price
N/A
76
P0797076
Now: PW01
FLAT WASHER 1/2
Price
N/A
77
Z-AXIS BEVEL GEAR 27T
Price
$35.25
79
BALL BEARING 6207ZZ
Price
N/A
80
BEARING RETAINER RING
Price
$16.20
81
CAP SCREW M6-1 X 20
Price
N/A
82
Z-AXIS LEADSCREW
Price
$350.45
83
CRANK HANDLE
Price
$11.50
84
Z-AXIS CRANK ARM
Price
$28.75
85
CLUTCH
Price
$21.95
86
DIAL LOCK NUT
Price
$17.25
87
GRADUATED DIAL 0.001"/0.100"
Price
$30.95
88
DIAL HOLDER
Price
$17.25
90
BEARING RETAINER RING
Price
$11.50
91
BALL BEARING 6204ZZ
Price
N/A
92
BEARING CAP
Price
$14.75
93
KEY 3 X 3 X 18
Price
N/A
94
Z-AXIS SHAFT
Price
$22.35
96
BEVELED PINION GEAR 32T
Price
$21.25
97
SET SCREW M6-1 X 6
Price
N/A
98
COLUMN CASTING
Price
$3,023.85
99
P0797099
Now: PW13
FLAT WASHER 3/4
Price
N/A
102
CAP SCREW M10-1.5 X 25
Price
N/A
103
Z-AXIS PEDESTAL
Price
$119.35
104
Z-AXIS LEADSCREW NUT
Price
$64.00
118
RAM SWIVEL
Price
$42.85
120
RAM PINION
Price
$28.75
124
TURRET
Price
$296.15
125
RAM CLAMP BAR
Price
$11.50
126
UNTAPPED RAM CLAMP
Price
$15.50
127
TAPPED RAM CLAMP
Price
$23.00
128
ROLL PIN 10 X 20
Price
N/A
129
RAM LOCK BOLT M12-1.75 X 250
Price
$18.70
130
RAM PINION SCREW M8-1.25 X 60
Price
$9.75
131
RAM GIB
Price
$23.75
132
HEX NUT M8-1.25
Price
N/A
133
EYE BOLT 38MM, M19-2.5 X 30
Price
$16.20
134
EXT RETAINING RING 28MM
Price
N/A
135
ANGLE SCALE FOR TURRET
Price
$27.70
136
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
137
SCALE INDICATOR
Price
$3.25
138
REAR ENTRY PANEL
Price
$15.50
140
PHLP HD SCR M6-1 X 8
Price
N/A
142
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
143
WORK LAMP
Price
$181.50
145
WORK LAMP BRACKET
Price
$20.50
146
PHLP HD SCR M5-.8 X 12
Price
N/A
147
CAP SCREW M5-.8 X 8
Price
N/A
148
DRAIN SCREEN
Price
$16.20
149
DRO DISPLAY ASSEMBLY
Price
$512.35
149V2
DRO DISPLAY ASSEMBLY GDXH I500 V2.06.20
Price
N/A
150
DRO MOUNTING ARM
Price
$28.75
151
CAP SCREW M5-.8 X 25
Price
N/A
152
SET SCREW M6-1 X 16
Price
N/A
154
X-AXIS DRO SCALE
Price
$394.65
155
Y-AXIS DRO SCALE
Price
$304.10
156
RAM SCALE
Price
$22.35
157
RAM SCALE INDICATOR
Price
$66.90
158
ANGLE SCALE
Price
$24.45
159
LIMIT SWITCH RU 5A 125/250VAC
Price
$66.90
160
LIMIT SWITCH CORD 2W 18G 60"
Price
$24.45
161
CAP SCREW M8-1.25 X 10
Price
N/A
162
FLAT WASHER 10MM
Price
N/A

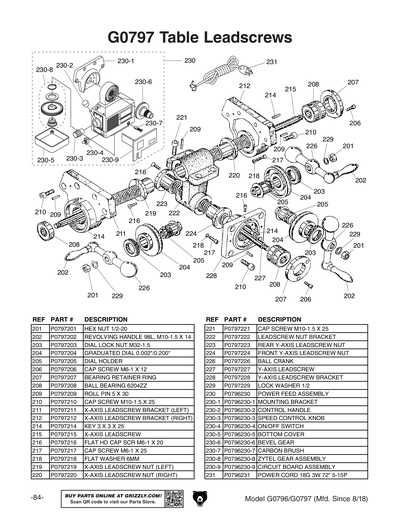

201
P0797201
Now: PN01
HEX NUT 1/2-20
Price
N/A
201-1
X-AXIS HANDWHEEL SHOULDER NUT
Price
$6.90
202
REVOLVING HANDLE 98L, M10-1.5 X 14
Price
$14.20
203
DIAL LOCK NUT M32-1.5
Price
$11.50
204
GRADUATED DIAL 0.002"/0.200"
Price
$22.35
205
DIAL HOLDER
Price
$19.45
206
CAP SCREW M6-1 X 12
Price
N/A
207
BEARING RETAINER RING
Price
$11.50
208
BALL BEARING 6204ZZ
Price
N/A
209
ROLL PIN 5 X 30
Price
N/A
210
CAP SCREW M10-1.5 X 25
Price
N/A
211
X-AXIS LEADSCREW BRACKET (LEFT)
Price
$28.75
212
X-AXIS LEADSCREW BRACKET (RIGHT)
Price
$28.75
214
KEY 3 X 3 X 25
Price
N/A
215
X-AXIS LEADSCREW
Price
$623.90
216
FLAT HD CAP SCR M6-1 X 20
Price
N/A
217
CAP SCREW M6-1 X 25
Price
N/A
218
FLAT WASHER 6MM
Price
N/A
219
X-AXIS LEADSCREW NUT (LEFT)
Price
$76.60
220
X-AXIS LEADSCREW NUT (RIGHT)
Price
$76.60
221
CAP SCREW M10-1.5 X 25
Price
N/A
222
LEADSCREW NUT BRACKET
Price
$54.35
223
REAR Y-AXIS LEADSCREW NUT
Price
$76.60
224
FRONT Y-AXIS LEADSCREW NUT
Price
$76.60
226
BALL CRANK
Price
$30.95
227
Y-AXIS LEADSCREW
Price
$382.10
228
Y-AXIS LEADSCREW BRACKET
Price
$28.75
229
LOCK WASHER 1/2
Price
N/A
230
POWER FEED ASSEMBLY
Price
$954.90
230-1
MOUNTING BRACKET
Price
$35.25
230-2
CONTROL HANDLE
Price
$24.45
230-3
SPEED CONTROL KNOB
Price
$29.50
230-4
ON/OFF SWITCH
Price
$18.00
230-5
BOTTOM COVER
Price
$19.45
230-6
BEVEL GEAR
Price
$100.65
230-7
CARBON BRUSH
Price
$9.75
230-8
ZYTEL GEAR ASSEMBLY
Price
$175.40
230-9
CIRCUIT BOARD ASSEMBLY
Price
$111.45
231
POWER CORD 18G 3W 72" 5-15P
Price
$31.35
232
DETENT SLEEVE
Price
N/A
301
CAP SCREW M6-1 X 25
Price
N/A

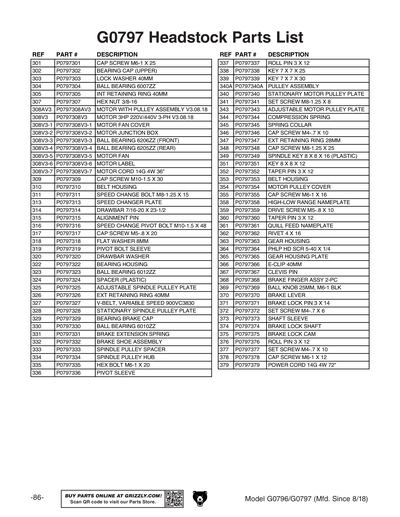

302
BEARING CAP (UPPER)
Price
$28.75
304
*DISCD*BALL BEARING 6007ZZ
Price
N/A
305
INT RETAINING RING 40MM
Price
N/A
307
P0797307
Now: PN08
HEX NUT 3/8-16
Price
N/A
308
MOTOR 3HP 220V/440V 3-PH V3.08.18
Price
N/A
308-1
MOTOR FAN COVER
Price
$22.35
308-2
MOTOR JUNCTION BOX
Price
$19.45
308-3
BALL BEARING 6206ZZ
Price
N/A
308-4
BALL BEARING 6205ZZ
Price
N/A
308-5
MOTOR FAN
Price
$41.70
308-6
MOTOR LABEL
Price
$4.70
308-7
MOTOR CORD 14G 4W 36"
Price
$22.35
308A
MOTOR WITH PULLEY ASSEMBLY V1
Price
$1,559.70
308AV2
*DISCD*MOTOR W/PULLEY ASSEMBLY V2.01.18
Item is no longer available
Price
N/A
308AV3
MOTOR WITH PULLEY ASSEMBLY V3.08.18
Price
$2,074.50
308V2
MOTOR WITH PULLEY ASSEMBLY V3.08.18
Price
N/A
308V2-1
MOTOR FAN COVER
Price
$30.20
308V2-2
MOTOR JUNCTION BOX
Price
$16.20
308V2-3
BALL BEARING 6206ZZ
Price
N/A
308V2-4
BALL BEARING 6205ZZ
Price
N/A
308V2-5
MOTOR FAN
Price
$24.15
308V2-6
MOTOR LABEL
Price
$4.70
308V2-7
MOTOR CORD 14G 4W 36"
Price
N/A
308V3
MOTOR 3HP 220V/440V 3-PH V3.08.18
Price
$1,746.60
308V3-1
MOTOR FAN COVER
Price
$129.40
308V3-2
MOTOR JUNCTION BOX
Price
$51.75
308V3-3
BALL BEARING 6206ZZ
Price
N/A
308V3-4
BALL BEARING 6205ZZ
Price
N/A
308V3-5
MOTOR FAN
Price
$129.40
308V3-6
MOTOR LABEL
Price
$11.60
308V3-7
MOTOR CORD 14G 4W 36"
Price
N/A

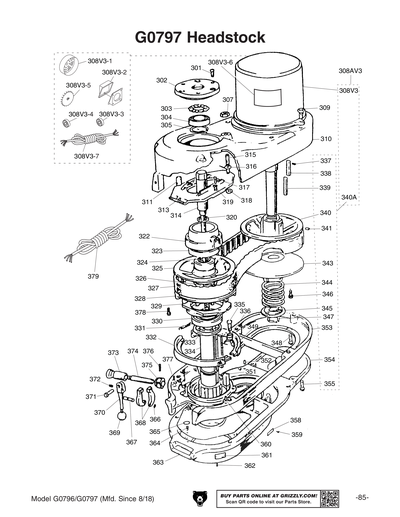

309
CAP SCREW M10-1.5 X 30
Price
N/A
310
BELT HOUSING
Price
$382.10
311
SPEED CHANGE BOLT M8-1.25 X 15
Price
$9.75
313
SPEED CHANGER PLATE
Price
$26.90
314
DRAWBAR 7/16-20 X 23-1/2
Price
$28.75
315
ALIGNMENT PIN
Price
$11.50
316
SPEED CHANGE PIVOT BOLT M10-1.5 X 48
Price
$9.75
317
CAP SCREW M5-.8 X 20
Price
N/A
318
FLAT WASHER 8MM
Price
N/A
319
PIVOT BOLT SLEEVE
Price
$7.95
320
DOCK WASHER 14MM
Price
$6.50
322
BEARING HOUSING
Price
$30.20
323
BALL BEARING 6012ZZ
Price
N/A
324
SPACER (PLASTIC)
Price
$9.00
325
ADJ, STATIONARY SPINDLE PLLY PLTE W/ HUB
Price
$477.65
326
EXT RETAINING RING 40MM
Price
N/A
327
V-BELT, VARIABLE SPEED 900VC3830
Price
$299.40
328
ADJ, STATIONARY SPINDLE PLLY PLTE W/ HUB
Price
N/A
329
BEARING BRAKE CAP
Price
$28.75
330
BALL BEARING 6010ZZ
Price
N/A
331
BRAKE EXTENSION SPRING
Price
$6.50
332
BRAKE SHOE ASSEMBLY
Price
$31.70
333
SPINDLE PULLEY SPACER
Price
$8.35
334
ADJ, STATIONARY SPINDLE PLLY PLTE W/ HUB
Price
N/A
335
HEX BOLT M6-1 X 20
Price
N/A
336
PIVOT SLEEVE
Price
$8.35
337
ROLL PIN 3 X 12
Price
N/A
338
KEY 7 X 7 X 25
Price
N/A
339
KEY 7 X 7 X 30
Price
N/A
340
STATIONARY MOTOR PULLEY PLATE
Price
$165.70
340A
PULLEY ASSEMBLY
Price
$835.20
341
SET SCREW M8-1.25 X 8
Price
N/A
343
ADJUSTABLE MOTOR PULLEY PLATE
Price
$183.95
344
COMPRESSION SPRING
Price
$24.45
345
SPRING COLLAR
Price
$18.00
346
CAP SCREW M4-.7 X 10
Price
N/A
347
EXT RETAINING RING 28MM
Price
N/A
348
CAP SCREW M8-1.25 X 25
Price
N/A
349
SPINDLE KEY 8 X 8 X 16 (PLASTIC)
Price
$5.45
351
KEY 8 X 8 X 12
Price
N/A
352
TAPER PIN 3 X 12
Price
$5.75
353
BELT HOUSING
Price
$222.85
354
MOTOR PULLEY COVER
Price
$56.85
355
CAP SCREW M6-1 X 16
Price
N/A
358
HIGH-LOW RANGE NAMEPLATE
Price
$6.50
359
DRIVE SCREW M5-.8 X 10
Price
$5.45
360
TAPER PIN 3 X 12
Price
$6.50
361
QUILL FEED NAMEPLATE
Price
$7.95
362
RIVET 4 X 16
Price
$5.45
363
GEAR HOUSING
Price
$496.70
364
P0797364
Now: PS50
PHLP HD SCR 5-40 X 1/4
Price
N/A
365
GEAR HOUSING PLATE
Price
$55.00
366
E-CLIP 40MM
Price
$5.45
367
CLEVIS PIN
Price
$7.95
368
BRAKE FINGER ASSY 2-PC
Price
$13.70
369
BALL KNOB 25MM, M6-1 BLK
Price
$7.95
370
BRAKE LEVER
Price
$14.10
371
BRAKE LOCK PIN 3 X 14
Price
$5.75
372
SET SCREW M4-.7 X 6
Price
N/A
373
SHAFT SLEEVE
Price
$9.75
374
BRAKE LOCK SHAFT
Price
$9.75
375
BRAKE LOCK CAM
Price
$5.75
376
ROLL PIN 3 X 12
Price
N/A
377
SET SCREW M4-.7 X 10
Price
N/A
378
CAP SCREW M6-1 X 12
Price
N/A
379
POWER CORD 14G 4W 72"
Price
$22.35
380
HEADSTOCK VENT 3-1/2" X 9-3/4"
Price
$16.20

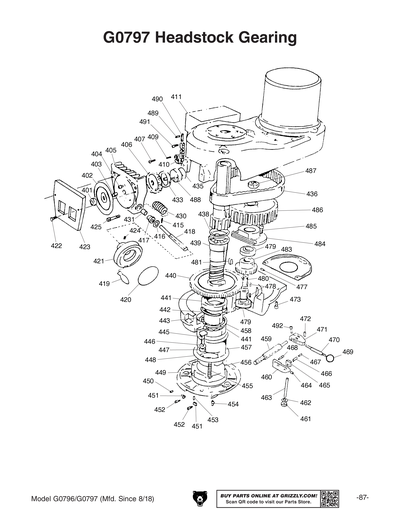

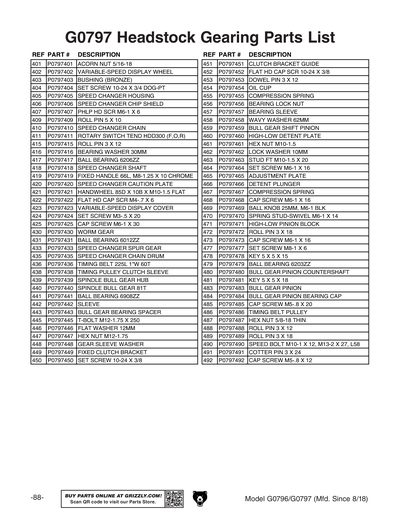

401
P0797401
Now: PN40
ACORN NUT 5/16-18
Price
N/A
402
VARIABLE-SPEED DISPLAY WHEEL
Price
$18.00
403
BUSHING (BRONZE)
Price
$14.75
404
SET SCREW 10-24 X 3/4 DOG-PT
Price
$5.45
405
SPEED CHANGER HOUSING
Price
$112.15
406
SPEED CHANGER CHIP SHIELD
Price
$22.35
407
PHLP HD SCR M6-1 X 6
Price
N/A
409
ROLL PIN 5 X 10
Price
N/A
410
SPEED CHANGER CHAIN
Price
$19.45
411
ROTARY SWITCH YK D3203/3 (FWD, OFF, REV)
Price
N/A
415
ROLL PIN 3 X 12
Price
N/A
416
BEARING WASHER 30MM
Price
$5.75
417
BALL BEARING 6206ZZ
Price
N/A
418
SPEED CHANGER SHAFT
Price
$22.35
419
FIXED HANDLE 66L, M8-1.25 X 10 CHROME
Price
$14.10
420
SPEED CHANGER CAUTION PLATE
Price
$5.45
421
HANDWHEEL 85D X 10B X M10-1.5 FLAT
Price
$27.00
422
FLAT HD CAP SCR M4-.7 X 6
Price
$5.45
423
VARIABLE-SPEED DISPLAY COVER
Price
$22.35
424
SET SCREW M3-.5 X 20
Price
$5.45
425
CAP SCREW M6-1 X 30
Price
N/A
430
WORM GEAR
Price
$20.50
431
BALL BEARING 6012ZZ
Price
N/A
433
SPEED CHANGER SPUR GEAR
Price
$21.95
435
SPEED CHANGER CHAIN DRUM
Price
$26.25
436
TIMING BELT 225L 1"W 60T
Price
$29.15
438
TIMING PULLEY CLUTCH SLEEVE
Price
$14.75
439
SPINDLE BULL GEAR HUB
Price
$163.90
440
SPINDLE BULL GEAR 81T
Price
$369.45
441
BALL BEARING 6908ZZ
Price
N/A
442
SLEEVE
Price
$16.20
443
BULL GEAR BEARING SPACER
Price
$22.35
445
T-BOLT M12-1.75 X 250
Price
$10.45
446
FLAT WASHER 12MM
Price
N/A
447
HEX NUT M12-1.75
Price
N/A
448
FLAT WASHER 72MM
Price
$14.75
449
FIXED CLUTCH BRACKET
Price
$121.15
450
SET SCREW 10-24 X 3/8
Price
N/A
451
CLUTCH BRACKET GUIDE
Price
$9.75
452
FLAT HD CAP SCR 10-24 X 3/8
Price
$9.75
453
DOWEL PIN 3 X 12
Price
$5.75
454
OIL CUP
Price
$11.50
455
COMPRESSION SPRING
Price
$8.35
456
BEARING LOCK NUT
Price
$5.75
457
BEARING SLEEVE
Price
$102.10
458
WAVY WASHER 62MM
Price
$11.50
459
BULL GEAR SHIFT PINION
Price
$12.10
460
HIGH-LOW DETENT PLATE
Price
$9.75
461
HEX NUT M10-1.5
Price
N/A
462
LOCK WASHER 10MM
Price
N/A
463
STUD FT M10-1.5 X 20
Price
$7.95
464
SET SCREW M6-1 X 16
Price
N/A
465
ADJUSTMENT PLATE
Price
$7.20
466
DETENT PLUNGER
Price
$5.75
467
COMPRESSION SPRING
Price
$5.45
468
CAP SCREW M6-1 X 16
Price
N/A
469
BALL KNOB 25MM, M6-1 BLK
Price
$7.95
470
SPRING STUD-SWIVEL M6-1 X 14
Price
$7.95
471
HIGH-LOW PINION BLOCK
Price
$10.45
472
ROLL PIN 3 X 18
Price
N/A
473
CAP SCREW M6-1 X 16
Price
N/A
477
SET SCREW M8-1 X 6
Price
$5.45
478
KEY 5 X 5 X 15
Price
N/A
479
BALL BEARING 6203ZZ
Price
N/A
480
BULL GEAR PINION COUNTERSHAFT
Price
$25.20
481
KEY 5 X 5 X 18
Price
N/A
483
BULL GEAR PINION
Price
$95.65
484
BULL GEAR PINION BEARING CAP
Price
$25.20
485
CAP SCREW M5-.8 X 20
Price
N/A
486
TIMING BELT PULLEY
Price
$98.90
487
HEX NUT 5/8-18 THIN
Price
$7.95
488
ROLL PIN 3 X 12
Price
N/A
489
ROLL PIN 3 X 18
Price
N/A
490
SPEED BOLT M10-1 X 12, M13-2 X 27, L58
Price
$6.50
491
COTTER PIN 3 X 24
Price
$5.45
492
CAP SCREW M5-.8 X 12
Price
N/A

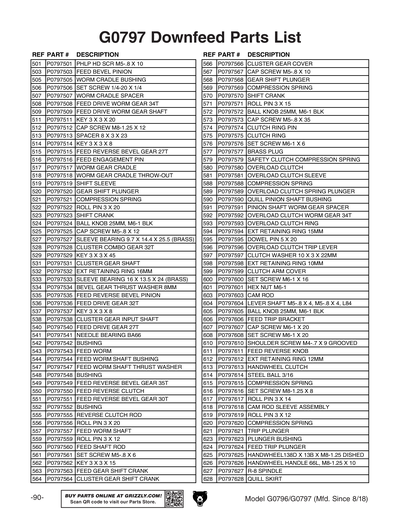

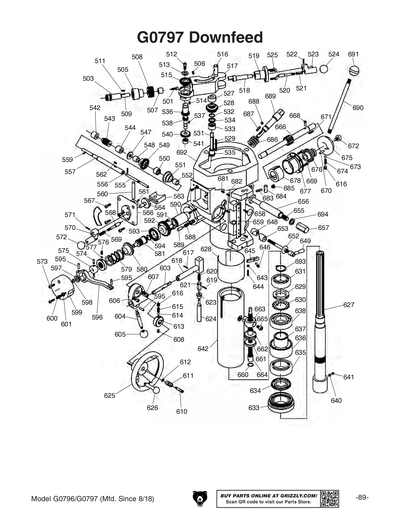

501
PHLP HD SCR M5-.8 X 10
Price
N/A
503
FEED DRIVE WORM GEAR ASSY
Price
N/A
505
FEED DRIVE WORM GEAR ASSY
Price
N/A
506
SET SCREW 1/4-20 X 1/4
Price
N/A
507
FEED DRIVE WORM GEAR ASSY
Price
N/A
508
FEED DRIVE WORM GEAR ASSY
Price
N/A
509
FEED DRIVE WORM GEAR ASSY
Price
N/A
509A
FEED DRIVE WORM GEAR ASSY
Price
$267.40
511
KEY 3 X 3 X 20
Price
N/A
512
CAP SCREW M8-1.25 X 12
Price
N/A
513
FEED DRIVE WORM GEAR ASSY
Price
N/A
514
KEY 3 X 3 X 8
Price
N/A
515
FEED DRIVE WORM GEAR ASSY
Price
N/A
516
FEED DRIVE WORM GEAR ASSY
Price
N/A
517
FEED DRIVE WORM GEAR ASSY
Price
N/A
518
WORM GEAR CRADLE THROW-OUT
Price
$9.75
519
SHIFT SLEEVE
Price
$15.50
520
GEAR SHIFT PLUNGER
Price
$9.75
521
COMPRESSION SPRING
Price
$7.20
522
ROLL PIN 3 X 20
Price
N/A
523
SHIFT CRANK
Price
$11.50
524
BALL KNOB 25MM, M6-1 BLK
Price
$7.95
525
CAP SCREW M5-.8 X 12
Price
N/A
527
SLEEVE BEARING 9.7 X 14.4 X 25.5 (BRASS)
Price
$13.70
528
CLUSTER COMBO GEAR 32T
Price
$24.45
529
KEY 3 X 3 X 45
Price
N/A
531
CLUSTER GEAR SHAFT
Price
$20.50
532
EXT RETAINING RING 16MM
Price
N/A
533
SLEEVE BEARING 16 X 13.5 X 24 (BRASS)
Price
$9.75
534
THRUST WASHER 16MM
Price
N/A
535
FEED REVERSE BEVEL PINION
Price
$20.50
536
FEED DRIVE WORM GEAR ASSY
Price
N/A
537
KEY 3 X 3 X 8
Price
N/A
538
FEED DRIVE WORM GEAR ASSY
Price
N/A
540
FEED DRIVE WORM GEAR ASSY
Price
N/A
541
FEED DRIVE WORM GEAR ASSY
Price
N/A
542
BUSHING
Price
$8.35
543
FEED WORM
Price
$9.75
544
FEED WORM SHAFT BUSHING
Price
$13.70
547
FLAT WASHER 8MM
Price
N/A
548
BUSHING
Price
$27.00
549
FEED REVERSE BEVEL GEAR 35T
Price
$27.00
550
FEED REVERSE CLUTCH
Price
$16.20
551
FEED REVERSE BEVEL GEAR 30T
Price
$27.00
552
BUSHING
Price
$27.00
555
REVERSE CLUTCH ROD
Price
$6.50
556
ROLL PIN 3 X 20
Price
N/A
557
FEED WORM SHAFT
Price
$27.00
559
ROLL PIN 3 X 12
Price
N/A
560
FEED SHAFT ROD
Price
$6.50
561
SET SCREW M5-.8 X 6
Price
N/A
562
KEY 3 X 3 X 15
Price
N/A
563
FEED GEAR SHIFT CRANK
Price
$9.75
564
CLUSTER GEAR SHIFT CRANK
Price
$20.50
566
CLUSTER GEAR COVER
Price
$28.10
567
CAP SCREW M5-.8 X 10
Price
N/A
568
GEAR SHIFT PLUNGER
Price
$9.75
569
COMPRESSION SPRING
Price
$7.20
570
SHIFT CRANK
Price
$11.50
571
ROLL PIN 3 X 15
Price
N/A
572
BALL KNOB 25MM, M6-1 BLK
Price
$7.95
573
CAP SCREW M5-.8 X 35
Price
N/A
574
CLUTCH RING PIN
Price
$6.50
575
CLUTCH RING
Price
$11.50
576
SET SCREW M6-1 X 6
Price
N/A
577
BRASS PLUG
Price
$7.95
579
SAFETY CLUTCH COMPRESSION SPRING
Price
$6.50
580
OVERLOAD CLUTCH
Price
$16.20
581
OVERLOAD CLUTCH SLEEVE
Price
$31.35
588
COMPRESSION SPRING
Price
$6.50
589
OVERLOAD CLUTCH SPRING PLUNGER
Price
$6.50
590
QUILL PINION SHAFT BUSHING AND SPACER
Price
$39.60
591
QUILL PINION SHAFT BUSHING AND SPACER
Price
N/A
592
OVERLOAD CLUTCH WORM GEAR 34T AND RING
Price
$47.85
593
OVERLOAD CLUTCH WORM GEAR 34T AND RING
Price
N/A
594
EXT RETAINING RING 15MM
Price
N/A
595
DOWEL PIN 5 X 20
Price
$6.50
596
OVERLOAD CLUTCH TRIP LEVER
Price
$41.70
597
FLAT WASHER 8MM
Price
N/A
598
EXT RETAINING RING 10MM
Price
N/A
599
CLUTCH ARM COVER
Price
$16.20
600
SET SCREW M6-1 X 16
Price
N/A
601
HEX NUT M6-1
Price
N/A
603
CAM ROD
Price
$20.50
604
LEVER SHAFT M5-.8 X 4, M5-.8 X 4, L84
Price
$7.95
605
BALL KNOB 25MM, M6-1 BLK
Price
$7.95
606
FEED TRIP BRACKET
Price
$55.00
607
CAP SCREW M6-1 X 20
Price
N/A
608
SET SCREW M6-1 X 20
Price
N/A
610
FEED REVERSE KNOB W/ SCREW M4-.7 X 9
Price
N/A
611
FEED REVERSE KNOB W/ SCREW M4-.7 X 9
Price
$11.50
612
EXT RETAINING RING 12MM
Price
N/A
613
HANDWHEEL CLUTCH
Price
$11.50
614
STEEL BALL 3/16
Price
N/A
615
COMPRESSION SPRING
Price
$6.50
616
SET SCREW M8-1.25 X 8
Price
N/A
617
ROLL PIN 3 X 14
Price
N/A
618
CAM ROD SLEEVE ASSEMBLY
Price
$44.60
619
ROLL PIN 3 X 12
Price
N/A
620
COMPRESSION SPRING
Price
$7.20
621
TRIP PLUNGER
Price
$7.95
623
PLUNGER BUSHING
Price
$6.50
624
FEED TRIP PLUNGER
Price
$10.65
625
HANDWHEEL138D X 13B X M8-1.25 DISHED
Price
$13.70
626
HANDWHEEL HANDLE 66L, M8-1.25 X 10
Price
$8.35
627
R-8 SPINDLE
Price
$286.85
628
QUILL SKIRT
Price
$9.75

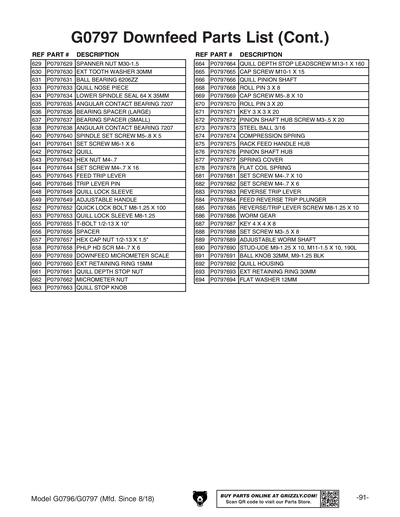

629
SPANNER NUT M30-1.5
Price
$16.20
630
EXT TOOTH WASHER 30MM
Price
N/A
631
BALL BEARING 6206ZZ
Price
N/A
633
QUILL NOSE PIECE
Price
$52.90
634
LOWER SPINDLE SEAL 64 X 35MM
Price
$24.45
635
ANGULAR CONTACT BEARING 7207
Price
N/A
636
BEARING SPACER SMALL, LARGE
Price
$28.75
637
BEARING SPACER SMALL, LARGE
Price
N/A
638
ANGULAR CONTACT BEARING 7207
Price
N/A
640
SPINDLE SET SCREW M5-.8 X 5
Price
$7.15
641
SET SCREW M6-1 X 6
Price
N/A
642
QUILL
Price
$382.10
643
HEX NUT M4-.7
Price
N/A
644
SET SCREW M4-.7 X 16
Price
N/A
645
FEED TRIP LEVER
Price
$9.75
646
TRIP LEVER PIN
Price
$5.45
648
ADJ HANDLE W/ LOCK BOLT M8-1.25 ASSY
Price
N/A
649
ADJ HANDLE W/ LOCK BOLT M8-1.25 ASSY
Price
$40.75
652
ADJ HANDLE W/ LOCK BOLT M8-1.25 ASSY
Price
N/A
653
ADJ HANDLE W/ LOCK BOLT M8-1.25 ASSY
Price
N/A
655
T-BOLT 1/2-13 X 10"
Price
$9.00
656
SPACER
Price
$7.95
657
HEX CAP NUT 1/2-13 X 1.5"
Price
$7.20
658
PHLP HD SCR M4-.7 X 6
Price
N/A
659
DOWNFEED MICROMETER SCALE
Price
$9.75
660
EXT RETAINING RING 15MM
Price
N/A
661
QUILL DEPTH STOP NUT W/ MICROMETER NUT
Price
$30.20
662
QUILL DEPTH STOP NUT W/ MICROMETER NUT
Price
N/A
663
QUILL STOP KNOB
Price
$47.45
664
QUILL DEPTH STOP LEADSCREW M13-1 X 160
Price
$27.00
665
CAP SCREW M10-1 X 15
Price
$6.50
666
QUILL PINION SHAFT
Price
$54.35
668
ROLL PIN 3 X 8
Price
N/A
669
CAP SCREW M5-.8 X 10
Price
N/A
670
ROLL PIN 3 X 20
Price
N/A
671
KEY 3 X 3 X 20
Price
N/A
672
PINION SHAFT HUB SCREW M3-.5 X 20
Price
$7.20
673
STEEL BALL 3/16
Price
N/A
674
COMPRESSION SPRING
Price
$6.50
675
RACK FEED HANDLE HUB
Price
$19.85
676
PINION SHAFT HUB
Price
$18.00
677
SPRING COVER
Price
$22.35
678
FLAT COIL SPRING
Price
$42.10
681
SET SCREW M4-.7 X 10
Price
N/A
682
SET SCREW M4-.7 X 6
Price
N/A
683
REVERSE TRIP LEVER
Price
$8.50
684
FEED REVERSE TRIP PLUNGER
Price
$7.95
685
REVERSE/TRIP LEVER SCREW M8-1.25 X 10
Price
$7.20
686
WORM GEAR
Price
$8.35
687
KEY 4 X 4 X 8
Price
N/A
688
SET SCREW M3-.5 X 8
Price
N/A
689
ADJUSTABLE WORM SHAFT
Price
$20.50
690
STUD-UDE M9-1.25 X 10, M11-1.5 X 10,190L
Price
$7.15
691
BALL KNOB 32MM, M9-1.25 BLK
Price
$5.45
692
QUILL HOUSING
Price
$859.65
693
EXT RETAINING RING 30MM
Price
N/A
694
FLAT WASHER 12MM
Price
N/A

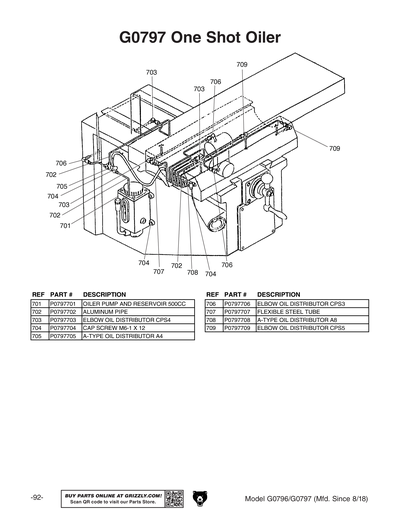

701
OILER PUMP AND RESERVOIR 500CC
Price
$149.90
702
ALUMINUM PIPE
Price
$22.35
703
ELBOW OIL DISTRIBUTOR CPS4
Price
$33.85
704
CAP SCREW M6-1 X 12
Price
N/A
705
A-TYPE OIL DISTRIBUTOR A4
Price
$35.25
706
ELBOW OIL DISTRIBUTOR CPS3
Price
$32.00
707
FLEXIBLE STEEL TUBE
Price
$24.45
708
A-TYPE OIL DISTRIBUTOR A8
Price
$49.25
709
ELBOW OIL DISTRIBUTOR CPS5
Price
$32.00

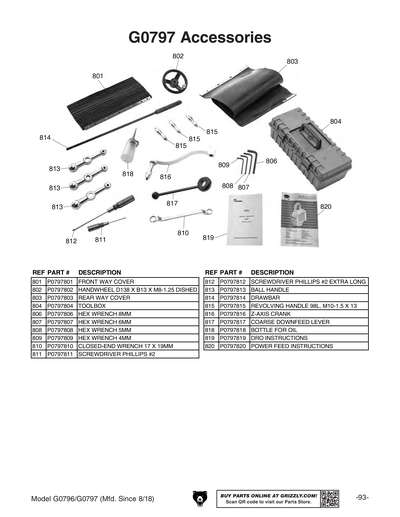

801
FRONT WAY COVER
Price
$53.10
802
HANDWHEEL D138 X B13 X M8-1.25 DISHED
Price
$22.35
803
REAR WAY COVER
Price
$47.85
804
TOOLBOX
Price
$27.70
806
HEX WRENCH 8MM
Price
N/A
807
HEX WRENCH 6MM
Price
N/A
808
HEX WRENCH 5MM
Price
N/A
809
HEX WRENCH 4MM
Price
N/A
810
CLOSED-END WRENCH 17 X 19MM
Price
$22.35
811
SCREWDRIVER PHILLIPS #2
Price
N/A
812
SCREWDRIVER PHILLIPS #2 EXTRA LONG
Price
$16.20
813
BALL HANDLE
Price
$23.75
814
DRAWBAR
Price
$29.15
815
REVOLVING HANDLE 98L, M10-1.5 X 13
Price
$15.50
816
Z-AXIS CRANK
Price
$54.35
817
COARSE DOWNFEED LEVER
Price
$26.90
818
BOTTLE FOR OIL
Price
$16.20
819
DRO INSTRUCTIONS
Price
$8.35
820
POWER FEED INSTRUCTIONS
Price
$8.35

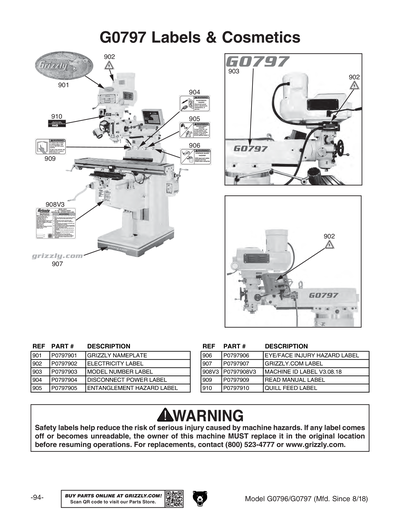

901
Nameplate - Mini
Price
N/A
902
ELECTRICITY 0.7W X 0.6H
Price
N/A
903
MODEL NUMBER LABEL
Price
$7.20
904
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
905
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
906
FACE SHIELD & SAFETY GLASSES 1.5W X 2.5H
Price
N/A
907
GRIZZLY.COM LABEL 11.75",BEIGE
Price
N/A
908
MACHINE ID LABEL V1
Price
$16.40
908V2
MACHINE ID LABEL V2.01.18
Price
$16.40
908V3
MACHINE ID LABEL V3.08.18
Price
$16.40
909
READ MANUAL 2.8W X 1.5H
Price
N/A
910
QUILL FEED LABEL
Price
$5.00
MAN
MANUAL G0796/G0797 MFD-12.14-12.17 V1.08
Price
N/A
MANV2
MANUAL G0796/G0797 MFD-01.18 V2.05.18
Price
N/A
