Parts for G0798 - 24" x 62" Metalworking Downdraft Table

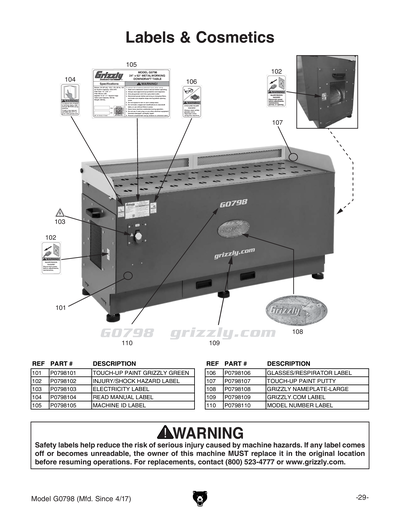

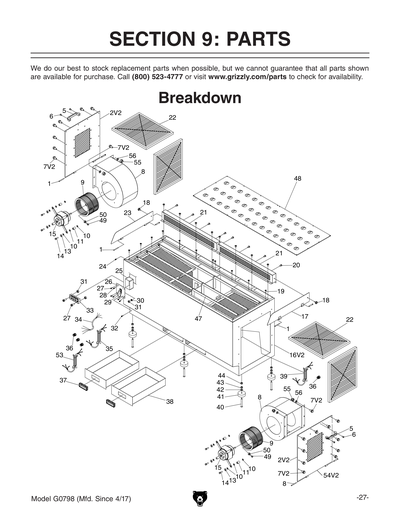

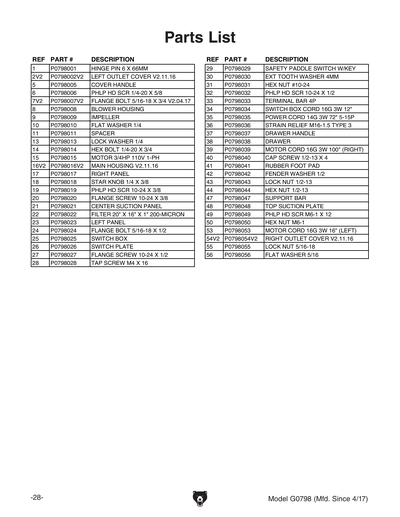

Part Diagram for G0798
Part Diagram for G0798
Part Diagram for G0798
Part Diagram for G0798
Part Diagram for G0798
Part Diagram for G0798

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HINGE PIN 6 X 66MM
Price
$3.40
2
LEFT OUTLET COVER V1
Price
$108.70
2V2
LEFT OUTLET COVER V2.11.16
Price
$122.00
3
PHLP HD SCR M4-.7 X 6
Price
N/A
4
LATCH HOOK
Price
$4.30
5
COVER HANDLE
Price
$3.65
6
P0798006
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
7
P0798007
Now: PS38
PHLP HD SCR 5/16-18 X 1/2
Price
N/A
7V2
FLANGE BOLT 5/16-18 X 3/4
Price
N/A
8
BLOWER HOUSING
Price
$118.15
9
IMPELLER
Price
$147.85
10
P0798010
Now: PW06
FLAT WASHER 1/4
Price
N/A
11
SPACER
Price
$1.60
13
LOCK WASHER 1/4
Price
N/A
14
P0798014
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
15
MOTOR 3/4HP 110V 1-PH
Price
$709.35
16
MAIN HOUSING V1
Price
$2,300.30
16V2
MAIN HOUSING V2.11.16
Price
$2,398.10
16V3
MAIN HOUSING V3.04.20
Price
$3,517.45
17
RIGHT PANEL
Price
$38.10
18
STAR KNOB 1/4-20 X 3/4
Price
$1.85
19
P0798019
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
20
FLANGE SCREW 10-24 X 3/8
Price
N/A
21
CENTER SUCTION PANEL
Price
$181.50
22
20" x 16" x 1" Metal Mesh Filter, 2 pc.
Price
N/A
23
LEFT PANEL
Price
$38.10
24
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
25
SWITCH BOX
Price
$17.85
26
SWITCH PLATE
Price
$12.75
27
FLANGE SCREW 10-24 X 1/2
Price
N/A
28
TAP SCREW M4 X 16
Price
N/A
29
Safety Paddle Switch
Price
N/A
30
EXT TOOTH WASHER 4MM
Price
N/A
31
P0798031
Now: PN07
HEX NUT 10-24
Price
N/A
32
P0798032
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
33
TERMINAL BAR 4P
Price
$7.25
34
SWITCH BOX CORD 16G 3W 12"
Price
$7.90
35
POWER CORD 14G 3W 72" 5-15P
Price
$33.25
36
STRAIN RELIEF TYPE-3 M16-1.5
Price
$9.85
37
DRAWER HANDLE
Price
$2.75
38
DRAWER
Price
$110.55
39
MOTOR CORD 16G 3W 100" (RIGHT)
Price
$11.65
40
CAP SCREW 1/2-13 X 4
Price
$8.35
41
RUBBER FOOT PAD
Price
$8.75
42
FENDER WASHER 1/2
Price
N/A
43
LOCK NUT 1/2-13
Price
N/A
44
P0798044
Now: PN13
HEX NUT 1/2-13
Price
N/A
46
LATCH
Price
$4.30
47
SUPPORT BAR
Price
$55.30
48
TOP SUCTION PLATE
Price
$612.25
49
PHLP HD SCR M6-1 X 12
Price
N/A
50
HEX NUT M6-1
Price
N/A
52
HEX BOLT M8-1.25 X 20
Price
N/A
53
MOTOR CORD 16G 3W 16" (LEFT)
Price
$30.85
54
RIGHT OUTLET COVER V1
Price
$108.70
54V2
LEFT OUTLET COVER V2.11.16
Price
N/A
55
LOCK NUT 5/16-18
Price
N/A
56
P0798056
Now: PW07
FLAT WASHER 5/16
Price
N/A
57
SWITCH BOX
Price
N/A
101
N/S GRIZZLY GREEN G1023S
Price
N/A
102
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
103
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
104
READ MANUAL 1.5W X 2.5H
Price
N/A
105
MACHINE ID LABEL
Price
$16.40
106
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
107
Nameplate - Large
Price
N/A
108
ELECTRICITY 1.4W X 1.2H
Price
N/A
109
GRIZZLY.COM LABEL 12",BEIGE
Price
N/A
110
MODEL NUMBER LABEL
Price
$7.10
MAN
MANUAL G0798 MFD-10.15-10.16 V1.02.16
Price
$14.65
MANV2
MANUAL G0798 MFD-11.16-03.20 V1.11.16
Price
$17.75
MANV3
MANUAL G0798 MFD-04.20+ V3.04.19
Price
$18.75
