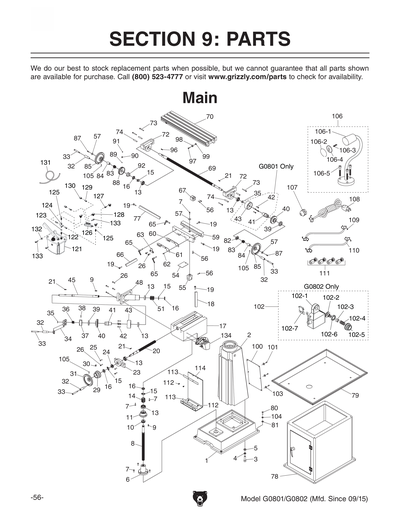

Parts for G0801 - 6" x 26" Vertical Mill with LED Worklight

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P0801001
BASE
N/A
2 P0801002
COLUMN
N/A
3 P0801003
***USE PCAP67M***
Item is no longer available
P0801003 Replaced By PCAP67M
N/A View Replacement
4 P0801004
***USE PLW08M***
Item is no longer available
P0801004 Replaced By PLW08M
N/A View Replacement
5 P0801005
***USE PW10M***
Item is no longer available
P0801005 Replaced By PW10M
N/A View Replacement
6 P0801006
ELEVATION LEADSCREW NUT
N/A
7 P0801007
***USE PCAP02M***
Item is no longer available
P0801007 Replaced By PCAP02M
N/A View Replacement
8 P0801008
ELEVATION LEADSCREW
N/A
9 P0801009
***USE PK07M***
Item is no longer available
P0801009 Replaced By PK07M
N/A View Replacement
10 P0801010
***USE P51204***
Item is no longer available
P0801010 Replaced By P51204
N/A View Replacement
11 P0801011
ELEVATION BEARING BASE
N/A
13 P0801013
***USE P6004-2RS***
Item is no longer available
P0801013 Replaced By P6004-2RS
N/A View Replacement
14 P0801014 ELEVATION GEAR 12T $11.00
15 P0801015
TABBED WASHER 20MM
N/A
16 P0801016
SPANNER NUT M20-1.5
N/A
17 P0801017
TABLE BASE CASTING
N/A
18 P0801018
GIB
N/A
19 P0801019
GIB ADJUSTMENT SCREW M6-1 X 38
N/A
20 P0801020 CROSS LEADSCREW $60.00
21 P0801021
***USE PK34M***
Item is no longer available
P0801021 Replaced By PK34M
N/A View Replacement
23 P0801023
LEADSCREW BRACKET
N/A
24 P0801024
***USE P51104***
Item is no longer available
P0801024 Replaced By P51104
N/A View Replacement
25 P0801025
INT THREADED TAPER PIN 8 X 25
N/A
26 P0801026
***USE PCAP02M***
Item is no longer available
P0801026 Replaced By PCAP02M
N/A View Replacement
29 P0801029
GRADUATED DIAL
N/A
30 P0801030
KNURLED KNOB M5-.8 X 12
N/A
31 P0801031 HANDWHEEL TYPE-20 155D X 16B-K X M10-1.5 $27.00
32 P0801032 HANDLE W/O SHAFT 12, 22 X 75 $6.00
33 P0801033 SHOULDER SCREW M10-1.5 X 12, 12 X 68 $4.50
34 P0801034
ELEVATION CRANK
N/A
35 P0801035
***USE PR18M***
Item is no longer available
P0801035 Replaced By PR18M
N/A View Replacement
36 P0801036 COMPRESSION SPRING 20 X 20 $2.00
37 P0801037
ELEVATION HANDLE CLUTCH
N/A
38 P0801038
***USE PSS11M***
Item is no longer available
P0801038 Replaced By PSS11M
N/A View Replacement
39 P0801039
ADJUSTMENT NUT 1-1/4 X 20
N/A
40 P0801040
X-AXIS GRADUATED DIAL (RIGHT)
N/A
41 P0801041
BUSHING
N/A
42 P0801042
***USE PCAP06M***
Item is no longer available
P0801042 Replaced By PCAP06M
N/A View Replacement
43 P0801043
ADAPTER SLEEVE
N/A
45 P0801045
ELEVATION SHAFT
N/A
48 P0801048
GEAR SHAFT SLEEVE
N/A
51 P0801051 ELEVATION GEAR 12T $11.00
54 P0801054
SPLASH GUARD
N/A
55 P0801055 CROSS LEADSCREW NUT $42.00
56 P0801056
***USE PCAP38M***
Item is no longer available
P0801056 Replaced By PCAP38M
N/A View Replacement
57 P0801057
***USE PW03M***
Item is no longer available
P0801057 Replaced By PW03M
N/A View Replacement
59 P0801059
SADDLE
N/A
60 P0801060
WAY WIPER (REAR)
N/A
61 P0801061 WAY WIPER (FRONT) $3.75
62 P0801062
***USE PCAP33M***
Item is no longer available
P0801062 Replaced By PCAP33M
N/A View Replacement
63 P0801063
X-AXIS SCALE INDICATOR
N/A
65 P0801065 ADJUSTABLE HANDLE M8-1.25 X 35 $3.00
66 P0801066
Y-AXIS GIB
N/A
67 P0801067
LONGITUDINAL LEADSCREW NUT
N/A
69 P0801069
LONGITUDINAL LEADSCREW
N/A
70 P0801070
WORK TABLE
N/A
72 P0801072
X-AXIS LEADSCREW BRACKET
N/A
73 P0801073
***USE PCAP30M***
Item is no longer available
P0801073 Replaced By PCAP30M
N/A View Replacement
74 P0801074
INT THREADED TAPER PIN 8 X 50
N/A
77 P0801077
X-AXIS GIB
N/A
78 P0801078 CABINET BASE $431.25
79 P0801079 OIL PAN $93.75
79-1 P0801079-1 OIL PAN SEAL $3.00
80 P0801080
***USE PB116M***
Item is no longer available
P0801080 Replaced By PB116M
N/A View Replacement
81 P0801081
***USE PW04M***
Item is no longer available
P0801081 Replaced By PW04M
N/A View Replacement
82 P0801082
CLUTCH
N/A
83 P0801083
COMPRESSION SPRING 24 X 15
N/A
84 P0801084
SPACER
N/A
85 P0801085
HANDWHEEL
N/A
87 P0801087
***USE PCAP26M***
Item is no longer available
P0801087 Replaced By PCAP26M
N/A View Replacement
88 P0801088
X-AXIS GRADUATED DIAL (LEFT)
N/A
89 P0801089
***USE PSTB004M***
Item is no longer available
P0801089 Replaced By PSTB004M
N/A View Replacement
90 P0801090
COMPRESSION SPRING 4 X 12
N/A
91 P0801091
***USE PCAP68M***
Item is no longer available
P0801091 Replaced By PCAP68M
N/A View Replacement
92 P0801092
CLUTCH
N/A
96 P0801096
***USE PK08M***
Item is no longer available
P0801096 Replaced By PK08M
N/A View Replacement
97 P0801097
***USE PCAP11M***
Item is no longer available
P0801097 Replaced By PCAP11M
N/A View Replacement
98 P0801098
LIMIT STOP
N/A
99 P0801099
LIMIT STOP SLIDE NUT M8-1.25
N/A

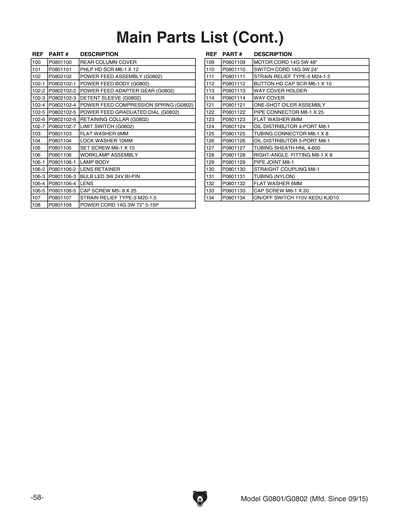

100 P0801100
REAR COLUMN COVER
N/A
101 P0801101
***USE PS14M***
Item is no longer available
P0801101 Replaced By PS14M
N/A View Replacement
103 P0801103
***USE PW03M***
Item is no longer available
P0801103 Replaced By PW03M
N/A View Replacement
104 P0801104
***USE PLW06M***
Item is no longer available
P0801104 Replaced By PLW06M
N/A View Replacement
105 P0801105
***USE PSS01M***
Item is no longer available
P0801105 Replaced By PSS01M
N/A View Replacement
106 P0801106 WORKLAMP ASSEMBLY $62.70
106-1 P0801106-1
LAMP BODY
N/A
106-2 P0801106-2
LENS RETAINER
N/A
106-3 P0801106-3 BULB LED 3W 24V BI-PIN $12.00
106-4 P0801106-4
LENS
N/A
106-5 P0801106-5
***USE PCAP38M***
Item is no longer available
P0801106-5 Replaced By PCAP38M
N/A View Replacement
107 P0801107
STRAIN RELIEF TYPE-3 M20-1.5
N/A
108 P0801108
POWER CORD 14G 3W 72" 5-15P
N/A
109 P0801109
MOTOR CORD 14G 5W 48"
N/A
110 P0801110
SWITCH CORD 14G 3W 24"
N/A
111 P0801111
STRAIN RELIEF TYPE-5 M24-1.5
N/A
112 P0801112
***USE PBHS11M***
Item is no longer available
P0801112 Replaced By PBHS11M
N/A View Replacement
113 P0801113 WAY COVER HOLDER $3.00
114 P0801114 WAY COVER $6.00
121 P0801121
ONE-SHOT OILER ASSEMBLY
N/A
122 P0801122
PIPE CONNECTOR M8-1 X 25
N/A
123 P0801123
***USE PW01M***
Item is no longer available
P0801123 Replaced By PW01M
N/A View Replacement
124 P0801124
OIL DISTRIBUTOR 4-PORT M8-1
N/A
125 P0801125
TUBING CONNECTOR M8-1 X 8
N/A
126 P0801126
OIL DISTRIBUTOR 5-PORT M8-1
N/A
127 P0801127
TUBING SHEATH HNL 4-600
N/A
128 P0801128
RIGHT-ANGLE FITTING M8-1 X 8
N/A
129 P0801129
PIPE JOINT M8-1
N/A
130 P0801130
STRAIGHT COUPLING M8-1
N/A
131 P0801131 TUBING (NYLON) $13.50
132 P0801132
***USE PW03M***
Item is no longer available
P0801132 Replaced By PW03M
N/A View Replacement
133 P0801133
***USE PCAP02M***
Item is no longer available
P0801133 Replaced By PCAP02M
N/A View Replacement
134 P0801134 ON/OFF SWITCH ASSY KEDU KJD3 110V $63.75

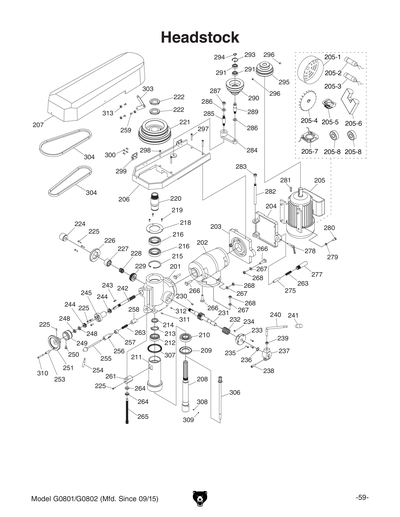

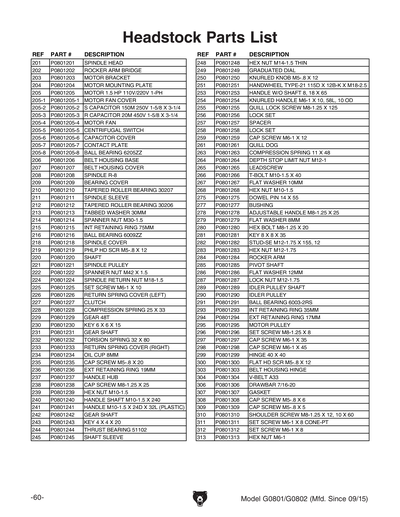

201 P0801201
SPINDLE HEAD
N/A
202 P0801202
ROCKER ARM BRIDGE
N/A
203 P0801203 MOTOR BRACKET $63.75
204 P0801204
MOTOR MOUNTING PLATE
N/A
205 P0801205 MOTOR 1.5 HP 110V/220V 1-PH $270.00
205-1 P0801205-1
MOTOR FAN COVER
N/A
205-2 P0801205-2
***USE PC150F***
Item is no longer available
P0801205-2 Replaced By PC150F
N/A View Replacement
205-3 P0801205-3
***USE PC20B***
Item is no longer available
P0801205-3 Replaced By PC20B
N/A View Replacement
205-4 P0801205-4
MOTOR FAN
N/A
205-5 P0801205-5
CENTRIFUGAL SWITCH
N/A
205-6 P0801205-6 CAPACITOR COVER $30.00
205-7 P0801205-7
CONTACT PLATE
N/A
205-8 P0801205-8
***USE P6205ZZ***
Item is no longer available
P0801205-8 Replaced By P6205ZZ
N/A View Replacement
206 P0801206
BELT HOUSING BASE
N/A
207 P0801207
BELT HOUSING COVER
N/A
208 P0801208
SPINDLE R-8
N/A
209 P0801209 BEARING COVER $6.00
210 P0801210
***USE P30207***
Item is no longer available
P0801210 Replaced By P30207
N/A View Replacement
211 P0801211
SPINDLE SLEEVE
N/A
212 P0801212
***USE P30206***
Item is no longer available
P0801212 Replaced By P30206
N/A View Replacement
213 P0801213
TABBED WASHER 30MM
N/A
214 P0801214
SPANNER NUT M30-1.5
N/A
215 P0801215
***USE PR67M***
Item is no longer available
P0801215 Replaced By PR67M
N/A View Replacement
216 P0801216
***USE P6009ZZ***
Item is no longer available
P0801216 Replaced By P6009ZZ
N/A View Replacement
218 P0801218
SPINDLE COVER
N/A
219 P0801219
***USE PS08M***
Item is no longer available
P0801219 Replaced By PS08M
N/A View Replacement
220 P0801220
SHAFT
N/A
221 P0801221
SPINDLE PULLEY
N/A
222 P0801222 SPANNER NUT M42 X 1.5 $6.00
224 P0801224
SPINDLE RETURN NUT M18-1.5
N/A
225 P0801225
***USE PSS01M***
Item is no longer available
P0801225 Replaced By PSS01M
N/A View Replacement
226 P0801226
RETURN SPRING COVER (LEFT)
N/A
227 P0801227
CLUTCH
N/A
228 P0801228
COMPRESSION SPRING 25 X 33
N/A
229 P0801229
GEAR 48T
N/A
230 P0801230
***USE PK99M***
Item is no longer available
P0801230 Replaced By PK99M
N/A View Replacement
231 P0801231
GEAR SHAFT
N/A
232 P0801232 TORSION SPRING 32 X 80 $3.00
233 P0801233
RETURN SPRING COVER (RIGHT)
N/A
234 P0801234
OIL CUP 8MM
N/A
235 P0801235
***USE PCAP15M***
Item is no longer available
P0801235 Replaced By PCAP15M
N/A View Replacement
236 P0801236
***USE PR08M***
Item is no longer available
P0801236 Replaced By PR08M
N/A View Replacement
237 P0801237
HANDLE HUB
N/A
238 P0801238
***USE PCAP31M***
Item is no longer available
P0801238 Replaced By PCAP31M
N/A View Replacement
239 P0801239
***USE PN02M***
Item is no longer available
P0801239 Replaced By PN02M
N/A View Replacement
240 P0801240
HANDLE SHAFT M10-1.5 X 240
N/A
241 P0801241
HANDLE M10-1.5 X 24D X 32L (PLASTIC)
N/A
242 P0801242
GEAR SHAFT
N/A
243 P0801243
***USE PK48M***
Item is no longer available
P0801243 Replaced By PK48M
N/A View Replacement
244 P0801244
***USE P51102***
Item is no longer available
P0801244 Replaced By P51102
N/A View Replacement
245 P0801245
SHAFT SLEEVE
N/A
248 P0801248
HEX NUT M14-1.5 THIN
N/A
249 P0801249
GRADUATED DIAL
N/A
250 P0801250
***USE P0801030***
Item is no longer available
P0801250 Replaced By P0801030
N/A View Replacement
251 P0801251
HANDWHEEL TYPE-21 115D X 12B-K X M18-2.5
N/A
253 P0801253 HANDWHEEL HANDLE 63L, M6-1 X 10 $6.00
254 P0801254
KNURLED HANDLE M6-1 X 10, 58L, 10 OD
N/A
255 P0801255
QUILL LOCK SCREW M8-1.25 X 125
N/A
256 P0801256
LOCK SET
N/A
257 P0801257
SPACER
N/A
258 P0801258
LOCK SET
N/A
259 P0801259
***USE PCAP26M***
Item is no longer available
P0801259 Replaced By PCAP26M
N/A View Replacement
261 P0801261
QUILL DOG
N/A
263 P0801263
COMPRESSION SPRING 11 X 48
N/A
264 P0801264
DEPTH STOP LIMIT NUT M12-1
N/A
265 P0801265
LEADSCREW
N/A
266 P0801266
T-BOLT M10-1.5 X 40
N/A
267 P0801267
***USE PW04M***
Item is no longer available
P0801267 Replaced By PW04M
N/A View Replacement
268 P0801268
***USE PN02M***
Item is no longer available
P0801268 Replaced By PN02M
N/A View Replacement
275 P0801275
DOWEL PIN 14 X 55
N/A
277 P0801277
BUSHING
N/A
278 P0801278
ADJUSTABLE HANDLE M8-1.25 X 25
N/A
279 P0801279
***USE PW01M***
Item is no longer available
P0801279 Replaced By PW01M
N/A View Replacement
280 P0801280
***USE PB09M***
Item is no longer available
P0801280 Replaced By PB09M
N/A View Replacement
281 P0801281
***USE PK09M***
Item is no longer available
P0801281 Replaced By PK09M
N/A View Replacement
282 P0801282
STUD-SE M12-1.75 X 155, 12
N/A
283 P0801283
***USE PN09M***
Item is no longer available
P0801283 Replaced By PN09M
N/A View Replacement
284 P0801284
ROCKER ARM
N/A
285 P0801285
PIVOT SHAFT
N/A
286 P0801286
***USE PW06M***
Item is no longer available
P0801286 Replaced By PW06M
N/A View Replacement
287 P0801287
***USE PLN09M***
Item is no longer available
P0801287 Replaced By PLN09M
N/A View Replacement
289 P0801289
IDLER PULLEY SHAFT
N/A
290 P0801290
IDLER PULLEY
N/A
291 P0801291
***USE P6003-2RS***
Item is no longer available
P0801291 Replaced By P6003-2RS
N/A View Replacement
293 P0801293
***USE PR21M***
Item is no longer available
P0801293 Replaced By PR21M
N/A View Replacement
294 P0801294
***USE PR18M***
Item is no longer available
P0801294 Replaced By PR18M
N/A View Replacement
295 P0801295
MOTOR PULLEY
N/A
296 P0801296
***USE PSS20M***
Item is no longer available
P0801296 Replaced By PSS20M
N/A View Replacement
297 P0801297
***USE PCAP48M***
Item is no longer available
P0801297 Replaced By PCAP48M
N/A View Replacement
298 P0801298
***USE PCAP30M***
Item is no longer available
P0801298 Replaced By PCAP30M
N/A View Replacement
299 P0801299 HINGE 40 X 40 $9.38
300 P0801300
***USE PFH05M***
Item is no longer available
P0801300 Replaced By PFH05M
N/A View Replacement
303 P0801303
BELT HOUSING HINGE
N/A
304 P0801304
***USE PVA33***
Item is no longer available
P0801304 Replaced By PVA33
N/A View Replacement
306 P0801306 DRAWBAR 7/16-20 $18.00
307 P0801307
GASKET
N/A
308 P0801308
***USE PCAP97M***
Item is no longer available
P0801308 Replaced By PCAP97M
N/A View Replacement
309 P0801309
CAP SCREW M5-.8 X 5
N/A
310 P0801310
HANDWHEEL HANDLE 63L, M6-1 X 10
Item is no longer available
P0801310 Replaced By P0801253
N/A View Replacement
311 P0801311
***USE PSS130M***
Item is no longer available
P0801311 Replaced By PSS130M
N/A View Replacement
312 P0801312
***USE PSS03M***
Item is no longer available
P0801312 Replaced By PSS03M
N/A View Replacement
313 P0801313
***USE PN01M***
Item is no longer available
P0801313 Replaced By PN01M
N/A View Replacement

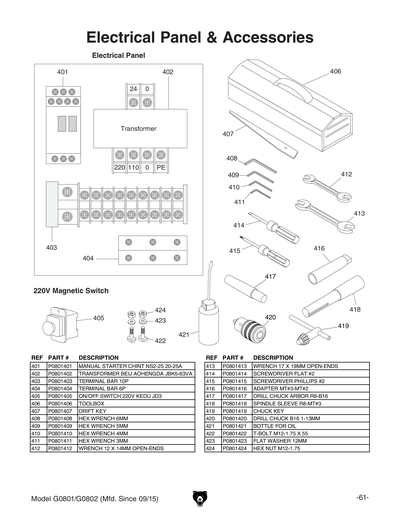

401 P0801401
MANUAL STARTER CHINT NS2-25 20-25A
N/A
402 P0801402
TRANSFORMER BEIJ AOHENGDA JBK5-63VA
N/A
403 P0801403
TERMINAL BAR 10P
N/A
404 P0801404
TERMINAL BAR 6P
N/A
405 P0801405 ON/OFF SWITCH ASSY KEDU JD3 220V $63.75
405A1 P0801405A1
ON/OFF SWITCH ASSY KEDU KJD3 110V
Item is no longer available
P0801405A1 Replaced By P0801134
N/A View Replacement
406 P0801406
TOOLBOX
N/A
407 P0801407
DRIFT KEY
N/A
408 P0801408
***USE PAW06M***
Item is no longer available
P0801408 Replaced By PAW06M
N/A View Replacement
409 P0801409
***USE PAW05M***
Item is no longer available
P0801409 Replaced By PAW05M
N/A View Replacement
410 P0801410
***USE PAW04M***
Item is no longer available
P0801410 Replaced By PAW04M
N/A View Replacement
411 P0801411
***USE PAW03M***
Item is no longer available
P0801411 Replaced By PAW03M
N/A View Replacement
412 P0801412
***USE PWR1214***
Item is no longer available
P0801412 Replaced By PWR1214
N/A View Replacement
413 P0801413
***USE PWR1719***
Item is no longer available
P0801413 Replaced By PWR1719
N/A View Replacement
414 P0801414
***USE PSDF2***
Item is no longer available
P0801414 Replaced By PSDF2
N/A View Replacement
415 P0801415
***USE PSDP2***
Item is no longer available
P0801415 Replaced By PSDP2
N/A View Replacement
416 P0801416
ADAPTER MT#3-MT#2
N/A
417 P0801417
DRILL CHUCK ARBOR R8-B16
N/A
418 P0801418
SPINDLE SLEEVE R8-MT#3
N/A
419 P0801419
CHUCK KEY
N/A
420 P0801420
DRILL CHUCK B16 1-13MM
N/A
421 P0801421 BOTTLE FOR OIL $5.00
422 P0801422
T-BOLT M12-1.75 X 55
N/A
423 P0801423
***USE PW06M***
Item is no longer available
P0801423 Replaced By PW06M
N/A View Replacement
424 P0801424
***USE PN09M***
Item is no longer available
P0801424 Replaced By PN09M
N/A View Replacement

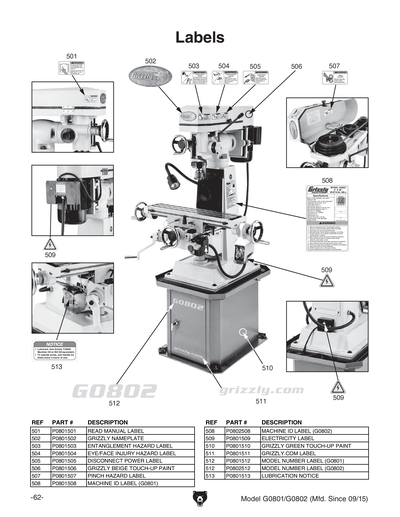

501 P0801501
***USE PLABEL-12D***
Item is no longer available
P0801501 Replaced By PLABEL-12D
N/A View Replacement
502 P0801502
***USE G9987***
Item is no longer available
P0801502 Replaced By G9987
N/A View Replacement
503 P0801503
***USE PLABEL-55C***
Item is no longer available
P0801503 Replaced By PLABEL-55C
N/A View Replacement
504 P0801504
***USE PLABEL-88C***
Item is no longer available
P0801504 Replaced By PLABEL-88C
N/A View Replacement
505 P0801505
***USE PLABEL-62C***
Item is no longer available
P0801505 Replaced By PLABEL-62C
N/A View Replacement
506 P0801506
***USE PPAINT-14***
Item is no longer available
P0801506 Replaced By PPAINT-14
N/A View Replacement
507 P0801507
PINCH HAZARD LABEL
N/A
508 P0801508
MACHINE ID LABEL
N/A
509 P0801509
***USE PLABEL-14A***
Item is no longer available
P0801509 Replaced By PLABEL-14A
N/A View Replacement
510 P0801510
***USE PPAINT-1***
Item is no longer available
P0801510 Replaced By PPAINT-1
N/A View Replacement
511 P0801511
GRIZZLY.COM LABEL
N/A
512 P0801512
MODEL NUMBER LABEL
N/A
513 P0801513
LUBRICATION NOTICE
N/A
MAN P0801MAN
MANUAL G0801/G0802 MFD-09.15 V1.02.16
N/A
