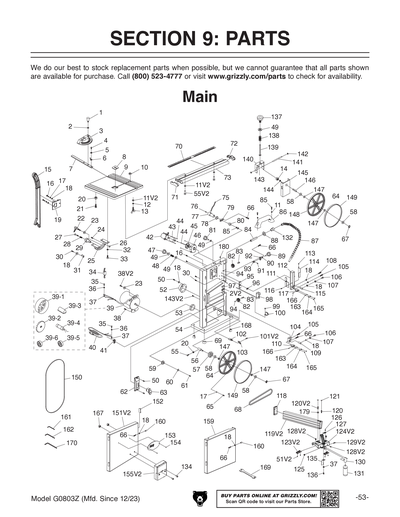

Parts for G0803Z - 9" Benchtop Bandsaw with Laser Guide

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

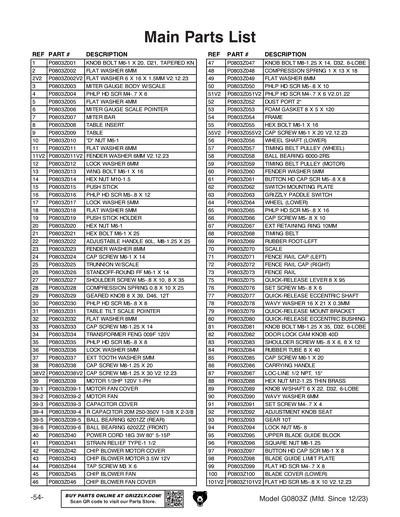

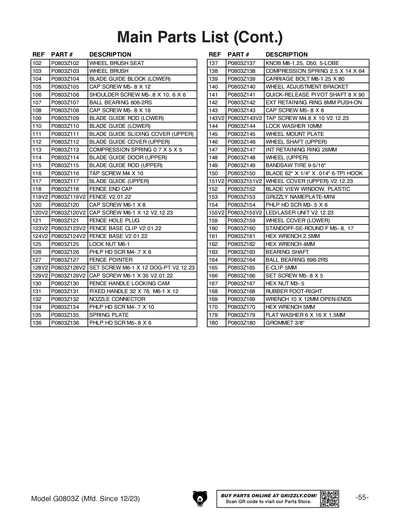

Ref # Part # Description Price Qty
001 P0803Z001
KNOB BOLT M6-1 X 20, D21, TAPERED KN
N/A
002 P0803Z002
***USE PW03M***
Item is no longer available
P0803Z002 Replaced By PW03M
N/A View Replacement
003 P0803Z003 MITER GAUGE BODY W/SCALE $1.25
004 P0803Z004
***USE PS17M***
Item is no longer available
P0803Z004 Replaced By PS17M
N/A View Replacement
005 P0803Z005
***USE PW05M***
Item is no longer available
P0803Z005 Replaced By PW05M
N/A View Replacement
006 P0803Z006
MITER GAUGE SCALE POINTER
N/A
007 P0803Z007
MITER BAR
N/A
008 P0803Z008 TABLE INSERT $1.00
009 P0803Z009 TABLE $32.50
010 P0803Z010
"D" NUT M6-1
N/A
011 P0803Z011
***USE PW03M***
Item is no longer available
P0803Z011 Replaced By PW03M
N/A View Replacement
012 P0803Z012
***USE PLW03M***
Item is no longer available
P0803Z012 Replaced By PLW03M
N/A View Replacement
013 P0803Z013
WING BOLT M6-1 X 16
N/A
014 P0803Z014
***USE PN02M***
Item is no longer available
P0803Z014 Replaced By PN02M
N/A View Replacement
015 P0803Z015 PUSH STICK $2.75
016 P0803Z016
***USE PS08M***
Item is no longer available
P0803Z016 Replaced By PS08M
N/A View Replacement
017 P0803Z017
***USE PLW01M***
Item is no longer available
P0803Z017 Replaced By PLW01M
N/A View Replacement
018 P0803Z018
***USE PW02M***
Item is no longer available
P0803Z018 Replaced By PW02M
N/A View Replacement
019 P0803Z019
PUSH STICK HOLDER
N/A
020 P0803Z020
***USE PN01M***
Item is no longer available
P0803Z020 Replaced By PN01M
N/A View Replacement
021 P0803Z021
***USE PCAP69M***
Item is no longer available
P0803Z021 Replaced By PCAP69M
N/A View Replacement
022 P0803Z022 ADJUSTABLE HANDLE 60L, M8-1.25 X 25 $3.25
023 P0803Z023
***USE PWF08M***
Item is no longer available
P0803Z023 Replaced By PWF08M
N/A View Replacement
024 P0803Z024
***USE PCAP27M***
Item is no longer available
P0803Z024 Replaced By PCAP27M
N/A View Replacement
025 P0803Z025 TRUNNION W/SCALE $10.75
026 P0803Z026 STANDOFF-ROUND FF M6-1 X 14 $1.00
027 P0803Z027 SHOULDER SCREW M5-.8 X 10, 8 X 35 $1.75
028 P0803Z028 COMPRESSION SPRING 0.8 X 10 X 25 $1.00
029 P0803Z029 GEARED KNOB 8 X 39, D46, 12T $1.25
030 P0803Z030
***USE PS05M***
Item is no longer available
P0803Z030 Replaced By PS05M
N/A View Replacement
031 P0803Z031
TABLE TILT SCALE POINTER
N/A
032 P0803Z032
***USE PW01M***
Item is no longer available
P0803Z032 Replaced By PW01M
N/A View Replacement
033 P0803Z033
***USE PCAP155M***
Item is no longer available
P0803Z033 Replaced By PCAP155M
N/A View Replacement
034 P0803Z034 LED TRANSFORMER $6.50
035 P0803Z035
***USE PS05M***
Item is no longer available
P0803Z035 Replaced By PS05M
N/A View Replacement
036 P0803Z036
***USE PLW01M***
Item is no longer available
P0803Z036 Replaced By PLW01M
N/A View Replacement
037 P0803Z037
***USE PTLW02M***
Item is no longer available
P0803Z037 Replaced By PTLW02M
N/A View Replacement
038 P0803Z038
***USE PCAP14M***
Item is no longer available
P0803Z038 Replaced By PCAP14M
N/A View Replacement
039 P0803Z039 MOTOR 1/3HP 120V 1-PH $60.00
039-1 P0803Z039-1
MOTOR FAN COVER
N/A
039-2 P0803Z039-2
MOTOR FAN
N/A
039-3 P0803Z039-3
CAPACITOR COVER
N/A
039-4 P0803Z039-4
R CAPACITOR 20M 250-350V 1-3/8 X 2-3/8
N/A
039-5 P0803Z039-5
***USE P6201ZZ***
Item is no longer available
P0803Z039-5 Replaced By P6201ZZ
N/A View Replacement
039-6 P0803Z039-6
***USE P6202ZZ***
Item is no longer available
P0803Z039-6 Replaced By P6202ZZ
N/A View Replacement
040 P0803Z040
POWER CORD 18G 3W 72" 5-15P
N/A
041 P0803Z041
STRAIN RELIEF TYPE-1 1/2
N/A
042 P0803Z042 CHIP BLOWER MOTOR COVER $1.50
043 P0803Z043 CHIP BLOWER MOTOR 3.5W 12V $15.25
044 P0803Z044
***USE PHTEK30M***
Item is no longer available
P0803Z044 Replaced By PHTEK30M
N/A View Replacement
045 P0803Z045 CHIP BLOWER FAN $1.50
046 P0803Z046
CHIP BLOWER FAN COVER
N/A
047 P0803Z047
KNOB BOLT M8-1.25 X 14, D32, 6-LOBE
N/A
048 P0803Z048 COMPRESSION SPRING 1 X 13 X 18 $1.00
049 P0803Z049
***USE PW01M***
Item is no longer available
P0803Z049 Replaced By PW01M
N/A View Replacement
050 P0803Z050
***USE PS09M***
Item is no longer available
P0803Z050 Replaced By PS09M
N/A View Replacement
051 P0803Z051
FLAT HD SCR M3-.5 X 4
N/A
052 P0803Z052 DUST PORT 2" $1.00
053 P0803Z053
FOAM GASKET 8 X 5 X 120
N/A
054 P0803Z054
FRAME
N/A
055 P0803Z055
***USE PB83M***
Item is no longer available
P0803Z055 Replaced By PB83M
N/A View Replacement
056 P0803Z056
WHEEL SHAFT (LOWER)
N/A
057 P0803Z057 TIMING BELT PULLEY (WHEEL) $2.50
058 P0803Z058
***USE P60002RS***
Item is no longer available
P0803Z058 Replaced By P60002RS
N/A View Replacement
059 P0803Z059
TIMING BELT PULLEY (MOTOR)
N/A
060 P0803Z060
***USE PWF05M***
Item is no longer available
P0803Z060 Replaced By PWF05M
N/A View Replacement
061 P0803Z061
***USE PCAP50M***
Item is no longer available
P0803Z061 Replaced By PCAP50M
N/A View Replacement
062 P0803Z062 SWITCH MOUNTING PLATE $1.25
063 P0803Z063
***USE G8988***
Item is no longer available
P0803Z063 Replaced By G8988
N/A View Replacement
064 P0803Z064 WHEEL (LOWER) $16.75
065 P0803Z065
***USE PS40M***
Item is no longer available
P0803Z065 Replaced By PS40M
N/A View Replacement
066 P0803Z066
***USE PCAP50M***
Item is no longer available
P0803Z066 Replaced By PCAP50M
N/A View Replacement
067 P0803Z067
***USE PR01M***
Item is no longer available
P0803Z067 Replaced By PR01M
N/A View Replacement
068 P0803Z068 TIMING BELT 130XL 10 $4.00
069 P0803Z069 RUBBER FOOT-LEFT $2.75
070 P0803Z070
SCALE
N/A
071 P0803Z071
FENCE RAIL CAP (LEFT)
N/A
072 P0803Z072
FENCE RAIL CAP (RIGHT)
N/A
073 P0803Z073
FENCE RAIL
N/A
074 P0803Z074 WORKLAMP W/SWITCH, LED BULB 12V, 1W $24.50
075 P0803Z075
QUICK-RELEASE LEVER 8 X 95
N/A
076 P0803Z076
***USE PSS26M***
Item is no longer available
P0803Z076 Replaced By PSS26M
N/A View Replacement
077 P0803Z077
QUICK-RELEASE ECCENTRIC SHAFT
N/A
078 P0803Z078
WAVY WASHER 16 X 21 X 0.3MM
N/A
079 P0803Z079 QUICK-RELEASE MOUNT BRACKET $1.75
080 P0803Z080
QUICK-RELEASE ECCENTRIC BUSHING
N/A
081 P0803Z081
KNOB BOLT M8-1.25 X 35, D32, 6-LOBE
N/A
082 P0803Z082 DOOR LOCK CAM KNOB 40D $3.75
083 P0803Z083
SHOULDER SCREW M5-.8 X 6, 8 X 12
N/A
084 P0803Z084
RUBBER TUBE 8 X 40
N/A
085 P0803Z085
***USE PCAP02M ***
Item is no longer available
P0803Z085 Replaced By PCAP24M
N/A View Replacement
086 P0803Z086 CARRYING HANDLE $1.50
087 P0803Z087 LOC-LINE 1/2 NPT, 15" $2.75
088 P0803Z088 HEX NUT M12-1.25 THIN BRASS $1.00
089 P0803Z089
KNOB W/SHAFT 6 X 22, D32, 6-LOBE
N/A
090 P0803Z090
WAVY WASHER 6MM
N/A
091 P0803Z091
***USE PSS111M***
Item is no longer available
P0803Z091 Replaced By PSS111M
N/A View Replacement
092 P0803Z092
ADJUSTMENT KNOB SEAT
N/A
093 P0803Z093
GEAR 10T
N/A
094 P0803Z094
***USE PLN02M***
Item is no longer available
P0803Z094 Replaced By PLN02M
N/A View Replacement
095 P0803Z095
UPPER BLADE GUIDE BLOCK
N/A
096 P0803Z096
***USE PSN03M***
Item is no longer available
P0803Z096 Replaced By PSN03M
N/A View Replacement
097 P0803Z097
***USE PCAP68M***
Item is no longer available
P0803Z097 Replaced By PCAP68M
N/A View Replacement
098 P0803Z098 BLADE GUIDE LIMIT PLATE $1.00
099 P0803Z099
***USE PFH31M***
Item is no longer available
P0803Z099 Replaced By PFH31M
N/A View Replacement
100 P0803Z100 BLADE COVER (LOWER) $1.00
101 P0803Z101
***USE PCAP97M***
Item is no longer available
P0803Z101 Replaced By PCAP97M
N/A View Replacement
102 P0803Z102
WHEEL BRUSH SEAT
N/A
103 P0803Z103
WHEEL BRUSH
N/A
104 P0803Z104 BLADE GUIDE BLOCK (LOWER) $2.50
105 P0803Z105
***USE PCAP33M***
Item is no longer available
P0803Z105 Replaced By PCAP33M
N/A View Replacement
106 P0803Z106 SHOULDER SCREW M5-.8 X 10, 6 X 6 $1.00
107 P0803Z107 BALL BEARING 606-2RS $1.25
108 P0803Z108
***USE PCAP24M***
Item is no longer available
P0803Z108 Replaced By PCAP24M
N/A View Replacement
109 P0803Z109 BLADE GUIDE ROD (LOWER) $1.00
110 P0803Z110 BLADE GUIDE (LOWER) $2.25
111 P0803Z111
BLADE GUIDE SLIDING COVER (UPPER)
N/A
112 P0803Z112 BLADE GUIDE COVER (UPPER) $4.75
113 P0803Z113
DOWEL PIN 3 X 15 W/COMP SPRING
N/A
114 P0803Z114
BLADE GUIDE DOOR (UPPER)
N/A
115 P0803Z115 BLADE GUIDE ROD (UPPER) $1.00
116 P0803Z116
***USE PS38M***
Item is no longer available
P0803Z116 Replaced By PS38M
N/A View Replacement
117 P0803Z117 BLADE GUIDE (UPPER) $2.25
118 P0803Z118
FENCE END CAP
N/A
119 P0803Z119
FENCE
N/A
120 P0803Z120
***USE PCAP68M***
Item is no longer available
P0803Z120 Replaced By PCAP68M
N/A View Replacement
121 P0803Z121
FENCE HOLE PLUG
N/A
122 P0803Z122 FENCE SPACER PLATE $1.00
123 P0803Z123 FENCE BASE CLIP $4.00
124 P0803Z124 FENCE BASE $9.25
125 P0803Z125
***USE PLN03M***
Item is no longer available
P0803Z125 Replaced By PLN03M
N/A View Replacement
126 P0803Z126
***USE PS17M***
Item is no longer available
P0803Z126 Replaced By PS17M
N/A View Replacement
127 P0803Z127
FENCE POINTER
N/A
128 P0803Z128
***USE PSS03M***
Item is no longer available
P0803Z128 Replaced By PSS03M
N/A View Replacement
129 P0803Z129
***USE PCAP07M***
Item is no longer available
P0803Z129 Replaced By PCAP07M
N/A View Replacement
130 P0803Z130
FENCE HANDLE LOCKING CAM
N/A
131 P0803Z131
FIXED HANDLE 32 X 76, M6-1 X 12
N/A
132 P0803Z132
NOZZLE CONNECTOR
N/A
134 P0803Z134
PHLP HD SCR M4-.7 X 10
Item is no longer available
P0803Z134 Replaced By PS38M
N/A View Replacement
135 P0803Z135
SPRING PLATE
N/A
136 P0803Z136
***USE PS19M***
Item is no longer available
P0803Z136 Replaced By PS19M
N/A View Replacement
137 P0803Z137
KNOB M8-1.25, D50, 5-LOBE
N/A
138 P0803Z138
COMPRESSION SPRING 2.5 X 14 X 64
N/A
139 P0803Z139
***USE PCB23M***
Item is no longer available
P0803Z139 Replaced By PCB23M
N/A View Replacement
140 P0803Z140
WHEEL ADJUSTMENT BRACKET
N/A
141 P0803Z141
QUICK-RELEASE PIVOT SHAFT 8 X 90
N/A
142 P0803Z142
EXT RETAINING RING 8MM PUSH-ON
N/A
143 P0803Z143
***USE PCAP03M***
Item is no longer available
P0803Z143 Replaced By PCAP03M
N/A View Replacement
144 P0803Z144
***USE PLW06M***
Item is no longer available
P0803Z144 Replaced By PLW06M
N/A View Replacement
145 P0803Z145
WHEEL MOUNT PLATE
N/A
146 P0803Z146
WHEEL SHAFT (UPPER)
N/A
147 P0803Z147
***USE PR40M***
Item is no longer available
P0803Z147 Replaced By PR40M
N/A View Replacement
148 P0803Z148
WHEEL (UPPER)
N/A
149 P0803Z149 BANDSAW TIRE 9-5/16" $2.50
150 P0803Z150
***USE H8506***
Item is no longer available
P0803Z150 Replaced By H8506
N/A View Replacement
151 P0803Z151
WHEEL COVER (UPPER)
N/A
152 P0803Z152
BLADE VIEW WINDOW, PLASTIC
N/A
153 P0803Z153
***USE G9987***
Item is no longer available
P0803Z153 Replaced By G9987
N/A View Replacement
154 P0803Z154
***USE PS12M***
Item is no longer available
P0803Z154 Replaced By PS12M
N/A View Replacement
155 P0803Z155 LASER UNIT $6.25
156 P0803Z156
LASER UNIT
Item is no longer available
P0803Z156 Replaced By P0803Z155
N/A View Replacement
157 P0803Z157
LASER UNIT
Item is no longer available
P0803Z157 Replaced By P0803Z155
N/A View Replacement
158 P0803Z158
LASER SIGHT BOX COVER
P0803Z158 Replaced By P0803Z155
N/A
159 P0803Z159
WHEEL COVER (LOWER)
N/A
160 P0803Z160
STANDOFF-SE-ROUND F M5-.8, 17
N/A
161 P0803Z161
***USE PAW02.5M***
Item is no longer available
P0803Z161 Replaced By PAW02.5M
N/A View Replacement
162 P0803Z162
***USE PAW04M***
Item is no longer available
P0803Z162 Replaced By PAW04M
N/A View Replacement
163 P0803Z163 BEARING SHAFT $2.25
164 P0803Z164
***USE P696-2RS***
Item is no longer available
P0803Z164 Replaced By P696-2RS
N/A View Replacement
165 P0803Z165
***USE PR73M***
Item is no longer available
P0803Z165 Replaced By PR73M
N/A View Replacement
166 P0803Z166
***USE PSS07M***
Item is no longer available
P0803Z166 Replaced By PSS07M
N/A View Replacement
167 P0803Z167
***USE PN07M***
Item is no longer available
P0803Z167 Replaced By PN07M
N/A View Replacement
168 P0803Z168 RUBBER FOOT-RIGHT $2.75
169 P0803Z169
WRENCH 10 X 12MM OPEN-ENDS
Item is no longer available
P0803Z169 Replaced By PWR1012
N/A View Replacement
170 P0803Z170
HEX WRENCH 5MM
Item is no longer available
P0803Z170 Replaced By PAW05M
N/A View Replacement

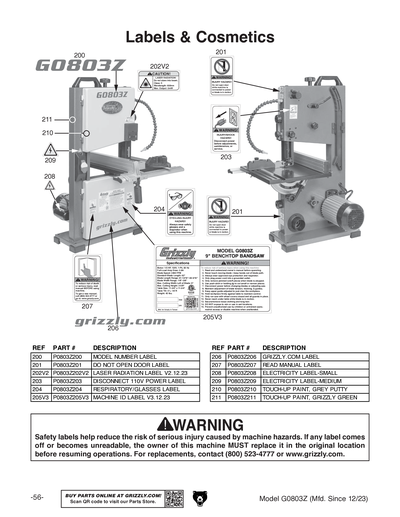

200 P0803Z200
MODEL NUMBER LABEL
N/A
201 P0803Z201
DO NOT OPEN DOOR LABEL
N/A
202 P0803Z202
DO NOT LOOK INTO LASER LABEL
N/A
203 P0803Z203
***USE PLABEL-62A***
Item is no longer available
P0803Z203 Replaced By PLABEL-62A
N/A View Replacement
204 P0803Z204
***USE PLABEL-57A***
Item is no longer available
P0803Z204 Replaced By PLABEL-57A
N/A View Replacement
205 P0803Z205
MACHINE ID LABEL V1
N/A
205V2 P0803Z205V2
MACHINE ID LABEL V2.07.19
N/A
206 P0803Z206
GRIZZLY.COM LABEL
N/A
207 P0803Z207
***USE PLABEL-12C***
Item is no longer available
P0803Z207 Replaced By PLABEL-12C
N/A View Replacement
208 P0803Z208
***USE PLABEL-14B***
Item is no longer available
P0803Z208 Replaced By PLABEL-14B
N/A View Replacement
209 P0803Z209
***USE PLABEL-14A***
Item is no longer available
P0803Z209 Replaced By PLABEL-14A
N/A View Replacement
210 P0803Z210
***USE PPAINT-11***
Item is no longer available
P0803Z210 Replaced By PPAINT-11
N/A View Replacement
211 P0803Z211
***USE PPAINT-1***
Item is no longer available
P0803Z211 Replaced By PPAINT-1
N/A View Replacement
MAN P0803ZMAN MANUAL G0803Z MFD-12.18-06.19 V1.01.19 $18.75
MANV2 P0803ZMANV2
MANUAL G0803Z MFD-07.19-4.20 V2.07.19
N/A
MANV3 P0803ZMANV3
MANUAL G0803Z MFD-05.20+ V3.05.20
N/A
