Parts for G0808 - 20-3/4" Gearhead Drill Press w/ Cross-Slide Table

Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808
Part Diagram for G0808

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

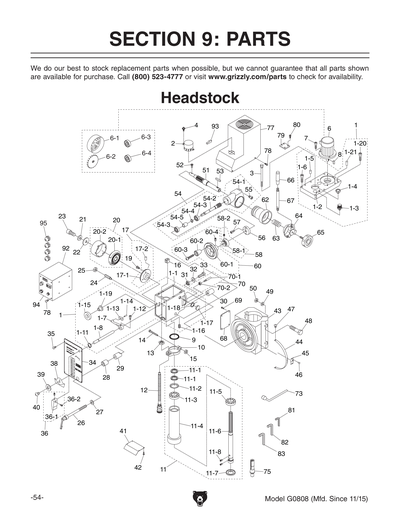

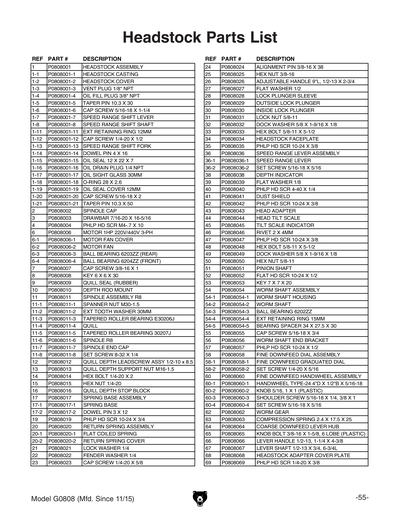

1
HEADSTOCK ASSEMBLY
Price
$1,136.00
1-1
HEADSTOCK CASTING
Price
$614.05
1-11
EXT RETAINING RING 12MM
Price
N/A
1-12
CAP SCREW 1/4-20 X 1/2
Price
N/A
1-13
SPEED RANGE SHIFT FORK
Price
$14.50
1-14
DOWEL PIN 4 X 16
Price
$1.60
1-15
OIL SEAL 12 X 22 X 7
Price
$5.50
1-16
OIL DRAIN PLUG 1/4 NPT
Price
$2.20
1-17
OIL SIGHT GLASS 30MM
Price
$4.30
1-18
O-RING 28 X 2.6
Price
$1.60
1-19
OIL SEAL COVER 12MM
Price
$2.20
1-2
HEADSTOCK COVER
Price
$202.90
1-20
CAP SCREW 5/16-18 X 2
Price
N/A
1-21
TAPER PIN 10.3 X 50
Price
$5.80
1-3
VENT PLUG 1/8" NPT
Price
$34.80
1-4
OIL FILL PLUG 3/8" NPT
Price
$6.40
1-5
TAPER PIN 10.3 X 30
Price
$4.85
1-6
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
1-7
SPEED RANGE SHIFT LEVER
Price
$26.35
1-8
SPEED RANGE SHIFT SHAFT
Price
$17.55
2
SPINDLE CAP
Price
$2.75
3
DRAWBAR 7/16-20 X 16-5/16
Price
$41.40
4
PHLP HD SCR M4-.7 X 10
Price
N/A
6
MOTOR 1HP 220V/440V 3-PH
Price
$514.40
6-1
MOTOR FAN COVER
Price
$31.75
6-2
MOTOR FAN
Price
$28.45
6-3
BALL BEARING 6203ZZ
Price
N/A
6-4
BALL BEARING 6204ZZ
Price
N/A
7
CAP SCREW 3/8-16 X 1
Price
N/A
8
KEY 6 X 6 X 30
Price
N/A
9
QUILL SEAL (RUBBER)
Price
$2.70
10
DEPTH ROD MOUNT
Price
$37.45
11
SPINDLE ASSEMBLY R8
Price
$561.50
11-1
SPANNER NUT M30-1.5
Price
$10.65
11-2
EXT TOOTH WASHER 30MM
Price
N/A
11-3
TAPERED ROLLER BEARING 30206
Price
N/A
11-4
SPINDLE R8 W/ QUILL
Price
N/A
11-5
TAPERED ROLLER BEARING 30207
Price
N/A
11-6
SPINDLE R8 W/ QUILL
Price
$907.50
11-7
SPINDLE END CAP
Price
$7.25
11-8
SET SCREW 8-32 X 1/4
Price
$1.60
12
QUILL DEPTH LEADSCREW ASSY 1/2-10 X 8.5
Price
$50.75
13
QUILL DEPTH SUPPORT NUT M16-1.5
Price
$4.30
14
P0808014
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
15
P0808015
Now: PN05
HEX NUT 1/4-20
Price
N/A
16
QUILL DEPTH STOP BLOCK
Price
$11.50
17
SPRING BASE ASSEMBLY
Price
$26.90
17-1
SPRING BASE
Price
$5.80
17-2
DOWEL PIN 3 X 12
Price
$1.60
19
P0808019
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
20
RETURN SPRING ASSEMBLY
Price
$76.10
20-1
RETURN SPRING ASSEMBLY
Price
N/A
20-2
RETURN SPRING ASSEMBLY
Price
N/A
21
LOCK WASHER 1/4
Price
N/A
22
FENDER WASHER 1/4
Price
$1.60
23
CAP SCREW 1/4-20 X 5/8
Price
N/A
24
ALIGNMENT PIN 3/8-16 X 38
Price
$4.30
25
P0808025
Now: PN08
HEX NUT 3/8-16
Price
N/A
26
ADJUSTABLE HANDLE 9"L, 1/2-13 X 2-3/4
Price
$60.40
27
P0808027
Now: PW01
FLAT WASHER 1/2
Price
N/A
28
LOCK PLUNGER SLEEVE
Price
$9.10
29
OUTSIDE LOCK PLUNGER
Price
$9.10
30
INSIDE LOCK PLUNGER
Price
$9.10
31
LOCK NUT 5/8-11
Price
N/A
32
DOCK WASHER 5/8 X 1-9/16 X 1/8
Price
$1.60
33
P0808033
Now: PB99
HEX BOLT 5/8-11 X 5-1/2
Price
N/A
34
HEADSTOCK FACEPLATE
Price
$68.85
35
P0808035
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
36
SPEED RANGE LEVER ASSEMBLY
Price
$14.50
36-1
SPEED RANGE LEVER
Price
$10.30
36-2
SET SCREW 5/16-18 X 5/16
Price
N/A
38
DEPTH INDICATOR
Price
$2.45
39
FLAT WASHER 1/8
Price
$1.60
40
P0808040
Now: PS33
PHLP HD SCR 4-40 X 1/4
Price
N/A
41
DUST SHIELD
Price
$21.20
42
P0808042
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
43
HEAD ADAPTER
Price
$338.75
44
HEAD TILT SCALE
Price
$10.65
45
TILT SCALE INDICATOR
Price
$1.60
46
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
47
P0808047
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
48
P0808048
Now: PB99
HEX BOLT 5/8-11 X 5-1/2
Price
N/A
49
DOCK WASHER 5/8 X 1-9/16 X 1/8
Price
$1.60
50
P0808050
Now: PN04
HEX NUT 5/8-11
Price
N/A
51
PINION SHAFT
Price
$96.35
52
FLAT HD SCR 10-24 X 1/2
Price
N/A
53
KEY 7 X 7 X 20
Price
N/A
54
WORM SHAFT ASSEMBLY
Price
$104.20
54-1
WORM SHAFT HOUSING
Price
$40.50
54-2
WORM SHAFT
Price
$25.10
54-3
BALL BEARING 6202ZZ
Price
N/A
54-4
EXT RETAINING RING 15MM
Price
N/A
54-5
BEARING SPACER 34 X 27.5 X 30
Price
$3.65
55
CAP SCREW 5/16-18 X 3/4
Price
N/A
56
WORM SHAFT END BRACKET
Price
$10.90
57
P0808057
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
58
FINE DOWNFEED DIAL ASSEMBLY
Price
$34.15
58-1
FINE DOWNFEED GRADUATED DIAL
Price
$34.15
58-2
SET SCREW 1/4-20 X 5/16
Price
N/A
60
FINE DOWNFEED HANDWHEEL ASSEMBLY
Price
$93.95
60-1
HANDWHEEL TYPE-24 4"D X 1/2"B X 5/16-18
Price
$81.85
60-2
KNOB 5/16, 1 X 1 (PLASTIC)
Price
$27.25
60-3
SHOULDER SCREW 5/16-18 X 1/4, 3/8 X 1
Price
$3.40
60-4
SET SCREW 5/16-18 X 5/16
Price
N/A
62
WORM GEAR
Price
$55.30
63
COMPRESSION SPRING 2.4 X 17.5 X 25
Price
$2.20
64
COARSE DOWNFEED LEVER HUB
Price
$52.25
65
KNOB BOLT 3/8-16 X 1-5/8, 6 LOBE (PL)
Price
$4.85
66
LEVER HANDLE 1/2-13, 1-1/4 X 4-3/8
Price
$10.90
67
LEVER SHAFT 1/2-13 X 3/4, 6-3/4L
Price
$20.70
68
HEADSTOCK ADAPTER COVER PLATE
Price
$14.50
69
P0808069
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A

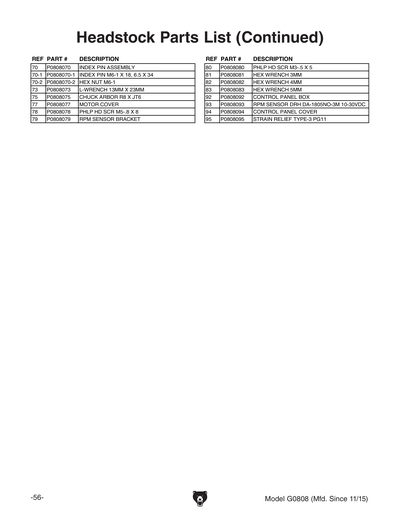

70
INDEX PIN ASSEMBLY
Price
$27.80
70-1
INDEX PIN M6-1 X 18, 6.5 X 34
Price
$10.30
70-2
HEX NUT M6-1
Price
N/A
73
L-WRENCH 13MM X 23MM
Price
$26.60
75
CHUCK ARBOR R8 X JT6
Price
$54.10
77
MOTOR COVER
Price
$244.25
78
PHLP HD SCR M5-.8 X 8
Price
N/A
79
RPM SENSOR BRACKET
Price
$15.15
80
PHLP HD SCR M3-.5 X 5
Price
N/A
81
HEX WRENCH 3MM
Price
N/A
82
HEX WRENCH 4MM
Price
N/A
83
HEX WRENCH 5MM
Price
N/A
92
CONTROL PANEL BOX
Price
$174.20
93
RPM SENSOR DRH DA-1805NO-3M 10-30VDC
Price
$94.20
94
CONTROL PANEL COVER
Price
$103.85
95
STRAIN RELIEF TYPE-3 PG11
Price
$4.60

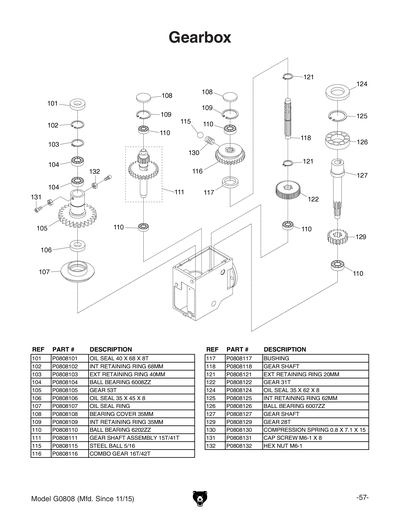

101
OIL SEAL 40 X 68 X 8T
Price
$12.75
102
INT RETAINING RING 68MM
Price
N/A
103
EXT RETAINING RING 40MM
Price
N/A
104
BALL BEARING 6008ZZ
Price
N/A
105
GEAR ASSEMBLY
Price
N/A
105A
GEAR ASSEMBLY
Price
$708.25
106
OIL SEAL 35 X 45 X 8
Price
$10.90
107
OIL SEAL RING
Price
$29.00
108
BEARING COVER 35MM
Price
$6.40
109
INT RETAINING RING 35MM
Price
N/A
110
BALL BEARING 6202ZZ
Price
N/A
111
GEAR ASSEMBLY
Price
N/A
115
STEEL BALL 5/16
Price
N/A
116
GEAR ASSEMBLY
Price
N/A
117
BUSHING
Price
$4.60
118
GEAR ASSEMBLY
Price
N/A
121
EXT RETAINING RING 20MM
Price
N/A
122
GEAR ASSEMBLY
Price
N/A
124
OIL SEAL 35 X 62 X 8
Price
$10.65
125
INT RETAINING RING 62MM
Price
N/A
126
BALL BEARING 6007ZZ
Price
N/A
127
GEAR ASSEMBLY
Price
N/A
129
GEAR ASSEMBLY
Price
N/A
130
COMPRESSION SPRING 0.8 X 7.1 X 15
Price
$1.60
131
CAP SCREW M6-1 X 8
Price
N/A
132
HEX NUT M6-1
Price
N/A

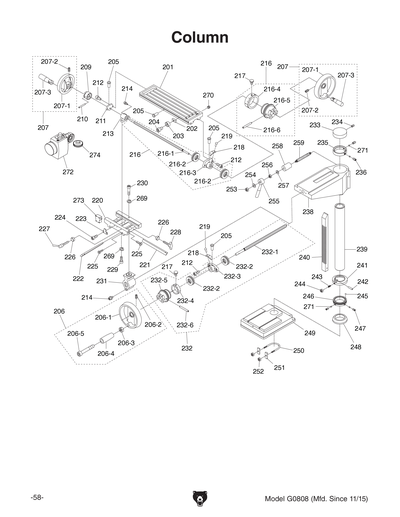

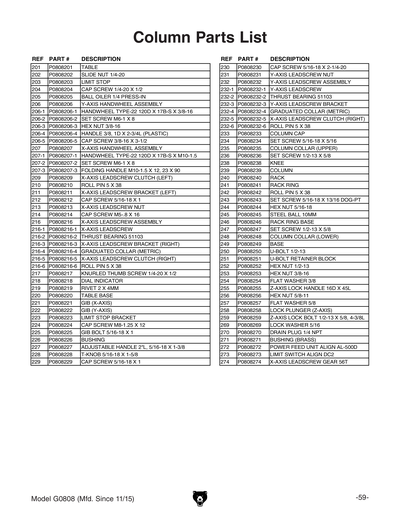

201
TABLE W/BASE & GIBS
Price
$914.25
202
SLIDE NUT 1/4-20
Price
$3.65
203
LIMIT STOP
Price
$3.95
204
CAP SCREW 1/4-20 X 1/2
Price
N/A
205
BALL OILER 1/4 PRESS-IN
Price
N/A
206
Y-AXIS HANDWHEEL ASSEMBLY
Price
$57.40
206-1
HANDWHEEL TYPE-22 120D X 17B-S X 3/8-16
Price
$51.35
206-2
SET SCREW M6-1 X 8
Price
N/A
206-3
HEX NUT 3/8-16
Price
N/A
206-4
HANDLE 3/8, 1D X 2-3/4L (PLASTIC)
Price
$7.90
206-5
CAP SCREW 3/8-16 X 3-1/2
Price
N/A
207
X-AXIS HANDWHEEL ASSEMBLY
Price
$57.40
207-1
HANDWHEEL TYPE-22 120D X 17B-S X M10-1.5
Price
$51.35
207-2
SET SCREW M6-1 X 8
Price
N/A
207-3
FOLDING HANDLE M10-1.5 X 12, 23 X 90
Price
$106.90
209
X-AXIS LEADSCREW CLUTCH (LEFT)
Price
$28.45
210
ROLL PIN 5 X 38
Price
N/A
211
X-AXIS LEADSCREW BRACKET (LEFT)
Price
$31.40
212
CAP SCREW 5/16-18 X 1
Price
N/A
213
X-AXIS LEADSCREW NUT
Price
$88.50
214
CAP SCREW M5-.8 X 16
Price
N/A
216
X-AXIS LEADSCREW ASSEMBLY
Price
$237.00
216-1
X-AXIS LEADSCREW
Price
$62.55
216-2
THRUST BEARING 51103
Price
N/A
216-3
X-AXIS LEADSCREW BRACKET (RIGHT)
Price
$36.90
216-4
GRADUATED COLLAR (METRIC)
Price
$27.80
216-5
X-AXIS LEADSCREW CLUTCH (RIGHT)
Price
$29.30
216-6
ROLL PIN 5 X 38
Price
N/A
217
KNURLED THUMB SCREW 1/4-20 X 1/2
Price
$2.95
218
DIAL INDICATOR
Price
$2.45
219
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
220
TABLE W/BASE & GIBS
Price
N/A
221
GIB (X-AXIS)
Price
$44.10
222
GIB (Y-AXIS)
Price
$35.65
223
LIMIT STOP BRACKET
Price
$5.50
224
CAP SCREW M8-1.25 X 12
Price
N/A
225
GIB BOLT 5/16-18 X 1
Price
$3.95
226
BUSHING
Price
$1.85
227
ADJUSTABLE HANDLE 2"L, 5/16-18 X 1-3/8
Price
$20.30
228
T-KNOB 5/16-18 X 1-5/8
Price
$2.45
229
CAP SCREW 5/16-18 X 1
Price
N/A
230
CAP SCREW 5/16-18 X 2-1/4-20
Price
$1.60
231
Y-AXIS LEADSCREW NUT
Price
$82.75
232
Y-AXIS LEADSCREW ASSEMBLY
Price
$127.15
232-1
Y-AXIS LEADSCREW
Price
$50.50
232-2
THRUST BEARING 51103
Price
N/A
232-3
Y-AXIS LEADSCREW BRACKET
Price
$34.45
232-4
GRADUATED COLLAR (METRIC)
Price
N/A
232-5
X-AXIS LEADSCREW CLUTCH (RIGHT)
Price
N/A
232-6
ROLL PIN 5 X 38
Price
N/A
233
COLUMN CAP
Price
$34.80
234
SET SCREW 5/16-18 X 5/16
Price
N/A
235
COLUMN COLLAR (UPPER)
Price
$56.50
236
SET SCREW 1/2-13 X 5/8
Price
N/A
238
KNEE
Price
$586.85
239
COLUMN
Price
$781.00
240
RACK
Price
$82.15
241
RACK RING
Price
$67.30
242
ROLL PIN 5 X 38
Price
N/A
243
SET SCREW 5/16-18 X 13/16 DOG-PT
Price
$3.95
244
P0808244
Now: PN02
HEX NUT 5/16-18
Price
N/A
245
STEEL BALL 10MM
Price
N/A
246
RACK RING BASE
Price
$65.55
247
SET SCREW 1/2-13 X 5/8
Price
N/A
248
COLUMN COLLAR (LOWER)
Price
$36.90
249
BASE
Price
$520.45
250
U-BOLT 1/2-13
Price
$16.35
251
U-BOLT RETAINER BLOCK
Price
$22.70
252
P0808252
Now: PN13
HEX NUT 1/2-13
Price
N/A
253
P0808253
Now: PN08
HEX NUT 3/8-16
Price
N/A
254
P0808254
Now: PW02
FLAT WASHER 3/8
Price
N/A
255
Z-AXIS LOCK HANDLE 16D X 45L
Price
$12.10
256
P0808256
Now: PN04
HEX NUT 5/8-11
Price
N/A
257
P0808257
Now: PW14
FLAT WASHER 5/8
Price
N/A
258
LOCK PLUNGER (Z-AXIS)
Price
$24.15
259
Z-AXIS LOCK BOLT 1/2-13 X 5/8, 4-3/8L
Price
$20.55
269
LOCK WASHER 5/16
Price
N/A
270
DRAIN PLUG 1/4 NPT
Price
$2.20
271
BUSHING (BRASS)
Price
$4.60
272
POWR FED ASSY. W/X-AXIS LEADSCR GEAR 56T
Price
N/A
272A
POWR FED ASSY. W/X-AXIS LEADSCR GEAR 56T
Price
$1,220.25
273
POWR FED ASSY. W/X-AXIS LEADSCR GEAR 56T
Price
N/A
274
POWR FED ASSY. W/X-AXIS LEADSCR GEAR 56T
Price
N/A

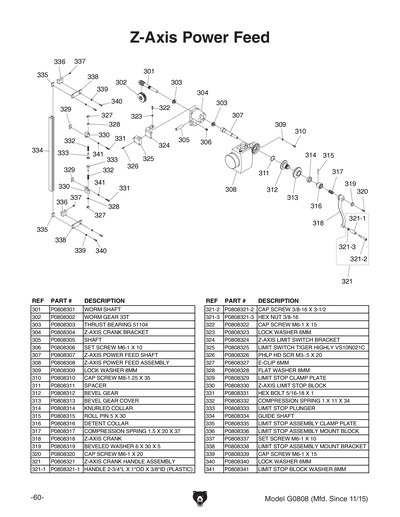

301
WORM SHAFT
Price
$179.35
302
WORM GEAR 33T
Price
$92.40
303
THRUST BEARING 51104
Price
N/A
304
Z-AXIS CRANK BRACKET
Price
$78.50
305
SHAFT
Price
$8.80
306
SET SCREW M6-1 X 10
Price
N/A
307
Z-AXIS POWER FEED ASSEMBLY
Price
N/A
308
Z-AXIS POWER FEED ASSEMBLY
Price
$2,137.30
308-1
Z-AXIS POWER FEED GEAR
Price
$187.80
309
LOCK WASHER 8MM
Price
N/A
310
CAP SCREW M8-1.25 X 35
Price
N/A
311
Z-AXIS POWER FEED ASSEMBLY
Price
N/A
312
BEVEL GEAR
Price
$300.70
313
BEVEL GEAR COVER
Price
$74.90
314
Z-AXIS POWER FEED ASSEMBLY
Price
N/A
315
ROLL PIN 5 X 30
Price
N/A
316
Z-AXIS POWER FEED ASSEMBLY
Price
N/A
317
Z-AXIS POWER FEED ASSEMBLY
Price
N/A
318
Z-AXIS CRANK
Price
$59.50
319
BEVELED WASHER 6 X 30 X 5
Price
$60.40
320
CAP SCREW M6-1 X 20
Price
N/A
321
Z-AXIS CRANK HANDLE ASSEMBLY
Price
$7.90
321-1
Z-AXIS CRANK HANDLE ASSEMBLY
Price
N/A
321-2
CAP SCREW 3/8-16 X 3-1/2
Price
N/A
321-3
HEX NUT 3/8-16
Price
N/A
322
CAP SCREW M6-1 X 15
Price
N/A
323
LOCK WASHER 6MM
Price
N/A
324
Z-AXIS LIMIT SWITCH BRACKET
Price
$58.00
325
Z-AXIS POWER FEED ASSEMBLY
Price
N/A
326
PHLP HD SCR M3-.5 X 20
Price
N/A
327
E-CLIP 6MM
Price
N/A
328
FLAT WASHER 8MM
Price
N/A
329
Z-AXIS LIMIT STOP ASSEMBLY
Price
N/A
330
Z-AXIS LIMIT STOP ASSEMBLY
Price
$36.55
331
P0808331
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
332
Z-AXIS LIMIT STOP ASSEMBLY
Price
N/A
333
LIMIT STOP PLUNGER
Price
$38.10
334
GUIDE SHAFT
Price
$235.50
335
LIMIT STOP ASSEMBLY CLAMP PLATE
Price
$29.00
336
LIMIT STOP ASSEMBLY MOUNT BLOCK
Price
$62.25
337
SET SCREW M6-1 X 10
Price
N/A
338
LIMIT STOP ASSEMBLY MOUNT BRACKET
Price
$38.65
339
CAP SCREW M6-1 X 15
Price
N/A
340
LOCK WASHER 6MM
Price
N/A
341
Z-AXIS LIMIT STOP ASSEMBLY
Price
N/A

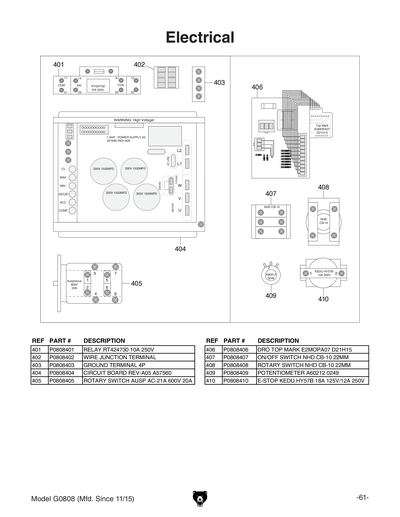

401
RELAY RT424730 10A 250V
Price
$76.10
402
WIRE JUNCTION TERMINAL
Price
$26.60
403
GROUND TERMINAL 4P
Price
$20.30
404
INVERTER 1.5HP A57560 REV-05
Price
$1,238.90
405
ROTARY SWITCH AUSP AC-21A 600V 20A
Price
$93.65
406
DRO TOP MARK E2MOPA07 D21H15
Price
$261.45
407
ON/OFF SWITCH NHD CB-10 22MM
Price
$53.15
408
ROTARY SWITCH NHD CB-10 22MM
Price
$32.05
409
POTENTIOMETER A60212 0249
Price
$42.30
410
E-STOP KEDU HY57B 18A 125V/12A 250V
Price
$31.15

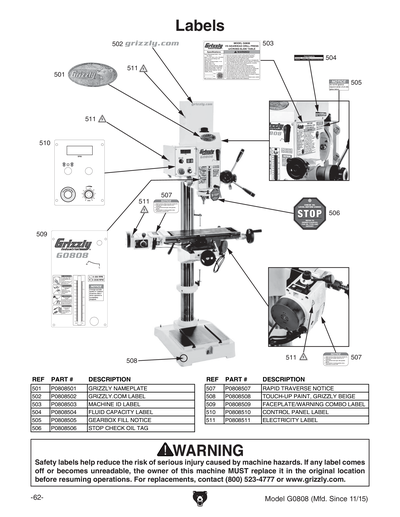

501
Nameplate - Mini
Price
N/A
502
GRIZZLY.COM LABEL 6.75",GREEN
Price
N/A
503
MACHINE ID LABEL
Price
$16.40
504
FLUID CAPACITY LABEL
Price
$3.15
505
GEARBOX FILL NOTICE
Price
$4.60
506
STOP OIL FILL TAG 4W X 4H
Price
N/A
507
RAPID TRAVERSE NOTICE
Price
$2.75
508
BEIGE REF G0555
Price
N/A
509
FACEPLATE/WARNING COMBO LABEL
Price
$54.10
510
CONTROL PANEL LABEL
Price
$65.40
511
ELECTRICITY 0.7W X 0.6H
Price
N/A
MAN
MANUAL G0808 MFD-11.15 V1.03.16
Price
$20.00
