Parts for G0810 - 16" Drill Press w/ Cross-Slide Table & Power Feed

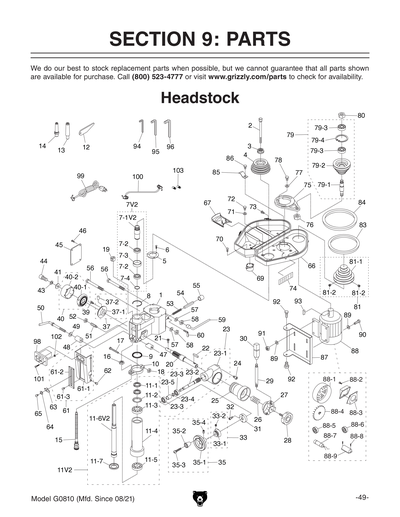

Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810
Part Diagram for G0810

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

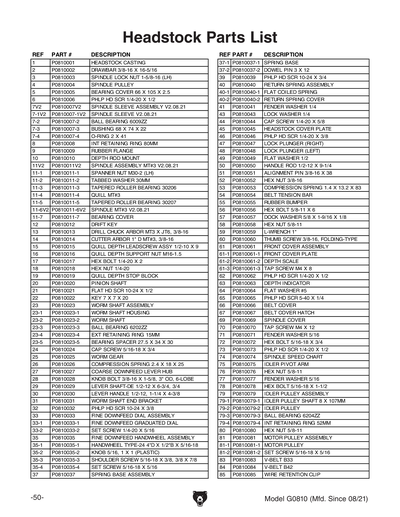

Ref #
Part #
Description
1
HEADSTOCK CASTING
Price
$492.40
2
DRAWBAR 3/8-16 X 16-5/16
Price
$28.45
3
SPINDLE LOCK NUT 1-5/8-16 (LH)
Price
$22.05
4
SPINDLE PULLEY
Price
$242.45
5
BEARING COVER 66 X 105 X 2.5
Price
$4.60
6
P0810006
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
7
SPINDLE SLEEVE ASSEMBLY
Price
$154.60
7-1
SPINDLE SLEEVE
Price
$61.35
7-2
BALL BEARING 6009ZZ
Price
N/A
7-3
BUSHING 68 X 74 X 22
Price
$7.25
7-4
O-RING 2 X 41
Price
$1.60
8
INT RETAINING RING 80MM
Price
N/A
9
RUBBER FLANGE
Price
$2.45
10
DEPTH ROD MOUNT
Price
$33.55
11
SPINDLE ASSEMBLY MT#3
Price
$448.95
11-1
SPANNER NUT M30-2 (LH)
Price
$10.00
11-2
TABBED WASHER 30MM
Price
$4.60
11-3
TAPERED ROLLER BEARING 30206
Price
N/A
11-4
QUILL MT#3
Price
$448.95
11-5
TAPERED ROLLER BEARING 30207
Price
N/A
11-6
SPINDLE MT#3
Price
$178.75
11-7
BEARING COVER
Price
$5.15
12
DRIFT KEY
Price
$7.90
13
DRILL CHUCK ARBOR MT3 X JT6, 3/8-16
Price
$31.40
14
CUTTER ARBOR 1" D MT#3, 3/8-16
Price
$73.40
15
QUILL DEPTH LEADSCREW ASSY 1/2-10 X 9
Price
$37.20
16
QUILL DEPTH SUPPORT NUT M16-1.5
Price
$3.95
17
P0810017
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
18
P0810018
Now: PN05
HEX NUT 1/4-20
Price
N/A
19
QUILL DEPTH STOP BLOCK
Price
$7.60
20
PINION SHAFT
Price
$59.80
21
FLAT HD SCR 10-24 X 1/2
Price
N/A
22
KEY 7 X 7 X 20
Price
N/A
23
WORM SHAFT ASSEMBLY
Price
$61.60
23-1
WORM SHAFT HOUSING
Price
$38.40
23-2
WORM SHAFT
Price
$25.10
23-3
BALL BEARING 6202ZZ
Price
N/A
23-4
EXT RETAINING RING 15MM
Price
N/A
23-5
BEARING SPACER 27.5 X 34 X 30
Price
$3.95
24
CAP SCREW 5/16-18 X 3/4
Price
N/A
25
WORM GEAR
Price
$56.20
26
COMPRESSION SPRING 2.4 X 18 X 25
Price
$2.20
27
COARSE DOWNFEED LEVER HUB
Price
$45.65
28
KNOB BOLT 3/8-16 X 1-5/8, 3" OD, 6-LOBE
Price
$4.60
29
LEVER SHAFT-DE 1/2-12 X 6-3/4, 3/4
Price
$16.35
30
LEVER HANDLE 1/2-12, 1-1/4 X 4-3/8
Price
$2.45
31
WORM SHAFT END BRACKET
Price
$9.70
32
P0810032
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
33
FINE DOWNFEED DIAL ASSEMBLY
Price
$32.05
33-1
FINE DOWNFEED GRADUATED DIAL
Price
$32.05
33-2
SET SCREW 1/4-20 X 5/16
Price
N/A
35
FINE DOWNFEED HANDWHEEL ASSEMBLY
Price
$85.20
35-1
HANDWHEEL TYPE-24 4"D X 1/2"B X 5/16-18
Price
$77.05
35-2
KNOB 5/16, 1 X 1 (PLASTIC)
Price
$2.45
35-3
SHOULDER SCREW 5/16-18 X 3/8, 3/8 X 7/8
Price
$3.40
35-4
SET SCREW 5/16-18 X 5/16
Price
N/A
37
SPRING BASE ASSEMBLY
Price
$23.90
37-1
SPRING BASE
Price
$23.90
37-2
DOWEL PIN 3 X 12
Price
$1.60
39
P0810039
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
40
RETURN SPRING ASSEMBLY
Price
$48.65
40-1
FLAT COILED SPRING
Price
$39.85
40-2
RETURN SPRING COVER
Price
$10.00
41
FENDER WASHER 1/4
Price
$1.60
43
LOCK WASHER 1/4
Price
N/A
44
CAP SCREW 1/4-20 X 5/8
Price
N/A
45
HEADSTOCK COVER PLATE
Price
$14.85
46
P0810046
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
47
LOCK PLUNGER (RIGHT)
Price
$8.20
48
LOCK PLUNGER (LEFT)
Price
$8.20
49
P0810049
Now: PW01
FLAT WASHER 1/2
Price
N/A
50
HANDLE ROD 1/2-12 X 9-1/4
Price
$29.95
51
ALIGNMENT PIN 3/8-16 X 38
Price
$3.65
52
P0810052
Now: PN08
HEX NUT 3/8-16
Price
N/A
53
COMPRESSION SPRING 1.4 X 13.2 X 83
Price
$1.60
54
BELT TENSION BAR
Price
$5.50
55
RUBBER BUMPER
Price
$1.60
56
P0810056
Now: PB46
HEX BOLT 5/8-11 X 6
Price
N/A
57
DOCK WASHER 5/8 X 1-9/16 X 1/8
Price
$1.60
58
P0810058
Now: PN04
HEX NUT 5/8-11
Price
N/A
59
L-WRENCH 1"
Price
$23.30
60
THUMB SCREW 3/8-16, FOLDING-TYPE
Price
$4.60
61
FRONT COVER ASSEMBLY
Price
$55.00
61-1
FRONT COVER PLATE
Price
$19.95
61-2
DEPTH SCALE
Price
$19.95
61-3
TAP SCREW M4 X 8
Price
N/A
62
P0810062
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
63
DEPTH INDICATOR
Price
$3.40
64
P0810064
Now: PW09
FLAT WASHER #5
Price
N/A
65
P0810065
Now: PS50
PHLP HD SCR 5-40 X 1/4
Price
N/A
66
BELT COVER
Price
$237.30
67
BELT COVER HATCH
Price
$13.60
69
SPINDLE COVER
Price
$3.65
70
TAP SCREW M4 X 12
Price
N/A
71
FENDER WASHER 5/16
Price
N/A
72
P0810072
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
73
P0810073
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
74
SPINDLE SPEED CHART
Price
$1.85
75
IDLER PIVOT ARM
Price
$79.70
76
P0810076
Now: PN04
HEX NUT 5/8-11
Price
N/A
77
FENDER WASHER 5/16
Price
N/A
78
P0810078
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
79
IDLER PULLEY ASSEMBLY
Price
$221.00
79-1
IDLER PULLEY SHAFT 8 X 107MM
Price
$12.75
79-2
IDLER PULLEY
Price
$175.10
79-3
BALL BEARING 6204ZZ
Price
N/A
79-4
INT RETAINING RING 52MM
Price
N/A
80
P0810080
Now: PN04
HEX NUT 5/8-11
Price
N/A
81
MOTOR PULLEY ASSEMBLY
Price
$157.95
81-1
MOTOR PULLEY
Price
$157.65
81-2
SET SCREW 5/16-18 X 5/16
Price
N/A
83
V-BELT B33
Price
N/A
84
V-BELT B42
Price
N/A
85
WIRE RETENTION CLIP
Price
$1.85

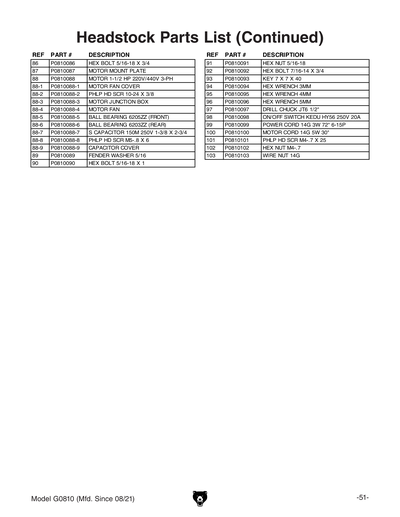

86
P0810086
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
87
MOTOR MOUNT PLATE
Price
$37.20
88
MOTOR 1-1/2 HP 220V/440V 3-PH
Price
$364.45
88-1
MOTOR FAN COVER
Price
$34.80
88-2
PHLP HD SCR 10-24 X 3/8
Price
N/A
88-3
MOTOR JUNCTION BOX
Price
$16.35
88-4
MOTOR FAN
Price
$13.95
88-5
BALL BEARING 6205ZZ
Price
N/A
88-6
BALL BEARING 6203ZZ
Price
N/A
88-7
S CAPACITOR 150M 250V 1-21/32 X 3-1/8
Price
N/A
88-8
PHLP HD SCR M5-.8 X 6
Price
N/A
88-9
CAPACITOR COVER
Price
$13.95
89
FENDER WASHER 5/16
Price
N/A
90
P0810090
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
91
P0810091
Now: PN02
HEX NUT 5/16-18
Price
N/A
92
P0810092
Now: PB36
HEX BOLT 7/16-14 X 3/4
Price
N/A
93
KEY 7 X 7 X 40
Price
N/A
94
HEX WRENCH 3MM
Price
N/A
95
HEX WRENCH 4MM
Price
N/A
96
HEX WRENCH 5MM
Price
N/A
97
DRILL CHUCK JT6 1/2"
Price
$51.70
98
ON/OFF SWITCH KEDU HY56 250V 20A
Price
$38.40
99
POWER CORD 14G 3W 72" 6-15P
Price
$6.70
100
MOTOR CORD 14G 5W 30"
Price
$65.25
101
PHLP HD SCR M4-.7 X 25
Price
N/A
102
HEX NUT M4-.7
Price
N/A
103
WIRE NUT 14G
Price
$1.60

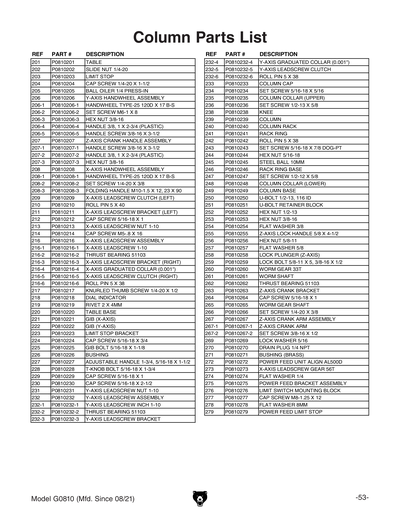

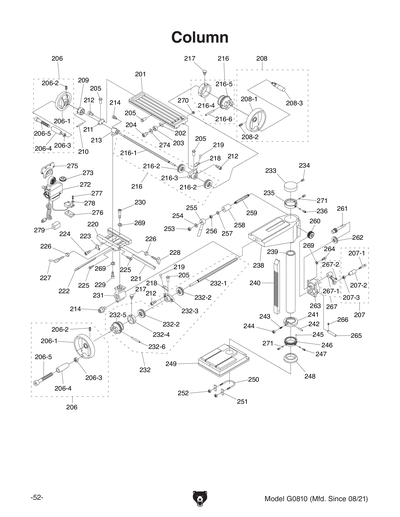

201
TABLE
Price
$433.50
202
SLIDE NUT 1/4-20
Price
$3.65
203
LIMIT STOP
Price
$3.95
204
CAP SCREW 1/4-20 X 1-1/2
Price
N/A
205
BALL OILER 1/4 PRESS-IN
Price
N/A
206
Y-AXIS HANDWHEEL ASSEMBLY
Price
$49.55
206-1
HANDWHEEL TYPE-25 120D X 17 B-S
Price
$52.60
206-2
SET SCREW M6-1 X 8
Price
N/A
206-3
HEX NUT 3/8-16
Price
N/A
206-4
HANDLE 3/8, 1 X 2-3/4 (PLASTIC)
Price
$9.10
206-5
HANDLE SCREW 3/8-16 X 3-1/2
Price
$4.40
207
Z-AXIS CRANK HANDLE ASSEMBLY
Price
$6.70
207-1
HANDLE SCREW 3/8-16 X 3-1/2
Price
N/A
207-2
HANDLE 3/8, 1 X 2-3/4 (PLASTIC)
Price
N/A
207-3
HEX NUT 3/8-16
Price
N/A
208
X-AXIS HANDWHEEL ASSEMBLY
Price
$112.95
208-1
HANDWHEEL TYPE-25 120D X 17 B-S
Price
$70.05
208-2
SET SCREW 1/4-20 X 3/8
Price
N/A
208-3
FOLDING HANDLE M10-1.5 X 12, 23 X 90
Price
$71.90
209
X-AXIS LEADSCREW CLUTCH (LEFT)
Price
$26.90
210
ROLL PIN 5 X 40
Price
N/A
211
X-AXIS LEADSCREW BRACKET (LEFT)
Price
$32.05
212
CAP SCREW 5/16-18 X 1
Price
N/A
213
X-AXIS LEADSCREW NUT 1-10
Price
$83.35
214
CAP SCREW M5-.8 X 16
Price
N/A
216
X-AXIS LEADSCREW ASSEMBLY
Price
$248.20
216-1
X-AXIS LEADSCREW 1-10
Price
$67.95
216-2
THRUST BEARING 51103
Price
N/A
216-3
X-AXIS LEADSCREW BRACKET (RIGHT)
Price
$32.05
216-4
X-AXIS GRADUATED COLLAR (0.001")
Price
$32.35
216-5
X-AXIS LEADSCREW CLUTCH (RIGHT)
Price
$27.80
216-6
ROLL PIN 5 X 38
Price
N/A
217
KNURLED THUMB SCREW 1/4-20 X 1/2
Price
$2.75
218
DIAL INDICATOR
Price
$2.45
219
RIVET 2 X 4MM
Price
$1.60
220
TABLE BASE
Price
$217.10
221
GIB (X-AXIS)
Price
$43.80
222
GIB (Y-AXIS)
Price
$32.65
223
LIMIT STOP BRACKET
Price
$4.60
224
CAP SCREW 5/16-18 X 3/4
Price
N/A
225
GIB BOLT 5/16-18 X 1-1/8
Price
$3.65
226
BUSHING
Price
$1.60
227
ADJUSTABLE HANDLE 1-3/4, 5/16-18 X 1-1/2
Price
$9.10
228
T-KNOB BOLT 5/16-18 X 1-3/4
Price
$2.20
229
CAP SCREW 5/16-18 X 1
Price
N/A
230
CAP SCREW 5/16-18 X 2-1/2
Price
N/A
231
Y-AXIS LEADSCREW NUT 1-10
Price
$112.30
232
Y-AXIS LEADSCREW ASSEMBLY
Price
$124.70
232-1
Y-AXIS LEADSCREW INCH 1-10
Price
$50.75
232-2
THRUST BEARING 51103
Price
N/A
232-3
Y-AXIS LEADSCREW BRACKET
Price
$30.55
232-4
Y-AXIS GRADUATED COLLAR (0.001")
Price
$32.35
232-5
Y-AXIS LEADSCREW CLUTCH
Price
$29.30
232-6
ROLL PIN 5 X 38
Price
N/A
233
COLUMN CAP
Price
$31.15
234
SET SCREW 5/16-18 X 5/16
Price
N/A
235
COLUMN COLLAR (UPPER)
Price
$53.15
236
SET SCREW 1/2-13 X 5/8
Price
N/A
238
KNEE
Price
$72.45
239
COLUMN
Price
$750.85
240
COLUMN RACK
Price
$68.25
241
RACK RING
Price
$55.90
242
ROLL PIN 5 X 38
Price
N/A
243
SET SCREW 5/16-18 X 7/8 DOG-PT
Price
N/A
244
P0810244
Now: PN02
HEX NUT 5/16-18
Price
N/A
245
STEEL BALL 10MM
Price
N/A
246
RACK RING BASE
Price
$61.60
247
SET SCREW 1/2-12 X 5/8
Price
$1.60
248
COLUMN COLLAR (LOWER)
Price
$35.65
249
COLUMN BASE
Price
$575.75
250
U-BOLT 1/2-13, 116 ID
Price
$16.65
251
U-BOLT RETAINER BLOCK
Price
$20.85
252
P0810252
Now: PN13
HEX NUT 1/2-13
Price
N/A
253
P0810253
Now: PN08
HEX NUT 3/8-16
Price
N/A
254
P0810254
Now: PW02
FLAT WASHER 3/8
Price
N/A
255
Z-AXIS LOCK HANDLE 5/8 X 4-1/2
Price
$11.50
256
P0810256
Now: PN04
HEX NUT 5/8-11
Price
N/A
257
P0810257
Now: PW14
FLAT WASHER 5/8
Price
N/A
258
LOCK PLUNGER (Z-AXIS)
Price
$25.70
259
LOCK BOLT 5/8-11 X 5, 3/8-16 X 1/2
Price
$21.75
260
WORM GEAR 33T
Price
$61.60
261
WORM SHAFT
Price
$48.30
262
THRUST BEARING 51103
Price
N/A
263
Z-AXIS CRANK BRACKET
Price
$52.60
264
CAP SCREW 5/16-18 X 1
Price
N/A
265
WORM GEAR SHAFT
Price
$8.80
266
SET SCREW 1/4-20 X 3/8
Price
N/A
267
Z-AXIS CRANK ARM ASSEMBLY
Price
$29.95
267-1
Z-AXIS CRANK ARM
Price
$31.40
267-2
SET SCREW 3/8-16 X 1/2
Price
N/A
269
LOCK WASHER 5/16
Price
N/A
270
DRAIN PLUG 1/4 NPT
Price
$2.20
271
BUSHING (BRASS)
Price
$4.30
272
POWER FEED UNIT ALIGN AL500D ASSEMBLY
Price
N/A
272A
POWER FEED UNIT ALIGN AL500D ASSEMBLY
Price
$1,251.30
273
POWER FEED UNIT ALIGN AL500D ASSEMBLY
Price
N/A
274
P0810274
Now: PW06
FLAT WASHER 1/4
Price
N/A
275
POWER FEED UNIT ALIGN AL500D ASSEMBLY
Price
N/A
276
POWER FEED UNIT ALIGN AL500D ASSEMBLY
Price
N/A
277
CAP SCREW M8-1.25 X 12
Price
N/A
278
FLAT WASHER 8MM
Price
N/A
279
POWER FEED UNIT ALIGN AL500D ASSEMBLY
Price
N/A

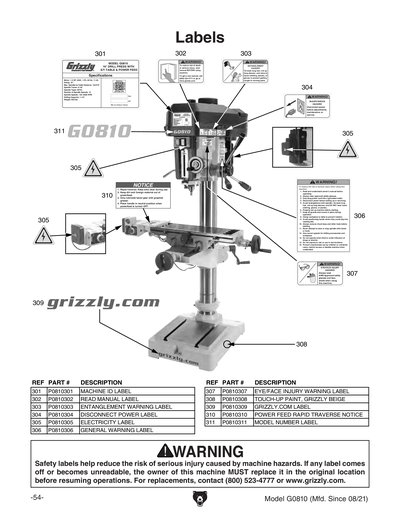

301
MACHINE ID LABEL
Price
$16.40
302
READ MANUAL 2.8W X 1.5H
Price
N/A
303
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
304
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
305
ELECTRICITY 0.7W X 0.6H
Price
N/A
306
GENERAL WARNING LABEL
Price
$5.80
307
FACE SHIELD & SAFETY GLASSES 1.5W X 2.5H
Price
N/A
308
BEIGE REF G0555
Price
N/A
309
GRIZZLY.COM LABEL 10.75",GREEN
Price
N/A
310
POWER FEED RAPID TRAVERSE NOTICE
Price
$2.75
311
MODEL NUMBER LABEL
Price
$10.50
MAN
MANUAL G0810 MFD-10.15 V1.08.16
Price
$19.25
