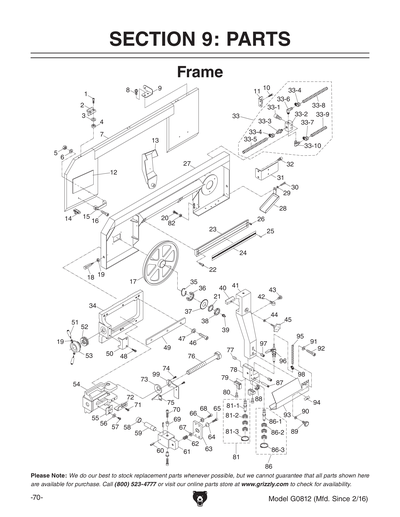

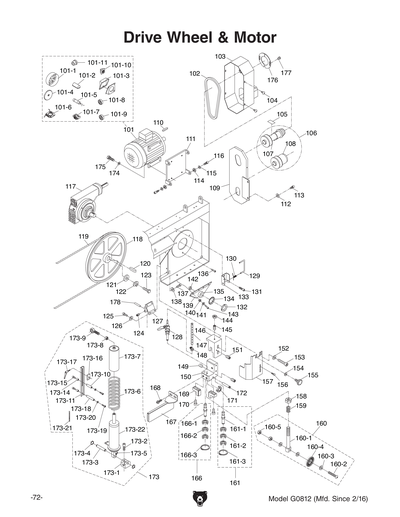

Parts for G0812 - 13" x 18" 2 HP Industrial Metal-Cutting Bandsaw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

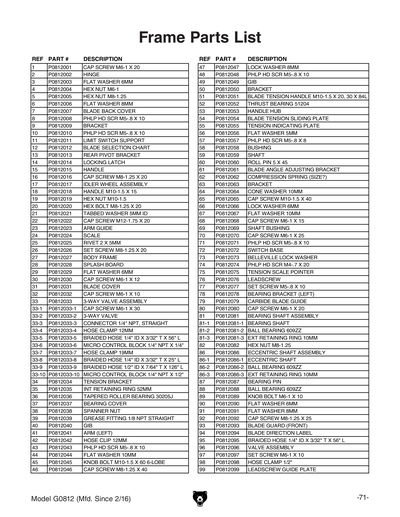

Ref # Part # Description Price Qty
1 P0812001
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
2 P0812002
WHEEL COVER HINGE
N/A
3 P0812003
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
4 P0812004
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
5 P0812005
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
6 P0812006
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
7 P0812007
WHEEL COVER
N/A
8 P0812008
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
9 P0812009
LIMIT SWITCH BRACKET
N/A
10 P0812010
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
11 P0812011
LIMIT SWITCH SUPPORT
N/A
12 P0812012
BLADE SELECTION CHART
N/A
13 P0812013
REAR PIVOT BRACKET
N/A
14 P0812014
LOCKING LATCH
N/A
15 P0812015
PULL HANDLE
N/A
16 P0812016
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
17 P0812017
IDLER WHEEL ASSEMBLY
N/A
18 P0812018
HANDLE M10-1.5 X 15
N/A
19 P0812019
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
20 P0812020
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement
21 P0812021
Replaced By PTLW14M
EXT TOOTH WASHER 24MM BLACK
N/A View Replacement
22 P0812022
Replaced By PCAP129M
CAP SCREW M12-1.75 X 20
N/A View Replacement
23 P0812023
ARM GUIDE
N/A
24 P0812024
SCALE
N/A
25 P0812025
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
26 P0812026
Replaced By PSS09M
SET SCREW M8-1.25 X 20
N/A View Replacement
27 P0812027
WHEEL HOUSING FRAME
N/A
28 P0812028
SPLASH BOARD
N/A
29 P0812029
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
30 P0812030
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
31 P0812031
BLADE COVER
N/A
32 P0812032
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
33 P0812033
3-WAY VALVE ASSEMBLY
N/A
33-1 P0812033-1
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
33-10 P0812033-10
HOSE FITTING 1/4" NPT X 1/2", ELBOW
N/A
33-2 P0812033-2
3-WAY VALVE BODY
N/A
33-3 P0812033-3
HOSE FITTING 1/4" NPT, STRAIGHT
N/A
33-4 P0812033-4
HOSE CLAMP 12MM
N/A
33-5 P0812033-5
BRAIDED HOSE 1/4" ID X 3/32" T X 56" L
N/A
33-6 P0812033-6
HOSE FITTING 1/4" NPT X 1/4", ELBOW
N/A
33-7 P0812033-7 HOSE CLAMP 19MM $2.00
33-8 P0812033-8
BRAIDED HOSE 1/4" ID X 3/32" T X 25" L
N/A
33-9 P0812033-9
BRAIDED HOSE 1/2" ID X 7/64" T X 126" L
N/A
34 P0812034
TENSION BRACKET
N/A
35 P0812035
Replaced By PR26M
INT RETAINING RING 52MM
N/A View Replacement
36 P0812036
TAPERED ROLLER BEARING 30205J
N/A
37 P0812037
BEARING COVER
N/A
38 P0812038
SPANNER NUT M25-1.5
N/A
39 P0812039
GREASE FITTING 1/8 NPT, STRAIGHT
N/A
40 P0812040
LEFT ARM GIB
N/A
41 P0812041
ARM (LEFT)
N/A
42 P0812042
LOOP CLAMP 12MM, PLASTIC
N/A
43 P0812043
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
44 P0812044
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
45 P0812045
KNOB BOLT M10-1.5 X 60 6-LOBE
N/A
46 P0812046
Replaced By PCAP12M
CAP SCREW M8-1.25 X 40
N/A View Replacement
47 P0812047
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
48 P0812048
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
49 P0812049
SLIDING PLATE GIB
N/A
50 P0812050
BRACKET
N/A
51 P0812051
HANDLE M10-1.5 X 20, 30 X 84L
N/A
52 P0812052
Replaced By P51204
THRUST BEARING 51204
N/A View Replacement
53 P0812053
BLADE TENSION HANDLE HUB
N/A
54 P0812054
BLADE TENSION SLIDING PLATE
N/A
55 P0812055
TENSION INDICATOR PLATE
N/A
56 P0812056
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
57 P0812057
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
58 P0812058
BUSHING
N/A
59 P0812059
SHAFT
N/A
60 P0812060
Replaced By PRP29M
ROLL PIN 5 X 45
N/A View Replacement
61 P0812061
BLADE ANGLE ADJUSTING BRACKET
N/A
62 P0812062
COMPRESSION SPRING 1.5 X 22.5 X 13
N/A
63 P0812063
MOUNTING PLATE
N/A
64 P0812064
CONE WASHER 10MM
N/A
65 P0812065
Replaced By PCAP47M
CAP SCREW M10-1.5 X 40
N/A View Replacement
66 P0812066
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
67 P0812067
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
68 P0812068
Replaced By PCAP28M
CAP SCREW M6-1 X 15
N/A View Replacement
69 P0812069
SHAFT BUSHING
N/A
70 P0812070
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
71 P0812071
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
72 P0812072
SWITCH BASE
N/A
73 P0812073
BELLEVILLE WASHER 22.5 X 45 X 2.9
N/A
74 P0812074
Replaced By PS52M
PHLP HD SCR M4-.7 X 20
N/A View Replacement
75 P0812075
TENSION SCALE POINTER
N/A
76 P0812076
BLADE TENSION LEADSCREW
N/A
77 P0812077
Replaced By PSS05M
SET SCREW M5-.8 X 10
N/A View Replacement
78 P0812078
BEARING BRACKET (LEFT)
N/A
79 P0812079
Replaced By P0812169
CARBIDE BLADE GUIDE
N/A View Replacement
80 P0812080
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
81 P0812081 TRIPLE-BEARING GUIDE ASSY (STR) $44.00
81-1 P0812081-1
BEARING SHAFT
N/A
81-2 P0812081-2
Replaced By P609ZZ
BALL BEARING 609ZZ
N/A View Replacement
81-3 P0812081-3
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
82 P0812082
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
86 P0812086 TRIPLE-BEARING GUIDE ASSY (ECC) $44.00
86-1 P0812086-1
ECCENTRIC SHAFT
N/A
86-2 P0812086-2
Replaced By P609ZZ
BALL BEARING 609ZZ
N/A View Replacement
86-3 P0812086-3
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
87 P0812087
BEARING PIN
N/A
88 P0812088
Replaced By P609ZZ
BALL BEARING 609ZZ
N/A View Replacement
89 P0812089
KNOB BOLT M6-1 X 10 6-LOBE
N/A
90 P0812090
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
91 P0812091
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
92 P0812092
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
93 P0812093
BLADE GUARD (FRONT)
N/A
94 P0812094 BLADE DIRECTION LABEL $4.00
95 P0812095
BRAIDED HOSE 1/4" ID X 3/32" T X 56" L
N/A
96 P0812096
BALL VALVE 10MM PUSH-ON
N/A
97 P0812097
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
98 P0812098
HOSE CLAMP 12MM
N/A
99 P0812099
LEADSCREW GUIDE PLATE
N/A

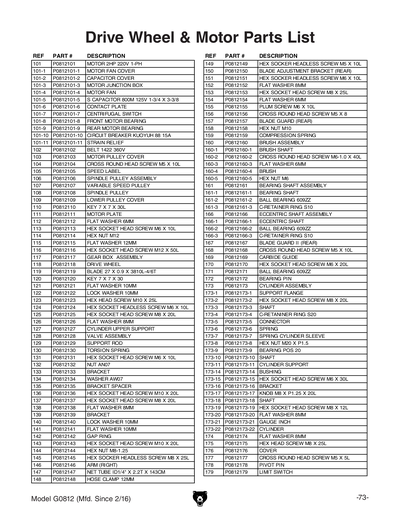

101 P0812101
MOTOR 2HP 220V 1-PH
N/A
101-1 P0812101-1
MOTOR FAN COVER
N/A
101-10 P0812101-10
CIRCUIT BREAKER KUOYUH 88 15A
N/A
101-11 P0812101-11
STRAIN RELIEF PG19 TYPE-5
N/A
101-2 P0812101-2
CAPACITOR COVER
N/A
101-3 P0812101-3
MOTOR JUNCTION BOX
N/A
101-4 P0812101-4
MOTOR FAN
N/A
101-5 P0812101-5
Replaced By PC800
S CAPACITOR 800M 125V 1-3/4 X 3-3/8
N/A View Replacement
101-6 P0812101-6
CONTACT PLATE
N/A
101-7 P0812101-7
CENTRIFUGAL SWITCH
N/A
101-8 P0812101-8
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
101-9 P0812101-9
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
102 P0812102
BELT 1422 360V
N/A
103 P0812103
MOTOR PULLEY COVER
N/A
104 P0812104
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
105 P0812105
SPEED LABEL
N/A
106 P0812106
VARIABLE-SPEED PULLEY SET (2-PC)
N/A
107 P0812107
Replaced By P0812106
VARIABLE-SPEED PULLEY SET (2-PC)
N/A View Replacement
108 P0812108
Replaced By P0812106
VARIABLE-SPEED PULLEY SET (2-PC)
N/A View Replacement
109 P0812109
LOWER PULLEY COVER
N/A
110 P0812110
Replaced By PK61M
KEY 7 X 7 X 30
N/A View Replacement
111 P0812111
MOTOR MOUNTING PLATE
N/A
112 P0812112
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
113 P0812113
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
114 P0812114
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
115 P0812115
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
116 P0812116
Replaced By PCAP73M
CAP SCREW M12-1.75 X 50
N/A View Replacement
117 P0812117 DRIVE WHEEL GEARBOX ASSY $624.00
118 P0812118 DRIVE WHEEL $222.00
119 P0812119
BLADE 150" X 1" 4-TPI HOOK
N/A
120 P0812120
Replaced By PK61M
KEY 7 X 7 X 30
N/A View Replacement
121 P0812121
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
122 P0812122
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
123 P0812123
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
124 P0812124
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
125 P0812125
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
126 P0812126
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
127 P0812127
CYLINDER UPPER SUPPORT
N/A
128 P0812128
VALVE ASSEMBLY
N/A
129 P0812129
SUPPORT ROD
N/A
130 P0812130
TORSION SPRING
N/A
131 P0812131
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
132 P0812132
SPANNER NUT 34MM
N/A
133 P0812133
SUPPORT ROD BRACKET
N/A
134 P0812134
TABBED WASHER 32MM
N/A
135 P0812135
BUSHING
N/A
136 P0812136
Replaced By PCAP61M
CAP SCREW M10-1.5 X 20
N/A View Replacement
137 P0812137
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
138 P0812138
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
139 P0812139
PIVOT BRACKET
N/A
140 P0812140
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
141 P0812141
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
142 P0812142
SPACER
N/A
143 P0812143
Replaced By PCAP61M
CAP SCREW M10-1.5 X 20
N/A View Replacement
144 P0812144
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
145 P0812145
Replaced By PSS21M
SET SCREW M8-1.25 X 25
N/A View Replacement
146 P0812146
ARM (RIGHT)
N/A
147 P0812147
Replaced By P0812095
BRAIDED HOSE 1/4" ID X 3/32" T X 56" L
N/A View Replacement
148 P0812148
HOSE CLAMP 1/2"
N/A
149 P0812149
Replaced By PSS05M
SET SCREW M5-.8 X 10
N/A View Replacement
150 P0812150
BLADE ADJUSTMENT BRACKET (REAR)
N/A
151 P0812151
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
152 P0812152
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
153 P0812153
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
154 P0812154
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
155 P0812155
Replaced By P0812089
KNOB BOLT M6-1 X 10 6-LOBE
N/A View Replacement
156 P0812156
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
157 P0812157
BLADE GUARD (REAR)
N/A
158 P0812158
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
159 P0812159
COMPRESSION SPRING 1 X 15 X 35
N/A
160 P0812160 BLADE BRUSH ASSEMBLY $58.00
160-1 P0812160-1
BRUSH SHAFT
N/A
160-2 P0812160-2
Replaced By PS81M
PHLP HD SCR M6-1 X 40
N/A View Replacement
160-3 P0812160-3
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
160-4 P0812160-4
BRUSH
N/A
160-5 P0812160-5
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
161 P0812161
TRIPLE-BEARING GUIDE ASSY (STR)
N/A
161-1 P0812161-1
BEARING SHAFT
N/A
161-2 P0812161-2
Replaced By P609ZZ
BALL BEARING 609ZZ
N/A View Replacement
161-3 P0812161-3
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
166 P0812166
TRIPLE-BEARING GUIDE ASSY (ECC)
N/A
166-1 P0812166-1
ECCENTRIC SHAFT
N/A
166-2 P0812166-2
Replaced By P609ZZ
BALL BEARING 609ZZ
N/A View Replacement
166-3 P0812166-3
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
167 P0812167 BLADE GUARD (REAR) $50.50
168 P0812168
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
169 P0812169 CARBIDE BLADE GUIDE $25.75
170 P0812170
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
171 P0812171
Replaced By P609ZZ
BALL BEARING 609ZZ
N/A View Replacement
172 P0812172
BEARING PIN
N/A
173 P0812173
CYLINDER ASSEMBLY
N/A
173-1 P0812173-1
CLEVIS SUPPORT BRACKET
N/A
173-10 P0812173-10
HOLLOW THREADED SHAFT
N/A
173-11 P0812173-11
CYLINDER SUPPORT
N/A
173-14 P0812173-14
BUSHING
N/A
173-15 P0812173-15
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
173-16 P0812173-16
LOCK PLATE
N/A
173-17 P0812173-17
ADJ HANDLE 60L M8-1.25 X 20
N/A
173-18 P0812173-18
HOLLOW THREADED SHAFT
N/A
173-19 P0812173-19
Replaced By PCAP58M
CAP SCREW M8-1.25 X 12
N/A View Replacement
173-2 P0812173-2
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
173-20 P0812173-20
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
173-21 P0812173-21
SCALE (INCH)
N/A
173-22 P0812173-22
Replaced By P0812173
CYLINDER ASSEMBLY
N/A View Replacement
173-3 P0812173-3
CLEVIS PIN 20 X 70, HEADLESS-GROOVED
N/A
173-4 P0812173-4
Replaced By PR09M
EXT RETAINING RING 20MM
N/A View Replacement
173-5 P0812173-5
CONNECTOR
N/A
173-6 P0812173-6
COMPRESSION SPRING 9.3 X 92 X 110
N/A
173-7 P0812173-7
SPRING CYLINDER SLEEVE
N/A
173-8 P0812173-8
Replaced By PN17M
HEX NUT M20-1.5
N/A View Replacement
173-9 P0812173-9
BALL-JOINT ROD END M20-1.5 X 20
N/A
174 P0812174
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
175 P0812175
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
176 P0812176
COVER
N/A
177 P0812177
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
178 P0812178
PIVOT PIN
N/A
179 P0812179
LIMIT SWITCH
N/A

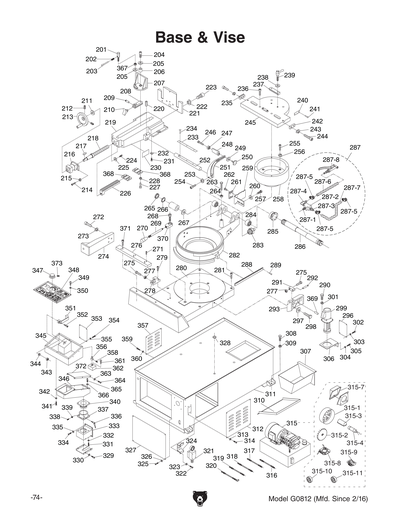

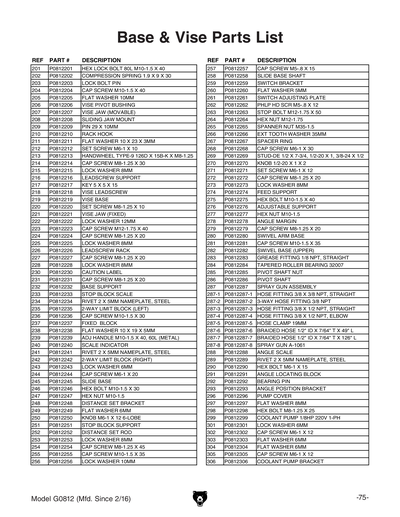

201 P0812201
HEX LOCK BOLT 80L M10-1.5 X 40
N/A
202 P0812202
COMPRESSION SPRING 1.9 X 9 X 30
N/A
203 P0812203
LOCK BOLT PIN
N/A
204 P0812204
Replaced By PCAP47M
CAP SCREW M10-1.5 X 40
N/A View Replacement
205 P0812205
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
206 P0812206
BUSHING
N/A
207 P0812207
VISE JAW BRACKET(FRONT)
N/A
208 P0812208
SLIDING JAW MOUNT
N/A
209 P0812209
PIN 29 X 10MM
N/A
210 P0812210
RACK HOOK
N/A
211 P0812211
FLAT WASHER 10 X 23 X 3MM
N/A
212 P0812212
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
213 P0812213
HANDWHEEL TYPE-9 126D X 15B-K
N/A
214 P0812214
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
215 P0812215
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
216 P0812216 LEADSCREW SUPPORT $375.50
217 P0812217
Replaced By PK20M
KEY 5 X 5 X 15
N/A View Replacement
218 P0812218
LEADSCREW
N/A
219 P0812219
VISE BASE
N/A
220 P0812220
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
221 P0812221
VISE JAW BRACKET(REAR)
N/A
222 P0812222
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
223 P0812223
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
N/A View Replacement
224 P0812224
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
225 P0812225
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
226 P0812226
LEADSCREW RACK
N/A
227 P0812227
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
228 P0812228
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
230 P0812230
CAUTION LABEL
N/A
231 P0812231
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
232 P0812232
BASE SUPPORT
N/A
233 P0812233
STOP BLOCK SCALE
N/A
234 P0812234
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
235 P0812235
2-WAY LIMIT BLOCK (LEFT)
N/A
236 P0812236
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
237 P0812237
FIXED BLOCK
N/A
238 P0812238 FLAT WASHER 10 X 19 X 5MM $1.25
239 P0812239 ADJ HANDLE M10-1.5 X 40, 60L (METAL) $26.00
240 P0812240
SCALE INDICATOR
N/A
241 P0812241
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
242 P0812242
2-WAY LIMIT BLOCK (RIGHT)
N/A
243 P0812243
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
244 P0812244
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
245 P0812245
SLIDE BASE
N/A
246 P0812246
Replaced By PB01M
HEX BOLT M10-1.5 X 30
N/A View Replacement
247 P0812247
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
248 P0812248
DISTANCE SET BRACKET
N/A
249 P0812249
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
250 P0812250
KNOB M6-1 X 12 6-LOBE
N/A
251 P0812251
STOP BLOCK SUPPORT
N/A
252 P0812252
DISTANCE SET ROD
N/A
253 P0812253
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
254 P0812254
Replaced By PCAP45M
CAP SCREW M8-1.25 X 45
N/A View Replacement
255 P0812255
Replaced By PCAP84M
CAP SCREW M10-1.5 X 35
N/A View Replacement
256 P0812256
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
257 P0812257
Replaced By PCAP10M
CAP SCREW M5-.8 X 15
N/A View Replacement
258 P0812258
SLIDE BASE SHAFT
N/A
259 P0812259
SWITCH BRACKET
N/A
260 P0812260
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
261 P0812261
SWITCH ADJUSTING PLATE
N/A
262 P0812262
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
263 P0812263
STOP BOLT M12-1.75 X 50
N/A
264 P0812264
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
265 P0812265
SPANNER NUT M35-1.5
N/A
266 P0812266
EXT TOOTH WASHER 35MM
N/A
267 P0812267
SPACER RING
N/A
268 P0812268
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
269 P0812269
STUD-DE 7-3/4L 1/2-20 X 1, 3/8-24 X 1/2
N/A
270 P0812270
KNOB 1/2-20 X 1 X 2
N/A
271 P0812271
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
272 P0812272
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
273 P0812273
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
274 P0812274
FEED SUPPORT
N/A
275 P0812275
Replaced By PB31M
HEX BOLT M10-1.5 X 40
N/A View Replacement
276 P0812276
ADJUSTABLE SUPPORT
N/A
277 P0812277
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
278 P0812278
ANGLE MARGIN
N/A
279 P0812279
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
280 P0812280
SWIVEL ARM BASE
N/A
281 P0812281
Replaced By PCAP84M
CAP SCREW M10-1.5 X 35
N/A View Replacement
282 P0812282
SWIVEL BASE (UPPER)
N/A
283 P0812283
Replaced By P0812039
GREASE FITTING 1/8 NPT, STRAIGHT
N/A View Replacement
284 P0812284
TAPERED ROLLER BEARING 32007
N/A
285 P0812285
RING
N/A
286 P0812286
PIVOT SHAFT
N/A
287 P0812287
SPRAY GUN ASSEMBLY
N/A
287-1 P0812287-1
HOSE FITTING 3/8 X 3/8 NPT, STRAIGHT
N/A
287-2 P0812287-2
3-WAY HOSE FITTING 3/8 NPT
N/A
287-3 P0812287-3
HOSE FITTING 3/8 X 1/2 NPT, STRAIGHT
N/A
287-4 P0812287-4 HOSE FITTING 3/8 X 1/2 NPT, ELBOW $14.00
287-5 P0812287-5
HOSE CLAMP 19MM
N/A
287-6 P0812287-6
BRAIDED HOSE 1/2" ID X 7/64" T X 49" L
N/A
287-7 P0812287-7
BRAIDED HOSE 1/2" ID X 7/64" T X 126" L
N/A
287-8 P0812287-8
SPRAY GUN A-1061
N/A
288 P0812288
ANGLE SCALE
N/A
289 P0812289
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
290 P0812290
Replaced By PB18M
HEX BOLT M6-1 X 15
N/A View Replacement
291 P0812291
ANGLE LOCATING BLOCK
N/A
292 P0812292
BEARING PIN
N/A
293 P0812293
ANGLE POSITION BRACKET
N/A
294 P0812294
HEX NUT M10
N/A
295 P0812295
HEX HEAD SCREW M10 X 40L
N/A
296 P0812296
*DISCD*PUMP COVER
Item is no longer available
N/A
297 P0812297
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
298 P0812298
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
299 P0812299
COOLANT PUMP 1/8HP 220V 1-PH
N/A
301 P0812301
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
302 P0812302
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
303 P0812303
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
304 P0812304
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
305 P0812305
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
306 P0812306
COOLANT PUMP BRACKET
N/A
307 P0812307

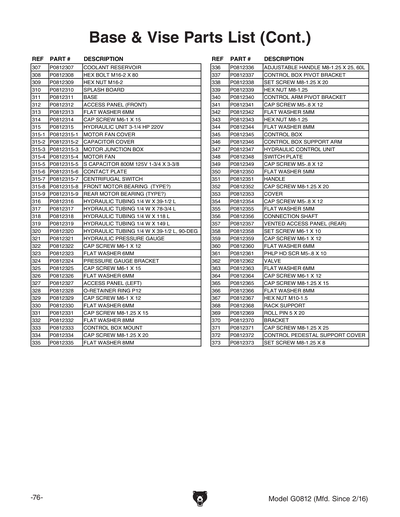

COOLANT RESERVOIR
N/A
308 P0812308
Replaced By PB159M
HEX BOLT M16-2 X 80
N/A View Replacement
309 P0812309
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement
310 P0812310
SPLASH BOARD
N/A
311 P0812311
SAW BASE
N/A
312 P0812312
*DISCD*VENTED ACCESS PANEL (FRONT)
Item is no longer available
N/A
313 P0812313
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
314 P0812314
Replaced By PCAP28M
CAP SCREW M6-1 X 15
N/A View Replacement
315 P0812315
HYDRAULIC PUMP ASSY 3-1/4HP 220V 1-PH
N/A
315-12 P0812315-12
HYDRAULIC PUMP
N/A
315-13 P0812315-13
HYDRAULIC PUMP RESERVOIR BOX
N/A
315-14 P0812315-14
HYDRAULIC RESERVOIR BOX CAP
N/A
315-15 P0812315-15
HYDRAULIC PUMP MOTOR 3-1/4 HP 220V 1-PH
N/A
316 P0812316
HYDRAULIC TUBING 1/4" ID X 39-1/2 L
N/A
317 P0812317
HYDRAULIC TUBING 1/4" ID X 78-3/4 L
N/A
318 P0812318
HYDRAULIC TUBING 1/4" ID X 118 L
N/A
319 P0812319
HYDRAULIC TUBING 1/4" ID X 149 L
N/A
320 P0812320
HYDRAULIC TUBING 1/4" ID X 39-1/2 L, 90-
N/A
321 P0812321
HYDRAULIC PRESSURE GAUGE
N/A
322 P0812322
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
323 P0812323
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
324 P0812324
PRESSURE GAUGE BRACKET
N/A
325 P0812325
Replaced By PCAP28M
CAP SCREW M6-1 X 15
N/A View Replacement
326 P0812326
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
327 P0812327
ACCESS PANEL (LEFT)
N/A
328 P0812328
GROMMET P12
N/A
329 P0812329
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
330 P0812330
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
331 P0812331
Replaced By PCAP100M
CAP SCREW M8-1.25 X 15
N/A View Replacement
332 P0812332
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
333 P0812333
CONTROL BOX MOUNT
N/A
334 P0812334
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
335 P0812335
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
336 P0812336
ADJUSTABLE HANDLE 60L M8-1.25 X 25
N/A
337 P0812337
CONTROL BOX PIVOT BASE
N/A
338 P0812338
Replaced By PSS09M
SET SCREW M8-1.25 X 20
N/A View Replacement
339 P0812339
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
340 P0812340
CONTROL ARM PIVOT BRACKET
N/A
341 P0812341
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
342 P0812342
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
343 P0812343
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
344 P0812344
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
345 P0812345
CONTROL BOX
N/A
346 P0812346
CONTROL BOX SUPPORT ARM
N/A
347 P0812347 HYDRAULIC CONTROL UNIT $56.00
348 P0812348
SWITCH CONTROL PANEL PLATE
N/A
349 P0812349
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
350 P0812350
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
351 P0812351
PULL HANDLE
N/A
352 P0812352
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
353 P0812353
*DISCD*COVER
Item is no longer available
N/A
354 P0812354
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
355 P0812355
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
356 P0812356
CONNECTION SHAFT
N/A
357 P0812357
*DISCD*VENTED ACCESS PANEL (REAR)
Item is no longer available
N/A
358 P0812358
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
359 P0812359
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
360 P0812360
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
361 P0812361
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
362 P0812362 VALVE $259.25
363 P0812363
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
364 P0812364
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
365 P0812365
Replaced By PCAP100M
CAP SCREW M8-1.25 X 15
N/A View Replacement
366 P0812366
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
367 P0812367
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
368 P0812368
RACK SUPPORT
N/A
369 P0812369
Replaced By PRP03M
ROLL PIN 5 X 20
N/A View Replacement
370 P0812370
BRACKET
N/A
371 P0812371
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
372 P0812372
*DISCD*CONTROL PEDESTAL SUPPORT COVER
Item is no longer available
N/A
373 P0812373
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
401 P0812401
BUTTON SWITCH NHD CB-10 GRN
N/A
402 P0812402
BUTTON SWITCH NHD CB-01 RED
N/A
403 P0812403 BUTTON SWITCH NHD CB-01 GRN $10.75
404 P0812404
VISE CLAMP BUTTON NHD CB-01 GRN
N/A
405 P0812405
Replaced By P0812403
BUTTON SWITCH NHD CB-01 GRN
N/A View Replacement
406 P0812406
COOLANT SWITCH NHD CB-10
N/A
407 P0812407
Replaced By P0812403
BUTTON SWITCH NHD CB-01 GRN
N/A View Replacement
408 P0812408
Replaced By P0812403
BUTTON SWITCH NHD CB-01 GRN
N/A View Replacement
409 P0812409
BUTTON SWITCH NHD NLD-22 24MM CLEAR
N/A
410 P0812410
E-STOP BUTTON KEDU HY57B
N/A
411 P0812411 LIMIT SWITCH (UPPER LEFT) AZD-1122 $50.50
412 P0812412
Replaced By P0812411
LIMIT SWITCH (UPPER LEFT) AZD-1122
N/A View Replacement
413 P0812413
Replaced By P0812411
LIMIT SWITCH (UPPER LEFT) AZD-1122
N/A View Replacement
414 P0812414
Replaced By P0812411
LIMIT SWITCH (UPPER LEFT) AZD-1122
N/A View Replacement
415 P0812415
TRANSFORMER LGE TBSM-100200
N/A
416 P0812416
FUSE 5A 250V TIME-DELAY, CERAMIC
N/A
417 P0812417
CONTACTOR TECO CU-11
N/A
418 P0812418
CONTACTOR KEDU JD6.10 220V
N/A
419 P0812419
Replaced By P0812418
CONTACTOR KEDU JD6.10 220V
N/A View Replacement
420 P0812420 CIRCUIT BOARD RF-0350-200801 $508.25
421 P0812421
TERMINAL BAR 5P
N/A
422 P0812422
TERMINAL BLOCK
N/A
501 P0812501
Replaced By PLABEL-12C
READ MANUAL 1.5W X 2.5H
N/A View Replacement
502 P0812502
MACHINE ID LABEL
N/A
503 P0812503
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
504 P0812504
Replaced By PLABEL-57A
GLASSES/RESPIRATOR 1.5W X 2.5H
N/A View Replacement
505 P0812505
Replaced By PLABEL-62C
DISCONNECT 110V 2.8W X 1.5H
N/A View Replacement
506 P0812506
MODEL NUMBER LABEL
N/A
507 P0812507
GRIZZLY.COM LABEL
N/A
508 P0812508
Replaced By PPAINT-14
BEIGE REF G0555
N/A View Replacement
509 P0812509
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
510 P0812510
HYDRAULIC FLUID CAPACITY LABEL
N/A
511 P0812511
COOLANT FLUID CAPACITY LABEL
N/A
512 P0812512
Replaced By G8589
Name Plates - Large
N/A View Replacement
MAN P0812MAN
MANUAL G0812 MFD.-02.16 V1.02.17
N/A
