G0814 - 6" x 48" Jointer with Cabinet Stand

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

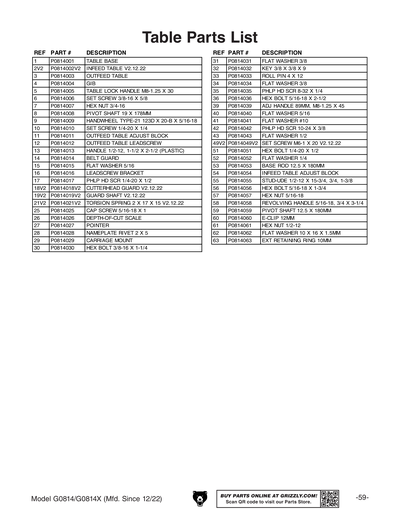

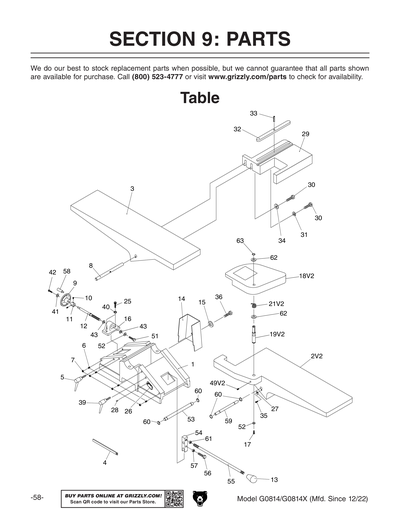

001 P0814001
TABLE BASE
Item is no longer available

P0814001 Replaced By P0813001
N/A
View Item
002 P0814002
INFEED TABLE
Item is no longer available

P0814002 Replaced By P0813002
N/A
View Item
003 P0814003 OUTFEED TABLE $135.00
View Item
004 P0814004 GIB $1.00
View Item
005 P0814005 TABLE LOCK HANDLE M8-1.25 X 30 $3.00
View Item
006 P0814006 SET SCREW 3/8-16 X 5/8 $1.00
View Item
007 P0814007 HEX NUT 3/4-16 $1.50
View Item
008 P0814008 PIVOT SHAFT 19 X 178MM $3.50
View Item
009 P0814009 HANDWHEEL TYPE-21 123D X 20-B X 5/16-18 $27.75
View Item
010 P0814010 SET SCREW 1/4-20 X 1/4 $1.00
View Item
011 P0814011 LOCK COLLAR $2.25
View Item
012 P0814012 OUTFEED TABLE LEADSCREW $5.75
View Item
013 P0814013 HANDLE 1/2-12, 1-1/2 X 2-1/2 (PLASTIC) $2.00
View Item
014 P0814014 BELT GUARD $7.00
View Item
015 P0814015 FLAT WASHER 5/16 $1.00
View Item
016 P0814016 LEADSCREW BRACKET $5.25
View Item
018 P0814018 CUTTERHEAD GUARD $26.75
View Item
019 P0814019 GUARD SHAFT $7.50
View Item
020 P0814020 SPRING PLATE $2.50
View Item
021 P0814021 TORSION SPRING $1.50
View Item
022 P0814022 GUARD TENSION KNOB $2.25
View Item
023 P0814023 GUARD MOUNT COLLAR $1.50
View Item
024 P0814024 PHLP HD SCR 8-32 X 5/8 $1.00
View Item
025 P0814025 CAP SCREW 5/16-18 X 1 $1.00
View Item
026 P0814026
DEPTH-OF-CUT SCALE
Item is no longer available

P0814026 Replaced By P0813026
N/A
View Item
027 P0814027
POINTER
Item is no longer available

P0814027 Replaced By P0813027
N/A
View Item
028 P0814028
NAMEPLATE RIVET 2 X 5
Item is no longer available

P0814028 Replaced By P0813028
N/A
View Item
029 P0814029 CARRIAGE SUPPORT $54.00
View Item
030 P0814030 HEX BOLT 3/8-16 X 1-1/4 $1.00
View Item
031 P0814031 FLAT WASHER 3/8 $1.00
View Item
032 P0814032 KEY 3/8 X 3/8 X 9 $8.50
View Item
033 P0814033 ROLL PIN 4 X 12 $1.00
View Item
034 P0814034 FLAT WASHER 3/8 $1.00
View Item
035 P0814035 PHLP HD SCR 8-32 X 1/4 $1.00
View Item
036 P0814036 HEX BOLT 5/16-18 X 2-1/2 $1.00
View Item
039 P0814039 ADJ HANDLE 89MM, M8-1.25 X 45 $3.00
View Item
040 P0814040 FLAT WASHER 5/16 $1.00
View Item
041 P0814041 FLAT WASHER #10 $1.00
View Item
042 P0814042 PHLP HD SCR 10-24 X 3/8 $1.00
View Item
043 P0814043 FLAT WASHER 1/2 $1.00
View Item
046 P0814046
*DISCD*ADHESIVE FOAM STRIP
Item is no longer available
N/A
049 P0814049 SET SCREW M5-.8 X 8 $1.00
View Item
051 P0814051 HEX BOLT 1/4-20 X 1/2 $1.00
View Item
052 P0814052 FLAT WASHER 1/4 $1.00
View Item
053 P0814053
BASE ROD 12.5 X 180MM
Item is no longer available

P0814053 Replaced By P0813053
N/A
View Item
054 P0814054 INFEED TABLE ADJUST BLOCK $6.75
View Item
055 P0814055 STUD-UDE 1/2-12 X 15-3/4, 3/4, 1-3/8 $3.50
View Item
056 P0814056 HEX BOLT 5/16-18 X 1-3/4 $1.00
View Item
057 P0814057 HEX NUT 5/16-18 $1.00
View Item
058 P0814058 REVOLVING HANDLE 5/16-18, 3/4 X 3-1/4 $9.50
View Item
059 P0814059
PIVOT SHAFT 12.5 X 180MM
Item is no longer available

P0814059 Replaced By P0813059
N/A
View Item
060 P0814060 E-CLIP 12MM $1.00
View Item
061 P0814061 HEX NUT 1/2-12 $1.00
View Item

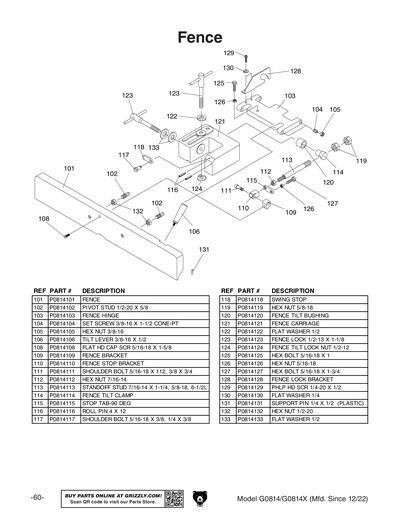

101 P0814101 FENCE $96.00
View Item
102 P0814102 PIVOT STUD 1/2-20 X 5/8 $1.50
View Item
103 P0814103 FENCE HINGE $25.50
View Item
104 P0814104 SET SCREW 3/8-16 X 1-1/2 CONE-PT $1.00
View Item
105 P0814105 HEX NUT 3/8-16 $1.25
View Item
106 P0814106 TILT LEVER 3/8-16 X 1/2 $6.00
View Item
108 P0814108
FLAT HD CAP SCR 5/16-18 X 1-5/8
Item is no longer available

P0814108 Replaced By P0813108
N/A
View Item
109 P0814109 FENCE BRACKET $3.25
View Item
110 P0814110 FENCE STOP BRACKET $3.00
View Item
111 P0814111 SHOULDER BOLT 5/16-18 X 112, 3/8 X 3/4 $2.00
View Item
112 P0814112 HEX NUT 7/16-14 $1.00
View Item
113 P0814113 STANDOFF STUD 7/16-14 X 1-1/4, 5/8-18, $4.50
View Item
114 P0814114
FENCE TILT CLAMP
Item is no longer available

P0814114 Replaced By P0813114
N/A
View Item
115 P0814115 STOP TAB-90 DEG $1.50
View Item
116 P0814116 ROLL PIN 4 X 12 $1.00
View Item
117 P0814117
SHOULDER BOLT 5/16-18 X 3/8, 1/4 X 3/8
Item is no longer available

P0814117 Replaced By P0813117
N/A
View Item
118 P0814118
SWING STOP
Item is no longer available

P0814118 Replaced By P0813118
N/A
View Item
119 P0814119 HEX NUT 5/8-18 $1.00
View Item
120 P0814120 FENCE TILT BUSHING $2.25
View Item
121 P0814121 FENCE CARRIAGE $60.00
View Item
122 P0814122 FLAT WASHER 1/2 $1.00
View Item
123 P0814123 FENCE LOCK 1/2-13 X 1-1/8 $6.00
View Item
124 P0814124 FENCE TILT LOCK NUT 1/2-12 $2.25
View Item
125 P0814125 HEX BOLT 5/16-18 X 1 $1.00
View Item
126 P0814126 HEX NUT 5/16-18 $1.00
View Item
127 P0814127 HEX BOLT 5/16-18 X 1-3/4 $1.00
View Item
128 P0814128
FENCE LOCK BRACKET
Item is no longer available

P0814128 Replaced By P0813128
N/A
View Item
129 P0814129 PHLP HD SCR 1/4-20 X 1/2 $1.00
View Item
130 P0814130 FLAT WASHER 1/4 $1.00
View Item
131 P0814131 SUPPORT PIN 1/4 X 1/2 (PLASTIC) $3.75
View Item
132 P0814132 HEX NUT 1/2-20 $1.00
View Item
133 P0814133 FLAT WASHER 1/2 $1.00
View Item

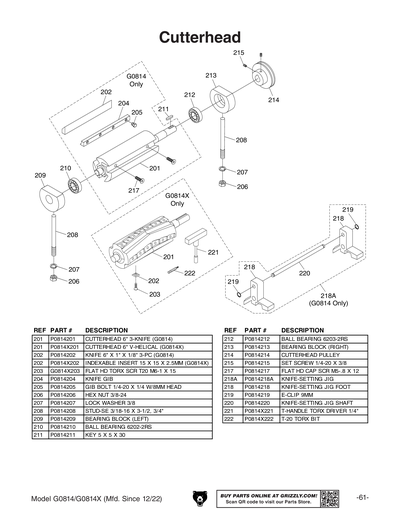

201 P0814201 CUTTERHEAD 6" 3-KNIFE $90.00
View Item
202 P0814202 KNIFE 6" X 1" X 1/8" 3-PC $28.50
View Item
204 P0814204 KNIFE GIB $11.25
View Item
205 P0814205
GIB BOLT 1/4-20 X1/4 W/ 8MM HEAD
N/A
206 P0814206 HEX NUT 3/8-24 $1.00
View Item
207 P0814207 LOCK WASHER 3/8 $1.00
View Item
208 P0814208
STUD-SE 3/18-16 X 3-1/2, 3/4"
Item is no longer available

P0814208 Replaced By P0813208
N/A
View Item
209 P0814209
BEARING BLOCK (LEFT)
Item is no longer available

P0814209 Replaced By P0813209
N/A
View Item
210 P0814210 BALL BEARING 6202-2RS $9.50
View Item
211 P0814211 KEY 5 X 5 X 30 $1.50
View Item
212 P0814212 BALL BEARING 6203-2RS $9.50
View Item
213 P0814213
BEARING BLOCK (RIGHT)
Item is no longer available

P0814213 Replaced By P0813213
N/A
View Item
214 P0814214 CUTTERHEAD PULLEY $12.00
View Item
215 P0814215 SET SCREW 1/4-20 X 3/8 $1.00
View Item
217 P0814217 FLAT HD CAP SCR M5-.8 X 12 $1.00
View Item
218 P0814218 KNIFE-SETTING JIG FOOT $2.25
View Item
218A P0814218A KNIFE-SETTING JIG $6.00
View Item
219 P0814219 E-CLIP 9MM $1.00
View Item
220 P0814220 KNIFE-SETTING JIG SHAFT $2.50
View Item

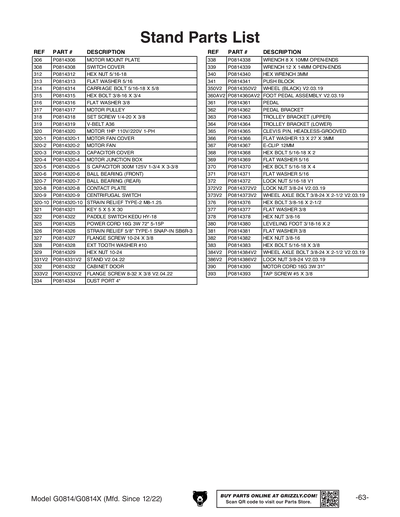

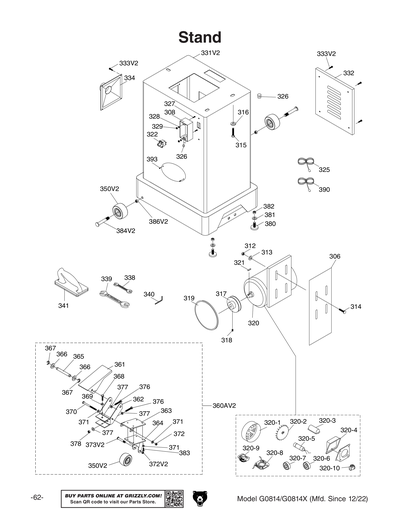

306 P0814306
MOTOR MOUNT PLATE
N/A
308 P0814308 SWITCH COVER $7.50
View Item
312 P0814312 HEX NUT 5/16-18 $1.00
View Item
313 P0814313 FLAT WASHER 5/16 $1.00
View Item
314 P0814314 CARRIAGE BOLT 5/16-18 X 5/8 $1.00
View Item
315 P0814315 HEX BOLT 3/8-16 X 3/4 $1.25
View Item
316 P0814316 FLAT WASHER 3/8 $1.00
View Item
317 P0814317
MOTOR PULLEY
Item is no longer available

P0814317 Replaced By P0813317
N/A
View Item
318 P0814318 SET SCREW 1/4-20 X 3/8 $1.00
View Item
319 P0814319 V-BELT A36 $13.00
View Item
320 P0814320 MOTOR 1HP 110V/220V 1-PH $219.00
View Item
320-1 P0814320-1
MOTOR FAN COVER
Item is no longer available

P0814320-1 Replaced By P0813320-1
N/A
View Item
320-10 P0814320-10
STRAIN RELIEF TYPE-2 M8-1.25
Item is no longer available

P0814320-10 Replaced By P0813320-10
N/A
View Item
320-2 P0814320-2
MOTOR FAN
Item is no longer available

P0814320-2 Replaced By P0813320-2
N/A
View Item
320-3 P0814320-3
CAPACITOR COVER
Item is no longer available

P0814320-3 Replaced By P0813320-3
N/A
View Item
320-4 P0814320-4
MOTOR JUNCTION BOX
Item is no longer available

P0814320-4 Replaced By P0813320-4
N/A
View Item
320-5 P0814320-5 S CAPACITOR 300M 125V 1-3/4 X 3-3/8 $10.50
View Item
320-6 P0814320-6
BALL BEARING (FRONT)
Item is no longer available

P0814320-6 Replaced By P0813320-6
N/A
View Item
320-7 P0814320-7
BALL BEARING (REAR)
Item is no longer available

P0814320-7 Replaced By P0813320-7
N/A
View Item
320-8 P0814320-8
CONTACT PLATE
Item is no longer available

P0814320-8 Replaced By P0813320-8
N/A
View Item
320-9 P0814320-9
CENTRIFUGAL SWITCH
Item is no longer available

P0814320-9 Replaced By P0813320-9
N/A
View Item
321 P0814321 KEY 5 X 5 X 30 $1.50
View Item
322 P0814322 Safety Paddle Switch $7.95
View Item
325 P0814325
POWER CORD 16G 3W 72" 5-15P
Item is no longer available

P0814325 Replaced By P0813325
N/A
View Item
326 P0814326 STRAIN RELIEF 5/8" TYPE-1 SNAP-IN SB6R-3 $1.00
View Item
327 P0814327 FLANGE SCREW 10-24 X 3/8 $1.00
View Item
328 P0814328 EXT TOOTH WASHER #10 $1.00
View Item
329 P0814329 HEX NUT 10-24 $1.00
View Item
331 P0814331 STAND $192.00
Add to Cart
332 P0814332 CABINET DOOR $21.00
Add to Cart
333 P0814333 FLANGE SCREW 10-24 X 3/8 $1.00
View Item
334 P0814334 DUST PORT 4" $3.00
View Item
338 P0814338 WRENCH 8 X 10MM OPEN-ENDS $2.75
View Item
339 P0814339 WRENCH 12 X 14MM OPEN-ENDS $5.00
View Item
340 P0814340 HEX WRENCH 3MM $1.00
View Item
341 P0814341
PUSH BLOCK
Item is no longer available

P0814341 Replaced By P0813341
N/A
View Item
350 P0814350 WHEEL V1 (WHITE) $4.50
View Item
360A P0814360A FOOT PEDAL ASSEMBLY $26.00
View Item
361 P0814361
PEDAL
Item is no longer available

P0814361 Replaced By P0813361
N/A
View Item
362 P0814362
PEDAL BRACKET
Item is no longer available

P0814362 Replaced By P0813362
N/A
View Item
363 P0814363
TROLLEY BRACKET (UPPER)
Item is no longer available

P0814363 Replaced By P0813363
N/A
View Item
364 P0814364
TROLLEY BRACKET (LOWER)
Item is no longer available

P0814364 Replaced By P0813364
N/A
View Item
365 P0814365
CLEVIS PIN, HEADLESS-GROOVED
Item is no longer available

P0814365 Replaced By P0813365
N/A
View Item
366 P0814366
FLAT WASHER 13 X 27 X 3MM
Item is no longer available

P0814366 Replaced By P0813366
N/A
View Item
367 P0814367 E-CLIP 12MM $1.00
View Item
368 P0814368 HEX BOLT 5/16-18 X 2 $1.00
View Item
369 P0814369 FLAT WASHER 5/16 $1.00
View Item
370 P0814370 HEX BOLT 5/16-18 X 4 $1.00
View Item
371 P0814371 FLAT WASHER 5/16 $1.00
View Item
372 P0814372 LOCK NUT 5/16-18 $1.00
View Item
373 P0814373 HEX BOLT 5/16-18 X 2-1/2 $1.00
View Item
374 P0814374 BUSHING $1.50
View Item
375 P0814375 FLAT WASHER 5/16 (PLASTIC) $1.00
View Item
376 P0814376 HEX BOLT 3/8-16 X 2-1/2 $1.00
View Item
377 P0814377 FLAT WASHER 3/8 $1.00
View Item
378 P0814378 HEX NUT 3/8-16 $1.25
View Item
379 P0814379 BALL BEARING 6001ZZ $2.75
View Item
380 P0814380 LEVELING FOOT 3/18-16 X 2 $1.00
View Item
381 P0814381 FLAT WASHER 3/8 $1.00
View Item
382 P0814382 HEX NUT 3/8-16 $1.25
View Item
383 P0814383 HEX BOLT 5/16-18 X 3/8 $1.00
View Item
384 P0814384 HEX BOLT 3/8-16 X 2-1/2 $1.00
View Item
385 P0814385 FLAT WASHER 3/8 $1.00
View Item
386 P0814386 LOCK NUT 3/8-16 $1.00
View Item
390 P0814390
MOTOR CORD 16G 3W 31"
Item is no longer available

P0814390 Replaced By P0813390
N/A
View Item
392 P0814392
*DISCD*SWITCH CORD 16G 3W 30"
Item is no longer available
N/A
393 P0814393 TAP SCREW #5 X 3/8 $1.00
View Item

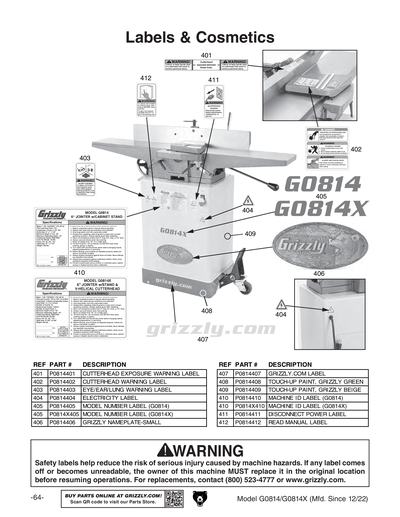

401 P0814401 CUTTERHEAD EXPOSURE WARNING LABEL $1.00
View Item
402 P0814402 CUTTERHEAD WARNING LABEL $1.75
View Item
403 P0814403 EYE/EAR/LUNG 2W X 3.3H $2.50
View Item
404 P0814404 ELECTRICITY 0.7W X 0.6H $2.50
View Item
405 P0814405 MODEL NUMBER LABEL $1.50
Add to Cart
406 P0814406 Name Plates - Small $21.95
View Item
407 P0814407 GRIZZLY.COM LABEL $2.00
View Item
408 P0814408 N/S GRIZZLY GREEN G1023S $6.50
View Item
409 P0814409 BEIGE REF G0555 $5.75
View Item
410 P0814410
MACHINE ID LABEL
N/A
411 P0814411 DISCONNECT 110V 1.5W X 2.5H $2.50
View Item
412 P0814412 READ MANUAL 1.5W X 2.5H $2.50
View Item
BOX2 P0814BOX2 COMPLETE BOX 2 OF 2 FOR G0814 $510.00
Add to Cart
MAN P0814MAN MAN G0813/G0814 MFD-03.16-09.19 V1.03.16 $22.50
View Item
MANV2 P0814MANV2
MANUAL G0813/14/14X MFD-10.19+ V2.10.19
Item is no longer available

P0814MANV2 Replaced By P0813MANV2
N/A
View Item
Ref # Part # Description Price Qty
