Parts for G0814X - 6" Jointer with V-Helical Cutterhead

Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X
Part Diagram for G0814X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

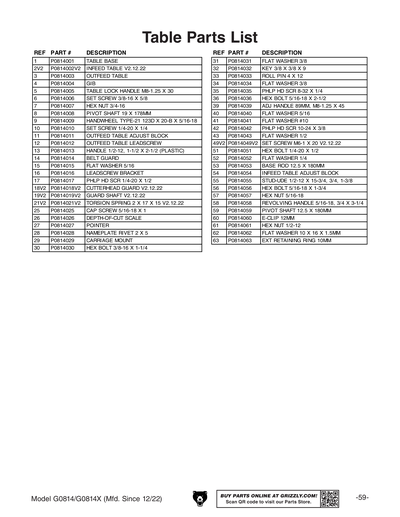

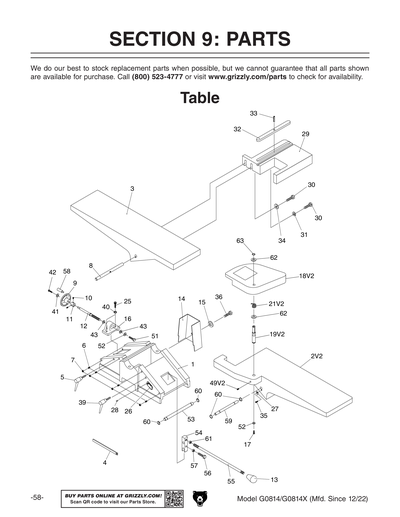

1
TABLE BASE
Price
N/A
2
INFEED TABLE
Price
N/A
2V2
INFEED TABLE V2.12.22
Price
N/A
3
OUTFEED TABLE
Price
N/A
4
GIB
Price
N/A
5
TABLE LOCK HANDLE M8-1.25 X 30
Price
N/A
6
SET SCREW M8-1.25 X 25
Price
N/A
7
HEX NUT M8-1.25
Price
N/A
8
PIVOT SHAFT 19 X 178MM
Price
N/A
9
HANDWHEEL TYPE-21 123D X 20-B X 5/16-18
Price
N/A
10
SET SCREW 1/4-20 X 1/4
Price
N/A
11
LOCK COLLAR
Price
N/A
12
OUTFEED TABLE LEADSCREW
Price
N/A
13
HANDLE 1/2-12, 1-1/2 X 2-1/2 (PLASTIC)
Price
N/A
14
BELT GUARD
Price
N/A
15
FLAT WASHER 5/16
Price
N/A
16
LEADSCREW BRACKET
Price
N/A
17
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
18
CUTTERHEAD GUARD
Price
N/A
18V2
CUTTERHEAD GUARD V2.12.22
Price
N/A
19
GUARD SHAFT
Price
N/A
19V2
GUARD SHAFT V2.12.22
Price
N/A
20
SPRING PLATE
Price
N/A
21
TORSION SPRING
Price
N/A
21V2
TORSION SPRING 2 X 17 X 15 V2.12.22
Price
N/A
22
GUARD TENSION KNOB
Price
N/A
23
*DISCD*GUARD MOUNT COLLAR
Price
N/A
24
PHLP HD SCR 8-32 X 5/8
Price
N/A
25
CAP SCREW 5/16-18 X 1
Price
N/A
26
DEPTH-OF-CUT SCALE
Price
N/A
27
POINTER
Price
N/A
28
NAMEPLATE RIVET 2 X 5
Price
N/A
29
CARRIAGE SUPPORT
Price
N/A
30
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
31
FLAT WASHER 3/8
Price
N/A
32
KEY 3/8 X 3/8 X 9 W/HOLE
Price
N/A
33
ROLL PIN 4 X 12
Price
N/A
34
FLAT WASHER 3/8
Price
N/A
35
PHLP HD SCR 8-32 X 1/4
Price
N/A
36
HEX BOLT 5/16-18 X 2-1/2
Price
N/A
39
ADJ HANDLE 89MM, M8-1.25 X 45
Price
N/A
40
FLAT WASHER 5/16
Price
N/A
41
FLAT WASHER #10
Price
N/A
42
PHLP HD SCR 10-24 X 3/8
Price
N/A
43
FLAT WASHER 1/2
Price
N/A
49
SET SCREW M5-.8 X 8
Price
N/A
49V2
SET SCREW M6-1 X 20
Price
N/A
51
HEX BOLT 1/4-20 X 1/2
Price
N/A
52
FLAT WASHER 1/4
Price
N/A
53
BASE ROD 12.5 X 180MM
Price
N/A
54
INFEED TABLE ADJUST BLOCK
Price
N/A
55
STUD-UDE 1/2-12 X 15-3/4, 3/4, 1-3/8
Price
N/A
56
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
57
HEX NUT 5/16-18
Price
N/A
58
REVOLVING HANDLE 5/16-18, 3/4 X 3-1/4
Price
N/A
59
PIVOT SHAFT 12.5 X 180MM
Price
N/A
60
E-CLIP 12MM
Price
N/A
61
HEX NUT 1/2-12
Price
N/A
62
FLAT WASHER 10MM
Price
N/A
63
EXT RETAINING RING 10MM
Price
N/A

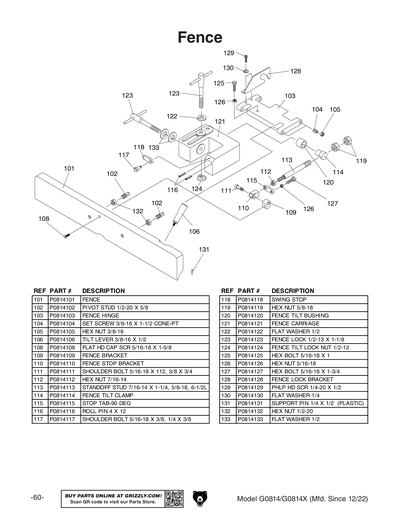

101
FENCE
Price
N/A
102
PIVOT STUD 1/2-20 X 5/8
Price
N/A
103
FENCE HINGE
Price
N/A
104
SET SCREW 3/8-16 X 1-1/2 CONE-PT
Price
N/A
105
HEX NUT 3/8-16
Price
N/A
106
TILT LEVER 3/8-16 X 1/2
Price
N/A
108
FLAT HD CAP SCR 5/16-18 X 1-5/8
Price
N/A
109
FENCE BRACKET
Price
N/A
110
FENCE STOP BRACKET
Price
N/A
111
SHOULDER BOLT 5/16-18 X 112, 3/8 X 3/4
Price
N/A
112
HEX NUT 7/16-14
Price
N/A
113
STANDOFF STUD 7/16-14 X 1-1/4, 5/8-18,
Price
N/A
114
FENCE TILT CLAMP
Price
N/A
115
STOP TAB-90 DEG
Price
N/A
116
ROLL PIN 4 X 12
Price
N/A
117
SHOULDER BOLT 5/16-18 X 3/8, 1/4 X 3/8
Price
N/A
118
SWING STOP
Price
N/A
119
HEX NUT 5/8-18
Price
N/A
120
FENCE TILT BUSHING
Price
N/A
121
FENCE CARRIAGE
Price
N/A
122
FLAT WASHER 1/2
Price
N/A
123
FENCE LOCK 1/2-12 X 1-1/8
Price
N/A
124
FENCE TILT LOCK NUT 1/2-12
Price
N/A
125
HEX BOLT 5/16-18 X 1
Price
N/A
126
HEX NUT 5/16-18
Price
N/A
127
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
128
FENCE LOCK BRACKET
Price
N/A
129
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
130
FLAT WASHER 1/4
Price
N/A
131
SUPPORT PIN 1/4 X 1/2 (PLASTIC)
Price
N/A
132
HEX NUT 1/2-20
Price
N/A
133
FLAT WASHER 1/2
Price
N/A
201

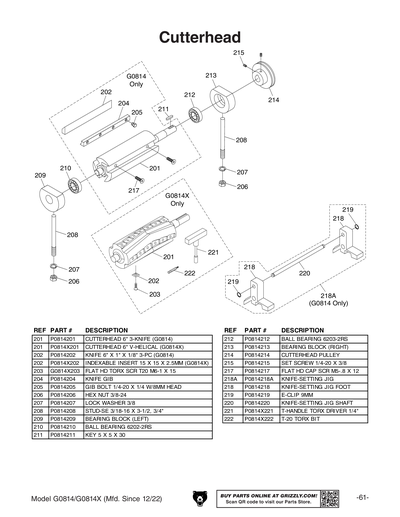

CUTTERHEAD 6" V-HELICAL
Price
$932.20
202
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
203
FLAT HD TORX SCR T20 M6-1 X 15
Price
N/A
206
HEX NUT 3/8-24
Price
N/A
207
LOCK WASHER 3/8
Price
N/A
208
STUD-SE 3/18-16 X 3-1/2, 3/4"
Price
N/A
209
BEARING BLOCK (LEFT)
Price
N/A
210
BALL BEARING 6202-2RS
Price
N/A
211
KEY 5 X 5 X 30
Price
N/A
212
BALL BEARING 6203-2RS
Price
N/A
213
BEARING BLOCK (RIGHT)
Price
N/A
214
CUTTERHEAD PULLEY
Price
N/A
215
SET SCREW 1/4-20 X 3/8
Price
N/A
221
T-HANDLE BIT DRIVER 1/4"
Price
$9.10
222
T-20 TORX BIT
Price
N/A

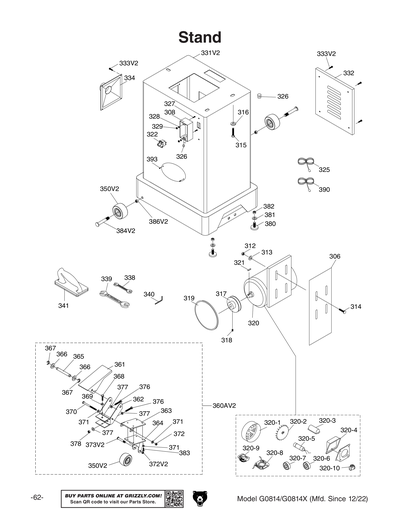

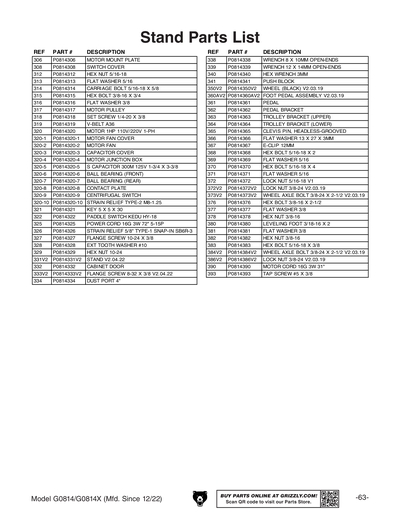

306
MOTOR MOUNT PLATE
Price
N/A
308
SWITCH COVER
Price
N/A
312
HEX NUT 5/16-18
Price
N/A
313
FLAT WASHER 5/16
Price
N/A
314
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
315
HEX BOLT 3/8-16 X 3/4
Price
N/A
316
FLAT WASHER 3/8
Price
N/A
317
MOTOR PULLEY
Price
N/A
318
SET SCREW 1/4-20 X 3/8
Price
N/A
319
V-BELT A36
Price
N/A
320
MOTOR 1HP 110V/220V 1-PH
Price
N/A
320-1
MOTOR FAN COVER
Price
N/A
320-10
STRAIN RELIEF TYPE-2 M8-1.25
Price
N/A
320-2
MOTOR FAN
Price
N/A
320-3
CAPACITOR COVER
Price
N/A
320-4
MOTOR JUNCTION BOX
Price
N/A
320-5
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
320-6
BALL BEARING (FRONT)
Price
N/A
320-7
BALL BEARING (REAR)
Price
N/A
320-8
CONTACT PLATE
Price
N/A
320-9
CENTRIFUGAL SWITCH
Price
N/A
321
KEY 5 X 5 X 30
Price
N/A
322
Safety Paddle Switch
Price
N/A
325
POWER CORD 16G 3W 72" 5-15P
Price
N/A
326
STRAIN RELIEF 5/8" TYPE-1 SNAP-IN SB6R-3
Price
N/A
327
FLANGE SCREW 10-24 X 3/8
Price
N/A
328
EXT TOOTH WASHER #10
Price
N/A
329
HEX NUT 10-24
Price
N/A
331
STAND V1
Price
N/A
331V2
STAND V2.04.22
Price
N/A
332
CABINET DOOR
Price
N/A
333
FLANGE SCREW 10-24 X 3/8
Price
N/A
333V2
FLANGE SCREW 8-32 X 3/8 V2.04.22
Price
N/A
334
DUST PORT 4"
Price
N/A
338
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
339
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
340
HEX WRENCH 3MM
Price
N/A
341
PUSH BLOCK
Price
N/A
350
***SEE EXT DESC***
Price
N/A
350V2
WHEEL (BLACK) V2.03.19
Price
N/A
360
PEDAL
Price
N/A
360A
FOOT PEDAL ASSEMBLY V2.03.19
Price
N/A
360AV2
FOOT PEDAL ASSEMBLY V2.03.19
Price
N/A
362
PEDAL BRACKET
Price
N/A
363
TROLLEY BRACKET (UPPER)
Price
N/A
364
TROLLEY BRACKET (LOWER)
Price
N/A
365
CLEVIS PIN, HEADLESS-GROOVED
Price
N/A
366
*DISCD*FLAT WASHER 13 X 27 X 3MM
Price
N/A
367
E-CLIP 12MM
Price
N/A
368
HEX BOLT 5/16-18 X 2
Price
N/A
369
FLAT WASHER 5/16
Price
N/A
370
HEX BOLT 5/16-18 X 4
Price
N/A
371
FLAT WASHER 5/16
Price
N/A
372
LOCK NUT 5/16-18
Price
N/A
372V2
LOCK NUT 3/8-24 V2.03.19
Price
N/A
373
HEX BOLT 5/16-18 X 2-1/2
Price
N/A
373V2
WHEEL AXLE BOLT 3/8-24 X 2-1/2 V2.03.19
Price
N/A
374
BUSHING
Price
N/A
375
FLAT WASHER 5/16 (PLASTIC)
Price
N/A
376
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
377
FLAT WASHER 3/8
Price
N/A
378
HEX NUT 3/8-16
Price
N/A
379
BALL BEARING 6001ZZ
Price
N/A
380
LEVELING FOOT 3/8-16 X 2
Price
N/A
381
FLAT WASHER 3/8
Price
N/A
382
HEX NUT 3/8-16
Price
N/A
383
HEX BOLT 5/16-18 X 3/8
Price
N/A
384
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
384V2
WHEEL AXLE BOLT 3/8-24 X 2-1/2 V2.03.19
Price
N/A
385
FLAT WASHER 3/8
Price
N/A
386
LOCK NUT 3/8-16
Price
N/A
386V2
LOCK NUT 3/8-24 V2.03.19
Price
N/A
390
MOTOR CORD 16G 3W 31"
Price
N/A
393
TAP SCREW #5 X 3/8
Price
N/A

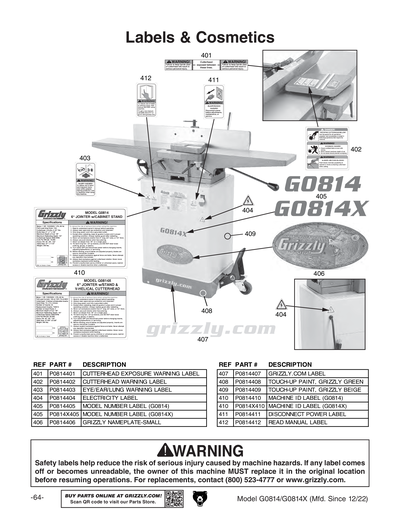

401
CUTTERHEAD EXPOSURE WARNING LABEL
Price
N/A
402
CUTTERHEAD WARNING LABEL
Price
N/A
403
EYE/EAR/LUNG 2W X 3.3H
Price
N/A
404
ELECTRICITY 0.7W X 0.6H
Price
N/A
405
MODEL NUMBER LABEL
Price
$1.35
406
Nameplate - Small
Price
N/A
407
GRIZZLY.COM LABEL
Price
N/A
408
N/S GRIZZLY GREEN G1023S
Price
N/A
409
BEIGE REF G0555
Price
N/A
410
MACHINE ID LABEL
Price
$16.40
411
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
412
READ MANUAL 1.5W X 2.5H
Price
N/A
BOX2
COMPLETE BOX 2 OF 2 FOR G0814X
Price
$470.95
MAN
MAN G0813/14/14X MFD-10.19-3.22 V2.11.19
Price
N/A
MANV3
MANUAL G0814/X MFD-04.22-11.22 V3.06.22
Price
N/A
MANV4
MANUAL G0814 G0814X MFD-12.22+ V4.12.22
Price
