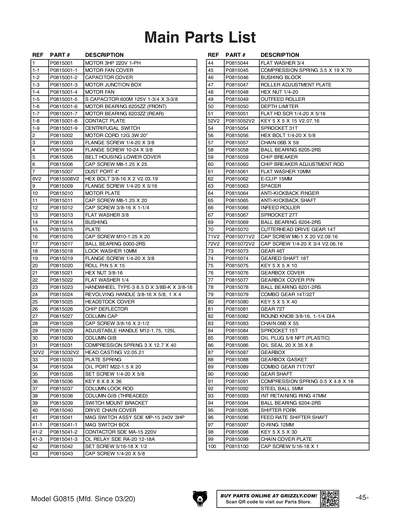

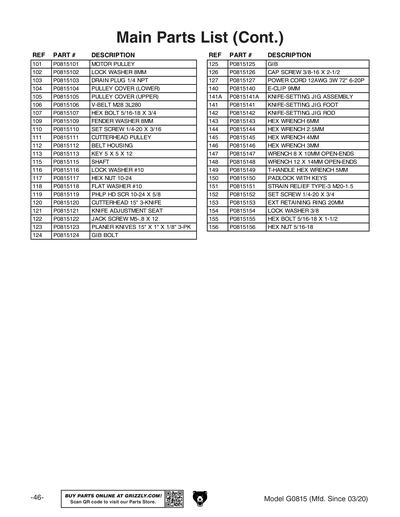

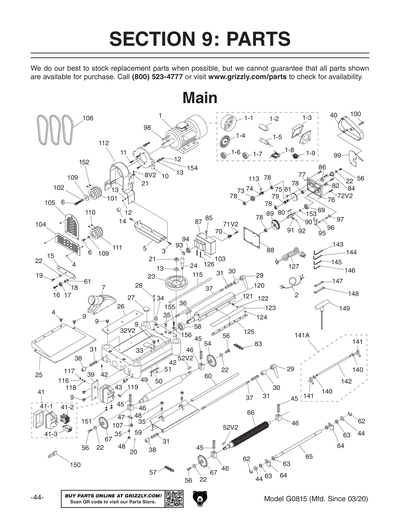

Parts for G0815 - 15" 3 HP Heavy-Duty Planer
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 | P0815001 | MOTOR 3HP 220V 1-PH | $340.50 | ||
| 1-1 | P0815001-1 | MOTOR FAN COVER | $7.50 | ||
| 1-2 | P0815001-2 | CAPACITOR COVER | $3.00 | ||
| 1-3 | P0815001-3 | MOTOR JUNCTION BOX | $3.75 | ||
| 1-4 | P0815001-4 | MOTOR FAN | $3.00 | ||
| 1-5 |
P0815001-5
Replaced By PC600C
|
S CAPACITOR 600M 125V 1-3/4 X 3-3/8
|
N/A | View Replacement | |
| 1-6 | P0815001-6 | BALL BEARING 6205ZZ | $5.25 | ||
| 1-7 | P0815001-7 | BALL BEARING 6203ZZ | $4.25 | ||
| 1-8 | P0815001-8 | CONTACT PLATE | $3.50 | ||
| 1-9 | P0815001-9 | CENTRIFUGAL SWITCH | $3.50 | ||
| 2 | P0815002 | MOTOR CORD 12G 3W 20" | $8.75 | ||
| 3 |
P0815003
Replaced By PFS16
|
FLANGE SCREW 1/4-20 X 3/8
|
N/A | View Replacement | |
| 4 | P0815004 | FLANGE SCREW #10-24 X 3/8 | $1.25 | ||
| 5 | P0815005 | BELT HOUSING LOWER COVER | $21.50 | ||
| 6 |
P0815006
Replaced By PCAP31M
|
CAP SCREW M8-1.25 X 25
|
N/A | View Replacement | |
| 7 | P0815007 | DUST PORT 4" | $14.00 | ||
| 8 |
P0815008
Replaced By PB25
|
HEX BOLT 3/8-16 X 1-3/4
|
N/A | View Replacement | |
| 8V2 |
P0815008V2
Replaced By PB58
|
HEX BOLT 3/8-16 X 2
|
N/A | View Replacement | |
| 9 | P0815009 | FLANGE SCREW 1/4-20 X 5/16 | $1.00 | ||
| 10 | P0815010 | MOTOR PLATE | $42.00 | ||
| 11 |
P0815011
Replaced By PCAP14M
|
CAP SCREW M8-1.25 X 20
|
N/A | View Replacement | |
| 12 |
P0815012
Replaced By PCAP19
|
CAP SCREW 3/8-16 X 1-1/4
|
N/A | View Replacement | |
| 13 |
P0815013
Replaced By PW02
|
FLAT WASHER 3/8
|
N/A | View Replacement | |
| 14 | P0815014 | BUSHING | $2.75 | ||
| 15 | P0815015 | PLATE | $3.50 | ||
| 16 | P0815016 | CAP SCREW M10-1.25 X 20 | $1.00 | ||
| 18 |
P0815018
Replaced By PLW06M
|
LOCK WASHER 10MM
|
N/A | View Replacement | |
| 19 |
P0815019
Replaced By PFS16
|
FLANGE SCREW 1/4-20 X 3/8
|
N/A | View Replacement | |
| 20 | P0815020 | ROLL PIN 5 X 15 | $1.00 | ||
| 21 |
P0815021
Replaced By PN08
|
HEX NUT 3/8-16
|
N/A | View Replacement | |
| 22 |
P0815022
Replaced By PW06
|
FLAT WASHER 1/4
|
N/A | View Replacement | |
| 23 | P0815023 | HANDWHEEL TYPE-3 8.5 D X 3/8B-K X 3/8-16 | $45.00 | ||
| 24 | P0815024 | REVOLVING HANDLE 3/8-16 X 5/8, 1 X 4 | $9.50 | ||
| 25 | P0815025 | HEADSTOCK COVER | $25.50 | ||
| 26 | P0815026 | CHIP DEFLECTOR | $3.50 | ||
| 27 | P0815027 | COLUMN CAP | $1.00 | ||
| 28 |
P0815028
Replaced By PCAP119
|
CAP SCREW 3/8-16 X 2-1/2
|
N/A | View Replacement | |
| 29 | P0815029 | ADJUSTABLE HANDLE M12-1.75, 125L | $9.50 | ||
| 30 | P0815030 | COLUMN GIB | $9.00 | ||
| 31 | P0815031 | COMPRESSION SPRING 3 X 12.7 X 40 | $2.50 | ||
| 32 | P0815032 | HEAD CASTING | $291.00 | ||
| 32V2 | P0815032V2 | HEAD CASTING V2.05.31 | $351.00 | ||
| 33 | P0815033 | PLATE SPRING | $4.00 | ||
| 34 | P0815034 | OIL PORT M22-1.5 X 20 | $3.25 | ||
| 35 |
P0815035
Replaced By PSS10
|
SET SCREW 1/4-20 X 5/8
|
N/A | View Replacement | |
| 36 |
P0815036
Replaced By PK129M
|
KEY 8 X 8 X 36
|
N/A | View Replacement | |
| 37 | P0815037 | COLUMN LOCK ROD | $9.50 | ||
| 38 | P0815038 | COLUMN GIB (THREADED) | $5.50 | ||
| 39 | P0815039 | SWITCH MOUNT BRACKET | $8.50 | ||
| 40 | P0815040 | DRIVE CHAIN COVER | $31.50 | ||
| 41 | P0815041 | MAG SWITCH ASSY SDE MP-15 240V 3HP | $98.50 | ||
| 41-1 | P0815041-1 | MAG SWITCH BOX | $36.00 | ||
| 41-2 | P0815041-2 | CONTACTOR SDE MA-15 220V | $51.00 | ||
| 41-3 | P0815041-3 | OL RELAY SDE RA-20 12-18A | $26.25 | ||
| 42 |
P0815042
Replaced By PSS08
|
SET SCREW 5/16-18 X 1/2
|
N/A | View Replacement | |
| 43 |
P0815043
Replaced By PCAP01
|
CAP SCREW 1/4-20 X 5/8
|
N/A | View Replacement | |
| 44 |
P0815044
Replaced By PW13
|
FLAT WASHER 3/4
|
N/A | View Replacement | |
| 45 | P0815045 | COMPRESSION SPRING 3.5 X 19 X 70 | $4.25 | ||
| 46 | P0815046 | BUSHING BLOCK | $11.00 | ||
| 47 | P0815047 | ROLLER ADJUSTMENT PLATE | $2.50 | ||
| 48 |
P0815048
Replaced By PN05
|
HEX NUT 1/4-20
|
N/A | View Replacement | |
| 49 | P0815049 | OUTFEED ROLLER | $240.00 | ||
| 50 | P0815050 | DEPTH LIMITER | $4.75 | ||
| 51 |
P0815051
Replaced By PFH09
|
FLAT HD SCR 1/4-20 X 5/16
|
N/A | View Replacement | |
| 52 |
P0815052
Replaced By PK34M
|
KEY 5 X 5 X 20
|
N/A | View Replacement | |
| 52V2 |
P0815052V2
Replaced By PK20M
|
KEY 5 X 5 X 15
|
N/A | View Replacement | |
| 54 | P0815054 | SPROCKET 27T | $10.00 | ||
| 56 |
P0815056
Replaced By PB02
|
HEX BOLT 1/4-20 X 5/8
|
N/A | View Replacement | |
| 57 | P0815057 | CHAIN 06B X 59 | $13.00 | ||
| 58 |
P0815058
Replaced By P6205-2RS
|
BALL BEARING 6205-2RS
|
N/A | View Replacement | |
| 59 | P0815059 | CHIP BREAKER | $57.00 | ||
| 60 | P0815060 | CHIP BREAKER ADJUSTMENT ROD | $14.25 | ||
| 61 |
P0815061
Replaced By PW04M
|
FLAT WASHER 10MM
|
N/A | View Replacement | |
| 62 |
P0815062
Replaced By PEC05M
|
E-CLIP 15MM
|
N/A | View Replacement | |
| 63 | P0815063 | SPACER | $1.25 | ||
| 64 | P0815064 | ANTI-KICKBACK FINGER | $1.50 | ||
| 65 | P0815065 | ANTI-KICKBACK SHAFT | $11.25 | ||
| 66 | P0815066 | INFEED ROLLER | $110.50 | ||
| 67 | P0815067 | SPROCKET 27T | $13.75 | ||
| 69 |
P0815069
Replaced By P6204-2RS
|
BALL BEARING 6204-2RS
|
N/A | View Replacement | |
| 70 | P0815070 | CUTTERHEAD DRIVE GEAR 14T | $20.25 | ||
| 71 |
P0815071
Replaced By PCAP06M
|
CAP SCREW M6-1 X 25
|
N/A | View Replacement | |
| 71V2 |
P0815071V2
Replaced By PCAP02M
|
CAP SCREW M6-1 X 20
|
N/A | View Replacement | |
| 72 |
P0815072
Replaced By PCAP32
|
CAP SCREW 1/4-20 X 1-1/4
|
N/A | View Replacement | |
| 72V2 |
P0815072V2
Replaced By PCAP05
|
CAP SCREW 1/4-20 X 3/4
|
N/A | View Replacement | |
| 73 | P0815073 | GEAR 46T | $24.00 | ||
| 74 | P0815074 | GEARED SHAFT 18T | $15.00 | ||
| 75 |
P0815075
Replaced By PK06M
|
KEY 5 X 5 X 10
|
N/A | View Replacement | |
| 76 | P0815076 | GEARBOX COVER | $32.25 | ||
| 77 | P0815077 | GEARBOX COVER PIN | $1.00 | ||
| 78 |
P0815078
Replaced By P6201-2RS
|
BALL BEARING 6201-2RS
|
N/A | View Replacement | |
| 79 | P0815079 | COMBO GEAR 14T/22T | $17.25 | ||
| 80 |
P0815080
Replaced By PK02M
|
KEY 5 X 5 X 40
|
N/A | View Replacement | |
| 81 | P0815081 | GEAR 72T | $18.00 | ||
| 82 | P0815082 | ROUND KNOB 3/8-16, 1-1/4 DIA | $3.25 | ||
| 83 | P0815083 | CHAIN 06B X 55 | $15.50 | ||
| 84 | P0815084 | SPROCKET 15T | $10.00 | ||
| 85 | P0815085 | OIL PLUG 5/8 NPT (PLASTIC) | $1.00 | ||
| 86 | P0815086 | OIL SEAL 20 X 35 X 8 | $2.50 | ||
| 87 | P0815087 | GEARBOX | $84.00 | ||
| 87A | P0815087A | COMPLETE GEARBOX ASSEMBLY | $405.00 | ||
| 88 | P0815088 | GEARBOX GASKET | $6.75 | ||
| 89 | P0815089 | COMBO GEAR 71T/79T | $69.00 | ||
| 90 | P0815090 | GEAR SHAFT | $13.25 | ||
| 91 | P0815091 | COMPRESSION SPRING 0.5 X 4.8 X 18 | $1.00 | ||
| 92 |
P0815092
Replaced By PSTB004M
|
STEEL BALL 5MM
|
N/A | View Replacement | |
| 93 |
P0815093
Replaced By PR25M
|
INT RETAINING RING 47MM
|
N/A | View Replacement | |
| 94 |
P0815094
Replaced By P6204-2RS
|
BALL BEARING 6204-2RS
|
N/A | View Replacement | |
| 95 | P0815095 | SHIFTER FORK | $3.50 | ||
| 96 | P0815096 | FEED RATE SHIFTER SHAFT | $1.75 | ||
| 97 | P0815097 | O-RING 12MM | $1.00 | ||
| 98 |
P0815098
Replaced By PK12M
|
KEY 5 X 5 X 30
|
N/A | View Replacement | |
| 99 | P0815099 | ***USE P0815040*** | $8.00 | ||
| 100 |
P0815100
Replaced By PCAP03
|
CAP SCREW 5/16-18 X 1
|
N/A | View Replacement | |
| 101 | P0815101 | MOTOR PULLEY | $25.25 | ||
| 102 |
P0815102
Replaced By PLW04M
|
LOCK WASHER 8MM
|
N/A | View Replacement | |
| 103 | P0815103 | DRAIN PLUG 1/4 NPT | $1.00 | ||
| 104 | P0815104 | PULLEY COVER (LOWER) | $7.25 | ||
| 105 | P0815105 | PULLEY COVER (UPPER) | $10.25 | ||
| 106 |
P0815106
Replaced By PVM28
|
V-BELT M28 3L280
|
N/A | View Replacement | |
| 107 |
P0815107
Replaced By PB07
|
HEX BOLT 5/16-18 X 3/4
|
N/A | View Replacement | |
| 108 |
P0815108
Replaced By PW03
|
FLAT WASHER #10
|
N/A | View Replacement | |
| 109 |
P0815109
Replaced By PWF08M
|
FENDER WASHER 8MM
|
N/A | View Replacement | |
| 110 |
P0815110
Replaced By PSS102
|
SET SCREW 1/4-20 X 3/16
|
N/A | View Replacement | |
| 111 | P0815111 | CUTTERHEAD PULLEY | $20.00 | ||
| 112 | P0815112 | BELT HOUSING | $105.00 | ||
| 113 |
P0815113
Replaced By PK10M
|
KEY 5 X 5 X 12
|
N/A | View Replacement | |
| 115 | P0815115 | SHAFT | $5.25 | ||
| 116 |
P0815116
Replaced By PLW03
|
LOCK WASHER #10
|
N/A | View Replacement | |
| 117 |
P0815117
Replaced By PN07
|
HEX NUT 10-24
|
N/A | View Replacement | |
| 118 |
P0815118
Replaced By PW03
|
FLAT WASHER #10
|
N/A | View Replacement | |
| 119 |
P0815119
Replaced By PS22
|
PHLP HD SCR 10-24 X 5/8
|
N/A | View Replacement | |
| 120 | P0815120 | CUTTERHEAD 15" 3-KNIFE | $240.00 | ||
| 121 | P0815121 | KNIFE ADJUSTMENT SEAT | $1.25 | ||
| 122 | P0815122 | JACK SCREW M5-.8 X 12 | $2.50 | ||
| 123 |
P0815123
Replaced By G6701
|
15" x 1" x 1/8" HSS Planer Knives, Set of 3
|
N/A | View Replacement | |
| 124 | P0815124 | GIB BOLT | $1.00 | ||
| 125 | P0815125 | GIB | $51.50 | ||
| 126 |
P0815126
Replaced By PCAP119
|
CAP SCREW 3/8-16 X 2-1/2
|
N/A | View Replacement | |
| 127 | P0815127 | POWER CORD 12AWG 3W 72" 6-20P | $22.50 | ||
| 140 |
P0815140
Replaced By PEC10M
|
E-CLIP 9MM
|
N/A | View Replacement | |
| 141 | P0815141 | KNIFE-SETTING JIG FOOT | $1.25 | ||
| 141A | P0815141A | KNIFE-SETTING JIG ASSEMBLY | $11.00 | ||
| 142 | P0815142 | KNIFE-SETTING JIG ROD | $2.50 | ||
| 143 |
P0815143
Replaced By PAW06M
|
HEX WRENCH 6MM
|
N/A | View Replacement | |
| 145 |
P0815145
Replaced By PAW04M
|
HEX WRENCH 4MM
|
N/A | View Replacement | |
| 146 |
P0815146
Replaced By PAW03M
|
HEX WRENCH 3MM
|
N/A | View Replacement | |
| 147 |
P0815147
Replaced By PWR810
|
WRENCH 8 X 10MM OPEN-ENDS
|
N/A | View Replacement | |
| 148 |
P0815148
Replaced By PWR1214
|
WRENCH 12 X 14MM OPEN-ENDS
|
N/A | View Replacement | |
| 149 | P0815149 | T-HANDLE HEX WRENCH 5MM | $8.00 | ||
| 150 | P0815150 | PADLOCK WITH KEYS | $3.25 | ||
| 151 | P0815151 | STRAIN RELIEF M20-1.5 TYPE-3 | $3.25 | ||
| 152 |
P0815152
Replaced By PSS06
|
SET SCREW 1/4-20 X 3/4
|
N/A | View Replacement | |
| 153 |
P0815153
Replaced By PR09M
|
EXT RETAINING RING 20MM
|
N/A | View Replacement | |
| 154 |
P0815154
Replaced By PLW04
|
LOCK WASHER 3/8
|
N/A | View Replacement | |
| 155 |
P0815155
Replaced By PB11
|
HEX BOLT 5/16-18 X 1-1/2
|
N/A | View Replacement | |
| 156 |
P0815156
Replaced By PN02
|
HEX NUT 5/16-18
|

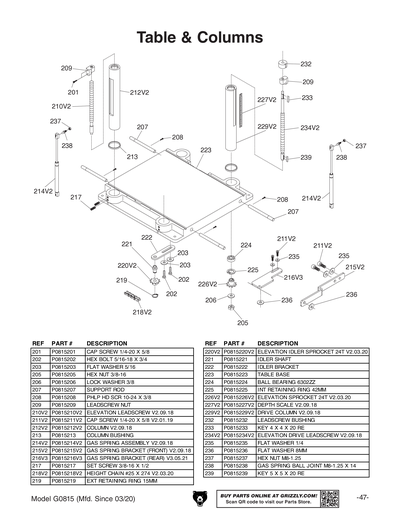

N/A | View Replacement | |
| 201 |
P0815201
Replaced By PCAP01
|
CAP SCREW 1/4-20 X 5/8
|
N/A | View Replacement | |
| 202 |
P0815202
Replaced By PB07
|
HEX BOLT 5/16-18 X 3/4
|
N/A | View Replacement | |
| 203 |
P0815203
Replaced By PW07
|
FLAT WASHER 5/16
|
N/A | View Replacement | |
| 205 |
P0815205
Replaced By PN08
|
HEX NUT 3/8-16
|
N/A | View Replacement | |
| 206 |
P0815206
Replaced By PLW04
|
LOCK WASHER 3/8
|
N/A | View Replacement | |
| 207 | P0815207 | SUPPORT ROD | $6.25 | ||
| 208 |
P0815208
Replaced By PS06
|
PHLP HD SCR 10-24 X 3/8
|
N/A | View Replacement | |
| 209 | P0815209 | LEADSCREW NUT | $9.75 | ||
| 210 | P0815210 | ELEVATION LEADSCREW V1 | $11.25 | ||
| 210V2 | P0815210V2 | ELEVATION LEADSCREW V2.09.18 | $16.50 | ||
| 211 |
P0815211
Replaced By PCAP04
|
CAP SCREW 1/4-20 X 1/2
|
N/A | View Replacement | |
| 211V2 |
P0815211V2
Replaced By PCAP01
|
CAP SCREW 1/4-20 X 5/8
|
N/A | View Replacement | |
| 212 | P0815212 | COLUMN V1 | $43.00 | ||
| 212V2 | P0815212V2 | COLUMN V2.09.18 | $54.00 | ||
| 213 | P0815213 | COLUMN BUSHING | $1.00 | ||
| 214 | P0815214 | GAS SPRING ASSEMBLY V1 | $53.75 | ||
| 214V2 | P0815214V2 | GAS SPRING ASSEMBLY V2.09.18 | $53.75 | ||
| 215 | P0815215 | GAS SPRING BRACKET (FRONT) V1 | $8.00 | ||
| 215V2 | P0815215V2 | GAS SPRING BRACKET (FRONT) V2.09.18 | $11.00 | ||
| 216 | P0815216 | GAS SPRING BRACKET (REAR) V1 | $5.50 | ||
| 216V2 | P0815216V2 | GAS SPRING BRACKET (REAR) V2.09.18 | $8.25 | ||
| 217 |
P0815217
Replaced By PSS09
|
SET SCREW 3/8-16 X 1/2
|
N/A | View Replacement | |
| 218 | P0815218 | HEIGHT CHAIN #410 X 134 V1 | $11.50 | ||
| 219 |
P0815219
Replaced By PR05M
|
EXT RETAINING RING 15MM
|
N/A | View Replacement | |
| 220 | P0815220 | ELEVATION IDLER SPROCKET 10T V1 | $3.75 | ||
| 221 | P0815221 | ***USE P0815222*** | $9.50 | ||
| 222 | P0815222 | IDLER BRACKET AND SHAFT | $17.25 | ||
| 223 | P0815223 | TABLE BASE | $294.00 | ||
| 224 |
P0815224
Replaced By P6302ZZ
|
BALL BEARING 6302ZZ
|
N/A | View Replacement | |
| 225 |
P0815225
Replaced By PR24M
|
INT RETAINING RING 42MM
|
N/A | View Replacement | |
| 226 | P0815226 | ELEVATION SPROCKET 10T V1 | $4.00 | ||
| 227 | P0815227 | DEPTH SCALE V1 | $1.25 | ||
| 227V2 | P0815227V2 | DEPTH SCALE V2.09.18 | $3.50 | ||
| 229 | P0815229 | DRIVE COLUMN V1 | $54.00 | ||
| 229V2 | P0815229V2 | DRIVE COLUMN V2.09.18 | $59.75 | ||
| 232 | P0815232 | LEADSCREW BUSHING | $5.00 | ||
| 233 |
P0815233
Replaced By PK48M
|
KEY 4 X 4 X 20
|
N/A | View Replacement | |
| 234 | P0815234 | ELEVATION DRIVE LEADSCREW V1 | $16.50 | ||
| 234V2 | P0815234V2 | ELEVATION DRIVE LEADSCREW V2.09.18 | $24.50 | ||
| 235 |
P0815235
Replaced By PW06
|
FLAT WASHER 1/4
|
N/A | View Replacement | |
| 236 |
P0815236
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| 237 |
P0815237
Replaced By PN03M
|
HEX NUT M8-1.25
|
N/A | View Replacement | |
| 238 | P0815238 | GAS SPRING BALL JOINT M8-1.25 X 14 | $2.50 | ||
| 239 |
P0815239
Replaced By PK34M
|
KEY 5 X 5 X 20
|
N/A | View Replacement | |

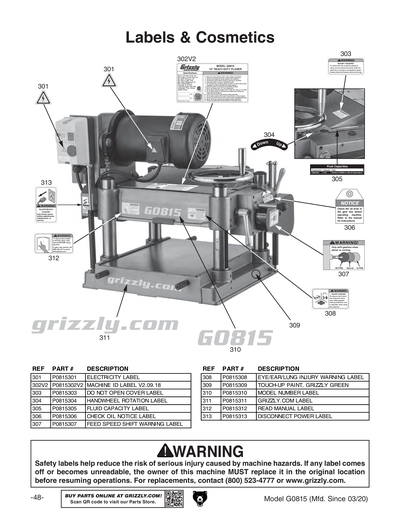

| 301 |
P0815301
Replaced By PLABEL-14A
|
ELECTRICITY 0.7W X 0.6H
|
N/A | View Replacement | |
| 302 | P0815302 | MACHINE ID LABEL V1 | $9.50 | ||
| 302V2 | P0815302V2 | MACHINE ID LABEL V2.09.18 | $9.50 | ||
| 303 | P0815303 | DO NOT OPEN COVER LABEL | $2.50 | ||
| 304 | P0815304 | HANDWHEEL ROTATION LABEL | $1.75 | ||
| 305 | P0815305 | FLUID CAPACITY LABEL | $2.50 | ||
| 306 | P0815306 | CHECK OIL NOTICE LABEL | $1.00 | ||
| 307 | P0815307 | FEED SPEED SHIFT WARNING LABEL | $3.00 | ||
| 308 |
P0815308
Replaced By PLABEL-90C
|
EYE/EAR/LUNG 2.8W X 1.5H
|
N/A | View Replacement | |
| 309 |
P0815309
Replaced By PPAINT-1
|
N/S GRIZZLY GREEN G1023S
|
N/A | View Replacement | |
| 310 | P0815310 | MODEL NUMBER LABEL | $1.50 | ||
| 311 | P0815311 | GRIZZLY.COM LABEL | $1.75 | ||
| 312 |
P0815312
Replaced By PLABEL-12D
|
READ MANUAL 2.8W X 1.5H
|
N/A | View Replacement | |
| 313 |
P0815313
Replaced By PLABEL-62C
|
DISCONNECT 110V 2.8W X 1.5H
|
N/A | View Replacement | |
| MAN | P0815MAN | MANUAL G0815 MFD-03.16-08.18 V1.02.16 | $9.50 | ||
| PFS16 | PFS16 | FLANGE SCREW 1/4-20 X 3/8 | $1.00 |
