Parts for G0816 - Heavy-Duty Bead Roller

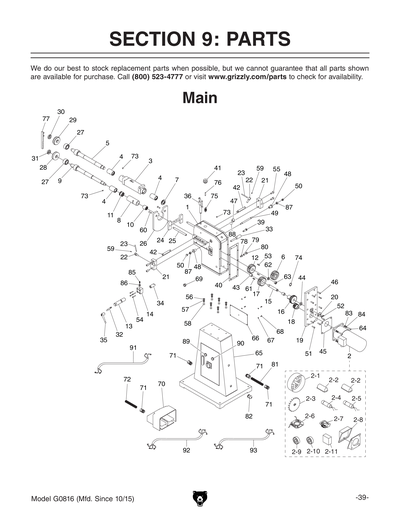

Part Diagram for G0816
Part Diagram for G0816
Part Diagram for G0816
Part Diagram for G0816
Part Diagram for G0816
Part Diagram for G0816
Part Diagram for G0816
Part Diagram for G0816

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

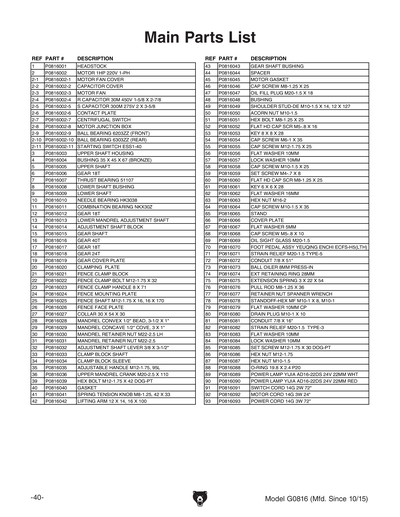

Ref #
Part #
Description
1
HEADSTOCK
Price
$1,595.65
2
MOTOR 1HP 220V 1-PH
Price
$675.65
2-1
MOTOR FAN COVER
Price
$21.60
2-10
BALL BEARING 6303ZZ
Price
N/A
2-11
STARTING SWITCH ESS1-40
Price
$21.60
2-2
CAPACITOR COVER
Price
$17.25
2-3
MOTOR FAN
Price
$21.60
2-4
R CAPACITOR 30M 450V 1-5/8 X 2-7/8
Price
$30.20
2-5
S CAPACITOR 300M 275V 2 X 3-5/8
Price
$30.20
2-6
CONTACT PLATE
Price
$38.85
2-7
CENTRIFUGAL SWITCH
Price
$21.60
2-8
MOTOR JUNCTION BOX
Price
$17.25
2-9
BALL BEARING 6203ZZ
Price
N/A
3
UPPER SHAFT HOUSING
Price
$297.60
4
BUSHING 35 X 45 X 67 (BRONZE)
Price
$32.40
5
UPPER SHAFT
Price
$189.75
6
GEAR 18T
Price
$73.35
7
THRUST BEARING 51107
Price
N/A
8
LOWER SHAFT BUSHING
Price
$116.45
9
LOWER SHAFT
Price
$267.40
10
NEEDLE BEARING HK3038
Price
$51.75
11
COMBINATION BEARING NKX30Z
Price
$301.90
12
GEAT 18T
Price
$58.25
13
LOWER MANDREL ADJUSTMENT SHAFT
Price
$34.50
14
ADJUSTMENT SHAFT BLOCK
Price
$47.45
15
GEAR SHAFT
Price
$15.15
16
GEAR 40T
Price
$94.90
17
GEAR 18T
Price
$58.25
18
GEAR 24T
Price
$64.70
19
GEAR COVER PLATE
Price
$202.70
20
CLAMPING PLATE
Price
$3.65
21
FENCE CLAMP BLOCK
Price
$38.85
22
FENCE CLAMP BOLT M12-1.75 X 32
Price
$5.35
23
FENCE CLAMP HANDLE 8 X 71
Price
$2.90
24
FENCE MOUNTING PLATE
Price
$87.00
25
FENCE SHAFT M12-1.75 X 16, 16 X 170
Price
$15.15
26
FENCE FACE PLATE
Price
$345.00
27
COLLAR 30 X 54 X 30
Price
$19.10
28
MANDREL CONVEX 1/2" BEAD, 3-1/2 X 1"
Price
$646.20
29
MANDREL CONCAVE 1/2" COVE, 3 X 1"
Price
$646.20
30
MANDREL RETAINER NUT M22-2.5 LH
Price
$9.30
31
MANDREL RETAINER NUT M22-2.5
Price
$9.30
32
ADJUSTMENT SHAFT LEVER 3/8 X 3-1/2"
Price
$3.65
33
CLAMP BLOCK SHAFT
Price
$30.20
34
CLAMP BLOCK SLEEVE
Price
$17.25
35
ADJUSTMENT HANDLE M12-1.75, 95L
Price
$14.30
36
UPPER MANDREL CRANK M20-2.5 X 110
Price
$56.10
39
HEX BOLT M12-1.75 X 42 DOG-PT
Price
$2.90
40
GASKET
Price
$13.85
41
SPRING TENSION KNOB M8-1.25, 42 X 33
Price
$6.50
42
LIFTING ARM 12 X 14, 16 X 100
Price
$6.15
43
GEAR SHAFT BUSHING
Price
$7.95
44
SPACER
Price
$3.65
45
MOTOR GASKET
Price
$8.95
46
CAP SCREW M8-1.25 X 25
Price
N/A
47
OIL FILL PLUG M20-1.5 X 18
Price
$5.45
48
BUSHING
Price
$4.35
49
SHOULDER STUD-DE M10-1.5 X 14, 12 X 127
Price
$15.15
50
ACORN NUT M10-1.5
Price
N/A
51
HEX BOLT M8-1.25 X 25
Price
N/A
52
FLAT HD CAP SCR M5-.8 X 16
Price
N/A
53
KEY 8 X 8 X 28
Price
N/A
54
CAP SCREW M6-1 X 35
Price
N/A
55
CAP SCREW M12-1.75 X 25
Price
N/A
56
FLAT WASHER 10MM
Price
N/A
57
LOCK WASHER 10MM
Price
N/A
58
CAP SCREW M10-1.5 X 25
Price
N/A
59
SET SCREW M4-.7 X 8
Price
N/A
60
FLAT HD CAP SCR M8-1.25 X 25
Price
N/A
61
KEY 6 X 6 X 28
Price
N/A
62
FLAT WASHER 16MM
Price
N/A
63
HEX NUT M16-2
Price
N/A
64
CAP SCREW M10-1.5 X 35
Price
N/A
65
STAND
Price
$388.15
66
COVER PLATE
Price
$7.20
67
FLAT WASHER 5MM
Price
N/A
68
CAP SCREW M5-.8 X 10
Price
N/A
69
OIL SIGHT GLASS M20-1.5
Price
$5.85
70
FOOT PEDAL ASSY YEUQING ENCHI ECFS-H5(LT
Price
$133.70
71
STRAIN RELIEF M20-1.5 TYPE-5
Price
$4.35
72
CONDUIT 7/8 X 51"
Price
$12.95
73
BALL OILER 8M PRESS-IN
Price
$1.90
74
EXT RETAINING RING 28MM
Price
N/A
75
EXTENSION SPRING 3 X 22 X 54
Price
$3.25
76
PULL ROD M8-1.25 X 36
Price
$2.90
77
RETAINER NUT SPANNER WRENCH
Price
$27.35
78
STANDOFF-HEX MF M10-1 X 8, M10-1
Price
$4.35
79
FLAT WASHER 10MM CP
Price
$1.90
80
DRAIN PLUG M10-1 X 10
Price
$2.90
81
CONDUIT 7/8 X 16"
Price
$5.45
82
STRAIN RELIEF M20-1.5 TYPE-3
Price
$1.90
83
FLAT WASHER 10MM
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
SET SCREW M12-1.75 X 30 DOG-PT
Price
$1.90
86
HEX NUT M12-1.75
Price
N/A
87
HEX NUT M10-1.5
Price
N/A
88
O-RING 19.8 X 2.4 P20
Price
N/A
89
POWER LAMP YIJIA AD16-22DS 24V 22MM WHT
Price
$8.65
90
POWER LAMP YIJIA AD16-22DS 24V 22MM RED
Price
$8.65
91
SWITCH CORD 14G 2W 72"
Price
$17.25
92
MOTOR CORD 14G 3W 24"
Price
$8.65
93
POWER CORD 14G 3W 72"
Price
$17.25

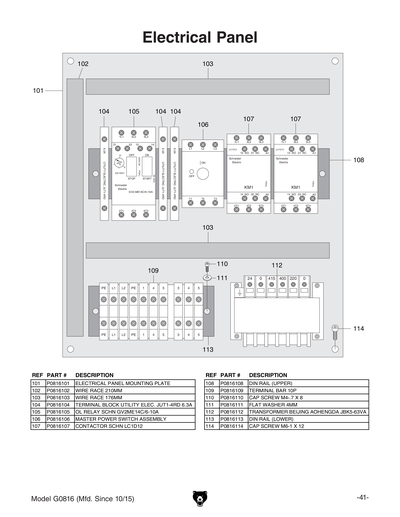

101
ELECTRICAL PANEL MOUNTING PLATE
Price
$43.15
102
WIRE RACE 210MM
Price
$2.90
103
WIRE RACE 176MM
Price
$2.90
104
TERMINAL BLOCK UTILITY ELEC. JUT1-4RD 6.
Price
$12.95
105
OL RELAY SCHN GV2ME14C/6-10A
Price
$155.25
106
MASTER POWER SWITCH ASSEMBLY
Price
$82.00
107
CONTACTOR SCHN LC1D12
Price
$53.95
108
DIN RAIL (UPPER)
Price
$2.20
109
TERMINAL BAR 10P
Price
$25.90
110
CAP SCREW M4-.7 X 8
Price
N/A
111
FLAT WASHER 4MM
Price
N/A
112
TRANSFORMER BEIJING AOHENGDA JBK5-63VA
Price
$64.70
113
DIN RAIL (LOWER)
Price
$2.20
114
CAP SCREW M6-1 X 12
Price
N/A

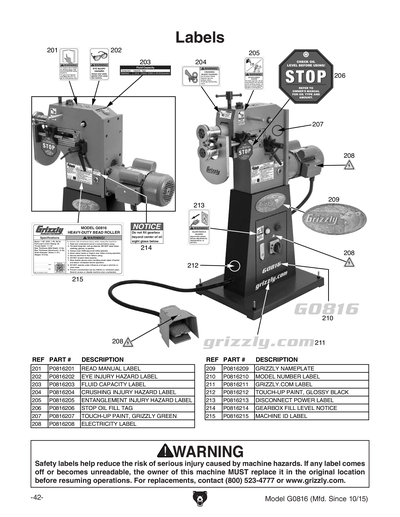

201
READ MANUAL 1.5W X 2.5H
Price
N/A
202
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
203
FLUID CAPACITY LABEL
Price
$3.75
204
SLIP ROLL WARNING 2.8W X 1.5H
Price
N/A
205
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
206
STOP OIL FILL TAG 4W X 4H
Price
N/A
207
N/S GRIZZLY GREEN G1023S
Price
N/A
208
ELECTRICITY 0.7W X 0.6H
Price
N/A
209
Nameplate - Small
Price
N/A
210
MODEL NUMBER LABEL
Price
$7.50
211
GRIZZLY.COM LABEL 10",WHITE
Price
N/A
212
GLOSSY BLACK
Price
N/A
213
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
214
GEARBOX FILL LEVEL NOTICE
Price
$4.35
215
MACHINE ID LABEL
Price
$16.40
MAN
MANUAL G0816 MFD-10.15 V1.07.16
Price
$14.65
