Parts for G0817 - 14" Super HD 2 HP Resaw Bandsaw w/ Foot Brake

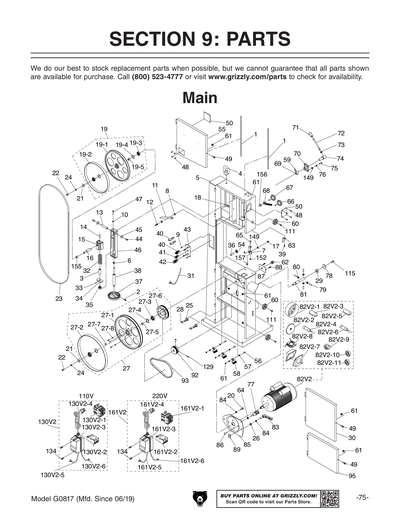

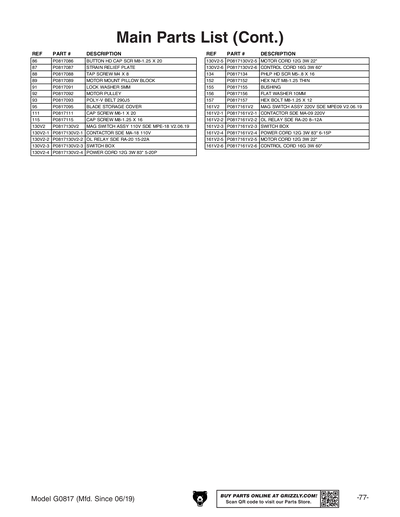

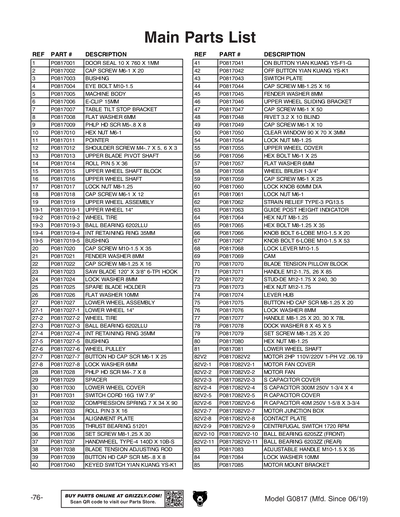

Part Diagram for G0817

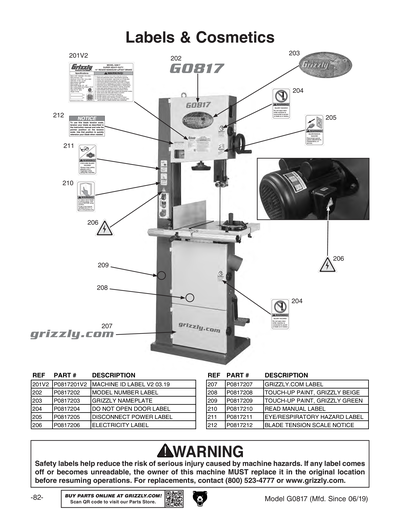

Part Diagram for G0817

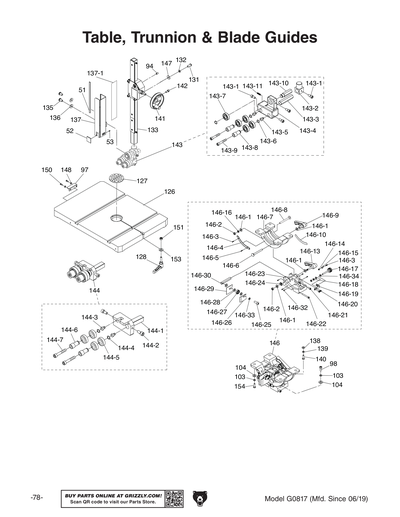

Part Diagram for G0817

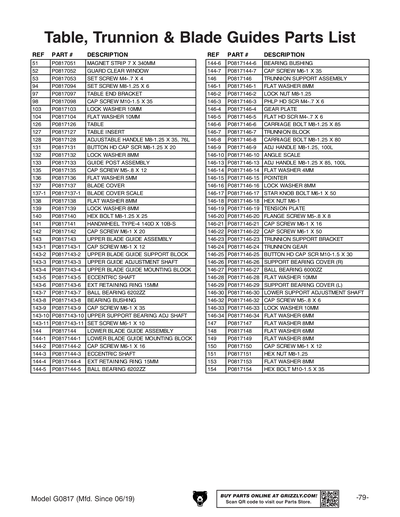

Part Diagram for G0817

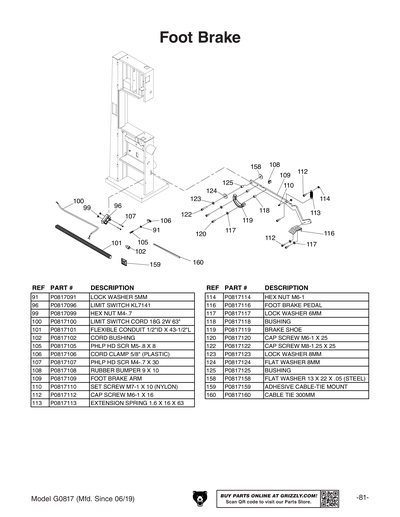

Part Diagram for G0817
Part Diagram for G0817
Part Diagram for G0817

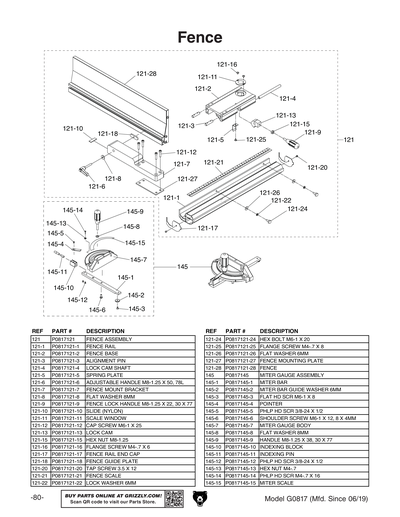

Part Diagram for G0817
Part Diagram for G0817
Part Diagram for G0817
Part Diagram for G0817
Part Diagram for G0817
Part Diagram for G0817
Part Diagram for G0817
Part Diagram for G0817
Part Diagram for G0817

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
DOOR SEAL 10 X 760 X 1MM
Price
$7.25
2
CAP SCREW M6-1 X 20
Price
N/A
3
BUSHING
Price
$6.40
4
EYE BOLT M10-1.5
Price
$12.75
5
MACHINE BODY
Price
$886.95
6
E-CLIP 15MM
Price
N/A
7
TABLE TILT STOP BRACKET
Price
$21.20
8
FLAT WASHER 6MM
Price
N/A
9
PHLP HD SCR M5-.8 X 8
Price
N/A
10
HEX NUT M6-1
Price
N/A
11
POINTER
Price
$13.95
12
SHOULDER SCREW M4-.7 X 5, 6 X 3
Price
$1.49
13
UPPER BLADE PIVOT SHAFT
Price
$10.00
14
ROLL PIN 5 X 36
Price
N/A
15
UPPER WHEEL SHAFT BLOCK
Price
$40.35
16
UPPER WHEEL SHAFT
Price
$23.05
17
LOCK NUT M8-1.25
Price
N/A
18
CAP SCREW M6-1 X 12
Price
N/A
19
UPPER WHEEL ASSEMBLY
Price
$121.70
19-1
UPPER WHEEL ASSEMBLY
Price
N/A
19-2
WHEEL TIRE
Price
N/A
19-3
BALL BEARING 6202ZZ
Price
N/A
19-4
INT RETAINING RING 35MM
Price
N/A
19-5
BUSHING
Price
$11.50
20
CAP SCREW M10-1.5 X 35
Price
N/A
21
FENDER WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 120" X 3/8" 6-TPI HOOK
Price
$50.15
24
LOCK WASHER 8MM
Price
N/A
25
SPARE BLADE HOLDER
Price
$3.40
26
FLAT WASHER 10MM
Price
N/A
27
LOWER WHEEL ASSEMBLY
Price
$194.75
27-1
LOWER WHEEL 14"
Price
$84.55
27-2
WHEEL TIRE
Price
N/A
27-3
BALL BEARING 6202ZZ
Price
N/A
27-4
INT RETAINING RING 35MM
Price
N/A
27-5
BUSHING
Price
$12.10
27-6
WHEEL PULLEY
Price
$58.95
27-7
BUTTON HD CAP SCR M6-1 X 25
Price
N/A
27-8
LOCK WASHER 6MM
Price
N/A
28
PHLP HD SCR M4-.7 X 8
Price
N/A
29
SPACER
Price
$9.80
30
LOWER WHEEL COVER
Price
$86.45
30A
LOWER WHEEL COVER W/LABELS
Price
$65.65
31
SWITCH CORD 16G 1W 20"
Price
$4.30
32
COMPRESSION SPRING 7 X 34 X 90
Price
$12.10
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
$3.65
35
THRUST BEARING 51201
Price
N/A
36
SET SCREW M8-1.25 X 30
Price
N/A
37
HANDWHEEL TYPE-4 140D X 10B-S
Price
N/A
38
BLADE TENSION ADJUSTING ROD
Price
$35.05
39
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
40
KEYED POWER SWITCH
Price
N/A
41
ON BUTTON YK 22-1A1B
Price
N/A
42
E-STOP BUTTON 250V 10A
Price
N/A
43
SWITCH PLATE
Price
$10.70
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
$42.00
47
CAP SCREW M6-1 X 50
Price
N/A
48
RIVET 3.2 X 10 BLIND
Price
$1.49
49
CAP SCREW M6-1 X 10
Price
N/A
50
CLEAR WINDOW 90 X 70 X 3MM
Price
$3.75
51
MAGNET STRIP 7 X 340MM
Price
$11.85
52
GUARD CLEAR WINDOW
Price
$12.75
53
SET SCREW M4-.7 X 4
Price
N/A
54
LOCK NUT M8-1.25
Price
N/A
55
UPPER WHEEL COVER W/LABELS & WINDOW
Price
$126.70
56
HEX BOLT M6-1 X 25
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
WHEEL BRUSH 1-3/4"
Price
$5.20
59
CAP SCREW M6-1 X 25
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-3 PG13.5
Price
$5.80
63
GUIDE POST HEIGHT INDICATOR
Price
$8.50
64
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 35
Price
N/A
66
KNOB BOLT 6-LOBE M10-1.5 X 20
Price
$3.65
67
KNOB BOLT 6-LOBE M10-1.5 X 53
Price
$4.30
68
LOCK LEVER M10-1.5
Price
$3.40
69
CAM
Price
$3.95
70
BLADE TENSION PILLOW BLOCK
Price
$23.30
71
HANDLE M12-1.75, 26 X 85
Price
$3.65
72
STUD-DE M12-1.75 X 240, 30
Price
$9.10
73
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
$23.30
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
77
HANDLE M8-1.25 X 20, 30 X 78L
Price
$3.95
78
DOCK WASHER 8 X 45 X 5
Price
$8.50
79
SET SCREW M8-1.25 X 20
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
$42.00
82
MOTOR 2HP 110V/220V 1-PH V2.06.19
Price
N/A
82-1
MOTOR FAN COVER
Price
$53.15
82-10
BALL BEARING 6205ZZ
Price
N/A
82-11
BALL BEARING 6203ZZ
Price
N/A
82-2
MOTOR FAN
Price
$12.75
82-3
S CAPACITOR COVER
Price
$14.85
82-4
S CAPACITOR 200M 250V 1-3/4 X 4
Price
$23.30
82-5
R CAPACITOR COVER
Price
$14.85
82-6
R CAPACITOR 50M 250V 1-5/8 X 3-3/4
Price
$31.40
82-7
MOTOR JUNCTION BOX
Price
$14.85
82-9
CENT SWITCH 1720 RPM W/CONTACT PLATE
Price
$33.50
82V2
MOTOR 2HP 110V/220V 1-PH V2.06.19
Price
$775.65
82V2-1
MOTOR FAN COVER
Price
$44.40
82V2-10
BALL BEARING 6205ZZ
Price
N/A
82V2-11
BALL BEARING 6203ZZ
Price
N/A
82V2-2
MOTOR FAN
Price
$13.35
82V2-3
S CAPACITOR COVER
Price
$14.85
82V2-4
S CAPACITOR 300M 250V 1-3/4 X 4
Price
$24.30
82V2-5
R CAPACITOR COVER
Price
$14.85
82V2-6
R CAPACITOR 40M 250V 1-5/8 X 3-3/4
Price
$32.75
82V2-7
MOTOR JUNCTION BOX
Price
$14.85
82V2-8
CONTACT PLATE
Price
$16.95
82V2-9
CENTRIFUGAL SWITCH 1720 RPM
Price
$16.95
83
ADJUSTABLE HANDLE M10-1.5 X 35
Price
$13.60
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
$42.00
86
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE
Price
$14.25
88
TAP SCREW M4 X 8
Price
N/A
89
MOTOR MOUNT PILLOW BLOCK
Price
$3.95
91
LOCK WASHER 5MM
Price
N/A
92
MOTOR PULLEY
Price
$48.30
93
POLY-V BELT 290J5
Price
$43.30
94
SET SCREW M8-1.25 X 6
Price
N/A
95
BLADE STORAGE COVER
Price
$53.45
96
LIMIT SWITCH KL7141
Price
$28.75
97
TABLE END BRACKET
Price
$17.00
98
CAP SCREW M10-1.5 X 35
Price
N/A
99
HEX NUT M4-.7
Price
N/A
100
LIMIT SWITCH CORD 18G 2W 63"
Price
$16.95
101
FLEXIBLE CONDUIT 1/2"ID X 43-1/2"L
Price
$12.40
102
CORD BUSHING
Price
$1.60
103
LOCK WASHER 10MM
Price
N/A
104
FLAT WASHER 10MM
Price
N/A
105
PHLP HD SCR M5-.8 X 8
Price
N/A
106
CORD CLAMP 5/8" (PLASTIC)
Price
$1.60
107
PHLP HD SCR M4-.7 X 30
Price
N/A
108
RUBBER BUMPER 9 X 10
Price
$1.60
109
FOOT BRAKE ARM
Price
$92.10
110
SET SCREW M7-1 X 10 (NYLON)
Price
$1.60
111
CAP SCREW M6-1 X 20
Price
N/A
112
CAP SCREW M6-1 X 16
Price
N/A
113
EXTENSION SPRING 1.6 X 16 X 63
Price
$3.40
114
HEX NUT M6-1
Price
N/A
115
CAP SCREW M8-1.25 X 16
Price
N/A
116
FOOT BRAKE PEDAL
Price
$25.10
117
LOCK WASHER 6MM
Price
N/A
118
BUSHING
Price
$3.65
119
BRAKE SHOE
Price
$61.90
120
CAP SCREW M6-1 X 25
Price
N/A
121
FENCE ASSY
Price
N/A
121-1
FENCE RAIL
Price
$59.60
121-10
SLIDE (NYLON)
Price
$2.05
121-11
SCALE WINDOW
Price
$2.75
121-12
CAP SCREW M6-1 X 25
Price
N/A
121-13
LOCK CAM
Price
$8.20
121-15
HEX NUT M8-1.25
Price
N/A
121-16
FLANGE SCREW M4-.7 X 6
Price
N/A
121-17
FENCE RAIL END CAP
Price
$1.60
121-18
FENCE GUIDE PLATE
Price
$3.20
121-2
FENCE BASE
Price
$59.50
121-20
TAP SCREW M3.5 X 12
Price
N/A
121-21
SCALE
Price
N/A
121-22
LOCK WASHER 6MM
Price
N/A
121-24
HEX BOLT M6-1 X 20
Price
N/A
121-25
FLANGE SCREW M4-.7 X 8
Price
N/A
121-26
FLAT WASHER 6MM
Price
N/A
121-27
FENCE MOUNTING PLATE
Price
$2.75
121-28
FENCE
Price
$112.30
121-3
ALIGNMENT PIN
Price
$7.50
121-4
LOCK CAM SHAFT
Price
$4.85
121-5
SPRING PLATE
Price
$1.60
121-6
ADJUSTABLE HANDLE M8-1.25 X 50, 78L
Price
$11.20
121-7
SUPPORT TUBE
Price
N/A
121-8
FLAT WASHER 8MM
Price
N/A
121-9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
$4.30
122
CAP SCREW M8-1.25 X 25
Price
N/A
123
LOCK WASHER 8MM
Price
N/A
124
FLAT WASHER 8MM
Price
N/A
125
BUSHING
Price
$3.40
126
TABLE
Price
N/A
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
ADJUSTABLE HANDLE M8-1.25 X 35, 76L
Price
$22.40
129
SET SCREW M6-1 X 12
Price
N/A
130
MAG SWITCH ASSY 110V SDE MPE-18 V1
Price
$201.10
130-1
CONTACTOR SDE MA-18 110V
Price
$71.00
130-2
OL RELAY SDE RA-20 12-18A
Price
$42.00
130-3
SWITCH BOX
Price
$46.20
130-4
POWER CORD 14G 3W 83" 5-15P
Price
$37.75
130-5
MOTOR CORD 14G 3W 22"
Price
$16.95
130-6
CONTROL CORD 16G 3W 60"
Price
$31.40
130V2
MAG SWITCH ASSY 110V SDE MPE-18 V2.06.19
Price
$212.80
130V2-1
CONTACTOR SDE MA-18 110V
Price
N/A
130V2-2
OL RELAY SDE RA-20 15-22A
Price
$42.00
130V2-3
SWITCH BOX
Price
N/A
130V2-4
POWER CORD 12G 3W 83" 5-20P
Price
$37.75
130V2-5
MOTOR CORD 12G 3W 22"
Price
$16.35
130V2-6
CONTROL CORD 16G 3W 60"
Price
N/A
131
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
132
LOCK WASHER 8MM
Price
N/A
133
GUIDE POST ASSEMBLY
Price
$159.40
134
PHLP HD SCR M5-.8 X 16
Price
N/A
135
CAP SCREW M5-.8 X 12
Price
N/A
136
FLAT WASHER 5MM
Price
N/A
137
BLADE COVER
Price
$83.10
137-1
BLADE COVER SCALE
Price
$8.80
138
FLAT WASHER 8MM
Price
N/A
139
LOCK WASHER 8MM
Price
N/A
140
HEX BOLT M8-1.25 X 25
Price
N/A
141
HANDWHEEL TYPE-4 140D X 10B-S
Price
$31.20
142
CAP SCREW M6-1 X 20
Price
N/A
143
UPPER BLADE GUIDE ASSEMBLY
Price
$100.55
143-1
CAP SCREW M6-1 X 12
Price
N/A
143-10
UPPER SUPPORT BEARING ADJ SHAFT
Price
$8.05
143-11
SET SCREW M6-1 X 10
Price
N/A
143-2
UPPER BLADE GUIDE SUPPORT BLOCK
Price
$15.15
143-3
UPPER GUIDE ADJUSTMENT SHAFT
Price
$5.80
143-4
UPPER BLADE GUIDE MOUNTING BLOCK
Price
$28.95
143-5
ECCENTRIC SHAFT
Price
$5.15
143-6
EXT RETAINING RING 15MM
Price
N/A
143-7
BALL BEARING 6202ZZ
Price
N/A
143-8
BEARING BUSHING
Price
$6.05
143-9
CAP SCREW M6-1 X 35
Price
N/A
144
LOWER BLADE GUIDE ASSY
Price
N/A
144-1
LOWER BLADE GUIDE MOUNTING BLOCK
Price
$18.15
144-2
CAP SCREW M6-1 X 16
Price
N/A
144-3
ECCENTRIC SHAFT
Price
N/A
144-4
EXT RETAINING RING 15MM
Price
N/A
144-5
BALL BEARING 6202ZZ
Price
N/A
144-6
BEARING BUSHING
Price
N/A
144-7
CAP SCREW M6-1 X 35
Price
N/A
145
MITER GAUGE ASSY
Price
N/A
145-1
MITER BAR
Price
$25.10
145-10
INDEXING BLOCK
Price
$8.50
145-11
INDEXING PIN
Price
$4.30
145-12
PHLP HD SCR 3/8-24 X 1/2
Price
N/A
145-13
HEX NUT M4-.7
Price
N/A
145-14
PHLP HD SCR M4-.7 X 16
Price
N/A
145-15
MITER SCALE
Price
$8.70
145-2
MITER BAR GUIDE WASHER 6MM
Price
$3.05
145-3
FLAT HD SCR M6-1 X 8
Price
N/A
145-4
POINTER
Price
$2.45
145-5
PHLP HD SCR 3/8-24 X 1/2
Price
$1.60
145-6
SHOULDER SCREW M6-1 X 12, 8 X 4MM
Price
$1.60
145-7
MITER GAUGE BODY
Price
$37.75
145-8
FLAT WASHER 8MM
Price
N/A
145-9
HANDLE M8-1.25 X 38, 30 X 77
Price
$8.50
146
TRUNNION SUPPORT ASSEMBLY
Price
$201.25
146-1
FLAT WASHER 8MM
Price
N/A
146-10
ANGLE SCALE
Price
$2.20
146-13
ADJ HANDLE M8-1.25 X 85, 100L
Price
$22.15
146-14
FLAT WASHER 4MM
Price
N/A
146-15
POINTER
Price
$3.40
146-16
LOCK WASHER 8MM
Price
N/A
146-17
STAR KNOB BOLT M6-1 X 50
Price
$5.50
146-18
HEX NUT M6-1
Price
N/A
146-19
TENSION PLATE
Price
$7.60
146-2
LOCK NUT M8-1.25
Price
N/A
146-20
FLANGE SCREW M5-.8 X 8
Price
N/A
146-21
CAP SCREW M6-1 X 16
Price
N/A
146-22
CAP SCREW M6-1 X 50
Price
N/A
146-23
TRUNNION SUPPORT BRACKET
Price
$93.95
146-24
TRUNNION GEAR
Price
$1.75
146-25
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
146-26
SUPPORT BEARING COVER (R)
Price
$4.10
146-27
BALL BEARING 6000ZZ
Price
N/A
146-28
FLAT WASHER 10MM
Price
N/A
146-29
SUPPORT BEARING COVER (L)
Price
$4.35
146-3
PHLP HD SCR M4-.7 X 6
Price
N/A
146-30
LOWER SUPPORT ADJUSTMENT SHAFT
Price
$18.10
146-32
CAP SCREW M5-.8 X 6
Price
N/A
146-33
LOCK WASHER 10MM
Price
N/A
146-34
FLAT WASHER 6MM
Price
N/A
146-4
GEAR PLATE
Price
$1.60
146-5
FLAT HD SCR M4-.7 X 6
Price
N/A
146-6
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
146-7
TRUNNION BLOCK
Price
$89.15
146-9
ADJ HANDLE M8-1.25, 100L
Price
$10.25
147
FLAT WASHER 8MM
Price
N/A
148
FLAT WASHER 6MM
Price
N/A
150
CAP SCREW M6-1 X 12
Price
N/A
151
HEX NUT M8-1.25
Price
N/A
152
HEX NUT M8-1.25 THIN
Price
N/A
153
FLAT WASHER 8MM
Price
N/A
154
HEX BOLT M10-1.5 X 35
Price
N/A
155
BUSHING
Price
$9.75
156
FLAT WASHER 10MM
Price
N/A
157
HEX BOLT M8-1.25 X 12
Price
N/A
158
FLAT WASHER 13 X 22 X .05 (STEEL)
Price
$2.45
159
ADHESIVE CABLE-TIE MOUNT
Price
$2.45
160
CABLE TIE 300MM
Price
$1.60
161
MAG SWITCH ASSY 220V SDE MPE09 V1
Price
$188.40
161-1
CONTACTOR SDE MA-09 220V
Price
$50.75
161-2
OL RELAY SDE RA-20 5-8A
Price
$42.00
161-3
SWITCH BOX
Price
$58.00
161-4
POWER CORD 14G 3W 83" 6-15P
Price
$31.40
161-5
MOTOR CORD 14G 3W 22"
Price
N/A
161-6
CONTROL CORD 16G 3W 60"
Price
N/A
161V2
MAG SWITCH ASSY 220V SDE MPE09 V2.06.19
Price
$221.65
161V2-1
CONTACTOR SDE MA-09 220V
Price
N/A
161V2-2
OL RELAY SDE RA-20 8-12A
Price
$44.45
161V2-3
SWITCH BOX
Price
N/A
161V2-4
POWER CORD 12G 3W 83" 6-15P
Price
$44.45
161V2-5
MOTOR CORD 12G 3W 22"
Price
N/A
161V2-6
CONTROL CORD 16G 3W 60"
Price
N/A
162
***USE T34391***
Item is no longer available
Price
N/A
201
MACHINE ID LABEL V1
Price
$16.40
201V2
MACHINE ID LABEL V2.03.19
Price
$16.40
202
MODEL NUMBER LABEL
Price
$9.20
203
Nameplate - Small
Price
N/A
204
DOOR CLOSED BLADE 2W X 3.3H
Price
N/A
205
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
206
ELECTRICITY 1.4W X 1.2H
Price
N/A
207
GRIZZLY.COM LABEL 11.75",GREEN
Price
N/A
208
BEIGE REF G0555
Price
N/A
209
N/S GRIZZLY GREEN G1023S
Price
N/A
210
READ MANUAL 1.5W X 2.5H
Price
N/A
211
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
212
BLADE TENSION SCALE NOTICE
Price
$1.60
MAN
MANUAL G0817 MFD.05.16-05.19 V1.10.16
Price
$24.00
MANV2
MANUAL G0817 MFD.06.19+ V2.08.19
Price
$28.00
