Parts for G0820 - 12" 7-1/2 HP 3-Phase Compact Sliding Table Saw

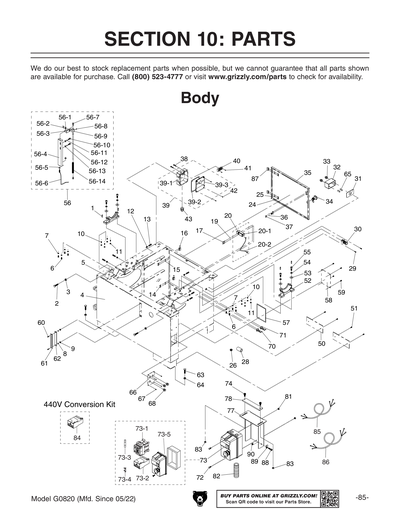

Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820
Part Diagram for G0820

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

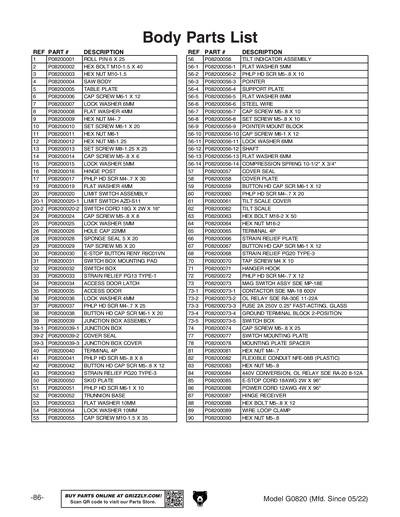

Ref #
Part #
Description
1
ROLL PIN 6 X 25
Price
N/A
2
HEX BOLT M10-1.5 X 40
Price
N/A
3
HEX NUT M10-1.5
Price
N/A
4
SAW BODY
Price
$1,280.30
5
TABLE PLATE
Price
$46.20
6
CAP SCREW M6-1 X 12
Price
N/A
7
LOCK WASHER 6MM
Price
N/A
8
FLAT WASHER 4MM
Price
N/A
9
HEX NUT M4-.7
Price
N/A
10
SET SCREW M6-1 X 20
Price
N/A
11
HEX NUT M6-1
Price
N/A
12
HEX NUT M8-1.25
Price
N/A
13
SET SCREW M8-1.25 X 25
Price
N/A
14
CAP SCREW M5-.8 X 6
Price
N/A
15
LOCK WASHER 5MM
Price
N/A
16
HINGE POST AND RECEIVER
Price
$13.95
17
PHLP HD SCR M4-.7 X 30
Price
N/A
19
FLAT WASHER 4MM
Price
N/A
20
LIMIT SWITCH ASSEMBLY
Price
$58.95
20-1
LIMIT SWITCH AZD-S11
Price
$42.00
20-2
SWITCH CORD 18G X 2W X 16"
Price
$6.40
24
CAP SCREW M5-.8 X 8
Price
N/A
25
LOCK WASHER 5MM
Price
N/A
26
HOLE CAP 22MM
Price
$1.60
28
SPONGE SEAL 5 X 20
Price
$2.45
29
TAP SCREW M6 X 20
Price
N/A
30
E-STOP BUTTON RENY R9C01VN
Price
$29.00
31
SWITCH BOX MOUNTING PAD
Price
$4.30
32
SWITCH BOX
Price
$6.40
33
STRAIN RELIEF PG13 TYPE-1
Price
$1.60
34
ACCESS DOOR LATCH
Price
$37.70
35
ACCESS DOOR
Price
$93.15
36
LOCK WASHER 4MM
Price
N/A
37
PHLP HD SCR M4-.7 X 25
Price
N/A
38
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
39
JUNCTION BOX ASSEMBLY
Price
$27.80
39-1
JUNCTION BOX ASSEMBLY
Price
N/A
39-2
JUNCTION BOX ASSEMBLY
Price
N/A
39-3
JUNCTION BOX ASSEMBLY
Price
N/A
40
TERMINAL 4P
Price
$10.90
41
PHLP HD SCR M5-.8 X 8
Price
N/A
42
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
43
STRAIN RELIEF PG20 TYPE-3
Price
$6.40
50
SKID PLATE
Price
$21.20
51
PHLP HD SCR M6-1 X 10
Price
N/A
52
TRUNNION BASE
Price
$62.80
53
FLAT WASHER 10MM
Price
N/A
54
LOCK WASHER 10MM
Price
N/A
55
CAP SCREW M10-1.5 X 35
Price
N/A
56
TILT INDICATOR ASSEMBLY
Price
$71.25
56-1
FLAT WASHER 5MM
Price
N/A
56-10
CAP SCREW M6-1 X 12
Price
N/A
56-11
LOCK WASHER 6MM
Price
N/A
56-12
SHAFT
Price
$10.65
56-13
FLAT WASHER 6MM
Price
N/A
56-14
COMPRESSION SPRING 10-1/2" X 3/4"
Price
$6.40
56-2
PHLP HD SCR M5-.8 X 10
Price
N/A
56-3
POINTER
Price
$12.75
56-4
SUPPORT PLATE
Price
$42.00
56-5
FLAT WASHER 6MM
Price
N/A
56-6
STEEL WIRE
Price
$23.30
56-7
CAP SCREW M5-.8 X 10
Price
N/A
56-8
SET SCREW M5-.8 X 10
Price
N/A
56-9
POINTER MOUNT BLOCK
Price
$14.85
57
COVER SEAL
Price
$2.45
58
COVER PLATE
Price
$17.55
59
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
60
PHLP HD SCR M4-.7 X 20
Price
N/A
61
TILT SCALE COVER
Price
$6.40
62
TILT SCALE
Price
$16.95
63
HEX BOLT M16-2 X 50
Price
N/A
64
HEX NUT M16-2
Price
N/A
65
TERMINAL 4P
Price
$8.20
66
STRAIN RELIEF PLATE
Price
$25.10
67
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
68
STRAIN RELIEF PG20 TYPE-3
Price
$6.40
70
TAP SCREW M4 X 10
Price
N/A
71
HANGER HOOK
Price
$3.40
72
PHLP HD SCR M4-.7 X 12
Price
N/A
73
MAG SWITCH ASSY SDE MP-18E
Price
$243.95
73-1
CONTACTOR SDE MA-18 24V
Price
$164.05
73-2
OL RELAY SDE RA-30E 11-22A
Price
$62.15
73-3
GROUND TERMINAL BLOCK 2-POSITION
Price
$19.95
73-4
FUSE 10A 600V 0.25" FAST-ACTING, GLASS
Price
$2.05
73-5
SWITCH BOX
Price
$79.80
74
CAP SCREW M5-.8 X 25
Price
N/A
75
LOCK WASHER 5MM
Price
N/A
76
FLAT WASHER 5MM
Price
N/A
77
SWITCH MOUNTING PLATE
Price
$24.45
78
MOUNTING PLATE SPACER
Price
$39.60
79
FLAT WASHER 4MM
Price
N/A
80
LOCK WASHER 4MM
Price
N/A
81
HEX NUT M4-.7
Price
N/A
82
FLEXIBLE CONDUIT NFE-08B (PLASTIC)
Price
$6.70
83
HEX NUT M5-.8
Price
N/A
84
440V CONVERSION,OL RELAY SDE RA-20 8-12A
Price
$71.05
85
E-STOP CORD 18AWG 2W X 96"
Price
$26.65
86
POWER CORD 12AWG 4W X 96"
Price
$75.40
87
HINGE POST AND RECEIVER
Price
N/A
88
HEX BOLT M5-.8 X 12
Price
N/A
89
WIRE LOOP CLAMP
Price
$1.60
90
HEX NUT M5-.8
Price
N/A
101
SET SCREW M10-1.5 X 20
Price
N/A
102
HEX NUT M10-1.5
Price
N/A

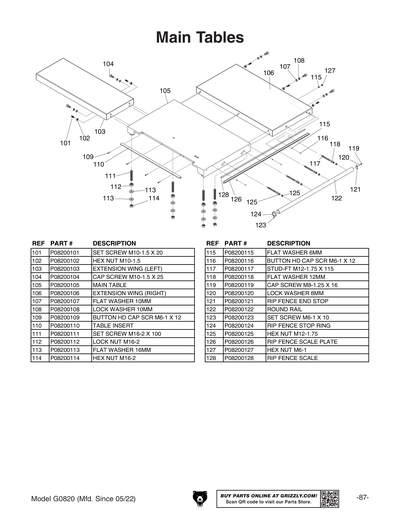

103
EXTENSION WING (LEFT)
Price
$219.80
104
CAP SCREW M10-1.5 X 25
Price
N/A
105
MAIN TABLE
Price
$606.80
106
EXTENSION WING (RIGHT)
Price
$230.40
107
FLAT WASHER 10MM
Price
N/A
108
LOCK WASHER 10MM
Price
N/A
109
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
110
TABLE INSERT
Price
$21.20
111
SET SCREW M16-2 X 100
Price
$8.50
112
LOCK NUT M16-2
Price
N/A
113
FLAT WASHER 16MM
Price
N/A
114
HEX NUT M16-2
Price
N/A
115
FLAT WASHER 6MM
Price
N/A
116
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
117
STUD-FT M12-1.75 X 115
Price
$4.30
118
FLAT WASHER 12MM
Price
N/A
119
CAP SCREW M8-1.25 X 16
Price
N/A
120
LOCK WASHER 8MM
Price
N/A
121
RIP FENCE END STOP
Price
$7.90
122
ROUND RAIL
Price
$217.35
123
SET SCREW M6-1 X 10
Price
N/A
124
RIP FENCE STOP RING
Price
$16.65
125
HEX NUT M12-1.75
Price
N/A
126
RIP FENCE SCALE PLATE
Price
$33.55
127
HEX NUT M6-1
Price
N/A
128
RIP FENCE SCALE
Price
$40.20
204
CAP SCREW M6-1 X 12
Price
N/A
205
LOCK WASHER 6MM
Price
N/A
206
CAP SCREW M5-.8 X 16
Price
N/A
207
HOUSING ANGLE PLATE
Price
$21.20
208
FLAT WASHER 5MM
Price
N/A
209
LOCK NUT M5-.8
Price
N/A
210
CAP SCREW M5-.8 X 12
Price
N/A
211
LOCK WASHER 5MM
Price
N/A
212
HEX BOLT M8-1.25 X 12
Price
N/A

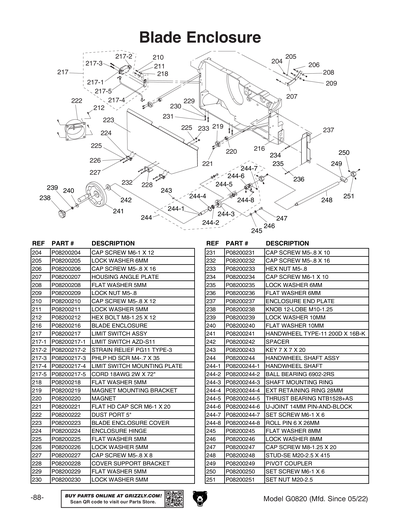

216
BLADE ENCLOSURE
Price
$523.20
217
LIMIT SWITCH ASSY
Price
$69.15
217-1
LIMIT SWITCH AZD-S11
Price
$48.65
217-2
STRAIN RELIEF PG11 TYPE-3
Price
$4.60
217-3
PHLP HD SCR M4-.7 X 35
Price
N/A
217-4
LIMIT SWITCH MOUNTING PLATE
Price
$10.65
217-5
CORD 18AWG 2W X 72"
Price
$6.40
218
FLAT WASHER 5MM
Price
N/A
219
MAGNET MOUNTING BRACKET
Price
$42.00
220
MAGNET
Price
$14.85
221
FLAT HD CAP SCR M6-1 X 20
Price
N/A
222
DUST PORT 5"
Price
$6.40
223
BLADE ENCLOSURE COVER
Price
$79.70
224
ENCLOSURE HINGE
Price
$12.75
225
FLAT WASHER 5MM
Price
N/A
226
LOCK WASHER 5MM
Price
N/A
227
CAP SCREW M5-.8 X 8
Price
N/A
228
COVER SUPPORT BRACKET
Price
$9.40
229
FLAT WASHER 5MM
Price
N/A
230
LOCK WASHER 5MM
Price
N/A
231
CAP SCREW M5-.8 X 10
Price
N/A
232
CAP SCREW M5-.8 X 16
Price
N/A
233
HEX NUT M5-.8
Price
N/A
234
CAP SCREW M6-1 X 10
Price
N/A
235
LOCK WASHER 6MM
Price
N/A
236
FLAT WASHER 6MM
Price
N/A
237
ENCLOSURE END PLATE
Price
$16.95
238
KNOB 12-LOBE M8-1.25
Price
$4.60
239
LOCK WASHER 8MM
Price
N/A
240
LOCK WASHER 6MM
Price
N/A
241
HANDWHEEL TYPE-11 200D X 16B-K
Price
$141.20
242
SPACER
Price
$5.80
243
KEY 7 X 7 X 20
Price
N/A
244
HANDWHEEL SHAFT ASSEMBLY
Price
N/A
244-1
HANDWHEEL SHAFT
Price
$32.95
244-2
BALL BEARING 6902-2RS
Price
N/A
244-3
SHAFT MOUNTING RING
Price
$29.30
244-4
EXT RETAINING RING 28MM
Price
N/A
244-5
THRUST BEARING NTB1528+AS
Price
$10.65
244-6
U-JOINT 14MM PIN-AND-BLOCK
Price
$86.70
244-7
SET SCREW M6-1 X 6
Price
N/A
244-8
ROLL PIN 6 X 26MM
Price
$2.45
245
FLAT WASHER 8MM
Price
N/A
246
LOCK WASHER 8MM
Price
N/A
247
CAP SCREW M8-1.25 X 20
Price
N/A
248
TILT LEADSCREW
Price
N/A
249
PIVOT COUPLER
Price
$46.35
250
SET SCREW M6-1 X 6
Price
N/A
251
SET NUT M16-2
Price
$18.15

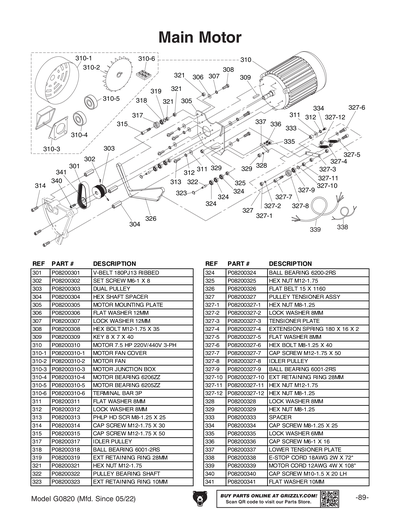

301
POLY-V 180PJ13
Price
$48.80
302
SET SCREW M6-1 X 8
Price
N/A
303
DUAL PULLEY
Price
$97.55
304
HEX SHAFT SPACER
Price
$20.55
305
MOTOR MOUNTING PLATE
Price
$117.45
306
FLAT WASHER 12MM
Price
N/A
307
LOCK WASHER 12MM
Price
N/A
308
HEX BOLT M12-1.75 X 35
Price
N/A
309
KEY 8 X 7 X 40
Price
N/A
310
MOTOR 7.5 HP 220V/440V 3-PH
Price
$1,485.00
310-1
MOTOR FAN COVER
Price
$35.65
310-2
MOTOR FAN
Price
$25.10
310-3
MOTOR JUNCTION BOX
Price
$18.75
310-4
BALL BEARING 6206ZZ
Price
N/A
310-5
BALL BEARING 6205ZZ
Price
N/A
310-6
TERMINAL BAR 3P
Price
$6.40
311
FLAT WASHER 8MM
Price
N/A
312
LOCK WASHER 8MM
Price
N/A
313
PHLP HD SCR M8-1.25 X 25
Price
N/A
314
CAP SCREW M12-1.75 X 30
Price
N/A
315
CAP SCREW M12-1.75 X 50
Price
N/A
317
IDLER PULLEY
Price
$10.00
318
BALL BEARING 6001-2RS
Price
N/A
319
EXT RETAINING RING 28MM
Price
N/A
321
HEX NUT M12-1.75
Price
N/A
322
PULLEY BEARING SHAFT
Price
$16.95
323
EXT RETAINING RING 10MM
Price
N/A
324
BALL BEARING 6200-2RS
Price
N/A
325
HEX NUT M12-1.75
Price
N/A
326
FLAT BELT 15 X 1160
Price
$40.00
327
PULLEY TENSIONER ASSY
Price
$60.70
327-1
HEX NUT M8-1.25
Price
N/A
327-10
EXT RETAINING RING 28MM
Price
N/A
327-11
HEX NUT M12-1.75
Price
N/A
327-12
HEX NUT M8-1.25
Price
N/A
327-2
LOCK WASHER 8MM
Price
N/A
327-3
TENSIONER PLATE
Price
$37.75
327-4
EXTENSION SPRING 180 X 16 X 2
Price
$8.50
327-5
FLAT WASHER 8MM
Price
N/A
327-6
HEX BOLT M8-1.25 X 40
Price
N/A
327-7
CAP SCREW M12-1.75 X 50
Price
N/A
327-8
IDLER PULLEY
Price
$8.50
327-9
BALL BEARING 6001-2RS
Price
N/A
328
LOCK WASHER 8MM
Price
N/A
329
HEX NUT M8-1.25
Price
N/A
333
SPACER
Price
$1.60
334
CAP SCREW M8-1.25 X 25
Price
N/A
335
LOCK WASHER 6MM
Price
N/A
336
CAP SCREW M6-1 X 16
Price
N/A
337
LOWER TENSIONER PLATE
Price
$16.95
338
E-STOP CORD 18AWG 2W X 72"
Price
$37.75
339
MOTOR CORD 12AWG 4W X 108"
Price
$67.05
340
CAP SCREW M10-1.5 X 20 LH
Price
$2.90
341
FLAT WASHER 10MM
Price
N/A
401
GIB PLATE
Price
$33.85
402
BUTTON HD CAP SCR M10-1.5 X 25
Price
N/A
403
LOCK WASHER 10MM
Price
N/A
404
KEY 5 X 5 X 20
Price
N/A
405
ARBOR NUT M16-2
Price
$7.60
406
ARBOR FLANGE 1"
Price
$35.35
410
PIVOT SHAFT
Price
$23.30
413
FENDER WASHER 8MM
Price
N/A
414
LOCK WASHER 8MM
Price
N/A
415
CAP SCREW M8-1.25 X 20
Price
N/A
416

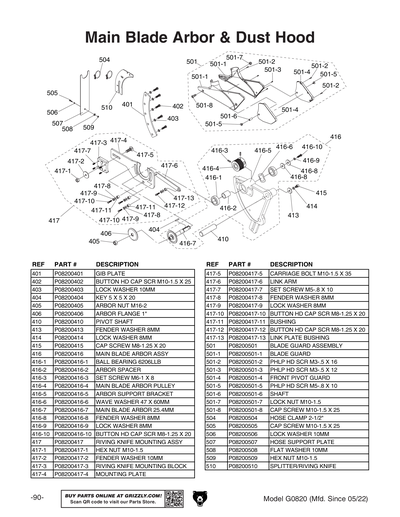

MAIN BLADE ARBOR ASSY
Price
$272.05
416-1
BALL BEARING 6206LLB
Price
N/A
416-10
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
416-2
ARBOR SPACER
Price
$39.85
416-3
SET SCREW M6-1 X 8
Price
N/A
416-4
MAIN BLADE ARBOR PULLEY
Price
$29.30
416-5
ARBOR SUPPORT BRACKET
Price
$188.40
416-6
WAVE WASHER 47 X 60MM
Price
$3.40
416-7
MAIN BLADE ARBOR 25.4MM
Price
$123.20
416-8
FENDER WASHER 8MM
Price
N/A
416-9
LOCK WASHER 8MM
Price
N/A
417
RIVING KNIFE MOUNTING ASSY
Price
$71.25
417-1
HEX NUT M10-1.5
Price
N/A
417-10
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
417-11
BUSHING
Price
$1.60
417-12
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
417-13
LINK PLATE BUSHING
Price
$1.60
417-2
FENDER WASHER 10MM
Price
N/A
417-3
RIVING KNIFE MOUNTING BLOCK
Price
$16.10
417-4
MOUNTING PLATE
Price
$46.20
417-5
CARRIAGE BOLT M12-1.75 X 35
Price
N/A
417-6
LINK ARM
Price
$14.85
417-7
SET SCREW M5-.8 X 10
Price
N/A
417-8
FENDER WASHER 8MM
Price
N/A
417-9
LOCK WASHER 8MM
Price
N/A
501
BLADE GUARD ASSEMBLY
Price
$48.50
501-1
BLADE GUARD
Price
$49.85
501-2
PHLP HD SCR M3-.5 X 16
Price
N/A
501-3
PHLP HD SCR M3-.5 X 12
Price
N/A
501-4
FRONT PIVOT GUARD
Price
$27.55
501-5
PHLP HD SCR M5-.8 X 10
Price
N/A
501-6
SHAFT
Price
$10.65
501-7
LOCK NUT M10-1.5
Price
N/A
501-8
CAP SCREW M10-1.5 X 25
Price
N/A
504
HOSE CLAMP 2-1/2"
Price
$6.40
505
CAP SCREW M10-1.5 X 25
Price
N/A
506
LOCK WASHER 10MM
Price
N/A
507
HOSE SUPPORT PLATE
Price
$24.50
508
FLAT WASHER 10MM
Price
N/A
509
HEX NUT M10-1.5
Price
N/A
510
SPLITTER/RIVING KNIFE
Price
$80.05

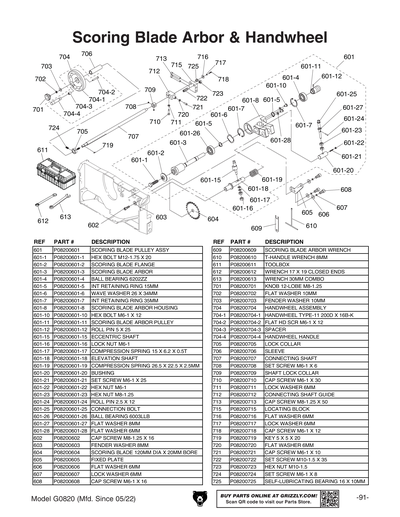

601
SCORING BLADE PULLEY ASSY
Price
$226.15
601-1
HEX BOLT M12-1.75 X 20
Price
N/A
601-10
HEX BOLT M6-1 X 12
Price
N/A
601-11
SCORING BLADE ARBOR PULLEY
Price
$35.45
601-12
ROLL PIN 5 X 25
Price
N/A
601-15
ECCENTRIC SHAFT
Price
$35.65
601-16
LOCK NUT M6-1
Price
N/A
601-17
COMPRESSION SPRING 15 X 6.2 X 0.5T
Price
$2.45
601-18
ELEVATION SHAFT
Price
$25.10
601-19
COMPRESSION SPRING 26.5 X 22.5 X 2.5MM
Price
$6.40
601-2
SCORING BLADE FLANGE
Price
$10.65
601-20
BUSHING
Price
$14.85
601-21
SET SCREW M6-1 X 25
Price
N/A
601-22
HEX NUT M6-1
Price
N/A
601-23
HEX NUT M8-1.25
Price
N/A
601-24
ROLL PIN 2.5 X 12
Price
N/A
601-25
CONNECTION BOLT
Price
$23.30
601-26
BALL BEARING 6003LLB
Price
N/A
601-27
FLAT WASHER 8MM
Price
N/A
601-28
FLAT WASHER 6MM
Price
N/A
601-3
SCORING BLADE ARBOR
Price
$75.85
601-4
BALL BEARING 6202ZZ
Price
N/A
601-5
INT RETAINING RING 15MM
Price
N/A
601-6
WAVE WASHER 26 X 34MM
Price
$2.45
601-7
INT RETAINING RING 35MM
Price
N/A
601-8
SCORING BLADE ARBOR HOUSING
Price
$71.25
602
CAP SCREW M8-1.25 X 16
Price
N/A
603
FENDER WASHER 8MM
Price
N/A
604
SCORING BLADE 4-3/4" X 20MM
Price
N/A
605
FIXED PLATE
Price
$12.75
606
FLAT WASHER 6MM
Price
N/A
607
LOCK WASHER 6MM
Price
N/A
608
CAP SCREW M6-1 X 16
Price
N/A
609
SCORING ARBOR WRENCH V2.04.12
Price
N/A
610
T-HANDLE WRENCH 8MM
Price
N/A
701
KNOB 12-LOBE M8-1.25
Price
$4.60
702
FLAT WASHER 10MM
Price
N/A
703
FENDER WASHER 10MM
Price
N/A
704
HANDWHEEL ASSEMBLY
Price
$117.80
704-1
HANDWHEEL TYPE-11 200D X 16B-K
Price
$117.80
704-2
FLAT HD SCR M6-1 X 12
Price
N/A
704-3
SPACER
Price
$3.05
704-4
HANDWHEEL HANDLE
Price
$52.35
705
LOCK COLLAR
Price
$4.60
706
SLEEVE
Price
$25.10
707
CONNECTING SHAFT
Price
$64.25
708
SET SCREW M6-1 X 6
Price
N/A
709
SHAFT LOCK COLLAR
Price
$19.10
710
CAP SCREW M6-1 X 30
Price
N/A
711
LOCK WASHER 6MM
Price
N/A
712
ELEVATION LEADSCREW CLAMP
Price
N/A
713
CAP SCREW M8-1.25 X 50
Price
N/A
715
LOCATING BLOCK
Price
$33.85
716
FLAT WASHER 6MM
Price
N/A
717
LOCK WASHER 6MM
Price
N/A
718
CAP SCREW M6-1 X 12
Price
N/A
719
KEY 5 X 5 X 20
Price
N/A
720
FLAT WASHER 6MM
Price
N/A
721
CAP SCREW M6-1 X 10
Price
N/A
722
SET SCREW M10-1.5 X 35
Price
N/A
723
HEX NUT M10-1.5
Price
N/A
724
SET SCREW M6-1 X 8
Price
N/A
725
SELF-LUBRICATING BEARING 16 X 10MM
Price
$1.60
801
SCREW CAP
Price
$1.60
802
KNOB M8-1.25 X 50
Price
$11.85
803
FENDER WASHER 8MM
Price
N/A
804
T-BOLT M8-1.25 X 60 V1
Price
N/A
805
FLAT WASHER 8MM
Price
N/A
806
HEX NUT M8-1.25
Price
N/A
807
KNOB M8-1.25 X 50
Price
$10.35
809
ADJ HANDLE 95L M12-1.75 X 57
Price
$29.00
810
FLAT WASHER 12MM
Price
N/A
811
T-NUT M12-1.75 V1
Price
$5.20
811V2
T-NUT M12-1.75 V2.05.22
Price
$12.40
813

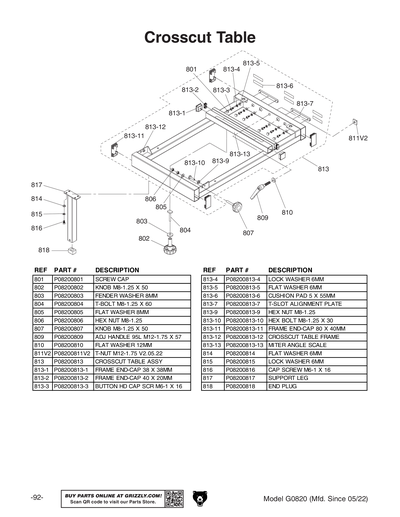

CROSSCUT TABLE ASSY
Price
$217.70
813-1
FRAME END-CAP 38 X 38MM
Price
$1.60
813-10
HEX BOLT M8-1.25 X 30
Price
N/A
813-11
FRAME END-CAP 80 X 40MM
Price
$2.45
813-12
CROSSCUT TABLE FRAME
Price
$167.60
813-13
MITER ANGLE SCALE
Price
$11.20
813-2
FRAME END-CAP 40 X 20MM
Price
$1.60
813-3
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
813-4
LOCK WASHER 6MM
Price
N/A
813-5
FLAT WASHER 6MM
Price
N/A
813-6
CUSHION PAD 5 X 55MM
Price
$6.40
813-7
T-SLOT ALIGNMENT PLATE
Price
$24.80
813-9
HEX NUT M8-1.25
Price
N/A
814
FLAT WASHER 6MM
Price
N/A
815
LOCK WASHER 6MM
Price
N/A
816
CAP SCREW M6-1 X 16
Price
N/A
817
CROSSCUT TABLE SUPPORT LEG
Price
N/A
818
END PLUG
Price
$2.75
901

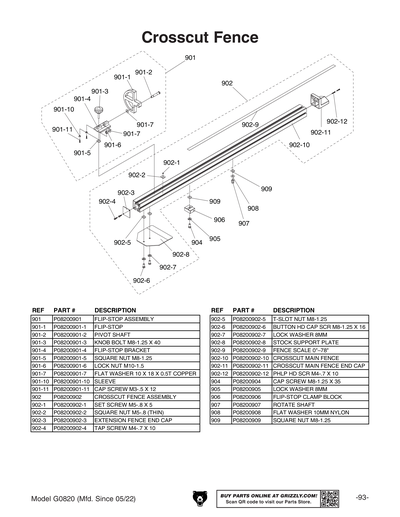

FLIP-STOP ASSEMBLY
Price
$119.00
901-1
FLIP-STOP
Price
$48.75
901-10
SLEEVE
Price
$10.60
901-11
CAP SCREW M3-.5 X 12
Price
N/A
901-2
PIVOT SHAFT
Price
$4.85
901-3
KNOB BOLT M8-1.25 X 40
Price
$14.25
901-4
FLIP-STOP BRACKET
Price
$31.75
901-5
SQUARE NUT M8-1.25
Price
$1.60
901-6
LOCK NUT M10-1.5
Price
N/A
901-7
FLAT WASHER 10 X 18 X 0.5T COPPER
Price
$1.60
902
CROSSCUT FENCE ASSEMBLY
Price
$418.45
902-1
SET SCREW M5-.8 X 5
Price
N/A
902-10
CROSSCUT MAIN FENCE
Price
N/A
902-11
CROSSCUT MAIN FENCE END CAP
Price
$4.90
902-12
PHLP HD SCR M4-.7 X 10
Price
N/A
902-2
SQUARE NUT M5-.8 (THIN)
Price
$4.30
902-3
EXTENSION FENCE END CAP
Price
$6.05
902-4
TAP SCREW M4-.7 X 10
Price
$1.60
902-5
T-SLOT NUT M8-1.25
Price
$1.60
902-6
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
902-7
LOCK WASHER 8MM
Price
N/A
902-8
STOCK SUPPORT PLATE
Price
$26.00
902-9
FENCE SCALE 0"-78"
Price
$55.30
904
CAP SCREW M8-1.25 X 35
Price
N/A
905
LOCK WASHER 8MM
Price
N/A
906
FLIP-STOP CLAMP BLOCK
Price
$27.80
907
PIVOT SHAFT
Price
N/A
908
FLAT WASHER 10MM NYLON
Price
$1.49
909
T-NUT M8-1.25
Price
N/A
1001
SET SCREW M10-1.5 X 10
Price
N/A
1002

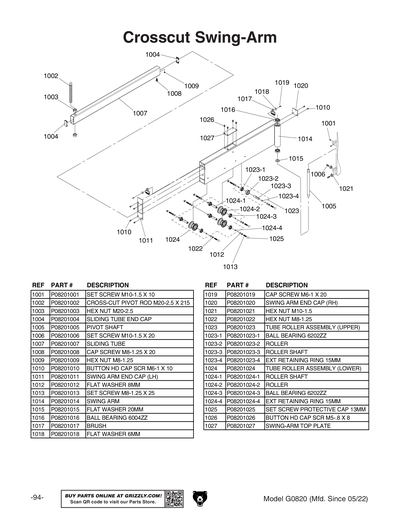

CROSS-CUT PIVOT ROD M20-2.5 X 215
Price
$25.10
1003
HEX NUT M20-2.5
Price
N/A
1004
SLIDING TUBE END CAP
Price
$2.45
1005
PIVOT SHAFT
Price
$35.65
1006
SET SCREW M10-1.5 X 20
Price
N/A
1007
SLIDING TUBE
Price
$79.70
1008
CAP SCREW M8-1.25 X 20
Price
N/A
1009
HEX NUT M8-1.25
Price
N/A
1010
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
1011
SWING ARM END CAP (LH)
Price
$16.95
1012
FLAT WASHER 8MM
Price
N/A
1013
SET SCREW M8-1.25 X 25
Price
N/A
1014
SWING ARM
Price
$272.05
1015
FLAT WASHER 20MM
Price
N/A
1016
BALL BEARING 6004ZZ
Price
N/A
1017
BRUSH
Price
N/A
1018
FLAT WASHER 6MM
Price
N/A
1019
CAP SCREW M6-1 X 20
Price
N/A
1020
SWING ARM END CAP (RH)
Price
$12.75
1021
HEX NUT M10-1.5
Price
N/A
1022
HEX NUT M8-1.25
Price
N/A
1023
TUBE ROLLER ASSEMBLY (UPPER)
Price
$42.00
1023-1
BALL BEARING 6202ZZ
Price
N/A
1023-2
ROLLER
Price
$16.95
1023-3
ROLLER SHAFT
Price
$21.20
1023-4
EXT RETAINING RING 15MM
Price
N/A
1024
TUBE ROLLER ASSEMBLY (LOWER)
Price
$49.25
1024-1
ROLLER SHAFT
Price
$12.75
1024-2
ROLLER
Price
$30.20
1024-3
BALL BEARING 6202ZZ
Price
N/A
1024-4
EXT RETAINING RING 15MM
Price
N/A
1025
SET SCREW PROTECTIVE CAP 13MM
Price
$1.60
1026
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
1027
SWING-ARM TOP PLATE
Price
$12.75

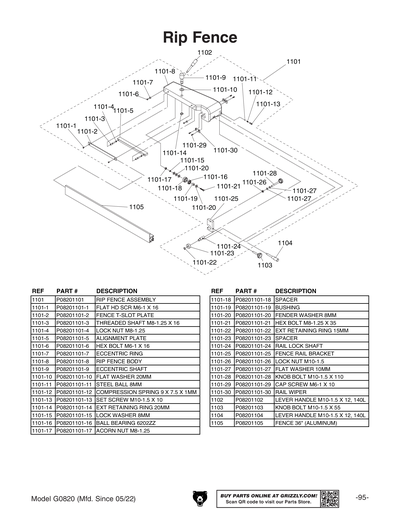

1101
RIP FENCE ASSEMBLY
Price
$346.75
1101-1
FLAT HD SCR M6-1 X 16
Price
N/A
1101-10
FLAT WASHER 20MM
Price
N/A
1101-11
STEEL BALL 8MM
Price
N/A
1101-12
COMPRESSION SPRING 9 X 7.5 X 1MM
Price
$1.60
1101-13
SET SCREW M10-1.5 X 10
Price
N/A
1101-14
EXT RETAINING RING 20MM
Price
N/A
1101-15
LOCK WASHER 8MM
Price
N/A
1101-16
BALL BEARING 6202ZZ
Price
N/A
1101-17
HEX NUT 1-8 LH
Price
N/A
1101-18
SPACER
Price
$16.95
1101-19
BUSHING
Price
$10.65
1101-2
FENCE T-SLOT PLATE
Price
$27.55
1101-20
FENDER WASHER 8MM
Price
N/A
1101-21
HEX BOLT M8-1.25 X 35
Price
N/A
1101-22
EXT RETAINING RING 15MM
Price
N/A
1101-23
SPACER
Price
$8.50
1101-24
RAIL LOCK SHAFT
Price
$35.35
1101-25
FENCE RAIL BRACKET
Price
$42.00
1101-26
LOCK NUT M10-1.5
Price
N/A
1101-27
FLAT WASHER 10MM
Price
N/A
1101-28
KNOB BOLT M10-1.5 X 110
Price
$18.75
1101-29
CAP SCREW M6-1 X 10
Price
N/A
1101-3
THREADED SHAFT M8-1.25 X 16
Price
$12.75
1101-30
RAIL WIPER
Price
$4.30
1101-4
LOCK NUT M8-1.25
Price
N/A
1101-5
ALIGNMENT PLATE
Price
$26.00
1101-6
HEX BOLT M6-1 X 16
Price
N/A
1101-7
ECCENTRIC RING
Price
$6.05
1101-8
RIP FENCE BODY
Price
$217.70
1101-9
ECCENTRIC SHAFT
Price
$53.15
1102
LEVER HANDLE M10-1.5 X 12, 140L
Price
$21.90
1103
KNOB BOLT M10-1.5 X 55
Price
$17.85
1104
LEVER HANDLE M10-1.5 X 12, 140L
Price
$20.85
1105
FENCE 36" (ALUMINUM)
Price
$255.75

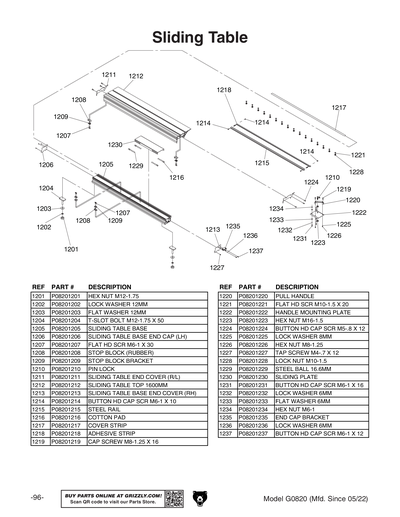

1200
COMPLETE SLIDING TABLE ASSY 1600MM
Price
$1,632.00
1201
HEX NUT M12-1.75
Price
N/A
1202
LOCK WASHER 12MM
Price
N/A
1203
FLAT WASHER 12MM
Price
N/A
1204
T-SLOT BOLT M12-1.75 X 50
Price
$8.80
1205
SLIDING TABLE BASE
Price
$502.35
1206
SLIDING TABLE BASE END CAP (LH)
Price
$10.65
1207
FLAT HD SCR M6-1 X 30
Price
N/A
1208
STOP BLOCK (RUBBER)
Price
$4.50
1209
STOP BLOCK BRACKET
Price
$4.50
1210
PIN LOCK
Price
$44.70
1211
SLIDING TABLE END COVER (R/L)
Price
$15.55
1212
SLIDING TABLE TOP 1600MM
Price
$824.45
1213
SLIDING TABLE BASE END COVER (RH)
Price
$20.05
1214
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
1215
STEEL RAIL
Price
$18.45
1216
COTTON PAD
Price
$2.30
1217
COVER STRIP
Price
$13.95
1218
ADHESIVE STRIP
Price
$119.70
1219
CAP SCREW M8-1.25 X 16
Price
N/A
1220
PULL HANDLE
Price
$3.75
1221
FLAT HD SCR M10-1.5 X 20
Price
N/A
1222
HANDLE MOUNTING PLATE
Price
$31.10
1223
HEX NUT M16-1.5
Price
N/A
1224
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
1225
LOCK WASHER 8MM
Price
N/A
1226
HEX NUT M8-1.25
Price
N/A
1227
TAP SCREW M4-.7 X 12
Price
$1.60
1228
LOCK NUT M10-1.5
Price
N/A
1229
STEEL BALL 16.6MM
Price
$2.30
1230
SLIDING PLATE
Price
$54.70
1231
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
1232
LOCK WASHER 6MM
Price
N/A
1233
FLAT WASHER 6MM
Price
N/A
1234
HEX NUT M6-1
Price
N/A
1235
END CAP BRACKET
Price
$15.55
1236
LOCK WASHER 6MM
Price
N/A
1237
BUTTON HD CAP SCR M6-1 X 12
Price
N/A

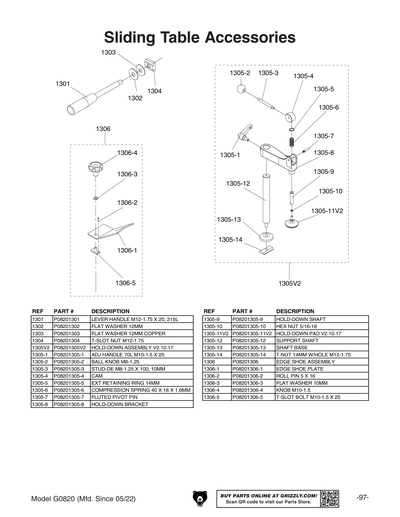

1301
LEVER HANDLE M12-1.75 X 20, 215L
Price
$25.40
1302
FLAT WASHER 12MM
Price
N/A
1303
FLAT WASHER 12MM NYLON
Price
$1.49
1304
T-SLOT NUT M12-1.75
Price
$6.05
1305
HOLD-DOWN ASSEMBLY
Price
$175.10
1305-1
ADJ HANDLE 70L M10-1.5 X 25
Price
$14.85
1305-10
HEX NUT 5/16-18
Price
N/A
1305-11
HOLD-DOWN PAD (RECTANGULAR) V2.10.17
Price
N/A
1305-11V2
HOLD-DOWN PAD (RECTANGULAR) V2.10.17
Price
N/A
1305-12
SUPPORT SHAFT
Price
$50.90
1305-13
SHAFT BASE
Price
$9.40
1305-14
T-NUT 14MM W/HOLE M12-1.75
Price
$25.10
1305-2
BALL KNOB M8-1.25
Price
$4.30
1305-3
STUD-DE M8-1.25 X 100, 10MM
Price
$6.05
1305-4
CAM
Price
$42.00
1305-5
EXT RETAINING RING 14MM
Price
N/A
1305-6
COMPRESSION SPRING 40 X 18 X 1.6MM
Price
$5.50
1305-7
FLUTED PIVOT PIN
Price
$3.95
1305-8
HOLD-DOWN BRACKET
Price
$88.50
1305-9
HOLD-DOWN SHAFT
Price
$7.00
1305V2
HOLD-DOWN ASSY (NON-SWIVEL PAD) V2.10.17
Price
N/A
1306
EDGE SHOE ASSEMBLY
Price
$51.20
1306-1
EDGE SHOE PLATE
Price
$33.85
1306-2
ROLL PIN 5 X 16
Price
N/A
1306-3
FLAT WASHER 10MM
Price
N/A
1306-4
KNOB M10-1.5
Price
$33.85
1306-5
T-SLOT BOLT M10-1.5 X 25
Price
$10.30

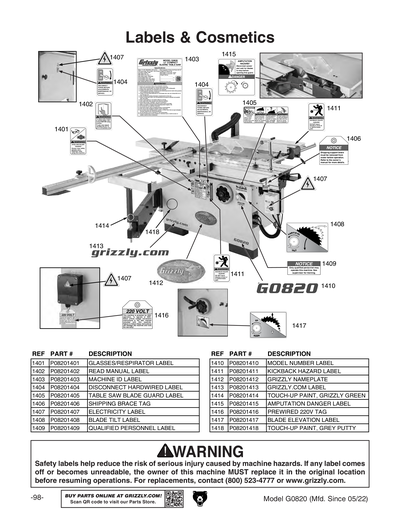

1401
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
1402
READ MANUAL 1.5W X 2.5H
Price
N/A
1403
MACHINE ID LABEL
Price
$16.40
1404
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
Price
N/A
1405
TABLE SAW BLADE GUARD 4.7W X 1.8H
Price
N/A
1406
SHIPPING BRACE TAG
Price
$3.65
1407
ELECTRICITY 1.4W X 1.2H
Price
N/A
1408
BLADE TILT LABEL
Price
$5.55
1409
QUALIFIED PERSONNEL LABEL
Price
$1.35
1410
MODEL NUMBER LABEL
Price
$12.90
1411
KICKBACK HAZARD LABEL
Price
$2.90
1412
Nameplate - Large
Price
N/A
1413
GRIZZLY.COM LABEL 13",GREEN
Price
N/A
1414
N/S GRIZZLY GREEN G1023S
Price
N/A
1415
AMPUTATION DANGER LABEL
Price
$6.30
1416
PREWIRED 220V TAG
Price
$6.40
1417
BLADE ELEVATION LABEL
Price
$5.55
1418
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0820 MFD-12.16 V1.02.17
Price
$45.00
