Parts for G0821 - 6" x 30" Benchtop Jointer with Spiral Cutterhead

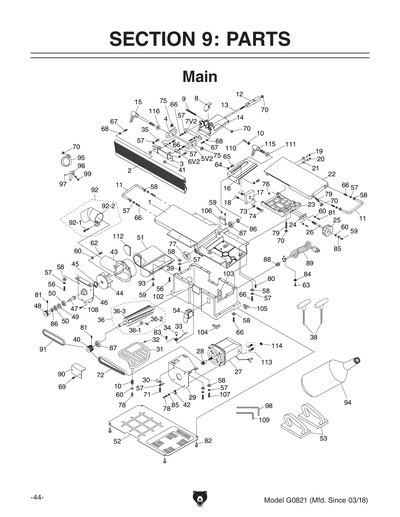

Part Diagram for G0821
Part Diagram for G0821
Part Diagram for G0821
Part Diagram for G0821
Part Diagram for G0821
Part Diagram for G0821

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

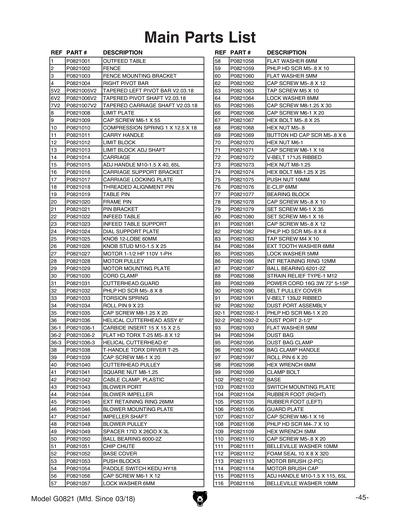

Ref #
Part #
Description
1
OUTFEED TABLE
Price
$170.30
2
FENCE
Price
$52.25
3
FENCE MOUNTING BRACKET
Price
$8.80
4
RIGHT PIVOT BAR
Price
$2.75
5
LEFT PIVOT BAR V1
Item is no longer available
Price
N/A
5V2
TAPERED LEFT PIVOT BAR V2.03.18
Price
$16.65
6
PIVOT SHAFT V1
Item is no longer available
Price
N/A
6V2
TAPERED PIVOT SHAFT V2.03.18
Price
$7.25
7
CARRIAGE SHAFT V1
Item is no longer available
Price
N/A
7V2
TAPERED CARRIAGE SHAFT V2.03.18
Price
$6.40
8
LIMIT PLATE
Price
$1.60
9
CAP SCREW M6-1 X 55
Price
N/A
10
COMPRESSION SPRING 1 X 12.5 X 18
Price
$11.85
11
CARRY HANDLE
Price
$10.00
12
LIMIT BLOCK
Price
$8.50
13
LIMIT BLOCK ADJ SHAFT
Price
$3.30
14
CARRIAGE
Price
$35.65
15
ADJ HANDLE M10-1.5 X 40, 65L
Price
$9.40
16
CARRIAGE SUPPORT BRACKET
Price
$69.15
17
CARRIAGE LOCKING PLATE
Price
$8.20
18
THREADED ALIGNMENT PIN
Price
$1.60
19
TABLE PIN
Price
$2.45
20
FRAME PIN
Price
$3.05
21
PIN BRACKET
Price
$4.85
22
INFEED TABLE
Price
$92.80
23
INFEED TABLE SUPPORT
Price
$41.05
24
DIAL SUPPORT PLATE
Item is no longer available
Price
N/A
25
KNOB 12-LOBE 60MM
Price
$2.20
26
KNOB STUD M10-1.5 X 25
Price
$1.85
27
MOTOR 1-1/2 HP 110V 1-PH
Price
$80.95
28
MOTOR PULLEY
Price
$3.05
29
MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
30
CORD CLAMP
Item is no longer available
Price
N/A
31
CUTTERHEAD GUARD
Price
$17.95
32
PHLP HD SCR M5-.8 X 8
Price
N/A
33
TORSION SPRING
Price
$1.60
34
ROLL PIN 9 X 23
Item is no longer available
Price
N/A
35
CAP SCREW M8-1.25 X 20
Price
N/A
36
HELICAL CUTTERHEAD ASSY 6"
Price
$625.60
36-1
***USE T24736***
Price
$18.40
36-2
FLAT HD TORX T-25 M5-.8 X 12
Price
$1.60
36-3
HELICAL CUTTERHEAD 6"
Item is no longer available
Price
N/A
37
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
38
T-HANDLE TORX DRIVER T-25
Price
$5.20
39
CAP SCREW M6-1 X 20
Price
N/A
40
CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
41
SQUARE NUT M8-1.25
Price
N/A
42
CABLE CLAMP, PLASTIC
Item is no longer available
Price
N/A
43
CHIP EXHAUST
Price
N/A
44
BLOWER IMPELLER
Item is no longer available
Price
N/A
45
EXT RETAINING RING 26MM
Price
N/A
46
BLOWER MOUNTING PLATE
Item is no longer available
Price
N/A
47
IMPELLER SHAFT
Item is no longer available
Price
N/A
48
BLOWER PULLEY
Item is no longer available
Price
N/A
49
SPACER 17ID X 26OD X 3L
Item is no longer available
Price
N/A
50
BALL BEARING 6000-2Z
Item is no longer available
Price
N/A
51
CHIP CHUTE
Item is no longer available
Price
N/A
52
BASE COVER
Item is no longer available
Price
N/A
53
PUSH BLOCKS
Item is no longer available
Price
N/A
54
PADDLE SWITCH KEDU HY18
Item is no longer available
Price
N/A
55
DUST PORT 2-1/2"
Item is no longer available
Price
N/A
56
CAP SCREW M6-1 X 12
Price
N/A
57
LOCK WASHER 6MM
Price
N/A
58
FLAT WASHER 6MM
Price
N/A
59
PHLP HD SCR M5-.8 X 10
Price
N/A
60
FLAT WASHER 5MM
Price
N/A
61
FLAT WASHER 5MM
Price
N/A
62
CAP SCREW M5-.8 X 12
Price
N/A
63
TAP SCREW M5 X 10
Price
N/A
64
LOCK WASHER 8MM
Price
N/A
65
CAP SCREW M8-1.25 X 30
Price
N/A
66
CAP SCREW M6-1 X 20
Price
N/A
67
HEX BOLT M5-.8 X 25
Price
N/A
68
HEX NUT M5-.8
Price
N/A
69
BUTTON HD CAP SCR M5-.8 X 6
Price
N/A
70
HEX NUT M6-1
Price
N/A
71
CAP SCREW M6-1 X 16
Price
N/A
72
V-BELT 171J5 RIBBED
Price
$10.65
73
HEX NUT M8-1.25
Price
N/A
74
HEX BOLT M8-1.25 X 25
Price
N/A
75
PUSH NUT 10MM
Price
$1.60
76
E-CLIP 6MM
Price
N/A
77
BEARING BLOCK
Item is no longer available
Price
N/A
78
CAP SCREW M5-.8 X 10
Price
N/A
79
SET SCREW M6-1 X 35
Price
N/A
80
SET SCREW M6-1 X 16
Price
N/A
81
CAP SCREW M5-.8 X 12
Price
N/A
82
PHLP HD SCR M5-.8 X 8
Price
N/A
83
TAP SCREW M4 X 10
Price
N/A
84
EXT TOOTH WASHER 6MM
Price
N/A
85
LOCK WASHER 5MM
Price
N/A
86
INT RETAINING RING 12MM
Price
N/A
87
BALL BEARING 6201ZZ
Price
N/A
88
STRAIN RELIEF TYPE-1 M12
Item is no longer available
Price
N/A
89
POWER CORD 16G 3W 72" 5-15P
Item is no longer available
Price
N/A
90
FLAT WASHER 6MM
Price
N/A
91
V-BELT 139J2 (RIBBED)
Price
$5.15
92
CAP SCREW M6-1 X 16
Price
N/A
92-1
PHLP HD SCR M6-1 X 20
Price
N/A
92-2
DUST PORT 2-1/2"
Price
$3.95
93
FLAT WASHER 5MM
Price
N/A
94
DUST BAG
Price
$31.75
95
DUST BAG CLAMP
Price
$2.20
96
BAG CLAMP HANDLE
Price
$1.60
97
ROLL PIN 6 X 20
Price
N/A
98
HEX WRENCH 6MM
Price
N/A
99
CLAMP BOLT
Price
$1.60
100
PHLP HD SCR M5-.8 X 6
Price
N/A
101
BELT PULLEY COVER
Item is no longer available
Price
N/A
102
BASE
Item is no longer available
Price
N/A
103
SWITCH MOUNTING PLATE
Item is no longer available
Price
N/A
104
RUBBER FOOT (RIGHT)
Price
$3.05
105
RUBBER FOOT (LEFT)
Price
$3.05
106
GUARD PLATE
Item is no longer available
Price
N/A
107
CAP SCREW M6-1 X 16
Price
N/A
108
PHLP HD SCR M4-.7 X 10
Price
N/A
109
HEX WRENCH 5MM
Price
N/A
110
CAP SCREW M5-.8 X 20
Price
N/A
111
BELLEVILLE WASHER 10MM
Price
$1.60
112
FOAM SEAL 10 X 8 X 320
Item is no longer available
Price
N/A
113
MOTOR BRUSH (2-PC)
Price
$2.75
114
MOTOR BRUSH CAP
Price
$1.60
115
ADJ HANDLE M8-1.5 X 115, 65L
Price
$9.40
116
BELLEVILLE WASHER 10MM
Price
$1.60

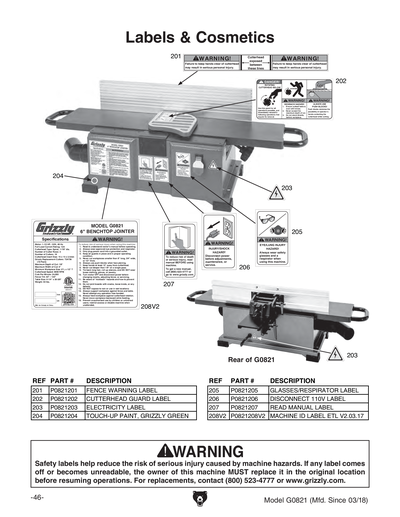

201
FENCE WARNING LABEL
Item is no longer available
Price
N/A
202
CUTTERHEAD GUARD LABEL
Item is no longer available
Price
N/A
203
ELECTRICITY 0.7W X 0.6H
Price
N/A
204
N/S GRIZZLY GREEN G1023S
Price
N/A
205
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
206
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
207
READ MANUAL 1.5W X 2.5H
Price
N/A
208
MACHINE ID LABEL
Item is no longer available
Price
N/A
MAN
MANUAL G0821 MFD-11.16 V1.01.17
Price
$22.75
