Parts for G0825 Portable Edgebander with Case and Kit

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

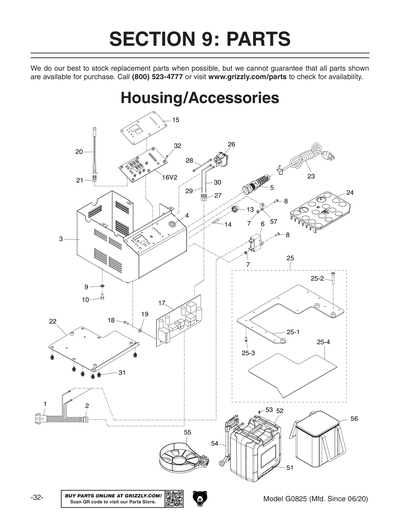

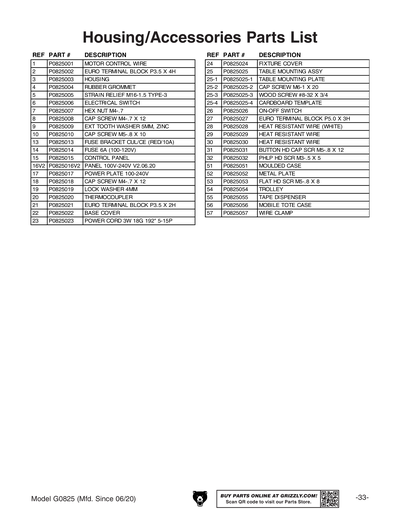

1
MOTOR CONTROL WIRE
2
EURO TERMINAL BLOCK P3.5 X 4H
3
HOUSING
4
RUBBER GROMMET
5
STRAIN RELIEF M16-1.5 TYPE-3
6
ELECTRICAL SWITCH
7
Now: PN04M
HEX NUT M4-.7
Price
N/A
8
CAP SCREW M4-.7 X 12
Price
N/A
9
EXT TOOTH WASHER 5MM, ZINC
10
CAP SCREW M5-.8 X 10
Price
N/A
13
FUSE BRACKET CUL/CE (RED/10A)
14
FUSE 6A (100-120V)
15
CONTROL PANEL
16
PANEL 100V-240V V2.06.20
Price
N/A
16V2
PANEL 100V-240V V2.06.20
17
POWER PLATE 100-240V
18
CAP SCREW M4-.7 X 12
Price
N/A
19
LOCK WASHER 4MM
Price
N/A
20
THERMOCOUPLER
21
EURO TERMINAL BLOCK P3.5 X 2H
22
BASE COVER
23
POWER CORD 3W 18G 192" 5-15P
24
FIXTURE COVER
25
TABLE MOUNTING ASSY
25-1
TABLE MOUNTING PLATE
25-2
CAP SCREW M6-1 X 20
Price
N/A
25-3
WOOD SCREW #8-32 X 3/4
25-4
CARDBOARD TEMPLATE
26
ON-OFF SWITCH
27
EURO TERMINAL BLOCK P5.0 X 3H
28
HEAT RESISTANT WIRE (WHITE)
29
HEAT RESISTANT WIRE
30
HEAT RESISTANT WIRE
31
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
32
Now: PS49M
PHLP HD SCR M3-.5 X 5
Price
N/A
51
MOULDED CASE
52
METAL PLATE
53
FLAT HD SCR M5-.8 X 8
Price
N/A
54
TROLLEY
55
TAPE DISPENSER
56
MOBILE TOTE CASE
57
WIRE CLAMP
58
LATCH (BABY BLUE)

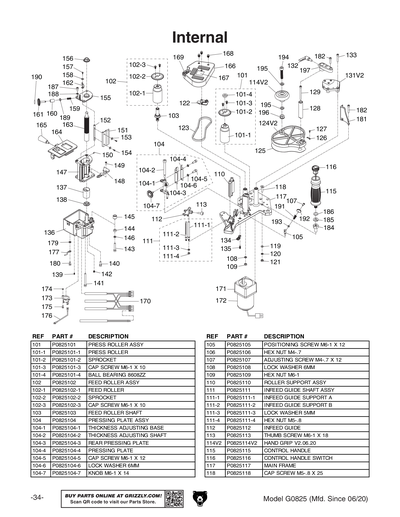

101
PRESS ROLLER ASSY
101-1
PRESS ROLLER
101-2
SPROCKET
Price
N/A
101-3
CAP SCREW M6-1 X 10
Price
N/A
101-4
BALL BEARING 8608ZZ
102
FEED ROLLER ASSY
102-1
FEED ROLLER
102-2
SPROCKET
102-3
CAP SCREW M6-1 X 10
Price
N/A
103
FEED ROLLER SHAFT
104
PRESSING PLATE ASSY
104-1
THICKNESS ADJUSTING BASE
104-2
THICKNESS ADJUSTING SHAFT
104-3
REAR PRESSING PLATE
104-4
PRESSING PLATE
104-5
CAP SCREW M6-1 X 12
Price
N/A
104-6
LOCK WASHER 6MM
Price
N/A
104-7
KNOB M6-1 X 14
105
POSITIONING SCREW M6-1 X 12
106
Now: PN04M
HEX NUT M4-.7
Price
N/A
107
ADJUSTING SCREW M4-.7 X 12
108
LOCK WASHER 6MM
Price
N/A
109
Now: PN01M
HEX NUT M6-1
Price
N/A
110
ROLLER SUPPORT ASSY
111
INFEED GUIDE SHAFT ASSY
111-1
INFEED GUIDE SUPPORT A
111-2
INFEED GUIDE SUPPORT B
111-3
LOCK WASHER 5MM
Price
N/A
111-4
Now: PN06M
HEX NUT M5-.8
Price
N/A
112
INFEED GUIDE
113
THUMB SCREW M6-1 X 18
114
HAND GRIP V1
114V2
HAND GRIP V2.06.20
115
CONTROL HANDLE
116
CONTROL HANDLE SWITCH
117
MAIN FRAME
118
CAP SCREW M5-.8 X 25
Price
N/A

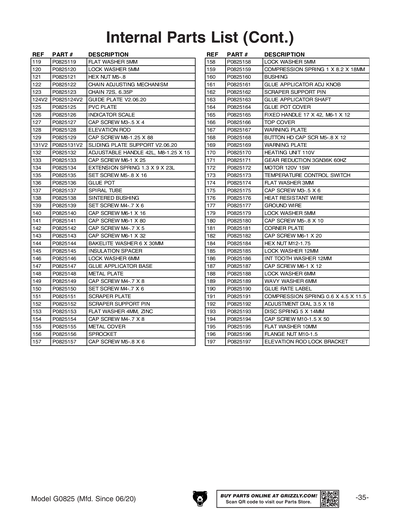

119
Now: PW02M
FLAT WASHER 5MM
Price
N/A
120
LOCK WASHER 5MM
Price
N/A
121
Now: PN06M
HEX NUT M5-.8
Price
N/A
122
CHAIN ADJUSTING MECHANISM
123
CHAIN 72S, 6.35P
124
GUIDE PLATE V1
124V2
GUIDE PLATE V2.06.20
125
PVC PLATE
126
INDICATOR SCALE
127
CAP SCREW M3-.5 X 4
128
ELEVATION ROD
129
CAP SCREW M8-1.25 X 88
130
SLIDE
131
SLIDING PLATE SUPPORT V1
131V2
SLIDING PLATE SUPPORT V2.06.20
132
ADJUSTABLE HANDLE 42L, M8-1.25 X 15
133
CAP SCREW M6-1 X 25
Price
N/A
134
EXTENSION SPRING 1.3 X 9 X 23L
135
SET SCREW M5-.8 X 16
Price
N/A
136
GLUE POT
137
SPIRAL TUBE
138
SINTERED BUSHING
139
SET SCREW M4-.7 X 6
Price
N/A
140
CAP SCREW M6-1 X 16
Price
N/A
141
CAP SCREW M6-1 X 80
Price
N/A
142
CAP SCREW M8-1.25 X 16 SS
Price
N/A
143
CAP SCREW M6-1 X 32
144
BAKELITE WASHER 6 X 30MM
145
INSULATION SPACER
146
LOCK WASHER 6MM
Price
N/A
147
GLUE APPLICATOR BASE
148
METAL PLATE
149
CAP SCREW M4-.7 X 8
Price
N/A
150
SET SCREW M4-.7 X 6
Price
N/A
151
SCRAPER PLATE
152
SCRAPER SUPPORT PIN
153
FLAT WASHER 4MM, ZINC
154
CAP SCREW M4-.7 X 8
Price
N/A
155
METAL COVER
156
SPROCKET
157
CAP SCREW M5-.8 X 6
Price
N/A
158
LOCK WASHER 5MM
Price
N/A
159
COMPRESSION SPRING 1 X 8.2 X 18MM
160
BUSHING
161
GLUE APPLICATOR ADJ KNOB
162
SCRAPER SUPPORT PIN
163
GLUE APPLICATOR SHAFT
164
GLUE POT COVER
165
FIXED HANDLE 17 X 42, M6-1 X 12
166
TOP COVER
167
WARNING PLATE
168
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
169
WARNING PLATE
170
HEATING UNIT 110V
171
GEAR REDUCTION 3GN36K 60HZ
172
MOTOR 120V 15W
173
TEMPERATURE CONTROL SWITCH
174
Now: PW07M
FLAT WASHER 3MM
Price
N/A
175
CAP SCREW M3-.5 X 6
Price
N/A
176
HEAT RESISTANT WIRE
177
GROUND WIRE
179
LOCK WASHER 5MM
Price
N/A
180
CAP SCREW M5-.8 X 10
Price
N/A
181
CORNER PLATE
182
CAP SCREW M6-1 X 20
Price
N/A
183
FLAT HD SCR M6-1 X 16
Price
N/A
184
Now: PN09M
HEX NUT M12-1.75
Price
N/A
185
LOCK WASHER 12MM
Price
N/A
186
INT TOOTH WASHER 12MM
Price
N/A
187
CAP SCREW M6-1 X 12
Price
N/A
188
LOCK WASHER 6MM
Price
N/A
189
WAVY WASHER 6MM
190
GLUE RATE LABEL
191
COMPRESSION SPRING 0.6 X 4.5 X 11.5
192
ADJUSTMENT DIAL 3.5 X 18
193
DISC SPRING 5 X 14MM
194
CAP SCREW M10-1.5 X 50
Price
N/A
195
Now: PW04M
FLAT WASHER 10MM
Price
N/A
196
FLANGE NUT M10-1.5
Price
N/A
197
ELEVATION ROD LOCK BRACKET

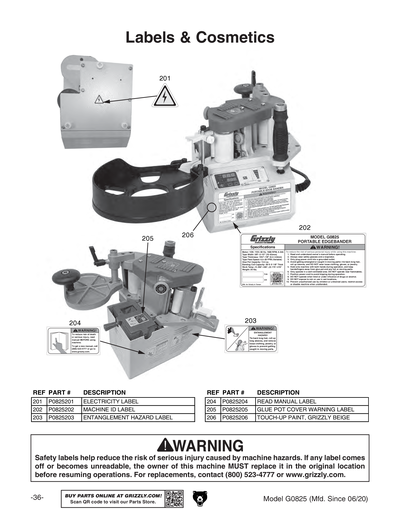

201
ELECTRICITY 1.4W X 1.2H
Price
N/A
202
MACHINE ID LABEL
203
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
204
READ MANUAL 2.8W X 1.5H
Price
N/A
205
GLUE POT COVER WARNING LABEL
206
BEIGE REF G0555
Price
N/A
MAN
MANUAL G0825 MFD-01.17-05.20 V1.08.17
MANV2
MANUAL G0825 MFD-06.20+ V2.06.20
