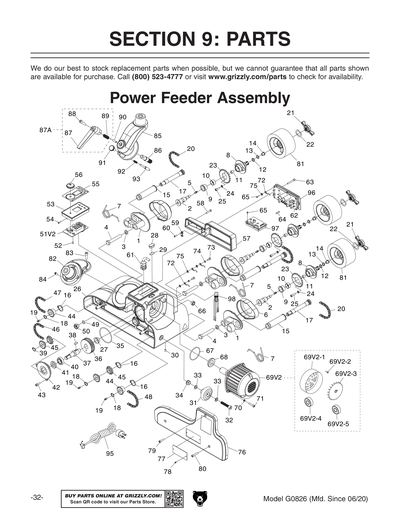

Parts for G0826 - 2/3 HP Variable-Speed Brushless Motor Power Feeder

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

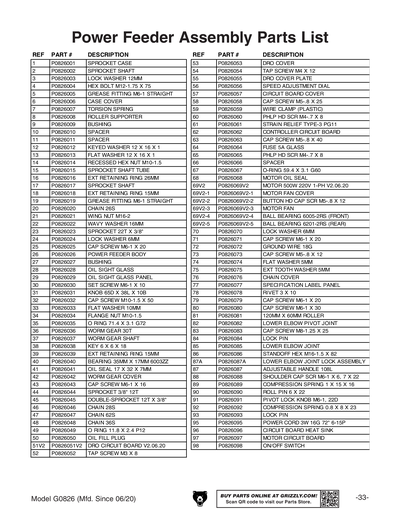

Ref # Part # Description Price Qty
1 P0826001 SPROCKET CASE $7.00
2 P0826002 SPROCKET SHAFT $8.75
3 P0826003
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
4 P0826004
Replaced By PB43M
HEX BOLT M12-1.75 X 75
N/A View Replacement
5 P0826005 GREASE FITTING M6-1 STRAIGHT $1.00
6 P0826006 CASE COVER $2.00
7 P0826007 TORSION SPRING $2.00
8 P0826008 ROLLER SUPPORTER $10.25
9 P0826009 BUSHING $2.00
10 P0826010 SPACER $1.25
11 P0826011 SPACER $1.00
12 P0826012 KEYED WASHER 12 X 16 X 1 $1.00
13 P0826013 FLAT WASHER 12 X 16 X 1 $1.00
14 P0826014 RECESSED HEX NUT M10-1.5 $2.25
15 P0826015 SPROCKET SHAFT TUBE $20.75
16 P0826016
Replaced By PR17M
EXT RETAINING RING 26MM
N/A View Replacement
17 P0826017 SPROCKET SHAFT $21.50
18 P0826018
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
19 P0826019
Replaced By P0826005
GREASE FITTING M6-1 STRAIGHT
N/A View Replacement
20 P0826020 CHAIN 26S $3.50
21 P0826021 WING NUT M16-2 $3.00
22 P0826022 WAVY WASHER 16MM $1.00
23 P0826023 SPROCKET 22T X 3/8" $7.00
24 P0826024
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
25 P0826025
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
26 P0826026 POWER FEEDER BODY $195.00
27 P0826027 BUSHING $1.00
28 P0826028 OIL SIGHT GLASS $1.00
29 P0826029 OIL SIGHT GLASS PANEL $1.00
30 P0826030
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
31 P0826031 KNOB 65D X 38L X 10B $2.25
32 P0826032
Replaced By PCAP143M
CAP SCREW M10-1.5 X 50
N/A View Replacement
33 P0826033
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
34 P0826034
Replaced By PFN03M
FLANGE NUT M10-1.5
N/A View Replacement
35 P0826035 O RING 71.4 X 3.1 G72 $1.00
36 P0826036 WORM GEAR 30T $38.00
37 P0826037 WORM GEAR SHAFT $14.75
38 P0826038
Replaced By PK147M
KEY 6 X 6 X 18
N/A View Replacement
39 P0826039
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
40 P0826040
Replaced By G3850
Bearing - 35mm x 17mm
N/A View Replacement
41 P0826041 OIL SEAL 17 X 32 X 7MM $1.25
42 P0826042 WORM GEAR COVER $4.25
43 P0826043
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
44 P0826044 SPROCKET 3/8" 12T $5.25
45 P0826045 DOUBLE-SPROCKET 12T X 3/8" $4.00
46 P0826046 CHAIN 28S $2.50
47 P0826047 CHAIN 62S $9.75
48 P0826048 CHAIN 36S $4.00
49 P0826049 O RING 11.8 X 2.4 P12 $1.00
50 P0826050 OIL FILL PLUG $1.00
51 P0826051 DRO CIRCUIT BOARD V1 $62.00
51V2 P0826051V2 DRO CIRCUIT BOARD V2.06.20 $66.50
52 P0826052
Replaced By PHTEK11M
TAP SCREW M3 X 8
N/A View Replacement
53 P0826053 DRO COVER $2.00
54 P0826054
Replaced By PHTEK39M
TAP SCREW M4 X 12
N/A View Replacement
55 P0826055 DRO COVER PLATE $2.75
56 P0826056 SPEED ADJUSTMENT DIAL $1.25
57 P0826057 CIRCUIT BOARD COVER $3.50
58 P0826058
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
59 P0826059 WIRE CLAMP (PLASTIC) $1.00
60 P0826060
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
61 P0826061 STRAIN RELIEF TYPE-3 PG11 $2.50
62 P0826062 CONTROLLER CIRCUIT BOARD $170.25
63 P0826063
Replaced By PCAP78M
CAP SCREW M5-.8 X 40
N/A View Replacement
64 P0826064 FUSE 5A GLASS $1.00
65 P0826065
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
66 P0826066 SPACER $1.00
67 P0826067 O-RING 59.4 X 3.1 G60 $1.00
68 P0826068 MOTOR OIL SEAL $1.25
69 P0826069 MOTOR 400W 220V V1 $323.75
69-1 P0826069-1 MOTOR FAN COVER $12.75
69-2 P0826069-2
Replaced By PBHS06M
BUTTON HD CAP SCR M5-.8 X 12
N/A View Replacement
69-3 P0826069-3 MOTOR FAN $2.50
69-4 P0826069-4 ***USE P6005-2RS*** $17.25
69-5 P0826069-5 ***USE P6201-2RS*** $10.00
69V2 P0826069V2 MOTOR 500W 220V 1-PH V2.06.20 $355.50
69V2-1 P0826069V2-1 MOTOR FAN COVER $12.75
69V2-2 P0826069V2-2
Replaced By PBHS06M
BUTTON HD CAP SCR M5-.8 X 12
N/A View Replacement
69V2-3 P0826069V2-3 MOTOR FAN $2.75
69V2-4 P0826069V2-4
Replaced By P6005-2RS
BALL BEARING 6005-2RS
N/A View Replacement
69V2-5 P0826069V2-5
Replaced By P6201-2RS
BALL BEARING 6201-2RS
N/A View Replacement
70 P0826070
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
71 P0826071
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
72 P0826072 GROUND WIRE 18G $1.00
73 P0826073
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
74 P0826074
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
75 P0826075
Replaced By PTLW02M
EXT TOOTH WASHER 5MM
N/A View Replacement
76 P0826076 CHAIN COVER $7.50
77 P0826077 SPECIFICATION LABEL PANEL $1.25
78 P0826078 RIVET 3 X 10 $1.00
79 P0826079
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
80 P0826080
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
81 P0826081
Replaced By T28095
120mm x 60mm Replacement Roller for G0826
N/A View Replacement
82 P0826082 LOWER ELBOW PIVOT JOINT $44.25
83 P0826083
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
84 P0826084 LOCK PIN $1.00
85 P0826085 LOWER ELBOW JOINT $65.75
86 P0826086 STANDOFF HEX M16-1.5 X 82 $3.00
87 P0826087 ***USE P0826087A*** $16.25
87A P0826087A LOWER ELBOW JOINT LOCK ASSEMBLY $17.25
88 P0826088 ***USE P0826087A*** $1.00
89 P0826089 ***USE P0826087A*** $2.00
90 P0826090
Replaced By PRP71M
ROLL PIN 6 X 22
N/A View Replacement
91 P0826091 PIVOT LOCK KNOB M6-1, 22D $1.25
92 P0826092 COMPRESSION SPRING 0.8 X 8 X 23 $1.00
93 P0826093 LOCK PIN $3.00
95 P0826095 POWER CORD 3W 16G 72" 6-15P $17.75
96 P0826096 CIRCUIT BOARD HEAT SINK $15.00
97 P0826097 MOTOR CIRCUIT BOARD $170.25
98 P0826098 ON/OFF SWITCH $50.50

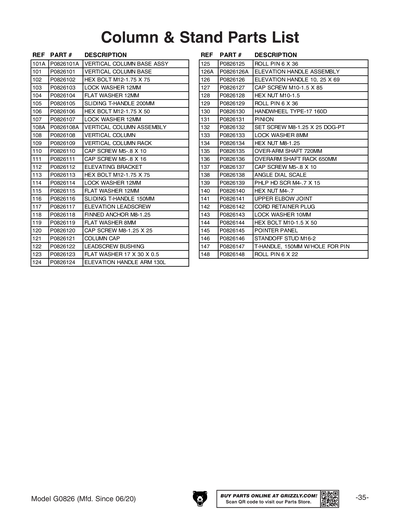

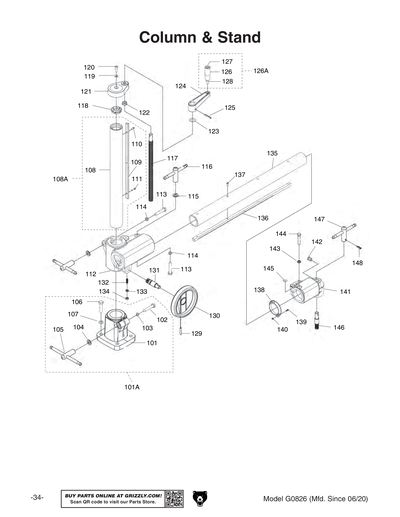

101 P0826101 VERTICAL COLUMN BASE $106.25
101A P0826101A VERTICAL COLUMN BASE ASSY $130.00
102 P0826102
Replaced By PB43M
HEX BOLT M12-1.75 X 75
N/A View Replacement
103 P0826103
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
104 P0826104
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
105 P0826105 SLIDING T-HANDLE 200MM $20.50
106 P0826106
Replaced By PB33M
HEX BOLT M12-1.75 X 50
N/A View Replacement
107 P0826107
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
108 P0826108 VERTICAL COLUMN $61.50
108A P0826108A VERTICAL COLUMN ASSEMBLY $61.50
109 P0826109 VERTICAL COLUMN RACK $3.00
110 P0826110
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
111 P0826111
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
112 P0826112 ELEVATING BRACKET $263.00
113 P0826113
Replaced By PB43M
HEX BOLT M12-1.75 X 75
N/A View Replacement
114 P0826114
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
115 P0826115
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
116 P0826116 SLIDING T-HANDLE 150MM $19.25
117 P0826117 ELEVATION LEADSCREW $11.00
118 P0826118 FINNED ANCHOR M8-1.25 $1.00
119 P0826119
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
120 P0826120
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
121 P0826121 COLUMN CAP $7.50
122 P0826122 LEADSCREW BUSHING $1.00
123 P0826123 FLAT WASHER 17 X 30 X 0.5 $1.50
124 P0826124 ELEVATION HANDLE ARM 130L $15.00
125 P0826125
Replaced By PRP31M
ROLL PIN 6 X 36
N/A View Replacement
126 P0826126 ***USE P0826126A*** $2.75
126A P0826126A ELEVATION HANDLE ASSEMBLY $2.75
127 P0826127
Replaced By PCAP221M
CAP SCREW M10-1.5 X 85
N/A View Replacement
128 P0826128
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
129 P0826129
Replaced By PRP31M
ROLL PIN 6 X 36
N/A View Replacement
130 P0826130 HANDWHEEL TYPE-17 160D $13.25
131 P0826131 PINION $6.00
132 P0826132
Replaced By PSS21M
SET SCREW M8-1.25 X 25
N/A View Replacement
133 P0826133
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
134 P0826134
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
135 P0826135 OVER-ARM SHAFT 720MM $114.00
136 P0826136 OVERARM SHAFT RACK 650MM $8.25
137 P0826137
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
138 P0826138 ANGLE DIAL SCALE $1.00
139 P0826139
Replaced By PS21M
PHLP HD SCR M4-.7 X 15
N/A View Replacement
140 P0826140
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
141 P0826141 UPPER ELBOW JOINT $69.50
142 P0826142 CORD RETAINER PLUG $1.00
143 P0826143
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
144 P0826144
Replaced By PB73M
HEX BOLT M10-1.5 X 50
N/A View Replacement
145 P0826145 POINTER PANEL $1.00
146 P0826146 STANDOFF STUD M16-2 $5.75
147 P0826147 T-HANDLE, 150MM W/HOLE FOR PIN $19.25
148 P0826148
Replaced By PRP71M
ROLL PIN 6 X 22
N/A View Replacement

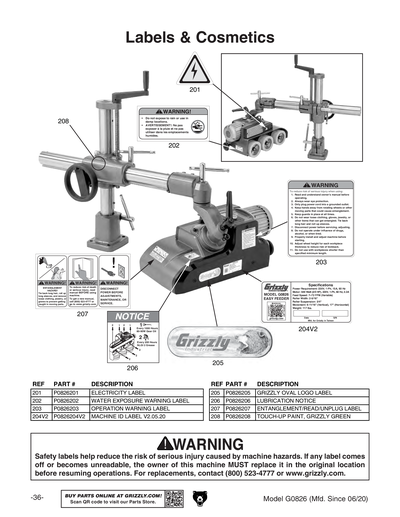

201 P0826201
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
202 P0826202 WATER EXPOSURE WARNING LABEL $1.00
203 P0826203 OPERATION WARNING LABEL $1.50
204 P0826204 MACHINE ID LABEL V1 $9.50
204V2 P0826204V2 MACHINE ID LABEL V2.06.20 $9.50
205 P0826205
Replaced By PLABEL-80
GRIZZLY LABEL OVAL PLASTIC 3 9/16 X 1
N/A View Replacement
206 P0826206 LUBRICATION NOTICE $1.25
207 P0826207 ENTANGLEMENT/READ/UNPLUG LABEL $1.00
208 P0826208
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
MAN P0826MAN MANUAL G0826 MFD-11.16-5.20 V1.09.17 $10.50
MANV2 P0826MANV2 MANUAL G0826 MFD-6.20+ V2.05.20 $17.75
