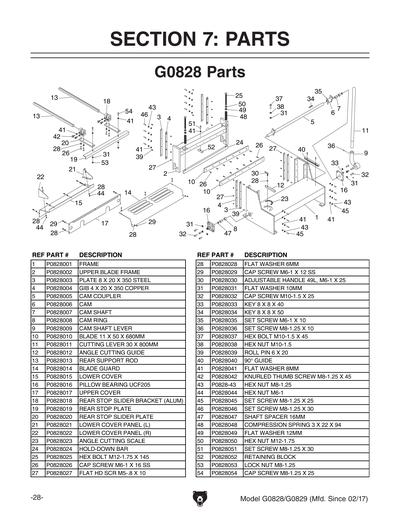

Parts for G0828 - 25" Benchtop Metal Shear

Part Diagram for G0828
Part Diagram for G0828
Part Diagram for G0828
Part Diagram for G0828

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
-43
HEX NUT M8-1.25
Price
N/A
1
FRAME
Price
$733.15
2
UPPER BLADE FRAME
Price
$409.70
3
PLATE 8 X 20 X 350 STEEL
Price
$38.85
4
GIB 4 X 20 X 350 COPPER
Price
$21.60
5
CAM COUPLER
Price
$103.50
6
CAM SHAFT W/ CAM
Price
N/A
7
CAM SHAFT W/ CAM
Price
$62.45
8
CAM RING
Price
$8.95
9
CAM SHAFT LEVER
Price
$75.85
10
BLADE 11 X 50 X 680MM
Price
$303.35
11
CUTTING LEVER 30 X 800MM
Price
$89.15
12
ANGLE CUTTING GUIDE
Price
$25.90
13
REAR SUPPORT ROD
Price
$66.90
13-1
REAR SUPPORT ROD SCALE
Price
$13.40
13-2
RIVET 2 X 4MM
Price
$1.90
14
BLADE GUARD
Price
$66.90
15
LOWER COVER
Price
$66.90
16
MOUNTED BEARING UCF205
Price
N/A
17
UPPER COVER
Price
$66.90
18
REAR STOP SLIDER BRACKET (ALUM)
Price
$21.60
19
REAR STOP PLATE
Price
$21.60
20
REAR STOP SLIDER PLATE
Price
$17.25
21
LOWER COVER LEFT PANEL
Price
$17.25
22
LOWER COVER RIGHT PANEL
Price
$17.25
23
ANGLE CUTTING SCALE
Price
$6.50
24
HOLD-DOWN BAR
Price
$34.50
25
HEX BOLT M12-1.75 X 145
Price
N/A
26
CAP SCREW M6-1 X 16 SS
Price
$1.90
27
FLAT HD SCR M5-.8 X 10
Price
N/A
28
FLAT WASHER 6MM
Price
N/A
29
CAP SCREW M6-1 X 12 SS
Price
N/A
30
ADJUSTABLE HANDLE 49L, M6-1 X 25
Price
$12.95
31
FLAT WASHER 10MM
Price
N/A
32
CAP SCREW M10-1.5 X 25
Price
N/A
33
KEY 8 X 8 X 40
Price
N/A
34
KEY 8 X 8 X 50
Price
N/A
35
SET SCREW M6-1 X 10
Price
N/A
36
SET SCREW M8-1.25 X 10
Price
N/A
37
HEX BOLT M10-1.5 X 45
Price
N/A
38
HEX NUT M10-1.5
Price
N/A
39
ROLL PIN 6 X 20
Price
N/A
40
90 DEGREE GUIDE
Price
$25.90
41
FLAT WASHER 8MM
Price
N/A
42
KNURLED THUMB SCREW M8-1.25 X 45
Price
$8.65
44
HEX NUT M6-1
Price
N/A
45
SET SCREW M8-1.25 X 25
Price
N/A
46
SET SCREW M8-1.25 X 30
Price
N/A
47
EXT RETAINING RING 16MM
Price
N/A
48
COMPRESSION SPRING 3 X 22 X 94
Price
$4.35
49
FLAT WASHER 12MM
Price
N/A
50
HEX NUT M12-1.75
Price
N/A
51
SET SCREW M8-1.25 X 30
Price
N/A
52
RETAINING BLOCK
Price
$8.65
53
LOCK NUT M8-1.25
Price
N/A
54
CAP SCREW M8-1.25 X 25
Price
N/A

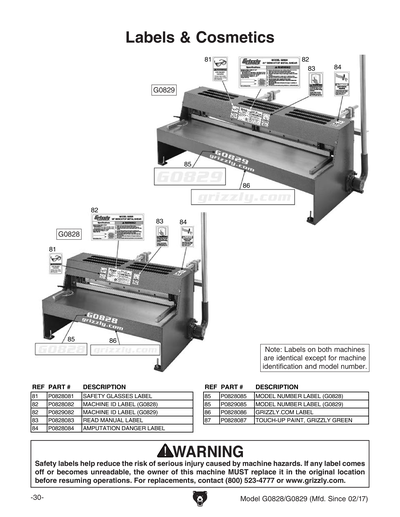

81
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
82
MACHINE ID LABEL (G0828)
Price
$16.40
83
READ MANUAL 1.5W X 2.5H
Price
N/A
84
SHEAR AMPUTATION 1.5W X 2.5H
Price
N/A
85
MODEL NUMBER LABEL (G0828)
Price
$7.50
86
GRIZZLY.COM LABEL 9",GRAY
Price
N/A
87
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0828/G0829 MFD-02.17 V1.05.17
Price
$16.75
P
HEX BOLT M12-1.75 X 145
Price
$12.95
P
CAP SCREW M6-1 X 12 SS
Price
$2.60
