Parts for G0834 - 12" x 84" Jointer w/ Spiral Cutterhead

Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834
Part Diagram for G0834

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

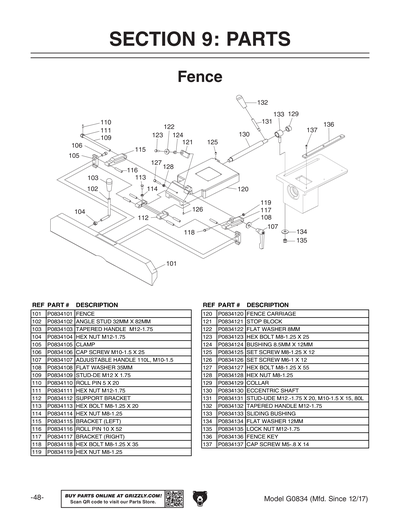

101
FENCE
Price
$329.20
102
ANGLE STUD 32MM X 82MM
Price
$3.25
103
TAPERED HANDLE M12-1.75
Price
$1.90
104
HEX NUT M12-1.75
Price
N/A
105
CLAMP
Price
$23.00
106
CAP SCREW M10-1.5 X 25
Price
N/A
107
ADJUSTABLE HANDLE 110L, M10-1.5
Price
$9.00
108
FLAT WASHER 35MM
Price
N/A
109
STUD-DE M12 X 1.75
Price
$3.25
110
ROLL PIN 5 X 20
Price
N/A
111
HEX NUT M12-1.75
Price
N/A
112
SUPPORT BRACKET
Price
$10.85
113
HEX BOLT M8-1.25 X 20
Price
N/A
114
HEX NUT M8-1.25
Price
N/A
115
BRACKET (LEFT)
Price
$4.70
116
ROLL PIN 10 X 52
Price
$1.90
117
BRACKET (RIGHT)
Price
$4.70
118
HEX BOLT M8-1.25 X 35
Price
N/A
119
HEX NUT M8-1.25
Price
N/A
120
FENCE CARRIAGE
Price
$43.15
121
STOP BLOCK
Price
$5.75
122
FLAT WASHER 8MM
Price
N/A
123
HEX BOLT M8-1.25 X 25
Price
N/A
124
BUSHING 8.5MM X 12MM
Price
$5.75
125
SET SCREW M8-1.25 X 12
Price
N/A
126
SET SCREW M6-1 X 12
Price
N/A
127
HEX BOLT M8-1.25 X 55
Price
N/A
128
HEX NUT M8-1.25
Price
N/A
129
COLLAR
Price
$5.45
130
ECCENTRIC SHAFT
Price
$14.40
131
STUD-UDE M12.-1.75 X 20, M10-1.5 X15, 80
Price
$1.90
132
TAPERED HANDLE M12-1.75
Price
$3.85
133
SLIDING BUSHING
Price
$6.90
134
FLAT WASHER 12MM
Price
N/A
135
LOCK NUT M12-1.75
Price
N/A
136
FENCE KEY
Price
$10.85
137
CAP SCREW M5-.8 X 14
Price
N/A

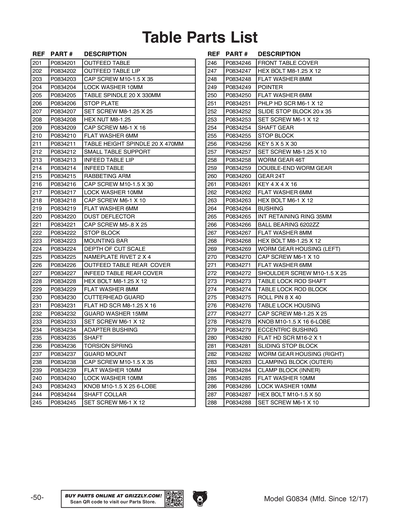

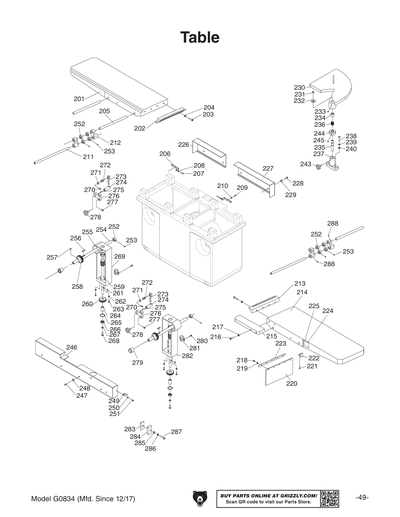

201
OUTFEED TABLE
Price
$605.20
202
OUTFEED TABLE LIP
Price
$28.75
203
CAP SCREW M10-1.5 X 35
Price
N/A
204
LOCK WASHER 10MM
Price
N/A
205
TABLE SPINDLE 20 X 330MM
Price
$16.20
206
STOP PLATE
Price
$1.90
207
SET SCREW M8-1.25 X 25
Price
N/A
208
HEX NUT M8-1.25
Price
N/A
209
CAP SCREW M6-1 X 16
Price
N/A
210
FLAT WASHER 6MM
Price
N/A
211
TABLE HEIGHT SPINDLE 20 X 470MM
Price
$23.75
212
SMALL TABLE SUPPORT
Price
$15.85
213
INFEED TABLE LIP
Price
$30.20
214
INFEED TABLE
Price
$616.40
215
RABBETING ARM
Price
$39.95
216
CAP SCREW M10-1.5 X 30
Price
N/A
217
LOCK WASHER 10MM
Price
N/A
218
CAP SCREW M6-1 X 10
Price
N/A
219
FLAT WASHER 6MM
Price
N/A
220
DUST DEFLECTOR
Price
$9.00
221
CAP SCREW M5-.8 X 25
Price
N/A
222
STOP BLOCK
Price
$5.10
223
MOUNTING BAR
Price
$1.90
224
DEPTH OF CUT SCALE
Price
$1.90
225
NAMEPLATE RIVET 2 X 4
Price
$1.90
226
OUTFEED TABLE REAR COVER
Price
$20.15
227
INFEED TABLE REAR COVER
Price
$20.15
228
HEX BOLT M8-1.25 X 12
Price
N/A
229
FLAT WASHER 8MM
Price
N/A
230
CUTTERHEAD GUARD
Price
$98.15
231
FLAT HD SCR M8-1.25 X 16
Price
N/A
232
GUARD WASHER 15MM
Price
$1.90
233
SET SCREW M6-1 X 12
Price
N/A
234
ADAPTER BUSHING
Price
$1.90
235
SHAFT
Price
$3.25
236
TORSION SPRING
Price
$1.90
237
GUARD MOUNT
Price
$20.15
238
CAP SCREW M10-1.5 X 35
Price
N/A
239
FLAT WASHER 10MM
Price
N/A
240
LOCK WASHER 10MM
Price
N/A
243
KNOB M10-1.5 X 25 6-LOBE
Price
$5.75
244
SHAFT COLLAR
Price
$9.00
245
SET SCREW M6-1 X 12
Price
N/A
246
FRONT TABLE COVER
Price
$42.85
247
HEX BOLT M8-1.25 X 12
Price
N/A
248
FLAT WASHER 8MM
Price
N/A
249
POINTER
Price
$1.90
250
FLAT WASHER 6MM
Price
N/A
251
PHLP HD SCR M6-1 X 12
Price
N/A
252
SLIDE STOP BLOCK 20 x 35
Price
$2.60
253
SET SCREW M6-1 X 12
Price
N/A
254
SHAFT GEAR
Price
$14.75
255
STOP BLOCK
Price
$4.00
256
KEY 5 X 5 X 30
Price
N/A
257
SET SCREW M8-1.25 X 10
Price
N/A
258
WORM GEAR 46T
Price
$17.25
259
DOUBLE-END WORM GEAR
Price
$29.15
260
GEAR 24T
Price
$17.25
261
KEY 4 X 4 X 16
Price
N/A
262
FLAT WASHER 6MM
Price
N/A
263
HEX BOLT M6-1 X 12
Price
N/A
264
BUSHING
Price
$2.90
265
INT RETAINING RING 35MM
Price
N/A
266
BALL BEARING 6202ZZ
Price
N/A
267
FLAT WASHER 8MM
Price
N/A
268
HEX BOLT M8-1.25 X 12
Price
N/A
269
WORM GEAR HOUSING (LEFT)
Price
$87.70
270
CAP SCREW M6-1 X 10
Price
N/A
271
FLAT WASHER 6MM
Price
N/A
272
SHOULDER SCREW M10-1.5 X 25
Price
$10.10
273
TABLE LOCK ROD SHAFT
Price
$15.85
274
TABLE LOCK ROD BLOCK
Price
$16.60
275
ROLL PIN 8 X 40
Price
N/A
276
TABLE LOCK HOUSING
Price
$1.90
277
CAP SCREW M8-1.25 X 25
Price
N/A
278
KNOB M10-1.5 X 16 6-LOBE
Price
$3.65
279
ECCENTRIC BUSHING
Price
$4.35
280
FLAT HD SCR M16-2 X 1
Price
$1.90
281
SLIDING STOP BLOCK
Price
$13.70
282
WORM GEAR HOUSING (RIGHT)
Price
$87.70
283
CLAMPING BLOCK (OUTER)
Price
$9.00
284
CLAMP BLOCK (INNER)
Price
$9.40
285
FLAT WASHER 10MM
Price
N/A
286
LOCK WASHER 10MM
Price
N/A
287
HEX BOLT M10-1.5 X 50
Price
N/A
288
SET SCREW M6-1 X 10
Price
N/A

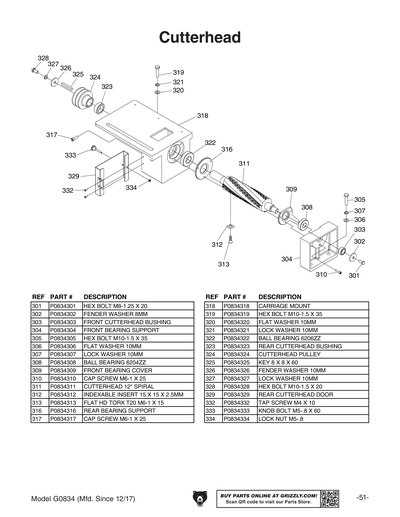

301
HEX BOLT M8-1.25 X 20
Price
N/A
302
FENDER WASHER 8MM
Price
N/A
303
FRONT CUTTERHEAD BUSHING
Price
$5.75
304
FRONT BEARING SUPPORT
Price
$65.45
305
HEX BOLT M10-1.5 X 35
Price
N/A
306
FLAT WASHER 10MM
Price
N/A
307
LOCK WASHER 10MM
Price
N/A
308
BALL BEARING 6204ZZ
Price
N/A
309
FRONT BEARING COVER
Price
$6.50
310
CAP SCREW M6-1 X 25
Price
N/A
311
CUTTERHEAD 12" SPIRAL
Price
$1,451.60
312
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
313
FLAT HD TORX T20 M6-1 X 15
Price
$1.90
316
REAR BEARING SUPPORT
Price
$10.45
317
CAP SCREW M6-1 X 25
Price
N/A
318
CARRIAGE MOUNT
Price
$211.00
319
HEX BOLT M10-1.5 X 35
Price
N/A
320
FLAT WASHER 10MM
Price
N/A
321
LOCK WASHER 10MM
Price
N/A
322
BALL BEARING 6206ZZ
Price
N/A
323
REAR CUTTERHEAD BUSHING
Price
$7.20
324
CUTTERHEAD PULLEY
Price
$14.10
325
KEY 8 X 8 X 60
Price
N/A
326
FENDER WASHER 10MM
Price
N/A
327
LOCK WASHER 10MM
Price
N/A
328
HEX BOLT M10-1.5 X 20
Price
N/A
329
REAR CUTTERHEAD DOOR
Price
$18.40
332
TAP SCREW M4 X 10
Price
N/A
333
KNOB BOLT M5-.8 X 60
Price
$8.35
334
LOCK NUT M5-.8
Price
N/A

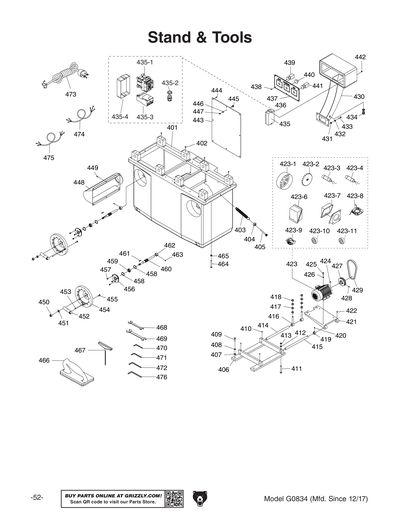

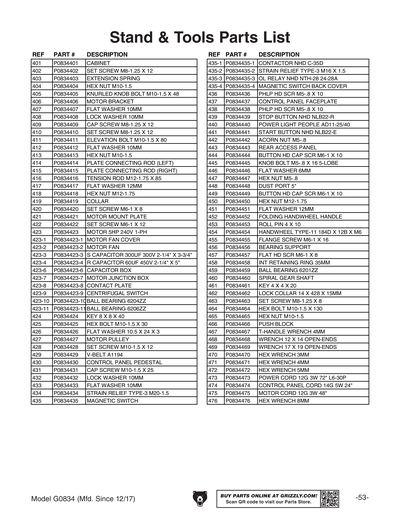

401
CABINET
Price
$4,419.25
402
SET SCREW M8-1.25 X 12
Price
N/A
403
EXTENSION SPRING
Price
$14.75
404
HEX NUT M10-1.5
Price
N/A
405
KNURLED KNOB BOLT M10-1.5 X 48
Price
$3.25
406
MOTOR BRACKET
Price
$168.60
407
FLAT WASHER 10MM
Price
N/A
408
LOCK WASHER 10MM
Price
N/A
409
CAP SCREW M8-1.25 X 12
Price
N/A
410
SET SCREW M8-1.25 X 12
Price
N/A
411
ELEVATION BOLT M10-1.5 X 80
Price
$184.75
412
FLAT WASHER 10MM
Price
N/A
413
HEX NUT M10-1.5
Price
N/A
414
PLATE CONNECTING ROD (LEFT)
Price
$12.65
415
PLATE CONNECTING ROD (RIGHT)
Price
$13.70
416
TENSION ROD M12-1.75 X 85
Price
$3.25
417
FLAT WASHER 12MM
Price
N/A
418
HEX NUT M12-1.75
Price
N/A
419
COLLAR
Price
$2.60
420
SET SCREW M6-1 X 8
Price
N/A
421
MOTOR MOUNT PLATE
Price
$66.90
422
SET SCREW M6-1 X 12
Price
N/A
423
MOTOR 5HP 240V 1-PH
Price
$697.20
423-1
MOTOR FAN COVER
Price
$13.70
423-10
BALL BEARING 6204ZZ
Price
N/A
423-11
BALL BEARING 6206ZZ
Price
N/A
423-2
MOTOR FAN
Price
$6.90
423-3
S CAPACITOR 300UF 300V 2-1/4" X 3-3/4"
Price
$22.35
423-4
R CAPACITOR 60UF 450V 2-1/4" X 5"
Price
$17.20
423-6
CAPACITOR BOX
Price
$5.45
423-7
MOTOR JUNCTION BOX
Price
$5.10
423-8
CONTACT PLATE
Price
$5.45
423-9
CENTRIFUGAL SWITCH
Price
$14.35
424
KEY 8 X 8 X 40
Price
N/A
425
HEX BOLT M10-1.5 X 30
Price
N/A
426
FLAT WASHER 10.5 X 24 X 3
Price
$1.90
427
MOTOR PULLEY
Price
$19.85
428
SET SCREW M10-1.5 X 12
Price
N/A
429
V-BELT A1372
Price
$4.35
430
CONTROL PANEL PEDESTAL
Price
$148.45
431
CAP SCREW M10-1.5 X 25
Price
N/A
432
LOCK WASHER 10MM
Price
N/A
433
FLAT WASHER 10MM
Price
N/A
434
STRAIN RELIEF TYPE-3 M20-1.5
Price
$1.90
435
MAGNETIC SWITCH
Price
$223.20
435-1
CONTACTOR NHD C-35D
Price
$118.25
435-2
STRAIN RELIEF TYPE-3 M16 X 1.5
Price
$1.90
435-3
OL RELAY NHD NTH-28 24-28A
Price
$39.20
435-4
MAGNETIC SWITCH BACK COVER
Price
$29.90
436
PHLP HD SCR M5-.8 X 10
Price
N/A
437
CONTROL PANEL FACEPLATE
Price
$25.60
438
PHLP HD SCR M5-.8 X 10
Price
N/A
439
STOP BUTTON NHD NLB22-R
Price
$25.60
440
POWER LIGHT PEOPLE AD11-25/40
Price
$7.60
441
START BUTTON NHD NLB22-E
Price
$23.75
442
ACORN NUT M5-.8
Price
$1.90
443
REAR ACCESS PANEL
Price
$42.85
444
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
445
KNOB BOLT M5-.8 X 16 5-LOBE
Price
$4.70
446
FLAT WASHER 6MM
Price
N/A
447
HEX NUT M5-.8
Price
N/A
448
DUST PORT 5"
Price
$35.25
449
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
450
HEX NUT M12-1.75
Price
N/A
451
FLAT WASHER 12MM
Price
N/A
452
FOLDING HANDWHEEL HANDLE
Price
$25.60
453
ROLL PIN 4 X 10
Price
N/A
454
HANDWHEEL TYPE-11 184D X 12B X M6
Price
$61.50
455
FLANGE SCREW M6-1 X 16
Price
N/A
456
BEARING SUPPORT
Price
$21.95
457
FLAT HD SCR M6-1 X 8
Price
N/A
458
INT RETAINING RING 35MM
Price
N/A
459
BALL BEARING 6201ZZ
Price
N/A
460
SPIRAL GEAR SHAFT
Price
$34.20
461
KEY 4 X 4 X 20
Price
N/A
462
LOCK COLLAR 14 X 428 X 15MM
Price
$2.60
463
SET SCREW M8-1.25 X 8
Price
N/A
464
HEX BOLT M10-1.5 X 130
Price
$1.90
465
HEX NUT M10-1.5
Price
N/A
466
Safety Push Block - Small
Price
N/A
467
T-HANDLE WRENCH 4MM
Price
$9.65
468
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
469
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
470
HEX WRENCH 3MM
Price
N/A
471
HEX WRENCH 4MM
Price
N/A
472
HEX WRENCH 5MM
Price
N/A
473
POWER CORD 12G 3W 72" L6-30P
Price
$57.90
474
CONTROL PANEL CORD 14G 5W 24"
Price
$43.50
475
MOTOR CORD 12G 3W 48"
Price
$45.70

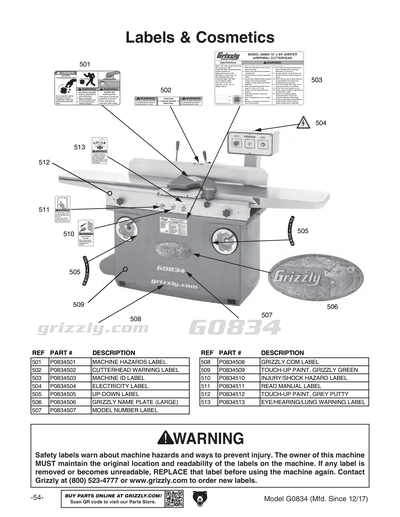

501
MACHINE HAZARDS LABEL
Price
$1.90
502
CUTTERHEAD WARNING LABEL
Price
$1.25
503
MACHINE ID LABEL
Price
$16.40
504
ELECTRICITY 1.4W X 1.2H
Price
N/A
505
UP-DOWN LABEL
Price
$1.25
506
Nameplate - Large
Price
N/A
507
MODEL NUMBER LABEL
Price
$31.90
508
GRIZZLY.COM LABEL 9.875",BEIGE
Price
N/A
509
N/S GRIZZLY GREEN G1023S
Price
N/A
510
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
511
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
512
GREY PUTTY REF G0504
Price
N/A
513
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
MAN
G0834 MANUAL MFD 12.17 V1.01.18
Price
$14.65
