Parts for G0835 - 24" x 24" Bowl-Turning Wood Lathe

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

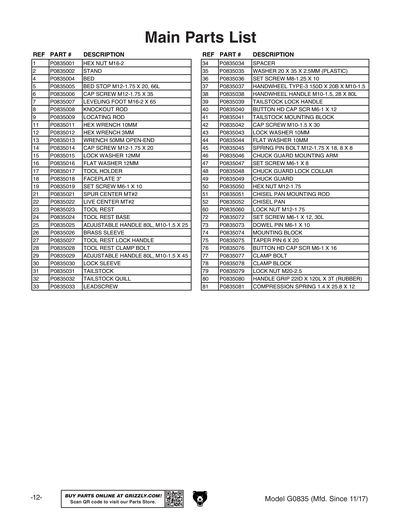

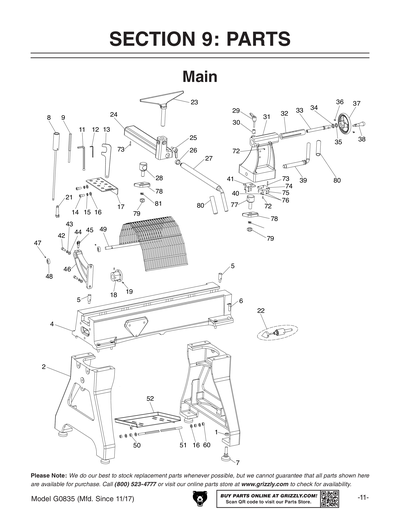

Ref # Part # Description Price Qty
1 P0835001
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement
2 P0835002
Replaced By P0799002
*DISCD*STAND
N/A View Replacement
4 P0835004
*DISCD*BED
Item is no longer available
N/A
5 P0835005
Replaced By P0799005
BED STOP M12-1.75 X 20, 66L
N/A View Replacement
6 P0835006
Replaced By PCAP111M
CAP SCREW M12-1.75 X 35
N/A View Replacement
7 P0835007
Replaced By P0799007
LEVELING FOOT M16-2 X 65
N/A View Replacement
8 P0835008
Replaced By P0799008
KNOCKOUT ROD
N/A View Replacement
9 P0835009
Replaced By P0799009
LOCATING ROD
N/A View Replacement
10 P0835010
Replaced By P0799010
LIVE CENTER PIN
N/A View Replacement
11 P0835011
Replaced By PAW10M
HEX WRENCH 10MM
N/A View Replacement
12 P0835012
Replaced By PAW03M
HEX WRENCH 3MM
N/A View Replacement
13 P0835013
Replaced By P0799013
WRENCH 50MM OPEN-END
N/A View Replacement
14 P0835014
Replaced By PCAP129M
CAP SCREW M12-1.75 X 20
N/A View Replacement
15 P0835015
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
16 P0835016
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
17 P0835017
Replaced By P0799017
TOOL HOLDER
N/A View Replacement
18 P0835018
Replaced By P0799018
FACEPLATE 3
N/A View Replacement
19 P0835019
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
21 P0835021
Replaced By P0799021
SPUR CENTER MT#2
N/A View Replacement
22 P0835022
Replaced By P0799022
LIVE CENTER MT#2
N/A View Replacement
23 P0835023
Replaced By P0799023
TOOL REST
N/A View Replacement
24 P0835024
Replaced By P0799024
TOOL REST BASE
N/A View Replacement
25 P0835025
Replaced By P0799025
ADJUSTABLE HANDLE 80L, M10-1.5 X 25
N/A View Replacement
26 P0835026
Replaced By P0799026
BRASS SLEEVE
N/A View Replacement
27 P0835027
Replaced By P0799027
TOOL REST LOCK HANDLE
N/A View Replacement
28 P0835028
Replaced By P0799028
TOOL REST CLAMP BOLT
N/A View Replacement
29 P0835029
Replaced By P0799029
*DISCD*ADJUSTABLE HANDLE 80L, M10-1.5 X
N/A View Replacement
30 P0835030
Replaced By P0799030
LOCK SLEEVE
N/A View Replacement
31 P0835031
Replaced By P0800031
TAILSTOCK
N/A View Replacement
32 P0835032
Replaced By P0799032
TAILSTOCK QUILL
N/A View Replacement
33 P0835033
Replaced By P0799033
LEADSCREW
N/A View Replacement
34 P0835034
Replaced By P0799034
SPACER
N/A View Replacement
35 P0835035
Replaced By P0799035
PLASTIC WASHER 20 X 31 X 2.5MM
N/A View Replacement
36 P0835036
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
37 P0835037
Replaced By P0799037
HANDWHEEL TYPE-3 150D X 20B X M10-1.5
N/A View Replacement
38 P0835038
Replaced By P0799038
REVOLVING HANDLE M10-1.5, 28 X 81
N/A View Replacement
39 P0835039
Replaced By P0799039
TAILSTOCK LOCK HANDLE
N/A View Replacement
40 P0835040
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
41 P0835041
Replaced By P0799041
TAILSTOCK MOUNTING BLOCK
N/A View Replacement
42 P0835042
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
43 P0835043
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
44 P0835044
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
45 P0835045
Replaced By P0799045
SPRING PIN BOLT M12-1.75 X 18, 8 X 8
N/A View Replacement
46 P0835046
Replaced By P0800046
CHUCK GUARD MOUNTING ARM
N/A View Replacement
47 P0835047
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
48 P0835048
Replaced By P0799048
CHUCK GUARD LOCK COLLAR
N/A View Replacement
49 P0835049
Replaced By P0800049
CHUCK GUARD
N/A View Replacement
50 P0835050
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
51 P0835051 CHISEL PAN MOUNTING ROD $36.00
52 P0835052
Replaced By P0799052
CHISEL PAN
N/A View Replacement
60 P0835060
Replaced By PLN09M
LOCK NUT M12-1.75
N/A View Replacement
72 P0835072
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
73 P0835073
*DISCD*DOWEL PIN M6-1 X 10
Item is no longer available
N/A
74 P0835074
Replaced By P0799074
MOUNTING BLOCK
N/A View Replacement
75 P0835075
Replaced By P0799075
TAPER PIN 6 X 20
N/A View Replacement
76 P0835076
Replaced By PCAP115M
BUTTON HD CAP SCR M6-1 X 16
N/A View Replacement
77 P0835077
Replaced By P0799077
CLAMP BOLT
N/A View Replacement
78 P0835078
Replaced By P0799078
CLAMP BLOCK
N/A View Replacement
79 P0835079
Replaced By PLN16M
N/A View Replacement
80 P0835080
Replaced By P0799080
HANDLE GRIP 22ID X 120L X 3T (RUBBER)
N/A View Replacement
81 P0835081
Replaced By P0799081
COMPRESSION SPRING 1.4 X 25.8 X 12
N/A View Replacement

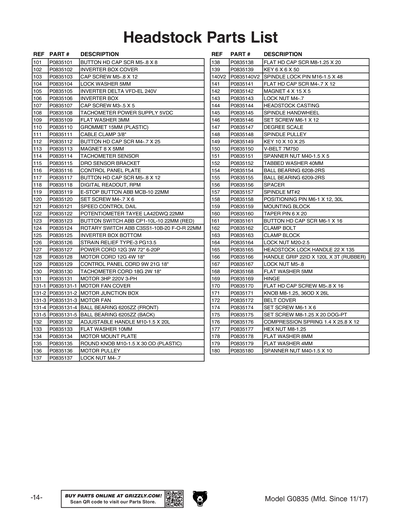

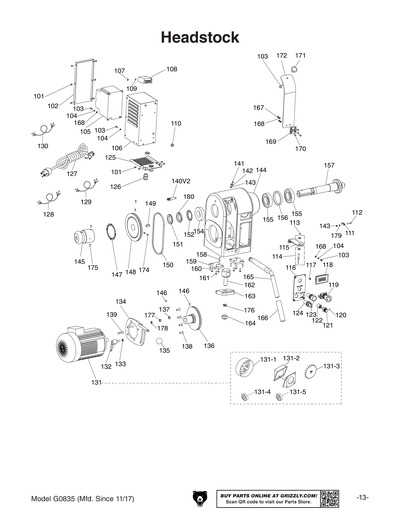

101 P0835101
Replaced By PBHS38M
BUTTON HD CAP SCR M5-.8 X 8
N/A View Replacement
102 P0835102
Replaced By P0799102
INVERTER BOX COVER
N/A View Replacement
103 P0835103
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
104 P0835104
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
105 P0835105
Replaced By P0800105
INVERTER DELTA VFD-EL 240V
N/A View Replacement
106 P0835106
Replaced By P0799106
INVERTER BOX
N/A View Replacement
107 P0835107
Replaced By PCAP125M
CAP SCREW M3-.5 X 5
N/A View Replacement
108 P0835108
Replaced By P0799108
DRO POWER SUPPLY 5VDC
N/A View Replacement
109 P0835109
Replaced By PW07M
FLAT WASHER 3MM
N/A View Replacement
110 P0835110
Replaced By P0799110
PLASTIC GROMMET 15MM
N/A View Replacement
111 P0835111
Replaced By P0799111
CABLE CLAMP 3/8"
N/A View Replacement
112 P0835112
Replaced By PBHS29M
BUTTON HD CAP SCR M4-.7 X 25
N/A View Replacement
113 P0835113
Replaced By P0799113
MAGNET 8 X 5
N/A View Replacement
114 P0835114
Replaced By P0799114
DRO SENSOR
N/A View Replacement
115 P0835115
Replaced By P0799115
SENSOR BRACKET
N/A View Replacement
116 P0835116
Replaced By P0799116
CONTROL PANEL PLATE
N/A View Replacement
117 P0835117
Replaced By PBHS06M
BUTTON HD CAP SCR M5-.8 X 12
N/A View Replacement
118 P0835118
Replaced By P0799118
DIGITAL READOUT, RPM
N/A View Replacement
119 P0835119
Replaced By P0799119
E-STOP BUTTON ABB MCB-10 22MM
N/A View Replacement
120 P0835120
Replaced By PSS79M
SET SCREW M4-.7 X 6
N/A View Replacement
121 P0835121
Replaced By P0799121
SPEED CONTROL KNOB
N/A View Replacement
122 P0835122
Replaced By P0799122
POTENTIOMETER TAYEE LA42DWQ 22MM
N/A View Replacement
123 P0835123
Replaced By P0799123
RESET BUTTON ABB CP1-10L-10 22MM
N/A View Replacement
124 P0835124
Replaced By P0799124
ROTARY SWITCH ABB C3SS1-10B-20 22MM
N/A View Replacement
125 P0835125
Replaced By P0799125
INVERTER BOX BOTTOM
N/A View Replacement
126 P0835126
Replaced By P0799126
STRAIN RELIEF PG13.5 TYPE-3
N/A View Replacement
127 P0835127
*DISCD*POWER CORD 12G 3W 72" 6-20P
Item is no longer available
N/A
128 P0835128
Replaced By P0799128
MOTOR CORD 12G 4W 18"
N/A View Replacement
129 P0835129
Replaced By P0799129
CONTROL PANEL CORD 9W 21G 18"
N/A View Replacement
130 P0835130
Replaced By P0799130
DRO CORD 18G 2W 18"
N/A View Replacement
131 P0835131
*DISCD*MOTOR 3HP 220V 3-PH
Item is no longer available
N/A
131-1 P0835131-1
*DISCD*MOTOR FAN COVER
Item is no longer available
N/A
131-2 P0835131-2
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
N/A
131-3 P0835131-3
*DISCD*MOTOR FAN
Item is no longer available
N/A
131-4 P0835131-4
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
131-5 P0835131-5
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
132 P0835132
Replaced By P0799132
ADJUSTABLE HANDLE M8-1.25 X 20
N/A View Replacement
133 P0835133
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
134 P0835134
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
N/A
135 P0835135
Replaced By P0799135
ROUND KNOB M10-1.5, 32 OD (PLASTIC)
N/A View Replacement
136 P0835136 MOTOR PULLEY $37.50
137 P0835137
Replaced By PLN01M
LOCK NUT M4-.7
N/A View Replacement
138 P0835138
Replaced By PFH68M
FLAT HD CAP SCR M8-1.25 X 20
N/A View Replacement
139 P0835139
Replaced By PK44M
KEY 6 X 6 X 50
N/A View Replacement
140 P0835140 SPINDLE LOCK PIN M16-1.5 X 48 V2.02.18 $15.00
141 P0835141
Replaced By PFH92M
FLAT HD CAP SCR M4-.7 X 12
N/A View Replacement
142 P0835142
Replaced By P0799142
MAGNET 4 X 15 X 5
N/A View Replacement
143 P0835143
Replaced By PLN01M
LOCK NUT M4-.7
N/A View Replacement
144 P0835144
Replaced By P0800144
HEADSTOCK CASTING
N/A View Replacement
145 P0835145
Replaced By P0799145
SPINDLE HANDWHEEL
N/A View Replacement
146 P0835146
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
147 P0835147
Replaced By P0799147
DEGREE SCALE
N/A View Replacement
148 P0835148
*DISCD*SPINDLE PULLEY
Item is no longer available
N/A
149 P0835149
Replaced By PK90M
KEY 10 X 10 X 25
N/A View Replacement
150 P0835150
Replaced By P0800150
MOTOR BELT 7M750
N/A View Replacement
151 P0835151
Replaced By P0799151
SPANNER NUT M40-1.5
N/A View Replacement
152 P0835152
Replaced By P0799152
TABBED WASHER 40MM
N/A View Replacement
154 P0835154
Replaced By P6208-2RS
BALL BEARING 6208-2RS
N/A View Replacement
155 P0835155
Replaced By P6209-2RS
BALL BEARING 6209-2RS
N/A View Replacement
156 P0835156
Replaced By P0799156
SPACER
N/A View Replacement
157 P0835157
Replaced By P0799157
SPINDLE MT#2
N/A View Replacement
158 P0835158
Replaced By P07991073
N/A View Replacement
159 P0835159
*DISCD*MOUNTING BLOCK
Item is no longer available
N/A
160 P0835160
Replaced By P0799075
TAPER PIN 6 X 20
N/A View Replacement
161 P0835161
Replaced By PCAP115M
BUTTON HD CAP SCR M6-1 X 16
N/A View Replacement
162 P0835162
Replaced By P0799077
CLAMP BOLT
N/A View Replacement
163 P0835163
Replaced By P0799078
CLAMP BLOCK
N/A View Replacement
164 P0835164
Replaced By P0799079
LOCK NUT M20-2.5
N/A View Replacement
165 P0835165
Replaced By P0799165
HEADSTOCK LOCK HANDLE 22 X 135
N/A View Replacement
166 P0835166
Replaced By P0799080
HANDLE GRIP 22ID X 120L X 3T (RUBBER)
N/A View Replacement
167 P0835167
Replaced By PLN02M
LOCK NUT M5-.8
N/A View Replacement
168 P0835168
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
169 P0835169
Replaced By P0799169
HINGE
N/A View Replacement
170 P0835170
Replaced By PFH74M
FLAT HD CAP SCR M5-.8 X 16
N/A View Replacement
171 P0835171
Replaced By P0799171
KNOB M8-1.25, 36 OD X 26L
N/A View Replacement
172 P0835172
Replaced By P0800172
BELT COVER
N/A View Replacement
174 P0835174
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
175 P0835175
Replaced By PSS153M
SET SCREW M8-1.25 X 20 DOG-PT
N/A View Replacement
176 P0835176
Replaced By P0799081
COMPRESSION SPRING 1.4 X 25.8 X 12
N/A View Replacement
177 P0835177
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
178 P0835178
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
179 P0835179
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
180 P0835180
*DISCD*SPANNER NUT M40-1.5 X 10
Item is no longer available
N/A

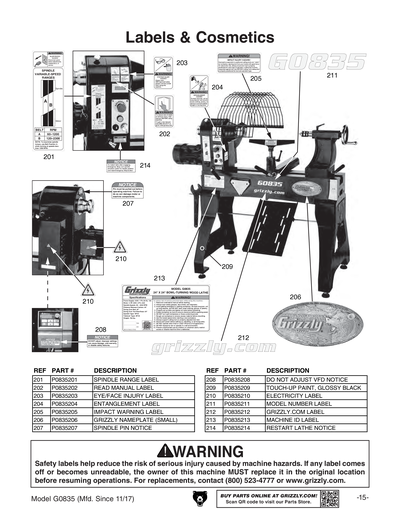

201 P0835201
*DISCD*SPINDLE RANGE LABEL
Item is no longer available
N/A
202 P0835202
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
N/A View Replacement
203 P0835203
Replaced By PLABEL-88A
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
N/A View Replacement
204 P0835204
Replaced By PLABEL-55
ENTANGLEMENT HAZARD 2W X 3.3H
N/A View Replacement
205 P0835205
*DISCD*IMPACT WARNING LABEL
Item is no longer available
N/A
206 P0835206
Replaced By G8588
Name Plates - Small
N/A View Replacement
207 P0835207
Replaced By P0799207
SPINDLE PIN NOTICE
N/A View Replacement
208 P0835208
Replaced By P0799208
DO NOT ADJUST VFD NOTICE
N/A View Replacement
209 P0835209
Replaced By PPAINT-7
GLOSSY BLACK
N/A View Replacement
210 P0835210
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
211 P0835211
*DISCD*MODEL NUMBER LABEL
Item is no longer available
N/A
212 P0835212
Replaced By P0799212
GRIZZLY.COM LABEL
N/A View Replacement
213 P0835213 MACHINE ID LABEL $9.50
214 P0835214
Replaced By P0799214
RESTART LATHE NOTICE
N/A View Replacement
MAN P0835MAN MANUAL G0835 MFG-12.17 V1.02.18 $21.00
