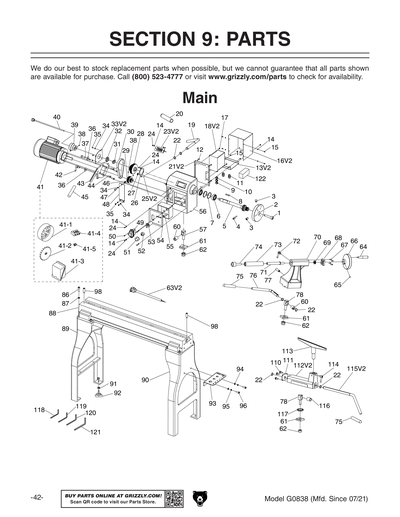

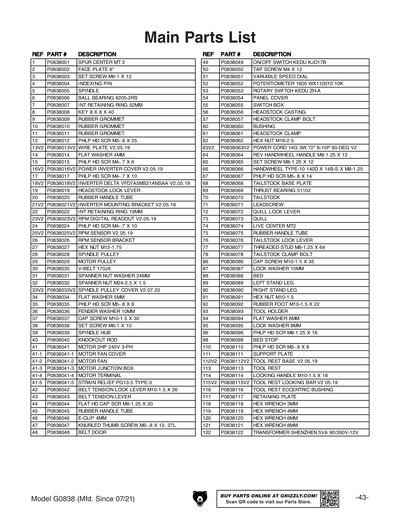

Parts for G0838 16" x 24" Variable-Speed Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SPUR CENTER MT2
Price
N/A
2
FACE PLATE 6"
3
SET SCREW M6-1 X 12
Price
N/A
4
INDEXING PIN
5
SPINDLE
6
BALL BEARING 6205-2RS
Price
N/A
7
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
8
KEY 8 X 8 X 40
9
RUBBER GROMMET
10
RUBBER GROMMET
11
RUBBER GROMMET
12
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
13
WIRE PLATE V2.05.19
Price
N/A
13V2
WIRE PLATE V2.05.19
14
Now: PW05M
FLAT WASHER 4MM
Price
N/A
15
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
16
POWER INVERTER COVER V2.05.19
Price
N/A
16V2
POWER INVERTER COVER V2.05.19
17
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
18
POWER INVERTER DELTA VFD-M VFD015M21A
18V2
INVERTER DELTA VFD7A5MS21ANSAA V2.05.19
Price
N/A
19
HEADSTOCK LOCK LEVER
20
RUBBER HANDLE TUBE
21
INVERTER MOUNTING BRACKET V1
21V2
INVERTER MOUNTING BRACKET V2.05.19
22
Now: PR79M
INT RETAINING RING 19MM
Price
N/A
23
RPM DIGITAL READOUT W/SENSOR V2.05.19
Price
N/A
23V2
RPM DIGITAL READOUT W/SENSOR V2.05.19
24
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
25
RPM SENSOR V1
25V2
RPM DIGITAL READOUT W/SENSOR V2.05.19
Price
N/A
26
RPM SENSOR BRACKET
27
Now: PN09M
HEX NUT M12-1.75
Price
N/A
28
SPINDLE PULLEY
29
MOTOR PULLEY
30
V-BELT 170J6
31
SPANNER NUT WASHER 24MM
32
SPANNER NUT M24-2.5 X 1.5
33
SPINDLE PULLEY COVER V2.07.20
Price
N/A
33V2
SPINDLE PULLEY COVER V2.07.20
34
Now: PW02M
FLAT WASHER 5MM
Price
N/A
35
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
36
FENDER WASHER 10MM
Price
N/A
37
CAP SCREW M10-1.5 X 30
Price
N/A
38
SET SCREW M6-1 X 10
Price
N/A
39
SPINDLE HUB
40
KNOCKOUT ROD
41
MOTOR 2HP 220V 3-PH
Price
N/A
41-1
MOTOR FAN COVER
41-2
MOTOR FAN
41-3
MOTOR JUNCTION BOX
41-4
MOTOR TERMINAL
41-5
STRAIN RELIEF PG13.5 TYPE-3
42
BELT TENSION LOCK LEVER M10-1.5 X 26
43
BELT TENSION LEVER
44
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
45
RUBBER HANDLE TUBE
Price
N/A
46
E-CLIP 4MM
Price
N/A
47
KNURLED THUMB SCREW M5-.8 X 12, 27L
48
BELT DOOR
49
ON/OFF SWITCH KEDU KJD17B
50
TAP SCREW M4 X 12
Price
N/A
51
VARIABLE SPEED DIAL
52
POTENTIOMETER WX1 10 010 10K
Price
N/A
53
ROTARY SWITCH KEDU ZH-A
54
PANEL COVER
55
SWITCH BOX
56
HEADSTOCK CASTING
56A
COMPLETE HEADSTOCK ASSEMBLY
57
HEADSTOCK CLAMP BOLT
60
BUSHING
61
HEADSTOCK CLAMP
62
Now: PN29M
HEX NUT M18-2.5
Price
N/A
63
POWER CORD 14G 3W 72" 6-15P V1
63V2
POWER CORD 14G 3W 72" 6-15P 90-DEG V2
64
REVOLVING HANDWHEEL HANDLE M8-1.25 X 12
65
SET SCREW M8-1.25 X 12
Price
N/A
66
HANDWHEEL TYPE-10 140D X 14B-S X M8-1.25
67
Now: PS57M
PHLP HD SCR M5-.8 X 14
Price
N/A
68
TAILSTOCK BASE PLATE
69
THRUST BEARING 51102
Price
N/A
70
TAILSTOCK
71
LEADSCREW
72
QUILL LOCK LEVER
Item is no longer available
Price
N/A
73
QUILL
74
LIVE CENTER MT2
75
RUBBER HANDLE TUBE
Price
N/A
76
TAILSTOCK LOCK LEVER
77
THREADED STUD M8-1.25 X 64
78
TAILSTOCK CLAMP BOLT
86
CAP SCREW M10-1.5 X 35
Price
N/A
87
LOCK WASHER 10MM
Price
N/A
88
BED
89
LEFT STAND LEG
90
RIGHT STAND LEG
91
Now: PN02M
HEX NUT M10-1.5
Price
N/A
92
RUBBER FOOT M10-1.5 X 22
93
TOOL HOLDER
94
Now: PW01M
FLAT WASHER 8MM
Price
N/A
95
LOCK WASHER 8MM
Price
N/A
96
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A
98
BED STOP
110
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
111
SUPPORT PLATE
112
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
112V2
TOOL REST BASE V2 05.19
113
TOOL REST
114
ADJUSTABLE HANDLE 65L, M10-1.5 X 18
Price
N/A
115
TOOL REST LOCKING BAR V1
115V2
TOOL REST LOCKING BAR V2 05.19
116
TOOL REST ECCENTRIC BUSHING
117
RETAINING PLATE
118
HEX WRENCH 3MM
Price
N/A
119
HEX WRENCH 4MM
Price
N/A
120
HEX WRENCH 6MM
Price
N/A
121
HEX WRENCH 8MM
Price
N/A
122
TRANSFORMER SHENZHEN 5VA 90/260V-12V

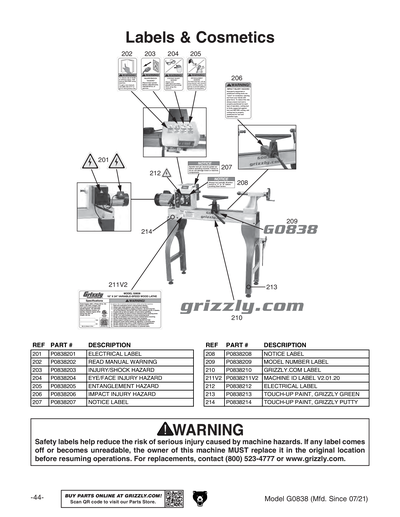

201
ELECTRICITY 0.7W X 0.6H
Price
N/A
202
READ MANUAL 1.5W X 2.5H
Price
N/A
203
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
204
EYE/FACE INJURY HAZARD
205
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
206
IMPACT INJURY HAZARD
207
NOTICE LABEL
208
NOTICE LABEL
209
MODEL NUMBER LABEL
210
GRIZZLY.COM LABEL 9",GREEN
Price
N/A
211
MACHINE ID LABEL V1
211V2
MACHINE ID LABEL V2.01.20
212
ELECTRICITY 1.4W X 1.2H
Price
N/A
213
N/S GRIZZLY GREEN G1023S
Price
N/A
214
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0838 MFD-09.17-04.19 V1.05.18
MANV2
MANUAL G0838 MFD-05.19-12.19 V2.06.19
MANV3
MANUAL G0838 MFD-01.20-06.21 V3.01.20
MANV4
MANUAL G0838 MFD-07.21+ V4.04.21
