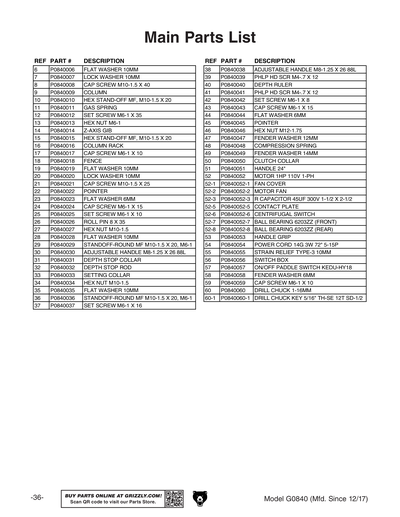

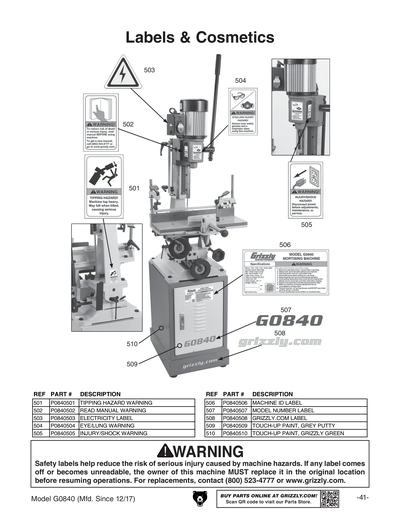

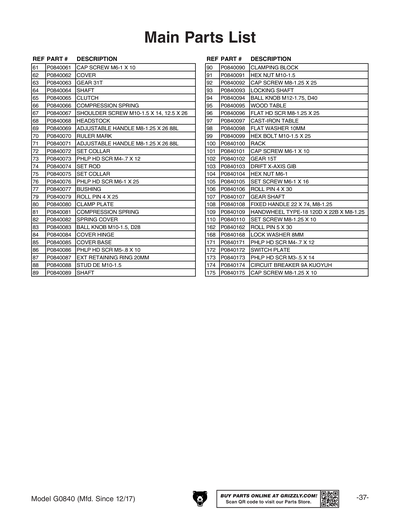

Parts for G0840 - Mortising Machine with XY Table and Stand

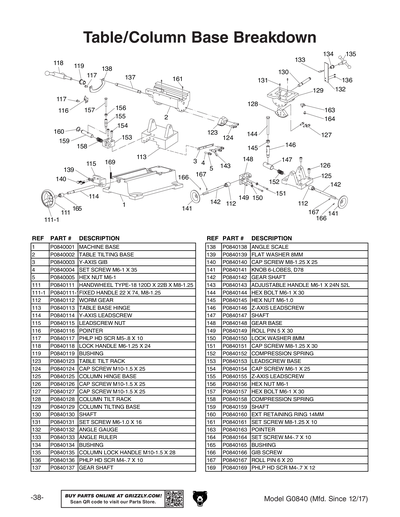

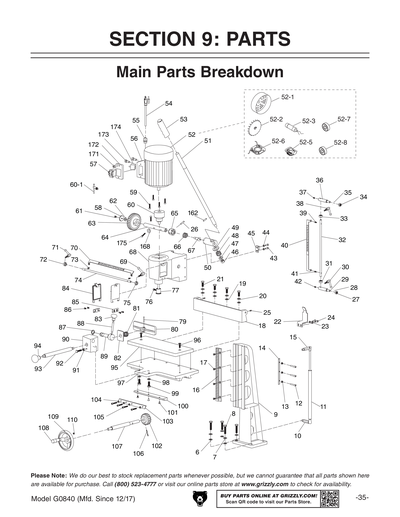

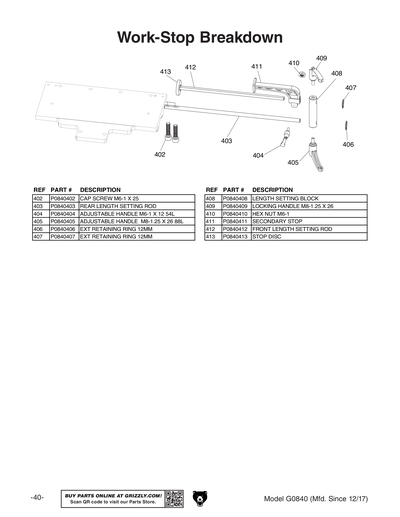

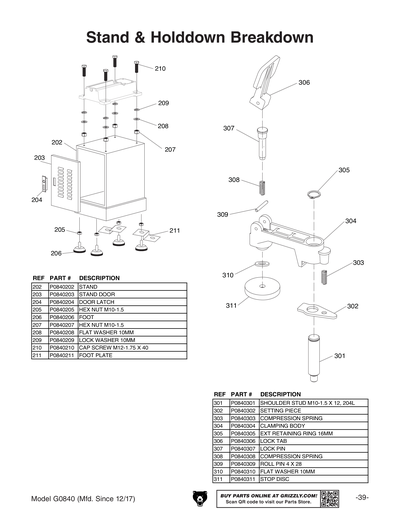

Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840
Part Diagram for G0840

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MACHINE BASE
Item is no longer available
Price
N/A
2
TABLE TILTING BASE
Price
$62.40
3
Y-AXIS GIB
Item is no longer available
Price
N/A
4
SET SCREW M6-1 X 35
Price
N/A
5
HEX NUT M6-1
Price
N/A
6
FLAT WASHER 10MM
Price
N/A
7
LOCK WASHER 10MM
Price
N/A
8
CAP SCREW M10-1.5 X 40
Price
N/A
9
COLUMN
Price
$93.75
10
HEX STAND-OFF MF, M10-1.5 X 20
Item is no longer available
Price
N/A
11
GAS SPRING
Price
$53.35
12
SET SCREW M6-1 X 35
Price
N/A
13
HEX NUT M6-1
Price
N/A
14
Z-AXIS GIB
Price
$7.20
15
HEX STAND-OFF MF, M10-1.5 X 20
Item is no longer available
Price
N/A
16
COLUMN RACK
Price
$29.90
17
CAP SCREW M6-1 X 10
Price
N/A
18
FENCE
Price
$58.65
19
FLAT WASHER 10MM
Price
N/A
20
LOCK WASHER 10MM
Price
N/A
21
CAP SCREW M10-1.5 X 25
Price
N/A
22
POINTER
Price
$7.20
23
FLAT WASHER 6MM
Price
N/A
24
CAP SCREW M6-1 X 15
Price
N/A
25
SET SCREW M6-1 X 10
Price
N/A
26
ROLL PIN 8 X 35
Price
N/A
27
HEX NUT M10-1.5
Price
N/A
28
FLAT WASHER 10MM
Price
N/A
29
STANDOFF-ROUND MF M10-1.5 X 20, M6-1
Price
$3.20
30
ADJUSTABLE HANDLE M8-1.25 X 26 88L
Price
$6.15
31
DEPTH STOP COLLAR
Price
$5.10
32
DEPTH STOP ROD
Price
$9.50
33
DEPTH STOP COLLAR
Price
N/A
34
HEX NUT M10-1.5
Price
N/A
35
FLAT WASHER 10MM
Price
N/A
36
STANDOFF-ROUND MF M10-1.5 X 20, M6-1
Price
N/A
37
SET SCREW M6-1 X 16
Price
N/A
38
ADJUSTABLE HANDLE M8-1.25 X 26 88L
Price
N/A
39
PHLP HD SCR M4-.7 X 12
Price
N/A
40
DEPTH RULER
Item is no longer available
Price
N/A
41
PHLP HD SCR M4-.7 X 12
Price
N/A
42
SET SCREW M6-1 X 8
Price
N/A
43
CAP SCREW M6-1 X 15
Price
N/A
44
FLAT WASHER 6MM
Price
N/A
45
POINTER
Price
$3.20
46
HEX NUT M12-1.75
Price
N/A
47
FENDER WASHER 12MM
Price
N/A
48
COMPRESSION SPRING
Price
$2.20
49
FENDER WASHER 14MM
Price
N/A
50
CLUTCH COLLAR
Price
$31.35
51
HANDLE 24"
Price
$34.20
52
MOTOR 1HP 110V 1-PH
Price
$410.70
52-1
FAN COVER
Price
$9.00
52-2
MOTOR FAN
Price
$2.60
52-3
R CAPACITOR 45UF 300V 1-1/2 X 2-1/2
Price
$21.95
52-5
CONTACT PLATE
Item is no longer available
Price
N/A
52-6
CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
52-7
BALL BEARING 6203ZZ
Price
N/A
52-8
BALL BEARING 6203ZZ
Price
N/A
53
HANDLE GRIP
Price
$9.00
54
POWER CORD 14G 3W 72" 5-15P
Price
$21.30
55
STRAIN RELIEF TYPE-3 10MM
Price
$3.20
56
SWITCH BOX
Price
$10.10
57
ON/OFF PADDLE SWITCH KEDU-HY18
Price
$12.95
58
FENDER WASHER 6MM
Price
N/A
59
CAP SCREW M6-1 X 10
Price
N/A
60
DRILL CHUCK 1-16MM
Price
$21.60
60-1
DRILL CHUCK KEY 5/16" TH-SE 12T SD-1/2
Price
$3.25
61
CAP SCREW M6-1 X 10
Price
N/A
62
COVER
Item is no longer available
Price
N/A
63
GEAR 31T
Price
$38.55
64
SHAFT
Price
$9.00
65
CLUTCH
Price
$21.85
66
COMPRESSION SPRING
Price
$3.20
67
SHOULDER SCREW M10-1.5 X 14, 12.5 X 26
Price
$6.15
68
HEADSTOCK
Price
$109.25
69
ADJUSTABLE HANDLE M8-1.25 X 26 88L
Price
N/A
70
RULER MARK
Price
$4.05
71
ADJUSTABLE HANDLE M8-1.25 X 26 88L
Price
N/A
72
SET COLLAR
Price
$4.05
73
PHLP HD SCR M4-.7 X 12
Price
N/A
74
SET ROD
Price
$14.10
75
SET COLLAR
Price
N/A
76
PHLP HD SCR M6-1 X 25
Price
N/A
77
BUSHING
Price
$10.10
78
MORTISING CHISEL W/ BIT 5/8"
Item is no longer available
Price
N/A
79
ROLL PIN 4 X 25
Price
N/A
80
CLAMP PLATE
Price
$11.80
81
COMPRESSION SPRING
Price
$4.05
82
SPRING COVER
Price
$2.60
83
BALL KNOB M10-1.5, D28
Price
$1.75
84
COVER HINGE
Price
$1.49
85
COVER BASE
Price
$1.49
86
PHLP HD SCR M5-.8 X 10
Price
N/A
87
EXT RETAINING RING 20MM
Price
N/A
88
STUD DE M10-1.5
Price
$4.90
89
SHAFT
Price
$18.15
90
CLAMPING BLOCK
Price
$17.25
91
HEX NUT M10-1.5
Price
N/A
92
CAP SCREW M8-1.25 X 25
Price
N/A
93
LOCKING SHAFT
Price
$7.20
94
BALL KNOB M12-1.75, D40
Item is no longer available
Price
N/A
95
WOOD TABLE
Price
$9.00
96
FLAT HD SCR M8-1.25 X 25
Price
N/A
97
CAST-IRON TABLE
Price
$148.35
98
FLAT WASHER 10MM
Price
N/A
99
HEX BOLT M10-1.5 X 25
Price
N/A
100
RACK
Price
$49.20
101
CAP SCREW M6-1 X 10
Price
N/A
102
GEAR 15T
Price
$29.90
103
DRIFT X-AXIS GIB
Price
$8.65
104
HEX NUT M6-1
Price
N/A
105
SET SCREW M6-1 X 16
Price
N/A
106
ROLL PIN 4 X 30
Price
N/A
107
GEAR SHAFT
Price
$17.25
108
FIXED HANDLE 22 X 74, M8-1.25
Price
$6.90
109
HANDWHEEL TYPE-18 120D X 22B X M8-1.25
Price
$9.50
110
SET SCREW M8-1.25 X 10
Price
N/A
111
HANDWHEEL TYPE-18 120D X 22B X M8-1.25
Price
N/A
111-1
FIXED HANDLE 22 X 74, M8-1.25
Price
N/A
112
WORM GEAR
Price
$13.70
113
TABLE BASE HINGE
Price
$86.00
114
Y-AXIS LEADSCREW
Item is no longer available
Price
N/A
115
LEADSCREW NUT
Price
$19.55
116
POINTER
Price
$1.49
117
PHLP HD SCR M5-.8 X 10
Price
N/A
118
LOCK HANDLE M6-1.25 X 24
Price
$7.20
119
BUSHING
Price
$3.20
123
TABLE TILT RACK
Price
$14.10
124
CAP SCREW M10-1.5 X 25
Price
N/A
125
COLUMN HINGE BASE
Price
$76.50
126
CAP SCREW M10-1.5 X 25
Price
N/A
127
CAP SCREW M10-1.5 X 25
Price
N/A
128
COLUMN TILT RACK
Price
$13.70
129
COLUMN TILTING BASE
Price
$83.70
130
SHAFT
Price
$6.35
131
SET SCREW M6-1.0 X 16
Item is no longer available
Price
N/A
132
ANGLE GAUGE
Price
$12.65
133
ANGLE RULER
Price
$9.50
134
BUSHING
Price
$3.20
135
COLUMN LOCK HANDLE M10-1.5 X 28
Item is no longer available
Price
N/A
136
PHLP HD SCR M4-.7 X 10
Price
N/A
137
GEAR SHAFT
Price
$9.50
138
ANGLE SCALE
Price
$4.90
139
FLAT WASHER 8MM
Price
N/A
140
CAP SCREW M8-1.25 X 25
Price
N/A
141
KNOB 6-LOBES, D78
Price
$5.45
142
GEAR SHAFT
Price
$6.90
143
ADJUSTABLE HANDLE M6-1 X 24N 52L
Item is no longer available
Price
N/A
144
HEX BOLT M6-1 X 30
Price
N/A
145
HEX NUT M6-1
Price
N/A
146
Z-AXIS LEADSCREW
Price
$2.60
147
SHAFT
Price
$1.75
148
GEAR BASE
Price
$9.50
149
ROLL PIN 5 X 30
Price
N/A
150
LOCK WASHER 8MM
Price
N/A
151
CAP SCREW M8-1.25 X 30
Price
N/A
152
COMPRESSION SPRING
Price
$2.60
153
LEADSCREW BASE
Price
$5.20
154
CAP SCREW M6-1 X 25
Price
N/A
155
Z-AXIS LEADSCREW
Price
N/A
156
HEX NUT M6-1
Price
N/A
157
HEX BOLT M6-1 X 30
Price
N/A
158
COMPRESSION SPRING
Price
$5.20
159
SHAFT
Price
$4.05
160
EXT RETAINING RING 14MM
Price
N/A
161
SET SCREW M8-1.25 X 10
Price
N/A
162
ROLL PIN 5 X 30
Price
N/A
163
POINTER
Item is no longer available
Price
N/A
164
SET SCREW M4-.7 X 10
Price
N/A
165
BUSHING
Item is no longer available
Price
N/A
166
GIB SCREW
Item is no longer available
Price
N/A
167
ROLL PIN 6 X 20
Price
N/A
168
LOCK WASHER 8MM
Price
N/A
169
PHLP HD SCR M4-.7 X 12
Price
N/A
171
PHLP HD SCR M4-.7 X 12
Price
N/A
172
SWITCH PLATE
Price
$6.90
173
PHLP HD SCR M3-.5 X 14
Price
N/A
174
CIRCUIT BREAKER 9A KUOYUH
Price
$5.45
175
CAP SCREW M8-1.25 X 10
Price
N/A
202
STAND
Price
$223.95
203
STAND DOOR
Price
$24.45
204
DOOR LATCH
Item is no longer available
Price
N/A
205
HEX NUT M10-1.5
Price
N/A
206
FOOT
Item is no longer available
Price
N/A
207
HEX NUT M10-1.5
Price
N/A
208
FLAT WASHER 10MM
Price
N/A
209
LOCK WASHER 10MM
Price
N/A
210
CAP SCREW M12-1.75 X 40
Price
N/A
211
FOOT PLATE
Item is no longer available
Price
N/A
301
SHOULDER STUD M10-1.5 X 12, 204L
Price
$16.20
302
SETTING PIECE
Price
$5.10
303
COMPRESSION SPRING
Price
$2.20
304
CLAMPING BODY
Price
$27.35
305
EXT RETAINING RING 16MM
Price
N/A
306
LOCK TAB
Price
$3.75
307
LOCK PIN
Price
$3.75
308
COMPRESSION SPRING
Price
$1.90
309
ROLL PIN 4 X 28
Price
N/A
310
FLAT WASHER 10MM
Price
N/A
311
STOP DISC
Price
$4.25
402
CAP SCREW M6-1 X 25
Price
N/A
403
REAR LENGTH SETTING ROD
Price
$8.05
404
ADJUSTABLE HANDLE M6-1 X 12 54L
Price
$4.90
405
ADJUSTABLE HANDLE M8-1.25 X 26 88L
Price
$5.50
406
EXT RETAINING RING 12MM
Price
N/A
407
EXT RETAINING RING 12MM
Price
N/A
408
LENGTH SETTING BLOCK
Price
$6.35
409
LOCKING HANDLE M8-1.25 X 26
Price
$5.50
410
HEX NUT M6-1
Price
N/A
411
SECONDARY STOP
Price
$6.35
412
FRONT LENGTH SETTING ROD
Price
$7.95
413
STOP DISC
Price
$4.00
501
TIPPING HAZARD WARNING
Item is no longer available
Price
N/A
502
READ MANUAL 1.5W X 2.5H
Price
N/A
503
ELECTRICITY 0.7W X 0.6H
Price
N/A
504
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
505
INJURY/SHOCK WARNING
Item is no longer available
Price
N/A
506
MACHINE ID LABEL
Item is no longer available
Price
N/A
507
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
508
GRIZZLY.COM LABEL 8",BEIGE
Price
N/A
509
N/S GRIZZLY GREEN G1023S
Price
N/A
510
GREY PUTTY REF G0504
Price
N/A
BOX2
COMPLETE BOX 2 OF 2 FOR G0840
Item is no longer available
Price
N/A
MAN
MANUAL G0840 MFD-10.17 V1.05.18
Item is no longer available
Price
N/A
